1960 CERV I OVERVIEW
“CERV I is design without limits. It is very fast. It is very sensitive. It amplifies all disturbances of steering and driver control, and all problems of transmitting power to the road. It is an admirable tool. It tells us, for example, what to put in Corvette, for the highest margin of safety for the driver.” — Zora Arkus-Duntov, Esquire, November 1961.

Prologue: Why a Mid-Engine “Research Vehicle” in 1960?

By the end of the 1950s, the center of gravity in top-tier racing had literally moved. Front-engine “roadsters” still thundered around Indianapolis, but in Europe, nimble mid-engine Coopers were rewriting the Formula One playbook. Zora Arkus-Duntov—already the driving intellectual force behind Chevrolet’s young sports car—saw the shift up close and understood what it meant: a mid-engine platform promised better weight distribution, a lower polar moment, and a clearer path to extracting all the tire had to give.

Inside General Motors, however, the 1957 Automobile Manufacturers Association (AMA) “ban” on factory-backed racing still hung like a storm cloud. Duntov’s answer was pure Zora—if he could not race, he would research. The Chevrolet Engineering Research Vehicle—CERV—would be a fully functional, single-seat, mid-engine machine built to racing standards but justified as an engineering instrument. It could go where no brochure-friendly test mule could and bring back data that would filter directly into Chevrolet’s production cars—especially Corvette.

The Birth of an Idea: From the “R-Car” and “Hillclimber” to CERV I

Work began in 1959 with a small, formidable team: Zora at the center, flanked by engineers Harold Krieger and Walt Zetye, with designers Larry Shinoda and Tony Lapine brought in as the packaging congealed. Krieger and Zetye were the hands-on translators of Zora’s philosophy into metal—mapping hard points, triangulating the chromoly spaceframe, sorting the kinematics of a fully independent suspension that would talk back at the limit. Shinoda and Lapine, working under Bill Mitchell’s watchful eye, took that ruthless packaging and wrapped it in a minimal fiberglass skin that was thin by design—just enough to manage airflow and keep the driver out of the slipstream, while leaving the mechanicals visible and accessible. The studio nickname captured the mood: this wasn’t a style exercise; it was a machine to be driven and read.

Bare fiberglass, a tiny windscreen, and a grinning engineer at the wheel—this is the no-nonsense testbed ethos that shaped Chevrolet’s experimental era. In 1955, Zora Arkus-Duntov stormed Pikes Peak in a thinly disguised ’56 Chevrolet and set a new production-class record, using the mountain as his laboratory for the fledgling small-block V-8. The brutality of that climb—heat, broken pavement, and tire slip at altitude—cemented his conviction to centralize mass and “listen to the tire,” a philosophy that would harden into the mid-engine CERV I. In many ways, this image is the prologue to Zora’s “design without limits.” (Image courtesy of GM Media LLC)

Internally, the project went by the plain “R-Car,” a catch-all label from Chevrolet Engineering that said everything and nothing. Around the design studios, though, it quickly picked up a more evocative moniker—“Hillclimber.” That wasn’t idle poetry. Zora had unfinished business on the mountain. He’d set a production-car record at Pikes Peak in 1955 in a disguised Chevrolet test mule, and the place had imprinted on him: long climbs, broken surfaces, and corners that punished any vagueness in chassis or tire. From the outset he wanted a car that could go back and take the overall—not just as a publicity stunt, but as a brutal proving ground. If a new Chevrolet single-seater could stay composed on the Peak, it would be composed anywhere.

Larry Shinoda’s April 26, 1960 rendering turns CERV-I—the Chevrolet Engineering Research Vehicle—into a lithe, Indy-inspired projectile. On black board, he punches up the essentials: razor nose, faired headrest, external headers, and knock-off magnesium wheels, all streaked with motion lines and bold “11” numerals. Look closer at the cockpit rim and you’ll see Zora Arkus-Duntov’s name hand-lettered—an explicit stamp that this was Zora’s vision and “rolling laboratory.” Rivet lines and vent slats telegraph aircraft logic; it’s classic Shinoda—clean, purposeful, and fast even at a standstill.

Dimensionally, Duntov sketched the car inside the broad Indianapolis envelope of the day—about a 96-inch wheelbase, open wheels, narrow overall width—so that, on paper at least, the door to the Speedway remained unlocked. He avoided painting himself into a formula corner: the layout and silhouette were Indy-correct if the rules ever mattered, but the powerplant could be anything the test program demanded. Even the cockpit ergonomics nodded to oval work; Zora specified dual brake pedals to enable left-foot braking and kept the controls dense and immediate. In effect, CERV I was packaged like a contemporary Champ car, then liberated from the constraints of a rulebook so it could chase whatever question the engineers needed answered that week.

Inside GM, where corporate policy still frowned on racing, Zora sold the car with a scientist’s logic. His pitch reduced to a sentence: build a vehicle that amplifies everything. Make it so light and so centralized that every steering input, every load transfer, every change in tire slip angle comes through louder and sooner. That thinking dictated the architecture. The driver, the dual fuel cells, and the engine cluster are tightly wrapped around the center of gravity to shrink the polar moment; a rigid, triangulated chromoly spaceframe so the suspension—not chassis flex—does the talking; an open-wheel, open-cockpit layout so engineers and drivers can literally watch the front tires and links at work. Even the driveline supported the experiment: a rear transaxle with a quick-change final drive let Krieger and Zetye swing from short-course gearing to high-speed ratios in minutes, not days, so the same chassis could map low-speed compliance in the morning and high-speed stability in the afternoon.

On a jig table in Chevrolet Engineering, Duntov’s group built CERV I’s chassis like an aircraft truss—thin-wall tubing, tight triangulation, and welded bulkheads to carry the mid-mounted small-block. Pickup points were drilled, shimmed, and slotted so the team could sweep camber gain, caster, roll centers, and anti-effects between runs. Independent suspension at both ends, quick 12:1 steering (2.3 turns lock-to-lock), and forward-mounted, low-compliance linkages were chosen to kill slop and kickback, not the feedback. Lightweight hardware—magnesium wheels and liberal use of aluminum—trimmed unsprung mass, allowing the steering “spoke” to speak with clarity. What you see in this photo is the purpose-built lab GM wanted: open cockpit, exposed tanks and plumbing, everything accessible for rapid changeovers—an engineer’s testbed designed to turn geometry experiments into hard data and, ultimately, better Corvettes. (Image courtesy of GM Media LLC)

Shinoda and Lapine’s bodywork followed that brief to the letter. The shell was purposefully thin, hand-laid fiberglass in just a few sections—white with blue center stripes and a single roll hoop—more instrument casing than automobile couture. Air management was pragmatic: a small nose to feed the front-mounted radiator, clean flanks, and intake scoops just aft of the driver’s head to stand the tall ram pipes Zora favored for mid-range torque. The result looked like what it was—a research tool built to run hard, change quickly, and accurately report on its strengths…and its weaknesses.

In Bill Mitchell’s studio, Larry Shinoda and Tony Lapine “skinned” Duntov’s spaceframe the way racers did—tight, thin, and only where structure demanded it. Working off the jig, they pulled a lightweight fiberglass shell over the hard points, carving a low cowl, tiny aero screen, faired headrest, and a clipped tail that bled drag without adding mass. Panels were kept simple and removable so engineering could reach the suspension, plumbing, and mid-mounted small-block between runs. Every scoop and cutout followed function—cooling, clearance, serviceability—so the CERV I’s body became what it needed to be: a fast, clean wrapper for testing ideas at speed. (Image courtesy of GM Media LLC)

Put together, those choices explain why the “Hillclimber” nickname stuck and why the “R-Car” code name sufficed for the paperwork. In the shop, it was a mountain-obsessed single-seater; in the memos, it was the Chevrolet Engineering Research Vehicle—a lab-on-wheels whose sensitivity was the point. And in Zora’s mind, it was both at once: a car packaged carefully enough to be eligible when circumstances allowed, and honest enough in its responses to improve every Chevrolet performance car, whether it ever saw a green flag or not.

Engineering Philosophy: Amplify Everything

The 1960 CERV I was designed to amplify ride and handling phenomena—both to expose problems and to validate solutions. Chevrolet’s own 1960 engineering write-up described it point-blank as a vehicle “for continuous investigations into automotive ride and handling phenomena under the most realistic conditions,” with the explicit goal of magnifying responses so engineers could study them directly. That same factory paper explains why the car was open-wheeled and open-cockpit: the driver and engineers needed an unobstructed view of the front wheels, suspension motion, and tire contact patches in real time.

To achieve the desired “high-gain” behavior, the team concentrated mass near the center of gravity. The driver, dual fuel cells (20 gallons total), and the powertrain were grouped around the middle of the car to lower the polar moment and sharpen responses. The resulting package wasn’t just quick; it was talkative—the kind of car that told you exactly what each corner was doing at the limit and punished ham-fisted inputs.

Structure and Suspension: Chromoly Bones, Fully Independent Limbs

CERV I rode on a welded 4130 chrome-moly tubular spaceframe—thin-wall tubes, close triangulation, and sheeted bulkheads for stiffness with minimal weight. All the hard points were built as test hardware: double-shear brackets, threaded inserts, and slotted/shimmed pickups so camber, caster, toe, anti-effects, and roll centers could be reset in minutes. Up front, unequal-length wishbones carried coil-over dampers and an anti-roll bar, tied to a quick 12:1 steering box (2.3 turns) with forward-mounted, low-compliance linkages. The rear used an independent layout with upper/lower links and radius members locating the mid-mounted powertrain; inboard brakes and magnesium wheels trimmed unsprung mass. Side-saddle tanks and removable panels kept mass centralized and service access easy, yielding a rigid, lightweight testbed that communicated clearly at speed. (Image courtesy of GM Media LLC)

At the heart of the 1960 CERV I sat a triangulated chrome-molybdenum tubular spaceframe, its long, slender members forming a rigid spine without the weight of a ladder frame. Contemporary company literature emphasized that the structure was stiff enough to let the suspension do the“talking,” rather than the chassis flex muddying the message. The frame, clothed in thin fiberglass, supported fully independent suspension at all four corners.

Up front, Chevrolet used a high-roll-center geometry with variable-rate coil springs and direct-acting, double-acting dampers. In back, the layout previewed what would become a Corvette hallmark: each rear wheel’s vertical motion was controlled by two lateral links—the upper link doubling as a driveshaft—with a separate fore-aft link to take driving and braking thrust. Variable-rate coils and direct-acting shocks were mounted diagonally. With adjustment provisions for camber and toe, the rear end could be tuned quickly to suit test objectives. This architecture directly informed the independent rear suspension that debuted on the 1963 Corvette Sting Ray.

Steering That Spoke Clearly

A plain, wood-rim three-spoke wheel sat at the heart of CERV I’s feedback loop—no assist, no filters, just geometry and metal. The quick 12:1 ratio (2.3 turns lock-to-lock) meant tiny inputs produced real front-wheel angle, letting the driver trim a line or catch a slide instantly. Forward-mounted, low-compliance linkages shortened the load path and kept lash out of the system, while generous caster and a small scrub radius built honest self-aligning torque without kickback. The result was high effort at walking pace but wonderfully alive at speed: surface texture, grip build, and the first hint of push or bite all arrived through the rim in real time.

Duntov and the team specified quick steering—12:1 with just 2.3 turns lock-to-lock—because they wanted fingertip authority at speed. Compared with the slower 16:1–20:1 boxes common in road cars of the day, this ratio meant tiny inputs produced meaningful front-wheel angle. On a light-nose, mid-engine mule, that was a feature, not a liability: the modest front axle load kept effort reasonable without assist, while the fast rack let the driver trim the line mid-corner and catch weight transfer the instant it began.

Geometry and compliance were treated like performance parts. Forward-mounted, “balanced” linkages shortened the load path and kept the tie-rods working in simple tension/compression, so the system didn’t wind up under load. The team chased near-zero bump steer through the suspension’s mid-travel, paired generous positive caster for self-centering and straight-line stability, and targeted a small scrub radius by aligning steering-axis inclination with wheel offset. Add in stiff, race-style joints and carefully chosen bushing durometers, and you had a front end that filtered almost nothing: surface texture, grip build-up, carcass squirm, and the first hint of push or bite all arrived through the rim in real time.

Seen head-on, the 1960 CERV I reveals the elegance of its simplicity. A narrow fiberglass shell wraps a chrome-moly spaceframe, with nothing extra to clutter its purpose—just suspension arms, open dampers, and a single oval intake feeding the mid-mounted small-block. There are no frills, no styling flourishes, only what Zora Duntov’s team needed to collect data at speed. The result is a car that looks as experimental as it was: a pure test instrument, reduced to its essential architecture.

The result matched Duntov’s philosophy to the letter. Instead of isolating the driver from kickback with slow ratios and soft rubber, they reduced the sources of kickback and kept the steering fast. The car still told you everything—only now the messages were clean, timely, and easy to act on, exactly the kind of feedback loop you need when you’re developing a chassis at the limit.

Brakes Designed for Stopping, Not Comfort

The 1960 CERV I ran inboard rear brakes to cut unsprung mass and improve the suspension’s ability to keep the tire planted. Drums—aluminum with cast-in iron braking surfaces—were drilled in the webs to shed heat; the linings were sintered iron. Brake balance was set at 57% front / 43% rear, and a dual-piston master cylinder kept one axle working if the other circuit failed—forward-looking hardware in 1960. Even the pedal box reflected dual purposes: there were two brake pedals (right and left) to accommodate left-foot braking for oval/Indy-style running.

The Powerplants: From Featherweight 283 to 377 and Beyond

A mid-mounted Chevrolet small-block sits like a lab experiment, wearing an independent-runner intake with eight velocity stacks and Hilborn-style mechanical fuel injection—barrel valve, individual injector lines, and all—for razor response and cylinder-by-cylinder tuning. The external oil tank and scavenge plumbing flag a dry-sump system, letting the engine ride low without oil starvation, while equal-length headers sweep into polished megaphones to clear heat and let the V-8 breathe. CERV I cycled through several engines during development—starting with a Rochester-injected 283, then high-output 327s, and ultimately an all-aluminum 377-cid package around the 500-hp mark—and the eight-stack, dry-sump hardware you see here matches that later 377-cid configuration. True to CERV I’s mission, every line, fitting, and linkage is exposed for fast changes and clean data at the track; it’s a purpose-built testbed disguised as an engine bay.

The 1960 CERV I’s original engine was a technical statement in itself: a lightweight, all-aluminum 283-cid small-block with Rochester fuel injection and a flock of mass-reduced ancillaries (aluminum water pump, starter, flywheel, pressure plate). Fully dressed, it weighed a startling ~350 pounds and made ~353 hp at 6,200 rpm—almost one horsepower per pound and roughly one horsepower per cubic inch, levels that were exotic in period. Period coverage makes clear what that meant in practice: with “350-plus horsepower and 1,600 pounds of car plus driver,” Ray Brock wrote in Hot Rod, the 1960 CERV I was “an outstanding performer.”

Power went through a rear transaxle hung behind the engine, with a Halibrand quick-change differential sandwiched by the inboard rear brakes. The quick-change let the team swap final-drive ratios rapidly; Chevrolet’s documentation refers to thirteen available gearsets, spanning 2.63 to 4.80:1—perfect for moving from a tight handling course to a high-speed oval in an afternoon.

In the tail of CERV I, the rear brakes live inboard, clamped to a Halibrand quick-change differential tucked between those big finned drums. The aluminum drums (with iron liners) act as heat sinks; their radial vanes pull air through at speed, shedding heat while moving heavy mass off the wheels to slash unsprung weight. Short half-shafts feed an independent rear suspension hung from double-shear pickups and a triangulated 4130 spaceframe cross-member, so the tires stay planted over bumps. You can just glimpse the pumpkin and input/yoke peeking past the transverse tube—the quick-change gear cover faces aft but is mostly hidden here—evidence of ratio swaps designed for rapid test work. It’s pure Duntov logic: centralize the mass, cool it hard, and let the suspension do its job.

The 1960 CERV I’s value as a rolling laboratory meant the powertrain was never static. By auction accounting it cycled through seven engine configurations, evolving from early Rochester-injected 283s and hot 327s to an ultimate all-aluminum 377-cid small-block with Hilborn mechanical injection and dry-sump lubrication. That final package combined light weight with razor response from the eight independent runners, and the low-mounted sump let the engine sit down in the chassis, trimming frontal area and helping stability at speed.

With the 377 in place, Duntov chased outright velocity on the five-mile banked circle at GM’s Milford Proving Ground. The team treated each run like a controlled experiment—swapping ratios in the Halibrand quick-change, adjusting ride height and alignment, and working tire pressures to keep the car planted as speeds climbed. Period accounts and later histories consistently credit the 1960 CERV I with a measured 206 mph, a figure enabled by tall gearing, clean packaging, and a low-compliance chassis that stayed calm as aero loads built.

Flat-out on GM’s five-mile banked circle at Milford, the 1960 CERV I stretched its legs during Zora Arkus-Duntov’s high-speed sessions. With the Hilborn-injected, all-aluminum 377 small-block, dry-sump plumbing, and tall ratios in the Halibrand quick-change, the mule recorded a measured 206 mph—a feat later retold as 208–209 mph. Shinoda’s lowered nose and tidied bodywork helped keep lift in check while the inboard-brake, low-compliance chassis stayed eerily calm, turning a home-grown testbed into a 200-plus-mph instrument. (Image courtesy of GM Media LLC.)

Ever the experimenter, Zora pushed further with forced induction. A TRW turbocharger system reportedly run to about 17 psi demanded new plumbing, heat management, and conservative fuel/ignition settings, but returned roughly 500 hp—enough to shift the limitation from power to aerodynamics. To keep the envelope safely open, Larry Shinoda lowered the nose and massaged the bodywork to reduce lift and tidy flow, ensuring the car remained stable while the team probed the outer edge of its speed potential.

Form Follows Function: The Fiberglass Shell

Shinoda and Lapine wrapped the chromoly skeleton and mid-ships engine in a sleek, hand-laid fiberglass body that was dramatically thinner than Corvette’s production panels—just enough structure to fair the shape through the air and cover the mechanicals. Completed in white with metallic blue center stripes, the shell weighed on the order of 80 pounds, and the whole car was a study in purposeful minimalism: a single roll hoop, a small screen, and air scoops just behind the driver’s head feeding the tall intake trumpets.

Dimensions were keyed to versatility: a 96-inch wheelbase and comparatively narrow tracks (about 53 in front / 50.5 in rear, depending on wheel and tire) kept the footprint within Indy’s norms while suiting tight road courses. Chevrolet’s own memo pegged the ready-to-run weight at roughly 1,600 pounds with driver; other period measurements cite ~1,450 pounds dry—both numbers consistent with the car’s featherweight reputation.

Testing the Thesis: Milford, Pikes Peak, Continental Divide, Riverside

Duntov didn’t build trailers—he built cars to be driven. At GM’s Milford high-speed track, Ray Brock reported the 1960 CERV I“in excess of 170 mph… beautifully [handling] despite 15–20 mph crosswind gusts,” confirming both aero cleanliness and the chassis’ high-speed manners.

Pikes Peak: The Hill That Named It

Zora Arkus-Duntov behind the wheel of the 1960 CERV I at Pikes Peak.

Late-season trials on Pikes Peak came next. Chevrolet never entered the July 4th Hill Climb with the car, but the late-fall test sessions told the team what they needed: on a 0.9-mile test segment, the times were comparable to the fastest championship cars that ran the full course each summer, proof that a mid-engine, high-power single-seater could survive—and thrive—on broken, climbing tarmac. Even so, the 1960 CERV I was more naturally suited to road-course and high-speed work than to gravelly hillclimbs, and Zora moved on.

Continental Divide Raceway: Making Tires Talk

At Continental Divide Raceways in Castle Rock, Colorado, Zora Arkus-Duntov used the 1960 CERV I not just on proving grounds but in front of crowds, demonstrating its capabilities in a dynamic setting. The track—opened in 1959 at an altitude just south of Denver—was a natural fit for Chevrolet’s “engineer as showman,” giving Duntov the chance to showcase the car’s mid-engine balance, quick steering, and independent suspension in a live environment. Period photos, like this one, show Zora at the wheel in full gear, the 1960 CERV I’s minimalist fiberglass body and exposed suspension arms underscoring its role as a research mule rather than a polished race car. Appearances like this helped cement Duntov’s reputation as both a visionary and an evangelist—willing to put prototypes through their paces in public displays to build excitement around Corvette engineering. (Image courtesy of GM Media LLC)

To deepen the tire learning, Zora partnered with Firestone at Continental Divide Raceway outside Castle Rock, Colorado. There, across two demanding weeks, Duntov, Dan Gurney, and Stirling Moss cycled through combinations of Firestone tires and Halibrand magnesium wheels, mapping how section width, aspect ratio, and compound affected turn-in, mid-corner balance, and exit traction. The work was seminal—helping to push open-wheel racing toward wider, lower-profile race tires in the 1960s.

Riverside, November 20, 1960: The Public Debut of the CERV I

When the 1960 CERV I made its public debut at Riverside Raceway in November 1960, it was more than a technical demonstration—it was a statement. Zora Arkus-Duntov rolled out his experimental mid-engine research vehicle before an audience of racers, journalists, and enthusiasts, showing that Chevrolet’s engineering department was thinking far beyond the showroom Corvette. With its cigar-shaped fiberglass body, exposed suspension arms, and mid-mounted small-block V8, the car looked closer to a Formula machine than anything built in Detroit. Duntov used the venue to underline CERV I’s role as a true engineering mule, capable of testing suspension geometry, aerodynamics, brakes, and powertrains at racing speeds. That Riverside appearance gave the public its first glimpse of what Corvette engineering was capable of, and it cemented the 1960 CERV I’s place as the prototype that pointed the way to the future.

Chevrolet’s racing hands were tied, but its eyes were wide open. On November 20, 1960, during the U.S. Grand Prix weekend at Riverside International Raceway, the 1960 CERV I made its public bow—officially labeled the Chevrolet Engineering Research Vehicle to keep the “R” word out of press copy. Duntov, Stirling Moss, and Dan Gurney turned laps; both Moss and Gurney were under 2:04 within a few tours—astonishing given that Moss’s GP lap record in a Lotus was just under 1:55. The point had been made: Chevrolet wasn’t racing, but it was absolutely doing race-level engineering.

What CERV I Was (and Wasn’t): A Racer’s Tool, Not a Race Entry

It bears underlining: the 1960 CERV I never raced. The AMA anti-racing policy still constrained GM, and Chevrolet carefully framed the car as a rolling laboratory. But in configuration, performance, and behavior, it was indistinguishable from a competitive mid-engine single-seater of its day. Indeed, Duntov proportioned the car to Indy eligibility, chased Pikes Peak times, hunted 200-mph stability, and brought in the very best drivers to help interpret the results—all under the banner of R&D.

The Anatomy of the Instrument: Details That Mattered
- Wheels/Tires: Knock-off magnesium wheels from Halibrand carried a mix of narrow and progressively wider Firestone tires, depending on the test program. The switch to broader section widths and lower aspect ratios produced the very discoveries Zora was after: more contact patch at lean, different breakaway characteristics, and more definition in the car’s “language” to the driver.
- Final Drive: The quick-change differential, framed by the inboard rear drums, let the team tailor the car from a short, second-gear slalom to a long straight without changing the entire gearbox. Chevrolet’s records cite 13 ratio choices from 2.63 to 4.80.
- Steering & Pedals: The 12:1 steering spoke immediately. The dual-pedal brake arrangement enabled left-foot braking for certain tests, with the dual-circuit master cylinder bringing a layer of redundancy rare in the era.
- Cooling & Induction: Tall ram pipes boosted mid-range torque (vital in a hillclimb or at corner exit). Side scoops aft of the driver’s head fed cool air; the front radiator kept mass centralized while enjoying undisturbed flow.
The Payoff: What the 1960 CERV I Taught—and What Corvette Kept

Two big, durable takeaways from CERV I made their way into Corvette’s DNA:
1. Independent Rear Suspension. The core link-and-half-shaft concept, with the driveshaft doubling as the upper link and a separate trailing/locating link for thrust, matured into the 1963 Sting Ray’s famous IRS—a system lauded for giving the Corvette a level of composure over broken pavement and consistency at the limit that its solid-axle predecessors couldn’t match.
2. Systems Thinking for Brakes & Tires. Zora’s insistence on unsprung mass reduction (inboard brakes), bias optimization (57/43 baseline), and tire-first handling tuning made Corvette a more sophisticated performance car in the 1960s and beyond. The move toward dual-circuit hydraulic safety, while not widespread in 1960, was a clear signal of where engineering culture was headed—and where production would end up as safety expectations rose later in the decade.
Beyond hard parts, the 1960 CERV I embedded a process in Chevrolet engineering: build purpose-designed, instrumented vehicles to answer high-risk, high-reward questions quickly—and listen to the tire. That process echoes through later Chevy experimental platforms (CERV II, CERV III, CERV IV) and, ultimately, the mid-engine production Corvette launched sixty years later.

Later Lives: Engines Swapped, Speeds Chased, Myths Made

Think of CERV I as a rolling dyno. Over its career, the spaceframe hosted seven small-block V-8 iterations—opening with Rochester-injected 283s and hot 327s, then graduating to an all-aluminum 377 set low in the chassis with a dry sump and Hilborn eight-stack injection. The team treated swaps like lab trials: heads, cams, induction, and ratios in the Halibrand quick-change were cycled to isolate what made speed and reliability. Ever curious, Duntov even plumbed a TRW turbocharger; at roughly 17 psi, the mule was credited with about 500 hp. With tall gearing and Shinoda-massaged bodywork, the package produced a measured 206 mph at Milford—proof that every engine configuration wasn’t just a power play, but a data point that shaped future Corvette road and race programs. (Image courtesy of Joe Kolecki/Kolecki Photography)

Because the 1960 CERV I was a tool, engines came and went as programs demanded. The Hilborn-injected 377 turned the car into a land-missile for high-speed tests; the brief turbocharged interlude proved both how much headroom the chassis had and how quickly aero lift became the limiting factor at ultra-high speeds—hence Shinoda’s low-nose revisions. Period reports and later histories converge on the canonical headline number: 206 mph at Milford. A dramatic Daytona run was even floated (with Bill France rumored to offer a bounty for a 180-mph lap), but that particular circus never set up its tent.

Over the years, the car’s original featherweight aluminum 283 separated from the chassis, and the engine found a life in other Chevrolet testbeds. That kind of parts fluidity was normal in R&D—what mattered was the data and the lessons, which stayed with Chevrolet even as components migrated.

The Public Story: From Secret Lab to Heritage Icon

On display at the Briggs Cunningham Automotive Museum in Costa Mesa, California, CERV I (foreground) sat alongside CERV II after GM gifted CERV I to the museum in 1972. Opened in 1966, the Costa Mesa museum became a showcase for Cunningham’s competition history and rare prototypes; when it closed in 1986–87, Miles Collier acquired the collection and moved it to Naples as the Collier Collection (now presented at the Revs Institute). Decades later, the 1960 CERV I crossed the Barrett-Jackson Scottsdale auction block in 2017 at $1.2M hammer ($1.32M with premium), and GM quietly repatriated the car to the GM Heritage Center—bringing the seminal testbed full circle.

Like most one-off engineering instruments, the 1960 CERV I lived with a death sentence from the day it was welded together. Prototypes are usually destroyed for liability, secrecy, and accounting reasons; they’ve served their purpose and take up space. Zora Arkus-Duntov fought that culture. He understood that the CERV I wasn’t just a mule but a record of ideas—geometry, packaging, data—the seed corn for everything that followed. Through his preservationist push, the car escaped the crusher and, in 1972, went to Briggs Cunningham’s museum in Costa Mesa, where it was displayed as a living piece of American racing technology rather than a discarded tool.

At Mid America Motorworks in Effingham, Illinois, Mike Yager kept CERV I not as a static relic but as a living piece of Corvette history. This photo captures Yager himself behind the wheel, surrounded by enthusiasts in his showroom. For a period, CERV I was a centerpiece of Yager’s collection, regularly shared with the Corvette community during events and gatherings. Its presence at Mid America symbolized how the car escaped the fate of most prototypes—rather than being crushed, it continued to inspire, educate, and connect generations of enthusiasts with Zora Duntov’s vision of a mid-engine Corvette. (Image courtesy of Mid America Motorworks)

When Cunningham’s collection transitioned, the 1960 CERV I was migrated to the Collier Collection and later spent time with Mike Yager at Mid America Motorworks, remaining visible to the public rather than disappearing into storage. In 2017, it surfaced at Barrett-Jackson Scottsdale and sold for $1.2M at the hammer ($1.32M with premium). Quietly and appropriately, General Motors stepped in to repatriate its landmark prototype to the GM Heritage Center in Sterling Heights—bringing the testbed back under the roof of the company that created it.

CERV I and the C8 Stingray—six decades apart yet joined by the same vision—make a powerful statement when photographed together. In the foreground, Zora Duntov’s 1960 experimental mule wears its cigar-tube body, magnesium wheels, and twin megaphones: a purpose-built test rig that probed the possibilities of a mid-engine Corvette. Behind it, the 2020 C8 represents the fulfillment of that dream, a production car born from lessons CERV I and its successors helped uncover. Parked nose-to-tail, they frame the story arc of Corvette innovation, from raw experiment to showroom reality.

There it sits today—not mothballed, but interpreted and cared for as a keystone in a straight line of development: from the 1959 Stingray Racer and the 1960s CERV programs to the 1990 CERV III and, ultimately, the 2020 C8 Stingray that finally made Duntov’s mid-engine vision a production reality. CERV I survives because someone inside believed the past was worth saving to inform the future.

A Closer Technical Walkaround (for the record)

Because CERV I is so often reduced to just a few “greatest-hits” factoids, it’s worth logging its factory-documented design choices plainly:
- Purpose: A high-gain tool to study ride/handling “under amplified conditions,” with visual access to the front suspension and tires.
- Layout: Mid-engine, single-seat, open-wheel/open-cockpit; fuel mass centralized (dual cells totaling 20 gal); radiator forward; engine air scoops behind the driver.
- Chassis: Chrome-moly tubular spaceframe; fiberglass body panels (hand-laid, very thin); finished in white with blue stripes; single roll hoop.
- Dimensions/Weight: 96-in wheelbase; tracks ~53/50.5 in (front/rear, depending on setup); ~1,600 lb ready-to-run w/ driver per Chevrolet; ~1,450 lb dry per later documentation.
- Suspension: Front: high roll-center geometry, variable-rate coils, direct-acting dampers. Rear: upper lateral link serving as half-shaft, lower lateral link, separate fore-aft link, diagonally mounted coils/dampers; adjustable for camber and toe.
- Steering: 12:1 ratio; 2.3 turns lock-to-lock; balanced, forward-mounted linkages.
- Brakes: Inboard rear drums (aluminum drums with iron surfaces), drilled webs; 57/43 front/rear balance; dual-piston master cylinder; dual brake pedals (left/right).
- Driveline: Rear transaxle with Halibrand quick-change diff; 13 ratio sets from 2.63 to 4.80:1; inboard rear brakes straddling the diff.
- Engines: Began with aluminum 283 (≈353 hp, ≈350 lb); later 377 with Hilborn mechanical injection; experimental TRW turbo (≈500 hp); high-speed work culminating in 206 mph runs at Milford.
- Public outings: Riverside U.S. Grand Prix weekend, Nov. 20, 1960; laps by Duntov, Moss, Gurney under 2:04 within a few tours.
Legacy: The Line from CERV I to Every Corvette Thereafter

From above, CERV I’s logic is obvious: driver, fuel, and engine mass packed tight around the center; a mid-ship small-block feeding a rear transaxle framed by inboard brakes and those fat, data-hungry tires. This is the blueprint that flowed straight into the Sting Ray’s independent rear suspension, later into the C5–C7 rear-transaxle Corvettes, and finally into the C8’s production mid-engine layout. One photo, three generations of Corvette thinking—Zora’s surveyor’s stake driven straight through the decades. (Image courtesy of Motor Authority)

It’s tempting to read CERV I as a glorious cul-de-sac—a brilliant prototype with nowhere to go while corporate policy frowned on racing. The truth is the opposite. CERV I was less a detour than a surveyor’s stake, hammered into Chevrolet’s landscape so future engineers would know exactly where “true north” lived. Its lessons—about where to put mass, how to let the suspension do the talking, how to bias a brake system, how to select and listen to tires—migrated outward to everything Chevrolet touched, especially Corvette.

You can see the fingerprints first in the 1963 Sting Ray. The independent rear suspension that defined the C2’s road manners didn’t drop from the sky; it grew from CERV I’s rear layout where the half-shaft served as the upper lateral link, a separate lower link controlled camber, and a fore-aft member took thrust. That basic division of labor—let each piece do one job cleanly—gave the Sting Ray composure over imperfect pavement and consistency at the limit. It also locked in a new mindset inside Chevrolet: solve handling with geometry and compliance, not brute stiffness and “band-aid tires” (using extra-wide or ultra-sticky rubber to cover up underlying chassis problems.)

Gold Halibrand magnesium, knock-off spinner, and Firestone rubber—CERV I’s rolling lab in a single frame. Zora used wheels like these to rapid-fire tire tests at Continental Divide Raceway, proving that grip and predictability start at the contact patch, not with “band-aid” rubber. The lighter mag wheel and inboard-brake setup cut unsprung mass so the suspension—and the tire—could do their best work. (Image courtesy of Motor Trend)

Brakes and tires were the other big early harvest. CERV I’s inboard rear drums cut unsprung mass and sharpened the way the suspension traced the road. The 57/43 baseline brake bias, the dual-circuit master cylinder, and even the two-pedal layout for left-foot braking weren’t gimmicks; they were the beginnings of a systems view that treated stopping, turning, and power-down as linked problems. Out on Continental Divide Raceway and other test venues, Zora’s tire programs with Firestone—and later, Goodyear—made a lasting cultural dent. By cycling through section widths, aspect ratios, and compounds and then reading what the car told him, he normalized something that now seems obvious: the tire is the first suspension element. That philosophy would shape Corvette setups for decades.

Packaging may be CERV I’s most durable gift. Centralizing the driver, fuel, and engine to shrink polar moment became second nature for Corvette engineers, even when a mid-engine street car wasn’t politically possible. You can draw a straight line from CERV I’s rear transaxle/quick-change mindset to the rear transaxle architecture on the C5–C7—a production solution that moved mass off the nose, improved fore-aft balance, and made the car more honest in fast transitions. And when the door finally opened to a production mid-engine Corvette, the C8 didn’t require a philosophical leap; it required execution. The fundamentals—cooling paths, serviceability around a mid-ship powertrain, the feel targets that come from a low polar moment—had been rehearsed, in spirit, since 1960.

Three chapters of the same idea: build a car to answer hard questions. CERV I (left) established the template—mass centralized around a mid-ship small-block, inboard brakes, quick-change gearing—so engineers could feel and measure how a chassis really works. CERV II (right) pushed the concept into powertrain architecture with a purpose-built mid-engine racer chassis and torque-splitting experiments that explored how to put big power down with composure at very high speed. CERV III (center) carried the torch into the electronics era—composites, computer-controlled chassis systems, four-wheel steering, and a twin-turbo DOHC V-8—showing how an integrated vehicle could be tuned as a system. Line them up and you can watch the progression from mechanical truth-telling to full systems engineering—the same arc that ultimately makes a production mid-engine Corvette possible. (Image courtesy of GM Media LLC)

The 1960 CERV I also seeded an organizational habit: when the question is big enough, build a rolling lab to answer it. That’s the throughline to CERV II (with Zora exploring four-wheel-drive torque paths and high-speed endurance packaging) and CERV III (composites, active systems, and advanced electronics that would echo in later production safety and stability controls). The names and technologies change; the pattern doesn’t. Create a purpose-built instrument, amplify the phenomena you care about, let great drivers and engineers interrogate it, then fold the truth back into the cars the public can buy.

And the ripple effect extends beyond hard parts. the 1960 CERV I normalized driver-in-the-loop development at Chevrolet. It brought world-class pilots into the program to translate the car’s language and forced engineers to chase measurable cause-and-effect rather than myth. That “test, measure, teach” cycle shows up later in everything from Corvette’s high-speed stability work to the track-packages that let owners feel real, engineered differences—Z07 brake and tire tuning, aero balance that stays with you as speed climbs, damper curves chosen to preserve the tire over a stint. None of that happens if your culture doesn’t value the disciplined curiosity CERV I demanded.

So yes, the car never took a green flag. But some of the most consequential “Corvettes” never wore VINs. Built under the cover of research in an era officially hostile to competition, the 1960 CERV I accelerated Chevrolet’s understanding of how a high-performance car should be packaged, suspended, braked, and shod—and it did so in Zora’s favorite way: at full song, with the best drivers of the day, on real circuits that forced real answers. The line it drew runs through the Sting Ray’s rear suspension, through the transaxle Corvettes of the modern era, and straight into the mid-engine C8—a production car that finally wears, for the world to see, the layout Zora proved in a white-and-blue single-seater six decades earlier.

Epilogue: Coming Home

In January 2017, General Motors bought back Zora Arkus-Duntov’s 1960 CERV I at Barrett-Jackson’s Scottsdale sale for $1.32 million ($1.2M hammer plus premium), then returned the car to the GM Heritage Center. GM confirmed the purchase and framed it as reclaiming a foundational piece of engineering history—the rolling laboratory that informed Corvette chassis, tire, and braking development and foreshadowed the mid-engine era. In GM’s words, they were “proud to have the CERV I back,” preserving it as a cornerstone of the company’s narrative and for permanent exhibition in the Heritage Collection. (Image courtesy of Architectural Digest)

That GM chose, in January 2017, to spend $1.32 million to bring CERV I back to the Heritage Center was more than an act of preservation; it was an act of continuity and self-recognition. Within days of the Barrett-Jackson hammer falling at $1.2 million (fee-inclusive $1.32M), GM confirmed the car was coming home—“GM is proud to have CERV 1 back,” said Heritage Center manager Greg Wallace—framing the purchase as an opportunity to reclaim a cornerstone of the company’s engineering DNA and to keep it in the institutional bloodstream that created it. The CERV I returned not as a museum curio but as a living syllabus, parked among the Stingray Racer, Mako Shark, and other mid-engine studies that trace a straight line from Zora’s rolling lab to today’s Corvette.

Once repatriated, the car didn’t retreat into a vault. It began doing what it has always done—teaching—this time in public. In 2020, the National Corvette Museum’s “The Vision Realized” exhibit put CERV I alongside the pantheon of mid-engine prototypes, a traveling seminar in how ideas become architecture and then production reality. NCM curators made it explicit: the display told “the story of Zora Arkus-Duntov’s dream of one day having a production mid-engine,” with CERV I on loan from the GM Heritage Center anchoring that story. Visitors, from school-age kids to retired engineers, could walk the timeline and see the experiment that started the rumor become the proof that became the car.

Under the lights at the National Corvette Museum in 2020, CERV I wasn’t just displayed—it was positioned as the prologue to the mid-engine Corvette story. On loan from the GM Heritage Center, the white-and-blue single-seater anchored a timeline that tied Zora’s “design without limits” philosophy directly to the production C8. This photograph was made while the Museum was temporarily closed during the COVID-19 pandemic—shot by Scott’s brother, Joe Kolecki (koleckiphoto.com )—for inclusion in Corvette Concept Cars: Developing America’s Favorite Sports Car (CarTech Books), available from the NCM Store. The result is equal parts history lesson and fuel for the next engineer, designer, or racer to pick up where Zora left off. (Image courtesy of Joe Kolecki/Kolecki Photography)

Beyond Bowling Green, the CERV I continues to surface at blue-chip marquees that treat engineering as art. Amelia Island staged a special Mid-Engine Corvette class in March 2020, gathering CERV I with its later siblings and experimental kin—a once-in-a-generation tableau that let crowds absorb, in one glance, six decades of Chevrolet’s mid-engine thinking. A few years earlier, the Lake Mirror Classic offered the rare spectacle of CERV I and CERV II together, a two-car master class in “what if?” and “what’s next?” that reminded onlookers how much of American innovation has been forged in skunkworks and on proving grounds.

Which is why the buy-back matters so much. GM didn’t simply purchase a historic chassis; it brought home a method—build a tool that amplifies truth, put it in the hands of brave drivers, and listen. Every time CERV I rolls into the National Corvette Museum, or out under the lights at Amelia, it restarts that conversation. You can see it in the faces pressed to the stanchions: design students sketching the body’s clean airflow, young engineers puzzling over the inboard brakes and diagonal springs, club racers tracing with their fingers the line from quick-change gearsets to a perfect final drive. The car that never took a green flag still waves one—inviting the next Zora, the next Shinoda, the next Krieger or Zetye—to step over the rope, ask better questions, and then go build the answer. In that sense, CERV I is not just back where it belongs; it’s exactly where it’s most dangerous and most useful—within reach of the next generation.

Why the CERV I Still Matters Today

As the sun drops behind Indianapolis Motor Speedway, the 1960 CERV I feels exactly where it belongs: on the edge of possibility. It was never just a race car, and never just an experiment. CERV I was Chevrolet’s rolling proof that bold engineering, fearless testing, and big ideas could change the future of the Corvette forever. Even standing still, it still looks like tomorrow.

The 1960 CERV I still matters because it reminds us that Corvette history was never built on production cars alone. Some of the most important chapters began in experimental machines designed to ask difficult questions before the public ever saw the answers. CERV I was one of those machines. It was not created to fill a showroom. It was created to push. To test. To prove.

That is what makes it so significant in the larger Corvette story. Under Zora Arkus-Duntov’s direction, CERV I gave Chevrolet a purpose-built platform for exploring weight, balance, handling, braking, and high-speed durability in ways a conventional road car could not. It was a rolling engineering argument for what Corvette could become when ambition outran convention. Long before the mid-engine Corvette became a production reality, long before advanced chassis tuning became part of the car’s modern identity, CERV I was already pointing in that direction.

It also matters because it reveals something essential about the people behind Corvette. This was not a program content to protect the status quo. It was led by engineers and thinkers willing to experiment, fail, learn, and keep moving. CERV I stands as physical proof that Corvette’s rise was driven as much by curiosity and courage as by horsepower.

Seen from today’s perspective, CERV I feels less like an outlier and more like an origin point. Its influence runs quietly but directly through decades of Corvette development, from racing research to advanced concept work to the eventual arrival of the production mid-engine C8. The shape changed. The technology evolved. But the underlying idea remained the same: if Corvette was going to lead, it had to be willing to explore.

That is why the CERV I still matters today. Not simply because it was first, and not simply because it was rare, but because it captured the experimental spirit that made everything after it possible. It was Corvette thinking ahead, years before the rest of the world could see where that thinking would lead.

This piece is dedicated to my friend and fellow Corvette enthusiast, Brad Burdick. Brad and I first met at the National Corvette Museum while I was researching my book, Corvette Concept Cars: Developing America’s Favorite Sports Car. We were introduced through a mutual friend who, like Brad, was part of the Museum team at the time. What began as a simple introduction in 2021 soon became a valued friendship, and over the years, Brad and I have shared countless conversations, ideas, and insights centered around our mutual passion for the Chevrolet Corvette.

Brad is the kind of person who makes the Corvette community better. He is deeply knowledgeable, generous with his time, and always willing to share what he knows with genuine enthusiasm. If you ever find yourself in Bowling Green and have the opportunity to tour the National Corvette Museum, I strongly encourage you to ask for Brad as your guide. He is not only a wealth of knowledge, but also one heck of a nice guy. I can promise you that you will be richer for the experience. – SK
In 1960, Chevrolet’s CERV I gave Zora Arkus-Duntov a rolling test bed for the ideas that would reshape Corvette performance. Lightweight, mid-engined, and built for experimentation rather than production, it was less a concept car than a declaration: Corvette’s future would be engineered by pushing far beyond the limits of the present.

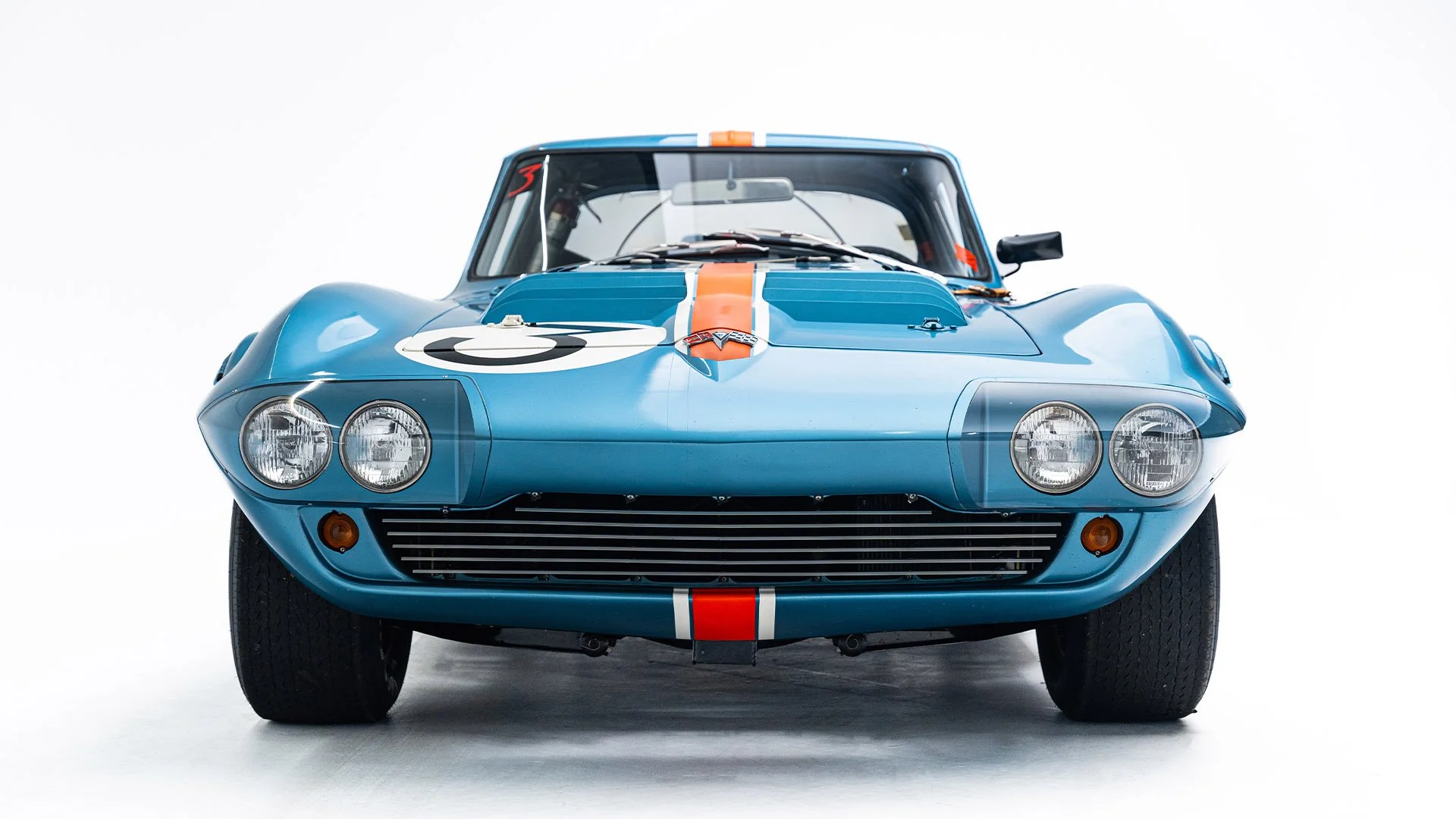

1963 Corvette Grand Sport: A Prototype That Changed the Game
The 1963 Corvette Grand Sport occupies a strange place in Corvette history because it is neither a typical concept car nor a production model in the traditional sense. It was a purpose-built racing prototype—five cars constructed inside Chevrolet Engineering with a specific target on their backs: Carroll Shelby’s Cobra and the international GT battlefield that culminated at Le Mans. It was also an experiment in how far Corvette could be pushed when you stripped away comfort, civility, and corporate caution.

To understand why the Grand Sport exists at all, you have to hold two truths at the same time. First: by the early 1960s, Corvette was no longer trying to be taken seriously—it was being taken seriously. The Sting Ray arrived with a new chassis, independent rear suspension, four-wheel disc brakes available, and the kind of engineering seriousness that finally matched the car’s styling. Second: General Motors was still officially living under the shadow of the industry’s self-imposed racing taboo—an environment where public “factory” racing support was politically sensitive inside the corporation, even as performance credibility was clearly becoming a sales weapon.

Zora Arkus-Duntov lived in the gap between those two realities. He believed Corvette’s future required racing development, real competition, and real consequences. The Grand Sport was his most direct attempt to turn that belief into hardware.

The Problem Zora Wanted to Solve: Cobra, GT Rules, and the Limits of the Z06

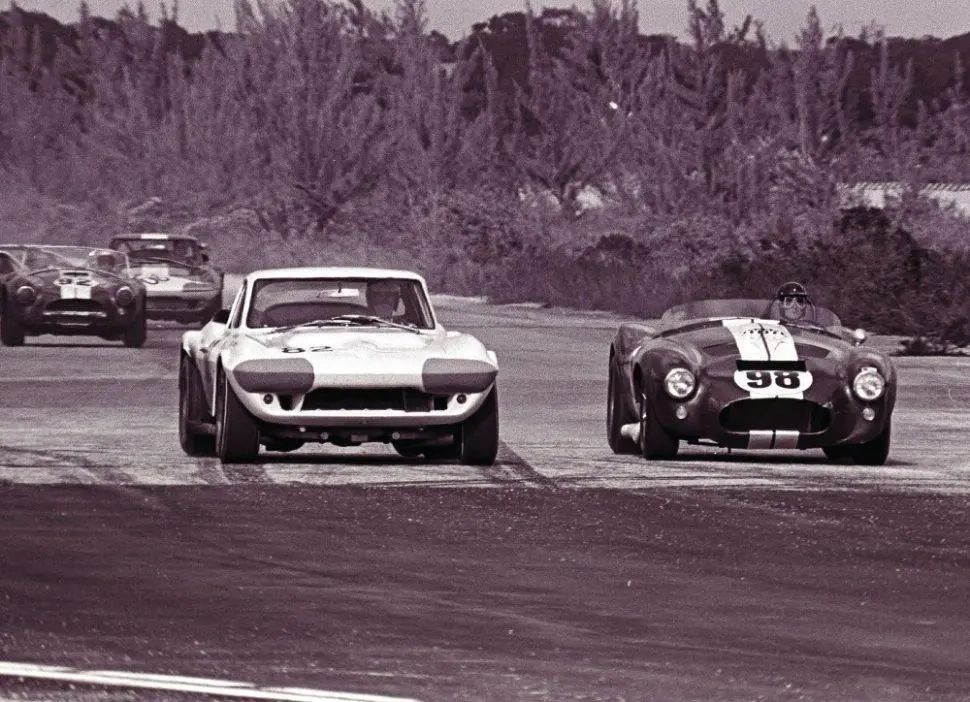

Zora Arkus-Duntov pushed for the Corvette Grand Sport because he understood that the car’s greatest threat was no longer theoretical—it was already winning races. Carroll Shelby’s Cobra, with its brutal power-to-weight advantage and proven track record, exposed the limits of the production-based Corvette in international GT competition. Duntov’s answer was not incremental improvement but a clean break: a purpose-built, ultra-lightweight Corvette engineered specifically to neutralize the Cobra on equal terms. By stripping hundreds of pounds from the chassis, widening the track, and pairing the car with high-output small-block power, the Grand Sport was conceived as a direct counterpunch to Shelby’s Anglo-American hybrid. It was meant to restore Corvette’s credibility at the highest levels of sports car racing, particularly in FIA GT and endurance events. In Duntov’s mind, the Grand Sport was not a rebellion—it was a necessary evolution to ensure the Corvette could fight, and win, against the Cobra on the world stage. (Image courtesy of GM Media LLC)

By 1962, Chevrolet had already taken meaningful steps toward track credibility with the heavy-duty, race-oriented options that Duntov pushed through the system. The Z06 package was a perfect example of his philosophy: take a street car, delete what the racer doesn’t need, strengthen what the racer will break, and allow the customer to do the rest. But Zora also understood a hard truth about the Sting Ray as delivered: even with Z06, you were still dealing with a full-weight production Corvette. In a world where Shelby was building a lighter, more purpose-built Cobra, weight was not a detail—it was the fight.

That reality is the core logic behind the Grand Sport. Duntov’s team had been refining racing-oriented options, but he knew a Z06-equipped Sting Ray would still be roughly a thousand pounds heavier than a Cobra. So he proposed something more radical—an ultra-light Corvette built with racing in mind from the first weld. To run in the FIA’s GT framework as a “production” entry, he needed numbers. The homologation ( granting approval by an official authority. In motor sport it means checking the car’s specification and its compliance with Technical Regulations within a given class) target was 125 cars. That was the plan: build enough to qualify, then let private teams race them—because “factory racing” was exactly the kind of phrase that could get you killed on the executive floor. The cars were meant to be engineered by Chevrolet and raced by others. A workaround on paper, a statement in fiberglass and steel.

This is the moment where the Grand Sport stops being a fantasy and starts being a project. It was not a styling exercise. It was not a show car. It was a Corvette engineering program with a specific competitive mission and a specific regulatory requirement.

“Grand Sport” as a Prototype Program, Not a Trim Level

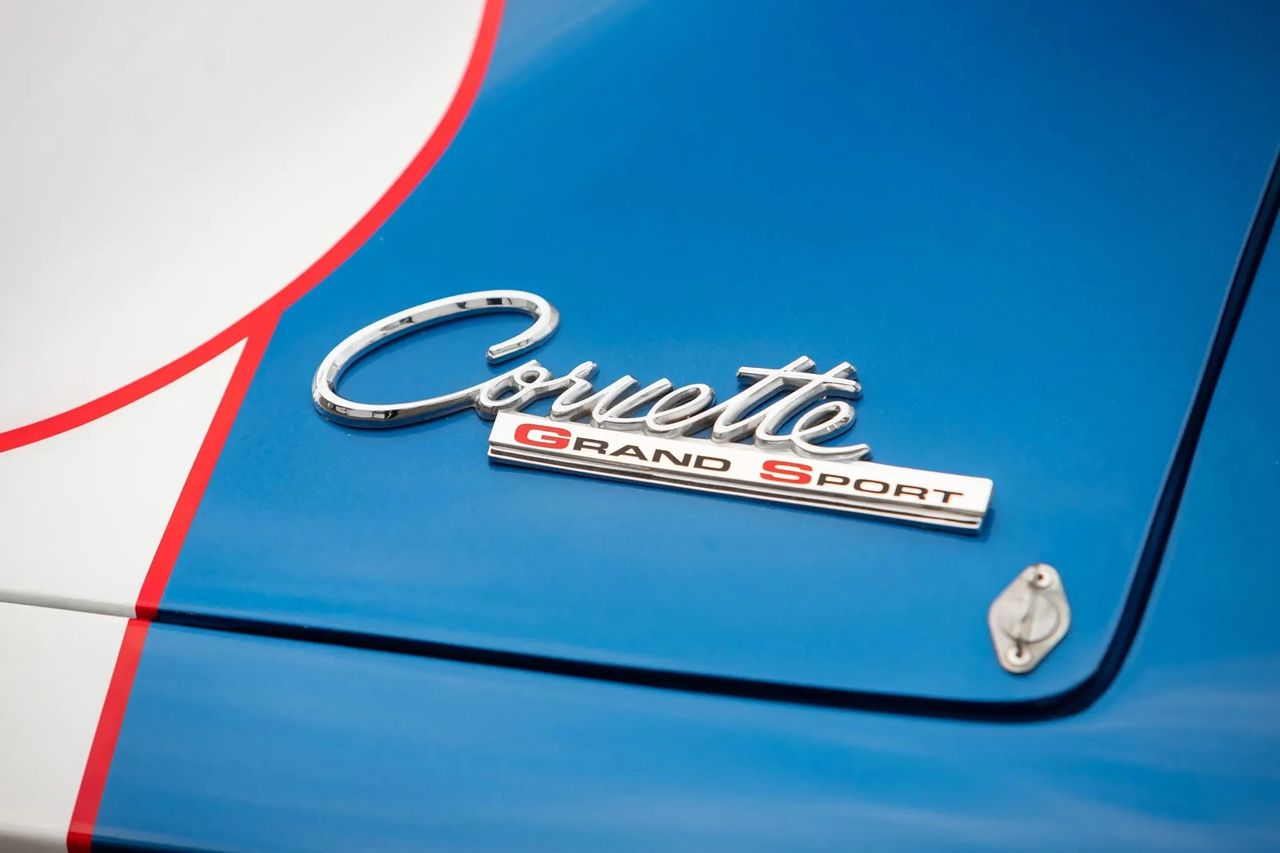

In 1963, the Grand Sport name carried weight far beyond simple badging—it signaled Zora Arkus-Duntov’s intent to push the Corvette beyond production limits and into the realm of purpose-built competition. Originally reserved for an ultra-limited run of lightweight racing prototypes, the logo represented Chevrolet’s most serious answer to the Shelby Cobra and the global GT establishment. Though the original program was short-lived, the Grand Sport designation endured as a symbol of Corvette’s racing-first philosophy. Today, it stands as a bridge between past and present, honoring the audacious spirit of the 1963 originals while continuing to define Corvettes engineered with genuine performance intent rather than cosmetic flair.

The name “Grand Sport” today has been used across several Corvette generations, but in 1963 it meant one thing: lightweight. Inside the program, these cars were also described plainly as “Lightweights,” because that was the defining attribute and the defining advantage. They were built in Chevrolet Engineering’s prototype environment, not on a normal production line.

And that matters. When you build cars as prototypes, you build them the way racers build them: to do a job, to solve a problem, to accept risk. You do not build them to be quiet. You do not build them to be serviced by any dealership. You do not build them to satisfy every customer. You build them to win.

The Core Engineering: Lightweight Structure and a Corvette That Still Looked Like a Corvette

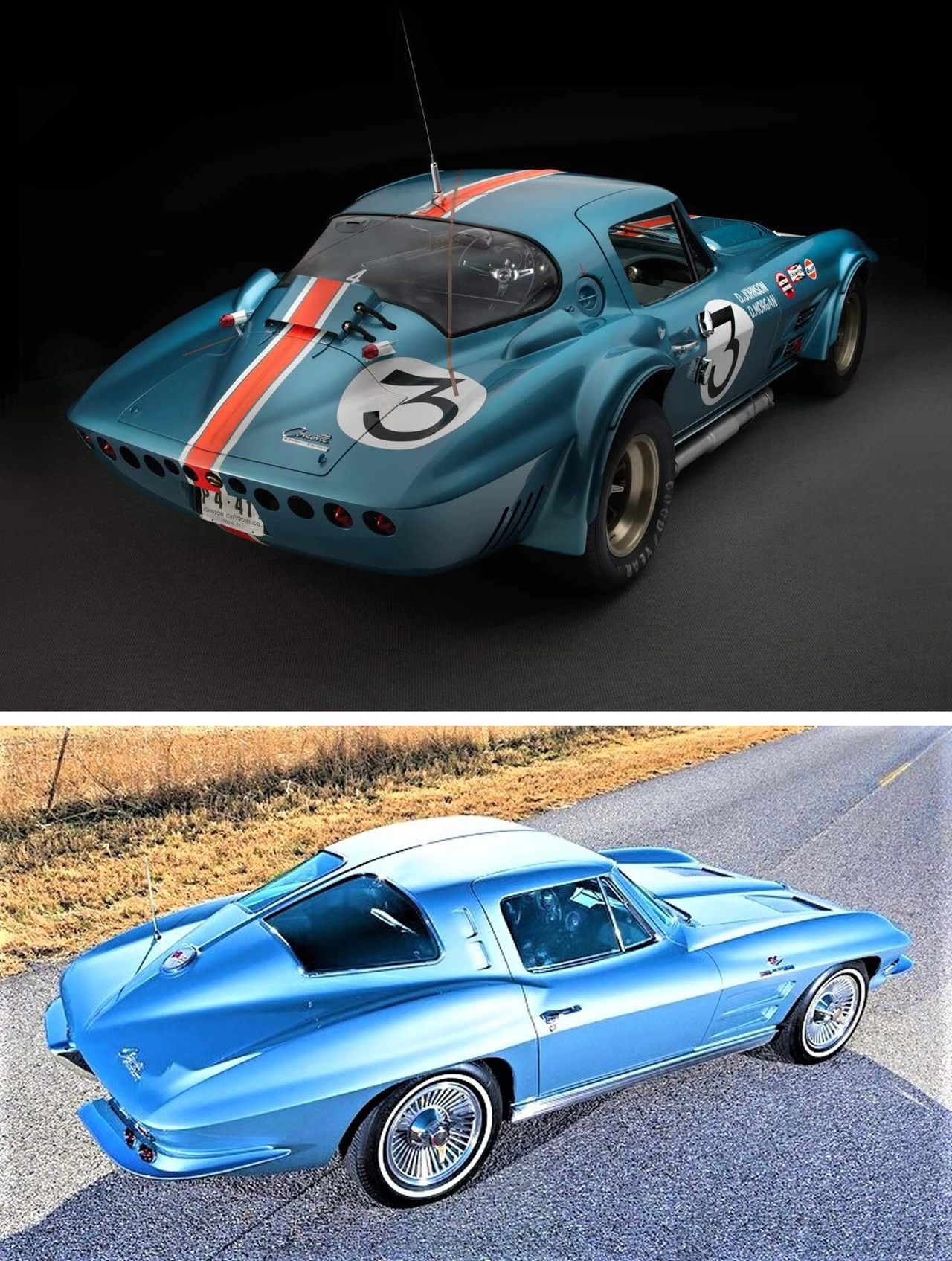

Zora Arkus-Duntov was deliberate in keeping the Grand Sport’s outward appearance closely aligned with the production 1963 Sting Ray, understanding that visual continuity was essential for homologation under international GT racing rules. By preserving the familiar silhouette, roofline, and key body proportions, the Grand Sport could be credibly presented as an evolution of a production car rather than an outright prototype. This approach allowed Chevrolet to pursue competitive eligibility without triggering disqualification or reclassification into more restrictive racing categories. Beneath the surface, the car was radically different—lighter, wider, and far more aggressive—but its visual restraint was strategic rather than conservative. In Duntov’s calculus, winning races required not just engineering brilliance, but a body that looked close enough to showroom stock to satisfy the rulebook.

One of Duntov’s most strategic decisions was that the Grand Sport should still read as a Sting Ray at first glance. The shape mattered because the class mattered. The idea was to contest GT-style racing, where the car needed to plausibly relate to a production model.

Underneath, however, the “production” relationship got thin fast. The Lightweights were built around a round steel tube ladder-type frame with an integrated roll bar, and they used modified production suspension pieces with extensive lightening work. The interior was spartan and purpose-built. The body was a lightweight fiberglass shell that generally echoed the Sting Ray but with purposeful changes: fixed headlamps with Plexiglas covers, revised lighting and grille details, a rear window treatment that eliminated the famous split, and accommodations like a trunk area for the FIA-required spare tire. Wheels were Halibrand knock-off magnesium pieces, wrapped in Firestone racing rubber.

This was not cosmetic fluff. These were direct race-car decisions:
- Lighting and aero simplification: fixed headlamps under covers reduced complexity and likely reduced drag and failure points.
- Practical GT compliance: the spare tire requirement was not negotiable in that rule set, so packaging mattered.
- Wheels and tires as performance architecture: magnesium knock-offs and big racing tires weren’t “options,” they were how you make a car survive and corner at speed.
Weight targets are often quoted around the 2,000-pound range, with figures varying depending on configuration and the source being referenced. The correct takeaway is the design intent: make a Corvette that no longer carried a production car’s weight penalty, and do it aggressively enough that the Cobra advantage disappeared.

Suspension, Brakes, and the Unsexy Hardware That Makes a Race Car Real

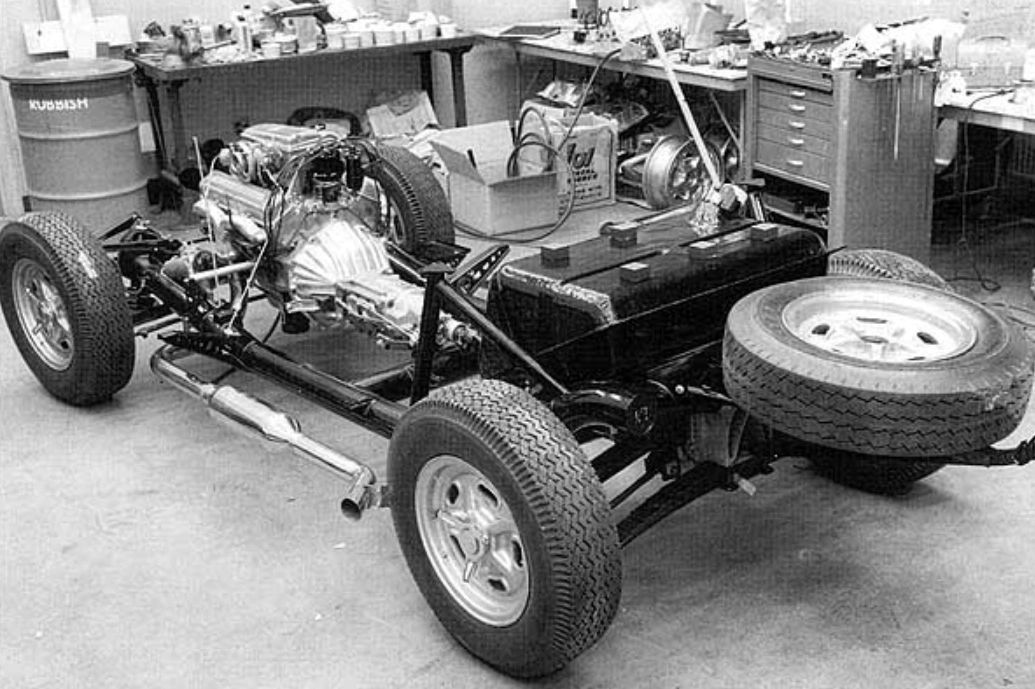

The 1963 Corvette Grand Sport chassis was based on the production Sting Ray’s 98-inch wheelbase frame, but it was extensively reengineered for competition under the direction of Zora Arkus-Duntov. The frame rails were fabricated from thinner-gauge steel to reduce weight, while aluminum was used extensively for suspension components, brake backing plates, and other hardware. Independent rear suspension was retained, but reinforced to handle wider wheels, racing tires, and significantly higher cornering loads. Combined with a large-capacity fuel tank and side-exit exhaust, the chassis reflected Duntov’s intent to create a true lightweight GT racer that remained structurally recognizable as a Corvette.

A lot of Grand Sport conversations get trapped in horsepower myths and “what if Le Mans” romanticism. The truth is that a race car is defined by its ability to survive a race distance, not by its best dyno pull.

The Grand Sport chassis package reads like a practical checklist of race-oriented modifications: lightened A-arms up front, an aluminum steering box, and significant attention to the rear suspension and differential. The rear remained conceptually aligned with the Sting Ray’s independent system, but with lightening work that included an aluminum differential and drilled control arms. Brakes were race-grade discs built for repeated high-speed punishment.

That reads like a program built by people who knew exactly what would fail first.

And it did. One of the most telling details from period accounts is that the cars suffered from overheating differentials during Nassau Speed Week, requiring the addition of differential coolers between races. That is not an embarrassment—it’s exactly what real racing development looks like when you take a new lightweight, high-power package into competition conditions and start discovering where the heat goes.

The Engines: From “Good Enough” to “No Excuses”

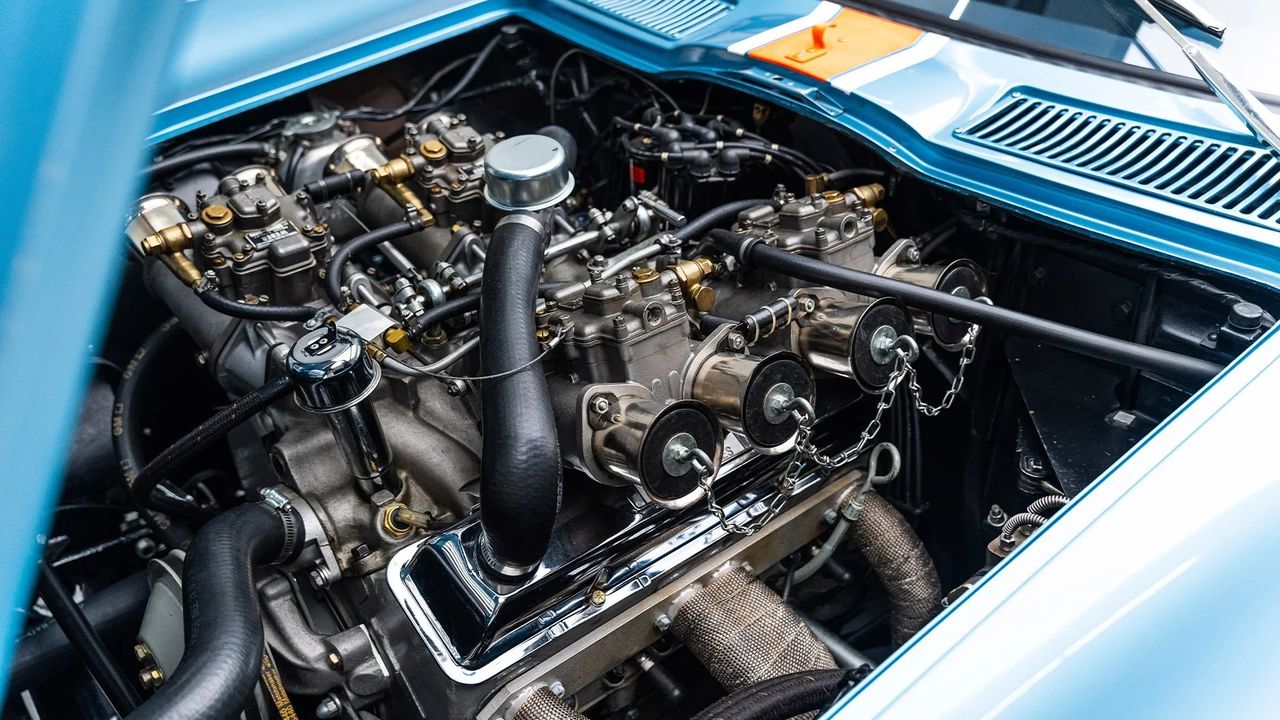

The heart of the 1963 Corvette Grand Sport was a purpose-built 377 cubic-inch small-block V8, developed to deliver maximum output within the constraints of GT-class regulations. Based on Chevrolet’s racing small-block architecture, the engine featured aluminum heads, aggressive camshaft profiles, and was offered with either dual four-barrel carburetors or a more exotic Weber carburetor setup, depending on configuration. Output estimates ranged from roughly 485 to over 550 horsepower, an extraordinary figure for a lightweight car tipping the scales at just over 1,800 pounds. Combined with the Grand Sport’s reduced mass, the engine gave Duntov’s creation the raw performance needed to confront the Shelby Cobra head-on. (Image courtesy of the Petersen Auto Museum)

The Grand Sport’s engine story is where legend tends to outrun documentation, so it’s worth being precise about how the car evolved.

Early on, at least some Grand Sports ran with production-based small-block power depending on event timing and the practical reality of getting cars ready. But the “full statement” engine—the one most closely associated with the program’s intent—was the all-aluminum 377 cubic-inch small-block that arrived as the program matured. By the time the cars were prepared for Nassau, the program had moved toward more aggressive configurations that better matched the Corvette’s lightweight mission.

Horsepower ratings vary by source and by configuration. Some documented figures land in the high-400-horsepower range, while others cite numbers in the mid-500s for the most aggressive versions. The honest explanation is that these were prototypes with evolving engines, and published horsepower numbers reflect specific setups, specific eras, and sometimes optimistic ratings. What never changes is the direction: Duntov was not chasing a mildly improved Sting Ray. He was engineering a lightweight GT killer, and he was willing to explore advanced hardware and high-output tuning because that is how you close the gap against a purpose-built rival.

The 125-Car Wall: Homologation and Why “Only Five” Changes Everything

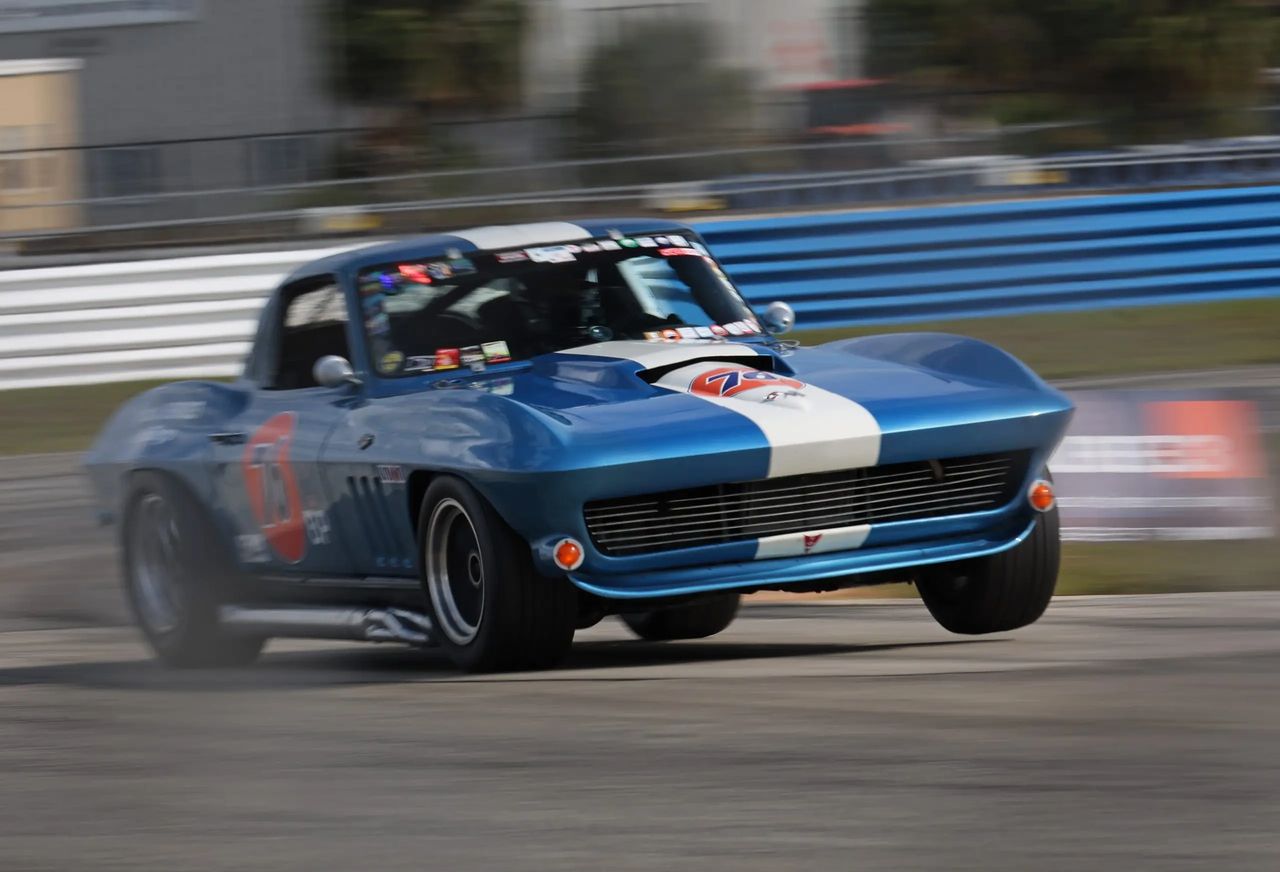

When the Grand Sport program stopped at just five cars, the entire racing plan had to pivot. A proper homologation run never happened, which meant the cars couldn’t be entered as production-based GTs—the very category they were engineered to exploit. Instead of racing where their design made the most sense, they were pushed into classes that treated them more like specials, forcing teams to compete under rules and against opponents the Grand Sport was never built around. That shift narrowed the options, raised the stakes, and made every outing feel improvised: fewer eligible events, fewer clean “class battles,” and far less factory support by design. In a strange way, that constraint is part of why the Grand Sport myth endures—five cars didn’t just limit the program, they transformed it into a rare, high-risk, privateer-led fight for relevance on whatever battlefield the rulebook would allow.

The Grand Sport’s most painful fact is also the one that defines its legend: only five cars were built. From the outset, the program was conceived around a minimum production run of 125 cars, the threshold required to homologate the Corvette as a true GT contender under international racing rules. That number was never a question of engineering capability—the Grand Sport proved almost immediately that the technical side was solved—but of corporate will and manufacturing approval. When that support was withdrawn, the program lost the very foundation it was designed around, and the strategy collapsed overnight.

The consequence was immediate and unavoidable. Without homologation, the Grand Sports could no longer compete as production-based GT cars and were instead forced into open or prototype-style classes against machines they were never intended to face. This is the root of the Grand Sport’s enduring sense of displacement: they were meticulously engineered for a specific competitive battlefield, then abruptly denied entry to it. Built for one war and reassigned to another, the cars became racing orphans—brilliant, fast, and historically significant, but forever prevented from fulfilling the purpose for which they were created.

The Corporate Crackdown: When the 14th Floor Found Out

The shutdown of the Grand Sport program matters because it explains why the car became a legend of unrealized potential rather than the foundation of a sustained factory racing effort. At its core, the decision was driven by senior GM leadership’s firm adherence to the corporation’s official no-racing policy, a posture that left little room for nuance or interpretation. The Grand Sport program, despite its technical brilliance, looked too much like a direct factory challenge to that policy—especially as testing accelerated, outside interest grew, and the cars began to attract attention beyond Engineering circles. Once the program reached that visibility threshold, it was no longer tolerated. Orders came down to halt further development, finish only what was already in progress, store the completed cars, and quietly close the book. The internal tone was not one of pride or regret, but of control: contain the project, avoid publicity, and ensure it did not evolve into a public contradiction of corporate policy.

Yet even within that shutdown, the story is not one of absolute compliance. Zora Arkus-Duntov accepted the order to stop building cars, but he never fully accepted the idea that the work itself was invalid. To him, the Grand Sport represented unfinished engineering truth—something proven on paper and in testing, but not yet validated where it mattered most. That tension between corporate authority and engineering conviction is what pushed the story forward rather than ending it outright.

The “Privateer Release”: How Duntov Got His Real-World Testing Anyway

This image captures Zora Arkus-Duntov in his element at Nassau—working the edges of Chevrolet’s no-racing posture by leaning on trusted drivers to put the Grand Sport through real competition. At his side are Roger Penske and Jim Hall, two of the sharpest minds behind the wheel, both capable of translating lap-time into actionable engineering feedback. With the factory unable to publicly support the program, Duntov used privateer participation as his field-test strategy: race the cars, observe the weaknesses, and learn what no controlled test session could reveal. These weren’t casual paddock conversations—they were the quiet mechanics of development happening in plain sight. It’s a snapshot of how the Grand Sport kept evolving even after official support was cut off: through drivers, data, and Duntov’s refusal to let the idea die.

This is where the Grand Sport story becomes unmistakably Duntov’s. If Chevrolet could not officially race the cars, he would ensure that they raced without Chevrolet’s name attached to the effort. By placing the Grand Sports into private hands, the cars could operate outside the factory umbrella while still accomplishing their true purpose: real-world testing under competitive conditions. Unlike controlled proving-ground work, racing exposed flaws instantly and mercilessly—exactly the kind of environment Duntov believed was essential to meaningful engineering progress.

The strategy worked. The Grand Sports found themselves driven by some of the most capable and respected competitors of the era—Roger Penske, Jim Hall, Dick Thompson, A.J. Foyt, and others whose reputations were built on extracting results from difficult machinery. Though the program’s competitive life was brief and fragmented, the cars proved brutally fast and fundamentally sound, validating the concept that had been shut down on paper. In this way, the Grand Sport fulfilled its mission indirectly: not as a factory-backed dynasty, but as a rolling laboratory whose lessons lived on long after the cars themselves were sidelined.

Nassau Speed Week, December 1963: The Moment the Grand Sport Proved the Point

Captured during Speed Week at Nassau, this image brings together the small circle of drivers trusted to extract the Grand Sport’s potential when it mattered most. Dick Thompson (second from right), already known as the “Flying Dentist,” demonstrated the car’s balance and durability, helping validate its GT roots against international competition. Jim Hall (far right) applied his methodical, engineering-driven approach to show just how sophisticated the Grand Sport’s chassis and suspension really were under race conditions. Roger Penske (middle), still early in his career, delivered disciplined, professional performances that underscored the car’s outright speed and composure. Alongside them, Hap Sharp helped round out a driver lineup whose collective success at Nassau proved that—even with only five cars built—the Grand Sport could win convincingly when placed in capable hands.

If you want the 1953 Corvette Grand Sport’s “proof” moment, it’s Nassau.

At Nassau Speed Week, the Grand Sports were finally allowed to compete directly with Cobras under the event’s rules. The cars had been recalled and improved, fitted with the 377-cubic-inch aluminum engines, and entered under private ownership. The story includes one of those details that feels too perfect until you remember how racing culture worked in that era: Chevrolet engineers appeared to be “on vacation” at exactly the right place and time.

The week didn’t just produce fast lap times—it produced embarrassment on the other side of the fence. The Grand Sports won decisively enough that factory personnel were uncomfortable with how visible the performance had become. And visibility was the one thing the program could not afford.

It was also clear the secrecy game was over. Ford knew what was coming. The competition knew what the Corvette was capable of when it wasn’t dragging production-car weight around the track.

That is the moment when the Grand Sport stops being merely a racing prototype and becomes a political problem.

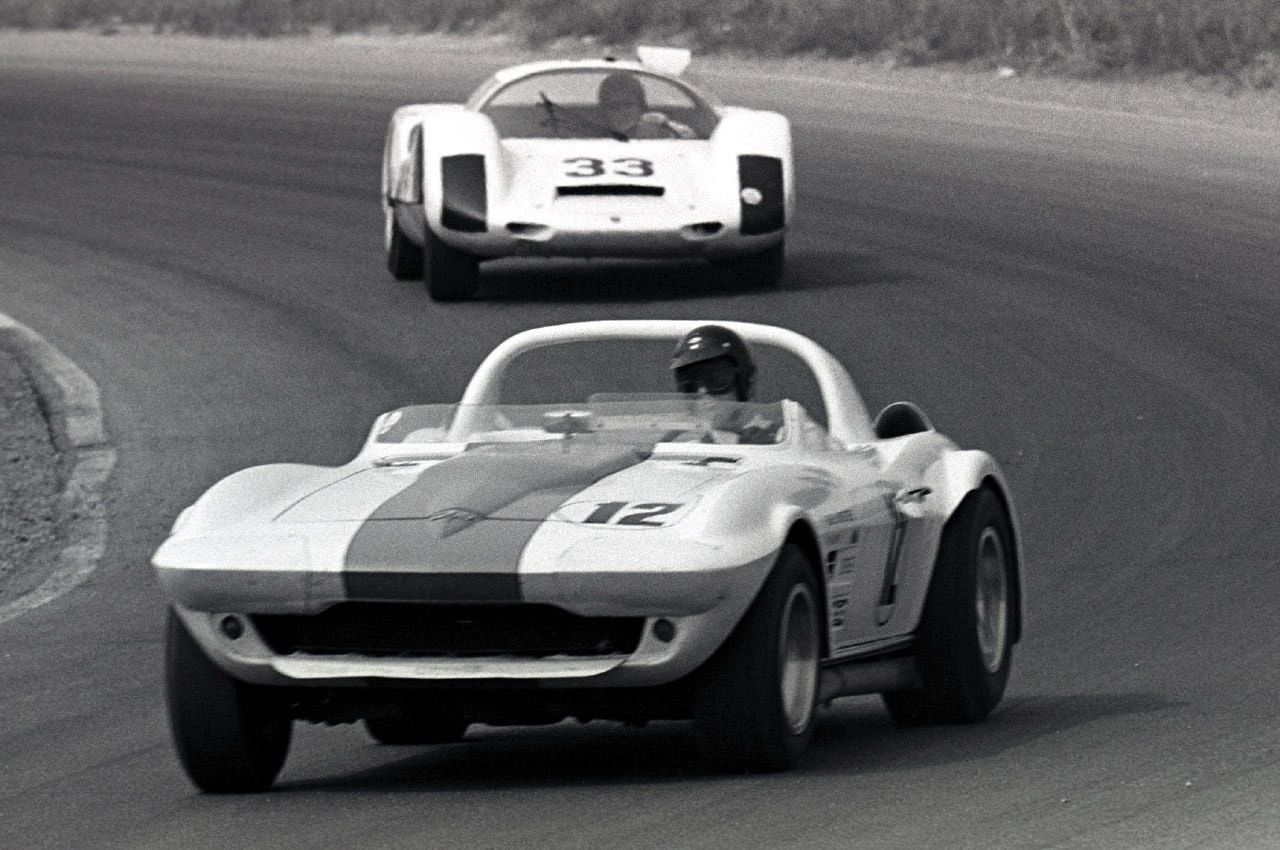

What It Was Like to Drive: The Grand Sport as a Violent Tool, Not a Polished Product

Driving a Grand Sport on track was a visceral experience—lightweight, brutally responsive, and utterly unfiltered, with power arriving instantly and the chassis communicating every change in grip. At Nassau, that character translated into outright dominance, as the cars ran at the front with an ease that surprised competitors and validated everything Duntov had engineered into them. The Grand Sport wasn’t just fast in a straight line; it was balanced, stable at speed, and devastatingly effective through corners, where its low weight and wide track paid dividends lap after lap. Against Ford-backed opposition, the message was unmistakable: Chevrolet had built a car capable of winning on merit, not marketing. Nassau was the moment the Grand Sport revealed itself to the world—not as a theoretical threat, but as a proven one. Even in limited numbers and without factory backing, the car made clear that the Corvette belonged at the sharp end of international competition.

The best way to keep this honest is to listen to the people who drove them.

Period accounts and later recollections converge on the same conclusion: the Grand Sport was fast, but it was not friendly. It could be unstable at the limit, especially under braking and in transitions. It demanded respect. If you approach it like a well-mannered production Corvette, it would punish you.

That’s not a criticism. That’s a description of a lightweight, big-tire, high-power prototype with race brakes, a locked rear end in some configurations, and minimal concession to comfort. It was a device.

And yet, those same impressions consistently credit the car’s core competence—its braking, its gearbox behavior, the way it accelerated, and the way it covered ground when a capable driver put it to work. The Grand Sport was not a fragile, theatrical prototype. It was a serious racing tool.

The Competition Record: Short Career, Real Impact

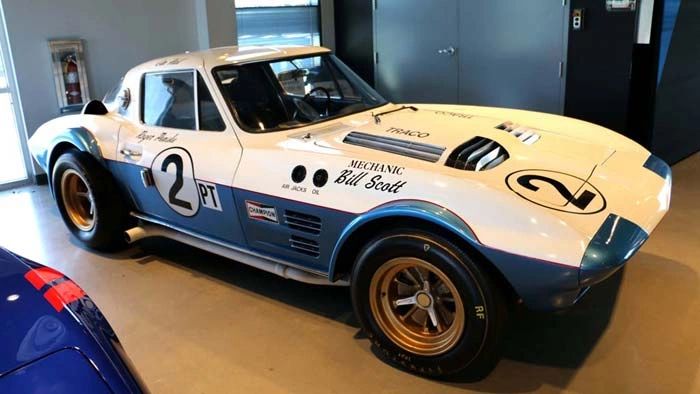

Chassis No. 5 holds a unique place in the Grand Sport story because it represented the program at its most refined and most publicly validated. As the final car built, it benefitted from lessons learned on the earlier chassis, incorporating improvements in weight distribution, cooling, suspension tuning, and overall race preparation. When it appeared in competition—most notably at Nassau—it did not merely show promise, but ran at the front, demonstrating outright pace that challenged and, at times, embarrassed more established factory-backed efforts, including Ford. Unlike earlier cars that still carried an element of experimentation, No. 5 was a complete and coherent machine, capable of sustained performance rather than isolated flashes of speed. Its success confirmed Duntov’s core argument: the Grand Sport was not a speculative prototype, but a fully realized racing Corvette. In that sense, chassis No. 5 helped transform the Grand Sport from an internal engineering rebellion into an undeniable public statement of capability. (Source: Corvette Blogger)

The Grand Sport’s competition life is complicated because the cars moved through owners and configurations, and they were never homologated into the class they were built to win. But even with that limitation, they produced results that mattered.

Chassis #005 is often singled out as the most successful in competition, including a class win at Sebring in 1964 and later results that reinforced what everyone at Nassau already understood: this Corvette, in this weight class, with this kind of power, was a different animal.

Even when the cars began to age out against newer machinery and more modern prototypes, they could still shock seasoned racers with their acceleration and their straight-line urgency. That is not nostalgia—that is physics. When you combine serious horsepower with a radically reduced curb weight, the car does things a “normal” Sting Ray cannot do.

The Roadsters: The Program’s Most Extreme Expression

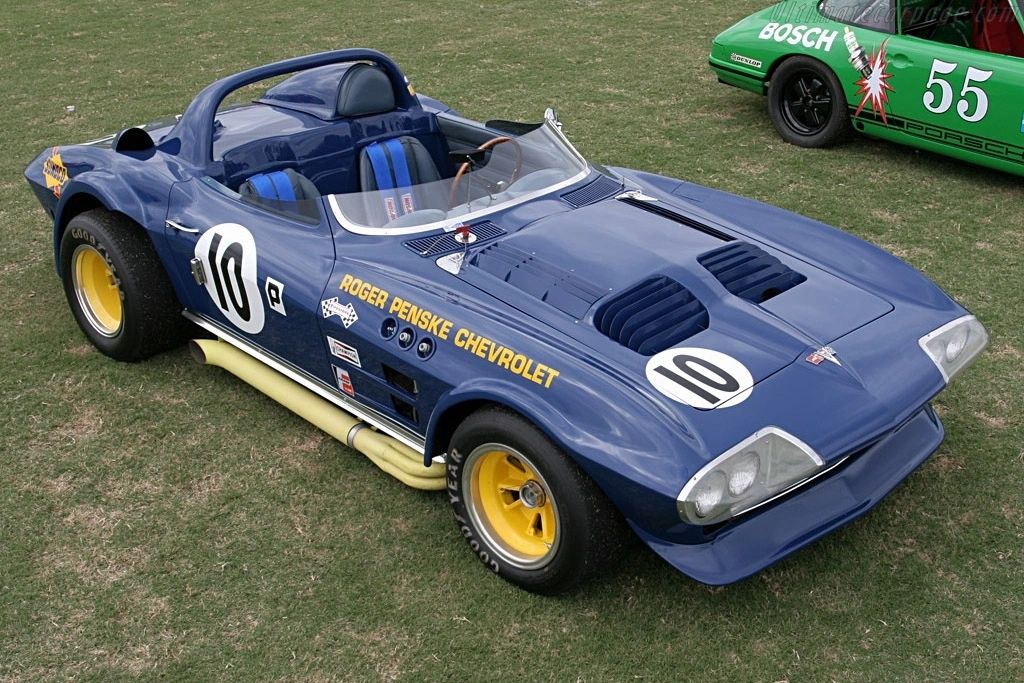

The decision to convert several of the Grand Sports into roadsters—seen clearly in cars like this one—marked the moment when Duntov abandoned any remaining pretense of production relevance and focused entirely on winning. Removing the roof was not cosmetic; it was a calculated engineering move that stripped away weight, simplified the structure, and allowed easier access for testing, tuning, and rapid race preparation. With the program already shut down at the corporate level, there was no longer a need to keep the cars aligned with anything Chevrolet might sell. What mattered was lap time. The roadsters reflected Duntov’s pure, uncompromising logic: if the car existed to race, and an open configuration made it faster, then that was the correct form—politics aside.

Another key turn in the Grand Sport narrative was the decision to convert two of the coupes into open cars. Two of the earliest chassis were reworked into roadsters—an aggressive, function-first move that pared away even more weight, reduced the car’s frontal “bulk” in practical terms, and opened up additional avenues for testing, tuning, and race setup. In many configurations, the roadsters proved even quicker than their coupe siblings because the cars were already operating on the margins: when engineers were chasing tenths, shedding mass and simplifying anything that did not directly make the car faster mattered.

It was also a decision that revealed exactly where the program stood. Converting coupes into open cars was never about keeping the Grand Sport close to something Chevrolet could plausibly sell to the public. It was about building the best weapon possible with the time and freedom Zora Arkus-Duntov still had. This was classic Duntov logic: if the car existed to win, and if a change improved the odds, the change was made—even if it pulled the car further away from production resemblance and further complicated the story Chevrolet preferred to tell upstairs. By that stage, the program was already politically dead; the only thing still alive was the engineering. Performance became the remaining language Duntov spoke, and the roadster conversions were his way of stating, without ambiguity, that the stopwatch mattered more than optics.

The Grand Sport’s Real Legacy: Technology Transfer and a Corvette Culture Shift

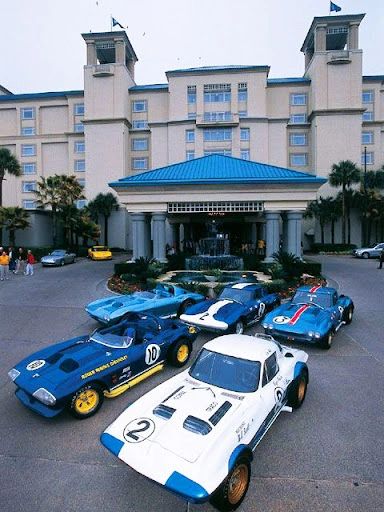

The 2003 reunion of all five Corvette Grand Sports at the Amelia Island Concours d’Elegance marked a rare and deeply significant moment in American racing history. Built as experimental, purpose-driven machines and scattered to private teams after Chevrolet’s racing ban, the Grand Sports were never expected to survive as a complete set. Yet four decades later, all five remained intact—preserved, documented, and largely unaltered—each carrying a distinct chapter of the same audacious engineering story. Their reunion underscored just how narrowly the program escaped total erasure, and how close Chevrolet came to fielding a factory-backed world-class racing Corvette. More importantly, it confirmed that the Grand Sport was not a single car or a one-off idea, but a cohesive five-car program that endured despite corporate abandonment. The fact that all five still exist today transforms the Grand Sport from a lost opportunity into a fully tangible legacy—one that can still be studied, experienced, and understood in its entirety.

The easy way to end a Grand Sport story is to romanticize the “what if.” What if GM had built 125? What if they had gone to Le Mans with real factory support? What if the Cobra wars had played out on equal terms with corporate backing?

Those questions are unavoidable, but the more productive conclusion is this: Duntov built the Grand Sport because Corvette needed a proving ground, and he found a way to create one even when the corporation refused to fund the fight.

Even after the Grand Sport program was officially dead, Duntov’s philosophy continued to shape how Corvette served racers: heavy-duty braking options, larger fuel capacity thinking, and later factory programs that were designed to be rules-legal but racer-focused. The Grand Sport didn’t “become” those later developments, but it reflects the same engineering worldview: build the parts that matter, let racers do what racers do, and keep advancing Corvette’s credibility from the inside.

And that may be the Grand Sport’s most honest definition. It is not a Corvette trim level. It is not a styling milestone. It is a five-car argument made in fiberglass and aluminum by an engineer who believed that performance without competition is just advertising.

Zora didn’t get his 125. He got five. But he also got proof—enough to ensure that the Corvette story could never again be written as if racing didn’t matter.
The 1963 Corvette Grand Sport stands as one of the most legendary “what might have been” chapters in Corvette history—a purpose-built racing machine developed in quiet defiance of GM’s corporate racing ban. Conceived by Zora Arkus-Duntov as a lightweight, brutally powerful weapon to challenge Ferrari and Shelby on the world stage, the Grand Sport combined…
1964 CORVETTE OVERVIEW

Recognizing the success of the second-generation Corvette’s inaugural year, most of the styling changes that were made to the exterior of the 1964 Corvette Sting Ray model were subtle. The most notable change involved the replacement of the rear split window that had been introduced in 1963 with a single piece of glass. In addition, the faux hood vents that had adorned the 1963 model were removed, though the recessed areas remained, giving the 1964 Corvette hood a distinctive look all its own.

The 1964 Corvette Sting Ray refined the revolutionary formula introduced the year before, focusing on improved drivability, build quality, and real-world performance. With subtle design updates, suspension revisions, and continued emphasis on power and balance, the 1964 model represents Chevrolet’s effort to polish an already groundbreaking sports car while staying true to the bold vision…
1963 CORVETTE OVERVIEW
The year 1963 marked a watershed moment in American automotive history. With the arrival of the second-generation Corvette Sting Ray, Chevrolet transformed its fiberglass sports car from a stylish curiosity into a world-class performance machine. The ’63 Corvette was the culmination of nearly a decade of experimentation, racing, and bold design exploration—driven by men like Bill Mitchell, GM’s flamboyant styling chief, and Zora Arkus-Duntov, the Corvette’s indefatigable chief engineer.

The new Corvette was a product of its time: born in the shadow of the space race, shaped by postwar prosperity, and engineered for a public hungry for both performance and panache. When it arrived in showrooms, it didn’t just improve on the C1—it redefined what a Corvette could be.

From Racer to Road Car

This image shows GM design chief Bill Mitchell standing proudly beside the legendary XP-87 Stingray Racer, the privately funded prototype that directly influenced the styling of the 1963 Corvette Sting Ray. Finished in silver with racing roundels, side pipes, and knock-off wheels, the Stingray was both a competition car and a rolling design laboratory. Mitchell often drove it himself, and its sharp, aerodynamic lines would become the visual DNA of the second-generation Corvette. (Image courtesy of GM Media LLC.)

The Sting Ray name had already entered Corvette lore by 1959, when Mitchell—using his own funds to skirt GM’s corporate racing ban—commissioned the XP-87 Stingray Racer. The sharp-nosed, muscular car, designed by a young Larry Shinoda, stunned onlookers at Nassau Speed Week and SCCA events. Mitchell remembered: “I wanted something that looked like it could sting you if you got too close.”

Though officially a private project, the Stingray Racer was a laboratory for Corvette’s future. Its fiberglass body, knife-edge fenders, and dramatically hunkered stance directly inspired the C2. As Mitchell put it, “We had to make a car that looked like it was moving when it stood still.”

Zora Arkus-Duntov, meanwhile, was determined to give the Corvette the performance to match its looks. Often called the “Father of the Corvette,” Duntov had joined Chevrolet in 1953 after seeing the original Motorama roadster. By the early ’60s, he pushed relentlessly for racing technology in production cars: independent suspension, fuel injection, and a stiff chassis capable of handling European competition.

The World of 1963

This image shows an early press release photograph of the 1963 Chevrolet Corvette Sting Ray Split-Window Coupe, captured in a studio setting to showcase its groundbreaking design. The shot emphasizes the car’s distinctive split rear window—exclusive to the 1963 model year—and the sleek, aerodynamic fastback profile that set it apart from anything else on the road. Finished in silver with knock-off wheels and whitewall tires, this official press image helped introduce the world to Bill Mitchell and Larry Shinoda’s revolutionary vision for America’s sports car. (Image courtesy of GM Media LLC.)

When the second-generation Corvette debuted in fall 1962 as a ’63 model, America was in the midst of profound change. President John F. Kennedy had just pledged to put a man on the moon by the decade’s end. The Cuban Missile Crisis had rattled the nation’s nerves. At the same time, suburban affluence and a booming youth market fueled demand for exciting cars. Imports like Jaguar, Ferrari, and Porsche offered style and handling that Detroit’s cruisers couldn’t match.

Chevrolet needed the Corvette not just as a halo car, but as proof that an American automaker could build a true sports car on par with Europe’s finest. The Sting Ray delivered that message loud and clear.

A Radical New Design

Inside a mid-century Chevrolet showroom, two legends stand side by side—the outgoing 1962 Corvette and the revolutionary 1963 Corvette Sting Ray. The red ’62, with its rounded lines, chrome trim, and dual headlights, represents the final evolution of the first-generation Corvette. Just beside it, the silver ’63 Split-Window Coupe introduces a bold new era with its knife-edged styling, hidden headlamps, and fastback profile. This moment captures the dramatic handoff between generations: one car closing out the Corvette’s formative years, the other stepping forward as a world-class sports car that would redefine America’s automotive identity. Together, they embody the transition from tradition to transformation—a story of design, engineering, and vision that made Corvette an icon.

The most striking aspect of the 1963 Corvette was its appearance. Shinoda’s design evolved Mitchell’s Sting Ray Racer into a production reality: crisp beltlines, peaked fenders, a blunt shark-like nose, and a fastback roofline that looked plucked from the era’s fighter jets.

The split rear window coupe became the instant icon of the line. Mitchell fought hard for it, insisting it gave the car “personality” and reinforced the spine of the design. Duntov hated it, arguing it hurt rearward visibility. For one year only, Mitchell won—and the result was one of the most collectible Corvettes of all time.

The advertising tagline captured the mood: “Only a man with a heart of stone could withstand temptation like this.”

Engineering Revolution

This illustration showcases the revolutionary chassis and suspension design of the 1963 Corvette Sting Ray. For the first time, Corvette engineers introduced a perimeter frame paired with fully independent front and rear suspension—a leap forward that transformed handling, balance, and ride quality. Anchored by the potent 327-cubic-inch small-block V8, this foundation made the C2 Corvette not just a striking sports car, but a genuine performance machine capable of competing on the world stage.

Beneath its dramatic skin, the C2 introduced a new chassis that transformed Corvette dynamics. The wheelbase shrank by four inches, and Duntov’s prized independent rear suspension finally arrived, replacing the old solid axle. This IRS (Independent Rear Suspension) setup—featuring a transverse leaf spring and half-shafts—gave the car vastly improved grip, reduced wheel hop, and made it competitive on both street and track.

Road & Track observed in 1963: “At last, the Corvette is a fully realized sports car. It corners flat, it accelerates fiercely, and it finally feels European in precision.”

The car’s “Ball-Race” steering (as the ad copy called it) delivered sharper response. Engineers also shifted 80 pounds rearward, improving balance and traction. Even without standard power steering, the car felt remarkably manageable.

Power Under the Hood

Under the hood of the 1963 Corvette Sting Ray lies Chevrolet’s potent 327-cubic-inch V8, shown here topped with a chrome air cleaner and finned aluminum valve covers proudly embossed with “Corvette.” Depending on configuration, this small-block delivered between 250 and 360 horsepower, with the top-tier fuel-injected version making the Sting Ray a genuine world-class performance car. Clean, purposeful, and beautifully engineered, the 327 became the beating heart of the Corvette’s second generation. (Image courtesy of RK Motors.)

While the chassis was all new, engines carried over from 1962—yet they were still formidable. Four 327-cubic-inch small-block V8s were offered:
- 250 hp with a four-barrel carburetor
- 300 hp with upgraded valves and manifolds
- 340 hp with a hotter cam
- 360 hp with Rochester mechanical fuel injection (RPO L84)
The top “fuelie” made the Sting Ray a true giant killer, capable of 0-60 mph in under six seconds and top speeds north of 130 mph. As Car Life wrote: “The small-block Chevy remains America’s best contribution to the internal combustion engine.”

Transmission choices included a three-speed manual, Powerglide automatic, and the enthusiast’s favorite: a Borg-Warner four-speed, ordered by nearly four out of five buyers. Axle ratios ranged from 3.08 to 4.56:1, catering to both highway cruisers and drag-strip warriors.

Stopping Power

For the first time, the Corvette offered real stopping confidence. Larger 11-inch cast-iron drum brakes came standard, with optional sintered-metallic linings and finned aluminum “Al-Fin” drums for racers. Power assist was available too. Although four-wheel disc brakes would not arrive until 1965, the ’63 was already a step ahead of many rivals.

Inside the Cockpit

The interior of the 1963 Corvette Sting Ray was as groundbreaking as its exterior, blending race-inspired function with upscale refinement. Shown here in striking red, the cabin features contoured bucket seats, full instrumentation, and a wood-rimmed steering wheel—all laid out in a driver-focused cockpit. It was a dramatic step forward from the first-generation Corvette, offering both performance-oriented ergonomics and a touch of luxury that elevated the Sting Ray to true world-class status. (Image courtesy of RK Motors.)

The C2 interior reflected a new level of refinement. Low-back bucket seats, a deep-dish steering wheel, and full instrumentation gave drivers a fighter-jet vibe. For the first time, amenities like leather upholstery, air conditioning (278 cars), and power windows were available.

Even Car and Driver, usually critical of American ergonomics, praised the Sting Ray’s cockpit as “sporting yet civilized.”

Zora’s Secret Weapon: The Z06

Pictured here is a stunning 1963 Corvette Sting Ray Z06, finished in Riverside Red and fitted with knock-off style wheels. The Z06 package, masterminded by Zora Arkus-Duntov, transformed the already groundbreaking Sting Ray into a track-ready weapon with heavy-duty suspension, upgraded brakes, and the potent 327ci fuel-injected V8. With only 199 built in 1963, and just 63 featuring the optional 36.5-gallon “big tank,” the Z06 remains one of the rarest and most desirable Corvettes ever produced.

Duntov, ever the racer, wanted customers to have a Corvette that could dominate the track. Out of this came RPO Z06, a competition package that quietly slipped past GM’s racing ban.

For $1,818.45—nearly half the cost of a base Corvette—the Z06 added heavy-duty suspension, larger brakes with dual master cylinder, a thicker anti-roll bar, and most importantly, a 36.5-gallon fuel tank for endurance racing. Buyers also had to specify the L84 fuel-injected 360-hp engine, four-speed manual, and Positraction differential.

Only 199 Z06s were built in 1963, 63 of them with the “big tank.” Most went to racers like Dave MacDonald and Mickey Thompson. Survivors today are among the rarest and most valuable Corvettes ever produced.

The Grand Sport Dream

This image features the legendary 1963 Corvette Grand Sport, one of only five ever built by Zora Arkus-Duntov and his engineering team. Finished in racing blue and wearing the number 3, the car was purpose-built to challenge Carroll Shelby’s Cobra with its lightweight body, widened stance, and a ferocious small-block V8 producing over 500 horsepower. Though GM’s internal racing ban cut the program short, the Grand Sport proved its dominance in privateer hands, becoming one of the most mythical and desirable Corvettes in history.

Yet Duntov wasn’t satisfied. He envisioned a lighter, more radical racing Corvette to take on Carroll Shelby’s Cobras. The result was the 1963 Grand Sport, a stripped-down Sting Ray with aluminum and magnesium components, four-wheel disc brakes, and a 550-hp 377-ci small-block.

Only five Grand Sports were built before GM brass shut the project down. But in their brief outings, they proved fearsome. At Nassau in 1963, they outpaced Cobras by 9 mph on the straights. As racer Dick Thompson recalled: “The Grand Sport was the car Zora always wanted the Corvette to be.”

Sales Triumph

If the Grand Sport was a racer’s fantasy, the production Sting Ray was a showroom sensation. Chevrolet built 21,513 Corvettes for 1963—a 50 percent increase over 1962. For the first time, a coupe body style was offered alongside the convertible, splitting sales nearly evenly (10,594 coupes, 10,919 convertibles).

Customers lined up despite wait times of up to two months, often paying full sticker price. Demand was so great that Chevrolet added a second shift at its St. Louis plant.

The Sting Ray even buoyed the values of earlier Corvettes, making the C1 one of the first postwar cars to appreciate above its original sale price.

Market Reception

This vintage October 1962 cover of Car and Driver spotlights the brand-new 1963 Corvette Sting Ray, giving readers their first in-depth look at Chevrolet’s revolutionary second-generation sports car. The cover shows both body styles—the futuristic Split-Window Coupe in gold and the sleek convertible in white—capturing the dramatic design leap that stunned the automotive world. Priced at just 50 cents, this issue heralded the dawn of a new Corvette era that combined show-car styling with world-class engineering. (Image courtesy of Car & Driver Magazine)

The press was almost universally impressed. Car Life awarded the Sting Ray its “Engineering Excellence” trophy. Car & Driver declared: “Corvette has finally come of age.”

The lone controversy was the split rear window. Critics called it impractical and dangerous to visibility. Duntov himself detested it. Bowing to pressure, Mitchell relented, and for 1964 the coupe switched to a single rear window. Ironically, the “flaw” made the ’63 coupe one of the most coveted collector cars ever.

Specifications and Performance
- Engines: 327 V8 (250–360 hp)
- Transmissions: 3-spd manual, 4-spd manual, 2-spd Powerglide auto
- Brakes: 11-inch drums (optional metallic linings, Al-Fin drums)
- Suspension: Independent rear with transverse leaf, coil-spring front
- Performance: 0-60 mph in 5.9 sec (fuel-injected); quarter-mile ~14.6 sec; top speed 130+ mph
Legacy

This period promotional photo captures the futuristic spirit of the 1963 Corvette Sting Ray Split-Window Coupe, posed in front of the equally space-age LAX Theme Building in Los Angeles. The sleek silver coupe, with its dramatic fastback roofline and turbine-style knock-off wheels, embodies the jet-age optimism of the early 1960s. Together, the Sting Ray and the modernist architecture symbolized America’s confidence in design, technology, and innovation at the dawn of a new era. (Image courtesy of GM Media LLC.)

The 1963 Corvette Sting Ray was more than just a new model—it was a cultural statement. It arrived at a time when America was flexing its technological might, and it showed that a U.S. automaker could build a sports car of global stature.

Its design remains timeless, its engineering innovations set the stage for decades, and its Z06 and Grand Sport variants planted the seeds for Corvette’s racing dominance.

As Bill Mitchell said years later: “The ’63 Corvette was the car that proved we could do it all—style, performance, and soul. It was America’s Sting Ray.”

Production Numbers
- Total: 21,513
- Coupes: 10,594 ($4,257 base)
- Convertibles: 10,919 ($4,037 base; over half with hardtops)
Conclusion

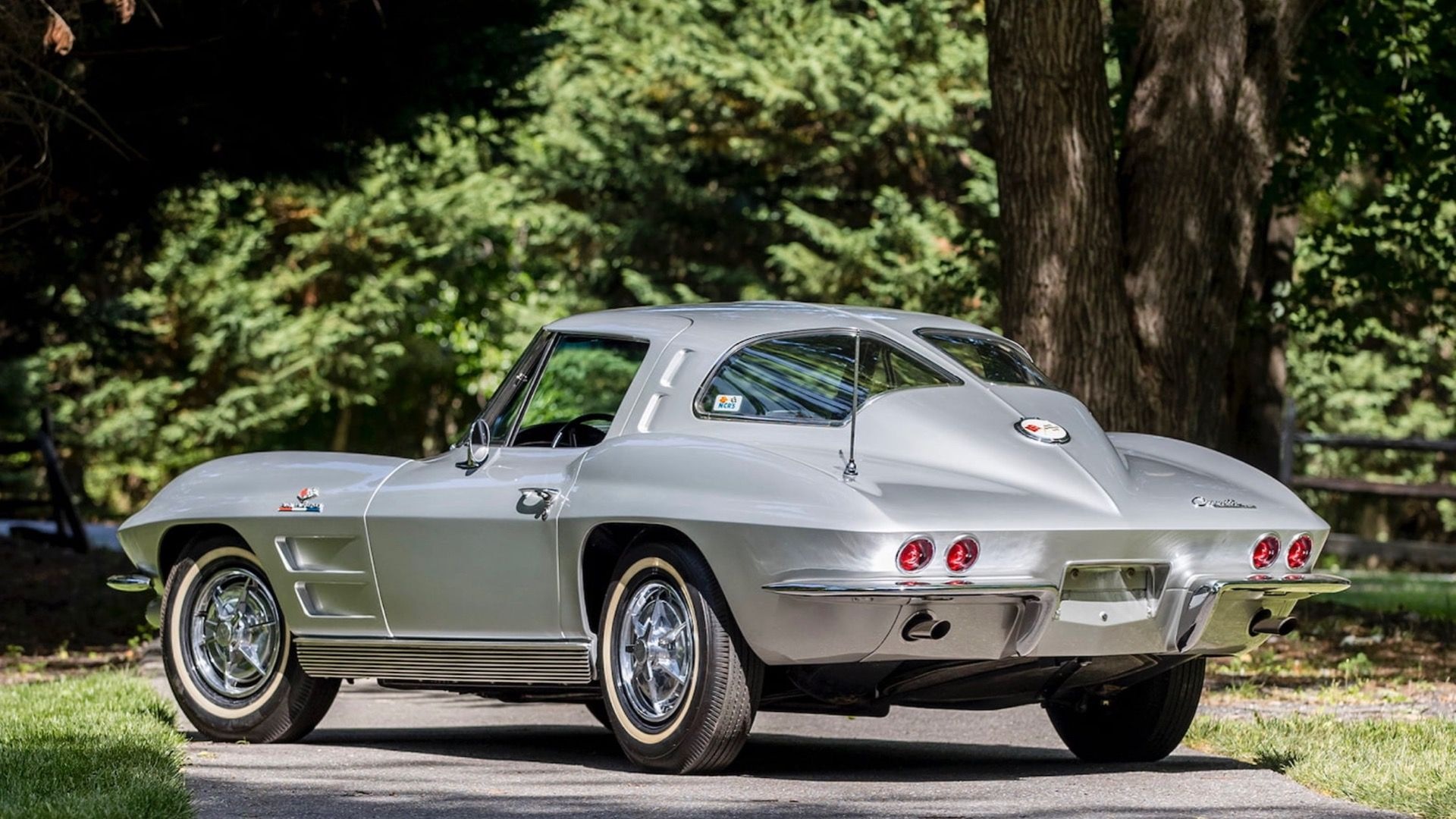

The rear split window was unique to the 1963 model year. It was deemed so controversial when introduced that many owners had the rear glass assembly converted to a single, wrap around window. Little did they realize that they were seriously hurting the future value of the car! (Image courtesy of RK Motors.)

The 1963 Corvette Sting Ray remains one of the most significant sports cars ever produced—not just in Corvette history, but in the entire automotive landscape. It fused racing technology with show-car style, captured the spirit of its era, and laid the foundation for Corvette’s transformation from niche fiberglass experiment to America’s enduring sports car icon.

More than 60 years later, its split-window coupe still stops collectors in their tracks. Its Z06 and Grand Sport variants still inspire the modern Corvette performance lineage. And its presence reminds us why, in 1963, America fell in love with the Sting Ray.
The 1963 Corvette arrived as a shock to the automotive world, signaling a clean break from everything that came before it. With its radical Sting Ray design, independent rear suspension, and an unmistakable focus on performance, the 1963 model transformed Corvette from a stylish American sports car into a serious, purpose-built machine with global aspirations.…
C2 CORVETTE: SHARKS & STINGRAYS

Affectionately known as the Stingray, the second-generation Corvette featured an independent rear suspension and a coupe body style. The restyled body, which was designed by Larry Shinoda under the direction of Bill Mitchell, drew much of its inspiration from the Mako Shark concept car. Once more, the Corvette’s body was constructed of fiberglass, and a rear split-window design was featured on the first model year coupes.

The second-generation Corvette was born from a deliberate effort inside Chevrolet to transform Corvette from a stylish experiment into a true performance-driven sports car with international credibility. Guided by Zora Arkus-Duntov and shaped by the visionary design leadership of Bill Mitchell, the C2 emerged from a series of racing-inspired concepts and hard-earned engineering lessons drawn…

Category: C2 Corvette

1960 CERV I OVERVIEW

Prologue: Why a Mid-Engine “Research Vehicle” in 1960?

The Birth of an Idea: From the “R-Car” and “Hillclimber” to CERV I

Engineering Philosophy: Amplify Everything

Structure and Suspension: Chromoly Bones, Fully Independent Limbs

Steering That Spoke Clearly

Brakes Designed for Stopping, Not Comfort

The Powerplants: From Featherweight 283 to 377 and Beyond

Form Follows Function: The Fiberglass Shell

Testing the Thesis: Milford, Pikes Peak, Continental Divide, Riverside

Pikes Peak: The Hill That Named It

Continental Divide Raceway: Making Tires Talk

Riverside, November 20, 1960: The Public Debut of the CERV I

What CERV I Was (and Wasn’t): A Racer’s Tool, Not a Race Entry

The Anatomy of the Instrument: Details That Mattered

The Payoff: What the 1960 CERV I Taught—and What Corvette Kept

Later Lives: Engines Swapped, Speeds Chased, Myths Made

The Public Story: From Secret Lab to Heritage Icon

A Closer Technical Walkaround (for the record)

Legacy: The Line from CERV I to Every Corvette Thereafter

Epilogue: Coming Home

Why the CERV I Still Matters Today

1963 Corvette Grand Sport: A Prototype That Changed the Game

The Problem Zora Wanted to Solve: Cobra, GT Rules, and the Limits of the Z06

“Grand Sport” as a Prototype Program, Not a Trim Level

The Core Engineering: Lightweight Structure and a Corvette That Still Looked Like a Corvette

Suspension, Brakes, and the Unsexy Hardware That Makes a Race Car Real

The Engines: From “Good Enough” to “No Excuses”

The 125-Car Wall: Homologation and Why “Only Five” Changes Everything

The Corporate Crackdown: When the 14th Floor Found Out

The “Privateer Release”: How Duntov Got His Real-World Testing Anyway

Nassau Speed Week, December 1963: The Moment the Grand Sport Proved the Point

What It Was Like to Drive: The Grand Sport as a Violent Tool, Not a Polished Product

The Competition Record: Short Career, Real Impact

The Roadsters: The Program’s Most Extreme Expression

The Grand Sport’s Real Legacy: Technology Transfer and a Corvette Culture Shift

1964 CORVETTE OVERVIEW

1963 CORVETTE OVERVIEW

From Racer to Road Car

The World of 1963

A Radical New Design

Engineering Revolution

Power Under the Hood

Stopping Power

Inside the Cockpit

Zora’s Secret Weapon: The Z06

The Grand Sport Dream

Sales Triumph

Market Reception

Specifications and Performance

Legacy

Production Numbers

Conclusion

C2 CORVETTE: SHARKS & STINGRAYS
