2015 Corvette Stingray Overview: The C7 Comes of Age

The 2015 Corvette did not introduce a new generation, reinvent the Stingray, or fundamentally alter the architecture Chevrolet had unveiled one year earlier. It did something arguably more consequential.

It demonstrated just how far the seventh-generation Corvette could go.

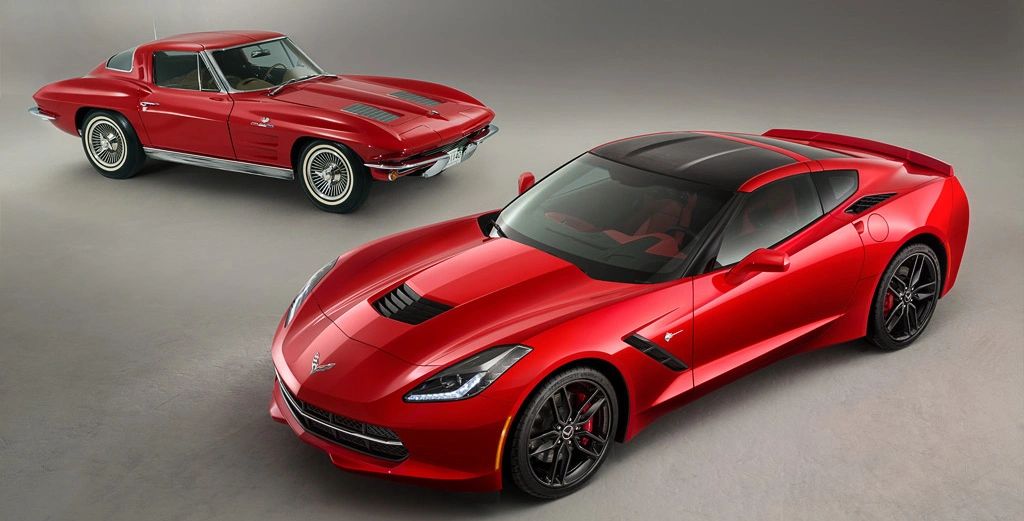

When the C7 Corvette Stingray arrived for 2014, Chevrolet had already accomplished something remarkable. The new car retained the essential formula that had defined the Corvette for generations—a front-mounted V-8, two seats, rear-wheel drive, composite bodywork, and an attainable price—while addressing many of the weaknesses that had traditionally separated America’s sports car from its European competitors. Its structure was more sophisticated, its interior was dramatically better, its electronics were more capable, and its LT1 V-8 combined traditional small-block architecture with direct fuel injection, variable valve timing, and cylinder deactivation. The C7 was not simply faster than the Corvette it replaced. It was more complete.

Car and Driver named the all-new 2014 Chevrolet Corvette Stingray to its prestigious 10Best Cars for 2014, praising the C7 for combining formidable performance with a dramatically improved connection between car and driver. The Corvette dominated the magazine’s 10Best performance data, recording the group’s highest horsepower (460 hp), quickest quarter-mile (12.2 seconds at 117 mph), shortest 70–0 mph braking distance (146 feet), highest skidpad grip (1.08 g), and lowest center of gravity. Car and Driver did not officially rank its ten winners from first through tenth; although the Corvette was the performance standout, the editors informally described the Porsche Boxster/Cayman as the “winners among these winners.” (Image credit: Car and Driver)

The automobile industry noticed. The 2014 Corvette Stingray was named North American Car of the Year and collected a remarkable array of additional awards during its inaugural season. The challenge confronting Chevrolet for 2015 was therefore very different from the one it had faced while developing the C7. There was no need to rescue the Corvette, nor was there any reason to dramatically reinvent a platform that had only just arrived.

Instead, Chevrolet began exploiting it.

For 2015, the Stingray received an all-new eight-speed automatic transmission, the extraordinary Performance Data Recorder, 4G LTE connectivity, additional appearance options, revised equipment packaging, and two distinctive personalization packages. More importantly, the Z06 returned with a supercharged 650-horsepower LT4, unprecedented aerodynamic capability, massive brakes and tires, available carbon-ceramic rotors, an available automatic transmission, and—in a development that would have seemed almost contradictory during earlier Corvette generations—a removable roof panel or full convertible body.

The result was a Corvette family that could stretch from comfortable grand tourer to legitimate track weapon without abandoning the essential character that had made the C7 such an immediate success. Chevrolet’s own engineers described the Z06 as the most track-capable Corvette the company had ever produced, and period instrumented testing demonstrated that this was more than marketing language.

Yet another Corvette story was unfolding at exactly the same time.

This unusual-looking development mule, known internally as “Blackjack,” offered one of the earliest glimpses into the future direction of the Corvette. Built around heavily modified Holden bodywork, the deliberately crude prototype concealed something far more significant beneath its skin: Chevrolet was actively exploring a mid-engine architecture that would eventually redefine America’s sports car. While the production C7 was still pushing the traditional front-engine Corvette formula to extraordinary new heights, Blackjack demonstrated that General Motors was already looking beyond it—quietly laying the groundwork for what would ultimately become the C8 Corvette.

While the 650-horsepower Z06 models began reaching customers, and Corvette Racing was chasing victories at Daytona, Sebring and Le Mans, a bizarre-looking black engineering mule was operating behind closed doors at General Motors. Known internally as Blackjack, it placed its engine behind the passenger compartment and concealed its proportions beneath a mixture of Holden and Corvette bodywork. GM had actually begun that program in 2013, but photographs published in January 2015 gave the outside world its first hard evidence that the long-rumored mid-engine Corvette was no longer simply another concept or internal proposal.

The irony is almost perfect. During the same year Chevrolet demonstrated how extraordinarily capable the traditional front-engine Corvette could become, engineers were already developing the architecture that would ultimately replace it.

That combination makes 2015 one of the most consequential model years of the entire C7 era.

Advancing the Corvette Without Reinventing It

The 2015 Corvette existed because the 2014 Stingray had already established a remarkably strong foundation.

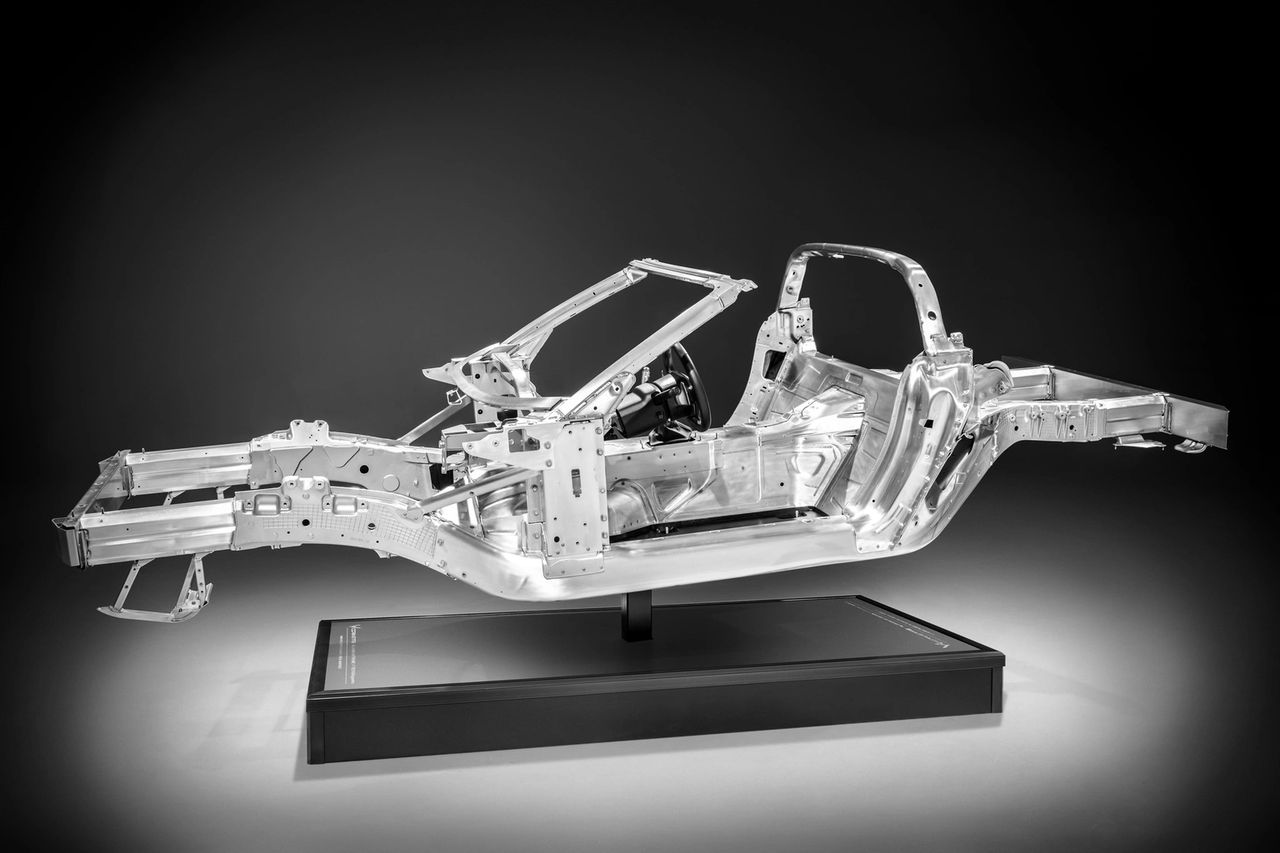

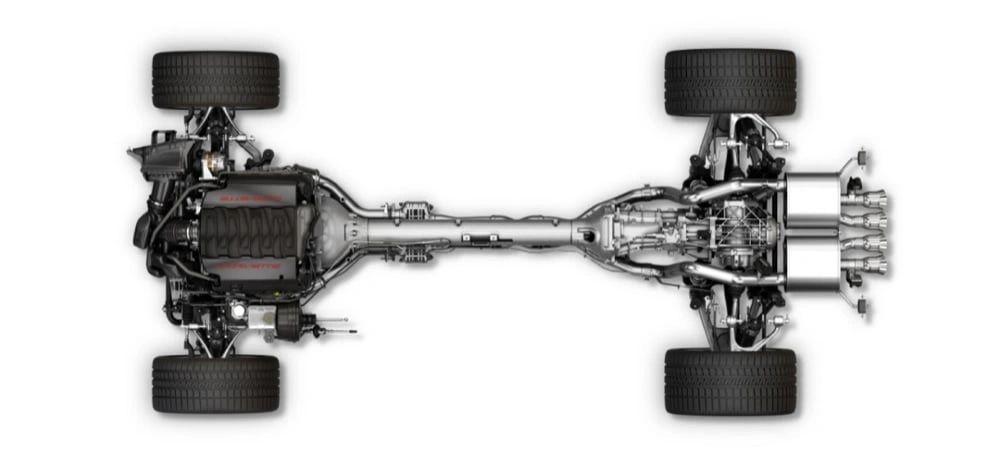

Its aluminum structure, rear-mounted transaxle, carbon-fiber hood and removable roof panel, short-long-arm suspension, transverse composite springs, electronically controlled differential (on performance models), and LT1 small-block gave Chevrolet an architecture that was both familiar and technologically ambitious. The exterior was dramatically more aggressive than the C6 it replaced, while the interior finally presented a level of materials, fit, technology, and driver orientation appropriate to the Corvette’s increasingly serious performance capabilities.

For 2015, Chevrolet resisted the temptation to make unnecessary stylistic changes. The Stingray’s basic shape remained essentially unchanged because the second model year was about expanding capability rather than correcting fundamental shortcomings.

The Corvette’s history shows a familiar pattern: each new generation arrives with a bold new design language, then matures through steady refinement before reaching its final and most fully developed form. That same evolutionary arc shaped the C7, just as it had the C2, C3, C4, C5, and C6 before it. From its first-year debut to its final iterations, the seventh-generation Corvette followed the same basic model of improvement—sharper engineering, more polished styling details, and increasingly focused performance. In that sense, the C7 was not a break from tradition, but the latest example of a development formula that has defined Corvette for decades.

That approach followed a pattern familiar throughout Corvette history. The first production year of a generation traditionally established the platform. Subsequent years allowed engineers to exploit it. The 1963 Sting Ray quickly led to increasingly potent fuel-injected and big-block C2s. The 1968 Corvette evolved dramatically during the long C3 generation. The C4 introduced in 1984 eventually produced the ZR-1 and Grand Sport. The C5‘s fundamental architecture ultimately supported the Z06 and C5-R, while the C6 evolved from the 400-horsepower 2005 coupe into the 505-horsepower Z06 and 638-horsepower ZR1.

The C7 followed the same principle, but the timetable was compressed.

Only a year after the Stingray entered production, Chevrolet introduced a Z06 powerful enough to eclipse the previous C6 ZR1 while simultaneously improving the standard Corvette’s transmission, electronics, connectivity and personalization. In effect, the second-year C7 lineup already contained much of the technological hierarchy that would define the generation.

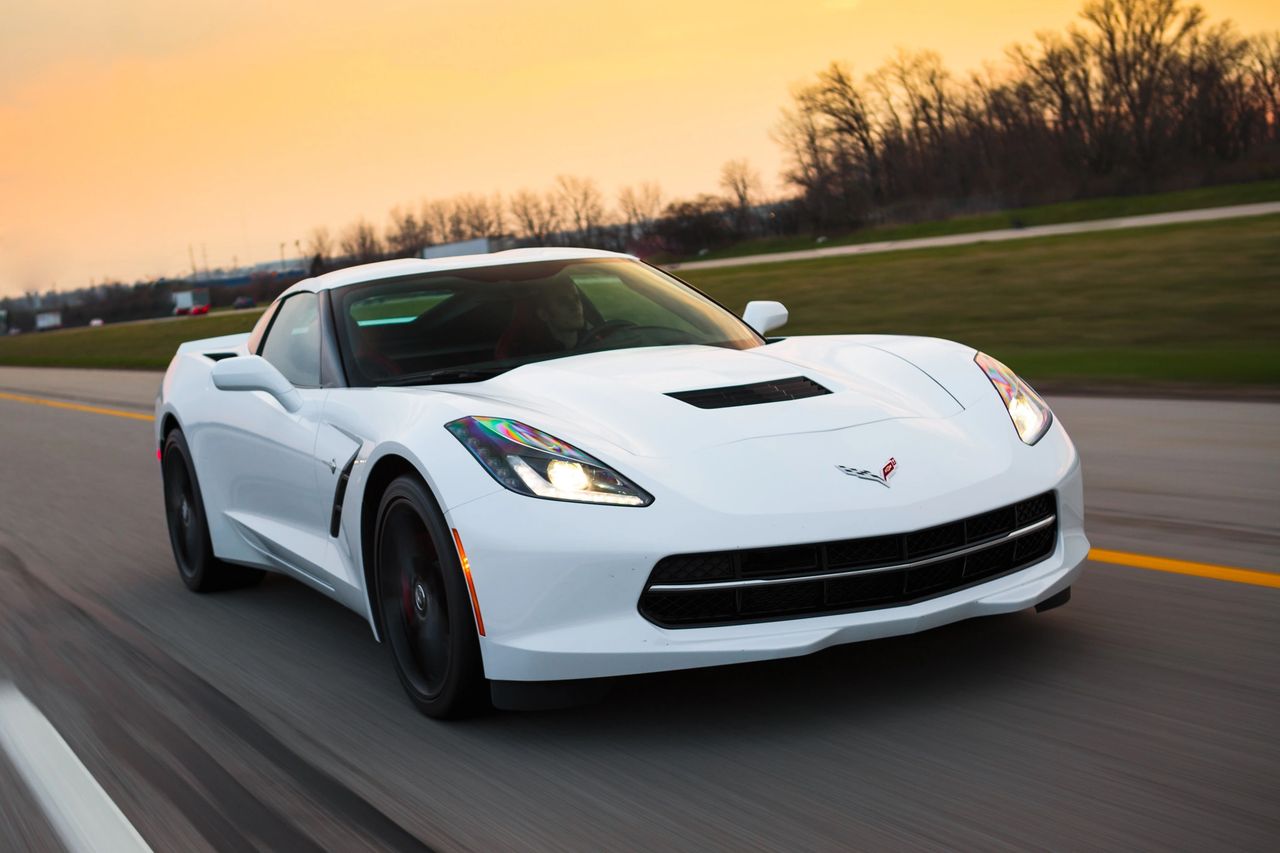

As Corvette chief engineer, Tadge Juechter led the engineering effort that transformed the new C7 Stingray into the far more aggressive 2015 Corvette Z06. Developed in close parallel with the Corvette C7.R race car, the Z06 shared elements of its aluminum chassis architecture, aerodynamic strategy, cooling philosophy, and direct-injection technology, reflecting Juechter’s emphasis on transferring lessons from competition directly to the street. With its supercharged LT4 V-8 producing 650 horsepower and 650 lb-ft of torque, the finished Z06 represented what Juechter described at the time as the “most track-capable production Corvette ever.” (Image credit: CNET)

Tadge Juechter, then Corvette chief engineer, summarized the philosophy behind the Z06 in terms of making performance increasingly usable rather than merely increasing its numerical limits. Chevrolet wanted the driver to be able to exploit the available torque, grip and aerodynamic capability instead of simply advertising larger numbers. The foundational 2015 material captures that philosophy directly, including Juechter’s description of making Corvette’s performance “more accessible.”

That concept explains much of the 2015 Corvette.

The eight-speed automatic was not simply about adding gears. It was about making the car accelerate harder while consuming less fuel. The Performance Data Recorder was not simply another camera. It allowed an owner to study his or her driving with race-derived telemetry. Magnetic Ride Control did not merely stiffen the suspension. It continually altered damping to reconcile ride comfort with track capability. The Z07 package did not simply decorate the Z06 with more aggressive appendages. Those components generated measurable aerodynamic downforce.

The 2015 Corvette was therefore less about reinvention than integration.

Chevrolet was learning how to make extreme performance increasingly approachable.

Tom Peters, Kirk Bennion, and the Shape of the 2015 Corvette

Under Tom Peters’ direction, the C7 design team set out to make the Corvette look every bit as technically advanced and performance-focused as the engineering beneath it, moving deliberately away from the softer evolutionary relationship that had connected the C5 and C6. Its influences ranged from contemporary aerospace and motorsport to the increasingly aggressive visual language of the world’s premier exotic cars, but the objective was never simply to make the Corvette look more European—it was to create a distinctly American shape that could stand confidently beside them. Sharper creases, deeply sculpted body sides, pronounced fenders and highly visible functional vents gave the car a sense of tension and motion even at rest, while Corvette Racing helped reinforce the idea that airflow, cooling and aerodynamic management should become part of the exterior’s visual vocabulary. Peters’ team wanted the C7 to announce that Corvette had entered a new era, preserving enough familiar proportions to remain unmistakably a Corvette while abandoning the restraint that had defined much of the previous generation. The result was a design that looked faster, more technical, and more exotic than any production Corvette that had come before it. (Image credit: GM Media LLC.)

Tom Peters’ design organization had already given the seventh-generation Corvette one of the most dramatic shapes in the car’s history. The C7 still carried the visual DNA that had defined Corvette for generations—the long, low hood, pronounced front fenders, abbreviated rear deck, low seating position and unmistakable front-engine sports-car proportions—but almost everything about the way those elements were expressed had changed.

Where the C5 and C6 had evolved from their predecessors with a degree of visual continuity, the C7 deliberately broke from that pattern. Its surfaces were harder, its creases more pronounced, and its details more technical. The body was punctuated by functional openings, vents and extractors, while even the departure from Corvette’s traditional round taillamps signaled that Chevrolet was willing to challenge convention if doing so produced a more contemporary, more purposeful automobile.

The C7 increasingly looked less like a shape that had simply been sculpted around a mechanical package and more like a machine whose bodywork had been engineered as part of that package. That philosophy was already evident on the Stingray, but it became impossible to miss when Chevrolet introduced the 2015 Corvette Z06.

Form Follows Function

The 2015 Corvette Z06 was a textbook example of form following function, with much of its more aggressive appearance dictated directly by engineering requirements. Its widened fenders accommodated substantially larger tires, while enlarged grille openings, vents, ducts and the hood extractor managed the immense cooling and airflow demands created by the supercharged LT4 and sustained high-performance driving. Aerodynamic elements including the front splitter, rocker treatments and rear spoiler were shaped to control airflow and generate stability and downforce rather than simply provide visual drama. The result was a Corvette whose exterior effectively advertised its mechanical purpose—nearly every aggressive feature existed because the performance underneath demanded it.

Where the Stingray was aggressive, the Z06 was almost confrontational, with little attempt to disguise what the car had become. The widened body, enlarged cooling openings, deeper aerodynamic appendages, and enormous tires transformed the already dramatic C7 into something that looked much closer to a competition car made street legal than a conventional production Corvette that had merely received more horsepower.

That appearance was not accidental, nor was it merely cosmetic. The Z06’s front fenders were widened by approximately 2.2 inches, while the rear bodywork grew by roughly 3.15 inches. Those changes were necessary to package substantially larger wheels and tires beneath the body, but they also changed the visual character of the automobile as a whole.

The standard Stingray looked lean and athletic, while the Z06 looked planted, almost compressed against the pavement by the width of its track. From virtually any angle, the additional body width was evident, particularly through the dramatically swollen rear quarters and the way the tires filled the wheel openings.

The 2015 Corvette Z06’s dramatically wider stance was dictated by the need to put substantially more tire on the pavement. Its front fenders grew by roughly 2.2 inches, while the rear bodywork widened by about 3.15 inches, making room for P285/30ZR19 front tires and massive P335/25ZR20 rears mounted on 19 x 10- and 20 x 12-inch wheels. The result was not only a more aggressive visual presence, but a much broader contact patch that helped the Z06 translate its 650 horsepower into meaningful cornering and braking performance. Visually and mechanically, the wider body became one of the clearest signals that this was far more than a standard Stingray with additional power.

The rear bodywork wrapped around enormous P335/25ZR20 tires, while P285/30ZR19 rubber filled the front wheelhouses. The wheels themselves measured 19 x 10 inches in front and 20 x 12 inches at the rear, dimensions that would have seemed almost exotic on a road-going Corvette only a generation earlier. Chevrolet was no longer attempting to build a car that merely looked capable; the Z06 had been engineered around the physical requirements of generating and managing enormous levels of grip.

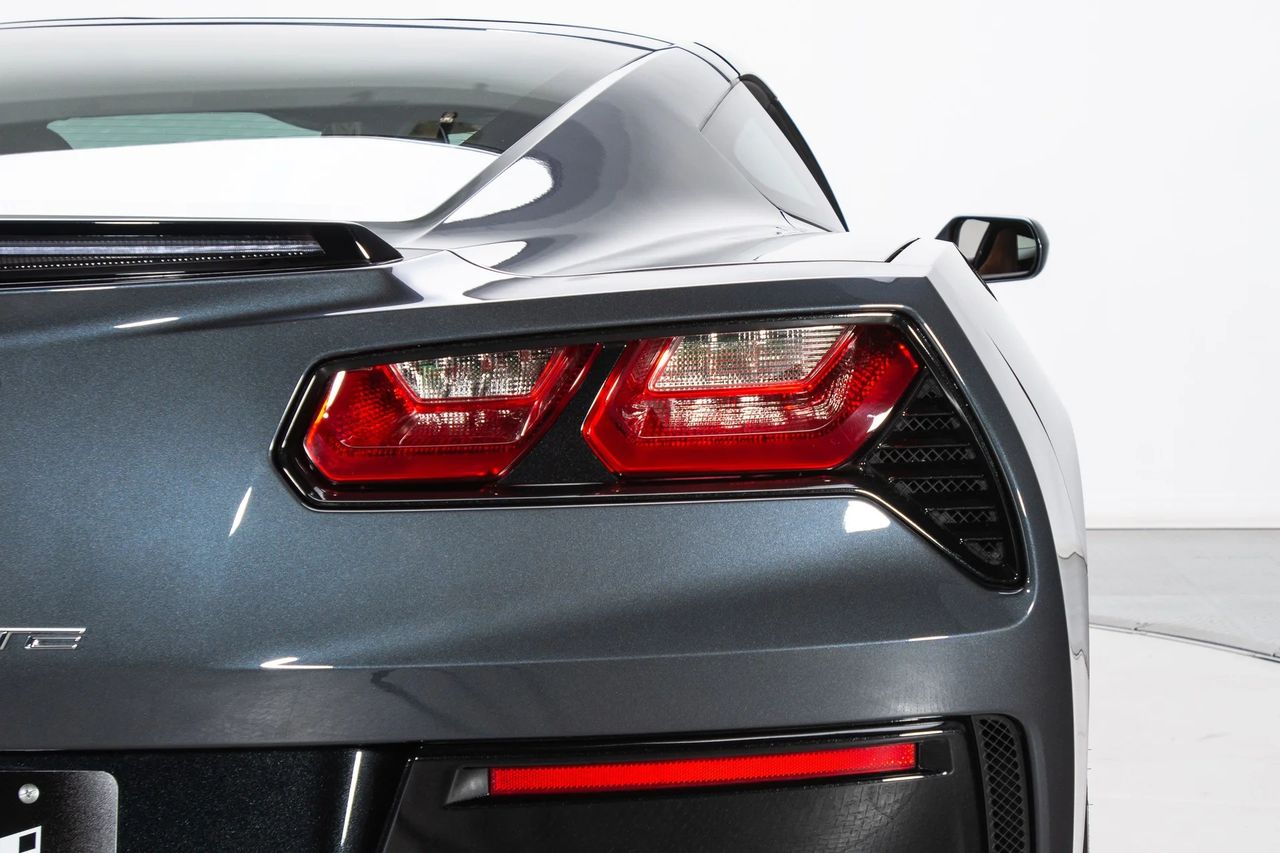

That widened stance also forced changes farther aft. The taillamps were pushed farther apart within a unique rear fascia, visually emphasizing the width of the car while accommodating the revised rear bodywork. The result was one of the broadest-looking Corvettes ever produced, particularly when viewed directly from behind, where the combination of wide tires, stretched fascia and rear aero hardware gave the car an unmistakably purposeful stance.

The front of the Z06 told the same story. The grille opening grew substantially because the LT4’s supercharged 6.2-liter V-8 created vastly greater thermal demands than the naturally aspirated LT1 in the Stingray, and additional cooling capacity was required not only for the engine but also for the transmission, differential, brakes and other systems expected to survive sustained high-speed track use.

In that sense, the Z06’s bodywork was not merely surrounding the mechanical components; it was actively supporting them. Tom Peters summarized the philosophy succinctly when he explained that “practically every exterior change served a functional purpose, as this beast needed more of everything,” a statement that could almost serve as the design brief for the entire automobile.

Few images communicate the 2015 Corvette Z06’s track capability as vividly as this one. Under hard braking, the front rotor is glowing orange from the enormous thermal energy being absorbed as the Z06 sheds speed, while the car remains composed under sustained circuit use. When equipped with the Z07 Performance Package, the Z06 uses massive 15.5-inch front and 15.3-inch rear carbon-ceramic matrix rotors, hardware engineered to deliver consistent braking performance lap after lap while also reducing unsprung weight.

The Z06 needed more air entering the car, more heat leaving it, more tire contacting the pavement, more brake capacity, more high-speed stability and more aerodynamic control. Each of those requirements exerted pressure on the exterior design, and Peters’ team allowed those engineering demands to remain visible rather than concealing them beneath a cleaner or more conservative shape.

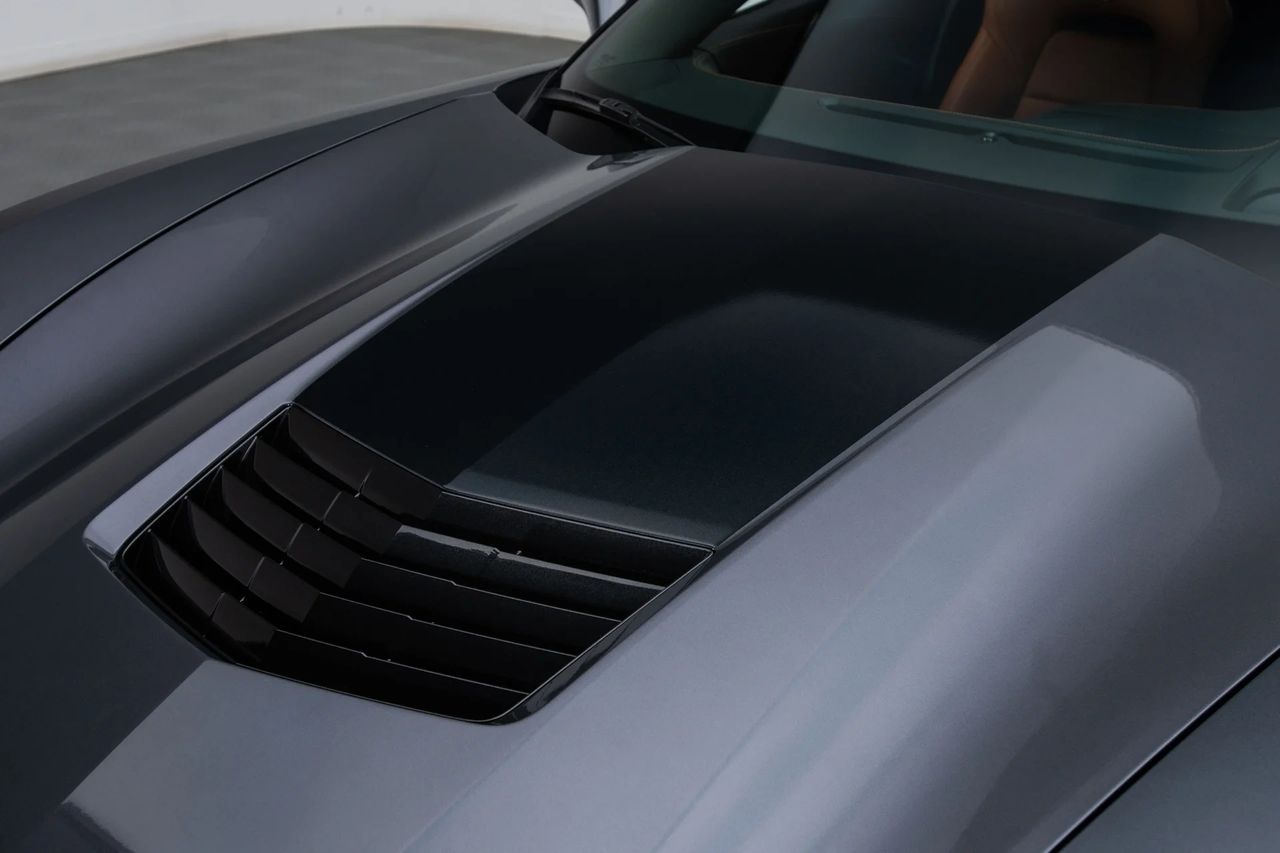

The hood provided one of the clearest examples. A larger extractor helped evacuate hot air from the engine compartment while simultaneously contributing to aerodynamic management at the front of the car. Rather than allowing high-pressure air to accumulate beneath the hood and create lift, the vent provided a controlled path for that air to escape, meaning what initially appeared to be another aggressive styling flourish performed a very real function at speed.

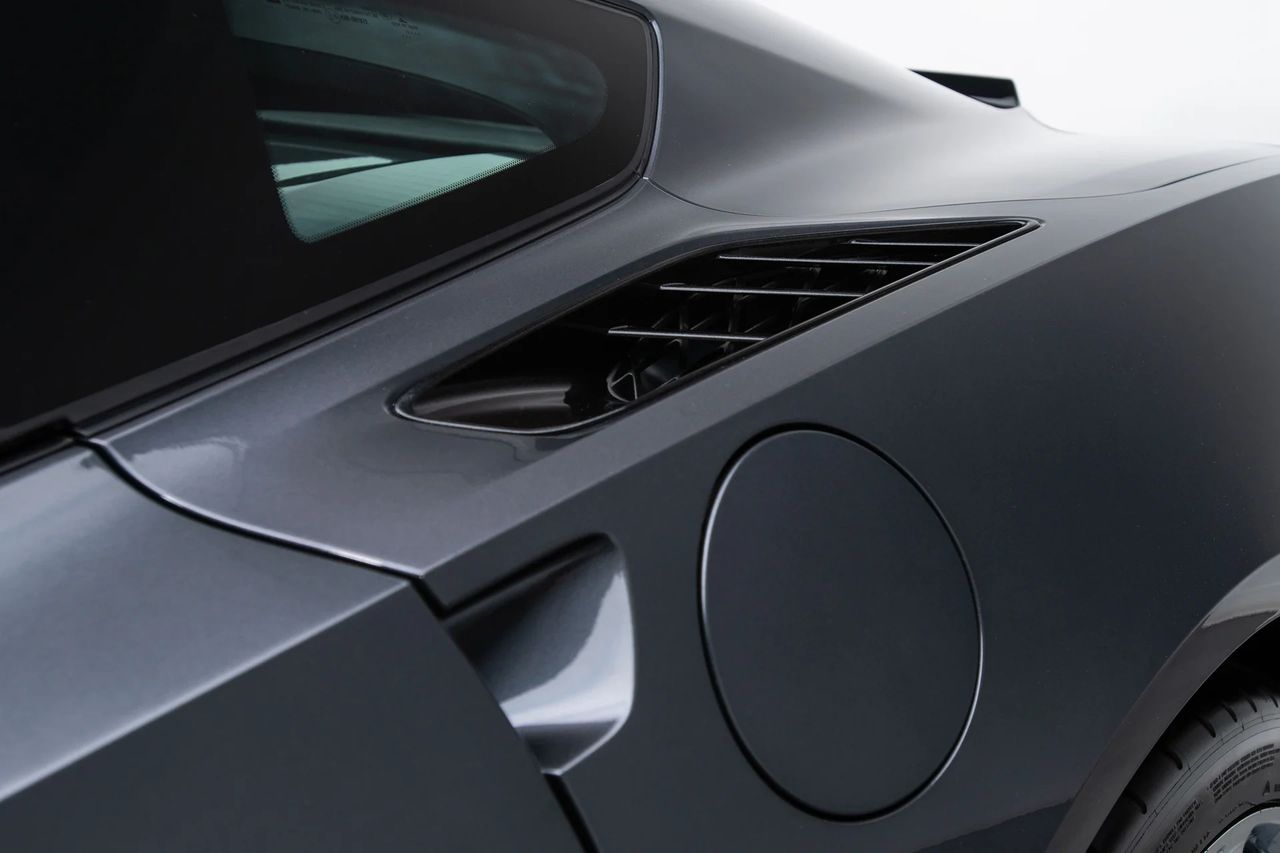

The same philosophy extended along the sides of the car. Air-management devices around the front wheels, fenders and rocker panels were shaped to control turbulent air moving around the body, while the broader rear quarter panels were dictated in large part by tire width. The enlarged openings fed systems that required greater cooling, and even the visual brutality of the Z06—the sense that the car had been stretched, vented and carved open—was a consequence of its intended performance envelope.

The result was a Corvette whose appearance increasingly communicated how it worked. Chevrolet then gave customers the ability to take that philosophy even farther through three progressively aggressive aerodynamic configurations, each building upon the same basic body with increasingly serious hardware.

The standard Z06 already incorporated a front splitter, wheel-opening spats and a rear spoiler. These elements gave the base car a considerably more serious aerodynamic package than the Stingray while maintaining a degree of everyday usability and visual restraint relative to the more extreme configurations.

An available carbon-fiber aero package increased that emphasis with a more aggressive carbon-fiber front splitter, rocker extensions and a larger rear spoiler. Carbon fiber was not simply being applied as decorative trim; it was being used in areas where shape, stiffness and low mass were useful while visually reinforcing the car’s increasingly competition-oriented character.

Equipped with the Z07 Performance Package, the 2015 Corvette Z06 became an even more serious high-speed machine, pairing its already formidable chassis with carbon-ceramic brakes, Michelin Pilot Super Sport Cup 2 tires and the most aggressive aerodynamic configuration available from Chevrolet. Larger front splitter winglets and the adjustable rear spoiler center section substantially increased aerodynamic downforce, helping keep the Z06 planted and predictable through fast corners and heavy braking zones. On high-speed circuits such as Daytona International Speedway, where stability during sustained velocity and transitions between the banking and infield are critical, those aerodynamic and chassis enhancements allowed the Z06 to exploit far more of its 650-horsepower potential. The Z07 package effectively transformed an extraordinarily fast road car into a Corvette engineered to remain composed when speeds, braking loads and cornering forces reached genuine track-car territory.

The Z07 Performance Package took the concept to its extreme. Z07-equipped cars received larger front splitter winglets and an adjustable transparent center section—commonly described as a wickerbill—on the rear spoiler. The transparent material allowed Chevrolet to add rear aerodynamic surface area without completely obstructing rearward visibility, while the adjustable configuration gave the car another degree of tuning for high-speed use.

With the full Z07 aerodynamic configuration installed, Chevrolet stated that the Z06 generated more aerodynamic downforce than any production automobile General Motors had tested to that point. That claim illustrates just how far Corvette development had progressed, especially when compared with earlier generations in which production-car aerodynamic work had concentrated far more heavily on reducing drag, maintaining stability and controlling lift.

By the time the C7 Z06 arrived, Chevrolet engineers were deliberately using the body to generate meaningful downforce while simultaneously attempting to preserve the attributes that made a Corvette usable away from the racetrack. That duality became one of the most remarkable characteristics of the 2015 Z06.

Here was a 650-horsepower Corvette capable of wearing enormous tires, producing genuine aerodynamic downforce and generating performance that placed it among the most serious track-capable road cars in the world. Yet it could still be configured with heated and ventilated seats, navigation, an automatic transmission and, in convertible form, a power-operated roof.

The car did not demand that an owner accept race-car austerity in exchange for race-car capability. Chevrolet instead attempted to deliver both, combining an increasingly competition-focused exterior and chassis with the comfort, convenience and everyday usability expected of a modern flagship sports car.

The Z06’s exterior design therefore represented far more than a more aggressive interpretation of the Stingray. It demonstrated the extent to which the C7 platform had been conceived as an adaptable performance architecture, one whose basic proportions remained recognizable even as nearly every major surface could be altered when the mechanical requirements demanded it.

The Z06 was unmistakably a C7 Corvette, but it looked as though every component had been turned up several degrees. That visual transformation was appropriate because, beneath the surface, nearly every performance system had been pushed in exactly the same direction.

Atlantic and Pacific: Two Personalities for the Stingray

For 2015, Chevrolet used the Atlantic Design Package to explore a more refined, grand-touring interpretation of the C7 Corvette. Offered exclusively on Z51-equipped convertibles in 2LT or 3LT trim, the package combined distinctive visual details, chrome Torque Directional wheels, Shark Gray accents, a Z06-style front splitter, and fitted luggage to create a Corvette aimed as much at long-distance touring as outright performance. Inspired by the luxury and performance associated with private aviation and European vacation destinations, the Atlantic demonstrated how broadly Chevrolet could shape the personality of the new Stingray without changing its underlying character. With only 17 examples produced, it became one of the most unusual configurations of the 2015 Corvette lineup. (Image credit: Chevrolet)

At the same time Chevrolet was pushing the C7 toward the extreme performance represented by the Z06, it was exploring another aspect of the Corvette’s growing sophistication: personalization. The Atlantic and Pacific Design Packages represented an entirely different interpretation of what the seventh-generation Corvette could become, showing how much character could be created through carefully coordinated appearance and equipment choices.

Both had originated as concept vehicles displayed at the 2013 SEMA Show, where Chevrolet used the enormous aftermarket and enthusiast gathering to gauge reaction to different combinations of factory accessories, trim, wheels, graphics and interior treatments. The response was sufficiently positive that the company moved forward with production versions for the 2015 model year.

The significance of the two packages was not that they transformed the Stingray mechanically, because they did not. Instead, they demonstrated how dramatically the Corvette customer base—and Chevrolet’s understanding of that customer base—had broadened.

The Atlantic and Pacific design concepts first appeared at the 2013 SEMA Show, where Chevrolet used them to demonstrate just how flexible the new C7 Corvette platform could be. The silver Atlantic concept leaned into a more refined grand-touring personality, while the red Pacific concept emphasized a more aggressive, track-inspired look, effectively previewing the production design packages that would follow for 2015. SEMA, short for the Specialty Equipment Market Association, is the automotive aftermarket industry’s premier annual trade show in Las Vegas, bringing together manufacturers, builders, designers, media and retailers to showcase new products, customization trends and concept vehicles. For Chevrolet, it was the ideal stage to test enthusiast reaction, and the strong response to both cars helped move the themes from show-floor concepts to factory-backed production packages. (Images credit: Vette Vues Magazine)

Kirk Bennion, Corvette exterior design manager, explained that one of the C7 program’s objectives was to give owners enough flexibility “to tailor the car to their personality.” The Atlantic and Pacific packages took that idea and turned it into two deliberately different interpretations of the same basic automobile.

The Atlantic represented the grand-touring side of Corvette ownership. Available only on Z51-equipped convertibles in 2LT or 3LT trim, the package was conceived around a more polished, destination-oriented personality. Chevrolet described its inspiration in terms that evoked private aviation, European travel and upscale grand touring rather than pit lanes and timing transponders.

That influence was reflected in the details. The Atlantic incorporated a Z06-style front splitter, Shark Gray exterior vents, distinctive hood graphics and matching tonneau inserts. Chrome Torque wheels gave the car a more formal appearance than the darker performance-oriented wheel treatments appearing elsewhere in the Corvette catalog, while unique Stingray-branded details reinforced the sense that this was intended as a coordinated factory design rather than a random collection of accessories.

Splash guards and fitted luggage further emphasized the package’s touring character. There was a certain logic to that approach because the C7 convertible had already evolved into a remarkably competent long-distance automobile, offering substantial power, genuine sports-car handling, a comfortable cabin and the ability to lower the roof without surrendering the fundamental character of the Corvette.

The Atlantic package simply leaned into that personality. It dressed the car for the owner who imagined the Corvette as something to pack for a weekend away rather than something that necessarily needed a helmet in the luggage compartment, creating an image that was more coastal grand tourer than weekend track weapon.

The 2015 Corvette Pacific Design Package gave the Stingray a far more aggressive, track-inspired personality, emphasizing visual performance without altering the fundamental Z51 mechanical package beneath it. Offered on Z51-equipped coupes in 2LT or 3LT trim, it combined satin-black racing stripes, black Z51 wheels with red accents, red brake calipers, carbon-fiber ground effects, a visible carbon-fiber roof panel, Carbon Flash exterior trim and Competition Sport Seats. The effect was deliberately more purposeful than luxurious, using dark finishes, carbon fiber and motorsport cues to make the C7 look as though it belonged in the paddock even when parked on the street. Where the Atlantic package interpreted the Stingray as a sophisticated grand tourer, the Pacific presented the same basic Corvette as a sharper, more extroverted weekend performance machine. (Image credit: Chevrolet)

The Pacific package approached the Stingray from almost the opposite direction. Available only on Z51-equipped coupes in 2LT or 3LT trim, it was aimed at the enthusiast who wanted the car to communicate a stronger connection to the track even when it was sitting still.

Satin-black racing stripes immediately altered the car’s visual attitude. Black Z51 wheels with red accents, red brake calipers and carbon-fiber ground effects pushed the appearance farther toward motorsport, while a visible carbon-fiber roof panel continued the theme above the beltline. Carbon Flash exterior elements created a darker, more technical contrast against the body color and reinforced the sense that the package had been assembled with a much more aggressive visual purpose.

Inside, the Pacific continued the same theme with Competition Sport Seats and carbon-fiber appointments. Taken individually, none of those changes transformed the mechanical character of the Stingray, but together they gave the car a far different personality from the Atlantic.

The Atlantic and Pacific concepts were less about changing what the Corvette Stingray could do than demonstrating how dramatically Chevrolet could change what the car said about its owner. Chevrolet described personalization as one of the C7’s central design goals, and the two cars deliberately occupied opposite ends of that spectrum: the Atlantic transformed the convertible into a sophisticated grand-touring cruiser, drawing inspiration from the polished, jet-set atmosphere of European vacation destinations, while the Pacific recast the coupe as the visual embodiment of the West Coast weekend track enthusiast. Chrome, restrained contrasting accents, and an upscale open-air presentation gave the Atlantic a more cosmopolitan character; the Pacific answered with racing stripes, dark finishes, exposed carbon-fiber elements, and bold red accents that made it look ready for a paddock before it ever turned a wheel in anger. The point was not simply convertible versus coupe or cruiser versus track car. Chevrolet was demonstrating something larger: that the seventh-generation Corvette could serve as a canvas for genuinely different personalities, allowing two Stingrays built from the same basic design vocabulary to project almost completely different identities. The enthusiastic response to the SEMA concepts ultimately helped push both ideas into production for 2015, turning what began as a customization exercise into one of the clearest demonstrations of just how personal the C7 Corvette could become.

The Atlantic looked prepared for a long drive, while the Pacific looked prepared for a track day. That contrast was precisely the point, because Chevrolet was using essentially the same underlying Stingray to explore two different interpretations of Corvette ownership.

For much of Corvette history, buyers had selected colors, wheels, interiors and a relatively limited number of appearance options around a fairly fixed visual identity. By the C7 era, Chevrolet was beginning to treat the Corvette more like a customizable performance platform. A customer could start with essentially the same Stingray and push it toward grand touring, visual motorsport aggression or something closer to the standard car’s relatively restrained configuration.

The idea also reflected the growing importance of factory personalization in the performance-car marketplace. Corvette buyers had always modified their cars, and the aftermarket surrounding the model was enormous, but Chevrolet’s strategy with packages such as Atlantic and Pacific effectively brought part of that personalization process inside the factory ecosystem.

Rather than forcing owners to assemble a collection of aftermarket pieces after purchase, Chevrolet could offer a coordinated design whose components had been selected to work together visually. That was particularly important for the C7 because the design itself responded so strongly to small changes in trim.

Inside the Corvette Stingray Atlantic concept, Chevrolet deliberately softened the C7’s performance-first personality with an interior intended to feel more like a sophisticated grand-tourer than a weekend track car. The warm, richly finished cabin featured a suede-wrapped interior treatment, complemented by premium carpeting, unique sill plates, an embroidered Stingray center armrest and a wind deflector positioned behind the seats. Against the Blade Silver exterior, the rich brown upholstery created an almost tailored, luggage-grade atmosphere that reinforced Chevrolet’s private-jet inspiration for the car. Rather than making the Corvette feel more aggressive, the Atlantic demonstrated how the C7 could be personalized toward luxury, long-distance touring and open-air sophistication—the deliberate counterpoint to the harder-edged, carbon-fiber-intensive Pacific coupe.

Darkening the vents, changing the wheels, adding a splitter or introducing a contrasting stripe could significantly alter the way the car read visually. The C7’s sharp creases and functional openings gave accessory designers natural places to introduce contrast, allowing Chevrolet to create dramatically different personalities without changing the basic body.

The Atlantic and Pacific packages therefore sat at an interesting point within the 2015 Corvette lineup. At one extreme was the Z06, where form was being reshaped by the requirements of 650 horsepower, enormous tires, serious cooling demands and genuine aerodynamic downforce. At the other was the Stingray, where Chevrolet was demonstrating how much visual character could be created through carefully coordinated personalization.

Both approaches grew from the same underlying idea: the seventh-generation Corvette had become a remarkably flexible canvas. It could be configured as a relatively understated coupe, a luxurious convertible, a visually aggressive Z51, an Atlantic grand tourer, a Pacific track-inspired Stingray or a Z06 capable of performance that only a few years earlier would have seemed almost unimaginable for a regular-production Corvette.

The Atlantic package ultimately became especially unusual, with contemporary production compilations recording only 17 examples equipped with RPO ATI. That placed it among the rarest regular-production configurations of the C7 era and gave the package an importance beyond the number of cars Chevrolet actually sold.

If the Atlantic concept demonstrated how sophisticated the C7 could become, the Pacific concept pushed its cabin firmly in the opposite direction. Chevrolet carried the car’s West Coast, track-day personality inside with Competition Sport seats, a carbon-fiber trim package, and a flat-bottom steering wheel finished with carbon-fiber detailing, surrounding the driver with materials and shapes that visually reinforced the car’s more aggressive mission. The striking red-and-black treatment seen here adds another layer of theater, using the Stingray’s already driver-focused cockpit architecture as a canvas rather than redesigning it. Like the exterior, the Pacific’s interior was ultimately a demonstration of personalization—proof that carefully selected factory accessories, colors, and finishes could transform the character of a Stingray from a sophisticated grand tourer into something that looked and felt much closer to a weekend track machine.

The Atlantic and Pacific demonstrated that Corvette design in the C7 era was no longer focused solely on creating a single recognizable sports car. Peters, Bennion, and the broader design organization had created a shape capable of supporting multiple identities without losing the visual foundation that made each of them unmistakably a Corvette.

For the Z06, that flexibility allowed the body to grow wider, more vented, and more aerodynamically aggressive in response to engineering necessity. For the Atlantic and Pacific, it allowed one Stingray to evoke a polished transcontinental grand tourer while another suggested a weekend spent chasing lap times.

The underlying automobile remained the same, but the personality could be remarkably different. That versatility became one of the defining strengths of the C7 platform and helped explain why the 2015 lineup could accommodate such dramatically different interpretations of the Corvette without any of them feeling disconnected from the car’s larger identity.

The Technology That Changed the Corvette Experience

One of the most interesting new technologies available on the 2015 Corvette was Chevrolet’s Performance Data Recorder, better known simply as the PDR. Developed with help from Cosworth, the system gave Corvette owners a factory-integrated way to record video and driving data directly from the car, bringing a distinctly motorsports-flavored feature into the production lineup. As this image illustrates, the PDR could overlay information such as speed, gear selection, lap timing, and track position onto the recorded footage, making the Corvette feel more advanced and more purposeful than ever. It was one of the clearest signs that by 2015, the Corvette was evolving not just in performance, but in the technology it placed at the driver’s fingertips.

If one technology best illustrates just how quickly the Corvette was evolving by 2015, it was not the supercharger bolted atop the Z06’s LT4, nor was it the new eight-speed automatic transmission arriving across the lineup. Those technologies unquestionably changed what the Corvette could do, but another innovation changed something arguably more fundamental: the relationship between the Corvette and the person sitting behind its steering wheel.

It was a camera.

More specifically, it was Chevrolet‘s new Performance Data Recorder, a technology that effectively allowed the Corvette to watch itself being driven, record what it experienced and then give that information back to its owner. In an era when increasingly sophisticated electronics were beginning to transform the automobile, the PDR represented something far more interesting than another convenience feature. It took technology normally associated with professional motorsports and made it accessible from the dashboard of a production Corvette.

The Performance Data Recorder

Founded in 1958 by Mike Costin and Keith Duckworth, Cosworth built its reputation developing some of motorsport’s most influential engines and, over time, expanded that expertise into sophisticated vehicle electronics and data-acquisition systems. That background made the company a particularly natural partner for General Motors when Chevrolet developed the Corvette’s Performance Data Recorder. The resulting PDR and Cosworth Toolbox brought techniques rooted in professional motorsport telemetry into the hands of ordinary Corvette owners, allowing them to record, review and analyze their own driving in ways that had previously required specialized racing equipment.

The Performance Data Recorder, commonly abbreviated simply as PDR, was developed in partnership with Cosworth, the legendary British motorsports-engineering company whose relationship with Corvette extended well beyond this particular project. Cosworth identifies the Corvette PDR as a direct outgrowth of its long-term partnership with Corvette Racing, where sophisticated data acquisition and analysis had already become indispensable tools for understanding what both car and driver were doing on the circuit.

That lineage is important because the system was never intended to be merely an integrated dash camera. Chevrolet and Cosworth were essentially attempting to package a portion of the analytical capability used in competition into something a Corvette owner could operate without a race engineer, a laptop balanced on a pit wall or a trunk full of aftermarket electronics. Cosworth continues to support the earlier-generation Corvette PDR systems and describes its analysis software as a way of visualizing driver inputs, vehicle dynamics and track information together—the same fundamental philosophy introduced with the C7 system in 2015.

The original system combined a 720p high-definition forward-facing camera mounted within the windshield-header area, a dedicated telemetry recorder and GPS receiver, access to information flowing through the Corvette’s vehicle network, and a dedicated SD-card reader located inside the glovebox. The GPS system sampled position at a considerably higher rate than the car’s conventional navigation system, allowing the PDR to build a much more precise picture of where the Corvette was positioned on a circuit and what it was doing as it traveled around it. Chevrolet stated that an 8GB SD card could hold approximately 200 minutes of recorded driving, while larger cards substantially increased recording time.

Chevrolet mounted the PDR’s forward-facing 720p camera high in the windshield header, close to the Corvette’s centerline, giving it a clear view of the road ahead without interfering with the driver’s field of vision. Its placement helped the recorded footage approximate the driver’s perspective while allowing the system to capture track activity cleanly and consistently for later review.

More important than any single piece of hardware was the way those components worked together. The system could combine the video image with information already being generated by the Corvette itself, including vehicle speed, engine rpm, gear selection, braking input, steering information and lateral acceleration. Instead of watching an isolated video after a track session and trying to remember where the driver had braked or lifted, the owner could see the behavior of the car and the actions of the driver presented together.

Chevrolet provided several different ways to display that information depending upon how the owner intended to use the recording. Track Mode presented the richest performance overlay, including speed, engine rpm, g-force information, lap timing and positional data. Sport Mode reduced the amount of information on the screen while retaining the most important performance indicators, while Touring Mode removed the telemetry overlay almost entirely and allowed the PDR to function more like a conventional driving recorder. A separate Performance Mode concentrated on acceleration exercises and straight-line performance measurements rather than circuit analysis.

Once a recording had been completed, the owner could review the footage directly on the Corvette’s eight-inch center display while the vehicle was parked or remove the SD card and transfer the files to a computer. The latter opened the door to the Cosworth Toolbox software, which allowed recorded laps and vehicle data to be examined in substantially greater detail. Cosworth’s continuing support for these first-generation PDR files speaks to how serious the original system really was; this was not a disposable infotainment gimmick but the beginning of an entire Corvette data-analysis ecosystem that would continue evolving long after the C7 had left production.

The Corvette’s Performance Data Recorder menu was integrated directly into the C7’s center infotainment display, giving the driver straightforward access to the system without requiring separate equipment or external controls. From here, the driver could begin a recording, define a start/finish line for lap timing, review previously recorded sessions, select the desired telemetry overlay, and adjust system settings. The interface reinforced one of the PDR’s greatest strengths: despite the sophistication of the technology behind it, Chevrolet designed the system to be remarkably easy for an owner to use.

For the Corvette owner who actually took advantage of it, the possibilities were remarkable. A driver could run a session at VIR, Road Atlanta, Watkins Glen or a local club circuit, return to the paddock and study where a lap had been gained or lost. Braking points could be compared, corner speeds evaluated and different laps examined against one another, transforming the Corvette from the object being evaluated into part of the evaluation process itself.

That changed the nature of a track day. Historically, an enthusiast trying to improve his driving relied heavily upon memory, feel, stopwatch timing and perhaps the observations of an instructor standing alongside the circuit. By 2015, the Corvette itself could preserve an enormous amount of information about what had just happened and provide it almost immediately after the driver returned to the pits. The car had, in effect, acquired the rudimentary ability to become its own driving coach.

There was something particularly appropriate about that development occurring in the Corvette. For decades, Chevrolet had emphasized the relationship between the production car and the lessons learned through competition, sometimes through obvious hardware and sometimes through less visible engineering knowledge. PDR extended that relationship directly to the customer by giving the person who purchased a Corvette access to a simplified version of the analytical process that had become routine inside a professional racing program.

Valet Mode—and an Unexpected Legal Problem

Valet Mode gave 2015 Corvette owners a way to hand over the keys without surrendering complete control of the car. Activated through the infotainment system with a personal code, it could restrict access to selected vehicle functions and storage areas while also allowing the owner to monitor how the Corvette was being used while it was out of sight.

Chevrolet soon discovered that a system designed to watch a Corvette circulate a racetrack could serve another purpose entirely. The C7 already incorporated a Valet Mode, and for 2015 Chevrolet connected that functionality with the Performance Data Recorder so owners could see what happened to their Corvette after handing the keys to somebody else.

When activated through the car’s infotainment system, Valet Mode could restrict access to interior storage areas, disable portions of the infotainment system and, on PDR-equipped cars, automatically record video and vehicle information while someone else was driving. The idea addressed a concern that is probably familiar to virtually anyone who has ever reluctantly handed the keys of an expensive performance car to a stranger: Where exactly is my car going, and what are they doing with it once it disappears around the corner?

Corvette product manager Harlan Charles summarized the idea better than any lengthy marketing explanation ever could:

“Think of it as a baby monitor for your car.”

The description was amusing because it was also remarkably accurate. Corvette owners have never been especially famous for emotional detachment from their cars, and Chevrolet understood its audience well enough to turn that protectiveness into a product feature. The PDR meant an owner could potentially see whether the car had simply been moved to a parking space or whether somebody had decided that possession of the keys constituted an invitation to conduct an unscheduled road test.

However, Chevrolet had not fully anticipated one complication. The original PDR configuration could record cabin audio as well as video, and when that capability was automatically incorporated into Valet Mode, it created an entirely different issue. The Corvette was no longer simply recording what the vehicle was doing; it could also record conversations occurring inside the cabin without the occupants necessarily realizing that they were being recorded.

Laws governing the recording of private conversations vary between jurisdictions, and GM recognized that the audio portion of Valet Mode could therefore create legal problems for owners. The concern was not theoretical. GM’s own February 2015 service bulletin, PI1416, specifically stated that operation of the PDR in Valet Mode raised concerns under laws governing the recording of private conversations without consent. Dealers were instructed to reprogram the PDR module so that audio functionality was removed whenever Valet Mode was active.

The original version of the 2015 Corvette’s Valet Mode introduced an unexpected problem: when paired with the Performance Data Recorder, the system could record cabin conversations without the occupants necessarily knowing they were being recorded, potentially conflicting with state laws governing consent to audio recording. In September 2014, General Motors advised owners to refrain from using the feature until an update could be implemented—or, if they did use it, to notify the vehicle’s occupants and obtain their consent beforehand. GM ultimately addressed the issue by reprogramming the PDR to disable audio recording whenever Valet Mode was active, while leaving the system’s video and vehicle-data recording capabilities intact. (Image credit: Chevrolet)

Importantly, the correction did not eliminate the PDR itself or remove its usefulness as a track and driving recorder. It specifically addressed the audio component while the system was functioning in Valet Mode, allowing the Corvette to continue recording the visual and vehicle information that made the feature useful without creating the same concern about recording private conversations. GM’s bulletin confirms that the recorded information remained stored on the SD card in the glovebox and could still be reviewed through the Corvette’s display.

It is a small episode when viewed against the enormous engineering story of the C7, but it is also a fascinating one. Chevrolet had introduced a production-car feature sophisticated enough that the technology briefly advanced faster than some of the assumptions surrounding how that technology would be used. The resulting correction became an early example of something that would become increasingly common throughout the automobile industry: software and connectivity creating questions that engineers could not solve purely with horsepower, aerodynamics or mechanical design.

4G LTE and the Connected Corvette

The Corvette’s rearview mirror became another small but important part of the C7’s increasingly connected interior. On OnStar-equipped 2015 Corvettes, controls built into the bottom of the mirror provided direct access to voice commands, an OnStar Advisor, and emergency assistance, while 2LT and 3LT Stingrays and 2LZ and 3LZ Z06 models also incorporated automatic dimming to reduce glare from headlights approaching from behind. It was a relatively small piece of hardware, but one that neatly combined visibility, convenience, and access to the Corvette’s growing suite of connected services. (Image credit: ultimatecorvette.com)

PDR was only part of the Corvette’s rapidly expanding digital environment. For 2015, Chevrolet also introduced OnStar with 4G LTE connectivity and a built-in Wi-Fi hotspot, turning the Corvette into something that would have seemed almost absurdly futuristic only a generation earlier. Rather than relying exclusively upon a passenger’s phone to provide an internet connection, the vehicle itself could serve as the communications hub, subject to the applicable OnStar and data services. OnStar continues to describe the basic advantage of the integrated hotspot in essentially the same terms: the connection is built into and powered by the vehicle rather than depending upon the battery and antenna of a handheld device.

In isolation, putting Wi-Fi into a Corvette might seem almost trivial compared with the introduction of a 650-horsepower Z06 during the same model year. Taken together with everything else happening inside the C7, however, it represented a profound shift. The Corvette now had an eight-inch touchscreen, configurable digital instrumentation, GPS navigation, selectable drive modes, electronically controlled chassis systems, sophisticated performance-management software, an available integrated video and telemetry recorder and a cellular data connection capable of turning the car into its own hotspot.

Only two model years earlier, Chevrolet had still been building the C6.

The transition from the C6 to the C7 brought one of the most dramatic interior improvements in modern Corvette history, because Chevrolet finally gave the cabin the same sense of purpose and sophistication that the exterior and chassis had already achieved. Where the C6 interior could still feel somewhat dated in its design, materials and overall presentation, the C7 introduced a far more driver-focused cockpit with improved surfaces, better fit and finish, and a layout that felt much more intentional. Technology took an equally significant step forward, with every C7 receiving an 8-inch reconfigurable digital driver display, complemented by a more advanced center infotainment system, touchscreen controls and an increasingly sophisticated collection of configurable vehicle information. Taken together, those changes did not merely freshen the Corvette’s cabin—they helped transform it from an interior that often felt like a compromise into one that finally felt worthy of the performance car surrounding it.

That short distance between generations helps explain why the 2015 Corvette feels like such an important moment in the model’s history. The Corvette had not abandoned the mechanical qualities that had always defined it; the steering wheel was still connected to a machine powered by a large-displacement V8, and the driver remained very much at the center of the experience. What changed was the amount of information moving around that driver and the sophistication with which the car could interpret, record and present it.

The best technology in the C7 did not attempt to replace the driver. Instead, it increasingly gave the driver tools that had previously existed outside the automobile, whether that meant sophisticated chassis controls helping manage the car at the limit or a telemetry system showing precisely what had happened after the lap was finished. That philosophy would eventually become commonplace among serious performance cars, but in 2015 Chevrolet was already demonstrating how deeply digital technology could be incorporated into the Corvette without stripping away the analog sensations that made people want to drive one in the first place.

The Corvette was becoming digital, but it had not stopped being mechanical. More importantly, Chevrolet was beginning to understand that those two ideas did not have to exist in opposition to one another. The technology could make the Corvette easier to understand, easier to analyze and, in the right hands, easier to drive well while leaving the fundamental experience—the driver, the road and the car between them—very much intact.

A More Complete Interior

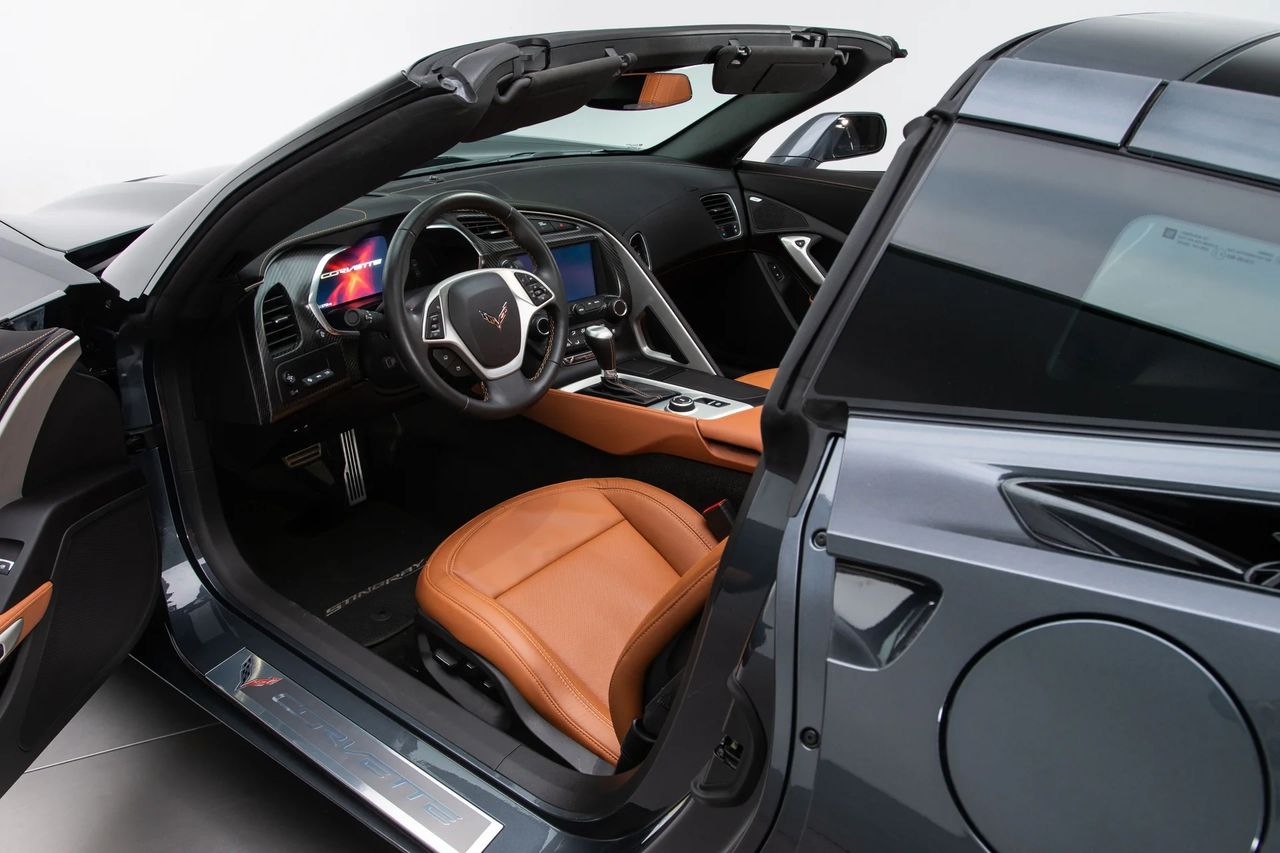

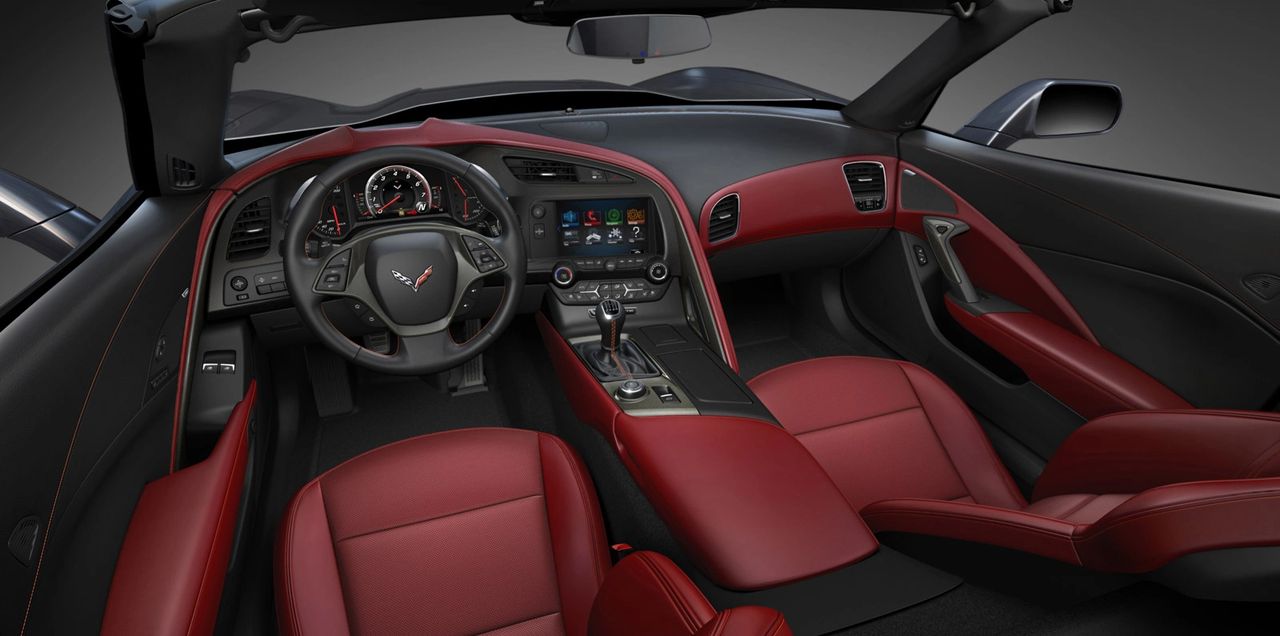

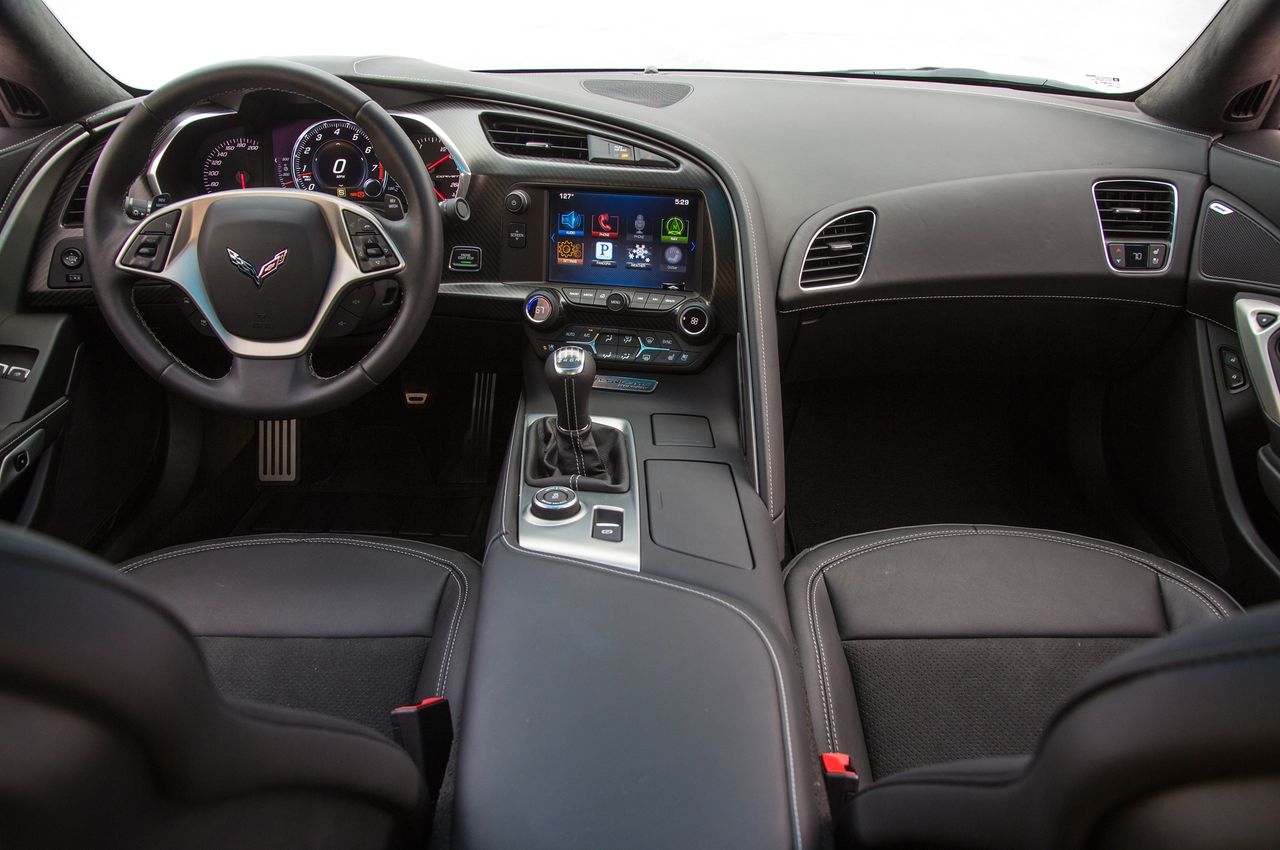

By 2015, the Corvette’s interior felt far more completely envisioned than anything Chevrolet had delivered in the previous generation, with the steering wheel, configurable digital instrumentation, center display, materials, and controls all working together as parts of a single design rather than as separate pieces. The result was a cockpit that finally felt intentional from every angle—modern, driver-focused and sophisticated enough to complement the performance beneath it instead of merely accommodating it. (Image credit: RK Motors)

One of the most important achievements of the C7 had already occurred before the 2015 model year began: Chevrolet had finally given the Corvette an interior that felt worthy of the performance beneath it. That was more significant than it might sound today because, for years, the cabin had been one of the easiest places for critics to attack an otherwise extraordinary sports car. The C5 was enormously capable but carried switchgear, plastics and finishes that too often reminded occupants that they were still sitting in a mass-produced General Motors product, while the C6 improved the formula without completely closing the gap between the Corvette and the increasingly sophisticated European sports cars against which it was being compared.

The C7 represented a conscious effort to end that conversation, and Chevrolet approached the interior as something more than a collection of upgraded materials. The architecture itself became considerably more purposeful, wrapping the instrument panel and center stack around the driver and creating a much stronger visual separation between the driver’s environment and the passenger side of the car. The passenger remained very much part of the experience, but there was no mistaking who the cockpit was designed around; controls, displays, and major vehicle functions were concentrated toward the person behind the steering wheel, making the Corvette feel much more like a dedicated performance machine.

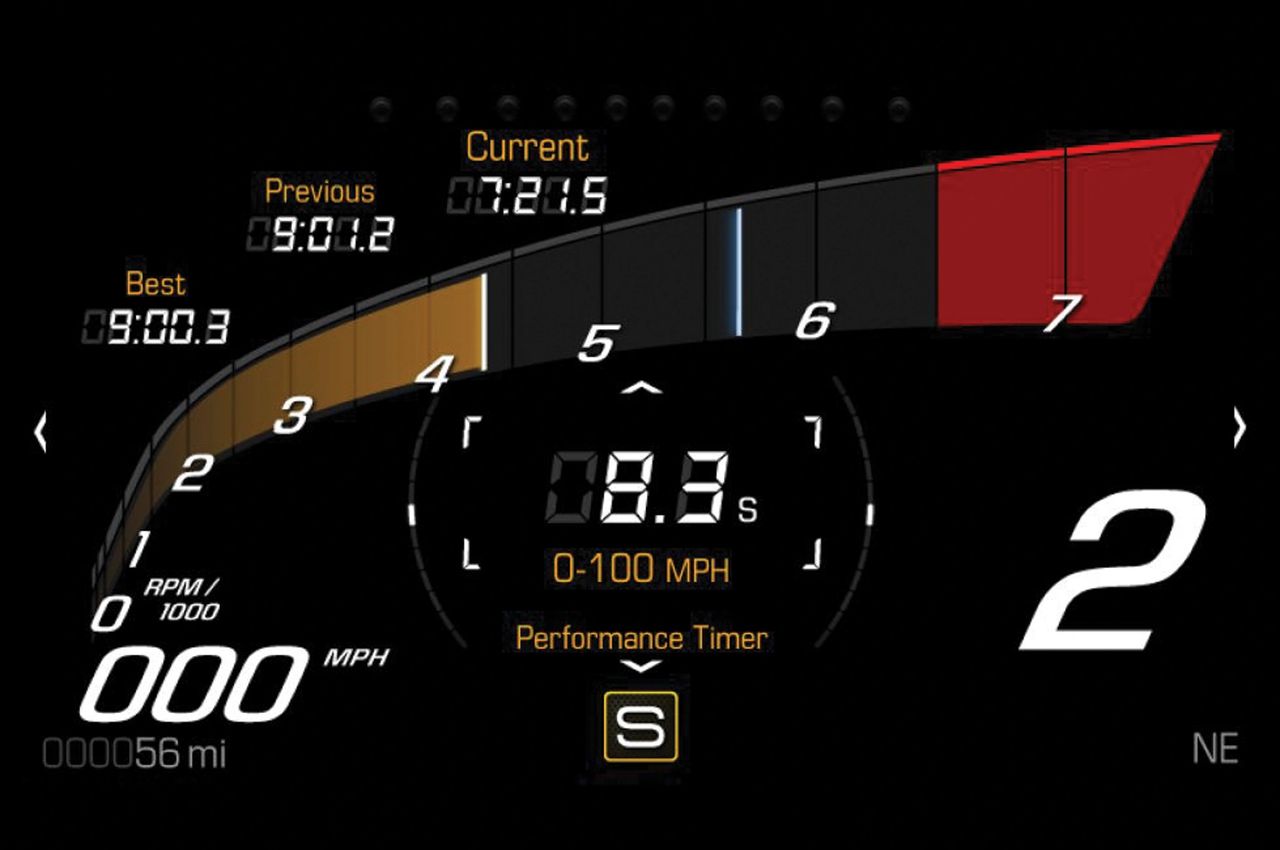

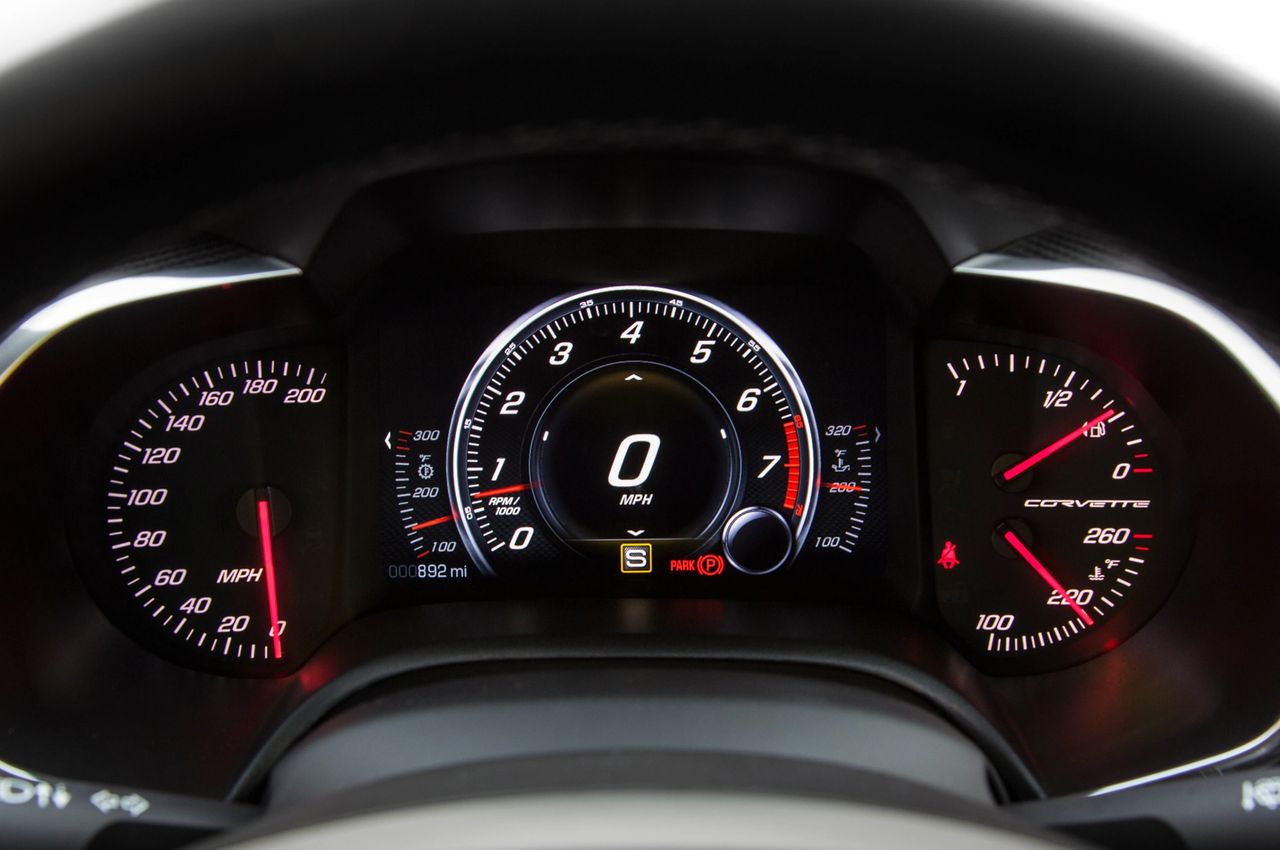

These displays neatly illustrate one of the C7’s most interesting interior features: Chevrolet’s Drive Mode Selector, which allowed the Corvette’s digital instrumentation and underlying vehicle calibrations to change with the way the car was being used. Touring was the balanced everyday setting, designed to deliver the most relaxed and comfortable mix of throttle response, steering feel, and general road manners, while Sport sharpened the Corvette’s personality with quicker responses and more aggressive performance-oriented calibrations. Track was the most serious of the group, intended for closed-course driving and hard use, with the most aggressive setup for the car’s performance systems and the most competition-minded instrument display. Beyond the modes shown here, Weather was designed to help the Corvette manage slippery conditions with more cautious throttle and stability-control behavior, while Eco prioritized efficiency by adjusting the car’s responses and, on automatic cars, encouraging fuel-saving shift behavior. Taken together, those modes gave the C7 a much broader range of personalities than earlier Corvettes had ever offered, allowing the same car to feel composed, efficient, or genuinely track-focused depending on the driver’s needs. (Image credit: UltimateCorvette.com)

Technology played an equally important role in that transformation. An eight-inch reconfigurable digital driver display was used across the C7 lineup, allowing the information presented directly ahead of the driver to change with vehicle settings and driving conditions rather than remaining fixed in the manner of a conventional analog instrument panel. The center stack added another eight-inch color touchscreen running Chevrolet’s MyLink interface, bringing navigation, audio, communications and vehicle settings together in a far more integrated system than Corvette owners had previously experienced. By 2015, that same screen could also serve as the interface for technologies such as the available Performance Data Recorder, making the center display part of the Corvette’s performance toolkit rather than simply an entertainment system. Later C7 documentation continued to describe the Corvette around this combination of an eight-inch MyLink touchscreen and a fully wrapped, technology-focused cockpit.

The changes were just as apparent in the surfaces surrounding those displays. Chevrolet made a much greater effort to eliminate the expanses of hard, inexpensive-looking plastic that had generated so much criticism in previous generations, replacing them with soft-touch materials and offering a much broader selection of leather, genuine aluminum, carbon-fiber trim and sueded microfiber depending upon equipment and configuration. The result was not merely a cabin that photographed better; the places an owner actually touched—the steering wheel, center console, instrument-panel surrounds, door panels and seating surfaces—felt more substantial and more deliberately finished. Chevrolet would later describe the C7 Z06 interior as being fully wrapped in premium soft-touch materials, a philosophy that had already been fundamental to the Stingray’s interior transformation.

The 3LZ package represented the most fully appointed version of the 2015 Corvette Z06 interior, building on the equipment already included with 2LZ while adding a considerably richer level of finish. Chevrolet specified a custom leather-wrapped instrument panel, door armrests, and center console; Napa leather seat inserts; and a sueded-microfiber upper interior treatment that extended across areas such as the headliner, visors, windshield surround, and A-pillars. Combined with the technology and comfort features already included lower in the trim hierarchy—including heated and ventilated seats, memory functions and the Z06’s available infotainment and performance technology—the result was a cabin that demonstrated just how far Chevrolet was willing to push the Corvette beyond its traditional role as a performance-first sports car. (Image credit: RK Motors)

Trim levels allowed buyers to take that idea considerably further. The 3LT package expanded the use of premium leather across additional interior surfaces, creating a cabin that could be configured much more luxuriously than had traditionally been expected of a Corvette, while the Z06 offered its own progression through the 1LZ, 2LZ and 3LZ equipment groups. That range was important because Chevrolet was no longer treating every Corvette buyer as though they wanted exactly the same kind of interior. A customer could build a relatively straightforward performance car, move toward a more luxurious grand-touring environment, or combine the richer materials with the considerably more serious capabilities of the Z06.

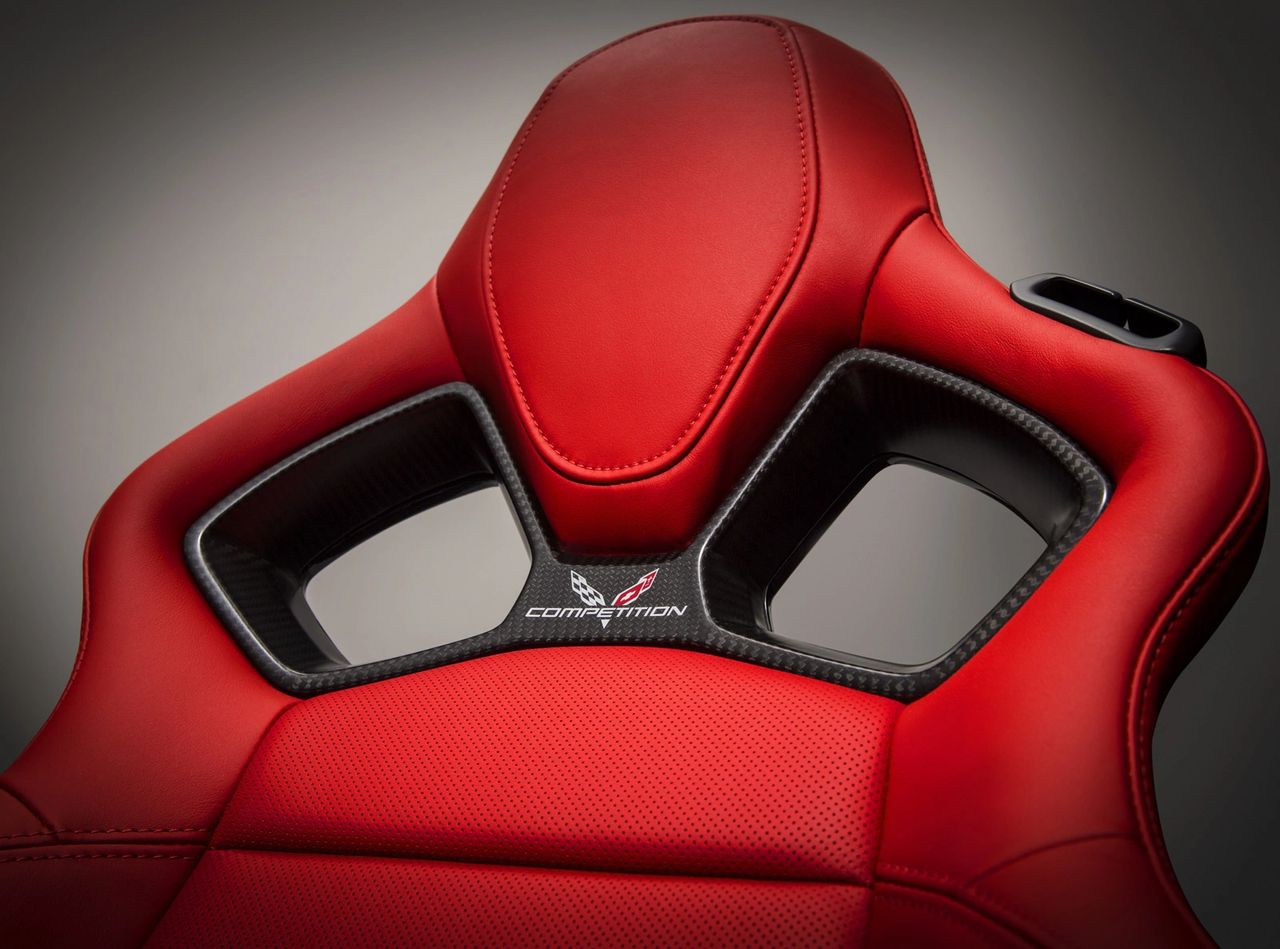

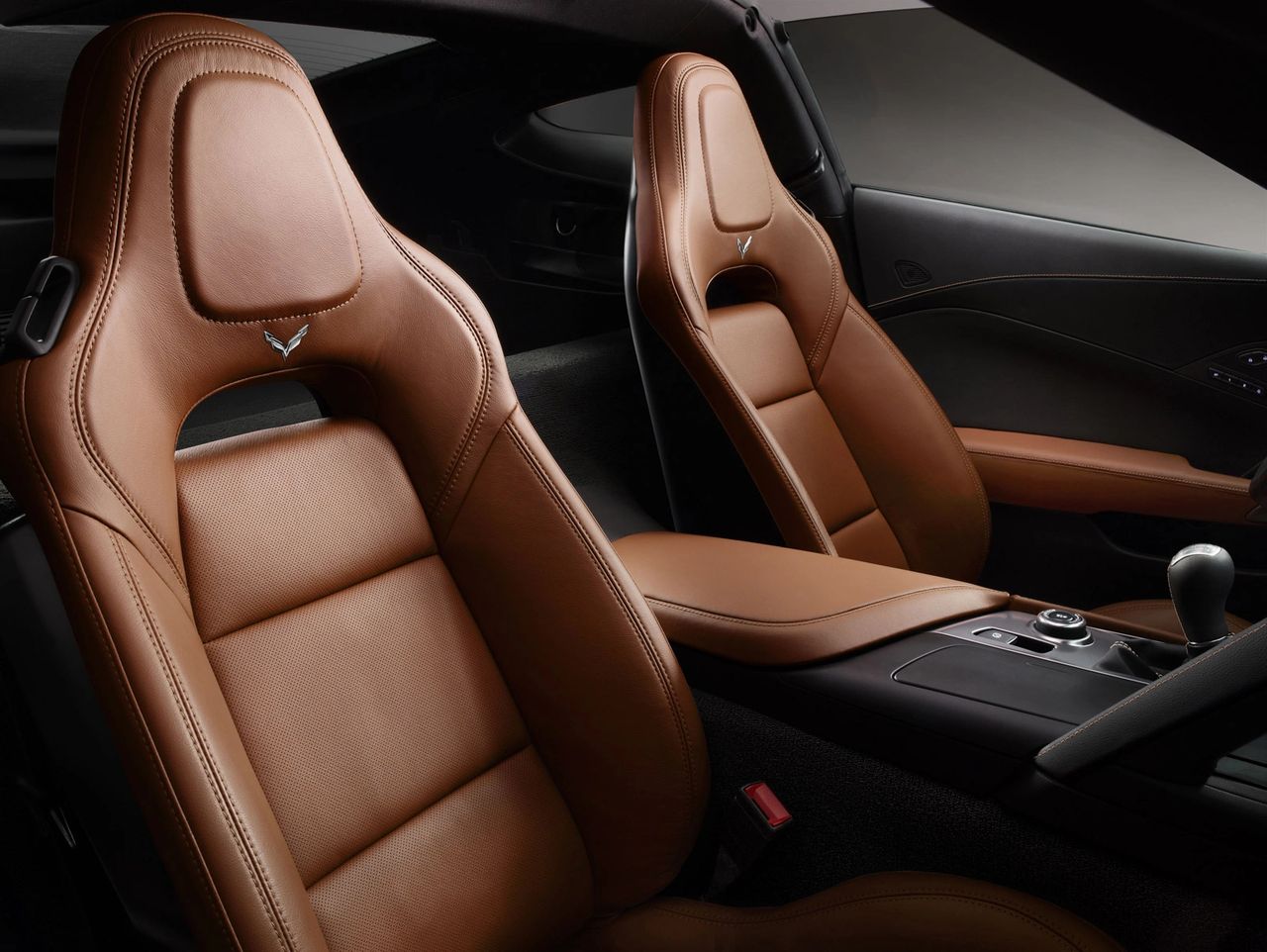

The seating philosophy reflected the same thinking. Chevrolet offered the GT seat for owners who wanted a balance between lateral support, everyday comfort and the ability to spend several hours in the car without feeling as though they had climbed into a competition shell. For drivers whose priorities leaned more heavily toward track use, the Competition Sport Seat used more aggressive bolstering to hold the driver and passenger in place under higher cornering loads. The distinction became particularly meaningful in the Z06, where the additional grip and cornering capability could expose the limitations of a less heavily bolstered seat much more quickly. Chevrolet continued to identify Competition Sport seats as part of the C7’s track-focused equipment well into the generation’s production.

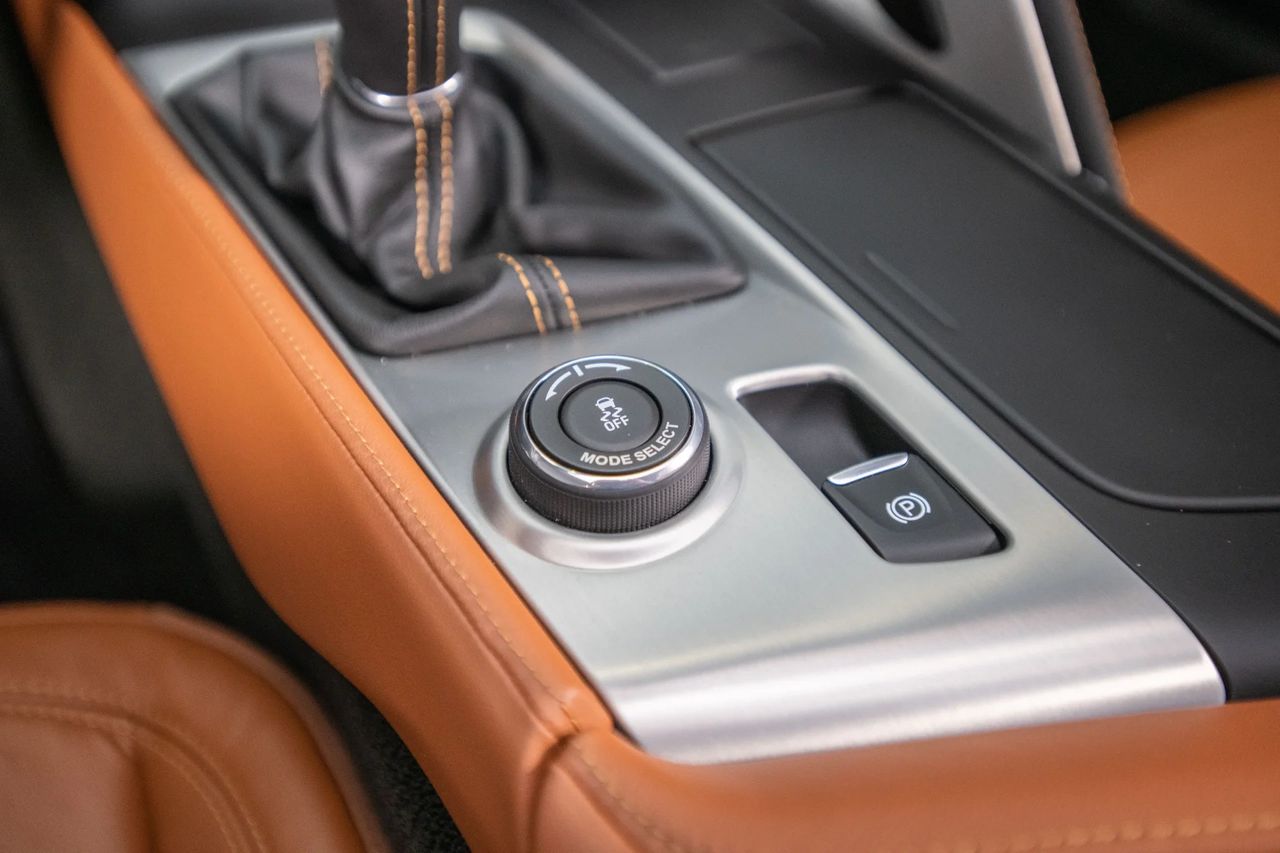

The Driver Mode Selector gave the 2015 Corvette something earlier generations had never really possessed: the ability to substantially change the character of the car with a simple turn of a dial. Five settings—Weather, Eco, Tour, Sport and Track—allowed the Corvette to tailor as many as 12 performance variables, influencing systems such as throttle response, steering effort, transmission behavior and, when equipped, Magnetic Ride Control and other chassis functions. Tour served as the balanced everyday setting, while Sport and Track progressively sharpened the car for more aggressive driving; Weather helped manage power delivery on slippery surfaces, and Eco prioritized fuel efficiency. More than a convenience feature, the selector helped give the C7 a genuine range of personalities, allowing the same Corvette to adapt convincingly from a long highway drive to a wet commute or a day at the racetrack.

Just as important, the C7 interior was designed around the understanding that the Corvette itself had become considerably more complicated. The Driver Mode Selector could alter numerous vehicle systems, the configurable instrumentation could present different information depending upon how the car was being used, and technologies such as navigation, Bluetooth connectivity, OnStar, the Performance Data Recorder, and eventually 4G LTE meant that the driver was interacting with far more software than any Corvette owner of the previous generation had encountered. Chevrolet’s challenge was therefore not simply to add technology, but to organize it in a way that did not overwhelm the basic act of driving.

That did not mean every problem disappeared. Rearward visibility remained compromised by the Corvette’s low roofline, wide rear structure and dramatic bodywork, while the high center console and strongly wrapped cockpit could make the interior feel intimate, particularly when finished in darker colors. The growing number of menus, configurable displays and electronic systems also introduced a learning curve that simply had not existed in earlier Corvettes, and although the quality of the materials represented an enormous improvement, Chevrolet was still building a relatively attainable American sports car rather than attempting to recreate the interior of a Bentley or an Aston Martin.

Nor did it need to. The achievement of the C7 was not that Chevrolet had suddenly transformed the Corvette into a traditional luxury car, but that an owner no longer had to excuse the cabin because everything happening underneath it was so good. The interior had finally become part of the Corvette’s appeal rather than the price one paid to access its performance, and by 2015 the combination of better materials, genuinely supportive seating, increasingly sophisticated electronics and a cockpit designed unapologetically around the driver had made the cabin one of the clearest demonstrations of how far the Corvette had evolved.

The 6.2-Liter LT1—and the Supercharged LT4

The 2015 Corvette offered two very different expressions of Chevrolet’s fifth-generation small-block V-8. The Stingray continued with the naturally aspirated 6.2-liter LT1 introduced with the C7 a year earlier, while the new Z06 received the supercharged 6.2-liter LT4, an engine that shared the LT1’s basic architecture but was engineered to survive—and exploit—far greater cylinder pressures. Both displaced 376 cubic inches and retained the compact cam-in-block, two-valve-per-cylinder configuration that had defined generations of Chevrolet small-blocks, yet the difference between them demonstrated just how broad the performance envelope of that architecture had become.

The LT1: 455 Horsepower as the Starting Point

The 2015 Corvette Stingray was powered by Chevrolet’s 6.2-liter LT1 V-8, a naturally aspirated evolution of the Small Block that combined traditional pushrod architecture with direct fuel injection, continuously variable valve timing and Active Fuel Management. Rated at 455 horsepower and 460 lb-ft of torque in standard form—or 460 horsepower and 465 lb-ft with the available performance exhaust—the LT1 delivered the broad torque curve and immediate throttle response that helped define the C7 Stingray’s character. Z51-equipped cars also received a dry-sump lubrication system to maintain consistent oil delivery during sustained high-g cornering. As C7 Corvettes have aged, one minor cosmetic issue has become fairly common: the red CORVETTE lettering on the LT1’s fuel-rail covers can chip, flake or peel away over time, likely due to a combination of age, adhesion and repeated underhood heat cycling. The issue is cosmetic rather than mechanical, and repainting the recessed lettering or installing replacement inserts has become a common solution among owners.

In standard form, the Stingray’s LT1 produced 455 horsepower at 6,000 rpm and 460 lb-ft of torque at 4,600 rpm, numbers that increased to 460 horsepower and 465 lb-ft with the dual-mode NPP performance exhaust. For 2015, Chevrolet folded that performance exhaust into the Z51 Performance Package, meaning every Z51-equipped Stingray received not only the more assertive exhaust note but the modest increase in output that came with it.

Those numbers told only part of the story because the LT1 represented a substantial modernization of the traditional Chevrolet small-block. Direct fuel injection delivered fuel directly into the combustion chamber, continuously variable valve timing let the engine adjust cam timing across a broader operating range, and Active Fuel Management could deactivate four cylinders during steady, light-load cruising. Chevrolet combined those technologies with an 11.5:1 compression ratio, an unusually high figure for a large-displacement production V-8 intended to provide both everyday tractability and sustained performance.

Chevrolet did not abandon the architecture that had made the Corvette so effective in the first place. The LT1 remained a pushrod V-8 with its camshaft in the block, keeping the engine physically compact despite its 6.2-liter displacement. That mattered in a Corvette because engine dimensions affected far more than packaging under the hood; keeping the powerplant low helped Chevrolet maintain the C7’s low hoodline and contributed to the low center of gravity that was central to the car’s handling philosophy. Chevrolet itself emphasized the relationship between the compact engine package, hood height and vehicle center of gravity when introducing the C7 powertrain.

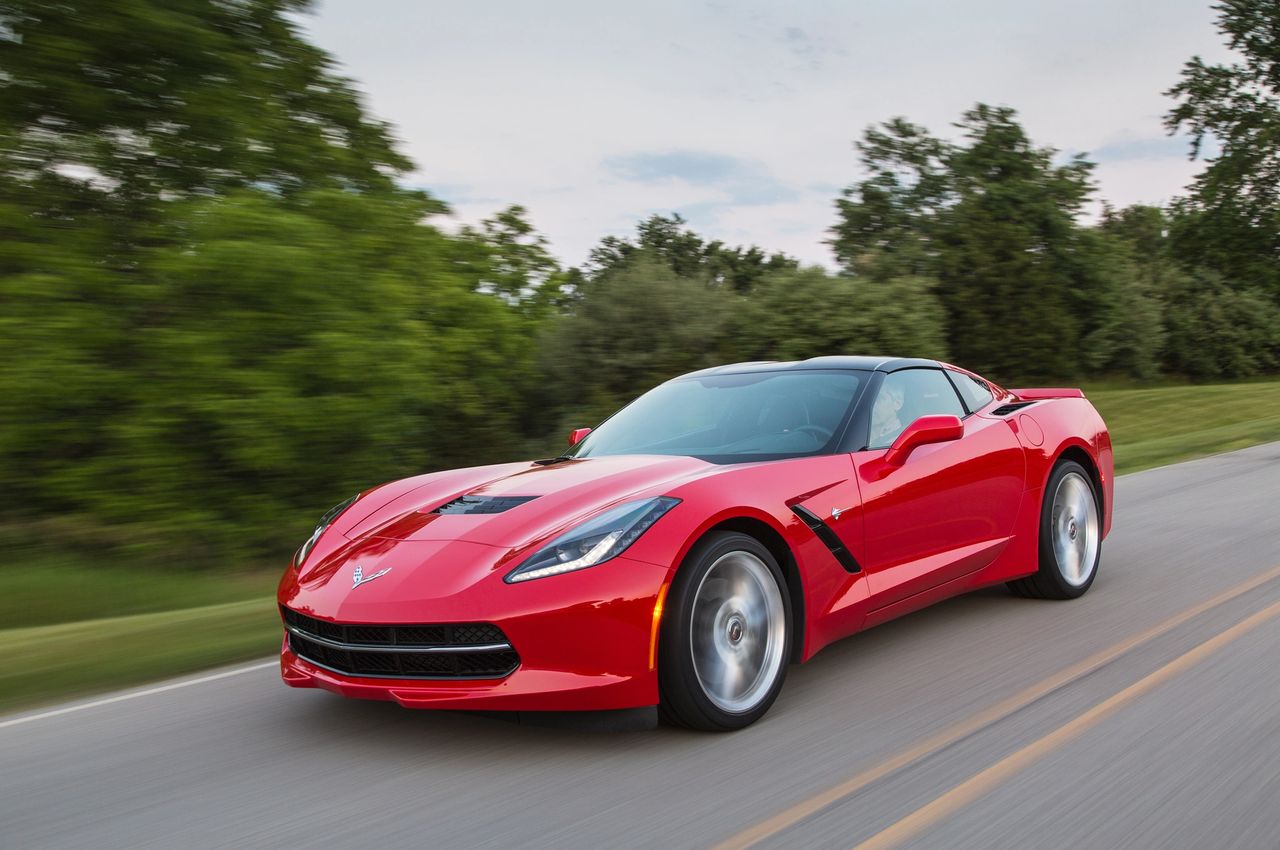

The Z51 Performance Package developed that foundation for more sustained performance use. In addition to its specific suspension, larger brakes, performance gearing and electronic limited-slip differential, Z51 incorporated a dry-sump lubrication system, additional transmission and differential cooling, and the NPP performance exhaust. The dry-sump system was particularly important on a car expected to sustain significant lateral loads because it helped maintain reliable oil delivery during prolonged hard cornering rather than relying upon oil remaining around a conventional sump pickup.

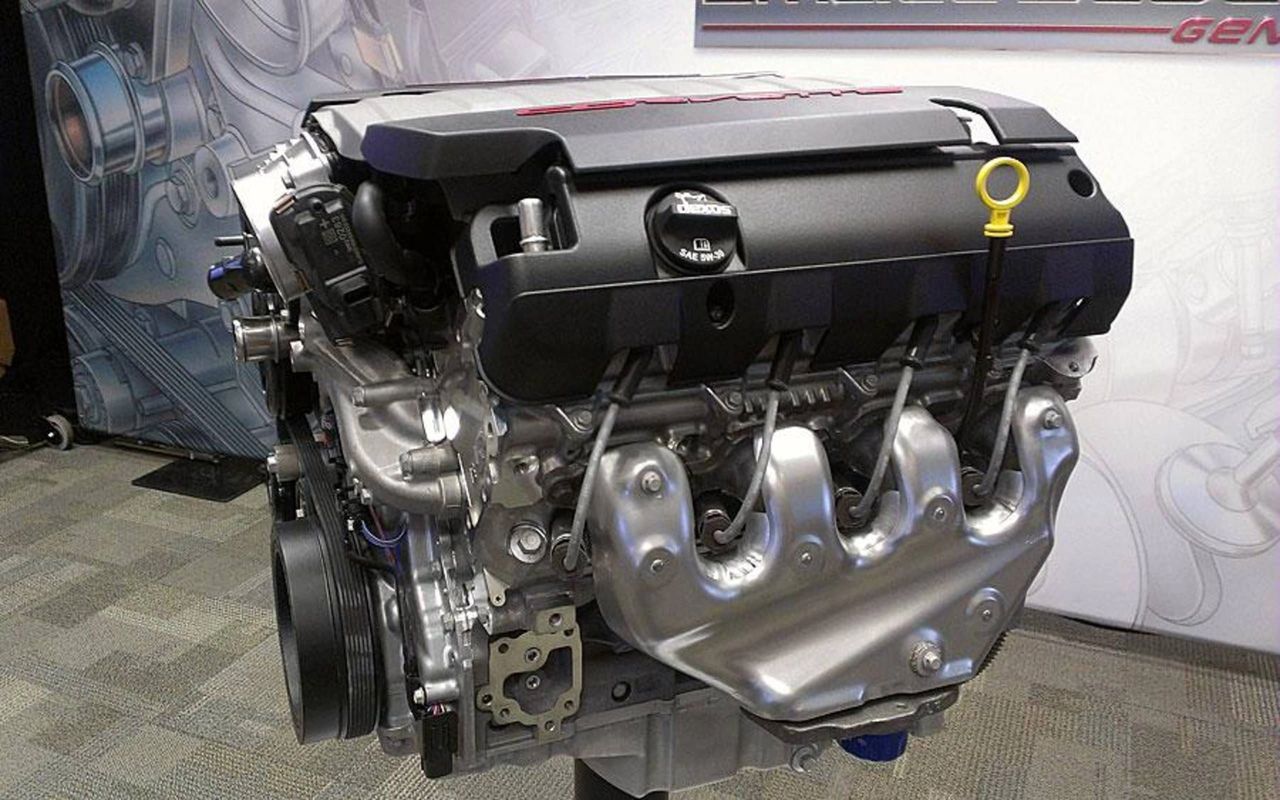

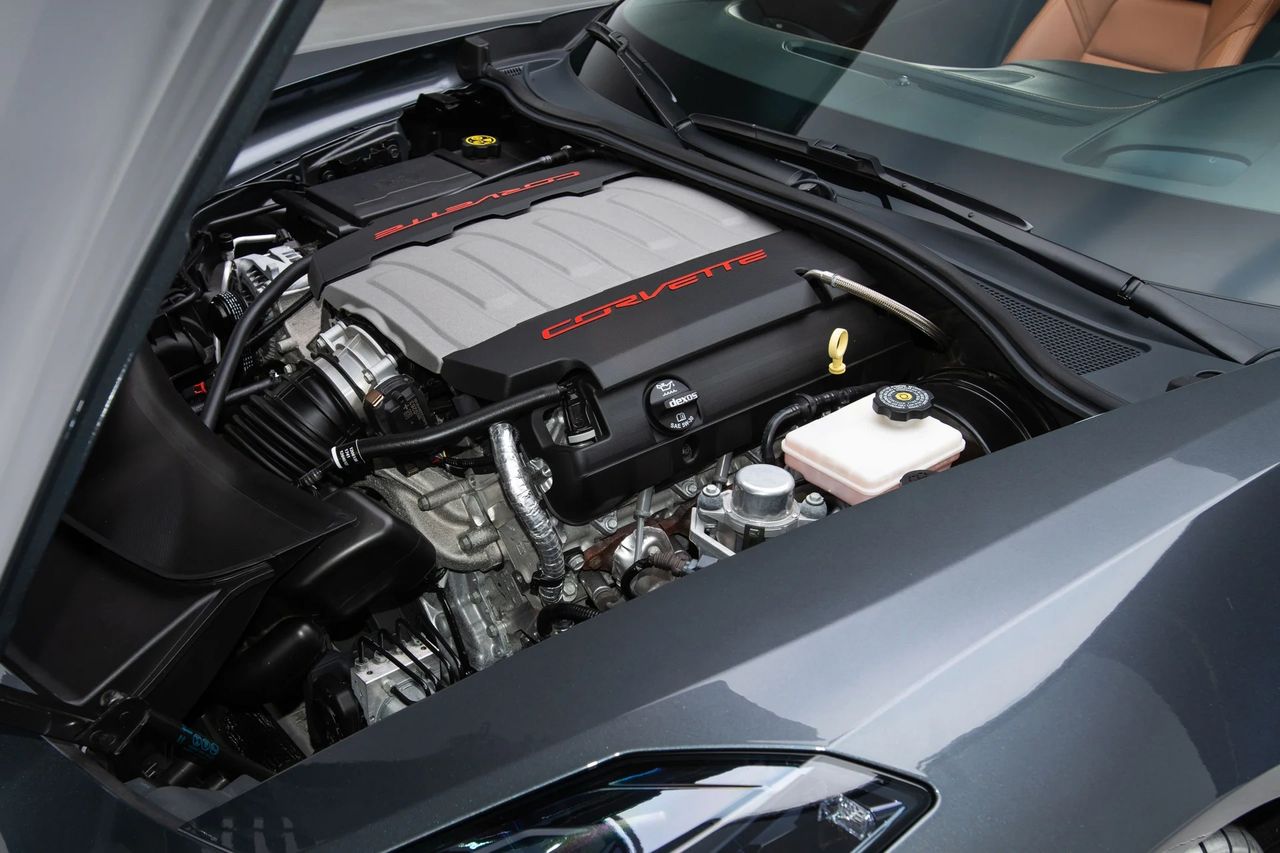

Seen outside the car, the LT1 reveals just how much of the C7’s performance was packed into Chevrolet’s familiar compact Small Block footprint. Its cast-aluminum block used six-bolt, cross-bolted nodular-iron main bearing caps surrounding a forged-steel crankshaft, with forged powdered-metal connecting rods and hypereutectic aluminum pistons completing the rotating assembly. Aluminum rectangular-port cylinder heads sat above the 4.065-inch bore and 3.622-inch stroke, while oil-spray piston cooling helped manage temperatures under demanding operating conditions. The result was an engine that retained the relatively simple, compact packaging that had long made the Chevrolet Small Block so effective while incorporating the materials and internal construction expected of a modern high-performance V-8. (Image credit: Chevrolet)

The result was an engine with an unusually broad personality. Driven gently, the LT1 could take advantage of cylinder deactivation, direct injection, and variable valve timing to behave with a level of efficiency and civility that would once have seemed unlikely from a 376-cubic-inch Corvette engine. Press the accelerator harder, and those concerns disappeared almost instantly, replaced by the linear throttle response, broad torque delivery, and naturally aspirated character that had long been part of the Corvette experience. Chevrolet didn’t make the LT1 sophisticated merely to add technology; each system existed because it improved performance, efficiency, drivability, or packaging.

That balance may be the best way to understand the LT1. It was thoroughly modern where modern technology offered a meaningful advantage, yet intentionally conventional where Chevrolet believed the existing small-block formula still worked. Rather than replacing the pushrod V-8 with something more complicated simply because competitors had moved toward overhead-cam architectures, Corvette engineers continued refining the advantages they already possessed: compact dimensions, relatively low mass, strong low- and mid-range torque and an engine package that fit naturally within the Corvette’s proportions.

The LT4: 650 Horsepower Changes the Conversation

The 2015 Corvette Z06’s supercharged 6.2-liter LT4 V-8 transformed the C7 from an already formidable sports car into something approaching supercar territory. SAE-certified at 650 horsepower at 6,400 rpm and 650 lb-ft of torque at just 3,600 rpm, the LT4 produced 190 more horsepower than the Stingray’s available 460-horsepower LT1 and, at its introduction, made the Z06 the most powerful production automobile General Motors had ever offered. Just as impressive was the breadth of that power: Chevrolet reported that the LT4 was already producing approximately 457 lb-ft of torque near idle and 625 lb-ft by 2,800 rpm, giving the Z06 tremendous thrust long before the engine reached its horsepower peak. The result was an extraordinarily flexible powerplant that could deliver immediate acceleration at road speeds while continuing to pull with remarkable authority toward redline—a defining characteristic of the 2015 Z06 and one of the principal reasons its performance represented such a dramatic leap beyond the standard Stingray.

The LT4 took that same basic philosophy and pushed it into an entirely different performance category. In the 2015 Z06, Chevrolet’s supercharged 6.2-liter V-8 produced an SAE-certified 650 horsepower at 6,400 rpm and 650 lb-ft of torque at only 3,600 rpm, making the new Z06 the fastest and most powerful production Corvette Chevrolet had yet offered. The numbers alone were extraordinary, but the way the engine produced them was equally important: rather than building a highly specialized high-rpm engine, Chevrolet created a small-block capable of generating enormous torque across a broad portion of the operating range.

Although the LT4 shared the Gen V small-block foundation with the Stingray’s LT1, simply adding a supercharger was never going to be enough. Compression was reduced from the LT1’s 11.5:1 to 10.0:1, while the engine received forged aluminum pistons, stronger Rotocast A356T6 aluminum cylinder heads, lightweight titanium intake valves, and strengthened internal components designed to tolerate the additional heat and cylinder pressure created by forced induction. The Z06 also used a standard dry-sump lubrication system with greater cooling capacity, reflecting the expectation that this engine would spend considerably more time operating near the limits of the chassis.

The 2015 Corvette Z06’s LT4 relied on an Eaton TVS R1740 positive-displacement supercharger, a compact unit engineered to move a tremendous volume of air without requiring the physical size of the larger blower used on the previous-generation ZR1. Eaton’s R1740 employs a four-lobe rotor design with a 160-degree twist, an arrangement intended to improve airflow efficiency, reduce pulsation, and provide the immediate boost response that is one of the defining characteristics of a TVS supercharger. Eaton rates the R1740 for a typical maximum operating speed of 18,000 rpm, a peak pressure ratio of 1.8, and airflow approaching 1,986 kg per hour under its specified test conditions, illustrating how much air the relatively small supercharger could supply to the LT4. That combination of compact packaging, high rotor speed, and efficient airflow was critical to the Z06’s ability to deliver enormous low- and mid-range torque without sacrificing the sharp throttle response expected of a Corvette. (Image credit: Eaton)

At the center of the package sat a compact 1.7-liter Eaton R1740 TVS supercharger mounted in the valley between the cylinder heads. Its relatively modest displacement was deliberate. The unit could spin at up to roughly 20,000 rpm, about 5,000 rpm faster than the larger supercharger used on the C6-generation ZR1’s LS9, allowing the smaller rotors to come up to speed quickly and begin producing meaningful boost earlier in the engine’s rev range. Chevrolet also redesigned the airflow path to reduce turbulence and heat, allowing the supercharger to deliver the airflow the LT4 needed without requiring a much taller engine package.

Packaging was one of the most impressive parts of the achievement. Even with the supercharger and intercooler assembly mounted atop the engine, Chevrolet stated that the LT4 stood only about one inch taller than the naturally aspirated LT1. That allowed engineers to preserve the Corvette’s low hood profile rather than allowing the supercharger to dictate the proportions of the car, an especially important consideration in a front-engine sports car where every additional inch of height works against both visibility and aerodynamic goals.

The LT4 also retained the same three major efficiency technologies introduced with the LT1—direct injection, Active Fuel Management and continuously variable valve timing—an unusual combination in a supercharged engine producing this level of power. That tells us something important about what Chevrolet was attempting with the Z06. The objective was not simply to create an engine that produced an enormous dyno number; it had to idle in traffic, cruise on the highway and behave like a production Corvette when the driver was not asking for all 650 horsepower.

When the driver did ask for it, however, the difference between the LT1 and LT4 became impossible to miss. The C6 Z06 and its naturally aspirated 7.0-liter LS7 had developed much of their character around immediate throttle response and an engine that rewarded the driver for working through the rev range. The 2015 Z06 delivered a different kind of experience: 650 lb-ft of torque arriving at only 3,600 rpm meant that enormous thrust was available without waiting for the engine to climb toward redline. Throttle application therefore became as much a question of available traction as engine response, because the rear tires were being asked to manage a level of torque that earlier production Corvettes simply had not produced.

Beneath the supercharger, the 2015 Z06’s LT4 remained fundamentally a 376-cubic-inch (6.2-liter) Gen V Small Block V-8, using a 4.065-inch bore and 3.622-inch stroke, but its internal construction was engineered specifically to withstand the much greater cylinder pressures created by forced induction. The cast-aluminum block employed six-bolt nodular-iron main bearing caps around a forged-steel crankshaft, while forged powdered-metal steel connecting rods and forged-aluminum pistons replaced the less heavily stressed components used in the naturally aspirated LT1. Its A356-T6 Rotocast aluminum cylinder heads used 65.5cc combustion chambers, contributing to a 10.0:1 compression ratio, while a hydraulic-roller valvetrain operated through 1.81:1 rocker arms. The LT4 also incorporated direct fuel injection and the Corvette Z06’s dry-sump lubrication system, allowing the compact pushrod V-8 to withstand sustained high-load operation while preserving the low overall height and compact dimensions that remained fundamental advantages of Chevrolet’s Small Block architecture. (Image credit: David Kimble/Chevrolet)

That changed the personality of the Z06 in a fundamental way. The engine could still pull hard toward its 6,600-rpm redline, but the defining sensation was the sheer breadth of its power delivery—the feeling that the LT4 did not need to be coaxed into its strongest operating range because enormous torque was already waiting for the driver. The supercharger did not replace the underlying small-block character so much as magnify it, combining the compact dimensions and low-rpm strength of the traditional Chevrolet V-8 with airflow and cylinder pressures that pushed the architecture into genuine supercar territory.

In that sense, the LT1 and LT4 represented two sides of the same engineering argument. The naturally aspirated LT1 demonstrated how much performance, efficiency and everyday usability Chevrolet could extract from a relatively simple 6.2-liter pushrod V-8, while the LT4 demonstrated how much farther the same basic philosophy could be pushed when forced induction, stronger internal components and additional cooling were brought into the equation. By 2015, Chevrolet had stretched the front-engine, rear-drive Corvette to 650 horsepower and 650 lb-ft of torque, a level of output that would have seemed almost unimaginable in a production Corvette only a generation earlier.

It was also beginning to expose the next engineering problem. Once an engine could deliver that much torque so early and so consistently, producing more power was no longer the only challenge; getting that power to the pavement became increasingly important. The LT4 therefore represented both a high-water mark for the traditional Corvette formula and a preview of the physics Chevrolet would ultimately have to confront if it intended to push the car substantially farther.

Seven-Speed Manual or Eight-Speed Automatic

The 2015 Corvette was one of those unusual automobiles in which the transmission choice could fundamentally change the car’s personality without making either version obviously inferior. Chevrolet offered two very different ways to access the C7‘s performance, and by 2015 the old assumption that the manual transmission was automatically the enthusiast’s choice was beginning to break down.

For drivers who wanted maximum involvement, both the 2015 Corvette Stingray and the new Z06 could be ordered with the TREMEC TR-6070 seven-speed manual transmission, a gearbox developed specifically for the C7 generation. Its seven forward ratios let Chevrolet provide closely spaced gearing where acceleration mattered while using tall overdrive ratios for more relaxed highway cruising, but its defining feature was Active Rev Matching. Controlled through paddles mounted behind the steering wheel, the system anticipated the driver’s next gear selection and automatically adjusted engine speed to smooth both upshifts and downshifts, effectively performing the throttle-blipping portion of a traditional heel-and-toe downshift while leaving clutch and gear-lever operation entirely in the driver’s hands. The system could also be switched off for drivers who preferred to manage rev matching themselves. Most remarkably, Chevrolet retained the three-pedal manual in the 650-horsepower Z06, demonstrating that even as the new eight-speed automatic became the quicker transmission on paper, the company remained committed to offering the tactile, mechanical interaction that had long been central to the Corvette driving experience. (Image credit: RK Motors)

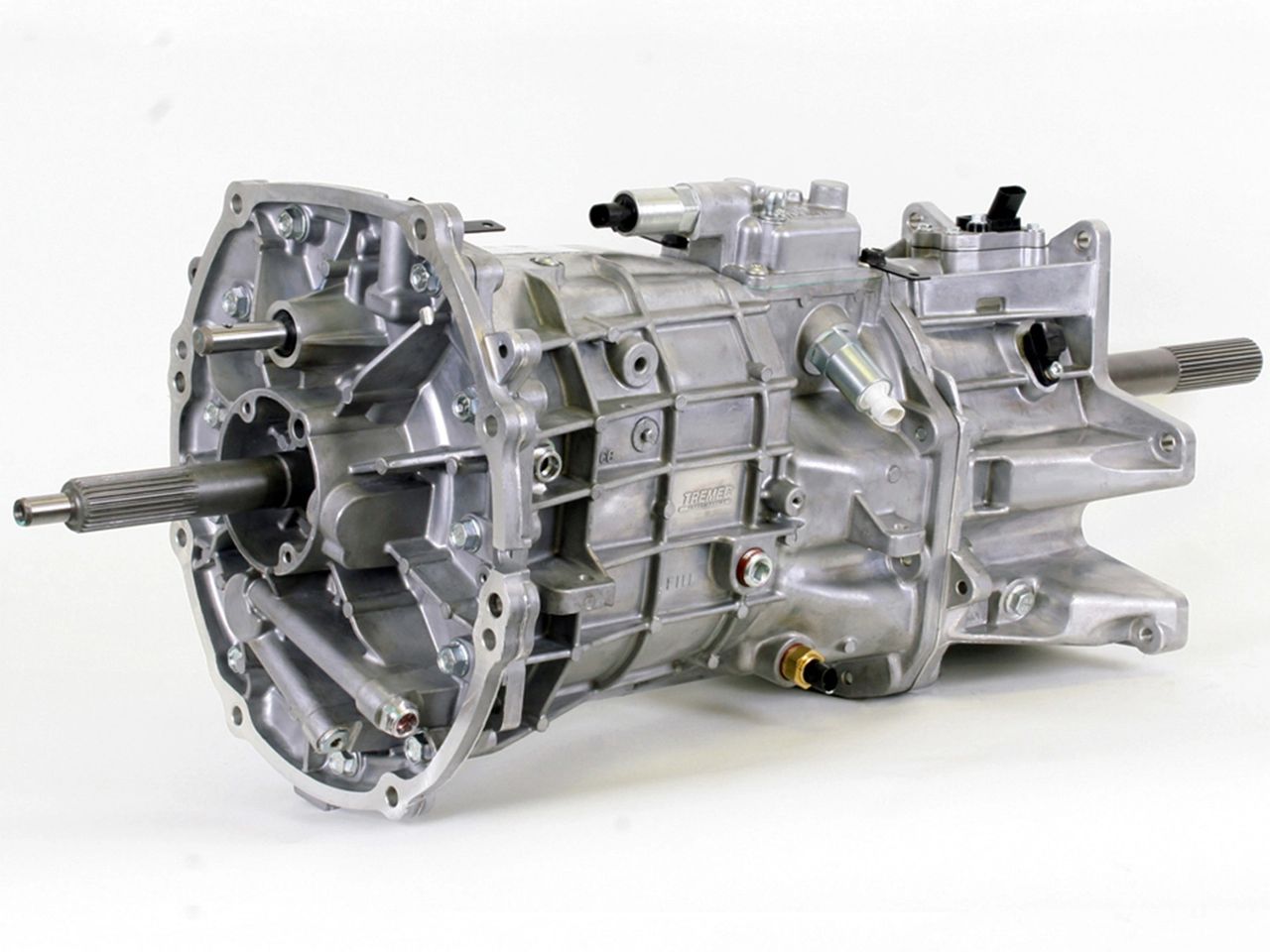

Chevrolet retained the Tremec seven-speed manual introduced with the C7, complete with driver-selectable Active Rev Matching. Paddle controls on the steering wheel could activate or deactivate the system, allowing the computer to automatically match engine speed during downshifts—and even assist during upshifts—while still retaining a conventional clutch pedal and manually operated shifter. The seven ratios also allowed Chevrolet to combine closely spaced performance gears with a tall cruising gear, giving the Corvette the flexibility to feel aggressive when driven hard without sacrificing relaxed highway operation.

For enthusiasts, it represented an intriguing compromise between old and new. The driver still selected the gear and operated the clutch, preserving the mechanical involvement that had traditionally been such an important part of the Corvette experience, but the electronics could execute the throttle blip associated with a practiced heel-and-toe downshift. Drivers who preferred to handle that technique themselves could simply deactivate the system.

Importantly, the Z06 retained that three-pedal arrangement even with 650 horsepower and 650 lb-ft of torque passing through the drivetrain. Chevrolet was not yet prepared to abandon the traditional manual-transmission sports-car experience simply because electronic gearboxes were becoming faster, and the presence of a seven-speed manual in a Corvette with that level of performance would become an increasingly significant part of the C7’s legacy.

But the major transmission news for 2015 was the automatic.

The 8L90 Eight-Speed Automatic

For 2015, Chevrolet introduced the Hydra-Matic 8L90 eight-speed automatic, giving both the Stingray and Z06 a transmission capable of combining everyday refinement with genuinely serious performance. Unlike the dual-clutch gearboxes becoming common in exotic cars of the period, the 8L90 remained a conventional torque-converter automatic, but its electronically controlled shifts were exceptionally quick and could be commanded manually through steering-wheel-mounted paddles. In the Z06, the transmission was engineered to cope with the LT4’s immense 650 lb-ft of torque, while its closely spaced intermediate ratios helped keep the supercharged V-8 in the heart of its powerband during hard acceleration. The result was an automatic Corvette that no longer represented the softer alternative to the manual; in outright acceleration, it became the faster one. (Image credit: RK Motors)

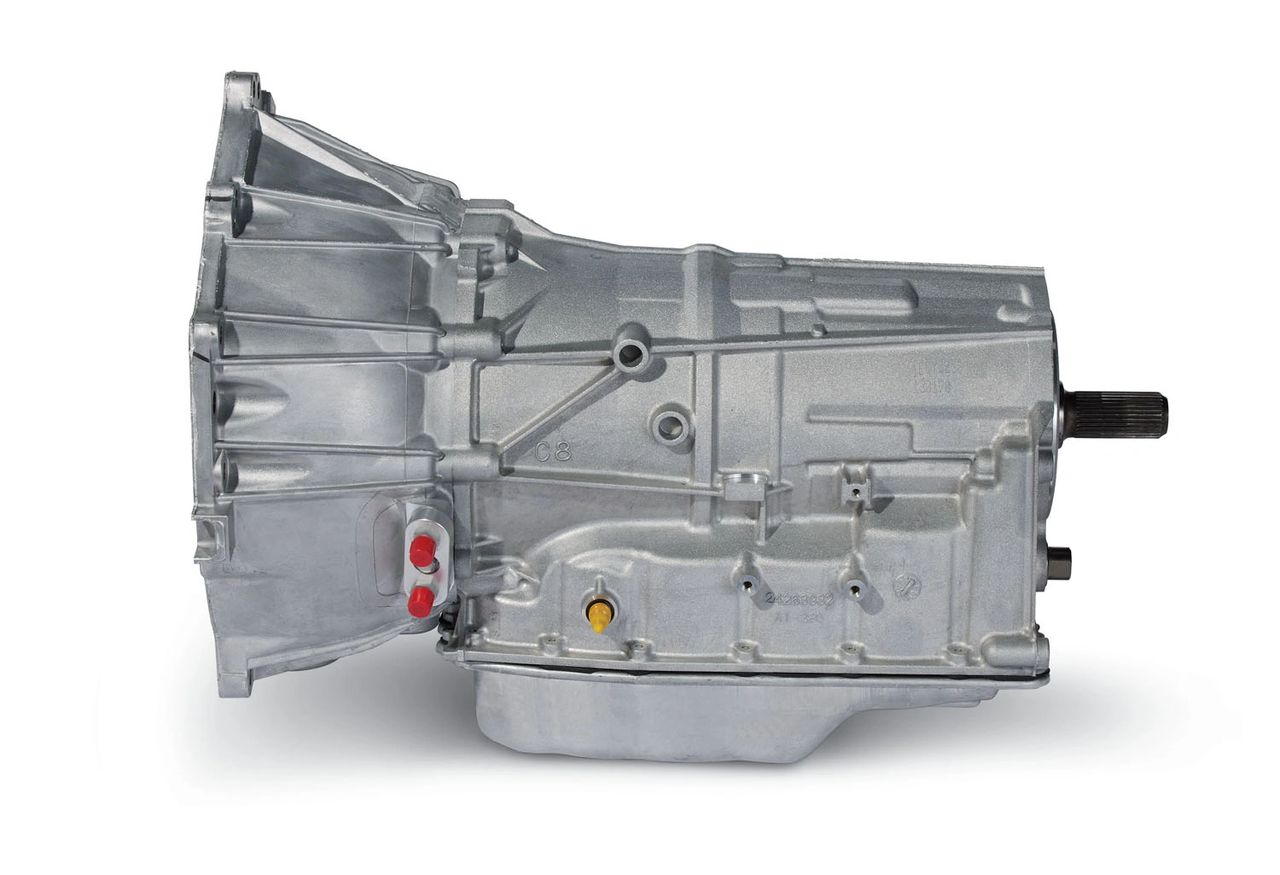

The new Hydra-Matic 8L90 replaced the six-speed automatic used in the 2014 Stingray and became available across the 2015 Corvette lineup, including the Z06. This was not simply another ratio added to the existing transmission. GM developed a substantially more sophisticated eight-speed unit intended to improve acceleration, shift speed, fuel economy and highway refinement while fitting within essentially the same packaging space available for the previous gearbox.

The 8L90 incorporated four gearsets and five clutches within that compact installation envelope. Extensive use of aluminum and magnesium helped make the transmission more than eight pounds lighter than the six-speed it replaced despite the addition of two forward ratios, while Chevrolet claimed the new transmission could contribute an efficiency improvement of as much as five percent.

Its ratio spread was considerably broader as well. First gear was an aggressive 4.56:1, providing substantially greater torque multiplication when launching the car from a stop, while eighth gear dropped to 0.65:1 for relaxed high-speed cruising. Between those extremes, the additional ratios let the transmission keep the engine closer to the part of its powerband best suited to whatever the driver was asking the Corvette to do.

Kavoos Kaveh, GM’s global chief engineer for eight-speed automatics, emphasized the unusual combination of benefits:

“It offers greater performance and efficiency, while weighing less than the transmission it replaces.”

The sophistication was equally apparent in the transmission’s electronic controls. The 8L90’s controller continuously evaluated vehicle speed, throttle position, engine load and other operating parameters to determine when and how aggressively to execute each shift. Chevrolet claimed that wide-open-throttle upshifts could occur as much as 0.08 second faster than those of the Porsche 911’s dual-clutch transmission used for comparison—a remarkable claim for a conventional torque-converter automatic in an era when dual-clutch gearboxes were generally regarded as the benchmark for shift speed.

The significance of the 8L90 became even clearer when the cars were tested for outright acceleration. In the Z06, the automatic could exploit the LT4’s enormous torque while executing shifts faster and more consistently than even a highly skilled driver could manage with the seven-speed manual. As a result, the automatic Z06 was not merely easier to drive quickly; it was actually the quicker configuration under maximum acceleration.

That represented a genuine cultural shift for the Corvette. For decades, the automatic had generally been regarded as the easier transmission, the cruising transmission or the choice for owners less concerned with maximum driver involvement. By 2015, choosing the automatic no longer meant accepting slower acceleration in exchange for convenience. The distinction had instead become one of experience: the manual offered greater physical involvement, while the automatic offered extraordinary consistency and outright speed.

This cutaway illustration reveals the compact complexity of GM’s 8L90 eight-speed automatic transmission, showing how four planetary gearsets and five clutch assemblies were packaged within a housing designed to occupy essentially the same space as the six-speed automatic it replaced. The internal architecture allowed eight forward ratios without a corresponding increase in size, while extensive use of lightweight materials—including aluminum and magnesium components—helped reduce overall mass. Its wide 4.56:1 first-gear ratio provided strong initial torque multiplication, while the 0.65:1 eighth gear reduced engine speed during highway cruising. In the 2015 Corvette, the 8L90 combined this broad ratio spread with sophisticated electronic controls and a torque-converter design capable of handling the substantial output of both the naturally aspirated Stingray and supercharged Z06. (Image credit: David Kimble/Chevrolet)

With the 8L90 doing the shifting, Chevrolet stated that a properly equipped 2015 Corvette Z06 could accelerate from 0–60 mph in 2.95 seconds, making it the first production Corvette with an officially quoted sub-three-second sprint to 60 mph. It was an extraordinary benchmark for a front-engine, rear-wheel-drive automobile and compelling evidence that the automatic transmission had evolved from a convenience option into a genuine performance weapon.

Chassis, Suspension, and Brakes

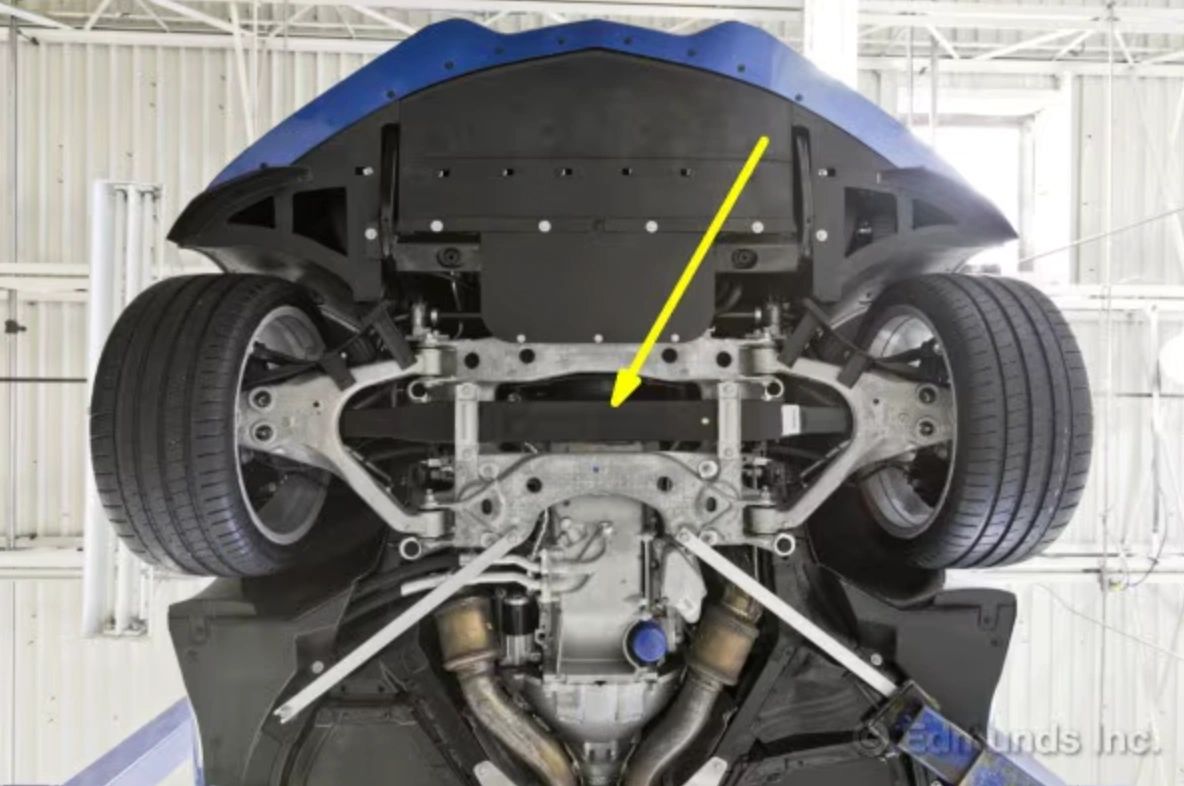

The 2015 Corvette’s aluminum chassis was the foundation that allowed the C7 to combine genuine everyday usability with performance that would have been unimaginable for a production Corvette only a generation earlier. Built around a lightweight, exceptionally rigid aluminum structure, the chassis supported short-long-arm independent suspension at all four corners, transverse composite springs and a rear-mounted transaxle that helped achieve near-ideal front-to-rear weight distribution. That basic architecture gave Chevrolet engineers a remarkably stable platform on which to layer increasingly sophisticated hardware, including Magnetic Ride Control, an electronic limited-slip differential, Performance Traction Management and progressively more aggressive suspension, braking and tire packages on the Z51 and Z06. More important, the chassis was engineered as a complete system rather than simply as a structure to carry a powerful engine; suspension geometry, drivetrain placement, braking capacity, aerodynamics and electronic controls were all developed to work together. The result was a Corvette that felt substantially more precise, composed and confidence-inspiring at the limit while remaining comfortable and civilized enough for long-distance driving—one of the clearest examples of how completely the C7 had evolved beyond the traditional image of the Corvette as a great engine surrounded by an adequate chassis. (Image credit: UltimateCorvette.com / GM)

Underneath its dramatic bodywork, the 2015 Corvette retained the core chassis architecture introduced with the C7 a year earlier: short-long-arm independent suspension at all four corners, cast-aluminum control arms, transverse composite leaf springs, a rigid aluminum structure and the rear-mounted transaxle layout that helped distribute mass more evenly between the front and rear of the car. The basic ingredients were shared throughout the lineup, but Chevrolet used increasingly sophisticated suspension, braking, cooling and electronic-control hardware to transform that common foundation from an extremely capable road car into something capable of sustained track use.

The C7’s aluminum frame was central to that capability. Its stiffness provided a stable platform from which the suspension could work, while the Corvette’s long-established use of lightweight transverse composite springs allowed engineers to reduce mass without abandoning the packaging advantages of the arrangement. By 2015, however, the mechanical hardware represented only part of the story. Increasingly sophisticated electronic systems were becoming integral to the way the Corvette generated and managed grip.

Stingray and Z51

The Z51 Performance Package gave the 2015 Corvette Stingray a substantially more track-oriented braking system than the standard car. Both versions used four-piston fixed calipers at the front and rear, but the base Stingray relied on 12.6-inch front rotors and 13.3-inch rear rotors, while Z51 increased the front diameter to 13.6 inches and used 13.3-inch rear rotors, with the Z51 discs receiving the distinctive slotted surfaces visible here. The larger front rotors increased available braking surface and thermal capacity, while the slots helped clear gases and brake debris from the pad-to-rotor interface during repeated hard use. Z51 also incorporated dedicated brake-cooling provisions, making the package better suited to sustained track driving where repeated high-speed stops generate considerably more heat than normal street use. Chevrolet described the Z51’s dual-cast slotted rotors as providing greater swept area and improved cooling compared with the previous-generation Grand Sport, underscoring that the upgrade was intended not merely to shorten a single stopping distance, but to maintain consistent braking performance lap after lap.

The standard Stingray used 35mm Bilstein monotube dampers, while the Z51 Performance Package upgraded the car with larger 45mm dampers and a collection of components intended to make repeated high-performance driving possible rather than merely improve a single acceleration or cornering number. Z51 was therefore considerably more comprehensive than a traditional suspension package.

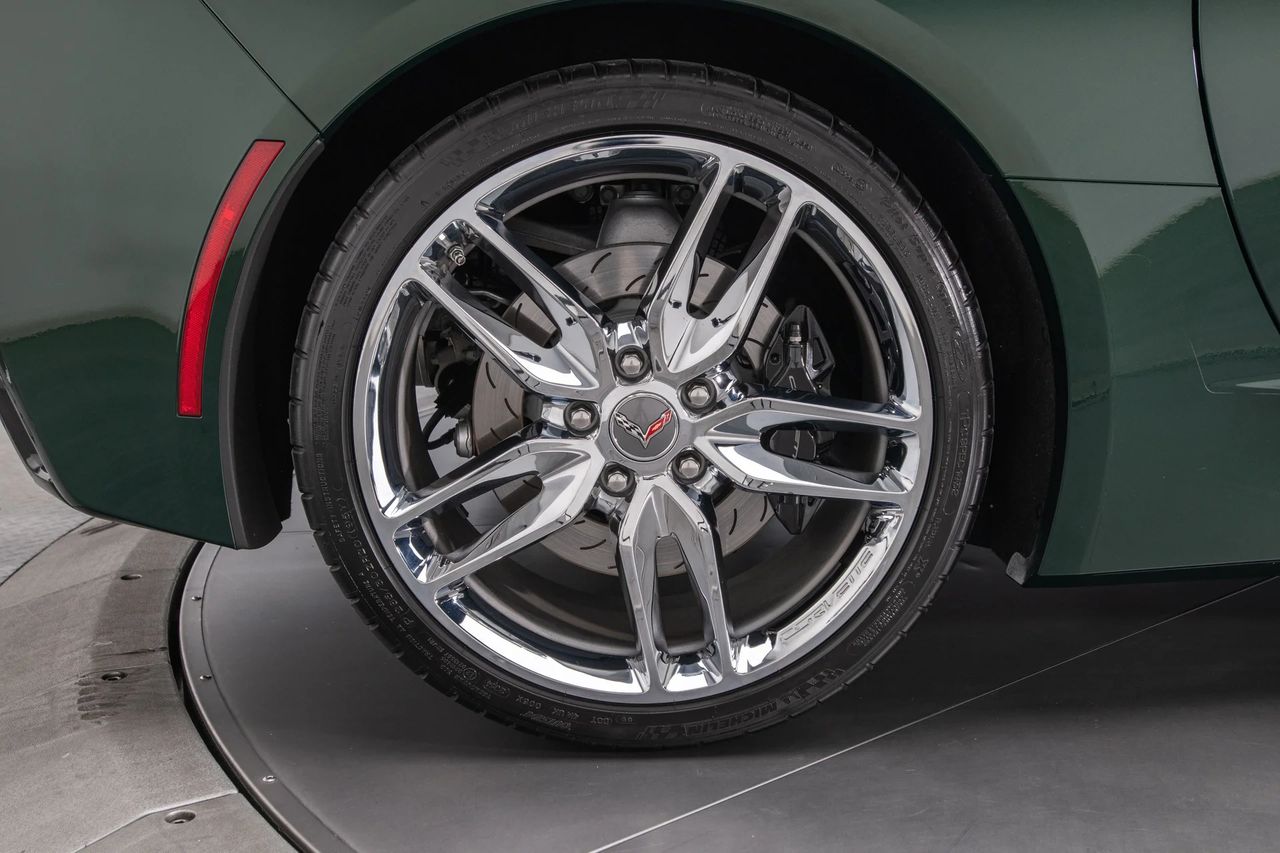

Among its upgrades were larger performance brakes, dry-sump engine lubrication, additional transmission and differential cooling, performance-oriented gearing, larger 19-inch front and 20-inch rear wheels and tires, aerodynamic additions and an electronic limited-slip differential. For 2015, Chevrolet also bundled the dual-mode performance exhaust into the Z51 package, increasing the LT1’s output while giving the car a more aggressive exhaust character when conditions called for it.

The electronic limited-slip differential, or eLSD, was considerably more sophisticated than a conventional mechanical limited-slip unit. An electronically controlled hydraulic clutch could vary the amount of differential locking between the rear wheels according to conditions rather than relying upon a fixed mechanical response. The system continually considered information such as throttle position, steering input, vehicle speed, lateral acceleration and the selected Driver Mode, allowing differential behavior to change depending upon what the Corvette was doing at that moment.

That flexibility became particularly important when the eLSD worked in combination with the Corvette’s stability-control system and available Performance Traction Management. Instead of treating traction control, differential locking and chassis behavior as unrelated functions, the C7 increasingly managed them as parts of an integrated vehicle-dynamics system. The objective was not simply to prevent wheelspin, but to help the driver put as much usable power to the pavement as conditions allowed.

Chevrolet Performance’s Magnetic Ride Control Calibration offered C7 Corvette owners a factory-engineered way to sharpen the behavior of cars already equipped with Magnetic Ride Control without replacing any hardware. Available for select 2014–2018 models, the recalibration revised the system’s compression and rebound strategies, temperature compensation tables, and damping algorithms to improve ride quality, steering response, body control, and overall chassis balance. Touring and Sport modes gained better compliance and more controlled responses over imperfect pavement, while Track mode delivered more linear behavior near the limits of adhesion, more precise turn-in, and improved stability under throttle. At an original MSRP of $350, it was a relatively inexpensive software-based upgrade that let Chevrolet extract more capability from the C7’s already sophisticated adaptive suspension system. (Image credit: Chevrolet)

Available Magnetic Selective Ride Control added another layer of adaptability. Rather than depending exclusively on fixed damper characteristics, the system circulated magnetorheological fluid through electronically controlled dampers. Applying an electromagnetic field altered the behavior of microscopic metallic particles suspended in the fluid, changing damping force extremely quickly and allowing the suspension to respond continually to road conditions and driver inputs.

Chevrolet’s third-generation Magnetic Ride Control system reacted substantially faster than earlier versions, giving engineers considerably more latitude in how the Corvette behaved. In normal driving, the suspension could remain compliant enough for long-distance touring. As speeds and lateral loads increased—or as the driver selected a more aggressive operating mode—the dampers could exert greater control over body motion and wheel movement.

That breadth became one of the defining accomplishments of the C7. A properly equipped Stingray could cover hundreds of interstate miles in relative comfort, arrive at a road course, change several electronic settings and become a remarkably competent track car without requiring any mechanical alterations. The Corvette was increasingly becoming one automobile capable of serving several very different roles rather than forcing its owner to accept a permanent compromise in favor of either comfort or outright performance.

Z06: More of Everything

Although the base Stingray and the Z06 shared the same fundamental C7 architecture, Chevrolet gave each car a very different mission—and a very different presence. The Stingray was the pure sports car of the range, cleaner and more restrained in its bodywork, with proportions and details that emphasized balance, precision, and everyday usability. The Z06 took that same basic shape and transformed it into something far more aggressive, adding wider fenders, larger air openings, more purposeful aerodynamic elements, and a noticeably more muscular stance that immediately signaled its higher-performance intent. Seen together, the relationship between the two is obvious, but so is the escalation: the Stingray looked athletic and refined, while the Z06 looked like a car engineered to dominate a racetrack.

The Z06 magnified nearly every element of that philosophy. Magnetic Ride Control became standard, while Performance Traction Management, launch control, and the electronic limited-slip differential received calibrations developed specifically around the dramatically greater output of the supercharged LT4. Springs, dampers, anti-roll control, tires, brakes, cooling, and aerodynamic loading all had to work together because 650 horsepower was useful only if the chassis could translate it into acceleration, braking, and cornering performance.

Braking capacity increased accordingly. The standard Z06 employed large two-piece steel rotors measuring approximately 14.6 inches in diameter at the front and 14.4 inches at the rear, with six-piston front and four-piston rear calipers. The two-piece construction helped control mass while providing the thermal capacity required by a car capable of repeatedly reaching very high speeds and then shedding that speed under heavy braking.

For buyers who wanted to use the Z06 even more aggressively, the Z07 Performance Package raised braking capability another level by substituting carbon-ceramic matrix rotors measuring about 15.5 inches at the front and 15.3 inches at the rear. Carbon-ceramic brakes offered exceptional resistance to heat and fade during sustained track use while also reducing unsprung and rotating mass. Chevrolet quoted a reduction of about 23 pounds compared with the standard Z06 braking system, an unusually valuable weight saving because it occurred at the wheels rather than within the vehicle’s sprung mass.

The 2015 Corvette Z06 backed its 650-horsepower performance with substantially more tire and braking capacity than the Stingray, riding on massive 285/30ZR19 front and 335/25ZR20 rear Michelin performance tires. Standard Z06 braking came from Brembo, with 14.6-inch front rotors clamped by six-piston calipers and 14.4-inch rear rotors with four-piston calipers, giving the car tremendous stopping power even before stepping up to the Z07 package. The Z07 Performance Package, like the car pictured here, raised the stakes with huge 15.5-inch front and 15.3-inch rear carbon-ceramic rotors, reducing unsprung mass while improving fade resistance during repeated high-speed stops. Z07 cars also received ultra-sticky Michelin Pilot Sport Cup 2 tires, completing a chassis package engineered to exploit the Z06’s extraordinary cornering and braking capability on track. (Image credit: RK Motors)

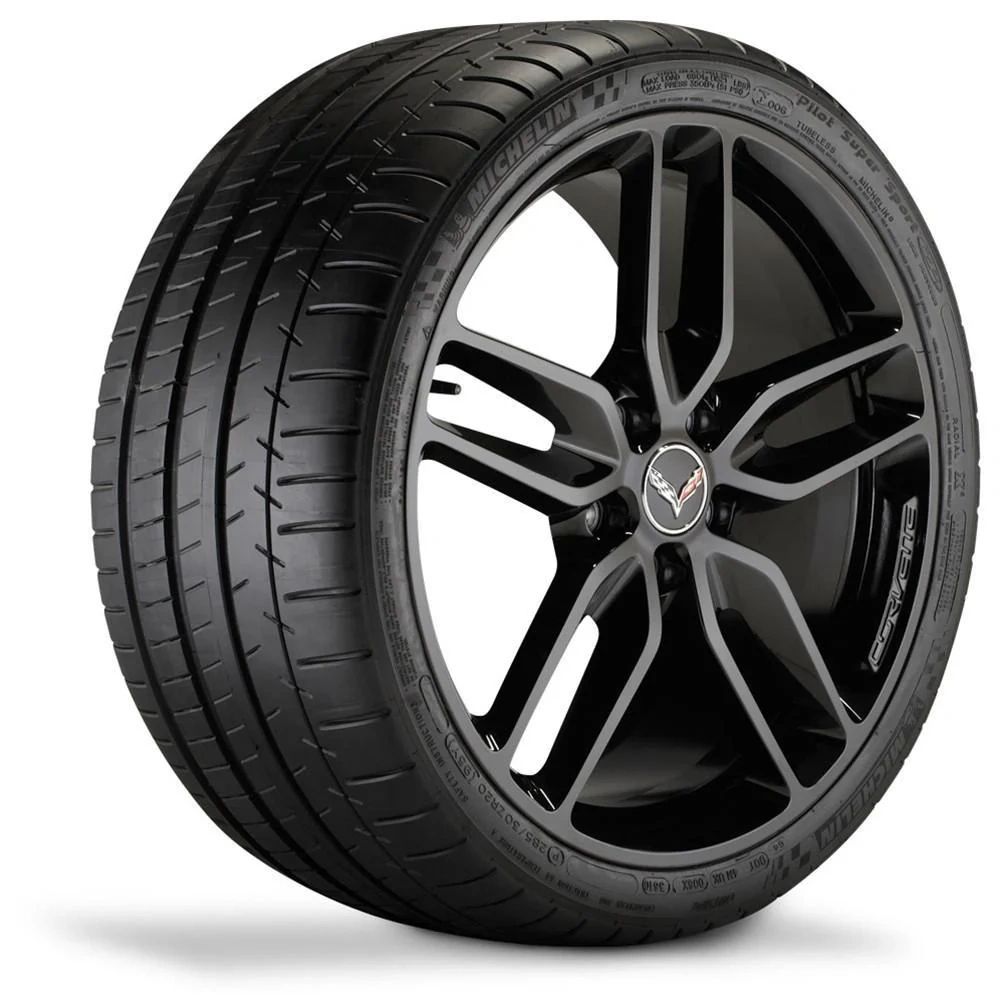

Tire development was equally important. The Z06 wore P285/30ZR19 front and P335/25ZR20 rear tires, dimensions that made the enormous rear contact patches visually obvious even before the car began moving. The Z07 package went further with Michelin Pilot Super Sport Cup 2 tires, a track-focused compound developed to generate substantially greater dry-weather grip than a conventional high-performance street tire, although that capability necessarily came with compromises in cold temperatures, wet-weather performance and tread life.

When combined with its additional aerodynamic downforce, those tires helped Chevrolet claim approximately 1.2 g of lateral acceleration for a Z07-equipped Z06. Numbers at that level would have been extraordinary for virtually any road-going automobile only a few years earlier, and they demonstrated how far Corvette development had moved beyond the old stereotype of an American sports car whose engine substantially exceeded the capabilities of its chassis.

By 2015, the Corvette was no longer simply placing enormous horsepower inside a relatively affordable two-seat package and asking the driver to manage the consequences. Its suspension, brakes, differential, tires, aerodynamics and electronic controls had been developed as an interconnected system capable of exploiting an increasingly large percentage of the performance available from the engine. There were still situations in which 650 horsepower could overwhelm the available traction—as there always will be in a powerful rear-wheel-drive automobile—but the C7 Z06 possessed a chassis sophisticated enough to challenge some of the most serious performance cars in the world on far more than horsepower alone.

The 2015 Corvette Convertible

The 2015 Corvette Z06 Convertible brought open-air driving to the most powerful production Corvette Chevrolet had ever built. With the same 650-horsepower supercharged LT4 and essentially the same chassis capability as the coupe, it delivered genuine Z06 performance without requiring the structural compromises that had traditionally accompanied high-output convertibles. Its return also carried historical weight, marking the first factory Z06 convertible since the exceptionally rare 1963 model.

By the time the seventh-generation Corvette arrived, the idea that a convertible had to be the compromised member of the sports-car family was becoming increasingly outdated. Chevrolet had engineered the C7 architecture from the outset to accommodate both coupe and convertible configurations rather than developing the open car later and attempting to restore rigidity after removing the roof. Its aluminum structure was sufficiently stiff that both versions could share essentially the same foundation while preserving the precision and composure expected of a modern Corvette.

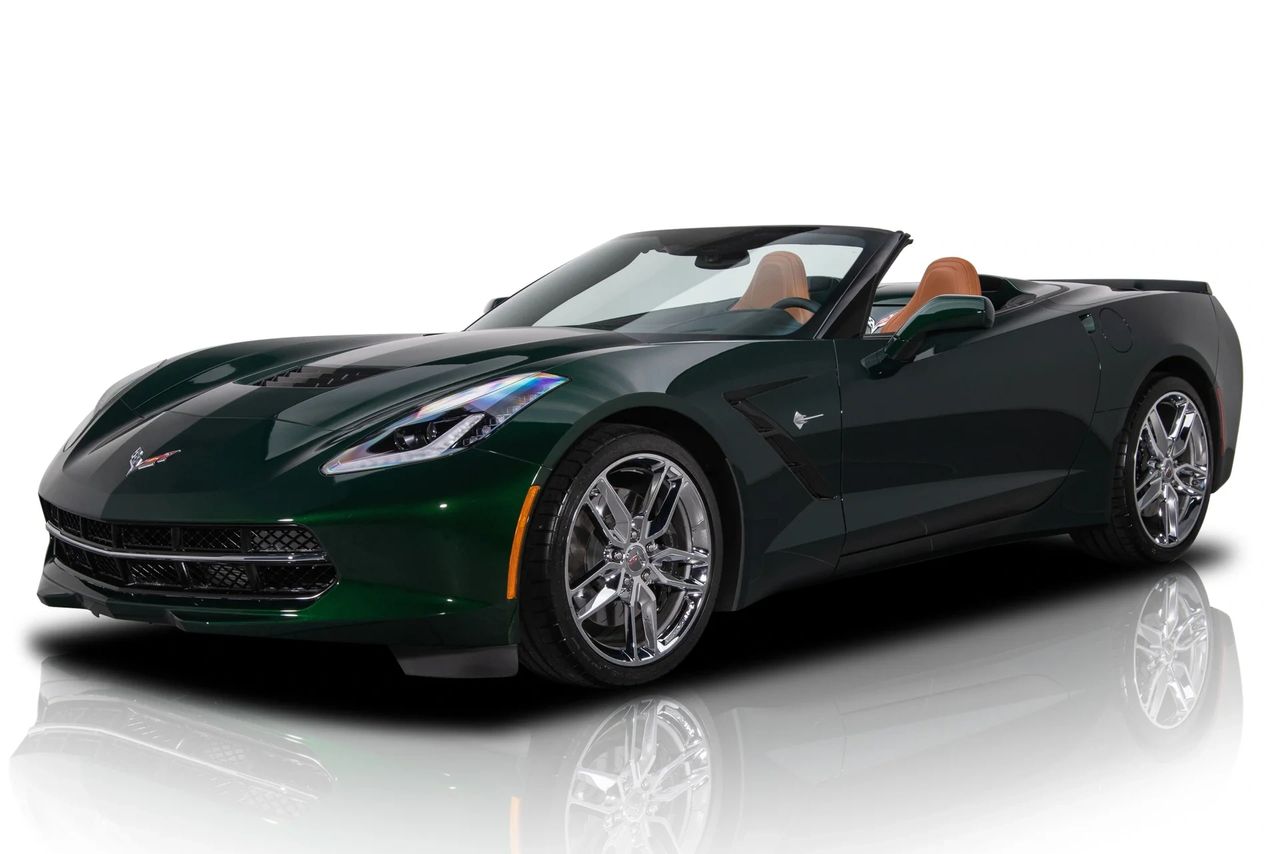

The Stingray convertible therefore retained far more than the appearance of its coupe counterpart. Buyers still received the 6.2-liter LT1 V-8, could specify the Z51 Performance Package and Magnetic Ride Control, and for 2015 could pair the car with Chevrolet’s new eight-speed automatic. The power-operated fabric roof could be lowered remotely with the key fob and raised or lowered while the Corvette was moving at speeds of up to approximately 30 mph.

That combination gave the Stingray convertible genuine dual-purpose character. It could deliver the open-air experience buyers expected from a Corvette roadster without surrendering the sophisticated chassis, braking, transmission and suspension technology that had transformed the C7 into such a capable sports car. The old formula of treating the convertible as the softer, heavier alternative was rapidly disappearing.

For most manufacturers, that would have been an ambitious enough achievement. Chevrolet went considerably further for 2015 by applying the same philosophy to the most powerful and track-focused Corvette in the lineup, creating something the company had not offered in more than half a century: a Z06 convertible.

The First Z06 Convertible Since 1963

The 2015 Corvette Z06 Convertible marked the return of an open-air Z06 for the first time since 1963, reconnecting Chevrolet’s modern supercar with one of the rarest configurations in Corvette history. Of the 199 Corvettes equipped with the original Z06 package in 1963, only one was built as a convertible, making the pairing shown here especially significant. More than half a century later, the 2015 Z06 Convertible revived that idea with 650 horsepower, modern chassis technology, and performance essentially equivalent to the coupe. Pictured together, the 1963 and 2015 Z06 convertibles bookend an extraordinary chapter in Corvette history. (Image credit: UltimateCorvette / RK Motors / RM Sothebys / ChatGPT)

The historical connection reached back to the original Z06 Special Performance Equipment package introduced for 1963. Only 199 Corvettes were ultimately ordered with the competition-oriented package that year, and Chevrolet records indicate that just one was a convertible, making the 2015 model the first factory-offered open Z06 since that exceptionally rare car.

Previous generations had made such a combination difficult. Removing the fixed roof from a high-performance structure traditionally required additional reinforcement to control flex under braking, cornering and acceleration loads, and that reinforcement added mass exactly where engineers trying to build a track-capable car did not want it. The C7’s aluminum architecture fundamentally changed what Chevrolet could accomplish.

Corvette chief engineer Tadge Juechter explained that advances in computer-aided engineering, metallurgy and manufacturing had finally allowed Chevrolet to create a lightweight open structure capable of supporting the loads generated by the new Z06. Development of the aluminum frame involved more than 17,000 computer-generated structural iterations and approximately 186,000 hours of computational modeling, with engineers using extrusions, hollow cast nodes, variable-thickness rails, adhesives, welding and Flowdrill fasteners to place strength where it was needed without simply adding material everywhere.

For Tadge Juechter, the 2015 Z06 Convertible was possible because the C7’s aluminum structure finally eliminated many of the compromises traditionally associated with an open-roof performance car. The convertible required no additional structural reinforcement simply because its roof folded away, allowing Chevrolet to retain essentially the same 650-horsepower powertrain, chassis tuning and performance capability offered by the Z06 coupe. Pictured here beside an exposed C7 aluminum chassis and a series of “Z06 Evolution” displays, Juechter helps illustrate just how fundamental that lightweight structure was to the Z06 program. The result was something Corvette engineers had been unable to offer for generations: a genuine Z06 convertible engineered as a high-performance car first, rather than a softened open-air derivative of the coupe. (Image credit: Standford Business)

The result was a Z06 convertible that required no additional structural reinforcement solely because its roof folded away. The principal structural changes involved mounting provisions for the power top and revised seatbelt attachment points, while Chevrolet described the C7 aluminum structure as approximately 20 percent stiffer than the fixed-roof C6 Z06 chassis. Packaging the folding top did require another engineering solution: because the power tonneau occupied space used by the coupe’s transmission and differential cooling ducts, those air intakes were relocated to the underside of the convertible.

None of that required Chevrolet to soften the mechanical specification. The convertible retained the 650-horsepower, 650-lb-ft supercharged LT4, essentially the same chassis tuning and the same available Z07 Performance Package with Michelin Pilot Sport Cup 2 tires, carbon-ceramic brakes and aggressive aerodynamic hardware. It was not conceived as a grand-touring interpretation of the Z06 coupe; it was a Z06 whose roof happened to fold away.

Period testing reinforced how successful the engineering had been. Car and Driver weighed an automatic Z07 convertible at 3,613 pounds, only 55 pounds heavier than the automatic Z07 coupe it had tested, while recording 1.17 g on the skidpad, a 134-foot stop from 70 mph, 0–60 mph in 3.1 seconds and an 11.3-second quarter-mile at 126 mph. For a 650-horsepower open car to remain that close to the coupe in acceleration, braking and lateral grip demonstrated just how far Corvette structural engineering had advanced.

Performance in Period Testing

Car and Driver’s 2015 10Best assessment praised the C7 Stingray as the best Corvette yet, highlighting its LT1 V-8, exceptional grip, communicative steering and brakes, and dramatically improved interior. Just as importantly for the open car, the magazine made no distinction in its enthusiasm for the two body styles, noting that the convertible and coupe impressed equally. That was significant praise for a Corvette convertible that no longer felt like the compromised alternative to the fixed-roof car, but rather another expression of the same highly capable C7 platform. (Image credit: Car and Driver)

Even the standard 2015 Stingray was operating at a performance level that would have seemed remarkable for a regular-production Corvette only a generation earlier. Car and Driver tested an eight-speed-automatic Stingray convertible at 3.7 seconds from 0–60 mph, 8.3 seconds to 100 mph and approximately 12.0 seconds through the quarter-mile at 119 mph. The same car stopped from 70 mph in 136 feet, generated 1.04 g on the skidpad and still carried an EPA highway rating of 29 mpg.

That combination captured how much broader the Corvette’s abilities had become. Chevrolet was selling a naturally aspirated, front-engine American sports car capable of running a 12-second quarter-mile, exceeding one lateral g and returning highway fuel economy comparable with many ordinary passenger cars. The familiar Corvette value argument remained, but the C7 was becoming increasingly difficult to dismiss simply as a less expensive alternative to more exotic machinery.

The Z06 pushed the numbers into another category entirely. Car and Driver’s automatic Z07 coupe reached 60 mph in 2.9 seconds, covered the quarter-mile in 11.0 seconds at 126 mph, produced 1.19 g on the skidpad and stopped from 70 mph in only 128 feet. At the time, the lateral-acceleration and braking results established production-car records for the magazine.

When Car and Driver tested the 2015 Corvette Z06 Convertible with the eight-speed automatic and Z07 Performance Package, it found remarkably little performance penalty for choosing the open car. The Z06 Convertible reached 60 mph in 3.1 seconds, ran the quarter-mile in 11.3 seconds at 126 mph, generated 1.17 g on the skidpad and stopped from 70 mph in 134 feet. Just as impressive, the magazine reported no discernible handling difference between the coupe and convertible, praising the open car’s structural rigidity and enormous grip despite its folding roof. In their assessment, removing the roof and adding an automatic did little to dilute the essential Z06 experience. (Image credit: Felix Salazar / Car and Driver)

Chevrolet’s own development testing produced similarly dramatic figures. GM recorded 0–60 mph in 2.95 seconds and a 10.95-second quarter-mile at 127 mph with the automatic Z07, along with approximately 1.20 g of lateral acceleration and a 99.6-foot stop from 60 mph. The seven-speed manual remained extraordinarily quick at 3.2 seconds to 60 mph and 11.2 seconds through the quarter-mile, also reaching 127 mph.

The difference between the two transmissions reflected the changing character of modern performance cars. The eight-speed automatic could exploit the LT4’s enormous torque with rapid, closely spaced shifts and deliver the quickest possible acceleration, while the seven-speed manual preserved the clutch pedal, deliberate gear selection and active rev-matching experience many Corvette buyers still wanted. One favored the stopwatch; the other placed more of the process in the driver’s hands.

On a road course, horsepower was only part of the Z06 story. The Z07 Performance Package added Michelin Pilot Sport Cup 2 tires, carbon-ceramic brakes, revised chassis calibration and aerodynamic hardware capable of producing meaningful downforce, while the convertible remained remarkably close to the coupe with 1.17 g, a 3.1-second run to 60 mph and the same 126-mph quarter-mile trap speed. Chevrolet had created a Corvette family capable of delivering genuine supercar acceleration without limiting buyers to a single transmission, roof configuration or level of driver involvement.

The Limits of the Package

One of the few significant controversies surrounding the early C7 Z06 involved thermal management during sustained track use. Under prolonged high-load conditions—particularly in hot weather and often in automatic-equipped cars—some owners and testers found that coolant, oil, or transmission temperatures could climb high enough to trigger warning messages and, in some cases, reduced-power operation. The issue did not undermine the Z06’s extraordinary straight-line speed, grip, or braking capability in normal driving, but it did expose the challenges of managing heat in a 650-horsepower supercharged Corvette pushed hard on a road course. GM ultimately addressed the concern with updated cooling-related service measures and revised calibration for qualifying cars, making the overheating issue an important, if frustrating, footnote in the 2015 Z06 story. (Image credit: General Motors)

For all of its extraordinary capability, the early C7 Z06 was not without weakness. Sustained track use exposed thermal-management limitations in some cars, particularly during prolonged high-load operation in high ambient temperatures and especially in examples equipped with the eight-speed automatic. Coolant, engine-oil or transmission temperatures could climb high enough to trigger warnings and, under some conditions, reduced-power operation.

The severity was not uniform. Ambient temperature, circuit layout, engine speed, session length and driving style all affected the amount of heat generated, which helped explain why some owners could run their cars hard without difficulty while others encountered problems during extended sessions. The automatic’s closely spaced ratios could keep the LT4 operating at higher engine speeds for longer periods, increasing the thermal load during sustained track driving.

General Motors eventually addressed the issue formally. A technical bulletin explained that the manual-transmission Z06 cooling package had been engineered around professional-level running on what Chevrolet considered a typical racetrack at approximately 86 degrees Fahrenheit, while acknowledging that tighter circuits, higher ambient temperatures and sustained high engine speeds could create more severe conditions. GM also recognized that automatic-equipped cars could approach thermal limits more quickly under certain circumstances.

The overheating controversy became especially significant because it challenged one of the Z06’s central selling points: its credibility as a Corvette engineered for serious track use. Owners who encountered temperature warnings or curtailed sessions questioned whether a car equipped with the Z07 package, extensive cooling hardware and competition-oriented components should require drivers to manage session length so carefully. Chevrolet maintained that the Z06 had been validated under defined track and temperature conditions, but the debate exposed the gap that can exist between controlled engineering targets and the far broader range of conditions encountered by owners. In retrospect, the episode remains one of the few substantial blemishes on an otherwise extraordinary performance program, and an important part of understanding the early C7 Z06 in its entirety. (Image credit: General Motors)

In 2021, Chevrolet established special coverage for qualifying 2015–2018 Z06 models that experienced track-related overheating. The program included updated cooling hardware for affected cars and revised automatic-transmission shift calibration intended to reduce sustained engine speeds and associated heat generation during track operation.

The controversy became part of the early Z06’s history, but it existed at the outer edge of an extraordinarily ambitious performance envelope. Chevrolet was simultaneously managing heat from a supercharged 650-horsepower engine, transmission, differential and brakes while packaging sophisticated aerodynamics and cooling systems into a relatively compact front-engine sports car. The limitations exposed under extreme use do not erase the Z06’s accomplishments, but they belong in any complete account of the car.

The broader 2015 Corvette lineup remained remarkable in its range. It stretched from a 29-mpg Stingray convertible capable of exceeding one lateral g to a 650-horsepower Z06 that could reach 60 mph in less than three seconds, with coupe and convertible bodies, seven-speed manual and eight-speed automatic transmissions, and everything from relatively restrained road-car specifications to the competition-minded Z07 package. By 2015, Corvette was no longer relying primarily on horsepower-per-dollar to establish its credibility; it had developed into a family of genuinely world-class performance cars built around one exceptionally adaptable architecture.

Pricing and Equipment

Chevrolet’s 2015 Corvette brochure presented the C7 not simply as a single sports car, but as a broad performance lineup that could be tailored from an attainable Stingray to a highly specialized Z06. Alongside its dramatic photography and performance messaging, the brochure detailed the growing range of trims, packages, colors, wheels, interior treatments and chassis options that allowed buyers to build a Corvette around their own priorities. That flexibility also meant pricing could vary considerably, with a relatively accessible base Stingray at one end of the spectrum and a heavily optioned Z07-equipped Z06 capable of reaching well into six-figure territory at the other. (Image credit: Chevrolet)

One of the more remarkable aspects of the 2015 Corvette was how aggressively Chevrolet priced the car relative to its capability, although the numbers require some explanation because prices changed during the model year. When first introduced, the standard Stingray coupe carried a $53,000 base price before the $995 destination charge, while the Z51 coupe started at $58,000. The convertible option added $5,000 in either configuration, placing the standard open car at $58,000 and the Z51 convertible at $63,000 plus destination charges. In February 2015, Chevrolet raised coupe pricing: the standard Stingray increased to $55,995 including destination, the Z51 coupe to $60,995, and the Z06 coupe from its original $78,995 figure to $79,995. The convertible prices were not included in that particular increase.

The relatively straightforward starting prices concealed enormous configurability. Stingray buyers could move from the standard 1LT equipment group to 2LT for $4,160 or 3LT for $9,450, adding progressively more robust interior appointments and convenience equipment. Beyond the trim level itself, buyers could specify the $1,795 Magnetic Selective Ride Control system on Z51 cars, the new eight-speed automatic for $1,725, Competition Sport Seats for $1,995—or $2,495 with suede inserts—and numerous wheel, roof, brake-caliper, interior and exterior appearance options. The new Performance Data Recorder was packaged with navigation for $1,795, giving Corvette buyers access to onboard video and vehicle-performance telemetry technology that remained unusual even among considerably more expensive sports cars.

Chevrolet’s 2015 Corvette brochure also made clear just how much visual and functional personalization was available below the bodywork. Stingray buyers could choose among several 18-/19-inch and 19-/20-inch wheel designs in finishes ranging from Sterling Silver and black to machined aluminum and chrome, while Z51-equipped cars gained their own split five-spoke selections and additional appearance choices. Z06 models stepped up to wider 19 x 10-inch front and 20 x 12-inch rear wheels, offered in Pearl Nickel, black, Spectra Gray and chrome finishes. Brake-caliper choices added another layer of customization, with Dark Gray Metallic, black, red, and yellow finishes available depending on model and brake package, allowing buyers to give even the Corvette’s braking hardware a distinct visual identity. (Image credit: Chevrolet)

Chevrolet also used the 2015 model year to demonstrate just how far the Stingray could be personalized through the Atlantic and Pacific Design Packages. The Atlantic Design Package, offered on Z51 convertibles in 2LT or 3LT trim, leaned toward grand touring with its Z06-style splitter, Shark Gray accents, chrome Torque wheels, custom luggage and other appearance details; it added approximately $6,350 to the car. The Pacific Design Package approached the Stingray from the opposite direction, combining a Z51 coupe with carbon-fiber ground effects, a visible carbon-fiber roof, Competition Sport Seats, red brake calipers, black racing stripes and other track-inspired details for roughly $7,100. These were expensive packages, but they also illustrated Chevrolet’s increasingly sophisticated approach to Corvette personalization, allowing two mechanically related Stingrays to leave Bowling Green with remarkably different personalities.

The Z06 began at another level entirely. Chevrolet originally announced the Z06 coupe at $78,995 and the convertible at $83,995, both including the $995 destination charge, figures that immediately attracted attention given the car’s 650 horsepower and the performance benchmarks Chevrolet was targeting. From there, the 1LZ could be upgraded to 2LZ for $3,270 or 3LZ for $8,650, while buyers could add Competition Sport Seats, carbon-fiber interior trim, premium paint, alternate wheels, the eight-speed automatic and the $1,795 navigation/PDR system. Even before touching the major performance packages, it was easy to add well over $10,000 to the base price simply by building a more luxurious or heavily optioned Z06.

Then there was the Z07 Performance Package. At $7,995, Z07 added the carbon-ceramic braking system, Michelin Pilot Super Sport Cup tires and the Z06’s most aggressive adjustable aerodynamic configuration, but ordering it also required one of the available ground-effects packages. The detailed 2015 pricing sheet listed Carbon Flash ground effects at $2,995 and visible carbon-fiber ground effects at $3,995, pushing the effective cost of a Z07-equipped build still higher. Add 3LZ, Competition Sport Seats, the automatic transmission, PDR/navigation, premium paint and other appearance equipment, and the arithmetic quickly carried a Z06 beyond $100,000. A 3LZ Z07 was no longer an inexpensive automobile by any conventional measure, but neither was it competing with conventional automobiles.

2015 CHEVROLET CORVETTE BROCHURE

That distinction defines the 2015 Corvette’s value proposition better than its base price alone. A Stingray beginning in the mid-$50,000 range delivered acceleration, braking and cornering performance capable of troubling cars carrying substantially higher price tags, while a six-figure Z07-equipped Z06 was being judged against machinery from Porsche, Ferrari and other exotic manufacturers that could cost two or three times as much. Chevrolet had not abandoned the traditional Corvette formula of delivering extraordinary performance for the money; it had expanded the scale on which that formula operated. By 2015, the Corvette could be configured as a relatively attainable 455-horsepower sports car, a sophisticated grand-touring convertible or a carbon-ceramic-braked, 650-horsepower track weapon—and all three emerged from the same basic C7 architecture.

Colors and Second-Year Production

Chevrolet produced 34,240 Corvettes for the 2015 model year, a substantial total for a two-seat sports car and further evidence that the seventh-generation Corvette had found an enthusiastic audience. Stingray production accounted for 25,587 cars, divided between 20,757 coupes and 4,830 convertibles, while Chevrolet built 8,653 Z06 models—6,980 coupes and 1,673 convertibles. Put another way, slightly more than one out of every four Corvettes built for 2015 was a Z06. Considering the Z06’s significantly higher price and far more aggressive performance mission, its roughly 25-percent share of total production represented a remarkable level of demand for the most extreme member of the lineup.

The option data provides an equally revealing look at what C7 customers wanted. Approximately 53 percent of Stingray buyers selected the Z51 Performance Package, moving their cars beyond the standard specification with additional cooling, larger brakes, performance gearing, a dry-sump oiling system and other chassis upgrades. Z06 customers proved similarly willing to move farther up the performance ladder, with roughly 39 percent selecting the Z07 Performance Package. Interior choices followed the same pattern: nearly 69 percent of Z06 buyers chose the top-level 3LZ equipment group, while comparatively few settled for the entry-level 1LZ specification. The C7 was attracting buyers who were willing to spend beyond the advertised base price to obtain more performance, technology and luxury.

Kai Spande joined the Bowling Green Assembly Plant as plant manager in September 2015, beginning what would become one of the most visible and well-regarded leadership tenures in modern Corvette production. A longtime General Motors employee with extensive manufacturing and engineering experience in both the United States and Europe, Spande arrived in Kentucky during a particularly strong period for the C7 Corvette, with Stingray and Z06 production demonstrating just how enthusiastically buyers had embraced the seventh generation. He also brought a genuine personal connection to Corvette, having owned several examples and worked with Corvette-related components earlier in his GM career. During the years that followed, Spande became a familiar presence within the Corvette community while overseeing Bowling Green through continued C7 production, major plant expansion, and eventually the historic transition to the mid-engine C8. Pictured here on the Bowling Green assembly floor, his arrival in 2015 added another important figure to the manufacturing story behind America’s sports car.

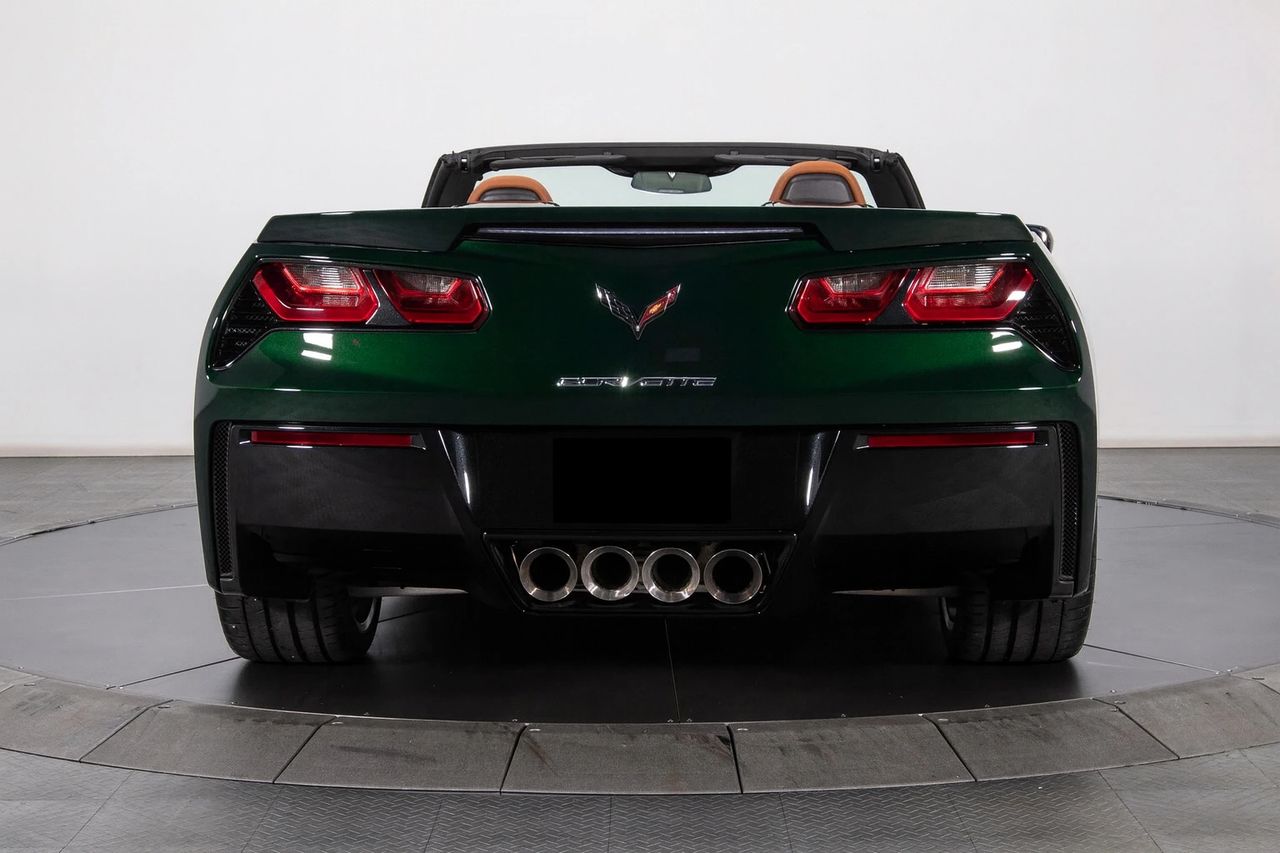

Few options demonstrate that tendency more clearly than the NPP dual-mode performance exhaust, which appeared on approximately 30,896 of the 34,240 Corvettes produced—roughly 90 percent of the entire model-year run. On Stingrays, the system helped raise LT1 output from 455 to 460 horsepower while using electronically controlled valves to alter exhaust flow and sound according to driving conditions and selected modes. Its extraordinary take rate suggests that buyers considered the louder, more expressive exhaust character nearly fundamental to the C7 experience rather than an indulgent accessory. By 2015, the sound of a Corvette had become another configurable part of the car’s personality.

Exterior-color production showed a different side of the same buyer base. Chevrolet offered ten colors, with Arctic White leading at 6,461 cars, followed by Torch Red at 5,625, Shark Gray Metallic at 5,130 and Black at 5,128. Those four colors alone accounted for nearly two-thirds of production. The remainder consisted of Laguna Blue Tintcoat at 3,015, Crystal Red Tintcoat at 2,191, Velocity Yellow Tintcoat at 2,065, Blade Silver Metallic at 1,791, and Daytona Sunrise Orange Metallic and Night Race Blue Metallic at 1,417 each. Arctic White represented approximately 18.9 percent of production, Torch Red 16.4 percent, while Shark Gray and Black each captured roughly 15 percent.

For 2015, Chevrolet refreshed the Corvette palette with two striking new finishes: Shark Gray Metallic and Daytona Sunrise Orange Metallic, replacing Cyber Gray Metallic and Lime Rock Green Metallic. Shark Gray gave the C7 a sophisticated, technical appearance that emphasized its sharp body lines, while Daytona Sunrise Orange delivered a far more extroverted look that played dramatically across the car’s sculpted surfaces. The contrast between the two colors captured the breadth of the C7’s personality, allowing buyers to choose between contemporary restraint and unmistakable visual drama.

The palette also evolved for 2015. Shark Gray Metallic and Daytona Sunrise Orange Metallic were new, replacing the outgoing Cyber Gray Metallic and Lime Rock Green Metallic. Shark Gray proved immediately successful, becoming the third-most-popular color in its first year and finishing only two cars ahead of Black. Daytona Sunrise Orange occupied the opposite end of the spectrum: considerably less common, but visually dramatic and particularly effective at emphasizing the C7’s sharply creased body surfaces. Alongside Laguna Blue, Velocity Yellow, Crystal Red and the perennial Torch Red, it ensured that buyers who wanted their Corvette to announce its presence still had plenty of opportunity to do so.

Taken together, the production figures reveal a Corvette audience increasingly comfortable treating the C7 as both a serious performance machine and a premium automobile. Buyers disproportionately chose Z51, Z07, 3LZ and NPP rather than stopping at the least expensive configuration, while the color mix leaned heavily toward white, gray and black shades familiar across the contemporary luxury-car market. At the same time, Chevrolet continued to offer the saturated reds, blues, yellows, and oranges traditionally associated with America’s sports car. The 2015 Corvette could therefore be configured as an understated grand tourer or an unapologetically extroverted performance car, and the production numbers show that customers enthusiastically embraced both interpretations.

The C7.R and the 2015 Z06: One Development Philosophy, Two Different Jobs

The 2015 Corvette Z06 was one of the clearest examples yet of Chevrolet using its racing program to directly shape the production car. Lessons learned with the C6.R and developed further through the C7.R influenced the Z06’s aerodynamics, cooling strategy, chassis development, and brake management, including similar front splitters, rocker treatments, and front- and rear-brake cooling ducts. The connection went deeper than appearance: the Z06 and C7.R shared the same production-based aluminum frame architecture, while Corvette Racing’s experience with functional venting, airflow management and high-speed stability helped engineers refine the road car for sustained performance rather than simply greater horsepower. Chevrolet described the process as a continuous exchange between track and street, with racing knowledge improving the production Corvette and those production advances in turn providing a stronger foundation for the next race car. The result was a Z06 whose evolution was inseparable from Corvette Racing—a 650-horsepower road car developed with many of the same engineering priorities that shaped the C7.R competing at Daytona, Sebring, and Le Mans. (Image credit: Chevrolet)

Corvette’s connection to motorsport was anything but ceremonial in 2015. Chevrolet developed the production Z06 and Corvette Racing’s C7.R in parallel, describing the two as representing the closest relationship yet between its road-going and racing Corvettes. They were never intended to be mechanically identical, but they emerged from the same engineering program, sharing structural architecture, aerodynamic strategies and many of the lessons already incorporated into the C7 Stingray.

At the center of that relationship was the aluminum frame produced at Bowling Green. Both the Z06 and C7.R used the same production-based aluminum structure, with advanced manufacturing techniques including laser welding, aluminum spot welding and Flowdrill fasteners helping produce a C7.R chassis Chevrolet described as 40 percent stronger than the outgoing C6.R. Their aerodynamic relationship was equally visible in similar splitters, rocker treatments, brake-cooling provisions and airflow management, but racing regulations created a major mechanical divide: while the Z06 used the supercharged 6.2-liter LT4, GTE rules limited the C7.R to 5.5 liters and prohibited forced induction.

The connection was therefore far more sophisticated than simply transferring racing hardware into a street car. Chevrolet used competition to develop its understanding of aerodynamics, cooling, braking, suspension behavior, structural stiffness and vehicle dynamics, while advances required for the production C7 gave Corvette Racing a stronger and more sophisticated foundation from which to develop the C7.R. The Z06 and race car performed very different jobs, but their simultaneous development demonstrated how thoroughly the road and racing programs had become intertwined.

Corvette Racing opened the 2015 season in emphatic fashion with a GT Le Mans victory at the Rolex 24 At Daytona, where Antonio García, Jan Magnussen and Ryan Briscoe drove the No. 3 Corvette C7.R to the class win. After 24 hours and 725 laps—roughly 2,581 miles—the race came down to a sprint, with García crossing the line just 0.478 seconds ahead of the second-place BMW. The No. 4 Corvette C7.R also finished on the podium in third, giving Chevrolet two cars among the top three in class. It was an ideal start to a season that would ultimately see Corvette Racing capture victories at Daytona, Sebring and Le Mans. (Image credit: Richard Prince Photography)

That philosophy produced extraordinary results when the 2015 racing season opened at the Rolex 24 At Daytona. Antonio García, Jan Magnussen and Ryan Briscoe drove the No. 3 Corvette C7.R to GTLM victory after completing 725 laps and 2,581 miles, with García crossing the finish line only 0.478 second ahead of the second-place BMW. The No. 4 Corvette of Oliver Gavin, Tommy Milner and Simon Pagenaud finished third, putting both factory C7.Rs on the class podium at one of North America’s most important endurance races.

Two months later, the No. 3 combination of García, Magnussen and Briscoe won again at the Twelve Hours of Sebring, completing 330 laps and approximately 1,221 miles. Corvette Racing had now captured GTLM honors at Daytona and Sebring in succession, giving the C7.R victories in the first two major endurance contests of the year. With those two American classics secured, attention shifted to the race that had defined so much of Corvette Racing’s international reputation: the 24 Hours of Le Mans.

Le Mans nearly unraveled before the race even began. During qualifying, Jan Magnussen suffered a severe accident in the No. 63 C7.R after a small piece of debris entered the pedal box and caused a throttle malfunction; Magnussen escaped injury, but the damaged Corvette could not be repaired in time to compete. That left the entire factory effort resting on the No. 64 C7.R of Oliver Gavin, Tommy Milner and Jordan Taylor, which had qualified only seventh among the GTE Pro entries.

Corvette Racing arrived at the 2015 24 Hours of Le Mans expecting to field two C7.Rs, but the No. 63 Corvette was withdrawn before the race after a heavy qualifying crash left the car too badly damaged to repair in time. That placed Corvette’s hopes squarely on the No. 64 C7.R of Oliver Gavin, Tommy Milner, and Jordan Taylor. The trio responded with a remarkably disciplined run, keeping the Corvette in contention through 24 hours of relentless competition before claiming victory in the GTE Pro class. The win gave Corvette Racing its eighth class victory at Le Mans and provided one of the defining moments of the C7.R program—a single remaining Corvette carrying the fight and delivering on endurance racing’s biggest stage. (Image credit: Richard Prince Photography)

The remaining Corvette responded with one of the defining victories of the C7.R era. Gavin, Milner and Taylor worked their way through the field and completed 337 laps and 2,864.5 miles, ultimately winning GTE Pro by five laps and giving Corvette Racing its eighth class victory at Le Mans. Combined with the earlier wins at Daytona and Sebring, the result completed endurance racing’s unofficial Triple Crown, making Corvette Racing the first sports-car team in 15 years to win all three events in the same year.

The Triple Crown did not translate into domination of the entire 2015 championship. García and Magnussen finished third in GTLM competition in the No. 3 Corvette, and that car likewise ended the season third in the team standings after its brilliant opening stretch gave way to a more difficult second half. Corvette Racing therefore left 2015 without the season-long GTLM championship, an important distinction from the championships the C7.R would capture in subsequent years.

That contrast gives the 2015 season much of its character. The C7.R was not unbeatable at every circuit, nor was the production Z06 simply a racing Corvette wearing license plates, but both cars demonstrated how effectively Chevrolet had merged its road and competition engineering programs. In the same year that customers could purchase the 650-horsepower Z06, its racing counterpart won Daytona, Sebring and Le Mans—a remarkably appropriate validation of the development philosophy behind the most track-focused Corvette Chevrolet had yet offered.

While the C7 Reached Its Peak, the C8 Was Already Taking Shape

In January 2015, Car and Driver published what became the earliest widely circulated spy images of Chevrolet’s mysterious mid-engine Corvette development mule. Photographed from above, the bizarre black prototype—later known as Blackjack—combined Holden-derived bodywork, Corvette components and an oversized rear wing, offering the first tangible evidence that Chevrolet had moved beyond decades of mid-engine concepts and into genuine road-going development. At the time, the images raised more questions than they answered, but in hindsight they captured the first public glimpse of the architecture that would ultimately become the C8 Corvette. (Image credit: Chris Doane Automotive / Car and Driver Magazine)

Perhaps the most fascinating part of the 2015 Corvette story was something virtually no customer could see. General Motors was already developing its replacement, and the work taking place behind closed doors would ultimately lead Corvette farther from its traditional formula than at any previous point in the car’s history.

That fact gives the 2015 Corvette an unusual place in the history of the marque. From the outside, the C7 appeared to represent Chevrolet’s fullest commitment yet to the front-engine Corvette, with the Stingray having restored considerable excitement to the nameplate and the new Z06 pushing production-car performance into territory once reserved for far more exotic machinery.

Corvette Racing was reinforcing the same message on circuits around the world. Everything visible about the program suggested that Chevrolet was continuing to refine, improve and extract greater performance from the architecture that had defined the Corvette for generations.

Behind closed doors, however, Chevrolet was preparing for something very different. Even as the C7 was approaching the height of its capabilities, a small group of engineers was already determining how Corvette might survive once the traditional layout finally reached the limits of what they believed it could realistically deliver.

Zora Arkus-Duntov spent much of his Chevrolet career pursuing the idea that Corvette’s ultimate evolution might require moving the engine behind the driver, a philosophy explored repeatedly through experimental programs such as the CERV cars and later mid-engine Corvette studies. The XP-882, shown here with Duntov, became one of the most important late-career expressions of that ambition, with development beginning in 1968 and a public debut at the 1970 New York Auto Show. Its transverse-mounted small-block V-8 and mid-engine architecture represented a radical departure from the production Corvette, and the basic program later evolved into additional experimental cars, including the Reynolds Aluminum and Four-Rotor Corvettes. Although Duntov continued championing the concept, he retired from General Motors in 1975 without seeing a mid-engine Corvette reach production. (Image credit: GM Media LLC.)

The idea of placing the Corvette’s engine behind its occupants was certainly not new. Zora Arkus-Duntov had spent decades investigating alternatives to the conventional front-engine layout, and Chevrolet’s experimental history included machines such as the CERV prototypes, the XP-882 and the Aerovette.

Those cars reflected a recurring belief inside Corvette engineering that moving the engine rearward might eventually provide advantages that could not be achieved indefinitely with the traditional configuration. Again and again, however, the production Corvette remained front-engined, and the more radical experimental cars became fascinating branches of development rather than the beginning of a new production lineage.

That nearly changed before the C7.

During the latter years of C6 development—particularly as Chevrolet pushed the supercharged C6 ZR1 toward production—Tadge Juechter and his team were becoming increasingly aware that simply adding more power to the traditional layout would eventually deliver diminishing returns. The transmission had already been moved to the rear of the car, leaving the engine as the largest remaining mass that could be relocated, and the engineering argument for placing it behind the occupants increasingly centered on weight distribution, traction and expanding Corvette’s performance envelope rather than simply creating something exotic.

During the 2006–2008 period, Chevrolet seriously explored a mid-engine architecture for what could have become the seventh-generation Corvette. GM Design developed a full-size clay model and numerous scale studies as Corvette engineers examined how relocating the engine behind the occupants could improve traction, weight distribution and the car’s long-term performance potential. The rendering shown here is not known to be an official General Motors design; rather, it is an independent interpretation from Car and Driver Magazine representative of the type of mid-engine Corvette being discussed during that era. The actual GM program nevertheless gained meaningful internal momentum before the global financial crisis and the company’s 2009 bankruptcy brought expensive new vehicle programs under intense financial pressure. The mid-engine C7 effort was subsequently shelved, forcing Chevrolet to pursue a more evolutionary front-engine architecture instead, but the engineering philosophy behind the project would re-emerge several years later and ultimately reach production with the C8. (Image credit: Car and Driver)

By the 2007–2008 period, the team had done meaningful planning around the possibility of making the C7 a mid-engine Corvette, and although senior management had historically been skeptical, Juechter later recalled that the engineering case eventually became persuasive enough to gain internal support.

Its timing could scarcely have been worse.

The global financial crisis struck just as General Motors was approaching one of the most precarious periods in its history, rapidly turning long-range product ambitions into questions of basic corporate survival. GM entered into emergency financing arrangements with the U.S. Treasury in late 2008, was required to submit increasingly aggressive restructuring plans, and by the spring of 2009 was operating under severe liquidity constraints while federal officials evaluated whether the company could remain viable. When those restructuring efforts proved insufficient, the old General Motors filed for Chapter 11 bankruptcy protection on June 1, 2009; a newly reorganized GM acquired substantially all of its operating assets on July 10. Under those conditions, expensive new vehicle architectures became extraordinarily difficult to justify, and Juechter has said the bankruptcy effectively locked down product spending and forced Corvette engineering to abandon its immediate mid-engine ambitions.

General Motors’ 2009 bankruptcy brought development of the company’s pre-C7 mid-engine Corvette proposal to an abrupt halt, not because the engineering case had collapsed, but because GM no longer had the financial flexibility to pursue such an expensive architectural leap. As the company fought for survival during the financial crisis, high-cost future programs became difficult to justify, and Corvette development was redirected toward a more conservative, lower-risk front-engine path that ultimately became the C7. That decision effectively shelved what had been a serious internal effort to rethink Corvette’s layout for the next generation. Even so, the bankruptcy did not kill the mid-engine idea outright; it merely delayed it until GM had regained the resources, confidence and organizational stability to revisit it. In that sense, 2009 interrupted the mid-engine Corvette program, but it did not end the larger vision that would eventually resurface and reach production with the C8.

The mid-engine Corvette was therefore one of the casualties of the crisis, but the engineering argument behind it had not been disproven. Corvette’s team was forced to retrench, shelving the architecture it had been studying and developing what became the C7 around a more evolutionary front-engine platform that could be brought to market within GM’s new financial reality.

Juechter later described the period as one in which the team was effectively forced to postpone its aspirations, not abandon them, and that distinction is important: the question inside Corvette engineering was no longer whether a mid-engine layout offered advantages, but when the company would once again have the resources and institutional confidence to pursue it. The C7 emerged from that reset as a remarkable continuation of the traditional Corvette formula, while the more radical idea remained dormant only temporarily.

What ultimately became the C7 therefore evolved around a more familiar front-engine architecture. That decision did not make the seventh-generation Corvette conservative, because its aluminum structure, advanced electronically controlled chassis systems, increasingly sophisticated aerodynamics and modern powertrains allowed Chevrolet to push the traditional configuration farther than any previous production Corvette.

Had General Motors not been forced into bankruptcy in 2009, the architecture beneath the 2015 Corvette Z06 might have been very different. Chevrolet had already been seriously exploring a mid-engine configuration for the car that was expected to become the C7, but the financial crisis forced GM to retreat from that expensive clean-sheet program and develop the seventh-generation Corvette around a more evolutionary front-engine platform instead. That decision ultimately gave us the extraordinary 650-horsepower Z06 we know today, but it also means the car represents a fascinating alternate-history moment in Corvette development: its performance mission may have remained much the same, while its fundamental layout could have changed completely. In another financial reality, the 2015 Z06 might have arrived not as the ultimate expression of the traditional front-engine Corvette, but as the first production mid-engine Corvette. The bankruptcy delayed that transformation by several years, allowing the C7 Z06 to become both a technological summit for the old architecture and, in hindsight, one of its final great statements.

By the time the 2015 Z06 arrived, that philosophy had produced an extraordinary automobile. The supercharged LT4 delivered 650 horsepower and 650 lb-ft of torque, placing the C7 firmly among the most powerful and capable performance cars available at any price.

Yet even before customers could experience the Z06 for themselves, Corvette engineering had resumed its investigation of the alternative. By 2013—the same year Chevrolet publicly revealed the C7 Stingray—Tadge Juechter and a tightly restricted group of engineers were already working with genuine hardware for the Corvette that would eventually follow it.

The project was no longer merely an internal conversation about what a future Corvette might someday become. Chevrolet had built a functioning development vehicle, and although almost nothing about its appearance suggested the shape of the production car to come, its underlying architecture represented the beginning of the most fundamental transformation in Corvette history.

Its codename was Blackjack.

Blackjack

Among the more intriguing development vehicles connected to the seventh-generation Corvette was the so-called Blackjack test mule, an unusual machine created to help engineers evaluate future Corvette hardware beneath a very unconventional disguise. Built to conceal what was really being developed, Blackjack looked nothing like the finished production car, yet it played an important behind-the-scenes role in the path that ultimately led to the C8. For Corvette enthusiasts, it remains a fascinating reminder that some of the most important chapters in a car’s story are written long before the public ever sees the final shape.

Blackjack looked ridiculous because it had to. A normal disguised prototype would have been almost impossible to conceal effectively because moving the engine from ahead of the passengers to behind them fundamentally changed the proportions of the automobile.

Manufacturers routinely hide future cars beneath camouflage, altered body panels and pieces borrowed from existing production vehicles. Those techniques can obscure styling details, but they are far less effective when the entire relationship between the passenger compartment, axles and powertrain has changed.

A conventional C7 body could not simply be stretched over a mid-engine platform and expected to fool anyone familiar with sports-car architecture. The cabin position, rear body volume and relationship between the driver and rear axle would immediately have suggested that something far more significant than a normal model update was taking place underneath.

So Chevrolet approached the problem from almost the opposite direction. Instead of trying to make Blackjack appear normal, engineers made it so strange that interpreting its actual purpose became considerably more difficult.

The result resembled a mutant Australian utility vehicle assembled from whatever parts were available. Holden-derived bodywork formed the front of the mule, recognizable C7 elements surrounded the passenger compartment, and crudely fabricated panels concealed the mechanical package behind the occupants.

Seen from this angle, Blackjack’s wonderfully awkward proportions make its engineering purpose almost impossible to miss. The exaggerated rear bodywork, dramatically widened stance, and enormous wing were secondary to the real objective: giving Chevrolet’s engineers a functioning platform on which to develop and evaluate a mid-engine Corvette before anything resembling the eventual production C8 existed. Beneath its Holden-derived disguise, the mule incorporated C7-related components along with a Porsche-sourced dual-clutch transmission, making it far less a prototype of the finished car than a rolling laboratory for proving the architecture itself.

Rather than looking like the next Corvette, Blackjack looked like an experimental one-off that had escaped from an obscure corner of General Motors engineering. That was precisely what Chevrolet wanted, because anyone who encountered the car had to first determine what they were looking at before they could begin guessing what it might actually represent.

Juechter later explained the thinking behind the disguise with characteristic simplicity, noting that conventional camouflage could not hide mid-engine proportions and that the team therefore decided to make the vehicle look like a ute. The bizarre appearance was not evidence that the program was unserious; it was evidence of how seriously Chevrolet was attempting to protect what the engineers were doing underneath.

At this stage, Blackjack’s job was not to predict what the production C8 would look like. Its appearance was largely irrelevant because the mule existed primarily to answer much more fundamental questions about the architecture, suspension geometry, structural behavior and dynamic characteristics of a mid-engine Corvette.

Nor did every mechanical component need to represent something General Motors eventually intended to manufacture. Blackjack initially used an adapted Porsche PDK transmission because the production dual-clutch transaxle that would ultimately be developed for the C8 did not yet exist.

The interior of Blackjack was every bit as revealing as its improvised exterior, combining recognizable C7 Corvette components with the unmistakable clutter of a working development mule. Production pieces such as the steering wheel, seats, door panels and portions of the dashboard remained in place, while the center stack was overtaken by test equipment, auxiliary controls, warning labels and an emergency shutoff—clear evidence that this was an engineering tool rather than a finished prototype. Even the handwritten speed reference on the dash reinforced the car’s experimental nature, offering a rare glimpse into the practical, sometimes decidedly unglamorous environment in which the mid-engine Corvette was being developed. (Image credit: Chevrolet)

The Porsche transmission therefore served as engineering equipment rather than a preview of the production powertrain. It allowed Chevrolet to create a functioning development platform with which the team could begin learning how a mid-engine Corvette behaved while other components of the eventual production program were still years from completion.

What mattered first was the foundation. Moving the engine behind the occupants altered far more than the physical location of the powertrain, because the change affected nearly every major relationship governing how the car would behave.

The distribution of mass changed substantially, as did the relationship between the driver, engine and axles. Suspension loads, weight transfer, structural requirements and packaging considerations all had to be reconsidered around an arrangement fundamentally different from the Corvette Chevrolet had spent decades refining.

The development team needed to understand how the new configuration would react under acceleration, braking and cornering. It also needed to determine how the chassis would respond when suspension loads entered the structure from different locations and when considerably more of the automobile’s mass was concentrated near the rear axle.

Computer modeling could establish theories and provide enormously useful direction, but eventually those theories had to become physical behavior. Engineers needed an actual vehicle moving across actual pavement so that calculations could be compared against what drivers, instrumentation and suspension hardware were telling them.

Blackjack provided that laboratory. Its crude appearance concealed a machine performing some of the most consequential engineering work ever undertaken during Corvette development.

Even one of Blackjack’s strangest visual features existed for a legitimate engineering reason. The enormous rear wing was mounted upside down, an arrangement that looked absurd until the aerodynamic problem the engineers were attempting to solve was understood.

Photographs of Blackjack at speed reveal what the mule was ultimately built to do: accumulate real-world development miles under conditions that could expose strengths and weaknesses far more effectively than a laboratory ever could. Here, running hard on a rain-soaked test surface, the car offered engineers an opportunity to evaluate how the unfamiliar mid-engine layout behaved as available grip diminished and weight transferred under acceleration, braking and cornering. Wet-weather testing was especially valuable for understanding balance, stability and the interaction between the chassis and its electronic controls. Stripped of any pretense of being a showpiece, Blackjack was doing exactly what mattered most—turning an ambitious engineering concept into something Chevrolet could eventually trust at speed.

The Holden-derived nose generated substantial lift at speed. Because those aerodynamic forces affected suspension behavior, Chevrolet needed a way to establish a more useful pitch balance before the team could evaluate the developing chassis with any meaningful consistency.

Ordinarily, a rear wing is designed to produce downforce. On Blackjack, engineers inverted the wing so that it generated lift at the rear, helping counter the lift produced by the front bodywork and allowing the team to establish the aerodynamic balance it needed for suspension development.

It was an extraordinary-looking solution to a perfectly rational engineering problem. More importantly, it demonstrated that almost nothing about Blackjack’s external appearance should be interpreted in the same way one would evaluate a normal prototype.

The exposed engine bay of the Blackjack development mule offers a rare look at the decidedly unglamorous hardware behind Chevrolet’s move to a mid-engine Corvette. Rather than the carefully finished presentation of a production car, the compartment is dominated by structural bracing, wiring, control modules, suspension hardware, cooling components, and prototype fabrication—evidence of a vehicle built to test packaging and function rather than appearance. Its improvised character is precisely what makes Blackjack so fascinating: beneath the disguise, Chevrolet engineers were working through the fundamental architecture that would eventually define the C8 Corvette. In photographs like this, the future of America’s sports car can be seen taking shape one bracket, harness, and test component at a time.

The body did not need to be attractive, and the interior did not need to resemble a production Corvette. The transmission did not need to come from General Motors, and even the aerodynamic devices did not need to perform the function anyone looking at them would normally expect.

The architecture was the experiment. Everything surrounding it existed to make that experiment possible and to allow engineers to begin answering questions that could not be resolved using the conventional C7 platform.

In that sense, Blackjack was more important for what it allowed Chevrolet to learn than for anything the mule itself was intended to become. It was an engineering bridge between decades of mid-engine Corvette experimentation and a production program that was finally beginning to move beyond sketches, concepts and canceled proposals.

January 2015: The Secret Begins to Escape

By January 2015, the secrecy surrounding Chevrolet’s mid-engine Corvette program was beginning to crack. Spy photographs of the bizarre Holden Ute-based development mule—later publicly identified as Blackjack—appeared online, providing some of the first tangible evidence that GM was doing far more than merely considering a mid-engine Corvette on paper. At the time, the mule’s strange proportions, enormous rear wing, and heavily modified bodywork invited plenty of speculation, but the photographs made it increasingly difficult to dismiss the mid-engine rumors as fantasy. What the public could not yet know was that beneath Blackjack’s deliberately misleading exterior, Chevrolet engineers were already developing the architecture that would ultimately become the C8 Corvette.

For nearly two years, Chevrolet managed to keep that work largely beyond public view. Then, in January 2015, the outside world finally obtained unmistakable evidence that something very unusual was occurring within Corvette development.

Spy photographers captured the strange black mule near a General Motors facility, and the images immediately generated questions because the vehicle was so difficult to categorize. What appeared at first glance to be some heavily modified Holden utility vehicle contained enough recognizable Corvette elements—and sufficiently unusual proportions—to suggest a far more provocative possibility.

Car and Driver published photographs of the mule and treated them as evidence that Chevrolet’s long-rumored mid-engine Corvette had advanced beyond concepts and internal speculation. For Corvette enthusiasts following the story at the time, Blackjack represented the first tangible indication that the idea might finally have escaped the conceptual stage.

The photographs showed a machine that seemed deliberately contradictory. Holden pieces, C7 components, fabricated bodywork and an enormous rear wing appeared together on a vehicle that clearly was not intended to become any recognizable production model in its existing form.

As photographs published by Car and Driver began circulating in early 2015, Blackjack moved from whispered rumor to something enthusiasts could actually study. Its cobbled-together Holden Ute body, exaggerated proportions, exposed fasteners, and enormous rear wing gave it the appearance of a rolling Frankenstein experiment, yet beneath that disguise were increasingly obvious clues to what Chevrolet was developing. The mule’s altered proportions, rearward mass, revised cooling requirements, and completely reworked structure were already pointing toward the basic packaging philosophy that would define the C8 Corvette. What looked crude and almost improvised from the outside was, in reality, one of the clearest early glimpses yet of the mid-engine Corvette taking physical form. (Image credit: Chris Doane Automotive)

In hindsight, the photographs of Blackjack documented an enormously important moment in Corvette history. The public had effectively caught a glimpse of the architecture that would eventually bring nearly seven decades of front-engine Corvette development to an end, even though virtually nothing about the crude Holden-based mule revealed what the finished automobile would ultimately look like. Its appearance was deliberately misleading, but the engineering beneath it pointed toward a very different future.

The timing is what makes the story especially significant. In 2015, Chevrolet was publicly showcasing the C7 as one of the most advanced and capable Corvettes it had ever produced, while privately developing a mid-engine successor that had already been underway since 2013. That chronology is important because it dispels the idea that the C8 was conceived as a reaction to limitations discovered only after the 650-horsepower Z06 reached customers. Chevrolet was already investigating a fundamentally different Corvette architecture while the C7 program itself was still comparatively young.

What the Z06 did illustrate was the increasingly difficult physics confronting Corvette engineers as performance continued to rise. Sending 650 horsepower and 650 lb-ft of torque exclusively through the rear tires demanded sophisticated suspension development, increasingly capable tire technology and advanced electronic traction management. The C7 proved that Chevrolet could make the traditional front-engine Corvette extraordinarily fast, but moving the engine behind the occupants offered another path forward—one with the potential for greater static mass over the driven wheels, improved launch traction and new opportunities in weight distribution, aerodynamics, structure and packaging.

Years later, Popular Mechanics recalled an exchange that neatly captured the engineering crossroads. After driving the C7 Z06, writer Ezra Dyer told Corvette chief engineer Tadge Juechter that making the car substantially quicker seemed likely to require a mid-engine layout. Juechter already knew where that reasoning led; while journalists and enthusiasts were beginning to reach the conclusion from behind the wheel of the newest Corvette, his engineering team was already exploring the solution with Blackjack.

For a brief period, then, two very different Corvette philosophies existed simultaneously within General Motors. The visible Corvette represented the culmination of decades spent refining the front-engine formula, while Blackjack—assembled from Holden bodywork, Corvette components and experimental hardware—was teaching Chevrolet how to build the Corvette it had never built before. One program demonstrated how far the existing architecture could still be pushed; the other was quietly establishing the foundations of the car that would ultimately replace it.

2015 Ownership: Recalls, Heat, and the First-Year 8L90

No definitive account of the 2015 Corvette should pretend the car was flawless. The C7 had already represented a major technological step forward when the Stingray arrived for 2014, and the addition of the Z06, the LT4, expanded electronic controls and the new eight-speed automatic only increased the complexity of the platform for 2015.

Most owners never experienced every issue associated with the model year, and several of the safety recalls involved only very small production batches. Even so, these concerns form an important part of the historical record because they show where the first full year of the expanded C7 lineup encountered the practical realities of manufacturing, heat management and increasingly sophisticated driveline technology.

Early Safety Recalls

This technical overview illustrates the three narrowly defined NHTSA recall campaigns associated with early-production 2015 Corvettes, identifying the specific areas of the car involved in each action. The driver frontal airbag assembly, rear suspension toe-link outer ball joint, and rear parking-brake cable recalls affected just 89, 43, and approximately 783 Corvettes respectively, underscoring how limited these campaigns were relative to total model-year production. Each issue was tied to a specific production window rather than a universal defect across the 2015 Corvette lineup. For owners and prospective buyers, the graphic reinforces why a VIN-specific recall check remains the most reliable way to determine whether an individual Corvette was affected. (Image credit: UltimateCorvette.com)

Several recalls affected relatively small groups of early-production 2015 Corvettes, and their narrow build windows are important to understand. These were not broad defects shared by every 2015 Corvette; rather, they were production-specific problems that GM identified within particular groups of cars and addressed through targeted campaigns.

One involved the rear suspension toe-link outer ball joint on 43 U.S. Corvettes built between September 26 and October 2, 2014. An improperly tightened joint could loosen in service and potentially separate, creating a loss of rear-wheel control that could reduce vehicle stability and increase the risk of a crash. The concern was serious because rear suspension geometry plays a direct role in maintaining directional control, but the extremely limited production window meant the issue applied to only a small fraction of total 2015 Corvette production.

Another campaign involved 89 Corvettes produced during a short August 2014 manufacturing period and centered on the driver’s frontal airbag assembly. The airbag backplate could fracture during deployment, potentially compromising the way the restraint system functioned during a collision. Again, this was not a design flaw affecting the entire model year, but rather a narrowly defined production problem isolated to specific vehicles.

A separate parking-brake recall affected approximately 783 cars built between August 20 and September 4, 2014. In those vehicles, one of the rear parking-brake cables could be improperly seated, potentially leaving the parking brake acting on only one rear wheel instead of both. The parking brake could therefore provide less holding force than intended, particularly on an incline, creating the possibility of unintended vehicle movement if the car was not otherwise secured.

Taken together, these early recalls illustrate the difference between a model-year problem and a production-batch problem. None of the campaigns represented a universal deficiency in the 2015 Corvette, which is why evaluating an individual car by VIN remains considerably more useful than simply assuming every example was affected.

For today’s buyer, recall history should be part of the same due diligence applied to service records, accident history and maintenance. NHTSA continues to recommend checking a vehicle’s VIN directly because recall applicability is vehicle-specific, and completed campaigns can generally be confirmed through dealer or federal records.

The 8L90 Shudder

This diagram highlights the internal components most closely associated with the well-known 8L90 transmission shudder issue that affected many automatic-equipped 2015 Corvettes. It also summarizes GM’s service recommendation under TSB 18-NA-355, which called for a triple drain-and-fill fluid exchange using blue-label Mobil 1 Synthetic LV ATF HP to address the condition. For owners, it provides a concise visual reference to both the hardware involved and the factory-prescribed corrective approach.

The introduction of the 8L90 eight-speed automatic represented one of the most significant mechanical changes to the 2015 Corvette. It replaced the previous six-speed automatic and gave both Stingray and Z06 buyers a much more modern transmission with closer ratios, quicker shifts and an additional overdrive range intended to improve both performance and efficiency.

Its long-term service history, however, became one of the better-known ownership concerns associated with automatic C7 Corvettes. General Motors eventually issued technical guidance addressing a torque-converter-clutch shudder that could affect 2015–2019 Corvettes equipped with the M5U version of the 8L90.

Owners typically described the condition as a vibration or oscillation occurring under light throttle at relatively steady road speeds. The sensation could resemble driving across a series of shallow rumble strips, making the problem easy to notice but not necessarily easy to diagnose because driveline vibration can originate from tires, wheels, engine operation, torque-converter behavior or several other sources.

For 2015 Corvettes equipped with the 8L90 automatic, GM’s later corrective procedure for torque-converter shudder called for replacing the original fluid with blue-label Mobil 1 Synthetic LV ATF HP, using a repeated drain-and-fill process to achieve the required concentration of new fluid. A complete service commonly includes fresh fluid along with a new transmission filter and pan gasket, helping ensure that contaminated or degraded fluid is removed while restoring proper filtration before the transmission is returned to service.

GM Technical Service Bulletin 18-NA-355 specifically identified certain 2015–2019 Corvettes equipped with LT1 or LT4 engines and the 8L90. Later revisions of the diagnostic procedure called for a complete transmission-fluid exchange using the updated Mobil 1 Synthetic LV ATF HP fluid where applicable, reflecting GM’s evolving understanding of how the original fluid formulation interacted with torque-converter-clutch operation.

The distinction between a technical service bulletin and a safety recall is important. A bulletin provides dealers with diagnostic and repair guidance for a recognized service condition; it does not mean that every vehicle covered by the bulletin automatically suffers from that condition.

That is particularly relevant to the 2015 Corvette. Many automatic cars have accumulated substantial mileage without developing a persistent shudder, while others have required fluid service or further diagnosis.

For anyone considering a surviving 2015 automatic today, the transmission deserves particular attention during a road test. Light-throttle cruising at highway and suburban speeds can help reveal the characteristic vibration, while service documentation showing that the updated fluid procedure was performed can provide useful context about how the car has been maintained.

The 8L90 issue should therefore be treated neither as insignificant nor as an automatic reason to avoid the transmission. It is better understood as one of the early service challenges associated with a new and considerably more sophisticated automatic gearbox entering Corvette production for the first time.

Z06 Thermal Management

This infographic illustrates just how much heat is generated throughout a high-performance Corvette when it is driven at or near its limits, from the engine and supercharger to the brakes, catalytic converter and transaxle. It provides a useful visual reminder that extraordinary performance always brings extraordinary thermal demands, especially in a street-legal car expected to survive both daily driving and track use. Just as importantly, it helps explain why cooling capacity and heat management became such central topics in discussions surrounding the C7’s ultimate performance envelope. (Original Data Credit: Car and Driver / Image credit: UltimateCorvette.com)

The more controversial issue surrounding the 2015 Z06 involved sustained track temperatures. Unlike the narrowly defined recalls, this concern went directly to the way Chevrolet had positioned the new Z06: as a road-legal Corvette capable of delivering extraordinary performance during serious circuit use.

Under many conditions, it fulfilled that promise. With 650 horsepower and 650 lb-ft of torque, enormous braking capability, exceptional grip and increasingly sophisticated chassis electronics, the Z06 could deliver performance that would have seemed nearly unimaginable in a production Corvette only a generation earlier. Sustained high-speed operation, however, revealed the enormous thermal load created by the complete powertrain package, particularly in cars equipped with the eight-speed automatic.

MotorTrend documented the problem during repeated track testing. In one retest, Randy Pobst reported that engine output began falling significantly as temperatures climbed, with the oil-temperature gauge approaching 320 degrees Fahrenheit after several hard laps before a cool-down lap brought temperatures back under control. The magazine had also encountered substantial supercharger heat soak during earlier testing, demonstrating that under certain conditions the LT4 could generate heat faster than the car’s cooling systems could reject it.

Tadge Juechter subsequently explained that automatic-transmission cars generally produced more heat than manual-transmission examples and could therefore reach protective operating limits sooner. He also noted that the Z06’s performance targets had been developed around ambient temperatures of approximately 86 degrees Fahrenheit or below, although MotorTrend reported experiencing temperature-related power reduction even during testing conducted in cooler weather.

That distinction became central to the controversy. Owners had purchased a Corvette marketed heavily around its track capability and reasonably expected that performance to remain available through extended sessions. From an engineering standpoint, however, the issue was more complicated than simply determining whether the Z06 could complete a track day. Thermal management is a balance between the heat a vehicle produces and the amount it can dissipate through airflow, coolant, oil, transmission fluid and available heat-exchanger capacity.

The 2015 Z06 pushed that balance exceptionally hard. Its supercharged 6.2-liter LT4 produced enormous power from a compact package, yet the production car still had to accommodate air conditioning, emissions equipment, catalytic converters, crash protection, passenger comfort, luggage capacity, street-legal ride height and a factory warranty. Unlike the C7.R race car, which could be optimized almost entirely around competition, the production Z06 had to idle in traffic, commute comfortably and meet regulatory requirements while still delivering near-race-car performance when driven onto a circuit.

Under prolonged high-load operation—particularly with elevated ambient temperatures or the additional heat generated by the automatic transmission—the car could eventually reach thresholds at which its engine-management system reduced output to protect the powertrain. The resulting debate became an important part of the early C7 Z06’s reputation and placed greater attention on cooling capacity and thermal management as Chevrolet continued refining the platform.

None of that diminishes what the 2015 Z06 accomplished. Its acceleration, braking, cornering capability and outright lap-time potential remained extraordinary. If anything, the thermal issue demonstrated just how close Chevrolet had pushed the front-engine Corvette architecture to its practical limits: the more power the engineers extracted and the more sustained performance they demanded from the car, the more difficult it became to manage the resulting heat within a street-legal package.

That is the more complete way to understand the 2015 Z06. It was an extraordinary automobile operating at an unprecedented performance level for Corvette, but it was also a first-year combination of new supercharged hardware, a new automatic transmission and extreme output. Some of the limitations exposed under sustained track use became part of the engineering lessons Chevrolet carried forward as development of the C7 continued.

Why the 2015 Corvette Still Matters Today

The 2015 Corvette still matters today for a very simple reason: it remains a genuinely usable high-performance car in the modern world. Whether you look at the Stingray or the Z06, these cars still offer performance that feels seriously fast by current standards, along with technology, refinement and road manners that make them practical to own rather than merely admire. Just as importantly, they continue to represent a point in Corvette history where world-class capability was available at a price far more attainable than many of the exotic cars they were built to challenge.

The 2015 Corvette occupies a particularly important position in the history of America’s sports car because it represents both an arrival and a beginning. It was only the second model year of the seventh-generation Corvette, yet Chevrolet had already moved well beyond simply establishing the credibility of the new Stingray. The 2014 Corvette had proven that the C7 was a legitimate world-class sports car, one capable of competing with contemporary offerings from Porsche, Ferrari, BMW and others without relying solely on the traditional Corvette argument of delivering exceptional performance for the money. By 2015, Chevrolet was no longer attempting to demonstrate that the new Corvette belonged in that company. Instead, the engineering team began showing just how much capability could be extracted from the platform.

In that respect, 2015 was the year the C7 truly came into its own. At one end of the lineup stood the naturally aspirated Stingray, producing between 455 and 460 horsepower depending on exhaust configuration and combining genuine sports-car performance with a removable roof panel, impressive highway efficiency, sophisticated electronics and enough comfort and cargo capacity to serve as a legitimate everyday automobile. Equipped with the Z51 Performance Package, that same basic Corvette became considerably more serious, gaining the cooling, braking, differential, suspension and lubrication hardware necessary to survive sustained high-performance driving without sacrificing the road manners that made the standard Stingray so usable.

At the opposite end of the spectrum was the returning Z06, and it fundamentally altered the conversation surrounding the Corvette. Its supercharged LT4 produced 650 horsepower and an equally staggering 650 lb-ft of torque, figures that not long before would have belonged almost exclusively to highly specialized exotics costing several times as much. Yet horsepower was only part of the story. Available carbon-ceramic brakes, enormous Michelin tires, Magnetic Ride Control, Performance Traction Management, an electronically controlled limited-slip differential and genuine aerodynamic downforce allowed the chassis to exploit levels of performance that earlier Corvettes simply could not approach with the same degree of composure. With the available eight-speed automatic, Chevrolet demonstrated that the Z06 could accelerate from zero to 60 mph in less than three seconds. The Corvette was no longer merely entering supercar territory on paper; it was producing the objective performance numbers to substantiate the claim.

If the track-focused side of Corvette history reminds us how hard Chevrolet was pushing the platform, the 2015 Pacific concept shows that performance was never the whole story. It represented a different but equally important Corvette idea: a car that could still deliver speed and presence while leaning into style, comfort and the kind of long-distance glamour that makes you want to keep driving long after the destination stops mattering. That is part of why the Pacific vision still feels relevant today, because the Corvette has always been at its best when it can be both an event and a companion.

Perhaps the most compelling characteristic of the 2015 Corvette, however, was the remarkable amount of choice Chevrolet continued to offer its customers. This was still a Corvette that could be configured around the driver’s priorities rather than forcing every buyer into a narrowly defined performance formula. A traditionalist could order a seven-speed manual transmission and remain deeply involved in the mechanical process of driving the car. Another buyer could select the new eight-speed automatic and achieve quicker acceleration while enjoying effortless cruising. A Z06 customer could choose the removable-roof coupe or, for the first time in more than half a century, a full convertible. Meanwhile, the Stingray could be configured as a relatively understated grand tourer, an aggressively optioned Z51 track-day car, a luxury-oriented Atlantic convertible or a motorsport-inspired Pacific coupe.

That diversity tells us a great deal about where Corvette stood by the middle of the 2010s. It was no longer necessary for Chevrolet to define the car around a single interpretation of performance. The same basic platform could accommodate drivers who wanted long-distance comfort, weekend track capability, open-air touring, show-car personalization or outright supercar performance. More importantly, the underlying engineering was sophisticated enough that none of those identities felt artificial. The Corvette had evolved into a genuinely broad performance platform rather than simply a sports car offered with different trim packages.

The technology inside the car reinforced that evolution. The 2015 Corvette could automatically match engine speed during manual shifts, electronically manage differential locking, alter suspension damping in milliseconds, adjust traction and stability systems based on driving conditions, change the character of its exhaust and record high-definition video accompanied by GPS-based performance telemetry. The Performance Data Recorder, developed with Cosworth, effectively placed a motorsports-style data acquisition system inside a production Corvette. An owner could drive to a racetrack, record laps, review braking points and cornering loads, and then analyze that data after the session.

The 2015 Corvette still matters because it belongs to the final generation in which drivers could choose to shift a Corvette for themselves. The C7’s seven-speed manual kept alive that wonderfully mechanical ritual of working the clutch, choosing the gear and feeling the drivetrain respond directly to your own timing and touch—an experience the mid-engine C8 would leave behind. For all the technology and performance packed into the seventh-generation car, there was still something wonderfully old-school at its core: the Corvette asked its driver to participate. And as the years pass, that connection may become one of the C7’s most treasured qualities.

And yet, for all of that technology, the C7 still retained the fundamental mechanical character that had defined Corvette for generations. The driver could still depress a clutch pedal, move a physical shifter through its gates and control a naturally aspirated small-block V-8 mounted ahead of the passenger compartment. The steering wheel still sat behind an unmistakably long hood. The transmission remained mounted at the rear of the car as part of the traditional Corvette transaxle layout. In a period when performance automobiles were becoming increasingly digitized, the C7 managed to incorporate sophisticated electronic systems without allowing them to completely overwhelm the underlying mechanical experience.

That combination would not last forever.

The eighth-generation Corvette would eventually relocate the engine behind the occupants, replace the traditional manual transmission entirely with an eight-speed dual-clutch gearbox and fundamentally alter the physical experience of driving a Corvette. Those changes did not make the C8 any less authentic. In fact, they represented the culmination of ideas that Corvette engineers—beginning with Zora Arkus-Duntov—had explored for decades. The mid-engine configuration allowed Chevrolet to attack traction, weight distribution, aerodynamics and packaging problems that had become increasingly difficult to overcome as output continued climbing.

But the arrival of the C8 also gave the C7 an additional layer of historical significance. It became the final expression of the front-engine Corvette architecture that had defined the automobile since 1953, and the 2015 model year sits almost perfectly at the intersection between the Corvette that had been and the Corvette that was coming.

The 2015 Corvette matters because it stands near the closing chapter of a story that had been unfolding since 1953: seven generations of front-engine, rear-wheel-drive Corvettes refining the same fundamental idea. That evolution would ultimately reach its performance zenith with the 2019 ZR1, but by 2015 the C7 had already become an extraordinary summation of everything Chevrolet had learned about making the traditional Corvette formula faster, sharper and more sophisticated. In that sense, the 2015 model was more than simply another year in Corvette history—it belonged to the final generation of the architecture that had defined the car for more than six decades. What came next would reinvent the Corvette, but the C7 represented the culmination of everything that came before it.

From that perspective, the 2015 Corvette becomes much more than an especially powerful version of the C7. It was technologically sophisticated enough to embarrass far more expensive contemporary machinery while remaining mechanically connected to generations of Corvettes that preceded it. Its pushrod V-8 remained ahead of the driver. Its transmission remained behind the passenger compartment. Its overall proportions—long hood, short rear deck, low roofline and pronounced rear haunches—were unmistakably Corvette. Most importantly for many enthusiasts, its manual transmission still required the driver to actively participate in extracting the performance the car could deliver.

At the same time, the technology embedded throughout the 2015 Corvette was already pointing toward the increasingly integrated future of performance-car engineering. Electronic differential control, adaptive damping, multiple driver modes, sophisticated traction management, telemetry, aerodynamic development and computer-controlled powertrain systems were no longer secondary features. They had become an essential part of making 455, 460 or 650 horsepower genuinely usable. Chevrolet was learning to manage performance as an entire vehicle system rather than treating horsepower, chassis tuning and aerodynamics as largely separate disciplines.

The racing program illustrated that philosophy perhaps better than anything else. During the same model year Chevrolet was delivering the new Z06 to customers, Corvette Racing campaigned the C7.R through one of the most memorable endurance-racing seasons in the program’s history. Victories at Daytona, Sebring and the 24 Hours of Le Mans reinforced the connection Chevrolet had spent decades cultivating between its competition program and the production Corvette. The similarities between the road-going Z06 and the C7.R were not simply cosmetic; both cars emerged from shared aerodynamic studies, structural development and an engineering culture in which racing continued to serve as an important proving ground for ideas that ultimately influenced the production automobile.

The 2015 season demonstrated that the C7.R was more than an impressive new race car—it had become a genuine endurance-racing force. The No. 3 Corvette of Antonio Garcia, Jan Magnussen and Ryan Briscoe followed its GTLM victory at the Rolex 24 at Daytona with another class win at the Twelve Hours of Sebring, the run pictured here, giving Corvette Racing victories in the opening two great American endurance races of the year. Corvette would then carry that momentum across the Atlantic, where the C7.R captured GTE Pro victory at the 24 Hours of Le Mans, completing a remarkable year in which Chevrolet proved the seventh-generation Corvette could translate its production-car engineering philosophy into success at the highest levels of international sports-car racing. For the 2015 Corvette story, those victories mattered because they reinforced something Corvette had spent decades building toward: the road car and race car were no longer distant relatives, but increasingly convincing expressions of the same performance identity.

The 2015 Le Mans victory was especially appropriate. After the No. 63 Corvette was eliminated following its qualifying accident, the No. 64 C7.R of Oliver Gavin, Tommy Milner and Jordan Taylor carried the entire factory effort through the race and delivered the GTE Pro class victory. In a year when the production Z06 was being described as the most track-capable Corvette Chevrolet had ever built, the C7.R was simultaneously proving the broader Corvette engineering philosophy at the most famous endurance race in the world. Few model years provide such a clean alignment between what Chevrolet was selling in the showroom and what the Corvette name was accomplishing on the racetrack.

That is what makes the 2015 model year such an important hinge point in Corvette history. It perfected many of the ideas that Chevrolet had been developing for decades—lightweight construction, front-engine/rear-transaxle balance, small-block V-8 power, motorsports-driven engineering and extraordinary performance at a comparatively attainable price—while simultaneously introducing technologies and engineering philosophies that would influence the Corvette generations that followed.

The Stingray demonstrated that Corvette could deliver genuine sophistication without becoming detached or clinical. The Z06 demonstrated that a production Corvette could compete directly with some of the world’s most serious supercars without abandoning the small-block V-8 or the traditional front-engine architecture. The C7.R reinforced the credibility of the entire program by translating Corvette engineering into victories at Daytona, Sebring and Le Mans. And behind closed doors, the Blackjack development mule demonstrated that Chevrolet already understood that the next great leap forward would require something fundamentally different.

For all the attention naturally given to first-year Corvettes, final-year models and limited-production halo cars, the 2015 Corvette deserves to be recognized as one of the defining model years of the modern era. It was not the beginning of the C7, nor was it the end. Instead, it was the point at which the promise of the seventh-generation Corvette became fully visible.

Perhaps the most important measure of the 2015 Corvette is not found in a specification sheet, but in the experiences these cars continue to create for the people who own and drive them. Corvette has always offered something remarkable: the chance to own a genuinely special automobile without requiring the kind of wealth traditionally associated with cars of this caliber, and then to become part of a community built around the shared enjoyment of driving it. Seeing this 2015 Stingray headed toward the National Corvette Museum in Bowling Green feels particularly appropriate, because it connects the place where Corvette’s history is preserved with one of the cars still out there actively adding to that history. More than a decade later, that may be the best explanation for why the 2015 Corvette still matters—it was built to be driven, enjoyed, shared, and remembered. (Image credit: Scott Kolecki / UltimateCorvette.com)

By 2015, Chevrolet no longer needed to prove that the C7 was good enough to compete with the best sports cars in the world. The Stingray had already established that point. What Chevrolet demonstrated during the car’s second model year was something considerably more important: just how extraordinary the Corvette could become when every element of the platform—engine, chassis, aerodynamics, electronics, racing development and driver technology—was allowed to work together.

And while the C7 was reaching those new heights, the Corvette’s next revolution was already quietly taking shape.

There are friendships that develop slowly, almost without notice, until one day you look around and realize the person who once happened to live across the street has somehow become part of the architecture of your life. More than ten years ago, when Cliff moved into the house across from mine, I could not possibly have known that I was meeting someone who would eventually become one of my closest friends, my partner in more adventures than either of us could probably count, and, in every way that actually matters, family.

Over the years, we have managed to find plenty of ways to get ourselves into trouble together. We have played music, discovered a shared appreciation for bourbon and whiskey—and occasionally demonstrated considerably more enthusiasm than restraint—and traveled thousands of miles across the country by car and motorcycle. We have laughed until we could barely breathe, gotten lost, found our way again, told stories that have somehow become better with every retelling, and accumulated the kind of memories that cannot be planned because the best ones usually happen somewhere between where you intended to go and wherever you actually ended up.

Corvettes eventually became another part of that story. In 2022, Cliff and I did something that probably surprised absolutely nobody who knew us: we bought matching C7 Corvettes. His was a 2015 Stingray, mine a 2016, officially cementing the title I had already begun using for him—my Corvette twin brother. We have since put countless miles beneath those cars together, but the miles themselves are not really what I remember most. I remember the conversations over radios, the fuel stops that somehow became an hour long, the roads we discovered because neither of us was quite ready to turn toward home, and the simple pleasure of looking in the mirror and seeing your best friend’s Corvette running right there with you.

And somewhere along the way, those cars opened another door. They connected us even more deeply to a Corvette community that has given both of us friendships, experiences and memories extending far beyond the machines themselves. Our immediate circle has become part of our shared story, as have the countless people we have met at shows, museums, events and somewhere out on the road. That may ultimately be one of the greatest things Corvette ownership has given us—not simply extraordinary cars, but another excuse to experience life together and another community in which to do it.

So, Cliff, this 2015 Corvette Overview is for you.

I hope that somewhere within these pages you discover something new about the car sitting in your garage. I hope you come away knowing a little more about the engineers who created it, the decisions that shaped it, the victories and challenges that defined its year, and the remarkable place it occupies in Corvette history. And because I know you well enough to know you will be looking, I should probably warn you that there may be a few Easter eggs buried along the way—little things placed here specifically for the guy who has shared so much of this journey with me.

But more than anything, I hope this article reminds you that your 2015 Stingray represents something much larger than horsepower, production numbers or engineering specifications. For me, that car will always be inseparable from the memories we have created around it and from a friendship I treasure more deeply than I probably say often enough. The Corvette has given us some remarkable adventures, but the greatest gift has never been the cars. It has been having someone beside me with whom I could share all of it.

Thank you for every mile, every song, every glass raised, every ridiculous story, every road trip, every late-night conversation and every adventure still waiting somewhere ahead of us. Thank you for being the friend I can share literally anything with, the constant companion who has been there through so many chapters of my life, and the brother I never expected to find living across the street.

Here’s to whatever road comes next.

Your friend always,
– S

The 2015 Corvette arrived at a pivotal moment in the history of America’s sports car. With the Stingray gaining momentum, the return of the Z06, a new eight-speed automatic, expanding technology and performance that pushed the C7 deeper into exotic-car territory, 2015 became one of the most consequential years of the seventh generation. Here’s the…

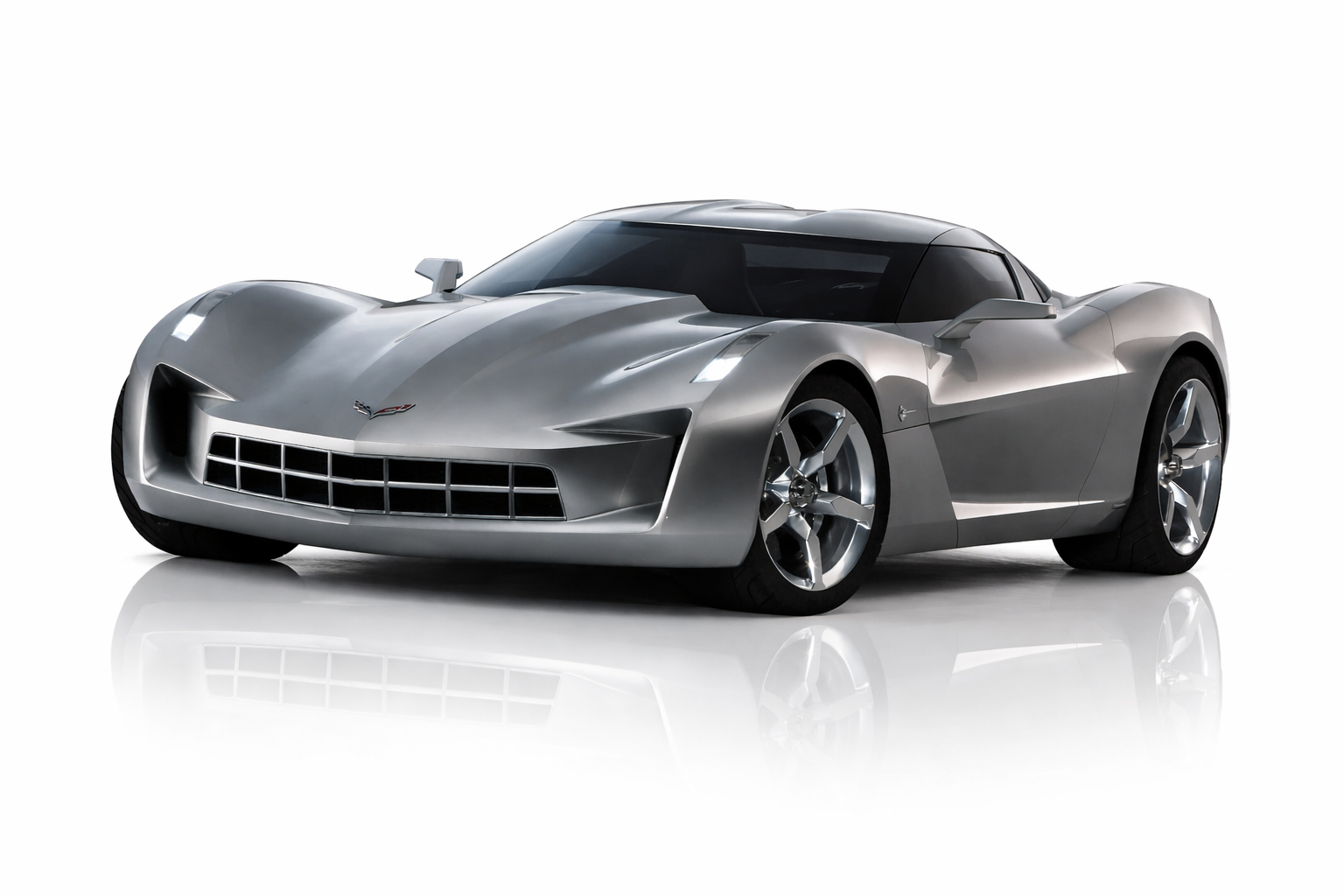

2009 CORVETTE STINGRAY CONCEPT
In the mid-to-late 2000s, General Motors was in free fall. After a $39 billion accounting-driven loss in 2007 and a further $30.9 billion loss in 2008, GM entered Chapter 11 on June 1, 2009—restructuring under U.S. government oversight. The triage that followed shed whole brands—Pontiac was phased out, Saturn was slated for closure, GM attempted (and ultimately failed) to sell Hummer before winding it down, and Saab was sold to Spyker in early 2010.

Inside GM Design, however, there was a stubborn belief that Corvette had to point the way forward—even if the future was uncertain. Ed Welburn, then GM’s vice president of global design, quietly encouraged his staff to explore off-the-radar Corvette ideas. He even widened the aperture, inviting designers across GM’s global studios to submit sketches for what might become the next Stingray—a move he later described as an “explosion of emotion, passion and excitement” across the design staff.

Corvette exterior design manager Kirk Bennion recalls how fast the ideas poured in: “within two weeks…over 300 sketches,” and it fell to him to receive and curate them for review. Tom Peters—design director for GM Performance Cars—was tasked with shaping the most resonant ideas into a single, audacious theme: a modern interpretation of the 1959 Stingray Racer and 1963 Split-Window Sting Ray, with just enough futurism to signal where Corvette might go next.

Hollywood calls, and a concept gets a co-star credit

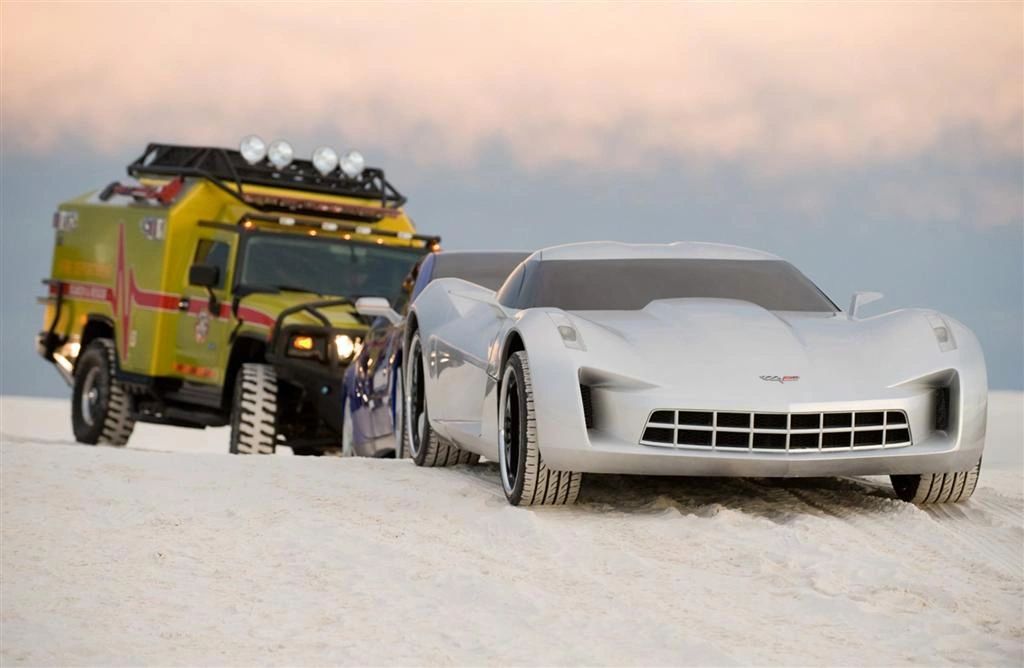

The 2009 Corvette Stingray Concept (seen here as the character “Sideswipe”) made its worldwide debut in the movie “Transformers: Revenge of the Fallen”

Momentum for a full-size build accelerated when director Michael Bay—fresh off the box-office success of the first Transformers film—asked GM for a Corvette to play the Autobot “Sideswipe” in the sequel “Transformers: Revenge of the Fallen.” GM was eager; the Camaro concept’s cameo as “Bumblebee” in the first film had sent awareness for the potential fifth-generation Camaro “up 97 percent,” Chevrolet general manager Ed Peper told the Chicago Auto Show audience.

Welburn took the wraps off the result, the Corvette StingRay Concept, at the 2009 Chicago Auto Show. In his words, “This vision concept is part of the free exploration of future products that I encourage our creative and talented design teams to develop…[it] pays homage to the 1959 StingRay Racer and 1963 Corvette StingRay Split-Window Coupe.” For the movie work there were two cars: a running, on-camera version and a pristine styling mock-up that Welburn brought to Chicago “without all the wear and tear and scars of an action movie.”

Consumers loved it. Over the show’s 10-day run, the StingRay was voted Best Concept Vehicle (39% of ballots) and also the “Vehicle I’d Most Like to Have in My Driveway” (12%)—rare double wins in the Chicago show’s Best of Show balloting.

Design: a fusion of past icons and sharp-edged futurism

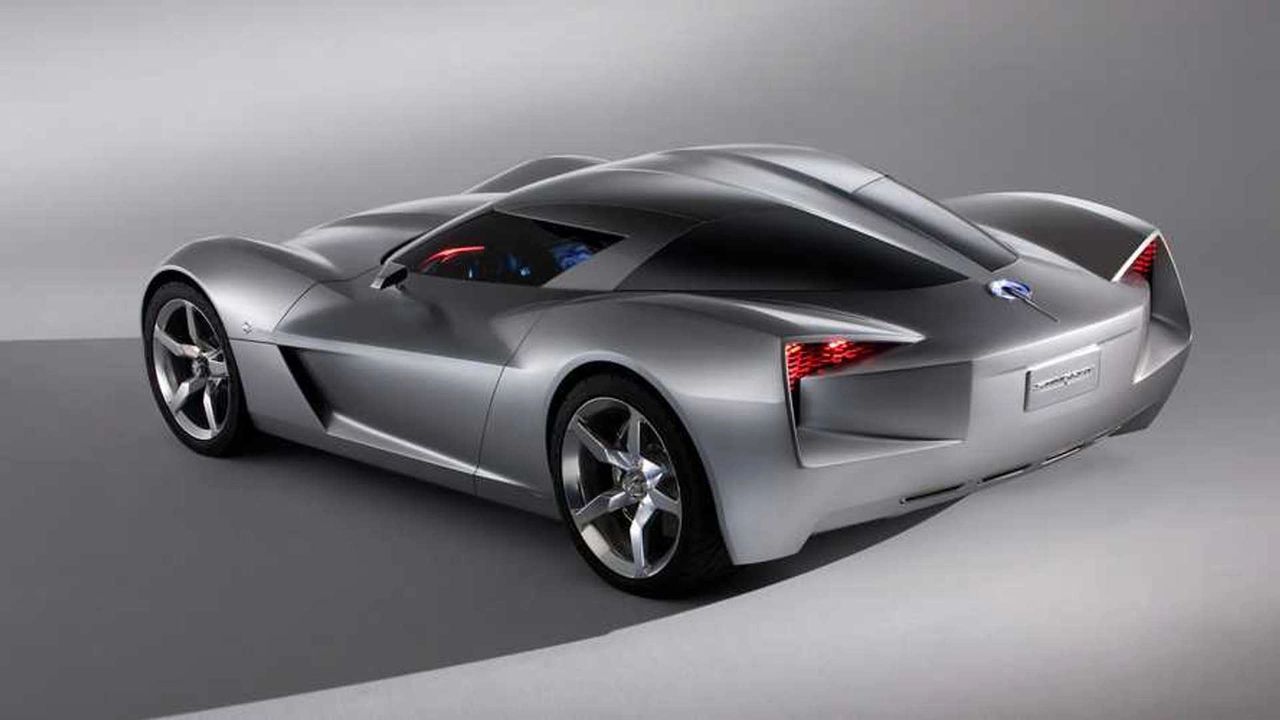

The 2009 Corvette Stingray Concept featured a split rear window, which was done intentionally as a callback to the 1963 Corvette Sting Ray. Interestingly, this same split rear window has been incorporated into the 2025 ZR1 and ZR1X models. (Image courtesy of GM Media LLC,)

Peters’ team took a greatest-hits tour of Corvette iconography and sharpened it. The split rear window—a deliberate callback to the 1963 Corvette Sting Ray —sat under a roof with a more pronounced double-hump profile than the C5/C6. The front and rear fender humps blended the C2 Sting Ray’s tautness with the C3’s “Shark” drama. The egg-crate-style grille and low, extended nose nodded to the ’59 Stingray Racer. The side coves and hood bulge exaggerated themes familiar from the contemporary C6. The result was unmistakably Corvette yet startlingly crisp—intentionally “pressed-suit” in the Bill Mitchell idiom.

The proportions were bolder than a production C6: 3.1 inches longer, 5 inches lower, and 6.6 inches wider. It sat on enormous wheels and tires—20×9.5 with 275/30R20 up front and 21×13 with 355/30R21 at the rear—pushing visual mass to the corners. Beneath the reverse clamshell hood: a show-stopping, bell-crank front suspension presentation; out back: stock C6 hardware with modified wishbones and ZR1-spec discs. The body itself? Despite early talk of mixed composites, the built show car was all fiberglass, wrapped around a production C6 Corvette chassis—quick to fabricate and perfect for a one-off.

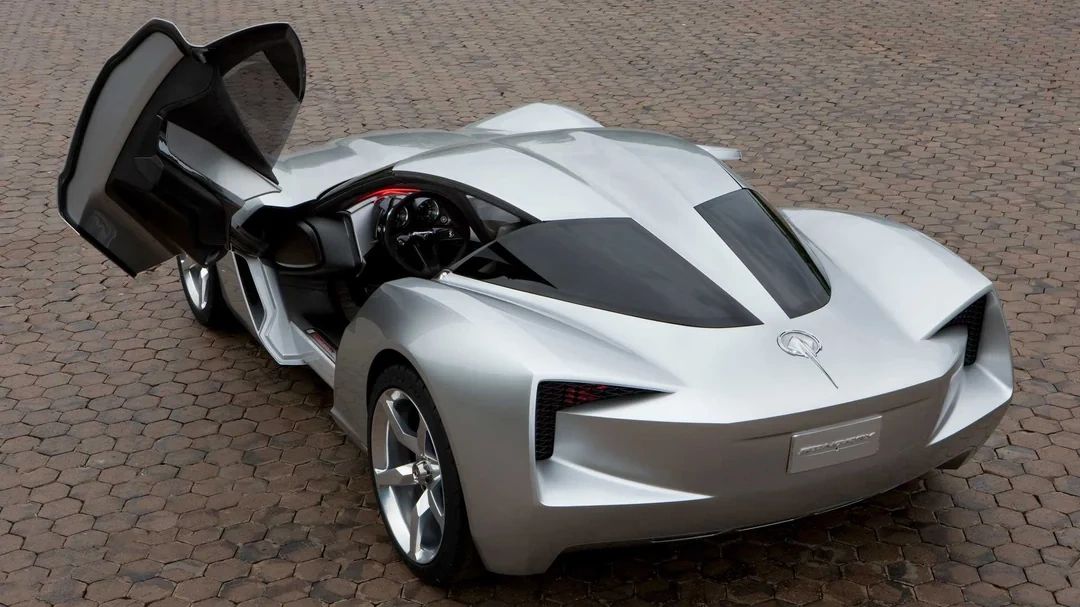

The 2009 Corvette Stingray Concept on display at GM’s Design Studio in Detroit, Michigan. The scissor doors are an addition that has not (to date) ever been incorporated into a production model Corvette, though many aftermarket companies have kits to convert the doors on C5 (and later) generations. (Image courtesy of GM Media LLC.)

Even its theater had theater. The Stingray Concept wasn’t content to simply sit under lights—it performed. The power-operated reverse clamshell hood wasn’t just a nod to race-car serviceability; it was a deliberate spectacle piece. Hinged at the front and lifting from the rear, it exposed the engine bay in one sweeping motion, creating the kind of stage reveal that auto-show designers dream about. It framed the mechanicals like an exhibit, reinforcing the idea that this was a technical showcase as much as a styling exercise.

Then there were the scissor doors. Impractical for mass production? Perhaps. But absolutely intentional. They elevated ingress and egress into choreography, forcing crowds to pause, cameras to rise, and conversations to stop. Doors that pivot upward rather than outward change the way a car occupies space—suddenly it feels exotic, cinematic, almost supercar-adjacent. That was the point.

Together, those elements underscored the concept’s dual identity. It was a design manifesto wrapped in Hollywood sheetmetal—a Corvette engineered not just to be seen, but to arrive.

Powertrain: what “Hybrid Stingray” really meant

Pop the engine cover and the story gets even more grounded: LS3—the familiar 6.2-liter small-block that powered the contemporary C6 Corvette. That choice matters because it reinforces what the Stingray Concept really was: a design and directional technology statement built on known, proven Corvette architecture, not an all-new propulsion prototype. Even in a car dripping with show-stand drama, GM anchored it with a parts-bin heart for reliability, packaging confidence, and—frankly—because show cars are often about message first and metallurgy second.

Of course, the visual messaging in the engine bay helped fuel confusion. The rail covers wore “Hybrid Stingray” script, and in the context of 2009—when “hybrid” was the headline term for the industry’s future—that single word was enough to trigger a wave of breathless reporting. The key detail is what didn’t happen: GM never released a deep technical spec sheet for the concept that would substantiate a true hybrid system, and later, better-sourced contemporary retrospectives make it clear the car retained a stock LS3 rather than showcasing a bespoke hybrid drivetrain.

So what did “Hybrid” actually mean here? Think of it as an “umbrella concept” (a catch-all term for new tech ideas), not a literal drivetrain description. It pointed to a menu of efficiency ideas GM wanted associated with Corvette’s future—things like cylinder deactivation and other strategies that could preserve V-8 character while reducing consumption in light-load or low-speed operation. In other words, it was “hybrid” in the marketing sense of blended priorities—performance plus efficiency—rather than “hybrid” in the Prius-style, motor-and-battery propulsion sense.

For context, that era’s production C6 LS3 was rated at 430 hp and 424 lb-ft, or 436 hp and 428 lb-ft with the optional dual-mode exhaust—numbers that underline why GM didn’t need a complicated show-only powertrain to make the concept feel legitimate. The Stingray Concept’s powertrain wasn’t there to reinvent Corvette. It was there to keep the concept credible (an actual car versus an exterior design study) while the design—and the future-facing narrative—did the heavy lifting.

Inside: fixing the C6’s pain points and forecasting the future cabin

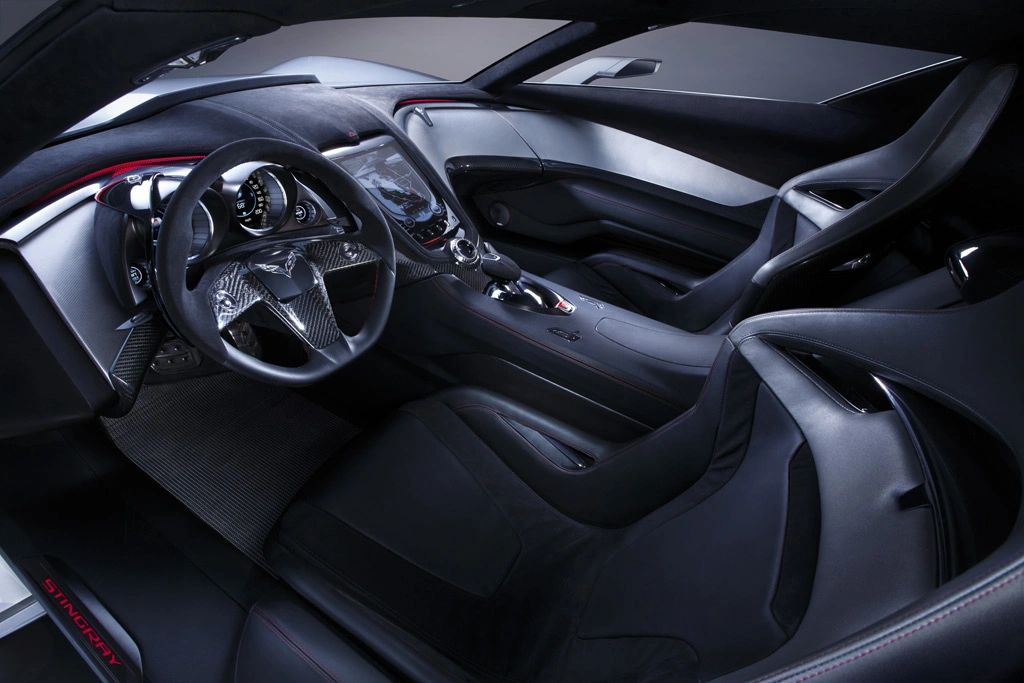

The interior of the 2009 Corvette Stingray Concept. While the styling is exceptionally contemporary, even by today’s standards, there is no mistaking that this design provided some of the design cues incorporated into the seventh-generation Corvette Stingray. (Image courtesy of GM Media, LLC.)

Corvette loyalists had been vocal about the C6’s interior, and GM knew exactly what they meant. The C6 delivered real performance, but the cabin didn’t always feel like it belonged in the same conversation as the car’s numbers—especially as buyers cross-shopped more premium, tech-forward competitors. The 2009 Stingray Concept responded to that critique almost point-by-point, using the cockpit as proof that the “future Corvette” wasn’t just about sharper bodylines—it was about elevating the driver’s environment to match the badge on the nose.

Start with the fundamentals: deep-bolstered seats that look purpose-built, not generic. They telegraphed a more serious, modern sports-car posture—lower, more wrapped-in, more “you and the chassis are one unit.” Around them, the cabin surfaces leaned into sweeping carbon-fiber textures and brightwork accents, not as gimmicks, but as a clear move toward a more intentional, premium material strategy. It felt designed, layered, and architectural—less like a parts-bin cockpit and more like a coherent interior concept.

Then came the tech, presented in a way that was unmistakably aimed at the criticism Corvette had been hearing. The Stingray Concept featured an early take on large-format infotainment, with navigation and media inputs integrated as a focal point rather than an afterthought. Today, that sounds normal—but in 2009, it signaled a Corvette that understood the modern expectations of daily usability: connectivity, clarity, and a center stack that didn’t look a generation behind.

The most forward-looking cue was the customizable instrument cluster, with LED-rich lighting and a more configurable, information-dense layout. That detail matters because it shows the interior was being treated like an interface—not just gauges and needles, but a driver-focused display system that could evolve. It’s exactly the kind of mindset that would become more visible later, when the C7 arrived with a noticeably upgraded cabin philosophy: higher perceived quality, more modern screens, better materials, and a stronger sense of “this is a flagship sports car.”

Bottom line: the Stingray Concept’s interior wasn’t just prettier—it was a direct answer to the questions about interior design quality that consumers had been asking for generations. It looked and felt like the premium, high-tech cockpit Corvette fans had been asking for, and it proved GM was listening in the one place enthusiasts spend every mile: behind the wheel.

The reveal: a superstar—but not a production promise

Ed Wellburn, Vice President of Global Design at GM, introduces the new Corvette Stingray Concept in Chicago on February 11, 2009.

The StingRay’s Chicago debut on February 11, 2009, landed with perfect timing. GM needed a shot of optimism—something bold, modern, and unmistakably Corvette—and Paramount’s summer release calendar was lining up for maximum exposure. Chicago gave both sides a high-profile stage in front of media, enthusiasts, and a broader audience that might not have followed engineering details but absolutely responded to a dramatic reveal and a memorable silhouette.

Even with that momentum, Ed Welburn and the team kept the messaging disciplined. On stage, he framed the car as what it was: a “vision concept”—a design statement and an homage—not a thinly veiled production preview. That distinction mattered because the StingRay looked resolved enough that it could easily have been misread as a next-generation Corvette waiting quietly in the wings. GM essentially set guardrails around the hype: admire the direction, appreciate the tribute, but don’t mistake it for a program announcement.

The movie-prop reality became even clearer in later accounts of the running car. It wasn’t treated like a development mule that needed to be pushed to its limits; it functioned more like a working show-and-film asset that could move under its own power when required. Reports noted it never went much beyond about 80 mph, and it even wore hand-cut, stylized tires built to look right under lights and cameras rather than perform like true high-speed rubber. That detail underscored the point: the StingRay was engineered for presence and storytelling first, because its primary job was to sell an idea.

This is promotional artwork for Transformers: Revenge of the Fallen (2009), the sequel that doubled down on the franchise’s signature formula—towering Autobots, desert-scale action, and a metallic, industrial title treatment that made the whole thing feel like machinery at war. For GM, the film also served as a very visible Hollywood tie-in moment, with Chevrolet designs positioned as on-screen characters rather than background props—and that’s exactly where the 2009 Corvette Stingray Concept fit in: its sharp, futuristic silhouette became Sideswipe’s alternate form, giving the concept car a pop-culture platform that amplified its role as a design statement and helped cement it in enthusiast memory long after the auto-show lights went out. (Image source: Paramount)

When Transformers: Revenge of the Fallen hit theaters that summer, the payoff followed. Sideswipe’s StingRay silhouette became one of the film’s most striking automotive forms—low, sharp, and instantly recognizable even in fast-cut action scenes. It fit neatly into the broader GM/Transformers strategy of the era, where vehicles weren’t just background props; they were characters and brand statements. Alongside the Camaro and other GM hardware that appeared in the franchise, the StingRay helped convert Hollywood screen time into mainstream attention, while the film benefited from real-world design that made the fantasy feel tangible.

In the end, the Chicago reveal and the Transformers tie-in worked as a coordinated moment: a Corvette concept that captured attention, steered conversation, and made the future feel close—even as GM’s real-world circumstances demanded restraint.

Legacy: the last “true” Corvette concept—and a bridge to C7/C8

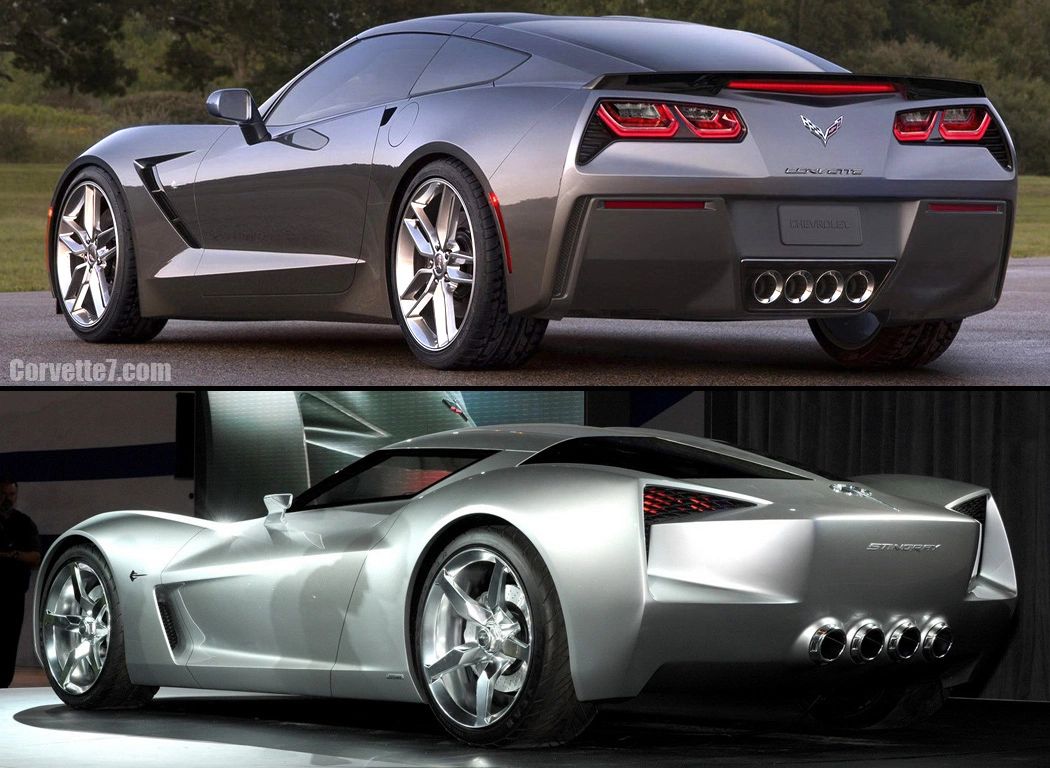

The 2009 Corvette Stingray Concept may not have been developed as a concept for the seventh-generation Corvette, but there is no denying that Tom Peters (and his team) were inspired by the car and, ultimately, incorporated much of its design “language” into the 2014 Corvette Stingray. (Image courtesy of Corvette7.com)

The 2009 StingRay Concept is widely regarded as the last all-out Corvette concept to push design and tech ideas in a single, bespoke show car. Its surface language—a crisper press to the planes, the modernized split-window motif, and the bolder stance—influenced subsequent GM performance shapes, most visibly on the fifth-gen Camaro and, crucially, on the seventh-generation Corvette that followed. The National Corvette Museum puts it plainly: the car’s styling and all-new interior prototypes influenced the C7.

Today, the StingRay lives on as part of the GM Heritage Collection, while the National Corvette Museum preserves the full-scale model built to test the design in three dimensions—tangible reminders of how, even in GM’s darkest hour, Corvette’s future was being quietly sketched, modeled, and filmed into the public imagination.

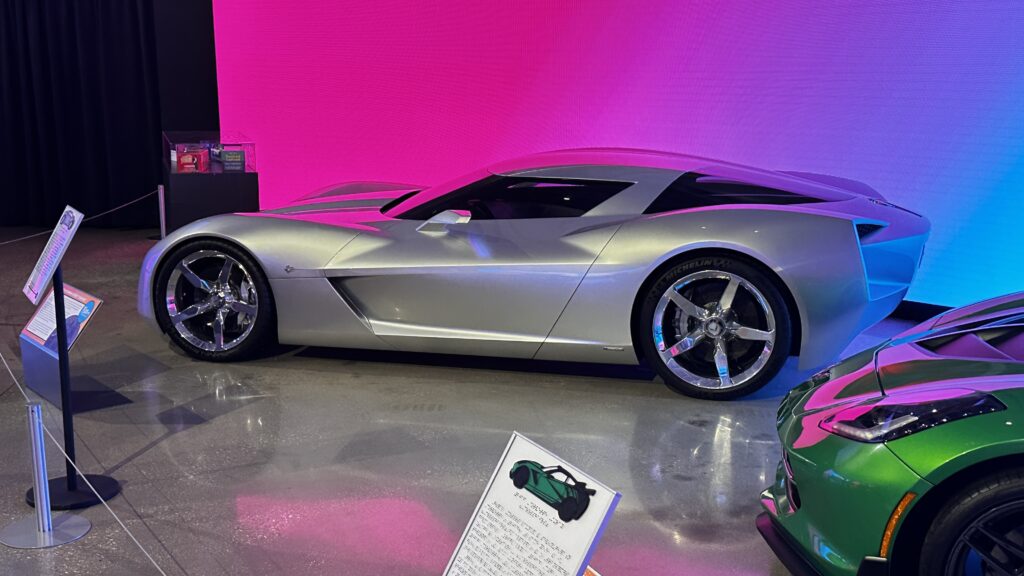

Captured at the National Corvette Museum in early 2025, this photograph frames the 2009 Corvette Stingray Concept in profile—low, razor-edged, and unmistakably futuristic even more than a decade after its debut. The silver bodywork reflects the museum’s ambient lighting, highlighting the sharp character lines, dramatic side intake, and long, tapering roofline that previewed Corvette’s next design evolution. Parked beside a modern production Corvette, the concept reads exactly as it was intended: a directional statement bridging heritage and future intent. Even standing still on a polished museum floor, it carries the same presence it did on the Chicago show stage—part tribute, part Hollywood star, and part design manifesto. (Image courtesy of the author.)

Deep-dive facts & figures (integrated recap)
- Context & restructuring: GM’s 2007 record loss (~$39 billion), 2008 loss ($30.9 billion), and bankruptcy (June 1, 2009) frame the concept’s birth; GM shed or divested multiple brands as part of the turnaround.
- Design process: Welburn opened Corvette ideation to global studios; Kirk Bennion says 300+ sketches arrived in two weeks; Peters synthesized the winning vision.

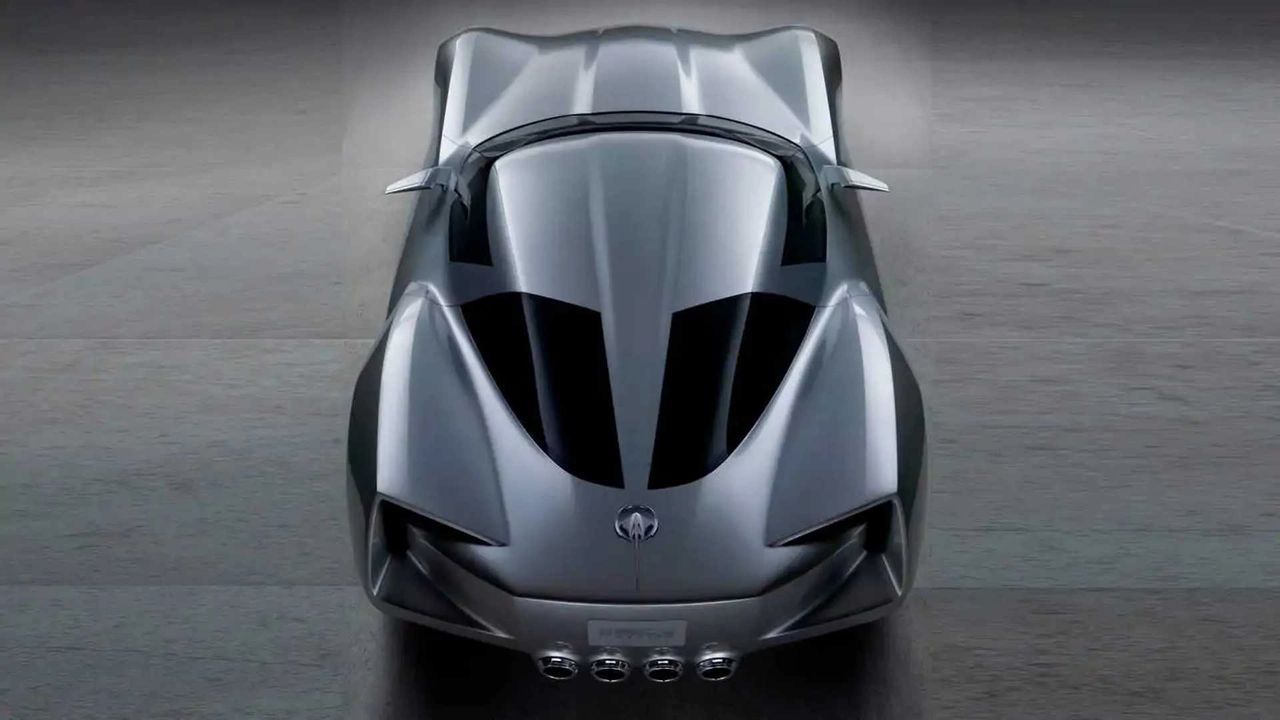

From this angle, there’s no denying the design cues lifted and incorporated into the 2009 StingRay Concept from earlier generations of Corvette.
- Exterior cues: Split-window homage (’63), double-hump roof, C2/C3 fender drama, C6-inspired coves/bulge, 1959 Stingray Racer-influenced nose; 3.1″ longer / 5″ lower / 6.6″ wider than C6; 20×9.5/21×13 wheels with 275/30R20 and 355/30R21 tires.
- Construction & chassis: All-fiberglass body on production C6 structure; bell-crank front and modified C6 rear with ZR1 discs.
- Theater & access: Scissor doors and power reverse-clamshell hood for show and service access.
- Powertrain: Stock LS3 V-8 (“Hybrid” label reflected efficiency tech brainstorming, not a true hybrid); period C6 LS3 baseline 430 hp/424 lb-ft (436/428 with performance exhaust).
- Interior: Deep-bolstered seats, carbon fiber & chrome, LED lighting, large infotainment, and a customizable cluster that previewed C7’s step up in perceived quality.
- Debut & reception: Revealed at Chicago Auto Show (Feb. 11, 2009); Best Concept (39%) and Driveway pick(12%) in Best of Show voting; Camaro’s Transformers halo effect included a 97% awareness jump, which Chevrolet cited on stage.
- Movie fleet & multiples: Two physical cars (a working movie version and a pristine styling mock-up for display).
- Where the cars are now: GM Heritage Center collection; full-scale model and exhibit interpretation at the National Corvette Museum.
“This vision concept is part of the free exploration of future products… The Corvette has an amazing design lineage, and this StingRay concept pays homage to the 1959 StingRay Racer and 1963 Corvette StingRay Split-Window Coupe.” — Ed Welburn, Vice President of GM Design

“What you might not know is that after the movie, awareness for Camaro… jumped 97 percent.” — Ed Peper, Chevrolet

Notes on common misconceptions

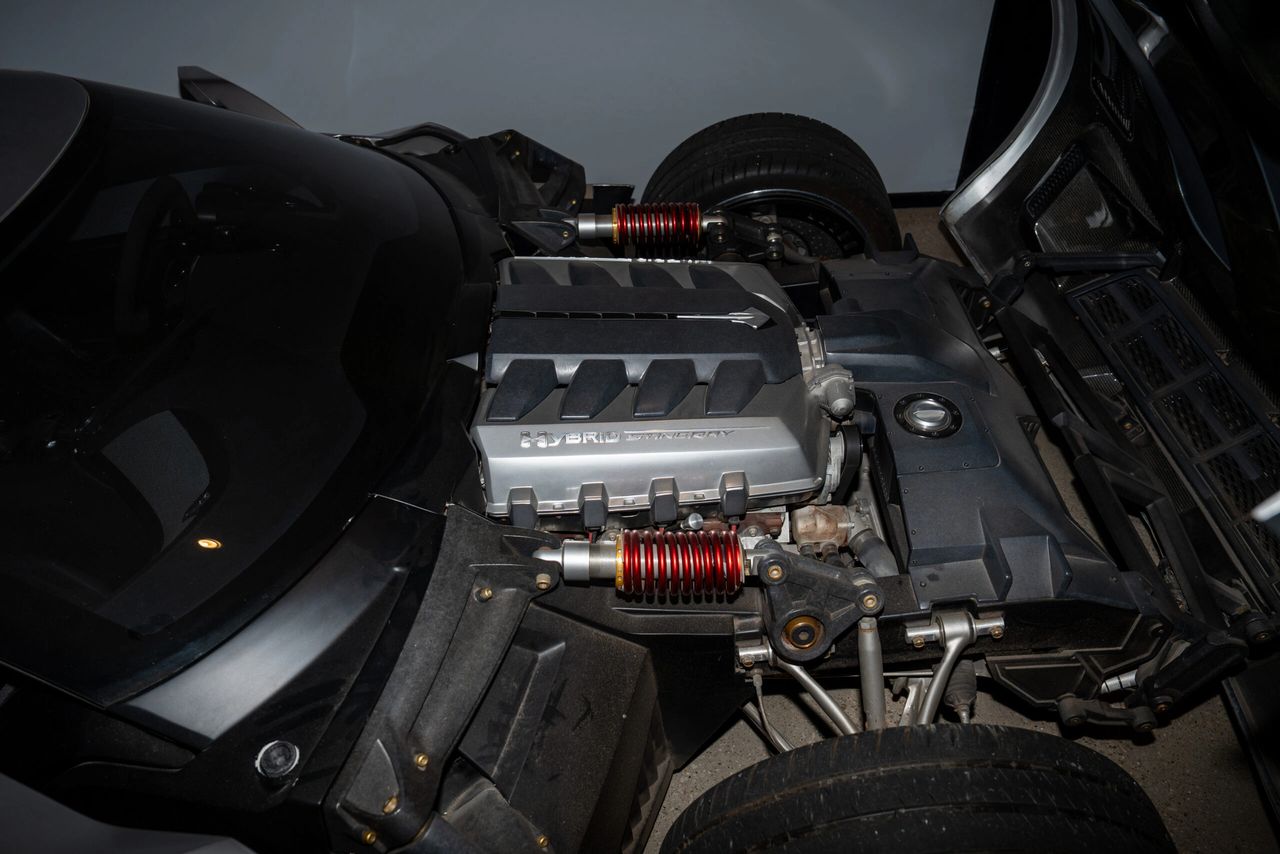

A stock LS3 engine powers the StingRay Concept. Note the “Hybrid” labeling on the manifold covers. The StingRay Concept is NOT a hybrid vehicle.). (Image courtesy of the National Corvette Museum.)

Early coverage of the 2009 Stingray Concept created a couple of “sticky” myths that still float around forums and social posts today—mainly that the car wore a carbon-fiber body and that it was a true hybrid. Both ideas are understandable if you look at the context of the time, but neither description accurately reflects what the show car actually was.

The carbon-fiber claim is a perfect example of how show-week shorthand turns into permanent “fact.” In 2009, carbon fiber was the buzzword for performance credibility, and the Stingray Concept’s surfaces—tight shutlines, sharp edges, dramatic vents—looked like the kind of thing you expect to be carbon. But later, better-sourced recollections and retrospectives clarified that the built display car was fiberglass, constructed over a C6-based structure, aligning it far more with traditional GM show-car practice than an exotic, carbon-skinned prototype.

The hybrid misconception has a similar origin, and it’s even easier to see how it happened. GM’s official messaging and the magazine-cover language at the time leaned hard into future-facing themes: efficiency, smarter aerodynamics, advanced materials, next-gen powertrain thinking—basically an umbrella of “what’s coming next.” So when the word “Hybrid” appeared in prominent places, many readers naturally interpreted it as a literal description of the drivetrain. In reality, that label was more of a conceptual headline—a grab-bag of efficiency and technology ideas—rather than confirmation that the Stingray show car itself carried a full hybrid system.

The clean way to frame it for readers is this: the 2009 Stingray Concept was a forward-looking design and technology statement, not a running proof-of-concept hybrid Corvette. The confusion isn’t surprising, but the distinction matters—because it changes how we understand the car’s purpose. It wasn’t built to demonstrate a finished propulsion breakthrough; it was built to signal direction, shape expectations, and stir the conversation about what a future Corvette could be.

Why the 2009 Stingray Concept Still Matters

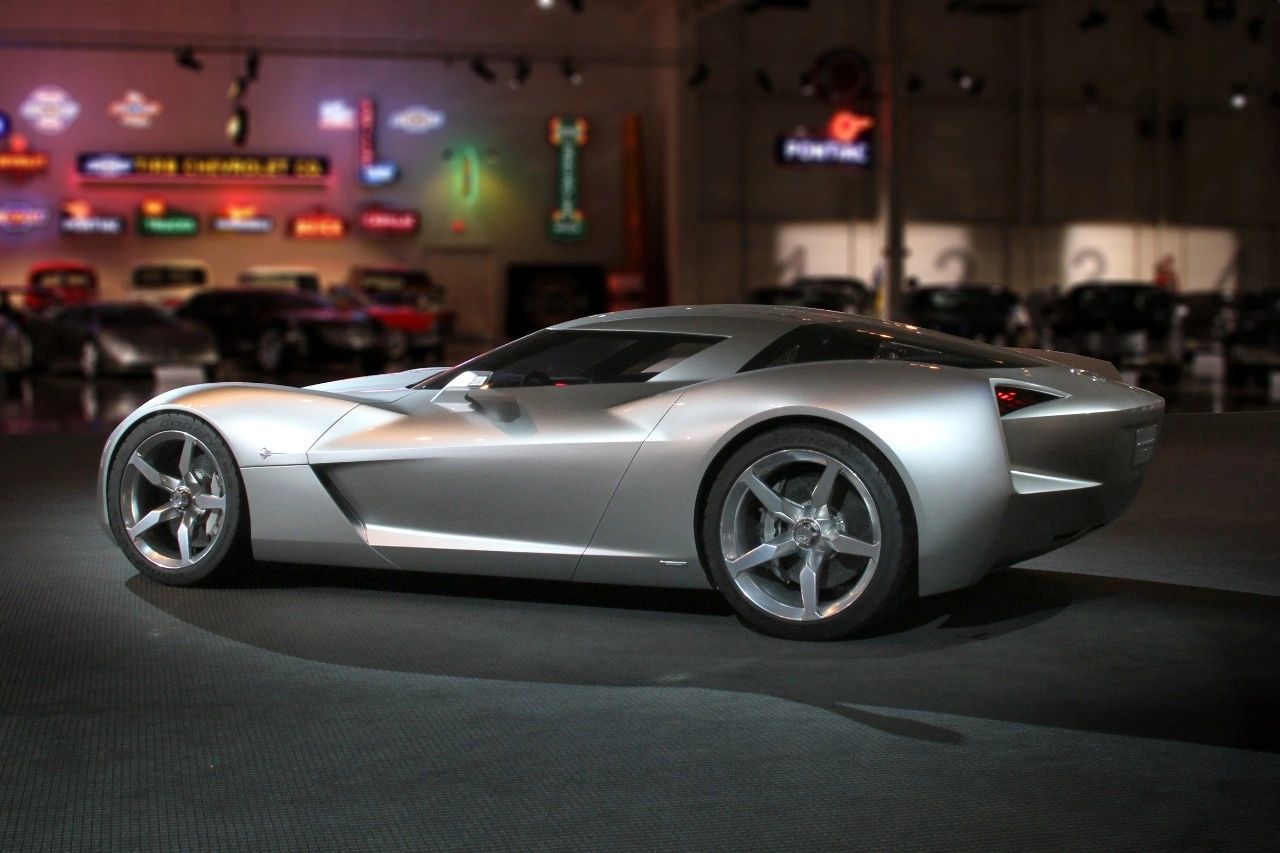

The 2009 Corvette StingRay Concept Car on display at GM’s Heritage Center in Sterling Heights, Michigan. (Image courtesdy of GM Media LLC.)

The 2009 Stingray Concept matters because it arrived at a moment when Corvette’s future felt uncertain. The global financial crisis had shaken the auto industry to its core. GM had entered bankruptcy. Programs were under review. In that climate, the Stingray wasn’t just another show car—it was a signal. Corvette was not retreating. It was recalibrating.

Stylistically, the concept previewed a harder, more angular design language that would echo into the C7 generation. The sharp character lines, split-window-inspired rear glass, dramatic fender vents, and aggressive lighting signatures all pointed toward a Corvette that was evolving beyond the softer curves of the C6. Even if the production C7 Corvette Stingray didn’t mirror the concept panel-for-panel, the philosophical shift was clear: more technical. More assertive. More globally competitive.

It also reframed how Chevrolet could talk about performance. The Stingray Concept folded efficiency, materials strategy, and advanced propulsion thinking into the Corvette narrative without diluting its identity. That balancing act—performance with responsibility—would become a defining theme of the next decade, culminating in technologies like cylinder deactivation, lightweight architecture strategies, and ultimately electrified Corvette variants.

Most importantly, the Stingray Concept reminded enthusiasts of something fundamental: Corvette has always used show cars to test the emotional waters. From Motorama-era experiments to Bill Mitchell’s dream cars, GM has historically telegraphed intention through design studies. The 2009 Stingray fits squarely within that lineage. It wasn’t a production blueprint. It was a directional statement.

And direction matters.

Today, with the mid-engine C8 Corvette Stingray firmly established and electrification entering the Corvette conversation in very real ways, the 2009 Stingray Concept reads less like fantasy and more like a transitional artifact—a design and messaging bridge between eras. It captured a company in recovery, a brand redefining its trajectory, and a nameplate preparing to take its boldest step yet.
The 2009 Corvette Stingray Concept was a bold reimagining of America’s sports car, blending unmistakable heritage with forward-looking design. Inspired by the iconic 1963 Sting Ray yet sharpened for a new era, it reignited excitement around Corvette’s future. More than a showpiece, it signaled that innovation and legacy would continue to define the brand’s evolution.

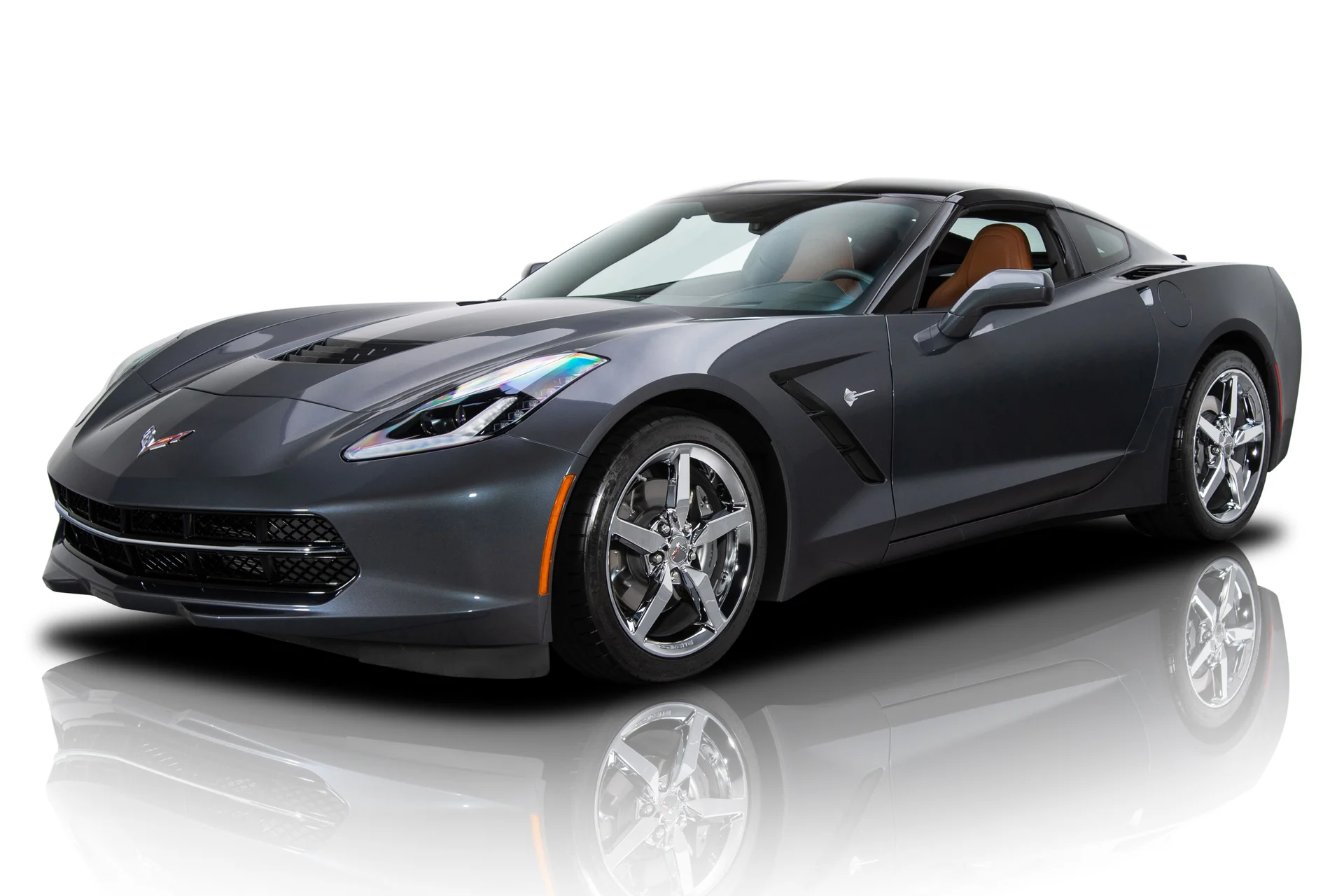

2014 CORVETTE OVERVIEW
If there’s a single model year that re-established just exactly what “Corvette” means, it’s the 2014 Corvette Stingray. The seventh-generation car didn’t just replace the C6; it rebooted America’s sports car around a new set of non-negotiables: an aluminum structure built in Bowling Green, a clean-sheet small block with direct injection and cylinder deactivation, driver-centric electronics that actually add to the experience, and a serious aero/cooling package that finally made every vent do real work. As General Motors VP of Global Design Ed Welburn framed it during the launch window, this car “needed to be a leaner, very fresh design that departed from some of the traditions… Is it at all controversial? Probably a bit. And that’s OK.” That willingness to break patterns—while staying unmistakably Corvette—became the guiding principle behind the C7’s design.

Exterior: Form, Function, and the End of Fake Vents

The Stingray’s hood extractor isn’t for show—it’s the pressure relief for a forward-tilted radiator, with canted vanes that pull hot air up and over the clamshell to cut front-axle lift. Finished in Carbon Flash, it’s a functional centerpiece that keeps temps in check and the nose planted when you’re really leaning on the car. (Image courtesy of RK Motors)

Spend a minute around the 2014 Corvette Stingray, and the intent is clear: this shape was drawn by what the car needs to do—cool, cut drag, and stay stable—then refined to resemble a Corvette. Every major surface was placed to manage local pressure zones and temperature, not just to “look fast.” The forward-angled radiator feeds a hood extractor whose vanes are deliberately canted to maximize and direct air flow as it exits over the clamshell while simultaneously reducing front-axle lift at speed. Engineers located the re-profiled side coves in a region of favorable airflow so they could vent wheel-well and under-hood pressure; the result is a measurable drag reduction—precisely the functional intent Bennion emphasized when he stated that these items “aren’t just aesthetic things that we bolt on.” The engineering brief was simple: converge the aero map and cooling map until they agree, then give the design team the surfacing to express it. GM’s aero lead, John Bednarchik, later described the goal as “make it look good and still function”—a system laid out around pressure, temperature, and flow continuity first, styling second.

Those rear quarter inlets aren’t styling—on Z51-equipped C7s they feed ducting to the rear-mounted transmission and electronic limited-slip differential coolers, keeping temps in check during hard laps. Air is picked up from a high-pressure zone along the shoulder, pushed through the heat exchangers, and exhausted out the rear—sustaining performance and longevity. (On non-Z51 cars the openings are largely cosmetic.) (Image courtesy of RK Motors)

You see the system thinking even more clearly in Z51 form. The quarter-panel inlets are aligned with the external flow field, ducting air to rear auxiliary coolers—transmission on the driver’s side, differential on the passenger’s—and then out through rear-fascia exits. Those inlets, the specific Z51 under-tray and spoiler tuning, and the extractor’s vane geometry weren’t independent “add-ons”; they were iterated together (CFD, tunnel, and track) until the car could run a full session on a hot day without falling out of its thermal window. The result is why the C7’s aero reads as integrated hardware rather than applique: the ducts, outlets, and surface cambers are sized for the heat rejection the car actually generates.

The C7’s faceted taillamps mark a clean break from Corvette’s round-lens tradition—dual LED elements with crisp light pipes framed in a deep, black-chrome bezel. Outboard, the functional aero extractor relieves pressure from the rear fascia, a reminder that every crease earned its place. Above it all, the spoiler packages a slim LED CHMSL, keeping the “third brake light” high and clean in the airstream. Sharp, technical, and purposeful—this is the Stingray’s new rear signature. (Image courtesy of RK Motors)

The rear design aesthetic—especially the lamps—carries that same functional spine, even as they became the most controversial visual change of the seventh-generation model. Moving away from the Corvette’s traditional twin round elements to a more three-dimensional, sculpted, trapezoidal lamp wasn’t a styling dare so much as a packaging and airflow decision: the spoiler/CHMSL (Center High-Mounted Stop Lamp) packaging and cooler-exit management set hard constraints for volume and wake control, and the team wanted a light signature that read “new Stingray” at a glance. Bennion’s line was that it had to “say Corvette, but say new Corvette,” and it had to live in the broader Chevrolet family without being a clone. Tom Peters has been frank about the process: they tried round lamps on the C7 and rejected them because they “made the car look old.” The final form pushed depth, lens sculpture, and LED emphasis to modernize the signature while leaving room for the aero and cooling paths to do their job.

The 2009 Stingray Concept previewed the C7’s attitude: sharp creases over big rear haunches, a strong center spine, and a fastback canopy that pinched into a tapered tail. Its faceted surfacing and “boomerang” lamp graphics nudged Corvette away from round themes, paving the way for the C7’s angular, dual-element taillamps. You can also see the concept’s aero-minded cutlines and extractor motifs echoed in the C7’s functional hood and quarter vents. Even the centered quad-exhaust emphasis reads as an evolution of the concept’s tightly grouped rear treatment—more production-real, but the same modern, technical vibe. (Image courtesy of GM Media LLC)

As for where that rear graphic vocabulary came from, there’s a clear design kinship with the 2009 Stingray Concept—a Tom Peters show car that previewed sharper creases, more faceted lamp volumes, and a stronger plan-view stance. GM never said “we lifted the lamps directly,” but Peters has acknowledged that the concept established a modern, crisper Corvette language the C7 could draw on. In other words, the production taillamps reflect less a one-to-one transplant and more the concept’s directional push toward faceted, dimensional housings integrated into an aerodynamically active rear end.

Structure & Manufacturing: Aluminum, At Last—For Everyone

The C7’s all-aluminum backbone—built in-house at Bowling Green—was the game-changer. Cast nodes, tailored extrusions, stampings, and a beefy center tunnel created clean load paths, making the structure about 100 lb lighter and over 50% stiffer than the old steel frame. That headroom let the suspension, NVH tuning, and even the convertible top behave like premium hardware rather than compromises. (Image courtesy of GM Media LLC)

The single biggest change under the skin was structural. For the first time in Corvette history, every standard model—base coupes and convertibles, and those fitted with the Z51 option—rode on an aluminum frame manufactured in-house at the Bowling Green Assembly Plant. The move wasn’t about bragging rights; it was about creating cleaner stiffness paths and a smarter mass distribution that let the interior, suspension, and even the convertible top operate in a different league.

Ed Moss, then the engineering group manager for structure, explained that the team built the frame around five major aluminum parts per side, each optimized for its job. Material gauges varied from roughly 2 to 11 mm, a dramatic change from the one-thickness, one-piece hydroformed steel rails Corvette had used before. By tailoring thickness and section where the loads actually traveled, they pulled mass out of the quiet zones and put metal only where the car needed it.

Says Moss, “For the C7, we decided to go with aluminum rather than steel since aluminum can provide significant weight advantages. Our job was to choose the right material and part-production process for each function. In this case, we came up with a structure that includes 10 castings, 38 extrusions, 76 stampings, and three hydroformed parts.”

The 2014 Corvette Stingray was the reboot moment—new LT1 small-block, an aluminum backbone that was lighter yet over 50% stiffer, real aero with working heat extractors and brake-cooling side inlets, and a cockpit that finally matched the performance. As chief engineer, Tadge Juechter set the brief and drove the details: build a Corvette that was faster, smarter, and more livable without losing the raw feel. His team’s clean-sheet chassis, driver-mode electronics, 7-speed with active rev-match, and world-class interior moved America’s sports car into a new era. The result wasn’t just a new generation—it was a new standard. (Image courtesy of GM Media LLC)

The metrics backed up the philosophy. The new frame came in about 99 pounds lighter and more than 50 percent stiffer than the outgoing steel setup—and that comparison held even when you put an open-roof C7 against a fixed-roof C6 Z06. As Corvette Chief Engineer Tadge Juechter stated in an exclusive interview with Car and Driver magazine, “We thought we could take today’s aluminum frame and tweak it. It turns out we had to scrap the whole thing and start over.” This proved to be a great strategy as starting over unlocked both a reduction in structural weight and an increase in structural rigidity simultaneously.

That structural headroom paid off everywhere. The center tunnel was made beefier because it carried more of the torsional load in open-roof duty, which in turn let the suspension bushings be tuned for both precision and isolation without chasing squeaks or cowl shake. A mixed architecture—cast nodes where the cradles are mounted, straight extrusions where crash energy needed to be absorbed, and lightweight tubes where mass had to be kept out—let the team dial in local stiffness without adding pounds where they didn’t help. Tighter in-house manufacturing also improved tolerances, which reduced NVH and helped the convertible top package lower and seal better.

This top-down view of the 2014 Corvette Stingray reveals its front-engine, rear-transaxle layout tied together by a rigid torque tube—key to near 50/50 weight distribution. An all-aluminum structure with hydroformed rails and cast nodes slashed mass while delivering a huge jump in torsional stiffness. With the LT1 up front, the 7-speed (or auto) at the rear, and short/long-arm suspension at each corner, the C7’s hardware was engineered for crisp turn-in, traction, and high-speed stability. (Image courtesy of GM Media)

The net effect was felt from the driver’s seat. Because the load paths were cleaner and the structure no longer relied on the roof panel for basic rigidity, the C7 coupe and convertible behaved like the same, unified car—not a coupe with the roof lopped off and extra shake added.

Powertrain: LT1 (Gen V Small Block) and the Return of the Broad Torque Curve

Heartbeat of the Stingray: the 6.2-liter LT1 V8—Gen-V small-block with direct injection, VVT, and AFM—rated at 455 hp (460 with the dual-mode NPP exhaust). (Image courtesy of RK Motors)

The 6.2-liter LT1 was the heartbeat of the 2014 Corvette Stingray, a Gen-V small-block that retained the compact pushrod layout but modernized everything that mattered inside the chambers. Direct injection fired a precisely metered spray into a sculpted piston bowl, which allowed Chevy to run high compression and aggressive spark without detonation; continuously variable valve timing on the single cam broadened the effective timing window across the rev range; and Active Fuel Management seamlessly dropped to four cylinders at light load to cut pumping losses. The supporting hardware was equally purposeful: high-tumble intake ports, oil-spray piston cooling, an aluminum block and heads, a composite intake tuned for midrange torque, and a cam-driven high-pressure fuel pump that gave the injectors the headroom they needed at high load. Tie it together, and you had SAE-certified output of 455 hp / 460 lb-ft with the standard exhaust—or 460 hp / 465 lb-ft with the vacuum-actuated dual-mode NPP system, which trimmed backpressure under demand while avoiding drone at cruise. As small-block chief Jordan Lee put it at the time, the LT1 was “a triumph of advanced technology,” delivering the most power and torque to date for a standard Corvette while topping the previous car’s highway efficiency.

Small-Block Chief Engineer Jordan Lee, shown holding an LT1 piston, was the architect of the Gen-V small-block that powered the 2014 Stingray. He led the move to direct injection, continuously variable valve timing, and AFM—with a sculpted piston bowl and 11.5:1 compression—to deliver broader torque, higher efficiency, and SAE ratings up to 460 hp/465 lb-ft with NPP. Lee’s program set the baseline that made the C7 quicker and thriftier than the C6 while establishing the blueprint for today’s small-block family. (Image courtesy of AutoWeek)

There was more under the skin than the headline features suggested. The LT1 kept the familiar 376-cu-in dimensions (4.06-in bore, 3.62-in stroke) but paired them with an 11.5:1 compression ratio and a spray-guided DI system running at over 2,000 psi, which improved charge cooling and combustion stability. A variable-displacement oil pump, low-friction internal components, and targeted oil-jet piston cooling reduced parasitic losses and helped thermal management. Corvette packaged the engine with two distinct oiling strategies: a conventional wet-sump for base cars and a track-ready dry-sump with a remote reservoir on Z51 models, which improved oil control during sustained lateral loads and added capacity for repeated hot laps. Exhaust flow benefitted from efficient manifolds and—on cars optioned with NPP—valves that opened under load for freer breathing and a harder-edged note.

The bigger story wasn’t just the peak number; it was how the LT1 made its power. With 90 percent of peak torque available from 3,000–5,500 rpm, the engine felt preloaded everywhere—tip-in was crisp, midrange thrust was immediate, and real horsepower built barely off idle. That was the DI/VVT/AFM trio doing exactly what it was designed to do: DI’s cooler, denser in-cylinder charge fattened pressure early in the stroke, VVT kept airflow optimized as piston speeds climbed, and AFM trimmed pumping and friction losses when you were simply cruising. Contemporary instrumented tests captured what drivers felt from the seat: compared with the outgoing LS3, the LT1 didn’t just post bigger peaks; it filled in the curve between them, turning ordinary corner exits into slingshots—while NPP-equipped cars added a raucous bark the moment the valves swung open under load.

Gen-V LT1 on display: an all-aluminum, deep-skirt block with cross-bolted mains (4.06-in bore/3.62-in stroke, 11.5:1 compression) and coil-near-plug ignition under composite covers for low mass and quiet. Thin-wall stainless exhaust manifolds feed close-coupled catalysts for rapid light-off, while the accessory drive and front cover packaging keep the engine compact in the bay. Base cars used a wet-sump, but Z51 models added a track-ready dry-sump with a remote reservoir to maintain oil pressure under sustained lateral loads.

The payoffs showed up at the pump, too. Despite the stronger output, LT1-equipped Stingrays posted better highway economy than the C6 they replaced—evidence that the combustion-system rethink wasn’t marketing fluff but real efficiency baked into the architecture. And while the LT1’s core recipe still underpins today’s small-block family, its first act in 2014 set the tone: modern combustion science wrapped in classic small-block packaging, delivering the broad, effortless torque band that makes a Corvette feel quick everywhere.

Transmissions: 7 Speeds, Real Rev-Match, and a Better Auto (Later)

Tremec TR-6070: the C7 Stingray’s seven-speed manual, essentially an evolved TR-6060 with an extra overdrive to stretch the ratio spread. It paired a twin-disc clutch with short throws and integrated Active Rev Matching, stacking 1–4 for performance and using 5–7 as progressively deeper cruise gears. In Z51 trim it worked with the electronic limited-slip to keep the LT1 on boil at corner exit while dropping revs on the highway. (Image courtesy of GM Media LLC)

When it came to transmission selection, there were two choices in 2014: the Tremec TR-6070 seven-speed manual with Active Rev Matching, or a Hydra-Matic 6L80 six-speed automatic with paddles. The 8-speed auto didn’t arrive until 2015, so shoppers of ’14s were picking between the most tech-forward manual Corvette had offered to that point and a proven torque-converter automatic calibrated to play nicely with AFM and the LT1’s broad torque curve.

Why seven speeds? As Tadge Juechter’s team explained at launch, the point was to widen the usable spread without turning the car into an “overdrive experiment.” First through fourth were closely stacked for back-road and track work, with three overdrives (5th–7th) to pull highway revs down; 7th was intentionally a deep cruise gear. The TR-6070 used a twin-disc clutch and short throws, and its gear-state indicator was duplicated in both the cluster and the HUD. Active Rev Matching—toggled by the steering-wheel paddles—blipped the throttle on downshifts and trimmed torque on upshifts, making heel-and-toe optional without making it irrelevant. Launch control and Performance Traction Management were available, and Z51 cars paired the manual with an electronically controlled limited-slip differential that actively varied lock for corner entry and exit stability. (Yes, CAGS skip-shift was still present under light load, just as before.)

Hydra-Matic 6L80: the six-speed automatic offered in the 2014 Stingray before the 8-speed arrived. A clutch-to-clutch unit with a lockup converter and TAPShift paddles, it was calibrated to play nicely with AFM and the LT1’s fat midrange—holding gears in Sport/Track, rev-matching on downshifts, and settling into low-rpm cruise on the highway. Proven, durable, and smarter than past Corvette autos. (Image courtesy of GM Authority)

The 6L80 automatic brought its own strengths. It was a clutch-to-clutch unit with a lockup converter, adaptive shift logic, manual TAPShift control via paddles, and calibrations that held gears longer in Sport/Track modes while cooperating with AFM during steady cruise. Downshifts were rev-matched and the mapping took advantage of the LT1’s midrange—more eager than past Corvette autos yet refined at part throttle. The result was an automatic that played well on a daily commute and didn’t embarrass itself on a back road.

And despite internet lore, the manual wasn’t as rare in ’14 as many assumed—GM/NCM production tallies show 13,210 manuals versus 24,078 automatics (roughly 35% to 65%). In short: 2014 gave you a choice between a new-school, seven-ratio stick that rewarded engagement and a well-sorted six-speed automatic that maximized the LT1’s flexibility and the car’s efficiency.

Exhaust: The NPP Option That Changed the Street Soundtrack

The C7’s Mode Select knob puts the car’s personality at your fingertips—spin from Tour to Sport to Track (plus Eco/Weather) and it retunes throttle, steering, stability control, and—when equipped—Magnetic Ride and the NPP exhaust in one click. The knurled rotary and stitched-leather surround feel properly mechanical, while the electronic parking brake cleans up the console and saves weight. It’s everyday civility, and pit-lane focus living side-by-side. (Image courtesy of RK Motors)

The regular production option NPP dual-mode system didn’t just make noise; it managed flow. Each rear canister housed two distinct paths: a longer, baffled route for attenuation and a short, straight-through route gated by a butterfly valve. A vacuum actuator—commanded by the engine controller through mode, load, and rpm—swung those valves, so the car could tiptoe on neighborhood streets and then uncork the LT1’s full “voice” the instant you rolled into the throttle. Calibration tied valve strategy to the Drive Mode Selector: Tour/Eco kept the quiet path dominant to complement AFM four-cylinder operation (minimizing the telltale low-frequency “beat”), while Sport/Track opened the bypass sooner and held it longer, sharpening pulses and reducing back pressure during extended pulls.

Cold starts told their own story. The system favored a quicker light-off of the close-coupled catalysts, so even the quiet path had a purposeful bark for a few seconds before the idle settled and the valves reverted to their mapped state. Out on the highway, AFM (Active Fuel Management) and NPP worked together—valves biased closed to avoid boom, then snapped open with a decisive change in timbre the moment the LT1 saw real load. Around town, part-throttle transitions felt cleaner because the short path reduced pumping losses right where the engine’s broad torque curve wanted to breathe.

Quad center exits aren’t just theater on the C7—they’re the punctuation mark for the available NPP dual-mode exhaust. Vacuum-actuated valves open under load and in Sport/Track, giving you a deeper, harder-edged bark and a verified bump of about +5 hp/+5 lb-ft; ease back to Tour and it hushes for neighborhood duty. It’s the rare factory system that looks the part and absolutely sounds it. (Image courtesy of RK Motors)

Hardware details mattered. The entire assembly used corrosion-resistant stainless steel, from the 2.75-inch pipes to the perforated cores, with mass kept in check so you didn’t pay a weight penalty for theater. The center-exit quad tips weren’t just a signature; packaging them tight under the fascia shortened the final runs and preserved diffuser airflow—small gains in heat management and aero cleanliness that added up over a long session. Track noise compliance was part of the brief, too: the quiet path and the closed-valve map gave you a way to meet stricter sound caps on certain days without swapping parts.

And yes, the gains were real, not brochure fiction. Chevrolet certified the dual-mode setup at +5 hp and +5 lb-ft of torque versus the standard system because the open bypass cut restriction in the power band you actually used. That’s why owners noticed more than volume: throttle response felt a half-step quicker, midrange pull came on with less “push,” and the soundtrack picked up the crackle and rip you expect from a high-compression, direct-injected small-block. Enthusiasts even discovered that pulling the exhaust-valve fuse would lock the system in its rowdiest personality—a testament to how central those valves were to the C7’s character. In 2014, the NPP option effectively built the most popular aftermarket mod into the car, then integrated it with the Stingray’s driving modes so the soundtrack matched the mission, minute by minute.

Suspension & Steering: Composite “Leafs,” Mag Ride, and Stiff Where It Counts

Up front, the C7’s aluminum cradle carries forged control arms, the solid-mounted electric steering rack, and the transverse composite spring—light, low, and a contributor to roll control. The yellow arrow points to the front shear panel/cross-brace tying the cradle side rails together to keep the pickup points locked in under cornering loads. Those long white diagonals are tension braces that route load into the body, while the dampers (35-mm Bilsteins standard, 45-mm with Z51, Mag Ride optional on Z51) do the fine work. Net effect: a stiff, lightweight front end that bites immediately and stays precise when you lean on it. (Image courtesy of Edmunds.com)

If you’ve ever heard “leaf springs” used as a knock against Corvettes, 2014 is the year that ends the argument. The transverse pieces are engineered composite springs—not truck leaves—and they delivered a bundle of advantages: low mounting, inherent anti-roll contribution, reduced unsprung mass, and packaging that supported a lower hoodline. Mike Bailey, vehicle systems engineer for chassis, put it bluntly: “We try not to say leaf… it’s an engineered composite spring.” The damper ladder was straightforward: 35-mm Bilstein monotubes standard, 45-mm Bilsteins with Z51, and Magnetic Ride Control (FE4) optional on Z51. The result was a car that rode better than it had any right to, yet still answered inputs with real authority.

Steering was reworked from the ground up. Juechter’s team adopted electric assist and re-engineered everything from the wheel and tilt mechanism to the solid-mounted rack. Measured as a system, it was “five times stiffer than today’s,” he said at launch—and you feel that in the crisp initial bite and linear build. Moving to a 360-mm wheel—a genuinely race-adjacent diameter—tightened the driver interface, and achieving clear cluster/HUD visibility at that size required some clever packaging gymnastics.

Brakes & Tires: Bigger Swept Area, Dual-Cast Rotors, Real Endurance

Polished split-spoke wheels framed the C7’s Brembo hardware nicely—behind them, you can see the slotted rotors and fixed four-piston calipers that delivered the car’s confident, repeatable stops. Many Z51 cars were fitted with black calipers, but color alone didn’t prove the package; the telltales were the larger, two-piece rotors and Z51-specific brake sizing. Paired with Michelin Pilot Super Sport ZP rubber, the setup looked premium and braked like it meant it. (Image courtesy of RK Motors)

The C7 team was explicit: they engineered two distinct Brembo brake packages for two distinct missions. Every Stingray got fixed aluminum four-piston calipers and a big jump in swept area versus a base C6, while Z51 went further with larger rotors, more pad volume, and two-piece (dual-cast) rotors—aluminum hat with a cast-iron ring—to control weight and thermal growth. Corvette also moved from cross-drilled to slotted faces on performance trims to reduce crack propagation and improve gas/dust evacuation under repeated high-energy stops. With added cooling paths and track-biased ABS/PCM calibration, the result was repeatable stops and sprint-to-sprint consistency. Independent instrumented tests routinely measured 70–0 mph in the high-130-ft range for Z51 cars, and owners quickly learned why Z51 + Mag Ride became the default “driver’s spec.”

Michelin’s Pilot Super Sport ZP—the C7’s co-developed run-flat—paired Corvette-specific construction with a compound that held pace when the laps piled on. Staggered 18/19s on base cars and 19/20s on Z51 delivered quick steering, strong bite, and real heat tolerance you felt in consistent lap times. It looked the part on the factory wheels and, more importantly, gripped like it.

Tires finished the system. The Michelin Pilot Super Sport ZP run-flats were co-developed with GM for the C7’s loads and aero balance, with 18/19-inch fitment on base cars and 19/20-inch on Z51. Beyond headline grip, they showed real heat tolerance—the kind that let drivers run through an HPDE day without the pedal lengthening or lap times drifting because compounds or carcasses overheated. In short, the numbers looked great on paper, and they held up when you were going fast enough to need the coolers.

Aero & Cooling: Everything Vents, Nothing Pretends

This quarter-panel intake on the C7 wasn’t decoration—it fed real hardware. On Z51/track-cooling cars, it directed ram air to the rear heat exchangers for the differential (and the transmission on Z51), with the air exiting through the rear fascia to keep temps in check over long sessions. The louvers shaped the stream, screened debris, and helped manage pressure so the driveline stayed in its thermal window. (Image courtesy of RK Motors)

We’d all seen “vents” on cars that didn’t feed anything. The 2014 Stingray put an end to the cosplay. The hood extractor bled high-pressure air from the radiator into a low-pressure zone over the hood, trimming front lift and letting the radiator work harder lap after lap. The fender outlets relieved wheel-well pressure and helped pull hot air out of the engine bay—less lift, a touch less drag, and more stable front grip when the speeds climbed.

Z51 models went further with real heat management. They added dedicated ducting and heat exchangers for the transmission and electronic limited-slip differential; those rear quarter-panel inlets weren’t decoration, they fed air across the coolers and out through the rear fascia. The package also brought subtle aero and underbody tweaks—small changes in splitters/deflectors and a low profile rear spoiler—to keep the car in its thermal window across a full session instead of just the first flyer.

Juechter’s team chased the quiet gains, too. They moved mass rearward—battery and coolers included—to nudge static balance slightly rear-biased, closer to the race car’s ~48/52 target. You felt it in the way the car settled on power: better traction off slow corners, calmer high-speed stability, and cooling that kept braking and driveline responses consistent until the checkered flag.

Driver Interface & Interior: Finally, Seats Worth Defending

The C7 cabin finally felt world-class. Chevy wrapped the interior—stitched leather, real metal, and optional carbon fiber replaced the old molded plastics—while the driver-canted console and grab-bar gave the cockpit a purposeful, twin-cockpit look. (Image courtesy of RK Motors)

No area saw a bigger—or more overdue—transformation than the cockpit. Interior design manager Ryan Vaughn’s brief was a “fully wrapped” cabin: even on the base car you didn’t see bare molded-color plastic—surfaces were hand-stitched or soft-trimmed, with real metal switchgear where your fingers lived and optional carbon-fiber or sueded-microfiber where your eyes landed. The asymmetric console canted everything toward the driver, a rigid grab bar defined the passenger side, and the details finally felt premium: damped rotarys, a knurled Mode Select dial, and an electronic parking brake that cleaned up the tunnel.

The GT bucket seats were standard across every 2014 Stingray trim—1LT, 2LT, and 3LT—on both coupe and convertible, with or without Z51.

The Competition Sport bucket seats (RPO AE4) were a late-availability option on every 2014 Stingray—1LT/2LT/3LT, coupe and convertible, with or without Z51. Trim/material pairings varied by package (e.g., sueded-microfiber inserts on 1LT; additional leather/Nappa options on 2LT/3LT).

Seats were the other cornerstone. GM committed to two distinct architectures—the all-around GT chair and the Competition Sport (AE4) bucket with magnesium frames, deeper bolsters, and pass-throughs for harnesses. The team benchmarked Porsche and Recaro shells, then pressure-mapped bodies under track loads and handed both designs to Lear for production. The payoff was the rare Corvette seat that fit a wide range of bodies: real lateral support without the old compromise of “great if you’re small, punishing if you’re not.” (Heating/ventilation, memory, and adjustable lumbar/bolster support were available, and higher trims brought Nappa leather with tight, motorsport-style stitching.)

Electronics rose to the same standard. The 8-inch reconfigurable cluster carried distinct Tour, Sport, and Track themes, each with the information hierarchy to match—bigger tach and shift lights when you were hunting apexes, more navigation/media emphasis when you weren’t. Interaction designer Jason Stewart summed it up: the job was to make advanced tech easy to find in normal driving, then loud and obvious when you needed it. A color head-up display (available) mirrored the essentials—gear, revs, speed, lap timing—so your eyes stayed up. The center MyLink screen tucked a small storage cubby behind a motorized panel, USB’d and cooled to keep devices out of the sun.

Taken together, materials, seating, and interfaces finally aligned with the car’s capability. The C7 cabin felt purpose-built but livable—a place you could cross states in, then show up at an HPDE (High Performance Driver Education) event and never wish for a different seat, dial, or display.

Convertible: Top-Down Without the “Convertibles Are Floppy” Asterisk

Deep Emerald over Kalahari, top down, and every line of the C7 Stingray Convertible looks like it was drawn with a scalpel. Chrome split-five wheels, vented hood, and the clean tonneau give it that “grand tourer at rest, predator in motion” stance. It’s the open-air Stingray that marries couture color with track-honest hardware. (Image courtesy of RK Motors)

Chevrolet rolled out the Stingray Convertible just weeks after the coupe, and the headline stayed refreshingly simple: no structural band-aids required. Because the C7’s aluminum frame was conceived from day one to serve both roofed and roofless duty, the convertible didn’t need heavy reinforcements or awkward braces to keep it tight. That paid off where it matters—on the road. Steering precision, ride/handling balance, and the car’s trademark lateral grip all carry over intact, so the open car feels like the coupe you drove the week before, only with a bigger slice of sky.

The top itself underscores the “no-compromise” brief. It’s a fully electronic fabric roof that can be raised or lowered via the key fob and while rolling at neighborhood speeds (about 30 mph), which makes real-world use painless. A three-ply construction and a heated glass rear window tame wind roar, so you don’t get that “camping-tent at 80 mph” soundtrack older ragtops were infamous for. Stowed, the roof disappears neatly beneath a hard tonneau for a clean, sculpted profile; deployed, it seals up with the kind of refinement that makes long interstate stints feel effortless.

Ed Welburn, the former General Motors’ Vice President of Global Design, stands beside the seventh-gen Corvette, the quad-center exhaust and crisp rear graphic telegraphing purpose. The pairing captures the era’s mantra—taut surfacing, integrated aero, and a stance that looks fast standing still. It’s a portrait of the stewardship that pushed Corvette toward world-class fit, finish, and feel.

Design chief Ed Welburn connected the car to Corvette’s core identity: “The convertible has been a part of the heart and soul of Corvette since the very beginning in 1953… we designed and developed the coupe and convertible simultaneously… [so] open-top driving [comes] with no compromise in performance, technology or design.” That simultaneous development shows up in the details—identical chassis tuning philosophies, the same advanced driver interfaces, and the option sets enthusiasts actually want. The result is the first Corvette ragtop that truly drives like its hardtop twin, delivering the full Stingray experience—sound, speed, and precision—without asking you to trade away the thrill of top-down miles.

The Z51 Package: The Driver’s Default

Even Chevy’s option grid told you where the team’s head was. Z51—available on every trim and with either transmission—bundled the hardware you’d add anyway if you actually drive: dry-sump oiling for sustained g’s, an electronically controlled limited-slip differential (eLSD) to apportion torque under load, dedicated coolers for the diff and transmission, specific springs and anti-roll bars, stiffer 45-mm dampers, larger slotted Brembo brakes, staggered 19/20-inch wheels, and a unique aero set aimed squarely at high-speed stability. None of this was window dressing. Each piece solves a problem you encounter when a base car that’s already quick is pushed into repeated, high-temperature, high-load use.

Layer on optional Magnetic Ride Control (FE4) and the Stingray does the split-personality trick better than cars wearing much bigger price tags. In Tour, it breathes with broken pavement like a proper grand tourer; click into Sport or Track and the car takes a set, rotates cleanly, and stays supported through direction changes without the brittle ride that used to come with“track package” badges. The beauty is how the systems talk to each other—damper control keeping the tire planted while the eLSD meters torque and the aero keeps the platform calm—so you get speed with confidence, not drama.

The market validated the recipe. Out of 37,288 Corvettes built for 2014, 21,111 wore Z51 badges—about 57 percent of all Corvettes produced that year. And within that already committed group, 13,392 cars layered the Magnetic Ride Control option on top of Z51. That’s not a niche; that’s the center of gravity. Buyers didn’t just want the look or a louder exhaust—they wanted the engineering that let the car deliver its performance all day long, on a favorite back road or at a lapping day in July heat.

Automobile Magazine named Tadge Juechter its 2014 “Man of the Year,” crediting him as the guiding force behind the seventh-generation Corvette Stingray. Only the fifth chief engineer in Corvette’s long history, Juechter was praised for “getting it right” by reimagining the car from top to bottom, not just fixing past complaints. The story highlights thoughtful engineering touches—like the seven-speed manual with rev-matching—and Juechter’s push for a serious interior that could stand up to 1-g days on track. It also frames the C7 as a product of focused leadership in a post-bankruptcy GM, with Juechter navigating corporate realities to secure the support Corvette needed. (Image courtesy of Patrick M. Hoey Photography)

Tadge Juechter’s “why” was straightforward: when the base car is already knocking on sub-4.0-second 0–60, generating north of 1.0 g in cornering, and stopping shorter than the outgoing model, the loads and temperatures you see in the real world—especially on track—demand top-flight lubrication and thermal management. Z51 bakes those answers in. Dry-sump keeps oil pressure stable under long sweepers and heavy braking, the extra coolers hold temperatures in the green session after session, the bigger slotted Brembos shed heat and resist fade, and the aero trims lift so the chassis isn’t fighting instability precisely when you need it calm.

The upshot is practical as much as it is heroic. With Z51 and FE4, daily use doesn’t punish you, yet the car feels “switched on” the moment you ask for it—turn-in is crisper, mid-corner balance is more neutral, and on corner exit the eLSD makes power feel cleaner, not harsher. It’s the rare performance package that doesn’t just move numbers on a spec sheet; it broadens the car’s operating envelope. In a lineup that offered plenty of ways to personalize, Z51 wasn’t dressing—it was the blueprint for how the seventh-generation Stingray was meant to be driven.

Performance: The Numbers That Made the Headlines

MotorTrend’s 2014 take on the Z51 was simple: this isn’t a “base” Corvette, it’s a benchmark. The LT1’s broad shove, the eLSD’s clean corner exits, and the Z51 brake/tire package let the car string quick laps without drama, not just post one hero number. Steering is precise, body control stays calm, and—even on real street rubber—the chassis feels locked-in and repeatable. Net: showroom-stock speed with the polish of something far pricier. (Image courtesy of MotorTrend)

Chevrolet’s early 3.8-second 0–60 claim for a Z51 manual wasn’t bluster; it was a preview of what the car reliably did in the wild. Early instrumented tests put Z51 coupes and convertibles with a 0-60 time of just 3.9 seconds, 12.2–12.3 seconds @ 117–118 in the quarter, north of 1.00 g on the skidpad, and a hard braking distance of right around ~138 ft from 70–0mph. The results held across body styles and over long miles, reinforcing that the structure and chassis—not the roof configuration—were doing the heavy lifting.

Track work told the same story. At VIR’s Grand Course, a “regular” C7 Z51 lapped in the high-2:53s—brushing shoulders with the previous-gen Z06 and spoiling cars wearing much richer price tags. That single datapoint reframed the car: this wasn’t a fast-on-paper street special that wilted at speed; it was a bona fide track tool straight off the showroom floor.

The why is straightforward. Z51 bundled the parts you’d add anyway if you drive: eLSD that meters power cleanly off corners, shorter gearing, extra diff and trans cooling, larger slotted Brembos that produced repeated sub-140-ft 70–0 stops, and a Michelin Pilot Super Sport ZP tire set (245/35ZR19 front, 285/30ZR20 rear) tuned specifically for the C7. Crucially, these were real-world run-flats, not hero-spec Cup rubber, yet they still delivered >1.00 g consistency and trustworthy braking. Add optional Magnetic Ride Control (FE4) and you get the neat trick of a car that cruises like a GT, rotates like something far more exotic, and repeats its best numbers without drama.

Even GM’s own internal figures—1.03 g lateral and 107-ft 60–0 for specific test setups—telegraphed how serious the platform was. The pattern is consistent: launch control and the LT1’s broad torque curve make the headlines easy to reproduce; the eLSD and chassis tuning cash those checks at VIR; and the OE Michelin package proves it didn’t need ringer tires to shine. In short, the C7 Z51 arrived as the most capable standard Corvette at launch—not just once, not just in a straight line, but everywhere it counts.

Driver Modes & the “12 Variables” Problem, Solved

Track Mode put the business end of the C7 front and center: a big bar-tach with shift lights, lap delta with best/previous, and the Performance Timer ready to log 0–60, quarter-mile, and more. Steering, throttle, eLSD, Mag Ride, and exhaust all snapped to their most aggressive maps, while PTM let you tailor the safety net to the surface. It looked racy because it was—clear, legible, and built for dropping clean laps. (Image courtesy of MotorTrend)

One of the smartest C7 ideas was hiding complexity behind the Driver Mode Selector. As Juechter put it at the time, there were “up to 12 variables” in play—steering effort, throttle mapping, stability and traction thresholds, eLSD logic, exhaust valves, rev-match behavior, shift strategy on autos, cluster theme, even damper tuning when equipped—and the answer wasn’t to scatter a dozen switches across the cockpit. You picked Weather, Eco, Tour, Sport, or Track, and the car coordinated itself.

The 2014 Corvette Stingray gauge cluster set for “Sport” mode. (Image courtesy of MotorTrend)

In practice, it worked the way drivers actually used the car. Weather calmed the throttle, softened the steering, raised the nannies, and quieted the pipes. Eco leaned on cylinder deactivation and long upshifts without turning the chassis to mush. Tour was the default—quiet exhaust, relaxed mapping, supple damping—for eating miles. Sport woke the eLSD, sharpened the pedal, added weight to the wheel, opened the valves more often, and put useful information front-and-center in the cluster. Track went further: the biggest tach and shift lights, the firmest damping, the most aggressive eLSD logic, and access to Performance Traction Management sub-modes so you could dial grip to conditions. It even remembered preferences per key fob. Human factors first, tech story second—and it showed every time you rolled the dial.

Pricing, Trims, and the Mid-Year Adjustment

Chevrolet launched the C7 Stingray with a headline number: $51,995 for the coupe and $56,995 for the convertible, destination included. Demand spiked immediately—especially for Z51—and by March 2014 Chevy nudged the base car up by $2,000 and the Z51 package to $4,000. Buyers didn’t flinch; the market voted with its wallets.

Trim logic (what each LT really bought you)

1LT (essentials, no fluff): The core package gave you the LT1 V8, 7-speed manual with rev-match, Driver Mode Selector, the 8-inch MyLink infotainment with color cluster, Bluetooth, dual-zone climate control, keyless entry/start, rear camera, HID headlamps, power tilt/telescope column, and 8-way power GT seats in Mulan leather. Wheels were silver 18/19-inch alloys on Michelin Pilot Super Sport ZP run-flats. The coupe’s removable body-color carbon-fiber roof panel was standard.

2LT (comfort and toys, the sweet spot): Built on 1LT, 2LT added a color head-up display, Bose 10-speaker Centerpoint audio, heated and ventilated seats, driver memory for seats/mirrors/column, auto-dimming interior mirror, theft-deterrent system, luggage shade and net for coupes, and HomeLink. The interior trim extended with more color coordination on the console and doors.

3LT (full dress): This trim made the Stingray feel premium inside. It layered in custom leather wrapping for the dash, doors, and console, plus Napa leather on the GT seats. The instrument panel matched seat color, and embedded navigation was included. If you wanted the Corvette to feel like something from the luxury brands it was competing with, 3LT was the answer.

Z51 Performance Package (available on any LT) The Z51 brought the track-day hardware: dry-sump oiling, shorter gear ratios, electronic limited-slip differential, bigger front brakes with slotted rotors, unique shocks/springs/bars, additional cooling circuits, aero tweaks, and staggered 19/20-inch wheels with Michelin Pilot Super Sport ZPs. Magnetic Ride Control and Performance Traction Management could be added on top of Z51, making it a serious turnkey track package.

Must-know options
- NPP Dual-Mode Exhaust: At $1,195, it gave you the split personality—quiet in Tour, rowdy in Sport/Track—and a small but certified bump in output. The take rate soared past 80%, making it nearly universal.
- Seats: Standard GT seats came in Mulan (1LT/2LT) or Napa (3LT). The Competition Sport seats (RPO AE4) arrived later in the model year and were a must for track junkies thanks to magnesium frames, deep bolsters, and harness cutouts.
- Roof menu (coupes): The standard body-color carbon-fiber roof could be swapped for transparent, visible carbon-fiber, or dual-roof packages (body-color + transparent or visible CF + transparent). This gave owners real freedom to lean toward GT comfort or motorsport edge without touching the drivetrain.
How to spec it (sanity version) The smart buy for the driver’s car without blowing the budget was 1LT + Z51 (with NPP exhaust). For livability, gadgets, and comfort, 2LT was the sweet spot. For those who wanted the cabin to look and feel upscale every time they opened the door, 3LT with its full leather wrap delivered. And for the track crowd, the recipe was clear: Z51, Mag Ride, PTM, and AE4 seats.

Production, Mix, and Color Story (2014 Model Year)

Bowling Green built 37,288 Stingrays for 2014: 26,565 coupes, 10,723 convertibles. Transmission split favored the automatic (appx. 65%), which fits the “daily it, track it” brief more owners adopted. Z51 cars were 56.6% of production. NPP exhaust? 31,170 cars, which explains why a 2014 neighborhood sounds different than a 2013 one. Color winners: Torch Red (7,189), Arctic White (6,166), Black (5,932). Rarities—and 2014 signatures—include Lime Rock Green (1,577) and Cyber Gray (4,076), both one-year-only colors that collectors already watch.

Interior Details That Matter

C7 Stingray cockpit: thick-rim wheel, reconfigurable cluster with color HUD, 8-inch MyLink screen (with hidden cubby), and a 7-speed manual beside the drive-mode dial—all set in a fully wrapped, stitched cabin that finally feels premium.

What makes the 2014 Corvette’s interior succeed long-term isn’t simply the long-overdue step up in materials—it’s the way Chevrolet finally got the ergonomics right. The smaller, thicker-rimmed steering wheel sits perfectly in hand, putting you closer to the control feel you’d expect from Porsche or BMW benchmarks, and it frames a gauge cluster that gives you exactly the information you need, no more, no less. Layered on top is a full-color head-up display that projects tach, gear, and speed onto the windshield—an evolution of Corvette’s earlier HUDs that now mirrors key cluster data. The net result is less time glancing down, more time with eyes where they belong: out front.

The center stack finally feels like it belongs in a modern sports car. Chevrolet’s MyLink infotainment system anchors the dash with an eight-inch screen, but the clever trick is the motorized panel that slides upward to reveal a hidden storage cubby and a USB port. It’s one of those rare “gimmicks” that proves genuinely useful, whether you’re stashing a wallet, a phone, or even just hiding a charging cable. Unlike past Corvette interiors, which often mixed tech with cost-cutting, the C7’s layout blends form with day-to-day function.

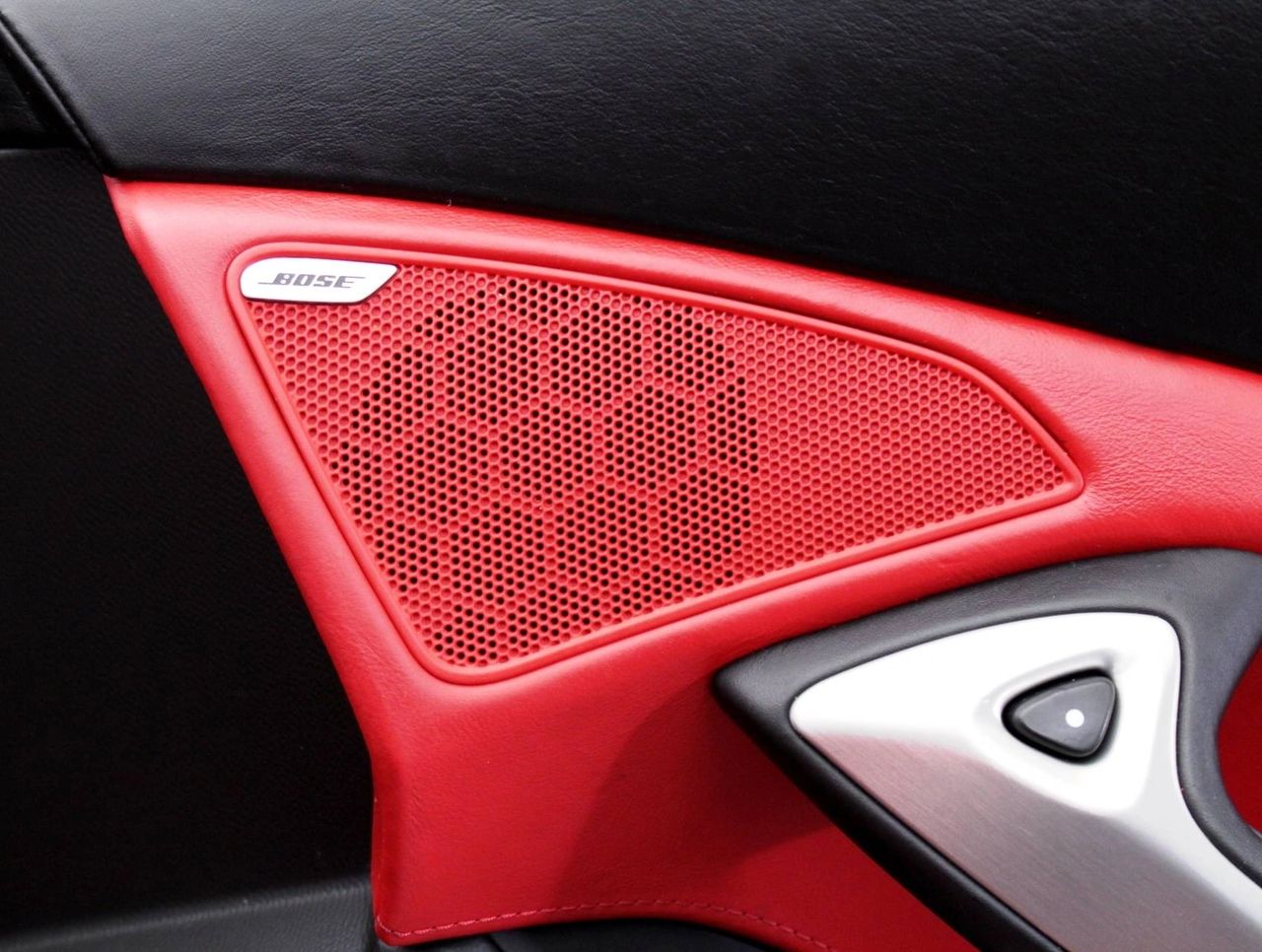

The 2014 Corvette made audio a priority: a Bose 9-speaker setup came standard, while the optional 10-speaker system with a dedicated bass box finally delivered the kind of low-end depth the old C6’s thin door panels could never reproduce. It wasn’t just louder—it was cleaner, richer, and tuned for a quieter cabin that let the music come alive.

Audio was another big step. The base nine-speaker Bose system set a respectable floor, but serious buyers gravitated toward the optional 10-speaker package with a dedicated bass box. That subwoofer worked with a redesigned door structure—thicker, stiffer, less prone to rattling—to deliver low-end presence the C6 could never muster. Music finally sounded full, detailed, and anchored, elevating long drives from tolerable to enjoyable.

And then there’s the intangible: refinement. Corvette engineers targeted highway noise harshness as a must-fix, and the payoff is obvious. Drive a 2013 C6 and a 2014 C7 back-to-back, and the difference in road roar, wind rush, and cabin resonance is night and day. One feels busy and unrefined, the other settled and composed. For anyone who uses their 2014 Corvette beyond Saturday coffee runs—commuting, road trips, or cross-country rallies—that transformation alone is enough to answer the “Why C7?” question.

The “Stingray” Name: Earned, Not Added

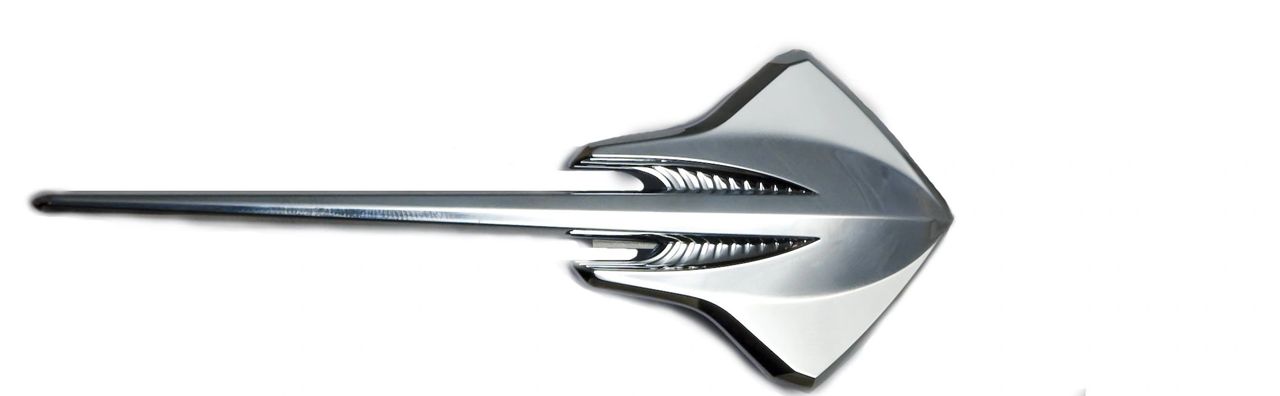

C7 Corvette “Stingray” fender emblem — a modern, chrome reinterpretation of the classic fish motif, with blade-like surfacing and gill details that echo the car’s sharp lines.

While the Stingray badge carries enormous nostalgic pull, its revival for the C7 was not a casual decision. Inside GM, the name has always been treated as sacred ground. Tadge Juechter has said that Ed Welburn, then GM’s global design chief, was “extremely strong on this point” and refused to sign off unless the car genuinely deserved the name. Welburn made clear that Stingray stood for more than just a word on the fender: it represented “a combination of striking styling… and commensurate technology.”

That litmus test forced the team to evaluate the C7 with ruthless honesty. The exterior design was sharper, more dramatic, and unmistakably Corvette while pushing the shape forward. The cabin was a leap ahead, finally wrapping the driver in materials and ergonomics that matched world-class benchmarks. Underneath, the all-new aluminum structure cut weight and added stiffness, while technologies like the reconfigurable digital cluster, Drive Mode Selector, and advanced chassis electronics put Corvette on a playing field it had never fully occupied before. Taken together, these elements convinced the leadership team that the seventh-generation car had, without question, earned the right to wear the badge.

That decision wasn’t marketing bravado. It was leadership actively guarding brand equity—protecting one of Corvette’s most iconic identities until the product was strong enough to carry it forward. In doing so, they reaffirmed that Stingray is more than a name; it’s a standard every new Corvette must rise to meet.

Pace Car Duty & Pop-Culture Moments

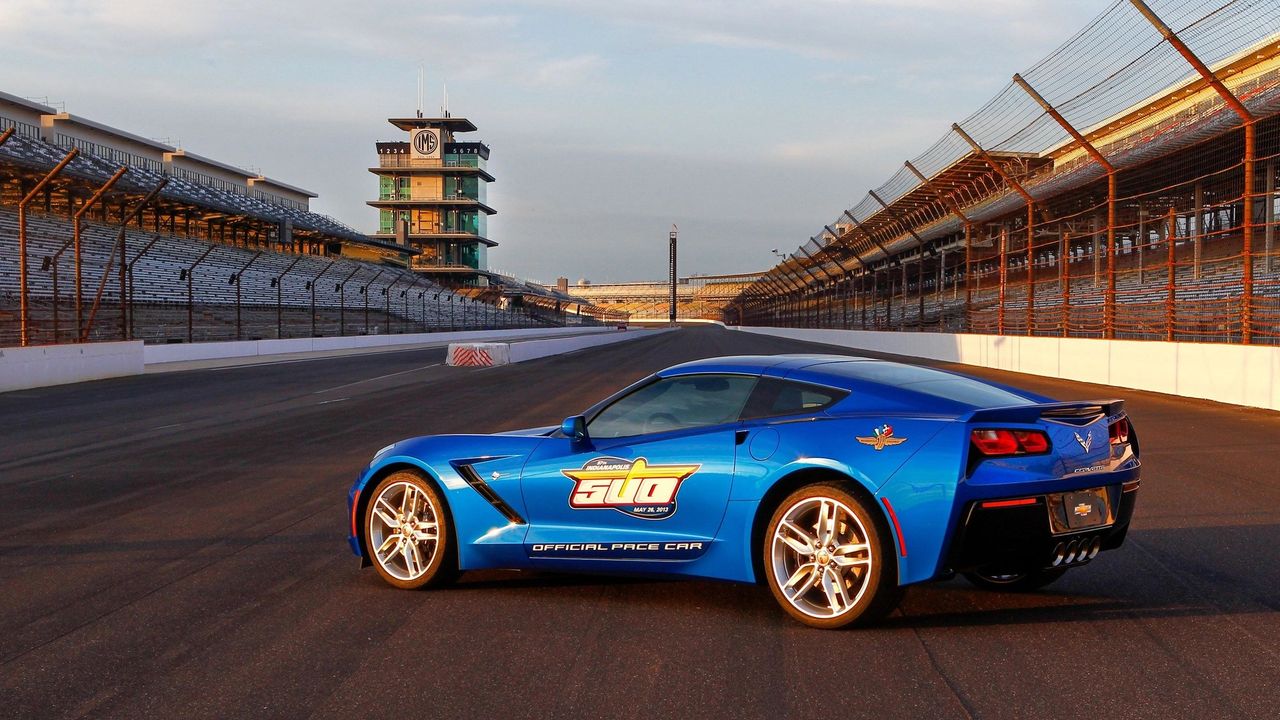

A C7 Stingray on the Yard of Bricks: the 2014-model Corvette that paced the 97th Indianapolis 500 (May 26, 2013), wearing its “Official Pace Car” livery in Laguna Blue. By this point, Corvette had led the Indy 500 field 12 times—a record among production cars—stretching from the first in 1978 to this C7 outing. A fitting debut for the reborn Stingray at the Speedway. (Image courtesy of GM Media LLC)

Chevrolet didn’t let the buzz go to waste. The 2014 Stingray served as the 97th Indianapolis 500 Pace Car in Laguna Blue, marking the 12th time a Corvette has led the field. GM’s Jim Campbell tied the choice back to the development philosophy: “The 2014 Corvette Stingray’s performance was influenced by racing, making this prestigious assignment even more fitting.” The car needed no powertrain mods to serve as the official pace car—just the required safety gear. It sends a strong message to would-be consumers when your showroom car is capable enough to set the tone for the “Greatest Spectacle In Racing.”

How It Drives (and Lives) in the Real World

The 2014 Corvette Stingray comes alive where it matters most—the open road. Drop the top, feel the LT1 surge, and let the chassis breathe with every bend. It’s the perfect blend of daily usability and pure driving thrill, proving that Corvette performance isn’t confined to track days—it belongs to every road you take. (Image courtesy of MotorTrend)

Specs and quotes are one thing; living with the car is another. What makes the C7 stand apart is its sheer bandwidth—the breadth of personalities it can inhabit without ever feeling compromised. In Tour, it’s a legitimate daily driver: cabin noise muted, the cylinder-deactivating AFM working in the background with zero drama, and Magnetic Ride smoothing out the cracked slabs of interstate in a way the old car simply couldn’t. You could knock out a long commute or a cross-state road trip and step out unruffled.

But twist the dial to Sport or Track and the transformation is immediate. Steering effort builds naturally, the electronically controlled differential tightens its algorithms, exhaust valves swing open, and the reconfigurable cluster morphs into a pit-wall ally—big tach, bright shift lights, lap-timer logic. Tadge Juechter talked about “five times the steering stiffness,” and you feel it: corrections are clean, proportional, confidence-building. Add in Active Rev Match, which turns every downshift into a perfectly timed blip, and suddenly, anyone can drive like a hero without thrashing the gearbox.

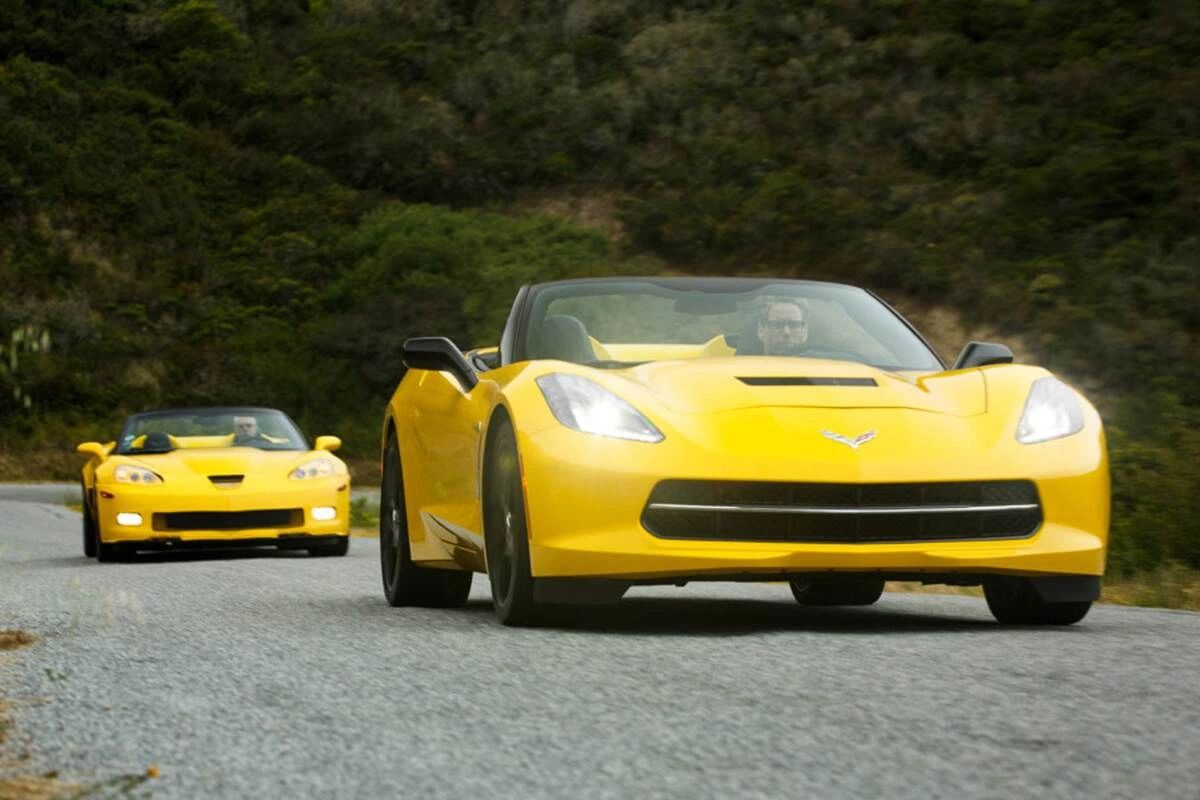

The “Stingray” name didn’t return out of nostalgia—it returned because the C7 had finally reached the level of refinement that matched the badge’s legacy. Where the C5 broke new ground with its transaxle layout and hydroformed frame, it still carried rough edges in ride, interior, and precision. The C7 tightened all of it: quicker, stiffer steering, a chassis that stayed composed under pressure, an LT1 powertrain blending efficiency with track-grade cooling, and an interior that at last felt fully realized with real materials and tech. Ed Welburn made it clear the name would only come back if the car truly deserved it, and in the C7’s balanced mix of performance, sophistication, and design, Chevrolet finally had a Corvette worthy of being called Stingray again.

This duality is the C7’s genius. The C6 could feel like two cars—one supple and grand-touring, the other sharp but edgy, sometimes punishing. The seventh-generation Corvette dissolves that split personality. It’s a car that can play grand tourer, back-road weapon, or track toy at will, without forcing the driver to pick one at the expense of the other. That’s a meaningful, deliberate leap forward in Corvette evolution.

What to Look For (Owner/Buyer Notes)
- Z51 + FE4 Mag Ride is the sweet spot if you track or cannonball your favorite back road; the thermal capacity and damper bandwidth make pace easy to repeat. The take rates exist for a reason.
- AE4 Competition Sport seats (late availability in the model year) are worth hunting if you’re broader-shouldered or serious about HPDE. The magnesium frame support is more than brochure talk.
- NPP exhaust turns the soundtrack from “nice V8” into “how a Stingray should sound,” with the bonus power bump that GM certified. If you’re on the fence, don’t be.
- Color one-yearers—Lime Rock Green and Cyber Gray—give 2014 a built-in collector hook. If you love them, this is the year.
- Price context: launch pricing was a steal; the March 2014 increases don’t change the value argument but do matter for sticker archaeology and window-sticker decoding.
2014 Corvette Stingray — Detailed Specifications

Powertrain (Stingray coupe & convertible)
- Engine: 6.2L LT1 small-block V8 (aluminum block/heads; DI, VVT, AFM). Output: 455 hp @ 6,000 rpm / 460 lb-ft @ 4,600 rpm (standard exhaust); 460 hp / 465 lb-ft with the optional dual-mode NPP performance exhaust.
- Transmissions:
- 7-speed Tremec TR-6070 manual with Active Rev Match. Base ratios: 2.66 / 1.78 / 1.30 / 1.00 / 0.74 / 0.50 / 0.42 Z51 manual ratios: 2.97 / 2.07 / 1.43 / 1.00 / 0.71 / 0.57 / 0.48 (both with 2.90R).
- 6-speed Hydra-Matic 6L80 automatic with paddle shift (2014 only).
- Fuel economy (EPA): 7-MT 17/29/21 mpg; 6-AT 16/28/20 mpg; fuel tank 18.5 gal.
- Cooling & lubrication: Standard wet-sump; dry-sump oiling with added diff/trans coolers included in Z51.
Chassis, steering, brakes, wheels/tires (Stingray)
- Structure: All-aluminum frame (Bowling Green-built), ~99 lb lighter and 57% stiffer than the prior steel frame. 50/50 weight distribution.
- Suspension: SLA (short/long arm) double wishbone front & rear; Driver Mode Selector; Active Handling/TC standard. Magnetic Selective Ride Control available (bundled with Z51).
- Steering: ZF electric power rack-and-pinion; 37.7 ft curb-to-curb turning diameter.
- Brakes (Brembo):
- Standard rotors: 12.6 in front / 13.3 in rear (FNC-treated).
- Z51 rotors: 13.6 in front (two-piece, slotted) / 13.3 in rear with enhanced brake cooling.
- Wheels/tires:
- Base Stingray: 18×8.5 front / 19×10 rear with Michelin Pilot Super Sport ZP 245/40ZR18 & 285/35ZR19.
- Z51: 19×8.5 front / 20×10 rear with Michelin Pilot Super Sport ZP 245/35ZR19 & 285/30ZR20.
Dimensions & capacities
- Wheelbase: 106.7 in · Length: 177.0 in · Width: 73.9 in · Height: 48.6–48.9 in (body style).
- Interior (both body styles): headroom ~38.0 in, legroom 43.0 in, shoulder ~55.2 in, hip ~53.7–54.0 in.
- Cargo: Coupe 15.0 cu ft (hatch); Convertible 10.0 cu ft (trunk).
- Curb weight (typical published figures): Coupe ~3,298 lb; Convertible ~3,362 lb; a Z51 manual test car: ~3,444 lb.
Performance (factory & instrumented)
- 0–60 mph: as quick as 3.8 s (manufacturer, with Z51). Independent tests commonly record ~3.9 s for Z51 manual coupes/convertibles.
- Skidpad: ≥1.00 g achievable with Z51.
Z51 Performance Package (available on coupe & convertible)

Adds comprehensive track-focused hardware and aero:
- eLSD (electronic limited-slip differential) with hydraulically actuated clutch pack and active torque-bias control.
- Dry-sump oiling (higher oil capacity) plus integrated coolers for differential and transmission. Engine oil capacity increases from ~7.0 qt to ~9.75 qt with Z51.
- Specific manual gear set (closer ratios listed above).
- Unique aero package to improve high-speed stability.
- Bigger Brembos with two-piece slotted front rotors and enhanced brake-cooling ducting.
- Wheels/tires upsized to 19″/20″ (Michelin Pilot Super Sport ZP). Black-painted calipers included; red/yellow available.
- Available Magnetic Selective Ride Control; includes Performance Traction Management (PTM) when Mag Ride is selected.
Convertible-specific notes (Stingray & Z51)
- Fully electronic fabric top with glass rear window; power-operable by key fob and while driving up to 30 mph; cycle time ~21 sec.
- Cargo: 10.0 cu ft (top design does not intrude into trunk once stowed).
- Typical instrumented deltas vs. coupe are minimal (e.g., 0–60 in ~3.9 s for Z51 manual coupe and convertible; convertible ~138 ft 70–0, about +1 ft vs. coupe)
Quick reference (what changes when you check Z51)
- Driveline: mechanical LSD → eLSD with active torque biasing.
- Lubrication/cooling: wet-sump → dry-sump + diff/trans coolers; higher oil capacity.
- Brakes: 12.6″/13.3″ rotors → 13.6″/13.3″ two-piece slotted with extra cooling.
- Rolling stock: 18/19 with 245/40 & 285/35 → 19/20 with 245/35 & 285/30.
- Ratios: standard TR-6070 set → closer Z51 set (above).
- Aero & options: unique aero; Mag Ride/PTM availability tied to Z51.
The Broader Context: Why 2014 Still Feels Current

From split-window to sculpted carbon fiber, the Corvette Stingray has carried its name as a symbol of bold design and performance evolution. The 1963 Sting Ray debuted with razor-sharp lines, hidden headlamps, and that now-iconic split rear window—a car that redefined the American sports car in both style and engineering. Fast forward to 2014, and the seventh-generation Stingray brought the name back with equal weight: a lightweight aluminum structure, a high-tech LT1 V8, and aerodynamics drawn straight from the wind tunnel. Side by side, the two cars showcase how the Stingray spirit has endured—always sleek, always innovative, and always unmistakably Corvette. (Image courtesy of GM Media LLC)

Every few Corvette generations, there’s a step change that makes the prior car feel like a charming relic. The 1963 Sting Ray did it with the independent rear suspension and design revolution. The 1997 Corvette did it with architecture and usability. The 2014 Corvette Stingray did it with the aluminum structure, the LT1’s modern combustion, and a cockpit that finally matched Corvette’s dynamic promise. You can feel the engineering discipline in the way the car works on a hot day, 20 minutes into a session, in the way the eLSD meters torque on corner exit, and in the way the cluster/HUD keeps your eyes forward.

We give the final word to the people who engineered and designed the seventh-generation Stingray, because their candor explains why this car landed the way it did. Juechter on the scope:“We wanted a big upgrade… more like the change from C4 to C5 than the evolution from C5 to C6… as we got into it, it turned out to be even bigger than we thought.” Bennion on the aero: “They’re not just aesthetic things that we bolt on.” Vaughn on the interior: “It’s probably the single most upgraded area of the car.” And Bailey on the brakes and springs: “Two distinct brake systems for two distinct cars… It’s an engineered composite spring.” That’s a team not polishing a legacy, but rebuilding it in plain sight.
If there’s a single model year that re-established just exactly what “Corvette” means, it’s the 2014 Corvette Stingray. The seventh-generation car didn’t just replace the C6; it rebooted America’s sports car around a new set of non-negotiables: an aluminum structure built in Bowling Green, a clean-sheet small block with direct injection and cylinder deactivation, driver-centric…

Category: C7 Corvette

2015 Corvette Stingray Overview: The C7 Comes of Age

Advancing the Corvette Without Reinventing It

Tom Peters, Kirk Bennion, and the Shape of the 2015 Corvette

Form Follows Function

Atlantic and Pacific: Two Personalities for the Stingray

The Technology That Changed the Corvette Experience

The Performance Data Recorder

Valet Mode—and an Unexpected Legal Problem

4G LTE and the Connected Corvette

A More Complete Interior

The 6.2-Liter LT1—and the Supercharged LT4

The LT1: 455 Horsepower as the Starting Point

The LT4: 650 Horsepower Changes the Conversation

Seven-Speed Manual or Eight-Speed Automatic

The 8L90 Eight-Speed Automatic

Chassis, Suspension, and Brakes

Stingray and Z51

Z06: More of Everything

The 2015 Corvette Convertible

The First Z06 Convertible Since 1963

Performance in Period Testing

The Limits of the Package

Pricing and Equipment

Colors and Second-Year Production

The C7.R and the 2015 Z06: One Development Philosophy, Two Different Jobs

While the C7 Reached Its Peak, the C8 Was Already Taking Shape

Blackjack

January 2015: The Secret Begins to Escape

2015 Ownership: Recalls, Heat, and the First-Year 8L90

Early Safety Recalls

The 8L90 Shudder

Z06 Thermal Management

Why the 2015 Corvette Still Matters Today

2009 CORVETTE STINGRAY CONCEPT

Hollywood calls, and a concept gets a co-star credit

Design: a fusion of past icons and sharp-edged futurism

Powertrain: what “Hybrid Stingray” really meant

Inside: fixing the C6’s pain points and forecasting the future cabin

The reveal: a superstar—but not a production promise

Legacy: the last “true” Corvette concept—and a bridge to C7/C8

Deep-dive facts & figures (integrated recap)

Notes on common misconceptions

Why the 2009 Stingray Concept Still Matters

2014 CORVETTE OVERVIEW

Exterior: Form, Function, and the End of Fake Vents

Structure & Manufacturing: Aluminum, At Last—For Everyone

Powertrain: LT1 (Gen V Small Block) and the Return of the Broad Torque Curve

Transmissions: 7 Speeds, Real Rev-Match, and a Better Auto (Later)

Exhaust: The NPP Option That Changed the Street Soundtrack

Suspension & Steering: Composite “Leafs,” Mag Ride, and Stiff Where It Counts

Brakes & Tires: Bigger Swept Area, Dual-Cast Rotors, Real Endurance

Aero & Cooling: Everything Vents, Nothing Pretends

Driver Interface & Interior: Finally, Seats Worth Defending

Convertible: Top-Down Without the “Convertibles Are Floppy” Asterisk

The Z51 Package: The Driver’s Default

Performance: The Numbers That Made the Headlines

Driver Modes & the “12 Variables” Problem, Solved

Pricing, Trims, and the Mid-Year Adjustment

Production, Mix, and Color Story (2014 Model Year)

Interior Details That Matter

The “Stingray” Name: Earned, Not Added

Pace Car Duty & Pop-Culture Moments

How It Drives (and Lives) in the Real World

What to Look For (Owner/Buyer Notes)

2014 Corvette Stingray — Detailed Specifications

Powertrain (Stingray coupe & convertible)

Chassis, steering, brakes, wheels/tires (Stingray)

Dimensions & capacities

Performance (factory & instrumented)

Z51 Performance Package (available on coupe & convertible)

Convertible-specific notes (Stingray & Z51)

Quick reference (what changes when you check Z51)

The Broader Context: Why 2014 Still Feels Current
