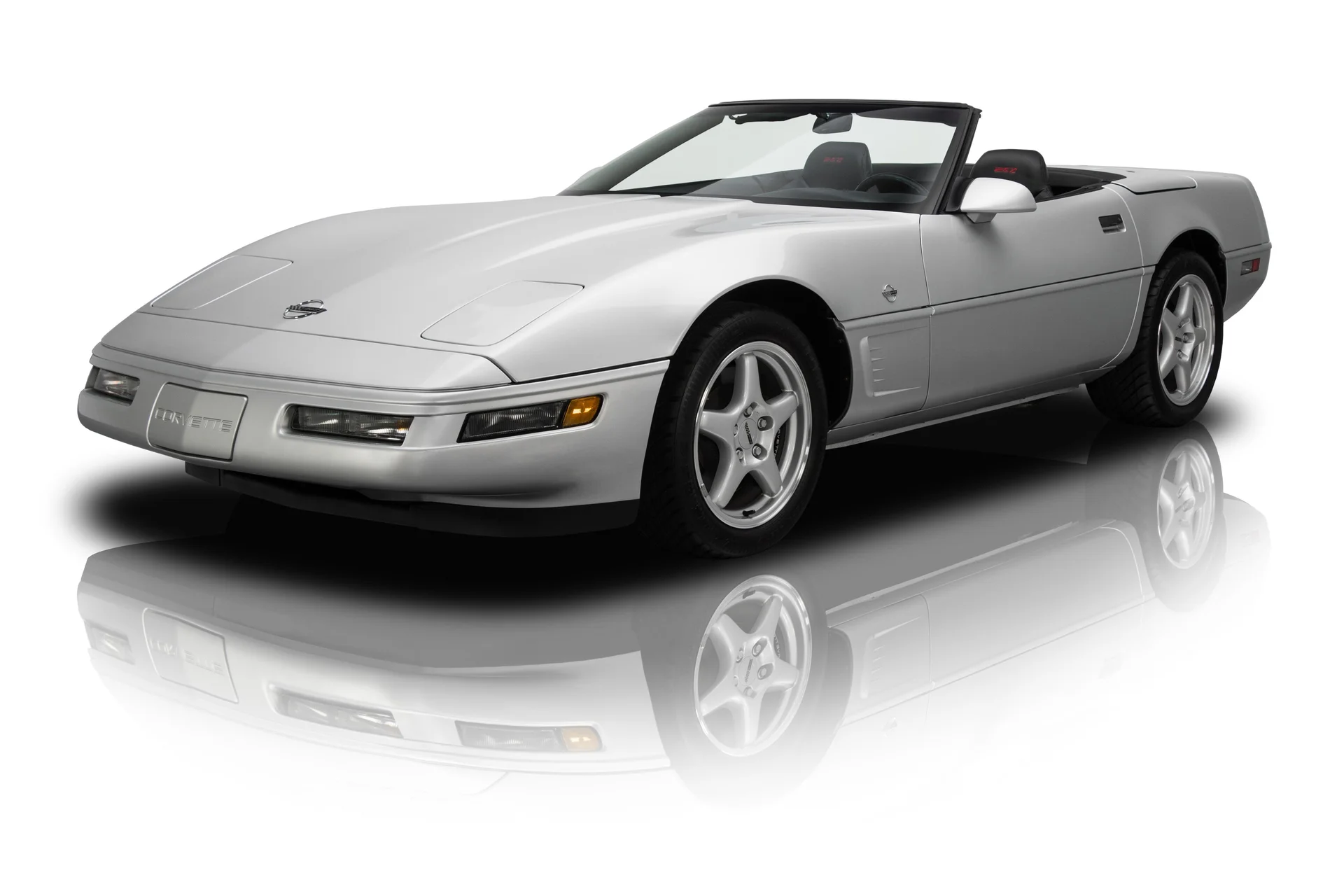

1996 CORVETTE OVERVIEW
By the time the 1996 Corvette arrived, the C4 had become a fully realized sports car. Twelve years of steady development had sharpened the platform into something more refined, more capable, and more complete than ever. As the final year for both the C4 and the Gen II small-block in a Corvette, 1996 was more than a sendoff. It brought meaningful performance upgrades, a smarter chassis, the return of a true track-focused package, and special editions that honored Corvette’s legacy while hinting at where the car was headed next.

Widen the frame, and the story becomes even more compelling. The Bowling Green Assembly Plant was already being reworked for what came next, including hydroformed frame rails, a rear transaxle, and the new LS-series V-8. Under chief engineer Dave Hill, Chevrolet was closing out the C4 while pushing hard to bring the C5 to life. That makes 1996 a true pivot year—one era ending at full strength just as the next was beginning to take shape.

People, places, pulse: how the year came together

Bowling Green was more than the place where Corvettes were built. It was where the Corvette story had played out in real time since 1981, when the assembly plant opened on the north end of Corvette Drive. In 1994, the National Corvette Museum opened at the opposite end of that same road, just across KY-446. That placement was no accident. The museum was built close enough to the plant that enthusiasts could watch new Corvettes leave the factory and head down the road toward the place where the car’s history was preserved. It gave the area a different kind of energy. Instead of separating production from preservation, Bowling Green brought them together in one shared space, with each telling part of the same Corvette story.

The line slows to a hush as Bowling Green signs off on a generation. Team members hoist a hand-painted banner—“THE LAST OF A LEGEND… THE FINAL FOURTH GENERATION CORVETTE”—and ease the car past, applause echoing off the rafters. Dated June 20, 1996, it’s the moment the C4 takes its bow and the baton quietly passes to the future.

Inside the plant, the end of the C4 was not treated like a routine production milestone. It was marked by applause, plant-wide recognition, and the repeated flash of multiple photographers’ cameras as they documented the moment. Teams on the trim line eased the final cars forward with a care that felt almost ceremonial. People stepped away from their stations. Some climbed up for a better view. When the last C4 rolled off the line, it was met with handshakes and applause that lingered because nobody was quite ready for it to be over. Late June 1996 marked the end of the C4 era. Most sources place the final build date at June 20, 1996, a date supported by at least one period video and multiple owner accounts, though some later plant retrospectives cited June 30. At the National Corvette Museum and amongst much of the enthusiast community, June 20 has largely become the de facto anniversary. Either way, late June 1996 remains the bookend. After twelve model years of steady development, the C4 had become a fully realized sports car, and the people who signed those final cars knew exactly what they had just finished.

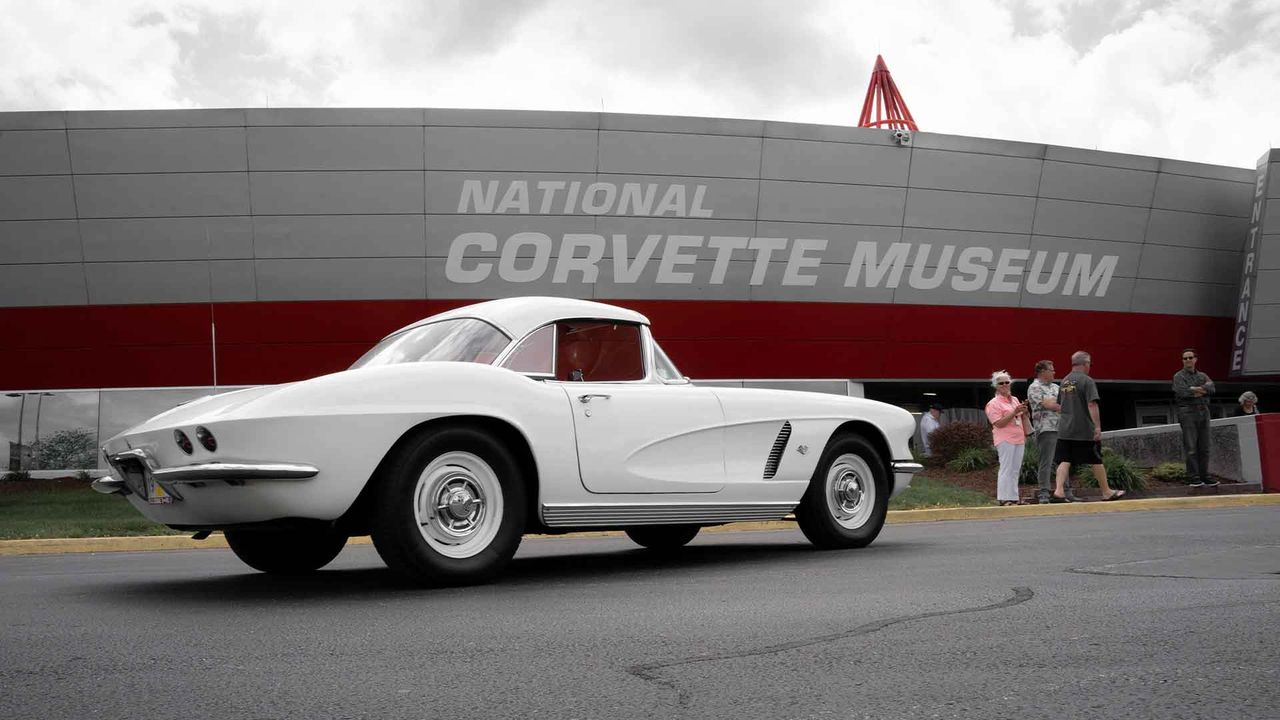

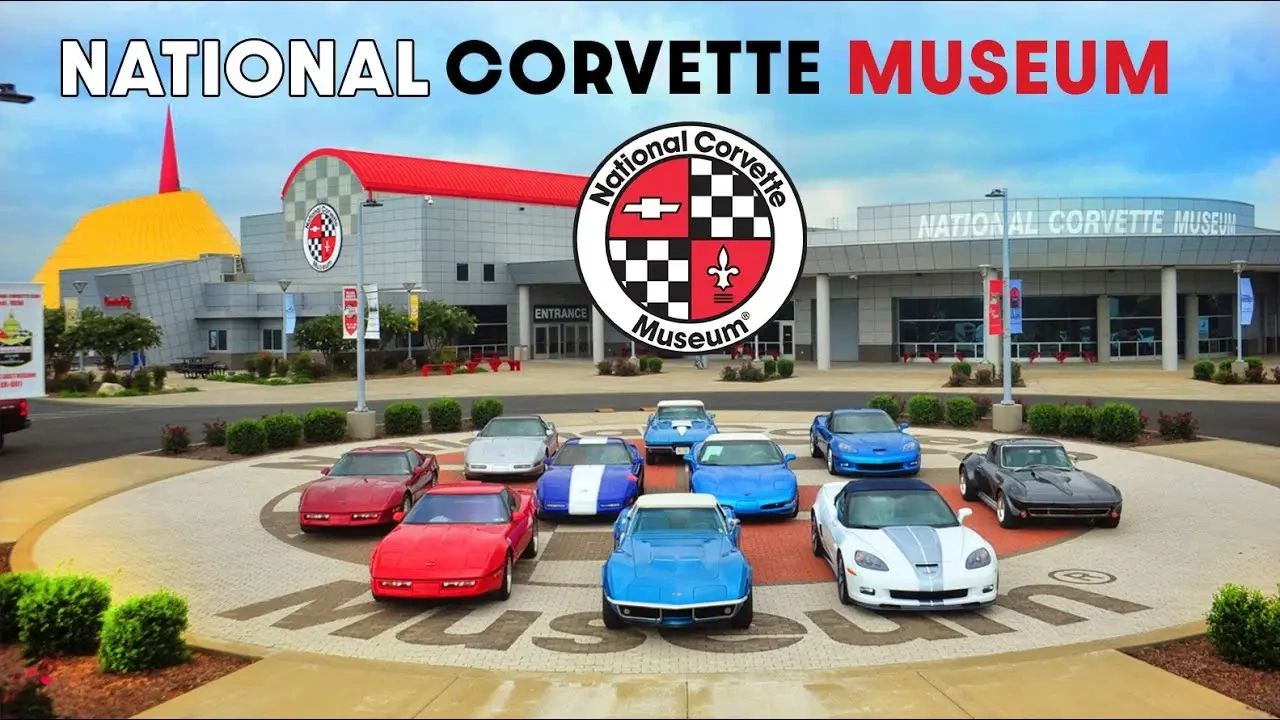

The National Corvette Museum opened over Labor Day weekend in 1994, welcoming caravans of Corvettes from every corner of the country to Bowling Green. Set just across KY-446 from the assembly plant, the new facility instantly became the marque’s spiritual home. Under the now-iconic yellow Skydome, enthusiasts finally had a purpose-built place to celebrate the car’s history, design, and culture. The grand opening wasn’t just a ribbon-cutting—it was a declaration that Corvette heritage would be preserved and shared for generations.

Across KY-446, the Museum supplied perspective. Its galleries, filled with Motorama-era fiberglass, Zora’s experimental hardware, and the evolving Shark lineage, reminded visitors that the C4 had not simply reached the end of its run. It had completed its assignment. Walk through those exhibits and the arc became clear: the car that redefined “modern” for Corvette in 1984 had matured into one that bowed out with the LT4, F45 real-time damping, and a final surge of confidence. The museum’s role was to preserve the memory. The plant’s role was to build the last great examples. With both standing just a few hundred yards apart, the transition felt deliberate rather than abrupt.

At the same time, the future was already taking shape. Dave Hill, only the third chief engineer in Corvette history, was working in a corporate climate that demanded restraint even as he pushed for an all-new fifth-generation car. The argument he and his team made was not cosmetic. It was structural. Hydroformed frame rails, a rear transaxle, and a new small-block family would fundamentally change the way the next Corvette was built, balanced, and driven. By then, that vision was already moving beyond sketches and presentations. Mules and mockups were proving the concept on Kentucky back roads, while Bowling Green itself was being reworked for a Corvette that would be assembled differently and engineered to feel more refined, more rigid, and more sophisticated in every meaningful way.

Dave Hill—Corvette’s third chief engineer (1992–2006)—took the baton from Dave McLellan and steered the brand through a clean-sheet reinvention. He championed the C5’s core architecture—hydroformed rails, rear transaxle, and the new Gen III small-block—pairing real stiffness and balance with daily-use refinement. Under his watch, quality improved on the line at Bowling Green, and Corvette Racing’s C5-R era proved the engineering on track. Hill then guided the C6 and the Cadillac XLR as vehicle-line executive, ensuring the Corvette’s voice carried forward with more polish and more speed. (Image courtesy of the National Corvette Museum)

That is why the 1996 Corvette feels like a proper finale rather than a simple run-out year. The LT4 was not just a badge package. It was the Gen II small-block at its fullest, with better breathing, a stronger valvetrain, higher compression, and the kind of tuning that gave the car sharper response, where the LT1 began to fall off. F45 was not a gimmick either. It was a meaningful chassis upgrade that gave the C4 more composure and quicker reflexes. Even the return of the Z51 performance package on coupes felt intentional, a nod to the owners who still took these cars seriously. Chevrolet was doing something difficult in 1996. It was closing one chapter with real dignity while quietly laying the groundwork for the next one.

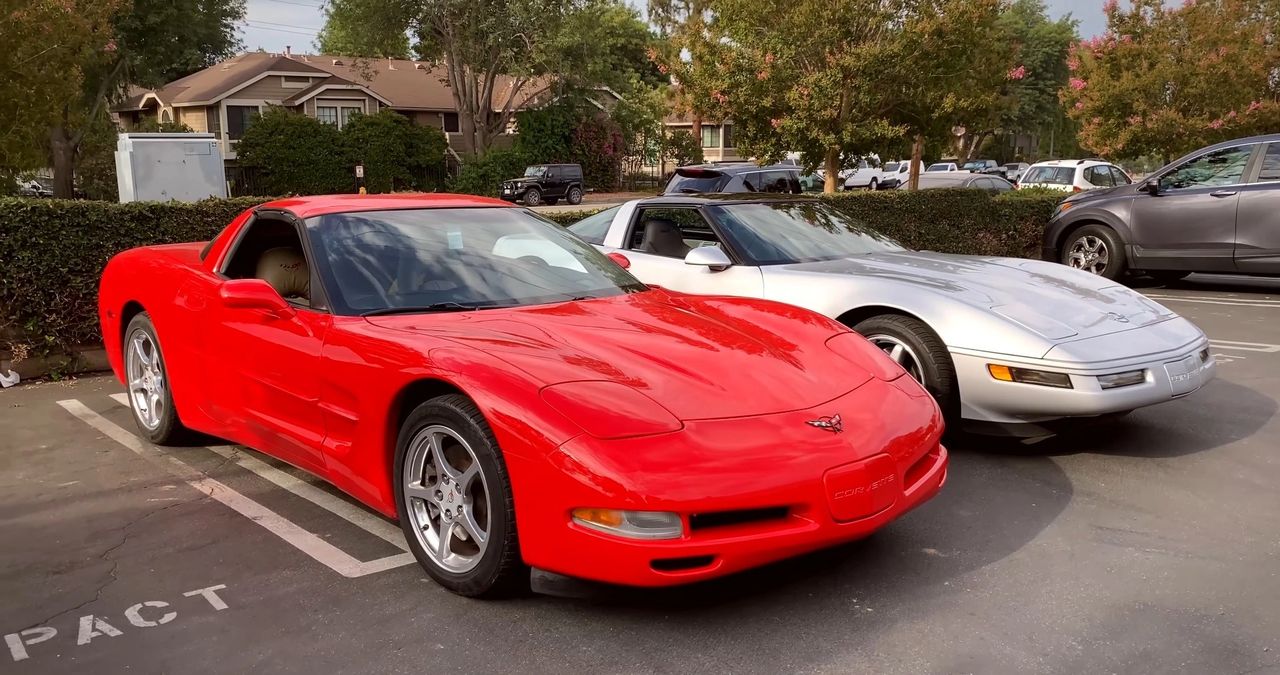

Silver to red is more than color—it’s architecture handing off to architecture. The C4 in back is the last of the front-engine/front-transmission Corvettes, honed to a fine edge with the LT4, FX3/F45 damping, and that unmistakably talkative C4 steering. The C5 up front arrives with the clean-sheet answers: hydroformed perimeter rails, a torque-tube and rear transaxle for balance, and the all-aluminum LS1 (345 hp) that reset how a small-block felt above 5,000 rpm. Drag drops, structure tightens, noise calms, and the car stops asking you to work around it and starts working with you. Same Bowling Green lineage, same core voice—just a baton passed from “sharp and analog” to “stiff, composed, and relentlessly usable.”

Stand on the sidewalk along KY-446, and the symbolism was almost impossible to miss. To one side, the plant completed a generation. To the other, the museum placed it in context. Between them, transporters moved back and forth, and the air often carried the faint smell of warm fiberglass and cut rubber. In that short stretch of road, the handoff felt real. The C4 ended with confidence, and the C5 waited just beyond it. Bowling Green, with the plant and museum facing the same story from different angles, made the transition feel clear and intentional.

What changed for the 1996 Model Year

1) Powertrain lineup simplified—and sharpened.

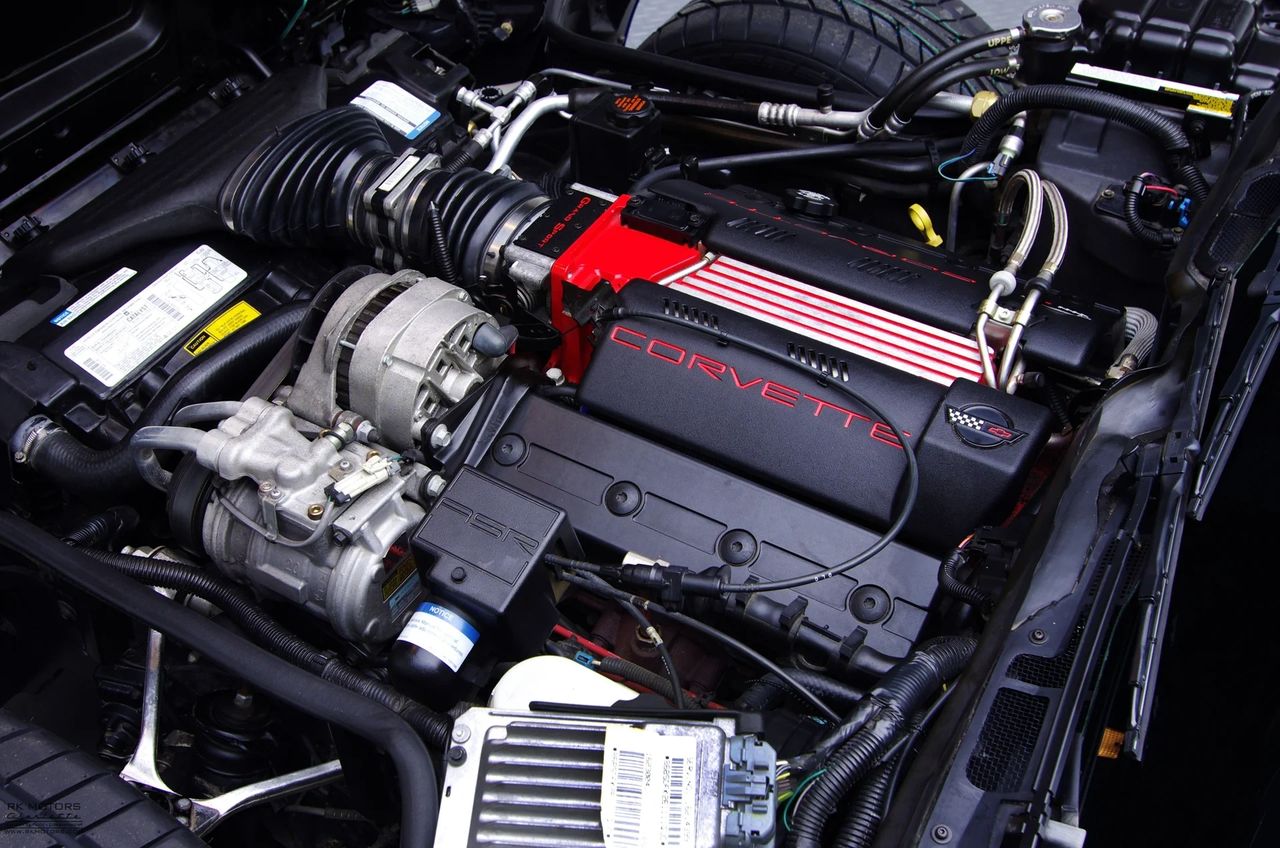

1996 LT4: the 330-hp Gen II small-block with aluminum heads, 1.6:1 rockers, and 10.8:1 squeeze—the red intake and wires are the tell. Manual-only, 6,300-rpm redline; the C4’s finished thought under the hood. (Image courtesy of RK Motors)

Chevrolet drew a clean line down the options sheet:
- LT1 + 4L60-E automatic (300 hp / 335 lb-ft): the effortless, long-legged Corvette.
- LT4 + ZF S6-40 six-speed (330 hp / 340 lb-ft): the higher-revving, more involved Corvette.
No cross-mixing. If you wanted a manual, you got the LT4. If you wanted an automatic, you stayed with the LT1. That decision reduced build complexity, made ordering dead simple, and—crucially—gave LT4 cars a distinct identity, right down to the 8,000-rpm tach with a 6,300-rpm redline.

What “fortified” meant in practice
- The fundamentals were familiar, but Chevrolet pushed them further in 1996. Both the LT1 and LT4 carried over the Gen II architecture, including reverse-flow cooling, sequential port fuel injection, and the front-drive ignition system. The LT4 then built on that foundation with stronger hardware, better-flowing aluminum heads, 1.6:1 rockers, a more aggressive cam profile, higher 10.8:1 compression, and a roller timing chain. The result was an engine that held onto its street manners while pulling harder and more cleanly at the top end.
- OBD-II arrived across the board in 1996. That may sound like a technical footnote, but it mattered in the real world. Cold-start, evaporative, and catalyst monitoring all became more sophisticated, drivability calibrations grew cleaner, and serviceability improved. Of all the C4s, the 1996 Corvette model feels the most modern when you plug in a scanner.
- The transmission story mattered, too. The 4L60-E automatic received calibration and converter durability updates that helped smooth part-throttle shifts and improve lockup behavior. On the road, the car feels newer than its spec sheet suggests.
- Gearing choices added another layer of intent. Manual LT4 cars used a 3.45 rear axle with limited-slip standard. Automatic cars came with a 2.59 axle unless ordered with the G92 performance axle ratio, which brought a 3.07 gear. It looks like a small change on paper, but it noticeably sharpened the way the LT1 responded off the line.
- The ratios were real, and so was the character.

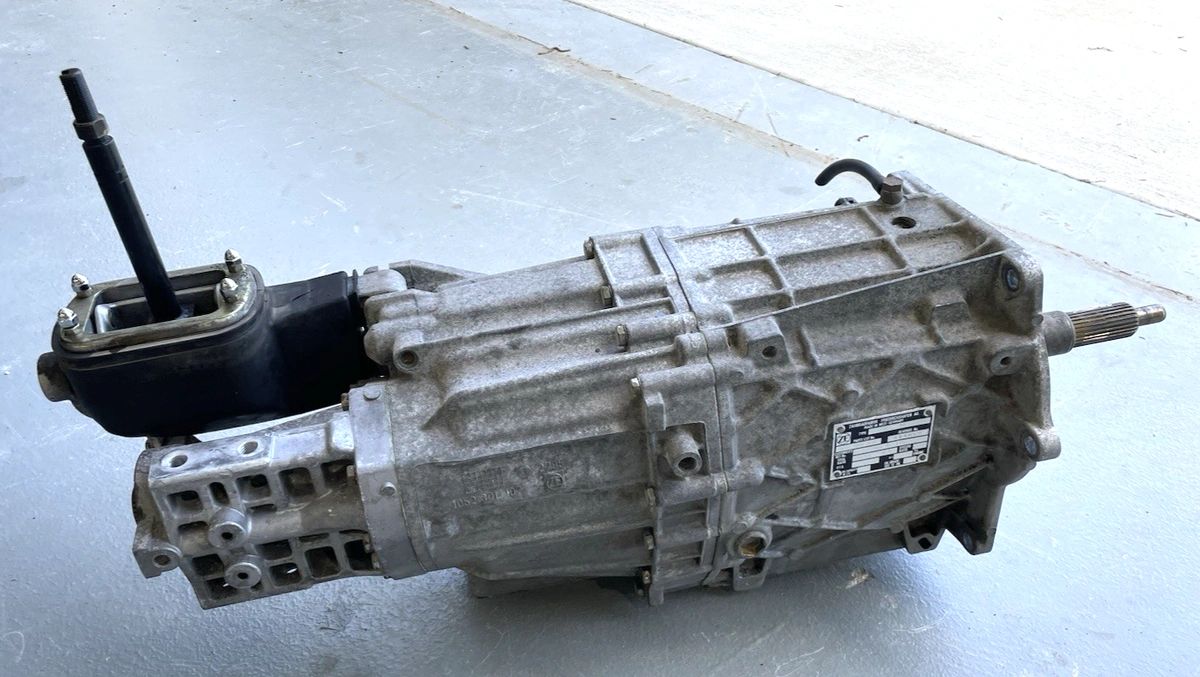

ZF S6-40 six-speed, as used in late C4 Corvettes (’89–’96)—the gearbox that finally gave the Corvette real ratio spacing and a deep highway overdrive. The ribbed aluminum case, side ID plate, and top-mount shifter tower are all telltales. It’s stout, famously smooth when healthy, and happy with the LT1/LT4’s torque. In short: the transmission that turned the C4 from quick to truly sorted.
- ZF S6-40: close, well-defined gates; ratios that keep the LT4 on the cam (1st–6th approx. 2.68 / 1.80 / 1.29 / 1.00 / 0.75 / 0.50). Third is the hero gear; fifth is a proper passing gear.
- 4L60-E: the familiar 3.06 / 1.62 / 1.00 / 0.70 with a lockup converter that settles the car at highway speed. With 3.07s, it stops hunting and feels alert in everyday use.
- Thermal and lubrication discipline. All ’96s shipped with synthetic oil from the factory. LT4 cars lacked an external oil cooler, but the calibration and recommended lubricant supported sustained high-speed use better than earlier years.
- NVH and driveline polish. LT4 manuals retained the dual-mass flywheel and beefy driveline hardware from earlier ZF-equipped C4s, which is why a healthy ’96 six-speed feels tight, not tinny. The automatic’s updates cut the low-speed flare that earlier calibrations sometimes showed.
How it feels from the seat

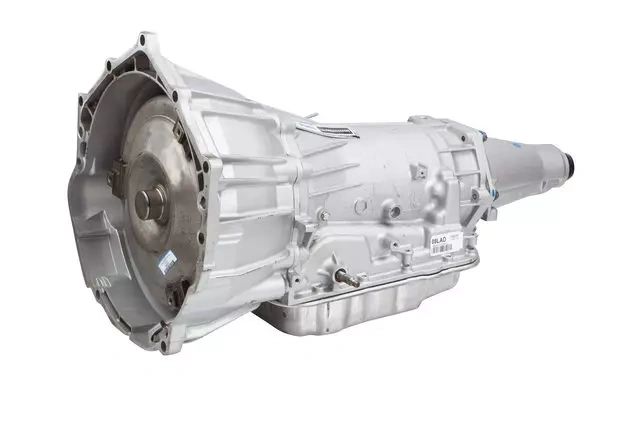

GM’s 4-speed overdrive automatic—TH700-R4/4L60 (and later 4L60-E)—the workhorse behind countless C4s. You’re looking at the lockup torque converter and ribbed aluminum case that house a deep 3.06:1 first gear and 0.70:1 overdrive for punch off the line and relaxed cruising. In ’84–’93 Corvettes it ran as the hydraulically controlled 700-R4/4L60; from ’94–’96 it evolved to the electronically controlled 4L60-E. Properly cooled and serviced, it’s a durable, smooth partner for the L98, LT1, and LT4.
- LT1/4L60-E: relaxed, torquey, and deceptively quick. With 3.07s the car steps off with intent, then disappears into 0.70 overdrive and loafs. It’s the grand-touring spec—long-distance smooth, easy in traffic, effortlessly fast on a two-lane.
- LT4/ZF6: same basic character, brighter colors. The LT4’s extra breathing shows from 4,000 rpm up; it pulls cleanly to the 6,300-rpm red and makes the chassis feel lighter on its feet. The shifter has a decisive “click,” and the gearing keeps the engine in the fat of the curve when you’re working a back road.
Why the simplification mattered

Fewer combinations meant tighter calibration work, cleaner diagnostics, and clearer messaging to buyers. More importantly, it let Chevrolet finish the Gen II small-block on a high note while keeping the automatic car supremely livable. In a year already balancing closure and prologue, the powertrain lineup did both: fortified the C4’s best habits and hinted at the modernity that would define the C5.

2) The LT4’s engineering brief

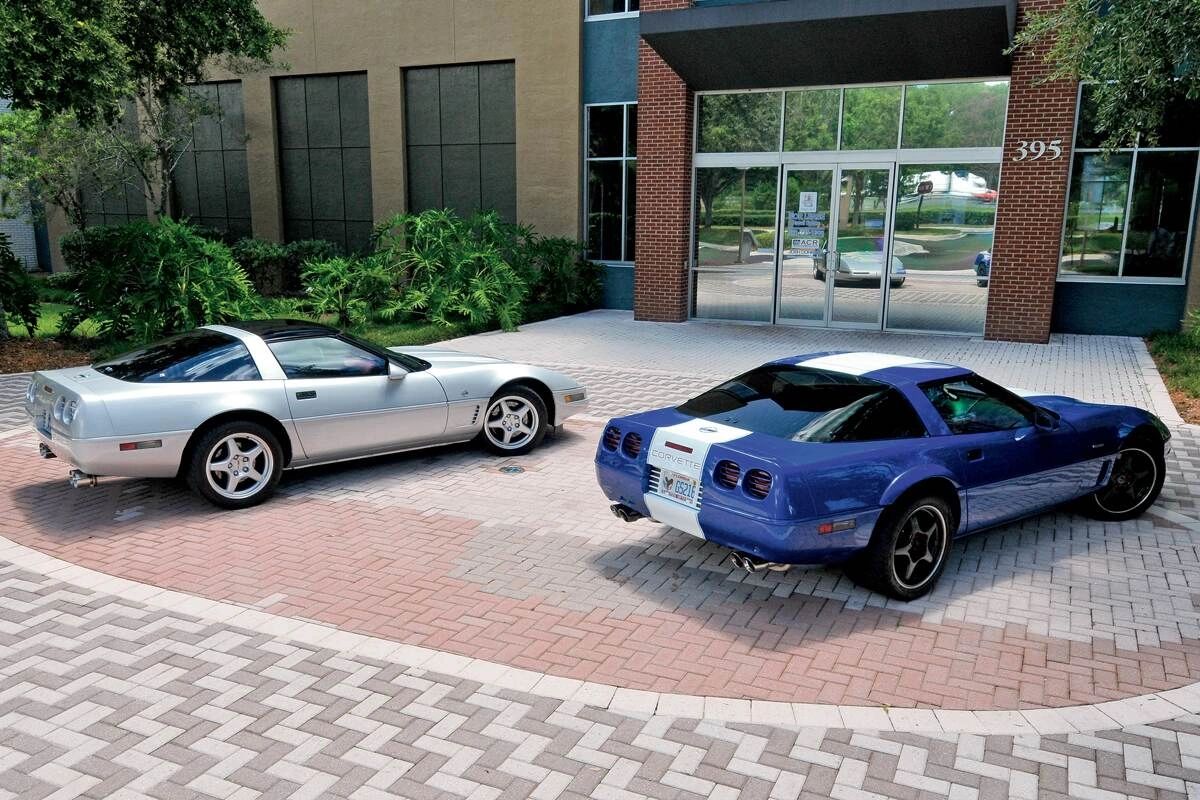

Take the LT1’s competence and give it teeth: high-flow heads, hotter cam, roller rockers, and revised induction for clean pull past 5,000 rpm. Bump compression to ~10.8:1, raise fuel cut to ~6,300 rpm, and tune the curve so it holds power, not just peaks—netting 330 hp @ 5,800 rpm and 340 lb-ft @ 4,500 rpm. Keep the architecture honest and manners intact with tighter balancing and sharper calibration. Pair it exclusively with the ZF S6-40 six-speed so the gearing matches the new lungs. Same Corvette, second wind—sharper at the top, stronger in the middle, eager to sing to the shift light.

GM was not chasing a flashy dyno number here. The goal was to improve the engine’s breathing, strengthen the hardware around it, and maintain the level of control needed for the Gen II small-block to live comfortably at a 6,300-rpm redline. That mattered because the LT1 already did its job well. It was tractable, torquey, and easy to live with, delivering the kind of broad, usable performance that made the late C4 such a capable street car. Chevrolet did not need to reinvent that formula. It needed to be refined.

That was the LT4’s assignment. Rather than changing the engine’s character, Chevrolet worked to extend it. The idea was to hold onto the LT1’s strong midrange torque, then keep the engine pulling cleanly and confidently from around 4,000 rpm to the shift point. Just as important, it had to do that without introducing the usual penalties. Idle quality still needed to be reasonable. Emissions compliance still mattered. Long-term durability and day-to-day service life could not be traded away in the name of a higher red line. In that sense, the LT4 was not a radical departure from the LT1. It was a more developed version of the same basic idea, engineered to do more at the top end without sacrificing the features that made the platform work everywhere else.

Airflow & valvetrain (where the horsepower comes from)

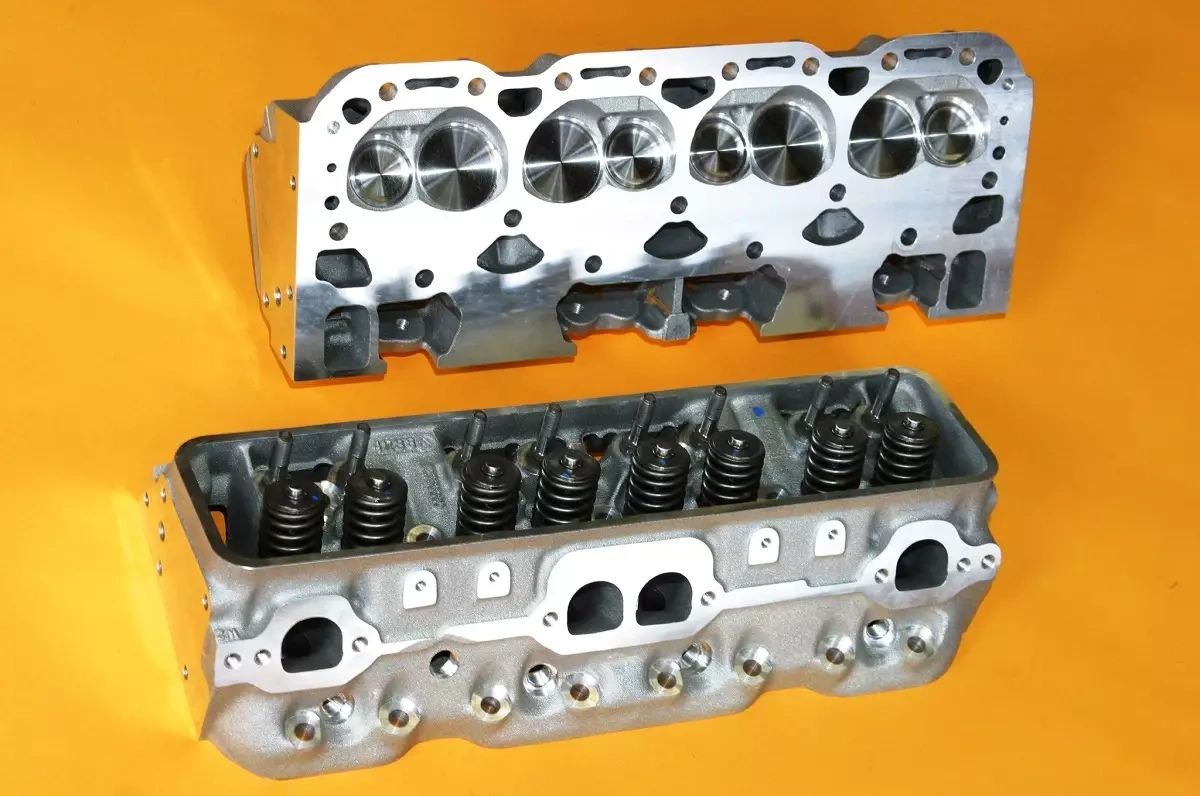

Think of the ’96 LT4 heads as the LT1’s homework—reworked and turned in for extra credit. Unique aluminum castings with cleaner ports and a more efficient, heart-shaped chamber helped squeeze compression up and airflow way up, which is why the LT4 is happier to rev and pulls harder past 5,000 rpm. Larger valves and higher-rate springs (paired with 1.6:1 roller rockers and a hotter cam) kept the valvetrain stable to the LT4’s higher redline. The payoff is classic late-C4 character: crisp throttle, a broader torque curve, and that last-third surge that made the red-intake small-block feel special. (Image courtesy of Jim Smart/onallcylinders.com)
- Cylinder heads (aluminum, LT4-specific): Taller, straighter ports and a revised short-side radius reduce turbulence and bias more flow toward mid-lift—exactly where a street cam spends most of its time. The chambers were gently reshaped to keep the mixture motion stable at the LT4’s 10.8:1 compression.
- Bigger, lighter valves: 2.00-in intake / 1.55-in exhaust with hollow stems trim mass at the tip of the system (the most expensive place to carry weight). Less mass means less spring force is needed to control the valve at high rpm—so you get stability without the lash-hammer that kills guides.
- Ovate-(oval-)wire springs: Higher rate and better resistance to coil bind at the LT4’s added lift, without resorting to an aggressive installed height that would fret keepers and retainers.
- 1.6:1 roller rockers (Crane-supplied): The higher ratio is a quiet multiplier—lift goes up, and the valve sees a slightly quicker opening rate early in the event, which helps the port “wake up” sooner. Being full roller, they also cut friction and valvetrain temperature.
- Camshaft: Modest but meaningful—.476/.479-in lift and 203°/210° @ .050 (int/exh). That’s still street-friendly overlap, but paired to the heads and rockers, it creates a fatter midrange and a cleaner top-end than the LT1 ever had.
- Roller timing set: Quieter, tougher at sustained rpm, and more stable for spark control.
Induction, fuel, and spark (how it’s fed and managed)

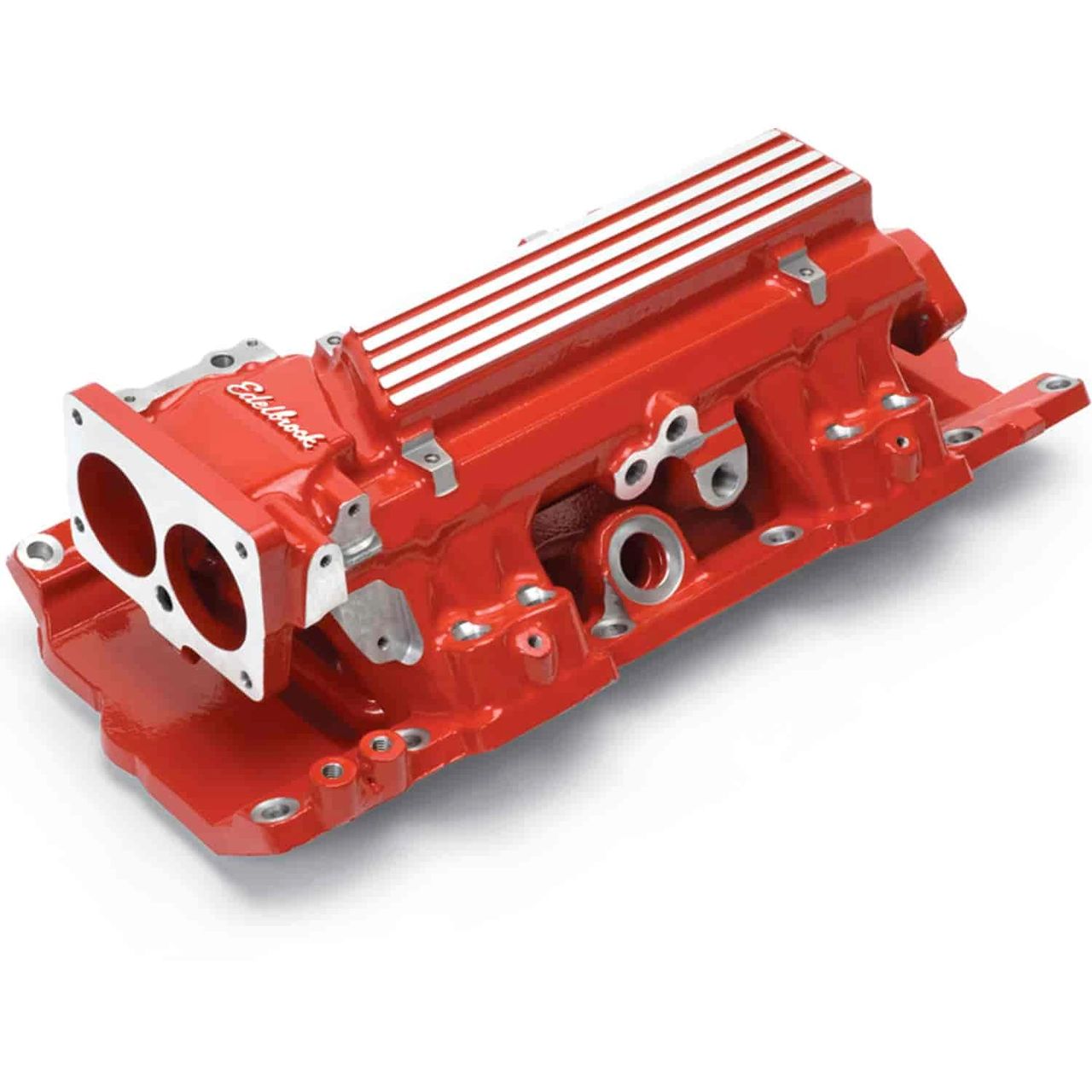

Think of it as the LT4’s “lungs,” turned up. This high-flow intake—Edelbrock’s take on the LT4-style manifold—uses cleaner, less restrictive runners and a larger plenum to move more air with less effort. The result is sharper throttle response and a fatter power curve upstairs, especially when paired with a freer-breathing cam and heads. The trademark finned top and red finish nod to the factory LT4 while the aftermarket casting quality, thicker flanges, and port-match potential make it a smart, bolt-on path to real gains without sacrificing street manners. NOTE: Edelbrock has since discontinued manufacturing this intake manifold.
- High-flow intake manifold: Taller runners are port-matched to the LT4 heads, so there’s no step at the gasket face. You feel it as a stronger pull from about 4,000 rpm onward.
- Revised throttle body & calibration: The LT4 uses its own PCM tune (’96 is OBD-II), with higher fuel-cut, different spark tables, and knock-sensor logic that tolerates the extra compression without getting overcautious.
- MAF-based management (’94-’96): Mass-air cars respond cleanly to the LT4’s flow; transient fueling is tidier than early speed-density LT1s.
- Higher-flow injectors & fuel curve: Calibrated to keep duty cycle in a safe window at the raised redline, preserving spray quality where the LT1 was already near the edge.
Bottom-end & durability (why it survives at 6,300)
- Compression to 10.8:1 is enabled by reverse-flow cooling (Gen II signature), which cools the heads first. That lets you run more spark where the LT1 would have been knock-limited, especially under sustained load.
- Crank/gear/water-pump drive revisions: The LT4 got strengthened drive gears and a roller chain for more stable timing at rpm; less torsional noise means steadier spark with Opti-Spark.
- Select-fit bearings & balance: Tighter production control on bearing clearances and rotating balance cut friction and heat, which matters when you’re asking the same displacement to do meaningful work at higher piston speed.
- Factory synthetic oil fill: Part protection, part cooling strategy. Period engineers pointed out that the LT4’s lack of an external oil cooler was mitigated by the thermal headroom of synthetic at high road speeds.
Character change you can feel
- Idle and part-throttle remain well-mannered—no lumpy theatrics. The PCM, the MAF, and the mild seat timing keep the engine’s behavior composed.
- Midrange: The heads/rockers/cam combo thickens the center of the curve. Third gear becomes the “do-everything” gear on a two-lane.
- Top-end: Past 4,000 rpm the LT4 feels notably less strained; the last 1,500–2,000 rpm are useful instead of perfunctory. That’s why instrumented tests show similar 0–60s but higher trap speeds and top speed—the car carries speed better once it’s moving.
Visual & forensic tells (for authenticity)

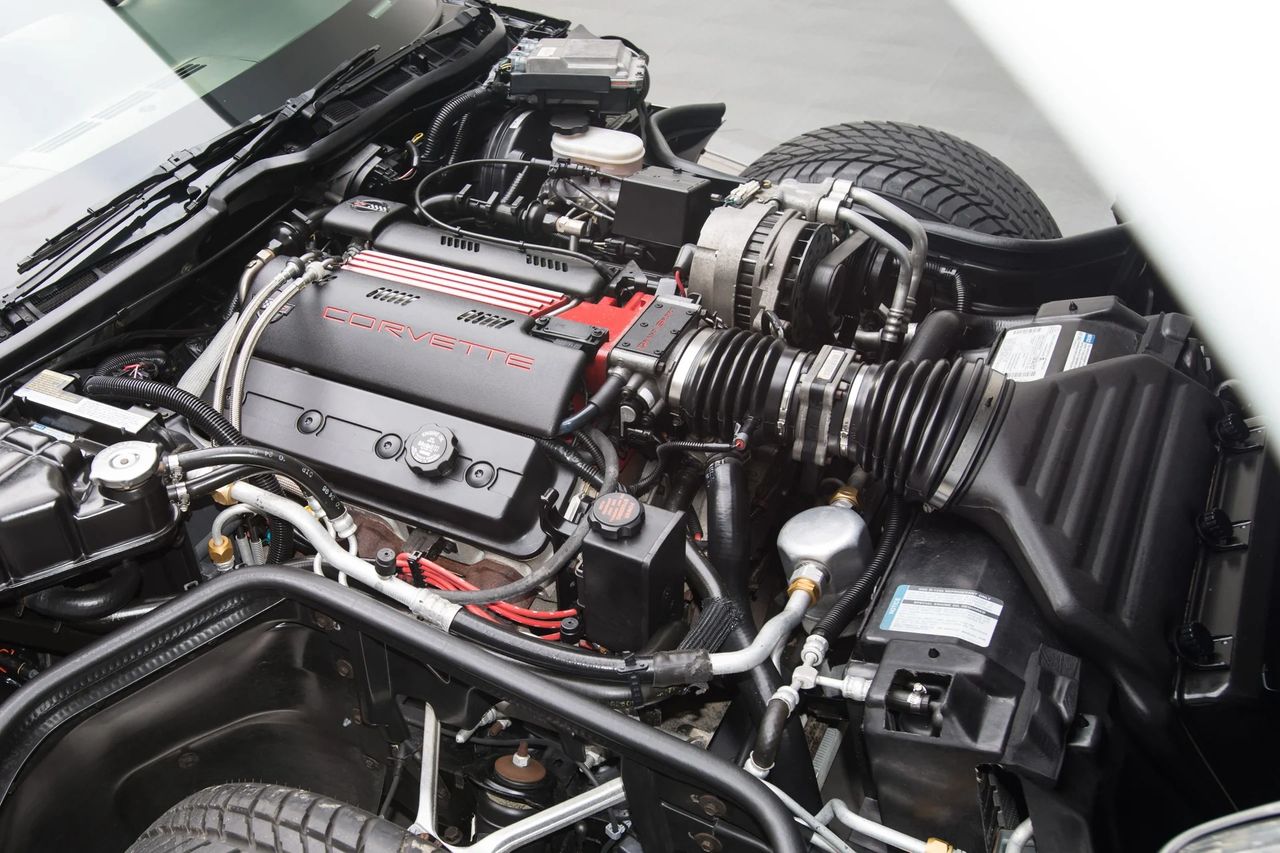

To help differentiate it from the LT1, the LT4 was “dressed” in red. Each LT4 engine featured a red intake manifold, red plug wires, and a “GRAND SPORT” nameplate on the throttle body, even on non-Grand Sport models. (Image courtesy of RK Motors)
- Red intake manifold and red plug wires (factory “dress”) with LT4-specific casting and port match. Each LT4 also included a “Grand Sport” nameplate atop the throttle body,.
- 8,000-rpm analog tach with 6,300-rpm redline in the cluster.
- Manual only (MN6 ZF S6-40)—if it’s an automatic, it isn’t an LT4.
- LT4 PCM code & label and LT4-specific head/intake castings (for the concours crowd).
Why it matters in the C4 story

If it’s a 1996 LT4, it’s a 6-speed—period. Chevrolet paired the 330-hp, red-intake LT4 exclusively with the ZF S6-40 manual gearbox; automatics stuck with the LT1. Spot the red plenum and you’re looking at a factory manual-only C4. (Image courtesy of RK Motors)

The LT4 isn’t a wild cam stuffed into an old engine; it’s systems engineering applied to a familiar package—airflow that matches cam timing, valvetrain that stays truthful at rpm, calibration that takes advantage of compression without tripping emissions, and durability tweaks so it does it again tomorrow. It’s the finished thought for the Gen II small-block and the right final note for a platform that always rewarded a well-tuned top half of the tach.

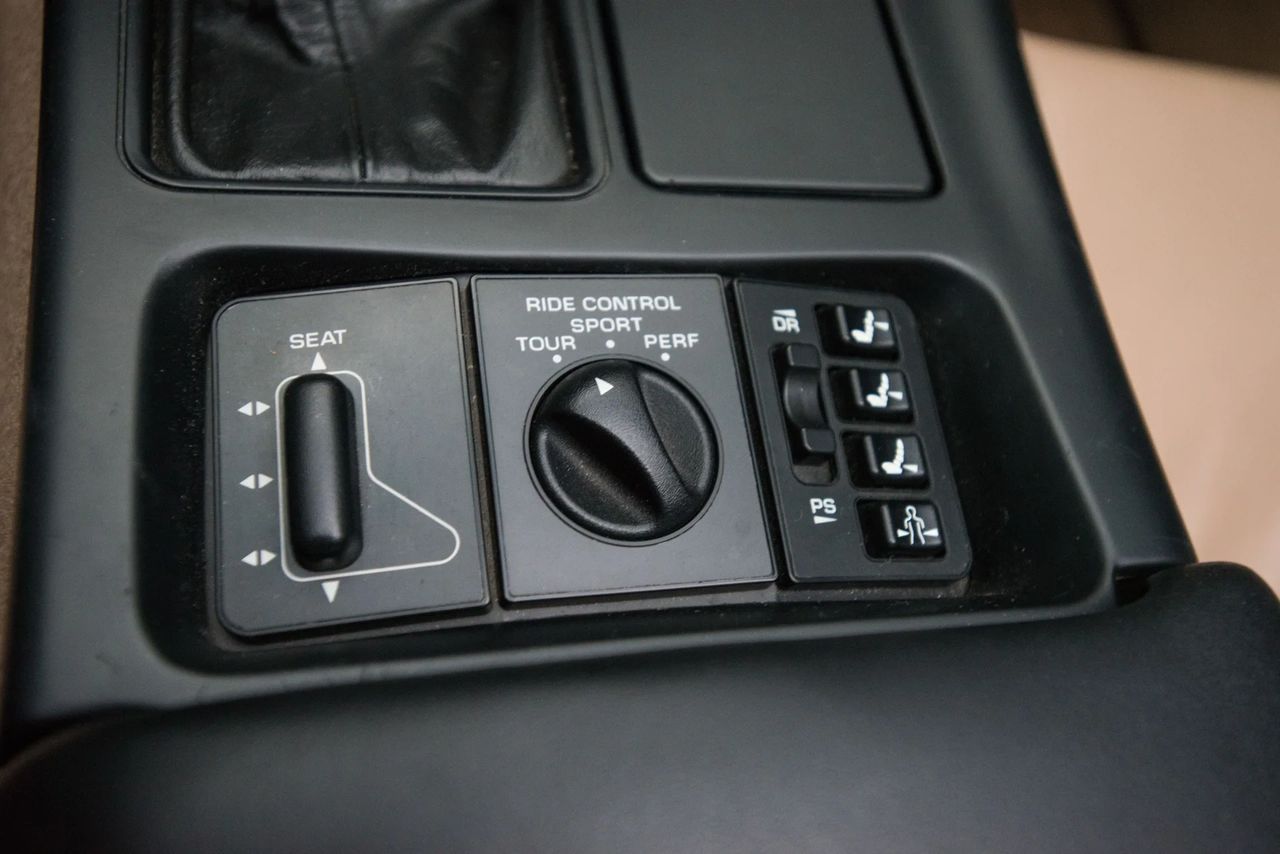

3) Selective Real Time Damping (RPO F45) replaces FX3

New for 1996, F45 used wheel sensors and a dedicated controller to adjust each shock individually in real time—roughly every 10 to 15 milliseconds—to better balance impact control and ride quality. If FX3 was the 1990–1995 version of the conversation, with the driver choosing the setting, F45 was the car making those decisions on its own unless you stepped in. It was one of those endgame refinements that made late C4s feel surprisingly modern.

4) Z51 Comes Back With Purpose (’96 Coupes Only)

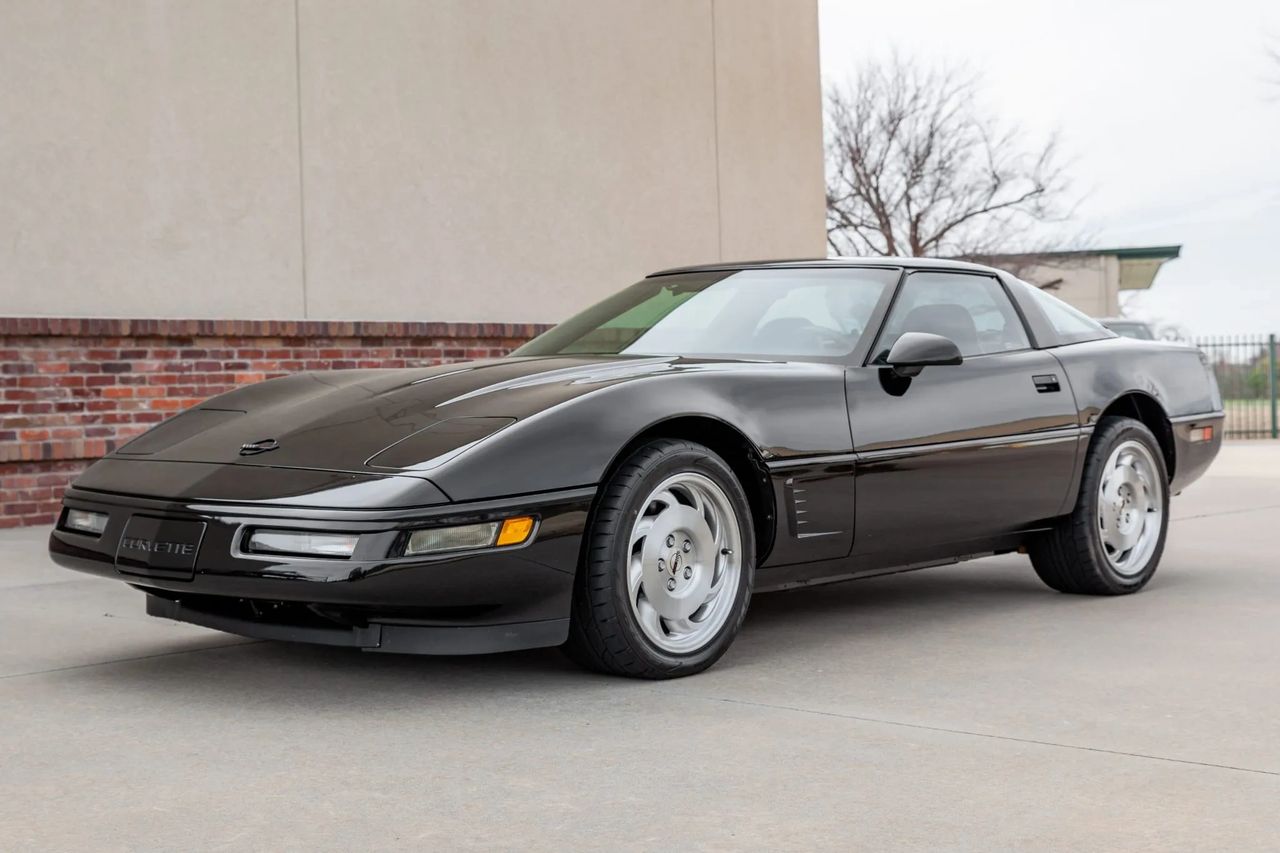

If you wanted a C4 that felt wired-in right out of the box, Z51 was the button to press. The package stiffened the springs, stabilizer bars, and bushings, added Delco-Bilstein–type sport shocks, and bundled a power-steering cooler—all factory kit aimed at quicker responses and fade-free lapping. Z51 cars also stepped up to 17×9.5-in wheels with P275/40ZR-17 Goodyear GS-Cs (and no EMT run-flats), a tire/wheel combo you could spot at a glance. The option was widely available across ’96 Corvettes—including LT4 cars and even the Grand Sport tested by Car and Driver—and it was affordable, typically listed at about $350 on the window sticker. In short: Z51 made the C4 feel taut and track-ready without turning it into a pain on the street.

Chevrolet didn’t revive Z51 as a nostalgia badge; they brought it back to give the last-year C4 a factory autocross setup right out of the box. The package swapped the touring tune for fixed-rate Bilstein dampers, stiffer springs, firmer bushings, and larger stabilizer bars, then put the car on 17×9.5 wheels with P275/40ZR17s at all four corners. With the automatic, Z51 paired to G92’s 3.07 axle, so the car would step off cleanly; manuals kept the 3.45, which the LT4 used to real effect in second and third.

How it drives (and why)
- Turn-in & transient feel: The higher roll stiffness and firmer bushings take the last bit of slack out of the platform. Initial yaw is quicker, and the car takes a set with less heave before it starts working the tire. It reads as calmly aggressive—classic C4 honesty, just crisper.
- Mid-corner balance: Neutral if you’re tidy; gentle power-on push if you’re greedy with entry speed. Trail a breath of brake and it rotates; feed throttle and it plants. The wide-square tire setup helps the car respond the same in both directions, which is why Z51 shines between cones.
- Ride quality: You’ll feel the sharper low-speed damping over patchwork pavement. It’s not abusive, but it’s candid. On smooth roads, the car relaxes and covers ground with that long-legged C4 composure.
- Brakes & heat: The standard binders are fine for street and short runs. If you’re planning regular events, the J55 heavy-duty brakes (thicker rotors, more thermal headroom) are the right companion—period testers said as much—and good pads/fluids make the whole package come alive.
How it fits with the rest of the lineup
- Z51 vs. F45: Think of Z51 as the fixed, competition-leaning tune and F45 as the adaptive, road-biased tune. You chose one philosophy or the other. Z51 delivers the most immediate feel; F45 delivers the most bandwidth for mixed surfaces.
- Tires & alignment: Z51’s broader camber and toe windows let you dial in a bit more negative camber and a hair of toe-out up front for autocross without chewing up a road-trip. Keep pressures even side to side and sneak up on the balance; the platform will tell you when you’ve gone too far.
Gearing and character
- Automatic (3.07): First is short enough to get you cleanly out of a box; second does most of the work; the 0.70 overdrive keeps highway revs low.
- Manual (3.45): The ZF’s defined gates and that shorter axle mean third is the hero gear on most back roads. The LT4’s stronger top half makes the car feel lighter on its feet.
The point of Z51 in 1996

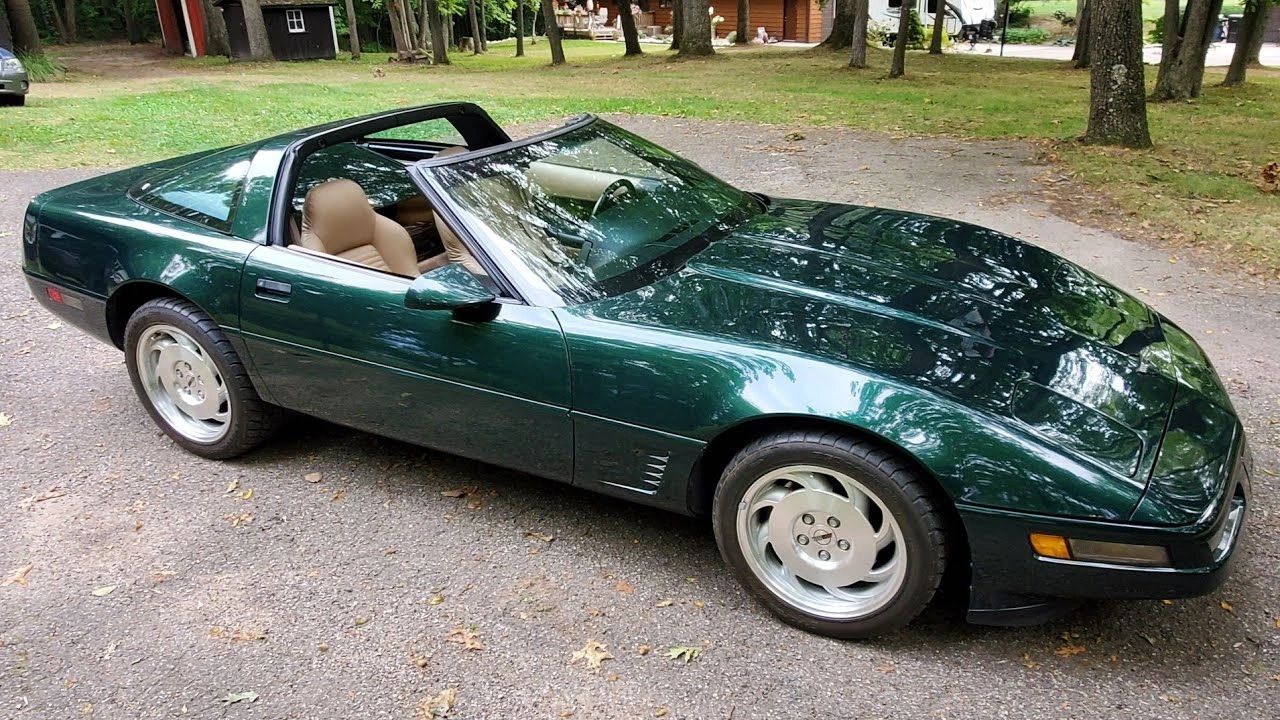

The 1996 Corvette didn’t coast to the finish line—especially with Z51. Chevrolet brought the heavy-duty handling package back with stiffer springs, bigger anti-roll bars, firmer bushings, and performance-calibrated dampers that woke up the C4’s already rigid structure. The result was sharper turn-in, flatter cornering, and that “buttoned-down” feel the faithful wanted for autocross and back-road work. The car shown ties it together nicely in Polo Green Metallic over Light Beige leather, a classic late-C4 combo that looks as composed as it drives. Pair it with the LT4/6-speed and you get the last, best expression of the C4’s analog charm—a final-year car that still asked you to drive.

It’s a last-year Corvette that doesn’t coast. Z51 gave buyers a factory-sanctioned way to sharpen what the C4 already did best—steer with clarity, stay flat, put down power—and do so without turning the car into a buckboard. If you were the owner who packed a helmet next to an overnight bag, Z51 was Chevrolet’s way of saying, “We remember you.”

5) Transmission and Drivability Tweaks

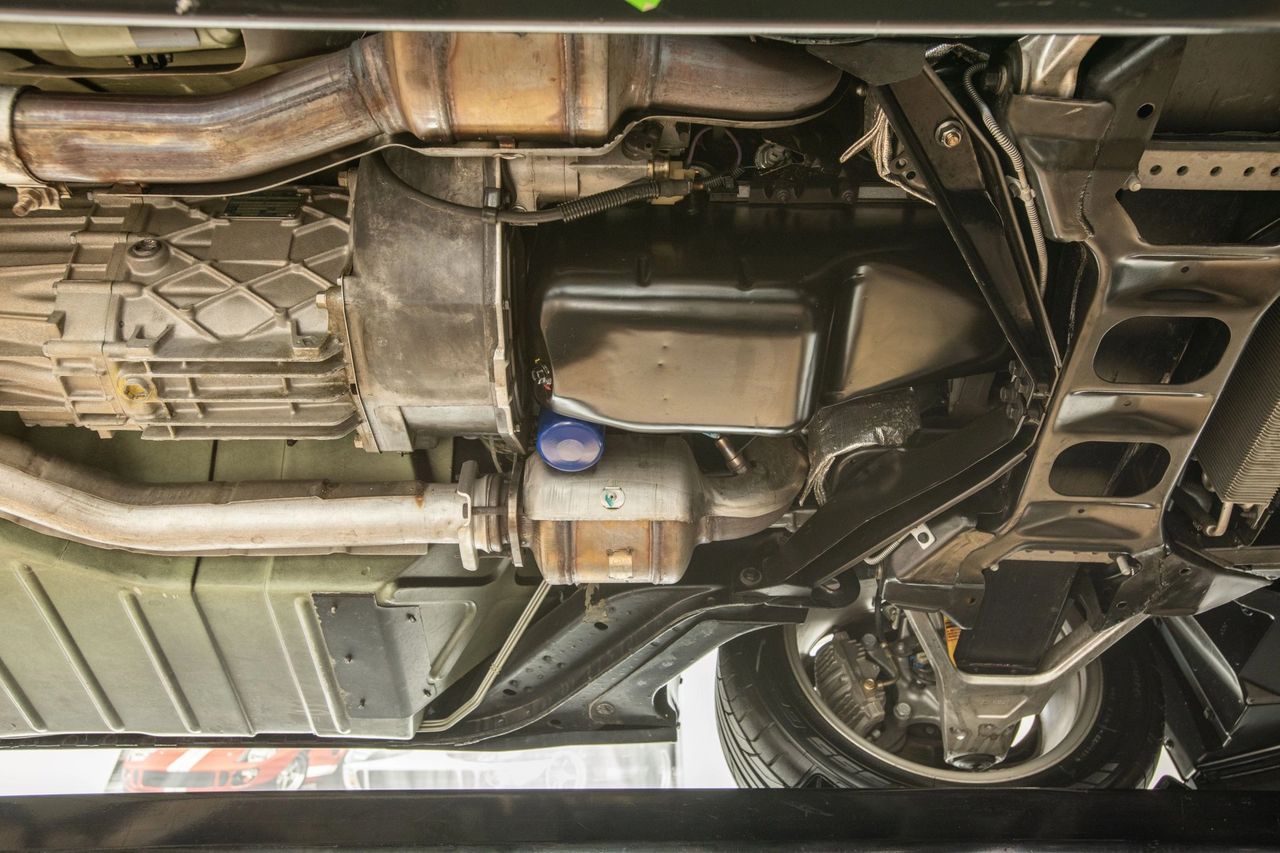

4L60-E (automatic): what changed and how you feel it
- Smarter lockup logic. The torque-converter clutch applies more progressively and at more sensible times, so part-throttle cruising doesn’t “thump” into lockup or hunt on rolling terrain. You feel it as a calmer, more settled car at 40–60 mph and a steadier rpm needle on gentle grades.
- Cleaner shift scheduling. Calibrations trim the awkward light-throttle upshift/downshift dance that earlier cars could do in suburban traffic. It now holds a gear a beat longer when you tip in, and it doesn’t downshift at the first hint of an overpass.
- Refined line-pressure/accumulator tuning. The valve-body tweaks and pressure mapping take the edge off the 1–2 at small throttle, but keep authority when you’re in it. Net: less “slur” when you want precision, less “slam” when you’re loafing.
- Converter durability improvements. Revised friction materials and tighter control of apply rates mean less heat and less glaze in real-world use—good news for anyone who road-trips or sees a lot of stop-and-go.
- Better cold manners. On a chilly start, the box no longer feels half a step behind your right foot. Fluid warms, shifts clean, and the calibration stops calling attention to itself.
What it adds up to: the LT1/4L60-E combo in ’96 reads like a grand-touring answer—quietly decisive, less busy, and content to disappear into the background until you need a downshift. Order G92 (3.07) and the car steps off with intent but still settles into that long-legged overdrive on the highway.

ZF S6-40 (manual): known quantity, finished feel
- Defined gates, decisive engagements. By ’96, the ZF’s character is fully baked: short, mechanical throws with a positive “click” that makes second-to-third a joy instead of a prayer.
- Dual-mass flywheel civility. The flywheel/clutch package smooths idle and low-speed creep, so the car will crawl in traffic without chattering, yet still snaps to attention when you roll past 3,500 rpm.
- Ratio harmony with the LT4. The gear spread keeps the engine in the fat of the curve; third becomes the hero gear on a back road, fifth is a real passing gear, and sixth knocks the noise out of interstate miles.
- Driveline polish. Mount and NVH work across the platform mean fewer little shudders when you lug it, less resonance when you hold a steady 2,200–2,500 rpm, and cleaner rev-matching on downshifts.
Denver’s Dave Bell built the sinister black 1996 Corvette “Black Widow,” a Grand Sport–style clone created from a flawless ’96 LT4/6-speed coupe. Painted with G/S stripes and flares, the car backs its look with real bite—Lingenfelter-massaged LT4 heads and intake, supporting hardware, and a fortified driveline. The result is a show-winning, track-used C4 that even earned praise from Corvette brass of the era. This feature was originally published by Motor Trend; click the image to read the full article and see all the photos. (Image courtesy of Motor Trend)

What it adds up to: the LT4/ZF pairing feels finished. The engine’s extra breath makes the upper half of the tach useful; the gearbox lets you live there. It’s the combination that turns the C4 from “quick” into “alert,” without spoiling the car’s long-distance manners.

Bottom line: The 1996 Corvette didn’t just simplify the choices; it fortified both paths. The automatic car behaves like a newer machine—smoother, less fussy, easier to live with. The manual car delivers the most satisfying version of the analog C4 experience—clear gates, clean revs, and a driveline that finally feels as buttoned-down as the chassis.

6) Emissions/diagnostics modernized across the board

1996 is the year the C4 steps into the modern service bay. OBD-II becomes standard, and with it the Corvette gains a common language for diagnostics that finally matches its engineering.
- Standard port, standard codes. A 16-pin diagnostic link connector sits under the driver’s knee bolster. Any compliant scan tool can speak to it using the SAE J1962/J1979 protocol and read standardized P0xxx fault codes. GM-specific P1xxx “enhanced” codes are there too, so you get both the universal stuff and the deeper marque detail.
- Continuous monitoring. The PCM now runs a suite of self-tests in the background and sets readiness flags when each passes: misfire, fuel/air metering, oxygen sensor & heater, catalyst efficiency (thanks to post-cat O₂s), EGR, and EVAP purge/vent. When all monitors are “ready,” the car will pass an OBD-II–style inspection as long as no active faults remain.
- Better fault forensics. Trip a MIL (check-engine light) and the PCM stores freeze-frame data (engine load, rpm, coolant temp, vehicle speed) at the moment of failure. Early OBD-II also exposes Mode $06 results—raw test numbers for things like misfire counts and O₂ switch rates—useful for catching a marginal part before it becomes a hard fault.

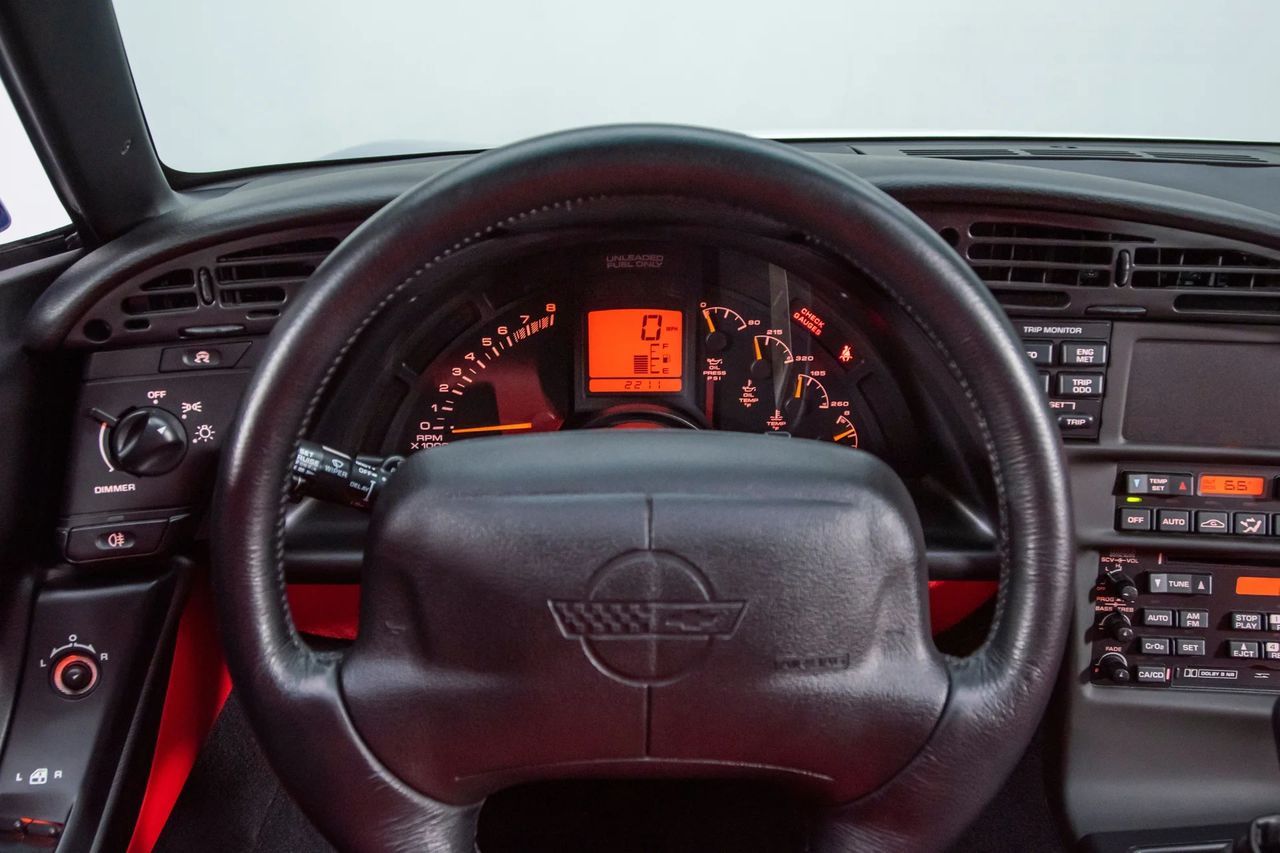

The ’96 C4’s cockpit was a rolling crime lab—the kind of “forensics” that tells you exactly what the car is doing and why. A crisp digital speed readout sits in the center while the arced tach and full analog auxiliaries ring it with oil temp/pressure, volts, and coolant temp—real numbers, not guesses. To the right, the Trip Monitor serves up the evidence: instant and average fuel economy, range to empty, dual trip mileage, and engine metrics at the touch of a button. Automatic climate control adds its own digital precision, and 1996’s OBD-II hardware backs it all with standardized diagnostics. Put together, the late C4 dash doesn’t just inform—it testifies. (Image courtesy of RK Motors)
- Sharper eyes on the hardware.
- Misfire detection watches crankshaft speed variation and flags individual cylinders—something OBD-I couldn’t do.
- Catalyst monitoring compares pre- and post-cat O₂ signals to verify the converter is actually storing oxygen and doing work.
- EVAP gets real integrity checks: purge/vent function and tank pressure behavior. (No pump yet in ’96; GM uses vacuum decay logic here.)
- EGR flow is validated by how the engine responds when the valve is commanded.
- Owner reality. Disconnect the battery, and your readiness monitors reset; you’ll need a full drive cycle—cold start, steady cruise, decel with fuel cut, a few minutes of idle—to flip them back to “ready” before an emissions test. The upside is real: drivability calibrations are cleaner, diagnostics are faster, and parts swapping gives way to targeted repairs.
- Gen II specifics still apply. You’re still dealing with the Opti-Spark era, but OBD-II makes it easier to separate an ignition hiccup from, say, an O₂ heater that’s gone lazy. On LT4 cars, the higher redline doesn’t confuse the system; the PCM and monitors were calibrated for the extra rpm.
Net: the ’96 Corvette is the most serviceable C4 to own. It uses modern tools, proves its emissions health with data rather than guesswork, and gives you (or your tech) exactly the breadcrumbs you need to fix it right the first time.

7) Color and trim that told a story

Nine colors, headlined by Sebring Silver Metallic, which proved wildly popular. Wheel choices and seat embroidery followed the new special editions (details below), but the broader palette reflected how Chevrolet wanted the car remembered: composed, grown-up, still willing to shout when you asked.

How the LT4 changed the drive (and how the press measured it)

The 1996 Grand Sport did more than look special. Its LT4 gave the car a sharper, more urgent character, holding its pull deeper into the rev range than the LT1 and rewarding drivers who stayed in the throttle. With 330 horsepower, a 6,300-rpm redline, and a 6-speed manual as the only transmission, the Grand Sport felt like the most focused and most hard-edged version of the C4 formula ever offered from the factory.

The best period snapshots are the instrumented tests. Car and Driver recorded a 0–60 time of 5.1 and a 13.7-sec/104-mph quarter for an LT4 Grand Sport, with top speed ~168 mph, and noted, with admirable candor, that the big Goodyears made the car harder to launch cleanly, demanding 4,000-plus rpm and committed clutch work. They also flagged the GS’s lack of an oil cooler for sustained top-speed running, quoting Corvette engineering manager Bob Applegate on the value of synthetic oil at those temperatures. Road & Track saw 5.2 to 60 and 13.7 @ 105.1, praising the repeatability and the ZF’s well-defined gates. The consensus reads like this: the stopwatch didn’t move by half a second, but the upper-midrange pull did, and the top-end told the truth.

From behind the wheel, the difference was real. An LT1 C4 delivered the kind of torque and tractability that made the car easy to enjoy anywhere. The LT4 kept that same basic character but added a stronger pull through the upper rev range, making the car feel more alive when driven hard. For the people who cared about the way a Corvette felt on a back road, that mattered more than a small number on a spec sheet.

Special Edition (Z15): the Collector Edition

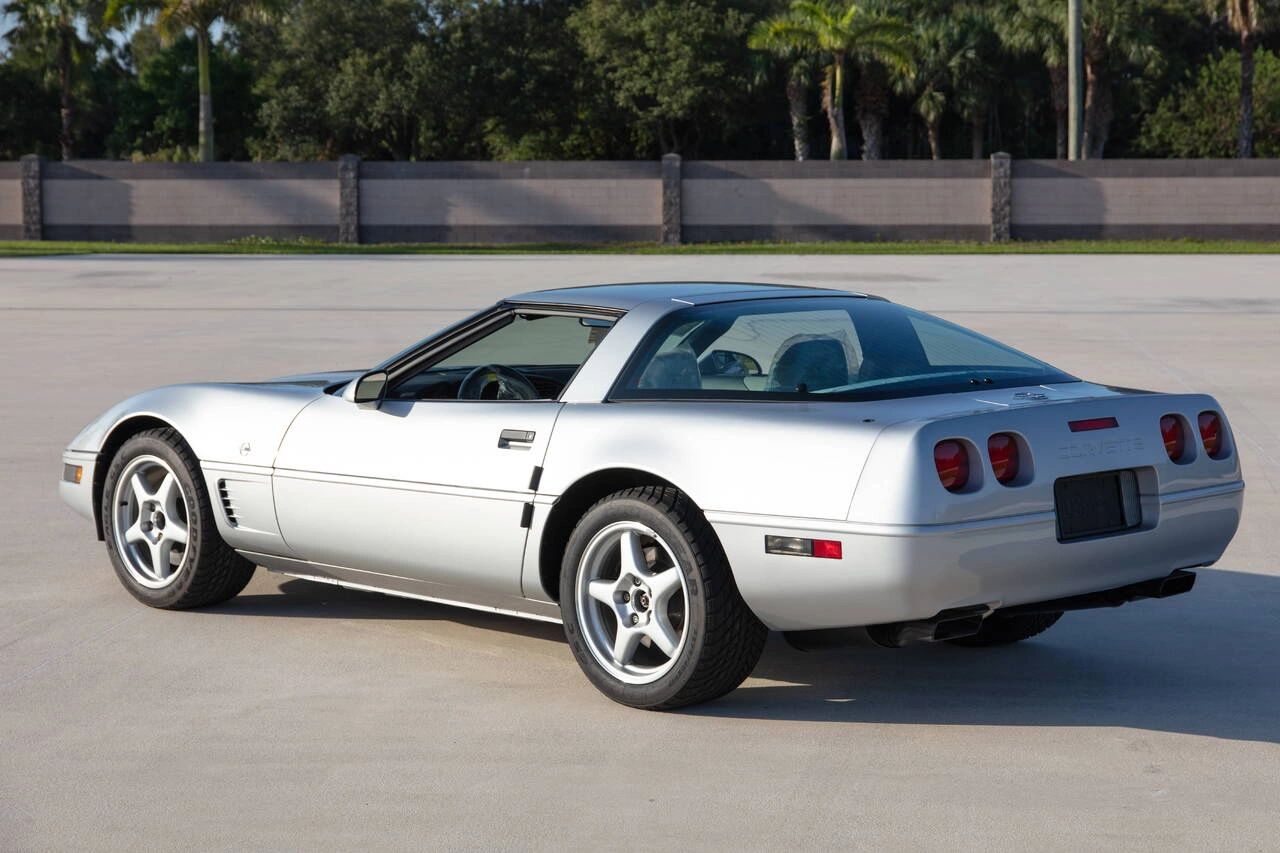

1996 Collector Edition in Sebring Silver Metallic—five-spoke ZR-1-style wheels, subtle CE badging, black calipers, and all the late-C4 polish. A dignified send-off that still looks sharp from any angle.

Chevrolet gave the C4 a proper sendoff in 1996, and the Collector Edition was a big part of that. Option code Z15 wrapped the final-year car in Sebring Silver Metallic and backed that color with a package of details that felt coordinated rather than forced. The silver-painted 17-inch five-spoke wheels, styled after those used on the ZR-1 and sized 17×8.5 up front and 17×9.5 in the rear, gave the car a more serious stance without pushing it into excess. Black brake calipers with bright “CORVETTE” lettering added just enough contrast, while the chrome Collector Edition badging on the body and the embroidered perforated sport seats inside made it clear this was not just another late C4 with a paint-and-sticker treatment.

What made the package work so well was its restraint. Chevrolet did not overplay the moment. The Collector Edition looked special, but it still looked like a Corvette first. That mattered. Offered on both the coupe and convertible for $1,250, it struck a tone that felt dignified, confident, and appropriately final. Buyers responded to that formula in real numbers. Chevrolet built 5,412 Collector Editions in all, including 4,031 coupes and 1,381 convertibles, which tells you the package landed exactly where it needed to. It was distinctive enough to matter, but tasteful enough that it never felt gaudy or overly commemorative.

The powertrain story also fits the car’s spirit. Collector Edition buyers were still buying a real driver’s Corvette, not a static appearance package. Depending on transmission, the car could be ordered as an LT1 with the 4L60-E automatic or as an LT4 with the ZF six-speed manual, and both combinations felt honest to the brief. One leaned more toward smooth, usable grand-touring refinement. The other gave the final-year C4 a sharper edge. Either way, the Collector Edition did not separate appearance from substance.

Inside, Chevrolet kept the trim choices tight and appropriate, with black, gray, or red interiors depending on configuration. That restraint helped the package hold together visually. Just as important, the Collector Edition required the 1SB or 1SD preferred equipment groups, so these cars generally carried the sort of equipment that makes late C4s feel complete and fully sorted. Taken as a whole, the Collector Edition was exactly what it needed to be: a last-year Corvette that looked composed on the road, credible on a show field, and collectible without trying too hard to announce itself.

Grand Sport (Z16): the love letter with a chassis

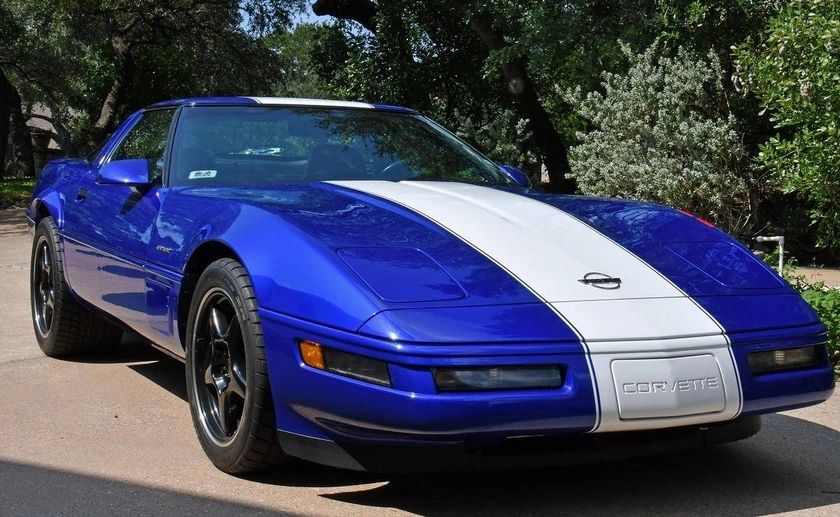

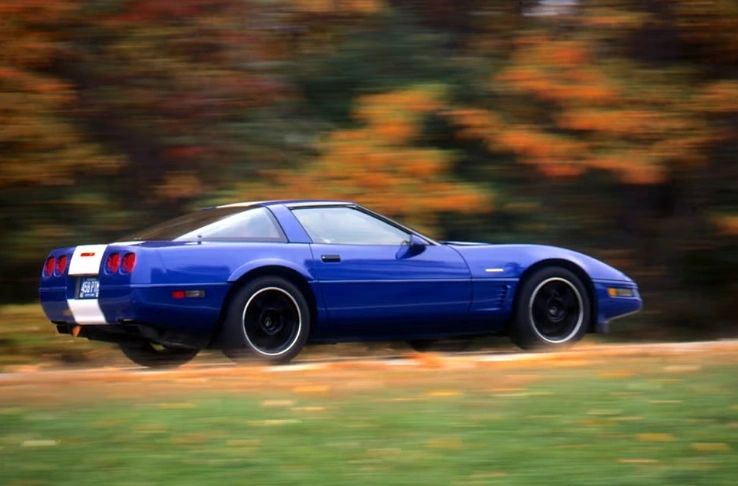

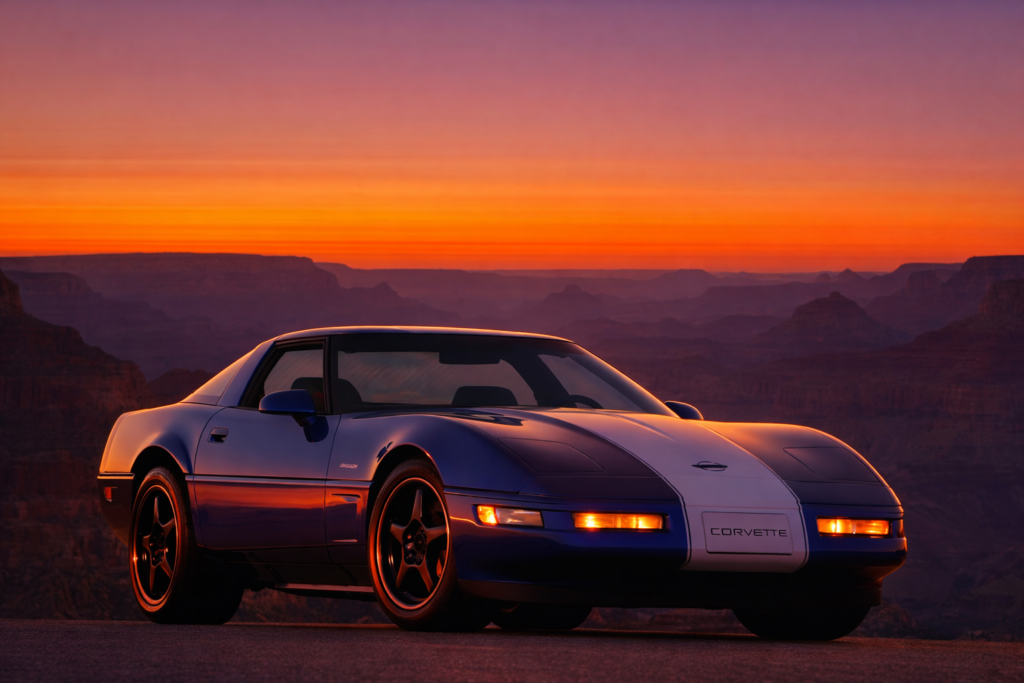

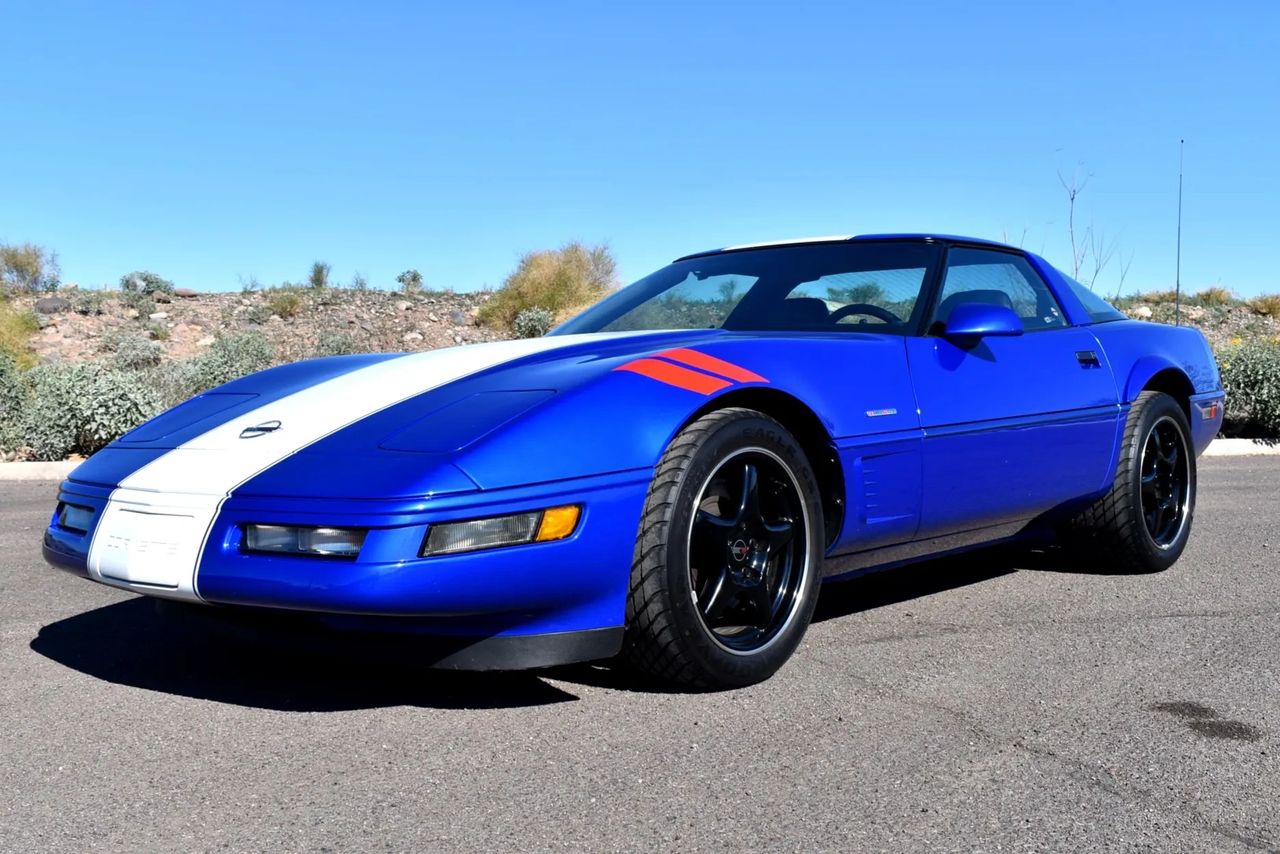

The 1996 Corvette Grand Sport—Admiral Blue with the white spine and red Sebring hashes, LT4/ZF6 under the skin and ZR-1-width rears out back. The C4’s last word, said loud and right.

You cannot tell the Corvette story without talking about the Grand Sport, and Chevrolet understood that in 1996. When the name returned, it was not treated like a nostalgia exercise or a simple appearance package. Chevrolet made sure the car felt important at every level. The Admiral Blue paint, full-length white stripe, and red driver-side fender hash marks immediately tied the car back to the 1963 Grand Sport racers, giving the final-year C4 one of the most recognizable factory identities in Corvette history.

The mechanical side mattered just as much. Every 1996 Grand Sport came standard with the LT4 and the ZF six-speed manual, so the car’s performance credentials were built in from the start. Coupes received P275/40ZR17 front tires and massive P315/35ZR17 rears, a combination that required unique adhesively bonded rear flares to cover the added width. Convertibles kept 255/45ZR17 front and 285/40ZR17 rear tires, so they did not need the flares, but they still carried the same essential Grand Sport character. Inside, Chevrolet kept the theme tight with either black or red-and-black interiors, both finished with embroidered headrests that reinforced the car’s limited-production identity.

Provenance mattered here, too, and Chevrolet knew it. Like the ZR-1 before it, the Grand Sport received its own unique VIN sequence, a decision that helped preserve the model’s identity from the beginning and kept it crisp for collectors later on. Credit is often given to people inside GM, including John Heinricy, for helping make that happen. It was a small detail on paper, but it mattered in the real world because it confirmed that the Grand Sport was being treated as a distinct Corvette, not just a trim-and-paint exercise.

That sense of purpose carried over into how the car drove. The Grand Sport felt like the C4’s basic honesty turned up just enough to matter. Period testers noted that the huge rear Goodyears made hard launches an exercise in patience and commitment, but once the car hooked up, the LT4 pulled through the middle of the rev range with real authority. The chassis kept the driver engaged, the brakes inspired confidence, and the steering still delivered the kind of direct, unfiltered communication that had long been one of the C4’s greatest strengths. It did not feel ornamental. It felt focused.

Chevrolet priced the package accordingly, with a $3,250 premium for the coupe and $2,880 for the convertible. Production was capped at 1,000 units total, including 810 coupes and 190 convertibles. That was limited enough to make the car instantly significant, but substantial enough to ensure that the 1996 Grand Sport would become more than a last-year curiosity. It became the exclamation point at the end of the C4 story.

The 1996 range, by the numbers (because history is also data)
- Total production: 21,536 (Coupes 17,167; Convertibles 4,369).
- Collector Edition (Z15): 5,412.
- Grand Sport (Z16): 1,000 (810 coupes; 190 convertibles).
- LT4/MN6 (manual) volume: 6,359 (matches manual total; LT4 was manual-only).
- F45 Selective Real Time Damping: 2,896.
- Z51 Handling Package: 1,869 (coupe only).
- G92 Performance Axle (3.07 with automatic): 9,801.

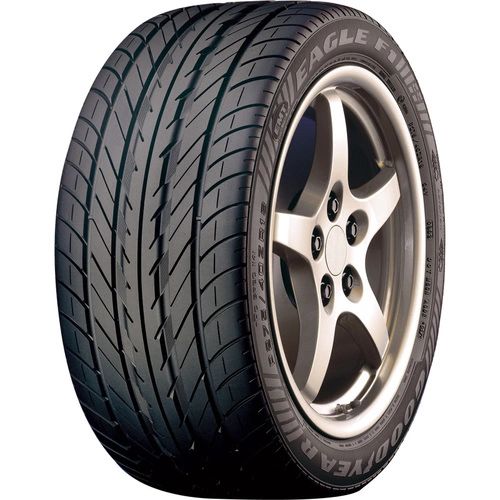

- Extended-mobility (run-flat) tires (WY5): 4,945.
- Base pricing: Coupe $37,225; Convertible $45,060. Options: LT4 $1,450; Z15 $1,250; Z16 $3,250 (coupe)/$2,880 (conv).

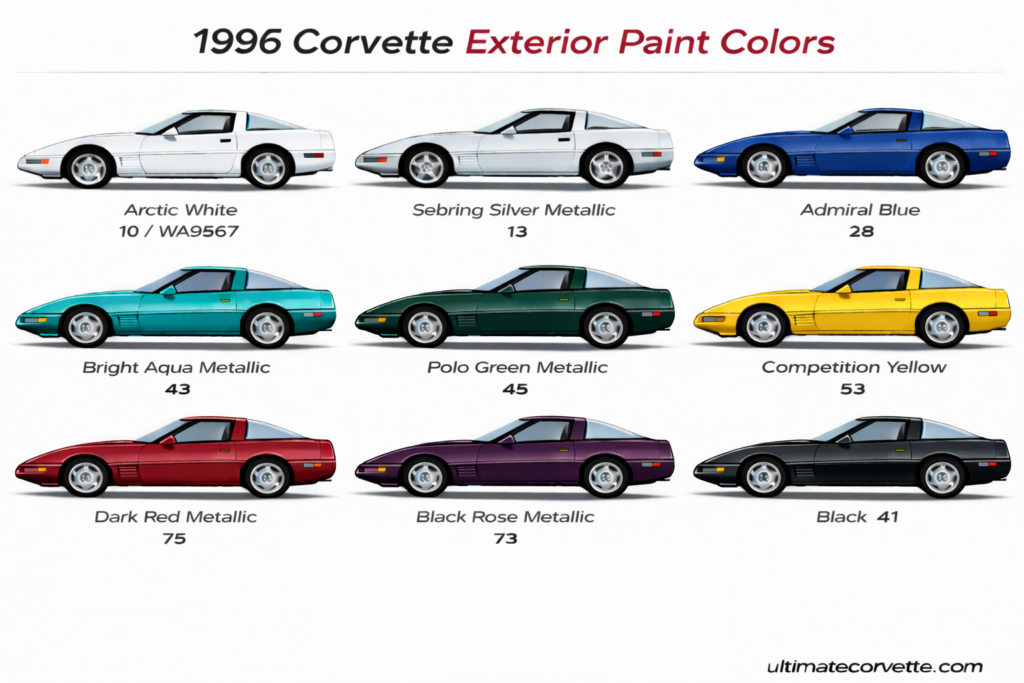

1996 Corvette Exterior Paint Colors (Image source: ultimatecorvette.com)

Colors: Dark Purple Metallic, Arctic White, Sebring Silver Metallic, Admiral Blue, Black, Bright Aqua Metallic, Polo Green Metallic, Competition Yellow, Torch Red. Sebring Silver was a runaway hit—roughly a quarter of ’96 production—with Torch Red and Black also strong; Admiral Blue is effectively tied to the 1,000 GS cars.

How to Spec a Perfect 1996 (with Hindsight)

If you want the quintessential late-C4 experience, an LT4 six-speed with F45 and J55 heavy-duty brakes is the sweet spot for real roads. Z51 is great if your commute includes cones and corner workers; just be candid about your pavement. The Collector Edition reads like the best “daily with provenance,” and a Grand Sport is exactly what it says on the decklid: the most iconic production C4, authenticated by its own VIN sequence and details you can spot from across a parking lot.

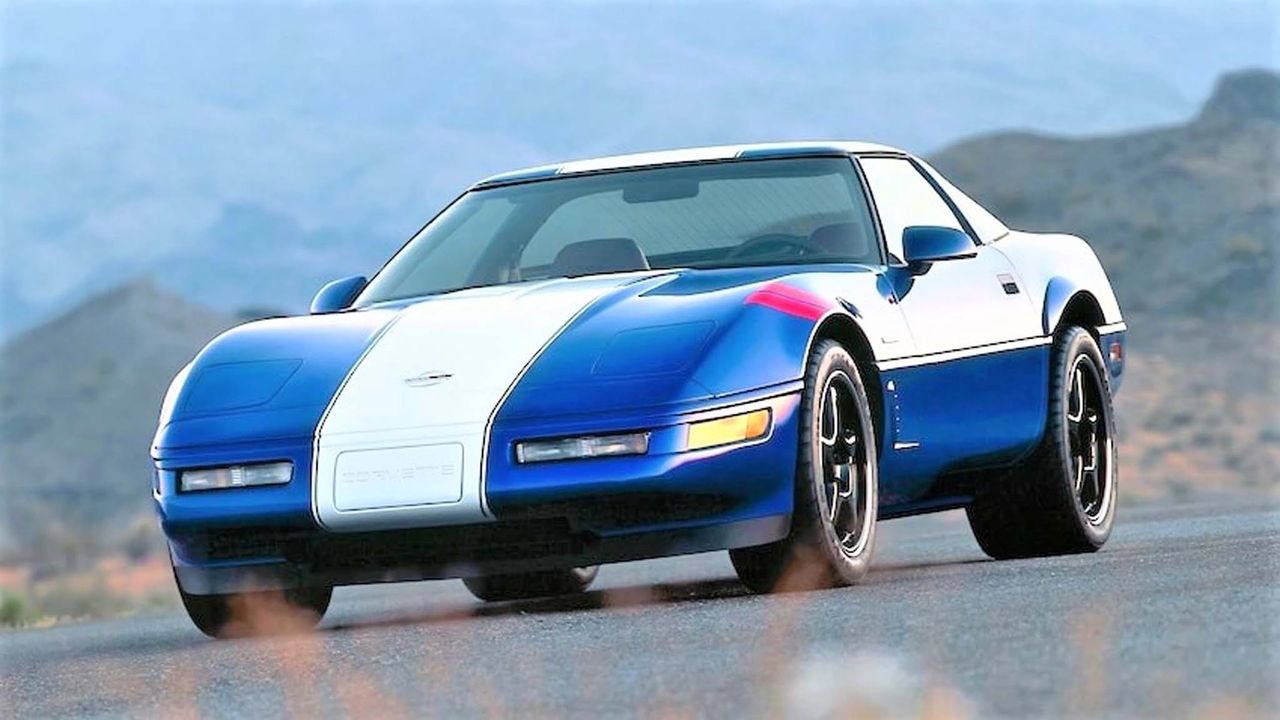

Why the 1996 Corvette Matters

The 1996 Corvette is the C4’s mic-drop. It’s the year Chevy gave the platform its final polish—LT4 power (manual-only), the return of Z51 for real handling bite, and two bookend specials: the silver-and-badged Collector Edition and the Admiral Blue Grand Sport with the white stripe and red hash marks. By then the chassis was tight, the ergonomics sorted, and the driveline durable; the car felt fully baked rather than “last-year tired.” It also set the table for the C5—teasing the refinement and solidity that would follow—while preserving the analog engagement people love about the C4. If you want the essence of late-C4 Corvette, 1996 is the year that says “we finished strong.” (Image courtesy of GM Media LLC)

The lazy take on last year’s cars is that they coast to the finish. The ’96 Corvette doesn’t. It’s a platform that spent twelve seasons learning what worked, then chose to leave on purpose. The LT4 doesn’t chase a headline; it finishes the thought—better breathing, smarter valvetrain geometry, clean pull to 6,300 without running out of voice. F45 doesn’t reinvent the suspension; it smooths the last rough edges so the tire talks without shouting. Z51 comes back not as nostalgia but as a nod to the owner who keeps a helmet in the hatch and knows what a clean slalom feels like.

The special editions aren’t costumes; they’re punctuation. The Collector Edition says, “We remember,” and does it with restraint—Sebring Silver, five-spokes, quiet embroidery, the right kind of ceremony. The Grand Sport answers, “We’re not done,” with Admiral Blue, the white stripe, the red hashes, and the stance every C4 wanted from day one—LT4, six-speed, and the right rubber under it. One closes the book neatly; the other lights the fuse one more time.

Then the house lights dim and the next set rolls on: hydroformed rails, a torque tube and rear transaxle, LS1 waiting in the wings. None of that erases the C4; all of it makes sense because of it. Drive a good ’96, and you can already hear the C5 in the quiet—panels that don’t argue, structure that stays calm over bad pavement, steering that keeps its sentence structure when the surface loses its grammar. The car doesn’t feel new so much as finished.

That’s how a generation should end.

1996 Corvette — Key Specifications

Engines & Transmissions
- Base (Coupe/Convertible): LT1 5.7L V8 — 300 hp @ 5,000 rpm • 335 lb-ft @ 4,000 rpm; 4L60-E 4-spd automatic or ZF S6-40 6-spd manual. ABS and ASR traction control standard.
- Optional (’96 only): LT4 5.7L V8 — 330 hp @ 5,800 rpm • 340 lb-ft @ 4,500 rpm; 6-spd manual only. Standard on Grand Sport (Z16); optional on base/Collector Edition.
Performance (period ranges)
- 0–60 mph (LT1/LT4): ~5.2–5.7 s • ¼-mile: ~13.8–14.2 s @ ~100–104 mph (equipment dependent). (Consistent with factory ratings and contemporary tests.)
Chassis, Suspension & Brakes
- Structure: Uniframe with composite body; forged-aluminum control arms (F/R); independent 5-link rear; transverse composite leaf springs.
- Suspension choices:
- FE1 standard (Bilstein shocks, HD 4-wheel discs).
- F45 Selective Real Time Damping (electronically controlled shocks, driver-adjustable).
- Z51 Performance Handling (stiffer springs/bars/bushings; no EMT run-flats).
- Brakes: Power 4-wheel discs with Bosch ABS; dual airbags and ASR listed among standard safety features.
Wheels & Tires
- Base/Collector Edition: 17×8.5 in (F) / 17×9.5 in (R) with P255/45ZR-17 (F) / P285/40ZR-17 (R) Goodyear Eagles. EMT run-flats optional (not with Z51 or Grand Sport).
- Grand Sport (Z16): Coupe: 17×9.5 in (F) / 17×11 in (R) with P275/40ZR-17 (F) / P315/35ZR-17 (R); Convertible: 17×8.5 in (F) / 17×9.5 in (R) with P255/45ZR-17 (F) / P285/40ZR-17 (R). Coupe adds molded rear fender flares.

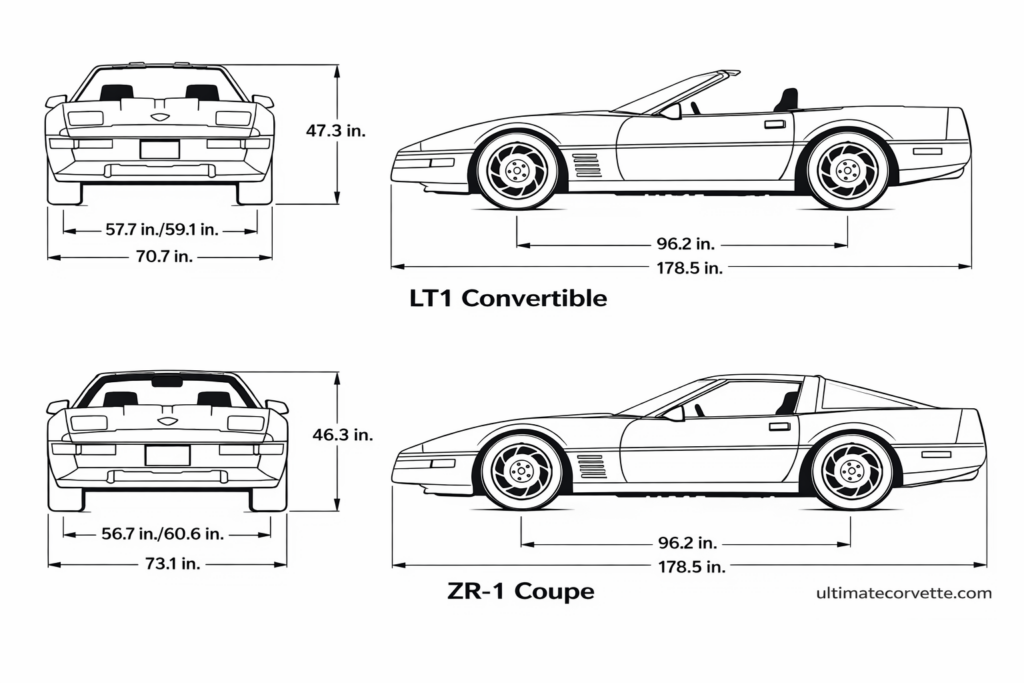

Dimensions & Capacities (factory)
- Wheelbase: 96.2 in • Length: 178.5 in • Width: 70.7 in (base) / 73.1 in (conv.)
- Height: 46.3 in (coupe) / 47.3 in (conv.) • Fuel capacity: 20.0 gal.
Special Editions
- Collector Edition (Z15): Sebring Silver Metallic, unique emblems, 5-spoke wheels; available with LT1 or LT4.
- Grand Sport (Z16): Admiral Blue with white center stripe and red hash marks; LT4/6-spd only; 1,000 built (810 coupes, 190 convertibles).
Why the 1996 Corvette Still Matters Today

There’s something fitting about watching the C4 fade into the horizon like this—its lines still sharp, its purpose still clear, even as its era gave way to what came next. By 1996, Chevrolet had pushed the fourth-generation Corvette as far as it could, closing out a platform that began in 1984 as a radical reset with unibody construction, digital instrumentation, and handling that forced the world to take notice. In its final form, with the 330-horsepower LT4 and years of chassis refinement behind it, the C4 had become more than a course correction; it was the car that restored Corvette’s credibility as a true world-class sports car. It was not perfect, and it never pretended to be, but it was honest, deliberate, and relentlessly engineered to improve on everything that came before it. And that is why the C4’s final chapter still matters: because before the C5 could move the story forward, the C4 had to prove the Corvette legend still deserved to continue.

The 1996 Corvette still matters because it was not merely the end of the C4 story—it was the year Chevrolet finally showed the world exactly what the C4 had been working toward all along. By then, the fourth-generation Corvette was no longer the controversial new car that shocked traditionalists in 1984. It had matured into something far more important: a fully realized performance machine that helped drag the Corvette brand into the modern era. And in 1996, Chevrolet gave that generation the kind of sendoff it had earned. GM’s 1996 Corvette materials positioned the model year as the C4’s final act, and the factory brochure made clear that this was a Corvette lineup defined by performance, refinement, and heritage-conscious confidence.

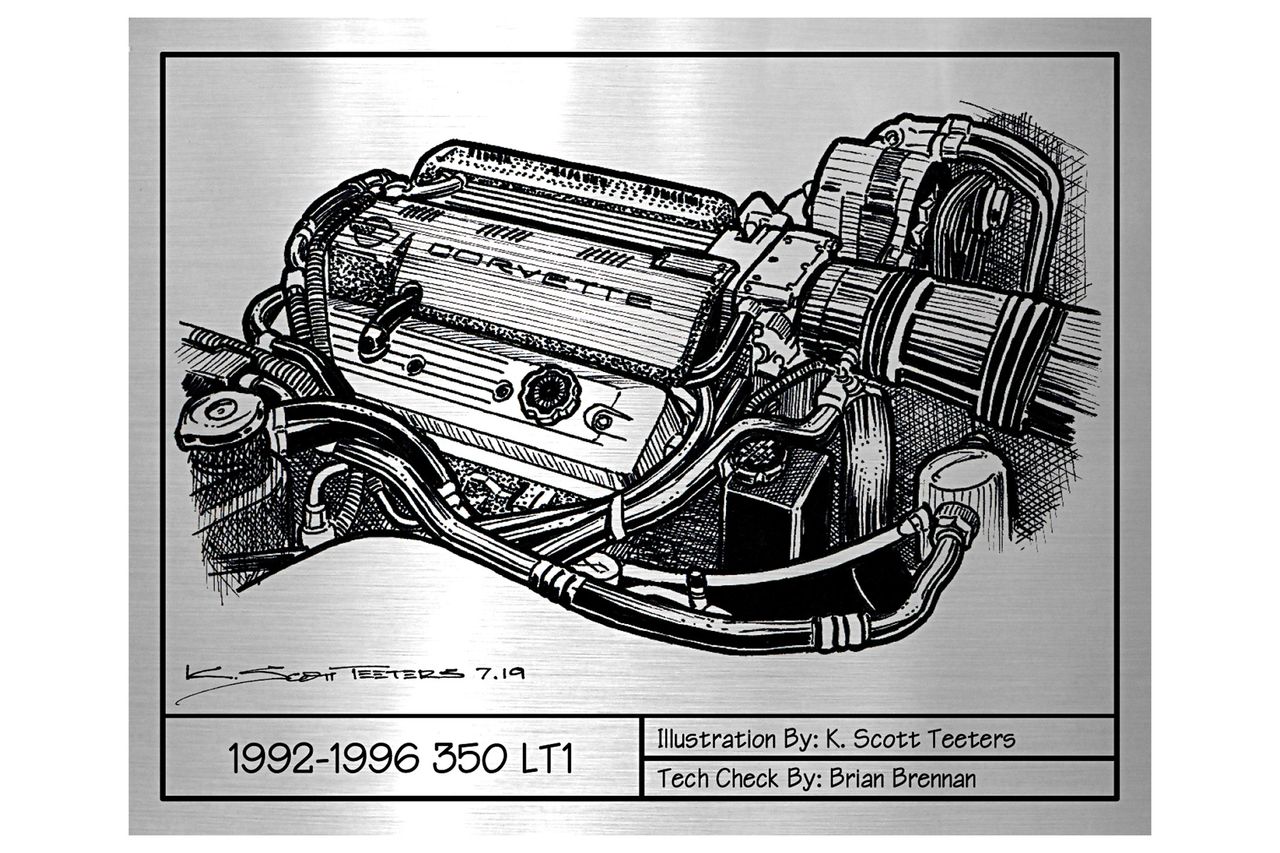

A big part of that lasting significance comes from the LT4. Rated at 330 horsepower and 340 lb-ft of torque, and available only with the six-speed manual, it gave the final-year C4 real substance—not just ceremony. That matters historically because Corvette has always been at its best when the engineering speaks louder than the marketing, and the LT4 did exactly that. It was the most powerful regular-production small-block ever fitted to a Corvette at that point, and it reminded buyers that even at the end of a generation, Chevrolet still understood the assignment: if you are going to close a chapter on Corvette, you do it with meaningful hardware.

Then came the Grand Sport, and that is where 1996 rises above a typical farewell year. Chevrolet revived one of the most meaningful names in Corvette history and backed it up with real intent. Only 1,000 were built, and the package was more than visual theater—it was a heritage statement tied to performance, exclusivity, and identity. The factory brochure called it the highest-performance regular-production Corvette you could buy, and the model’s limited production run helped turn it into an instant landmark. More important, it established something Corvette would keep doing well in the years ahead: using its own history not as decoration, but as a way to sharpen the meaning of the current car.

The Collector Edition matters for a different reason. It gave Chevrolet a formal way to stop, look back, and acknowledge that the C4 had done the hard work. Production reached 5,412 units, but the number is only part of the story. Symbolically, the Collector Edition told enthusiasts that the C4 was no longer just the car that replaced the C3—it was the generation that modernized Corvette thinking. It brought sharper chassis development, more serious world-class performance ambitions, and the kind of structural and technological maturity that made the C5 possible. In other words, 1996 mattered because it closed the C4 era with a sense of completion, not apology.

That is why the 1996 Corvette still matters today. It was the year the C4 stopped asking to be understood and simply made its case. It delivered the LT4. It gave us the Grand Sport as a proper heritage icon reborn. It marked the end of the generation with the Collector Edition. And most of all, it handed the Corvette name to the future from a position of strength. The 1996 Corvette matters not just because it was the last C4, but because it proved the C4 had become something worthy of a deliberate, meaningful farewell. When you look at what Corvette became in the C5 era and beyond, it is impossible not to see 1996 for what it really was: the moment one generation finished the job and cleared the runway for the next.
The 1996 Corvette marked the end of the C4 era, but Chevrolet did not let it fade quietly. With Collector Edition models, the legendary Grand Sport, and the final LT4-powered sendoff, the ’96 Corvette closed a pivotal chapter in Corvette history with confidence, performance, and lasting significance.

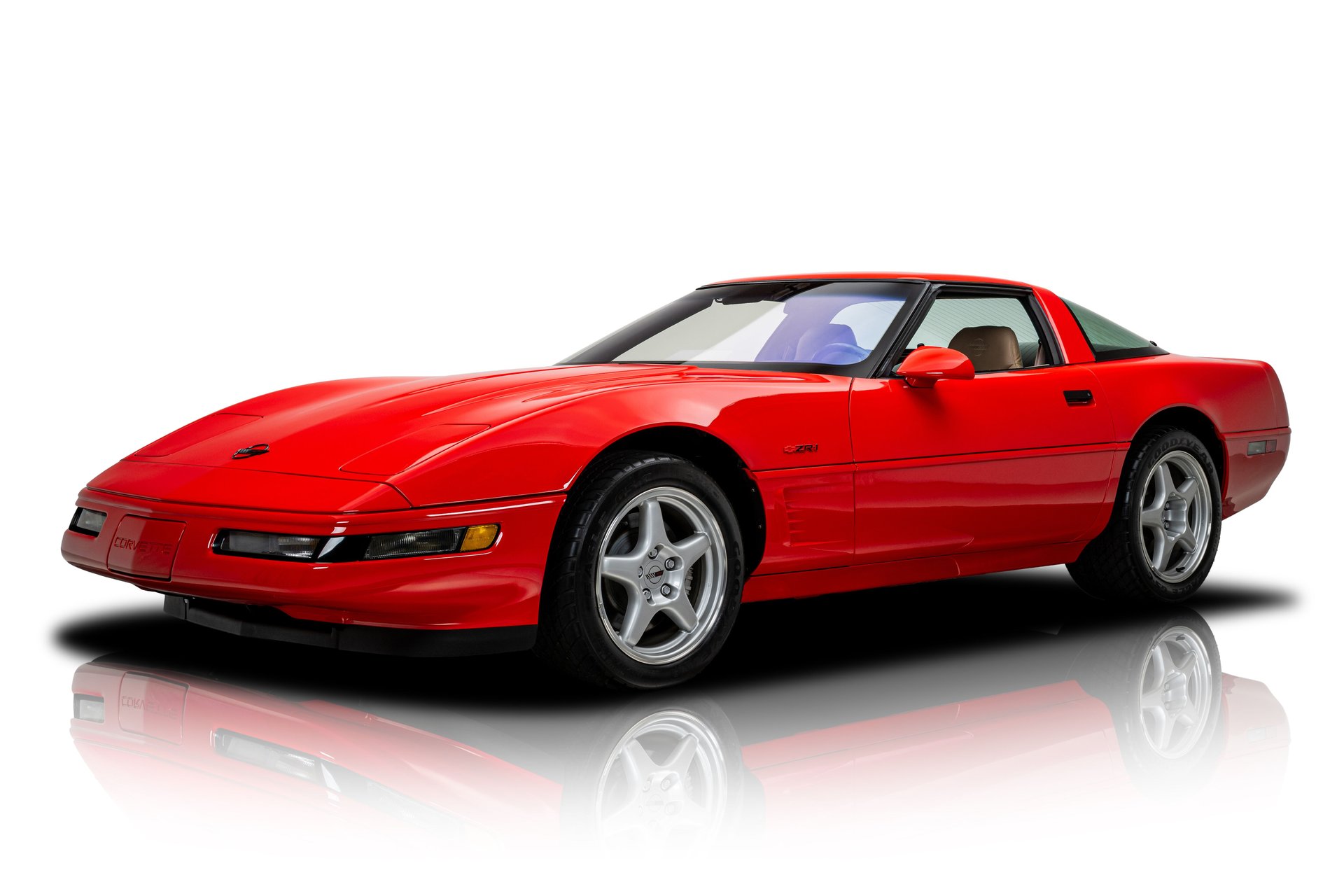

1995 CORVETTE OVERVIEW
By the mid-1990s the fourth-generation Corvette wasn’t chasing youth so much as perfecting experience. Eleven model years in, the C4 still launched like a slingshot and carved corners with the flinty precision that made it a chassis benchmark. Yet just offstage, a skunkworks within General Motors was already splitting its days and nights on the fifth-generation car—a clean-sheet coupe that wouldn’t hit showrooms until the 1997 model year. That tension defined 1995. Evolution over revolution. Polish over reinvention. This is the year Chevrolet made the C4 better in ways you feel more than see—and the year the fourth-generation ZR-1, America’s original modern supercar, took its final bow with a ceremony worthy of a monarch.

There’s a temptation to reduce late C4s to option codes and production counts. But 1995 wasn’t merely an updated parts catalog; it was a philosophy. It was a team that had learned what Corvette owners actually lived with—the creaks, the chatter, the extra effort to snag reverse on a cold morning—and decided to fix what mattered most to them. The base model fourth-generation Corvette was a platform that could already out-corner its peers and, with a few key upgrades, would be able to stop with the same authority. And it was a factory willing to pause an assembly line to salute the end of a legend.

Refining the LT1: Quieter, Stronger, Cleaner

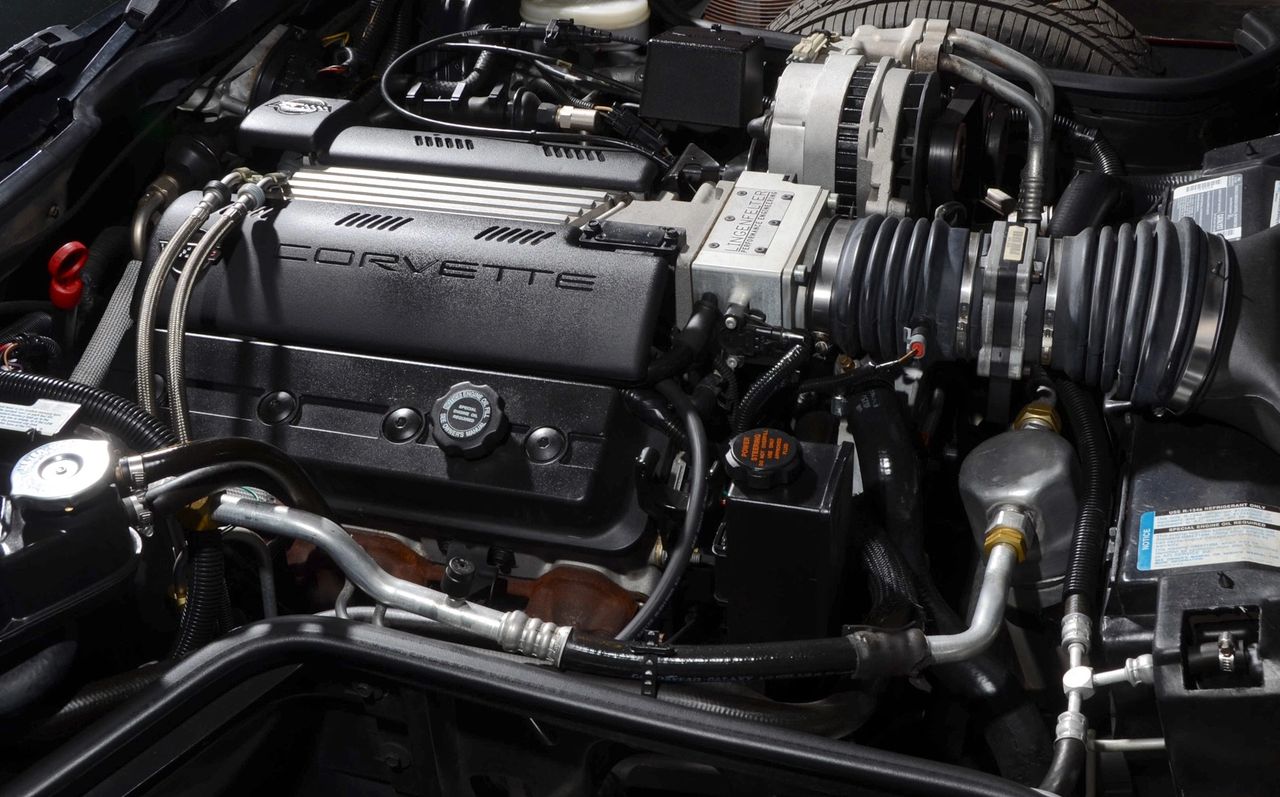

The 1995 Corvette’s LT1 kept its 300 hp/340 lb-ft headline, but felt smarter and tougher thanks to quiet refinements—powdered-metal rods, ethanol-tolerant injectors, and calmer fan logic that sharpened drivability and durability. Paired with the year’s big-brake/ABS 5 rollout and cleaner 4L60-E or high-detent ZF shifts, the ’95 LT1 delivered the C4’s familiar punch with a more polished, everyday confidence. (Image courtesy of Motorcar Classics)

On paper, the 5.7-liter LT1 returned unchanged at 300 horsepower and 340 lb-ft. In practice, the powerplant in the 1995 Corvette was tighter, tougher, and less fussy. GM’s move to powdered-metal connecting rods—by then fully resident in Corvette usage—wasn’t an enthusiast forum brag; it was metallurgy in service of longevity. Powdered-metal rods offer excellent dimensional uniformity and fatigue strength. When a V-8 lives between 5,000 and 6,000 rpm with regularity, consistency is not a luxury. It’s survival.

Fuel delivery got smarter as well. The mid-’90s fuel pump reality was sifting towards ethanol blends showing up everywhere. Engineers responded with injectors more tolerant of alcohol content and specifically calibrated to reduce post-shutoff dripping—an unglamorous fix that trims evaporative emissions and makes hot restarts less dramatic and more “turn key, drive away.” Even the big electric fan—a staple of LT1 life—had its marching orders updated. Hardware and control strategy were tuned to hush the whir, the kind of NVH (Noise, Vibration, and Harshness) experience that can make a daily driver feel cheap or feel refined. In a car this honest about road texture, having a quieter fan mattered.

None of those updates added a single “pony” to the engine’s output. They added confidence. You feel it in the way a 1995 LT1 settles into a hot idle, in the lack of fuel smell after a quick stop, in the sense that the bottom end is happy to be hammered again and again.

And here’s the thing….the brochure didn’t sing about it. Owners did.

Gates, Not Guesses: The ’95 Shift Upgrade

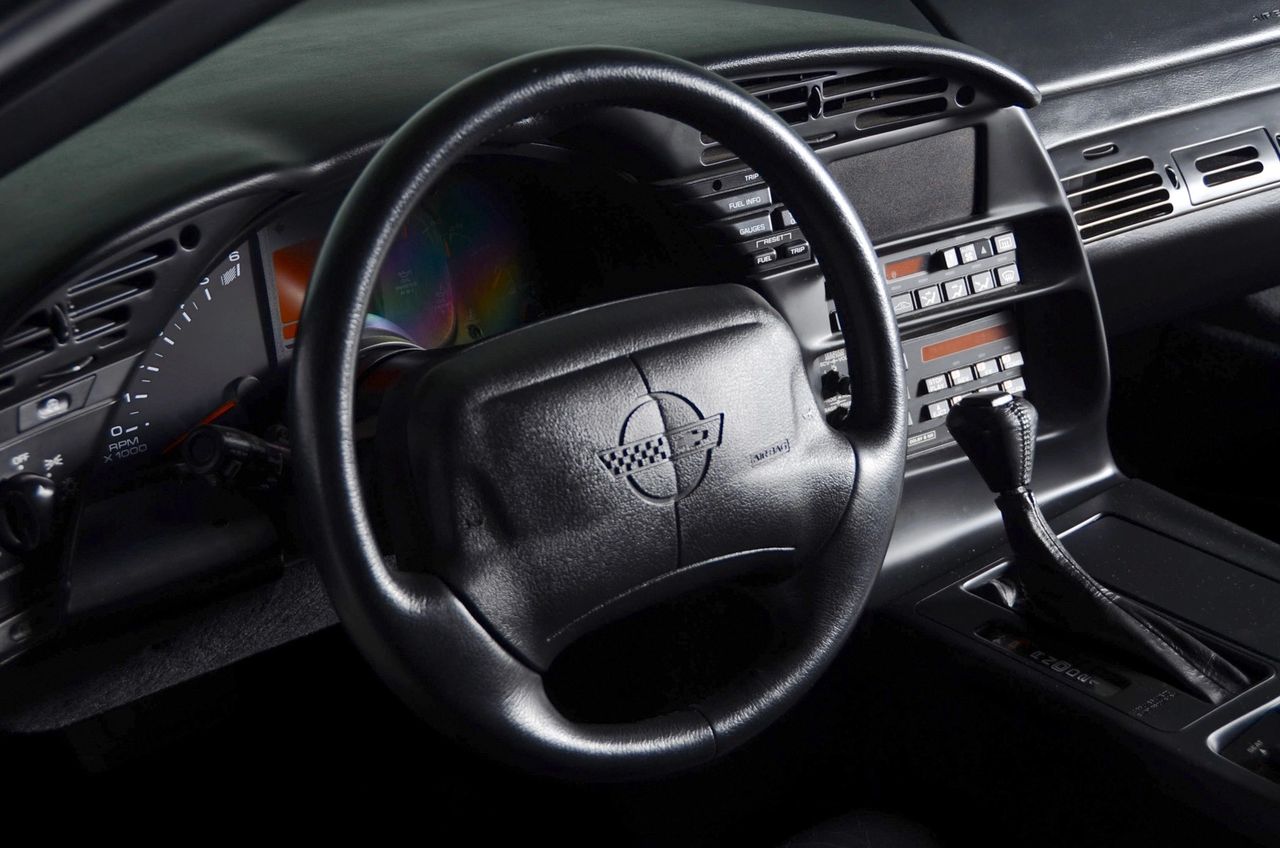

The ’95 Corvette’s 4L60-E automatic was re-tuned with a lighter, stronger converter, so it hooks the LT1’s torque quicker and shifts cleaner in real-world driving. From the driver’s seat—airbag wheel, analog/digital cluster with the new ATF temp readout, and the console-mounted selector—the cockpit feels purposeful and modern, built to crush traffic and unwind a back road without drama. (Image courtesy of motorcarclassics.com)

The electronic four-speed automatic—4L60-E—was already a known quantity, but the 1995 calibration and hardware tweaks smudged out the last rough edges. Shift timing and pressure control came on cleaner. The torque converter shed weight while gaining strength, and you feel both at low speed: the car pulls into the throttle without that momentary pause you’d get in earlier calibrations, then locks with authority on the highway.

The ’95 Corvette’s ZF S6-40 six-speed feels right at home here—short, mechanical throws capped by a leather-wrapped knob and the new high-detent reverse that replaced the fiddly lockout of ’94. It’s a driver’s interface first and foremost: slide across the gate, slot the gear, and the LT1 answers with crisp torque on command. (Image courtesy of bringatrailer.com)

For those who preferred three pedals, 1995 quietly fixed the C4’s most persistent annoyance: reverse. Gone was the 1994 reverse-lockout hardware. In its place came a high-detent reverse mechanism that made sliding the lever across the 5–R plane a deliberate, positive act instead of a “don’t-cross-the-wrong-fence” guess. On a handful of early ’95s, tolerances and spring rates made reverse too stout—owners reported abnormally high effort to push past the detent—so GM issued a running fix: an updated detent plunger/spring and a linkage adjustment procedure. Once corrected, the action felt as intended—clean, confident, and repeatable. It’s a small change that reads big in traffic and in the garage—less fishing, more doing—the kind of human-factor work late C4s specialized in: no posters, but plenty of gratitude from the people who lived with the car.

The Year Big Brakes Went Mainstream

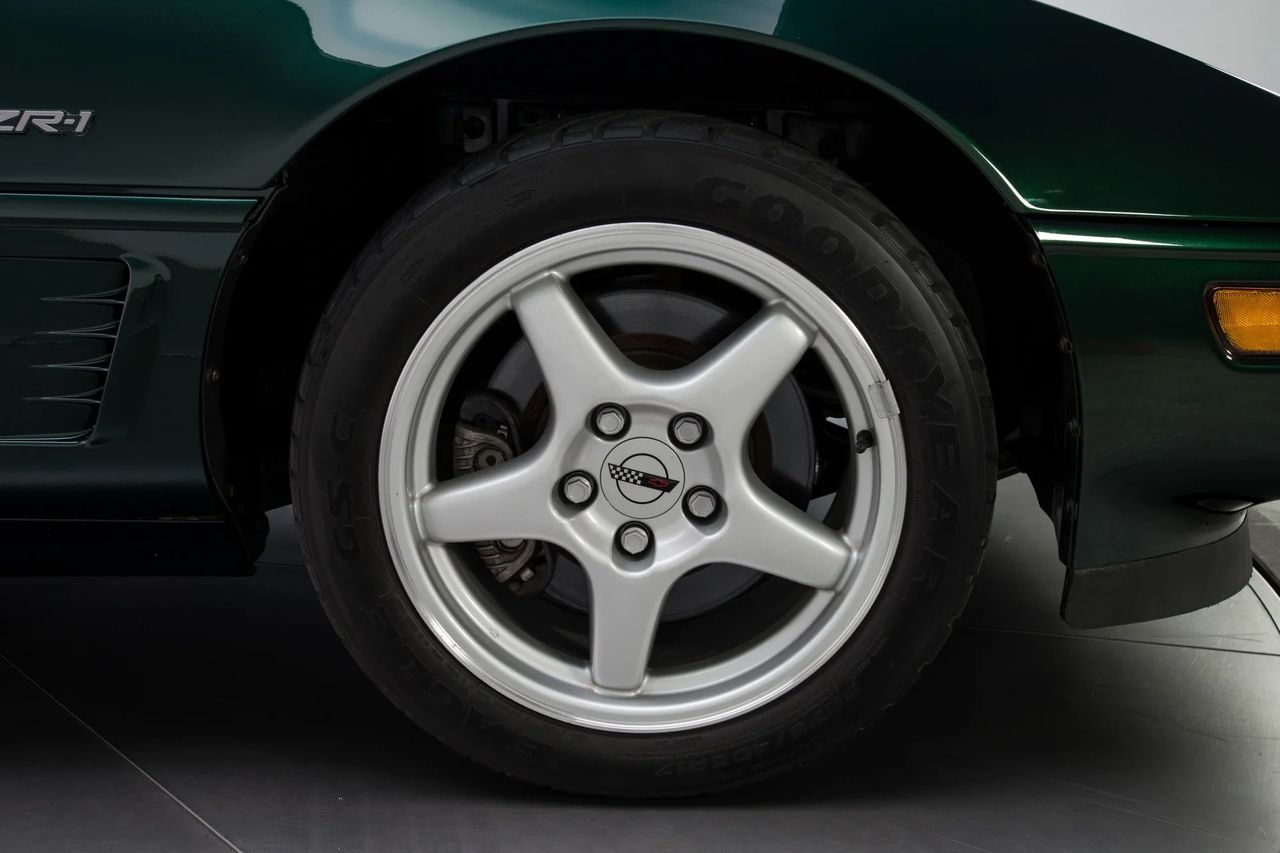

or 1995, Corvette finally put big brakes on every car: ZR-1/Z07–spec 13-inch front rotors with stout PBR calipers, backed by Bosch ABS 5. The result is real heat capacity and cleaner modulation—pedal height stays consistent, stops stay straight, and threshold braking becomes confidence work, not bravery. It’s the year the C4’s stopping truly matches its going. (Image courtesy of RK Motors)

Ask any C4 track rat to name the single best late-car upgrade, and one RPO code came back time after time: J55. For 1995, the heavy-duty front brake package—13-inch rotors, thicker hats, and real thermal capacity—graduated from ZR-1/Z07 exclusivity to standard on every Corvette. Paired with Bosch ABS 5, stopping finally matched going. Threshold braking became an exercise in confidence; the pedal stayed consistent lap after lap, rather than growing long and glassy with heat. The difference was not academic—it was the gap between braking into the apex and surrendering ten yards to nurse a fading system.

ABS 5 also reshaped emergency stops. The controller cycled faster and with finer pressure modulation than earlier generations, allowing meaningful steering authority over mid-corner bumps and split-µ surfaces. Late C4s felt modern deep in the brake zone on broken pavement because the system maintained line stability while shedding speed: the car modulated, the chassis stayed settled, and the driver kept options. Added to the broader pad window and larger heat sink of the J55 hardware, fade resistance, pedal height, and repeatability became strengths rather than variables—exactly what a fast, confidence-led brake package should have delivered.

Ride and Handling: Sanding the Rough Edges, Keeping the Edge

The C4’s structural honesty—stiff backbone, aluminum control arms, short/long arm geometry that loved load—delivered world-class grip from day one. The critique, especially on broken pavement, was ride. For 1995, base-suspension cars received slightly lower front and rear spring rates and a switch to less-stiff de Carbon gas-charged shocks. This was not capitulation; it was control. Lower low-speed damping and spring rates quieted the jiggle and sharpened compliance over the chatter that defined everyday American asphalt. The chassis still talked to you, but it stopped shouting over the small stuff.

FX3 Electronic Selective Ride Control pairs Bilstein electronically controlled dampers with a console dial—Tour, Sport, Perf—so the C4’s ride can match the road in seconds. Pick a mode and the system trims damping in real time via shock-mounted actuators, sharpening body control under speed, steering, and brake inputs without beating you up on rough pavement. It’s the late-C4 sweet spot: comfort when cruising, discipline when driven. (Image courtesy of RK Motors)

If you ordered FX3 Electronic Selective Ride & Handling, the Bilstein adaptive dampers brought their own late-run refinement, but the real revelation is how cohesive a standard ’95 feels on a fast two-lane. You lift for the corner, load the outside front, lean into the throttle at the apex, and the car settles the way you always wished earlier C4s would settle—no hop, little head toss, and a sense that the platform is working with you, not demanding you drive around its moods.

The Quiet Fixes Inside: Seats, Squeaks, and Skip-Skips

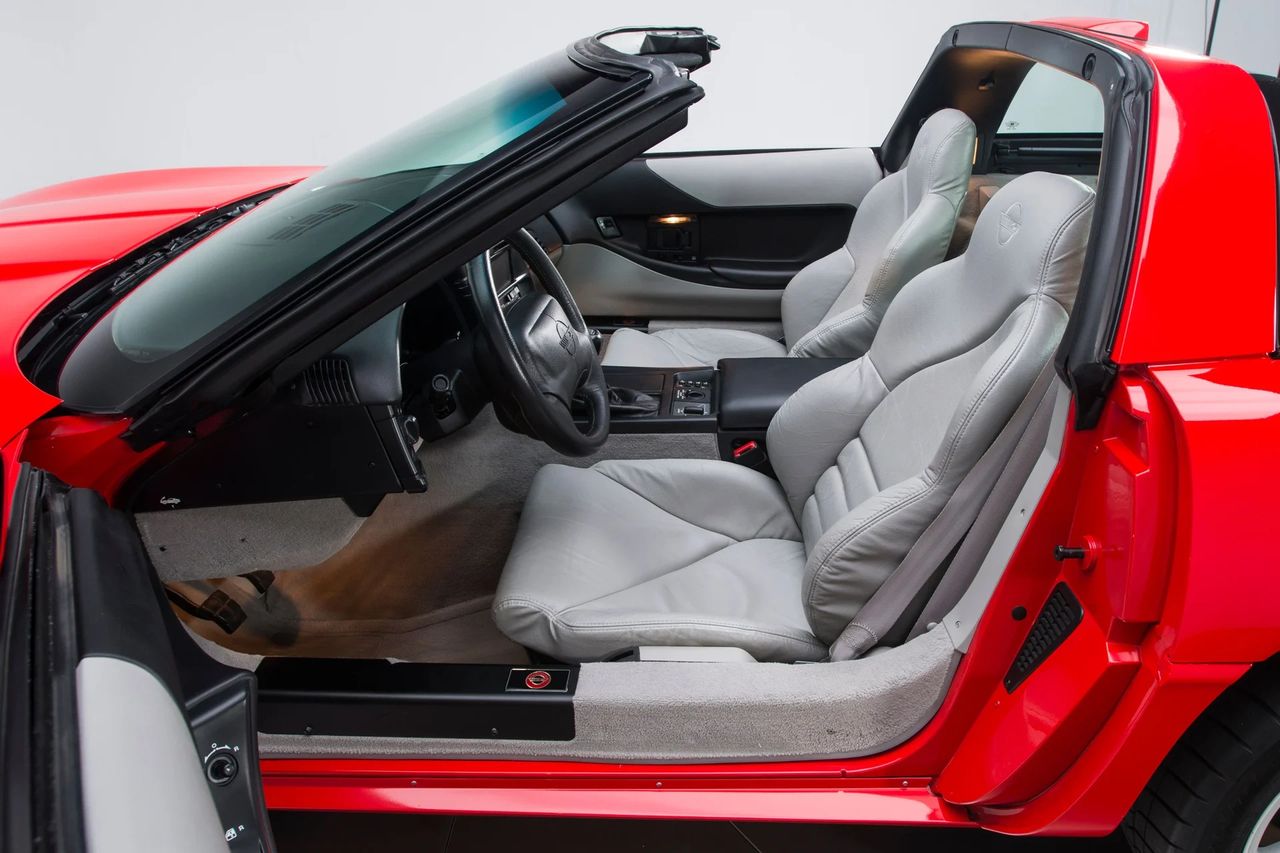

For 1995, Corvette finally addressed the C4’s most common wear point: the seat bolsters. The sport buckets gained upgraded leather with French-seam stitching, spreading the load and resisting split seams while giving the cabin a cleaner, more tailored look. It’s a subtle change that pays off over time—better durability, tighter shape, and a genuinely upscale finish to the late-C4 interior. (Image courtesy of RK Motors)

Photos didn’t show what 1995 did for the cabin. Your back and ears did.

Start with the sport seats. Earlier C4s were notorious for torn bolster seams—every bit of sliding in and out carved a little more life out of the stitching. For ’95, the sewing changed to “French” seams and did what good upholstery does: spread load, reduce stress risers, and hold shape. Ten years later, you could tell who had the late seats without asking.

Then there were the squeaks and buzzes. Corvettes communicated; nobody wanted them to rattle. Engineers added adhesive-fabric straps in strategic spots, the Velcro-ish kind of restraint that preloaded small interfaces so they didn’t chatter. Add a stiffer mount for the radio/CD head unit—less skipping, less thump over expansion joints—and the whole cabin read tighter. A small nod to the faithful automatic crowd: 1995 added an ATF temperature readout in the cluster. It was the sort of subtle tell that this car had been built by people who ran laps on their lunch break and wanted you to have the same data they did.

Tires and the $100 Credit That Made Sense

Extended-mobility (run-flat) tires weren’t a novelty by 1995; they were good enough to trust. Chevrolet paired the option with something that felt almost subversive in the age of “pay more, get less”: RPO N84 spare tire delete, a $100 credit when you ordered extended-mobility rubber. You lost the spare, saved weight, and gained a small pocket of space. The safety engineers weren’t asleep at the switch; the area received specific reinforcement, so rear-impact energy management stayed to spec. It was a seemingly small decision that said a lot about where Corvette’s head was at—engineering first, gimmick last.

Outside: A Subtle, Sharky Tell

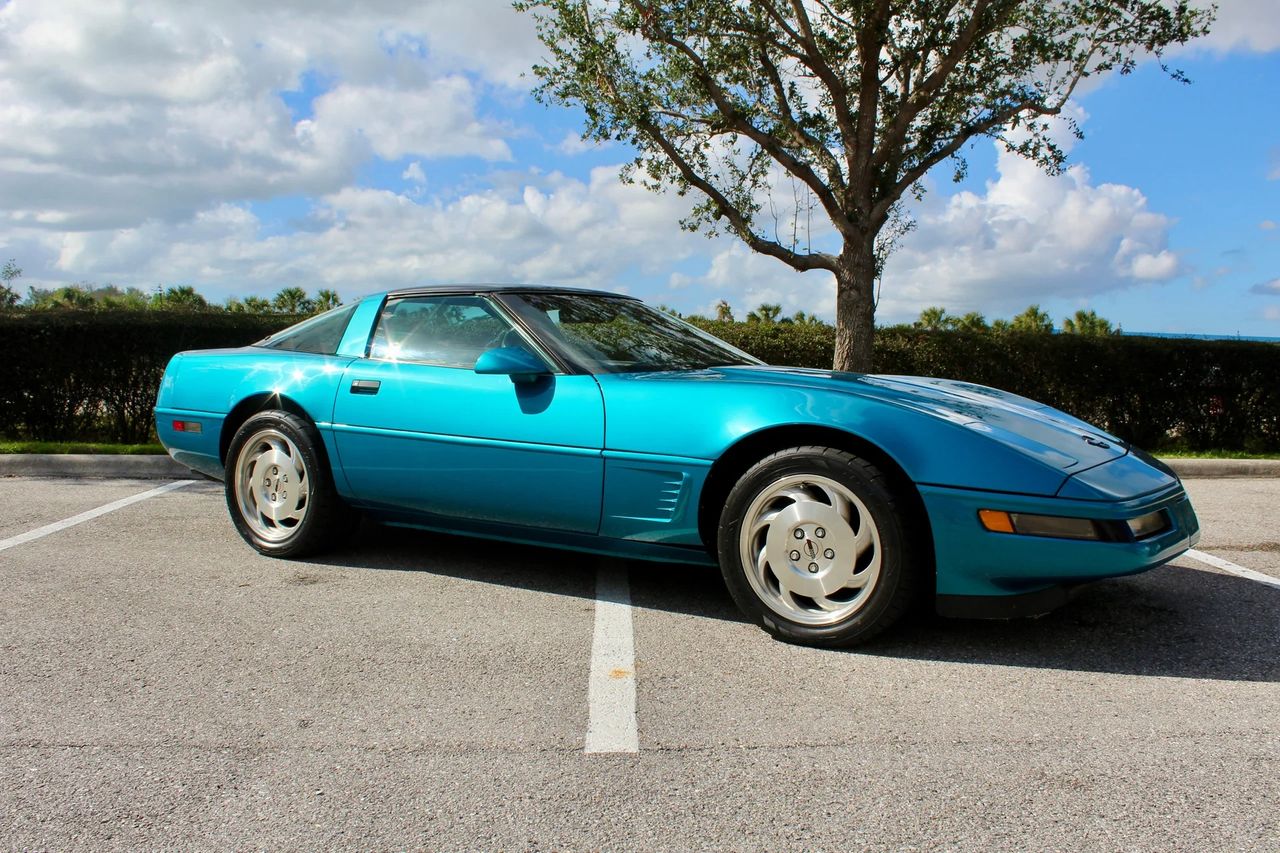

For 1995, the C4’s front-fender vents lost the inset slats and adopted a cleaner, gill-style opening with a subtle, rolled surround. The change smooths the panel’s visual flow and gives the car a slightly longer, lower look—modernizing the profile without touching the classic long-hood/short-deck proportions. It’s the quickest visual tell you’re looking at a ’95.

There was an easy way to spot a 1995 Corvette in a sea of C4s: walk to the front quarter and look just aft of the wheel opening. Chevrolet reworked the fender “gills” from the earlier recessed slats into a cleaner, more integrated aperture with a soft, rolled surround—less add-on, more sculpture. The opening read longer and lower, visually stretching the car and tying the line back to the late-C1 shark gills without going retro. It was the same fender, same stance, but the surfacing felt tidier and more intentional, like the designers had gone back over the clay and knocked down the last sharp edge.

That subtle reshaping also calmed the fender’s visual noise. Earlier slats could look inset and shadowy depending on the light; the ’95 treatment highlighted the panel in the same way the rest of the body did, so color flowed across the panel instead of breaking at the vent. In profile photos, it was the tell: the car looked a touch more modern, even though dimensions and proportions didn’t change by even a millimeter.

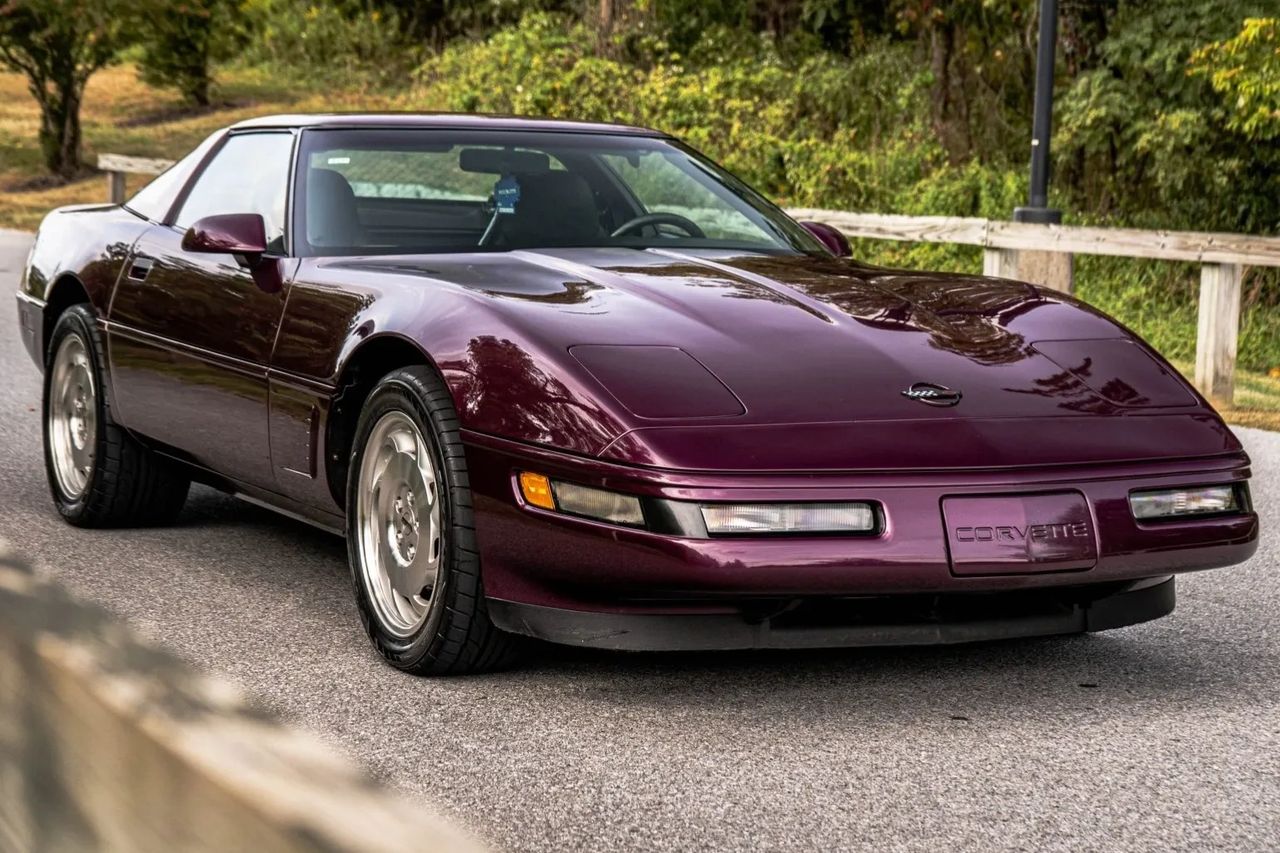

New for 1995, Dark Purple Metallic gave the C4 a deep, blue-violet flop that flatters every compound curve—moody at dusk, jewel-like in sun. It replaced Copper and Black Rose and instantly became one of the late-run head-turners, with roughly 1,049 cars painted in the shade. Subtle it isn’t; period-correct and unforgettable, it absolutely is. (Image courtesy of bringatrailer.com)

Chevrolet paired the vent tweak with a handful of “live-with-it” updates outside. New wiper blades and revised arm geometry reduced lift and chatter at highway speeds—a small fix you noticed the first time rain hit at 75. And the paint deck gained a single, mood-setting hue: Dark Purple Metallic. It stepped in for Copper and Black Rose, bringing a deep, blue-violet flop that flattered the C4’s compound curves in a way the camera never quite captured. It was exactly what a late-run color should have been—fresh enough to turn heads, faithful enough to feel like it had always belonged.

Colors People Actually Bought

1995 Chevrolet Corvette Exterior Paint Colors (and OEM Paint Color Codes)

If you showed up to a cruise-in and felt like you were drowning in Torch Red, there was a reason. Torch Red accounted for roughly 22% of 1995 production (4,500-plus cars), with Black and Arctic White right behind. Polo Green Metallic—the polite assassin’s color—held a strong fourth. At the rarer end were Admiral Blue, Competition Yellow, and the new Dark Purple Metallic, each flirting with the thousand-car mark. Pace Car replicas—two-tone Dark Purple over Arctic White—numbered 527 and looked like nothing else when you caught one in the sun. The mix told you who the ’90s Corvette buyer was: bold enough to wear color, practical enough to buy the ones that still looked fresh thirty years on.

What It Cost—and How People Spec’d It

Base price moved only slightly over 1994: $36,785 for the coupe, $43,665 for the convertible. The ZR-1’s option tally still read like a bank statement—$31,258 over a coupe—one reason the LT1 car nipped at its sales heels by the middle of the decade. Look at surviving window stickers, and you’ll see how owners lived: power seats almost everywhere (AG1/AG2), the blue-tint roof panel (24S) vastly preferred to bronze (64S), and a healthy take rate on FX3 for the folks who wanted to tune the ride with their right index finger.

The 1995 Indy 500 Pace Car (and Z4Z Replicas)

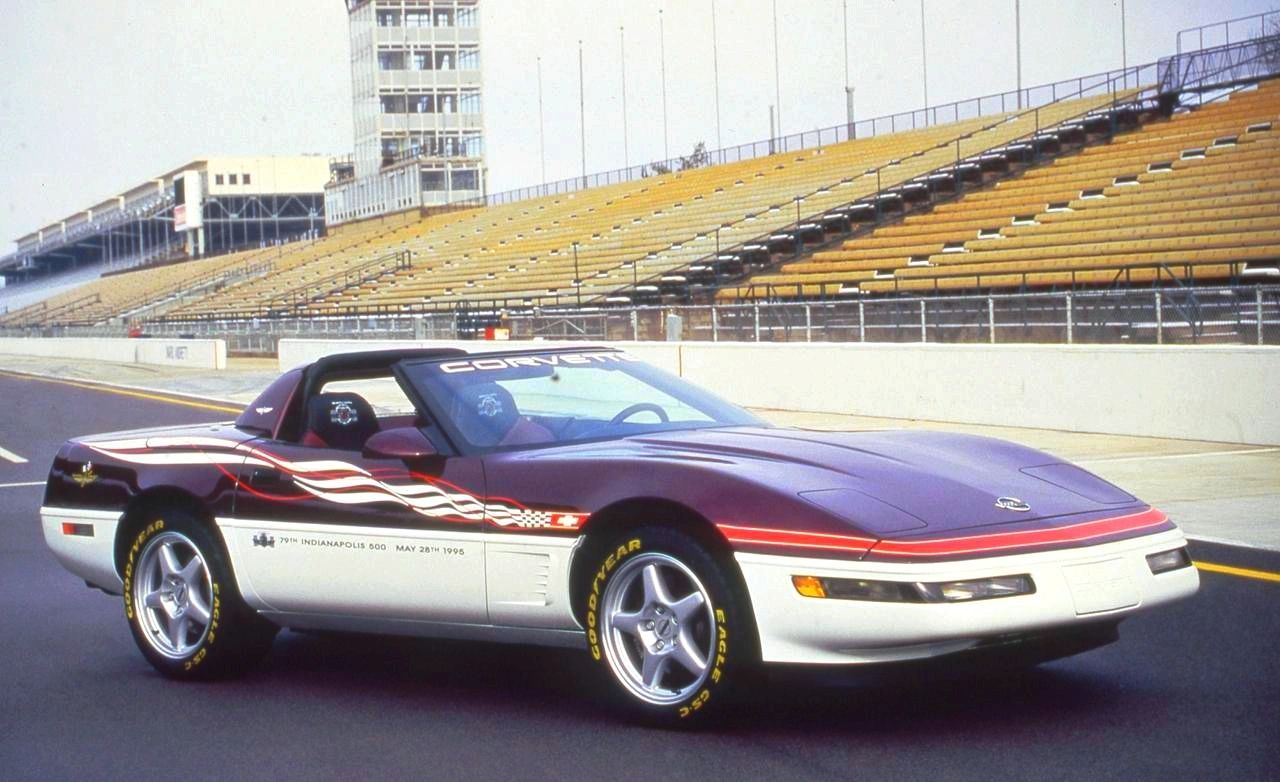

This 1995 Corvette Pace Car—Dark Purple Metallic over Arctic White with wind-swept ribbon graphics—led the 79th Indianapolis 500 essentially stock, proof of how civilized and capable the late-C4 had become. Under the skin: LT1 torque, tidy chassis manners, and A/C cold enough for pit-lane crawls under a hot May sun. Chevrolet built 527 Z4Z Pace Car Replicas for the street, but the look you see here—white top, embroidered headrests, red pinstripe sweep—remains the poster shot: pure Motor Speedway theater on a car that could drive home afterward without breaking a sweat. (Image courtesy of GM Media LLC)

The 79th Indianapolis 500 ran under heavy nostalgia and heavier sun, and the car leading the field was a near-stock 1995 Corvette convertible—the nameplate’s third time pacing the Brickyard. Chevrolet marked the moment with RPO Z4Z, a factory Pace Car Replica available only as a convertible. The look is unmissable: Dark Purple Metallic over Arctic White, a white top, swooping ribbon graphics, and embroidered headrests. Chevrolet built 527 examples; 87 handled race-week duty, 20 went overseas, and the balance were allocated to top-performing U.S. dealers. The package added $2,816 to a base convertible, but its visual drama made it feel like far more than a sticker sheet.

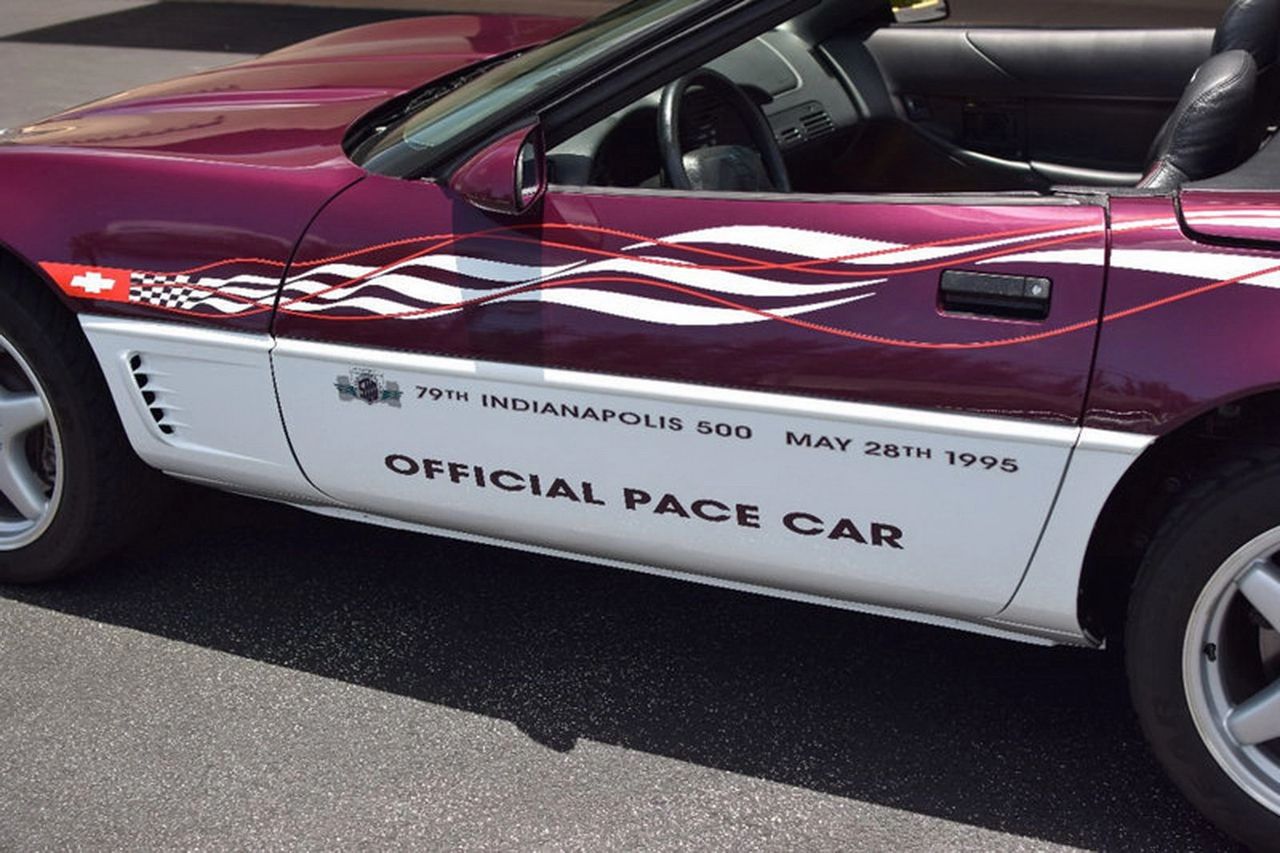

Lettered like a pit-lane credential, the Z4Z’s flanks tell the whole story: “79th Indianapolis 500 — May 28th, 1995” riding above crisp “OFFICIAL PACE CAR” script. A red tracer threads through wind-swept ribbons that split Dark Purple Metallic from Arctic White, ending at the crossed-flags fender badge. The close-up also shows late-C4 cues—the clean side gills, body-color handle, and five-spoke alloys—wrapped in a livery that looks in motion even when parked.

Part of the appeal was what it didn’t change: the underlying car. By 1995, the LT1-powered C4 was the product of a decade of continuous refinement—tight body control, confident ABS/Traction Control, precise steering, and a cooling system you could trust in stop-and-go heat. That mattered at Indy. A nearly stock Corvette could idle on the pit lane with the A/C blasting, pace a field cleanly at speed, and then loaf home like a boulevard cruiser. The Z4Z didn’t exist to manufacture performance; it existed to spotlight a car that already had it, with manners to match.

Collectors also respond to how cleverly Chevrolet framed the replica. The diagonal two-tone references a classic motorsport trope, but Dark Purple Metallic—new for 1995—made the car feel contemporary rather than retrospective. That purple wasn’t just a pace-car flourish either: across the entire model year, 1,049 Corvettes wore Dark Purple Metallic, outpacing several established hues. In that context, the Z4Z’s 527-unit tally reads as intentionally scarce—special enough to be collectible, common enough to be seen.

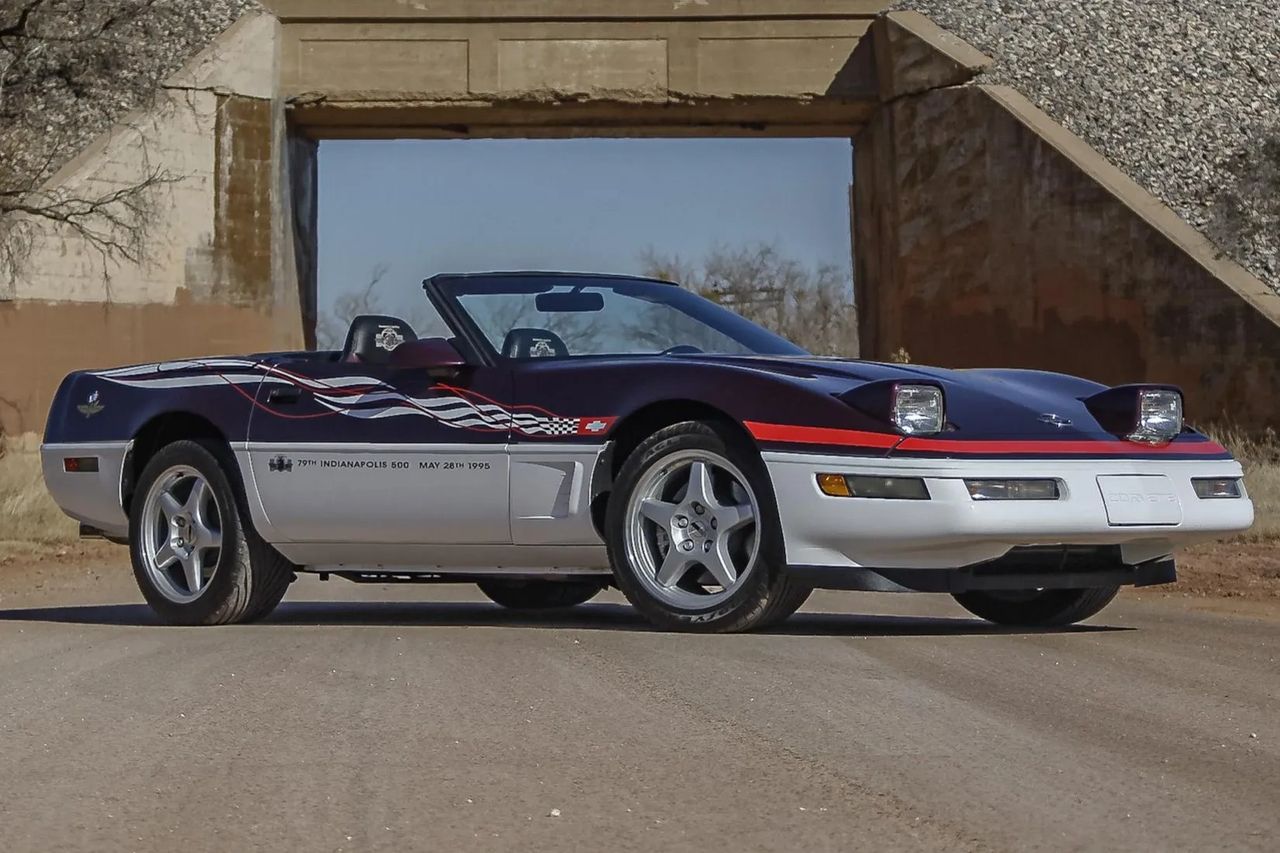

As Indy-themed C4s go, the Z4Z is a sweet spot for collectors: low production, easy to live with, and still approachable money. Market-wise, driver-quality cars with average miles typically trade in the mid-teens (Hagerty pegs a “good” example around $16k), while exceptional, low-mile cars with full paperwork can push well into the $20s and occasionally crest $30k—a Mecum sale brought $34,100 in 2022. Recent auction floors show reality checks too; a Kissimmee car stalled at a $17,000 high bid in 2025. Provenance (festival or track-use docs), mileage under ~10k, untouched graphics, original wheels/tires, and complete books/window sticker move the needle; aftermarket paint or missing decals hold it back. With just 527 built, clean examples remain thin on the ground, which helps values stay resilient even as broader C4 prices fluctuate. (Image courtesy of bringatrailer.com)

And that, ultimately, is the late-C4 story: dual-purpose competence with a showman’s streak. The Z4Z cars gave the public a street-buyable slice of Indy pageantry, but the deeper message lived in the way a largely stock Corvette could do the ceremonial work without breaking a sweat—and do the real work, too. Pace-car paint made the statement loud; the LT1’s easy torque, the chassis’ polish, and the Corvette’s everyday usability made it true.

Le Mans 1995: Blue-Collar Heroes in Yellow Light

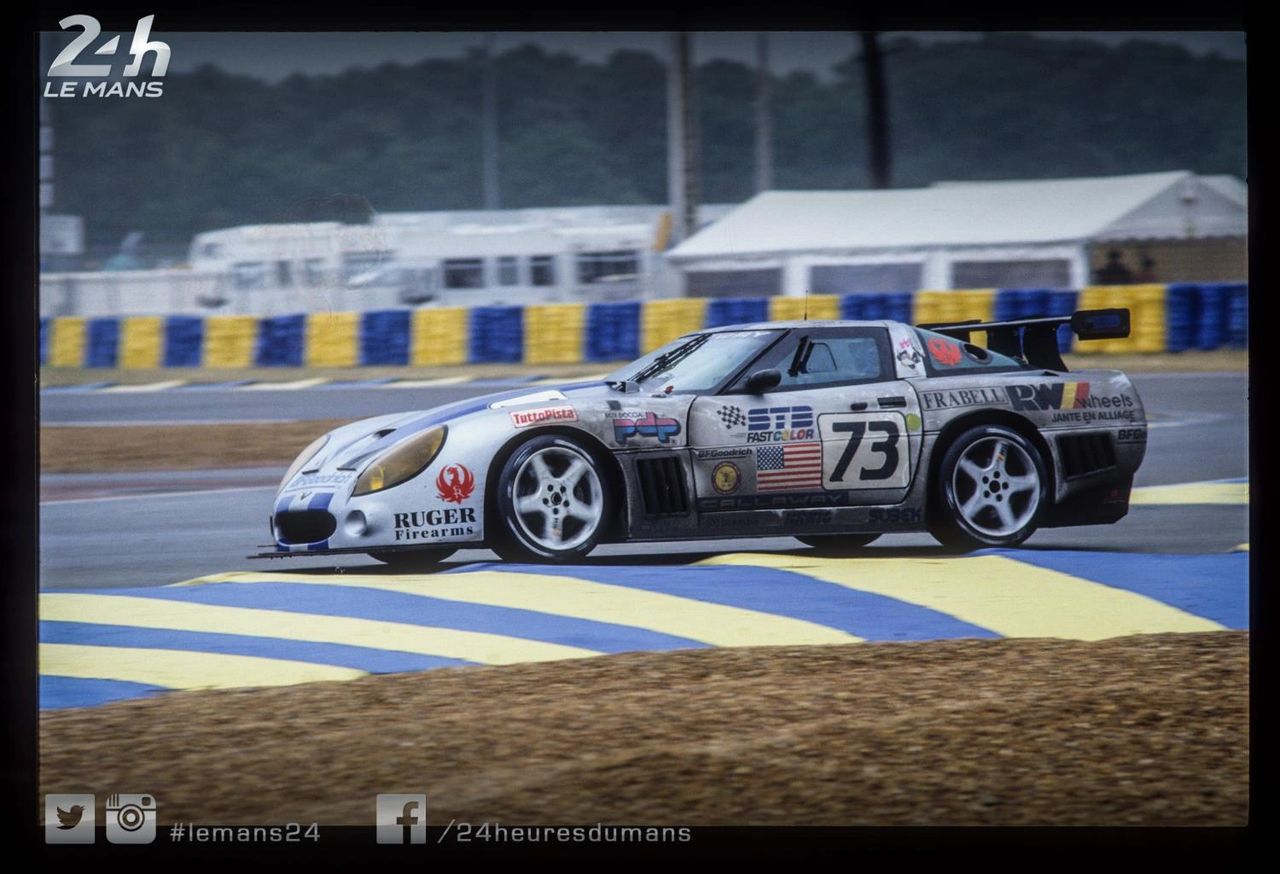

Rain-polished curbs, yellow lights, and blue-collar thunder. Callaway’s #73 SuperNatural Corvette skims the Le Mans chicanes like a power tool on wet glass—front-engine torque tucked under a battered, stickered shell, rear wing carving spray into ribbons. The five-spokes blur, side vents inhale, and that long C4 hood points down the Mulsanne with purpose. Driven by Bertaggia/Unser/Jelinski, this was the GT2 grinder that climbed all night through traffic and weather, proving that an American V-8 with good hands and better discipline could dance in European rain—and finish on the GT2 podium for keeps.

Nobody alive forgets the weather at Le Mans in 1995. The light went silvery gray, the rain came in hard, wind-blown sheets, and the Circuit de la Sarthe turned into a master class in mechanical sympathy. Under that sodium-yellow glow at dusk, the fast way around wasn’t the bravest throttle but the softest hands—feeling the car skim, giving it just enough slip to clear traffic and just enough kindness to live another lap.

In that chaos, the stories Corvette people tell live in the GT2 ranks. Callaway Competition rolled in with two production-based SuperNatural Corvettes—blue-collar tools dressed for a black-tie fight—and went to work. The #73 car, driven by Enrico Bertaggia, Johnny Unser, and Frank Jelinski, climbed from deep in the grid with the kind of wet-weather discipline you only learn the hard way: early brake releases into the rivered braking zones, patient throttle over the crown on the Hunaudières, and absolute trust through the kinks. When daylight returned to the pits, they were 9th overall and 2nd in GT2. The sister car shadowed that arc, grinding out clean sectors and unforced stops to finish 11th overall, 3rd in class—results that read modest on paper until you remember the conditions and the company.

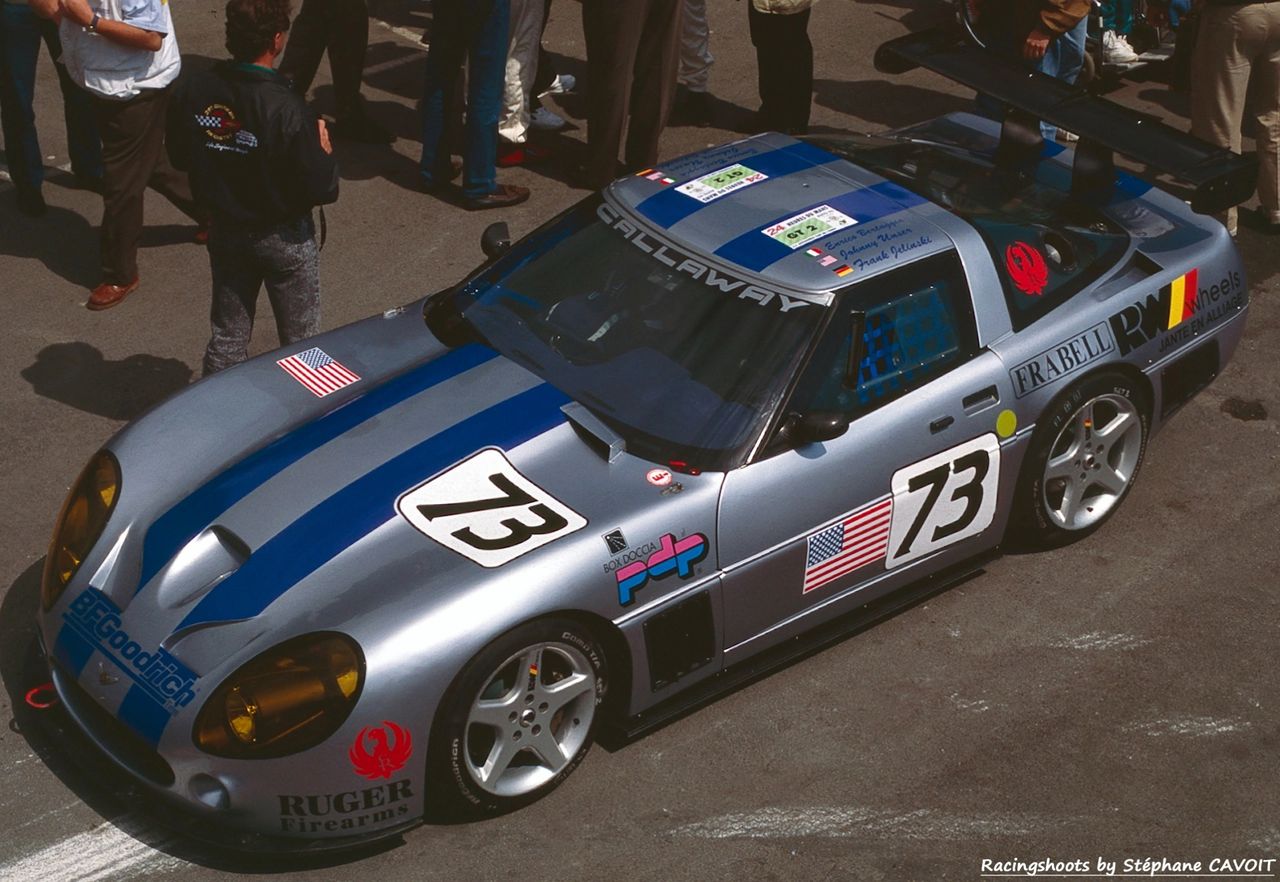

Scrutineering tells the truth on #73. Roof stickers and driver flags march across the panel, CALLAWAY shouts from the visor, and the silver body with twin blue stripes looks purposeful, not pretty. Yellow headlamp film, a deep center duct, and a NACA scoop feeding the front brakes telegraph the brief. Big side extractors and a tall, single-plane wing square the C4’s shoulders, while five-spoke Speedlines tuck neatly under the arches. The sponsor set—BFGoodrich, Ruger, Frabell, RW Wheels—reads period-correct, but it’s the small stuff that sells it: tow eye peeking from the splitter, quick-release pins, hand-cut numbers. This is a car built for the long night, not the lawn.

What made it sing wasn’t just lap time; it was the way a front-engine American V-8 endured a European rain race. The Callaway cars were built around reliability and feel: broad, usable torque that let the drivers short-shift out of the slow stuff; gearing tall enough to stay calm on the long straights; brake packages they could nurse through the night without drama. In the garage, the operation looked exactly like a privateer should—handwritten pit boards, towels steaming on radiators, crews taping seams and wiping visors between fuel and tires—yet the execution was clinical. Tire calls were conservative, out-laps were tidy, and the cars kept their noses clean when prototypes sprayed sheets of water past Arnage.

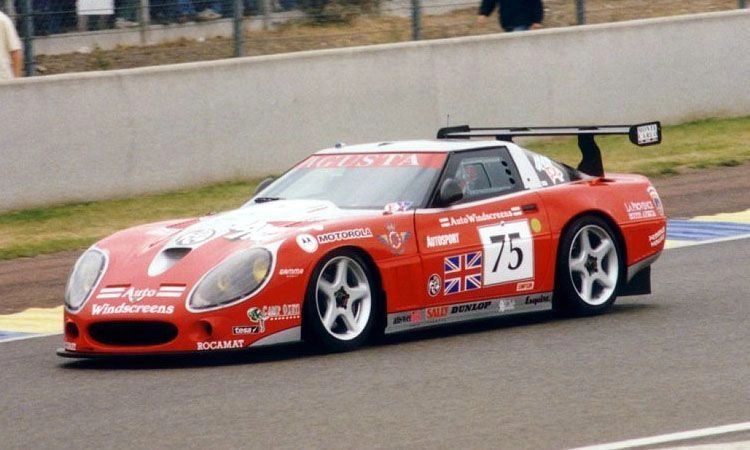

Callaway brought two SuperNatural GT2 entries to La Sarthe alongside the headline #73: the #75 (shown in the picture) and #76 sister cars. In a race defined by rain and restraint, #75 did the blue-collar work—clean pit cycles, tidy stints, zero drama—and ground out a 3rd in GT2 and 11th overall, the kind of result you earn one disciplined lap at a time. The #76 car showed flashes of the same pace but didn’t get the breaks; a long night of weather, traffic, and attrition ultimately sidelined it before the flag. Together, the two cars captured the Callaway brief in 1995: front-engine Corvette torque, privateer execution, and a refusal to flinch when the circuit turned to rivers.

The result felt like a baton pass. Those weather-beaten, quietly professional finishes proved that a Corvette—properly prepared and intelligently driven—could be a 24-hour instrument, not just a sprint hammer. Within a few years, the factory-backed C5-R would arrive with Pratt Miller’s polish and start writing the big headlines. But the tone had already been set in 1995: blue-collar heroes in yellow light, doing the hard, unglamorous laps that turn a marque into a Le Mans contender.

And that’s why 1995 still resonates. McLaren took the overall trophy, but Corvette people remember two cars that refused to flinch—front-engine thunder made gentle by good hands, finding grip where there shouldn’t have been any, and proving to everyone paying attention that America’s sports car belonged on the world’s toughest stage.

Doug Rippie’s Lone 1995 CORvETTE ZR-1 at Le Mans

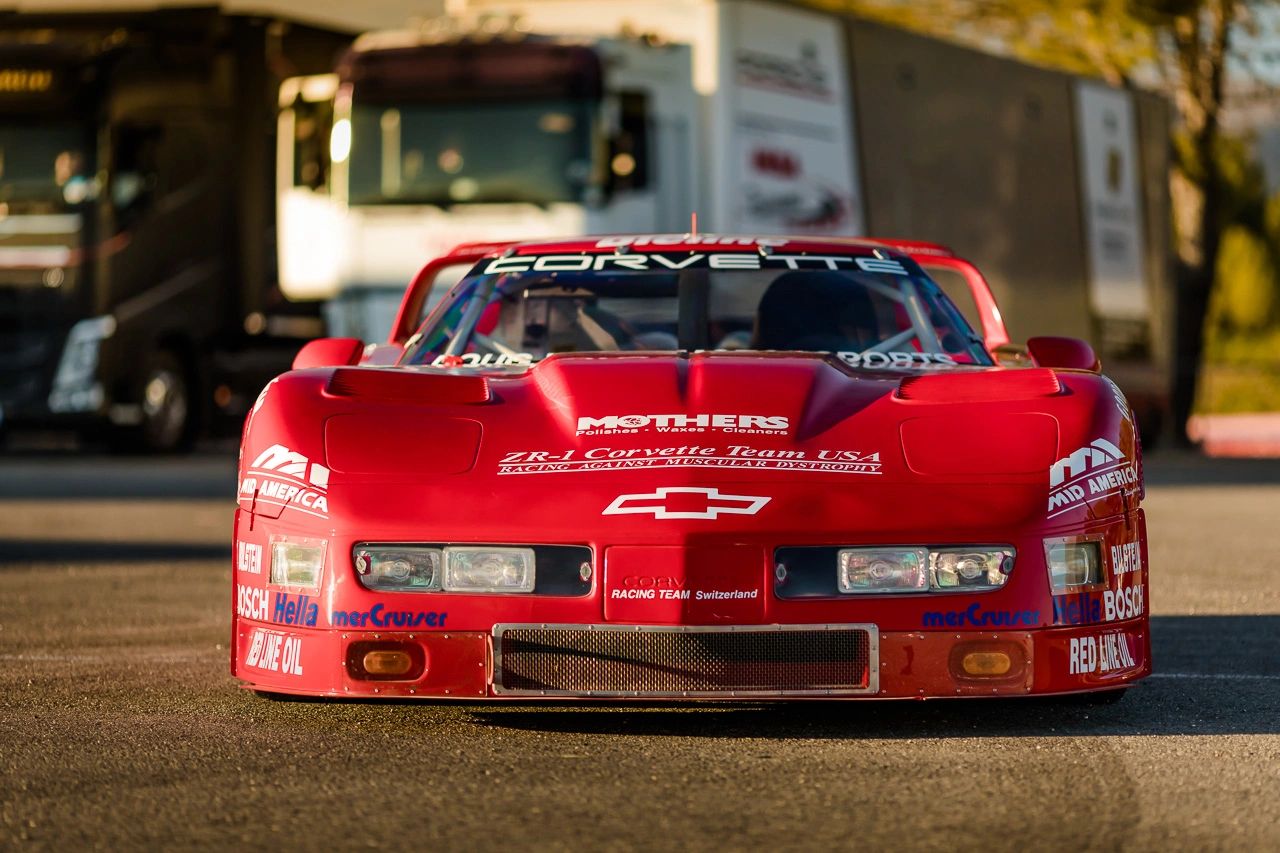

Doug Rippie Motorsports took a single ZR-1 to Le Mans in 1995—the only C4 ZR-1 ever to start the 24—and trimmed it into a GT1 hammer: LT5 quad-cam V-8 breathing through a wide-mouth fascia, clear headlamp covers, big brakes, and aero you could measure with a ruler. It wasn’t a trailer queen; it mixed it with the class all day and deep into the night before an engine failure ended the run late. No trophy, but a statement: America’s quad-cam Corvette could qualify for, fight in, and very nearly finish the world’s roughest endurance race on privateer grit.

In 1995, Doug Rippie Motorsports hauled the C4’s halo straight to La Sarthe—the only ZR-1 ever to start the 24. The car looked every inch the purpose-built GT1: clear headlamp covers over a shovel-nose fascia, deep hood extractors, a proper splitter, and that Lotus-designed LT5 quad-cam breathing through a wide mouth. The livery read like pit-lane roll call—Mothers, Mid America, Bosch, Red Line—but the stance said everything: low, wide, and unapologetically CORVETTE.

The run was classic privateer grit. The DRM ZR-1 mixed it with the class through the wet night on tidy stops and honest pace before an engine problem ended the drive late. No trophy, but the point landed: a well-prepared, quad-cam C4 could qualify for, race in, and very nearly finish Le Mans. In the broader ’95 story, that effort feels like a handoff—the proof-of-concept that set the stage for the factory C5-R juggernaut to follow.

The ZR-1’s Farewell: Long Live the King

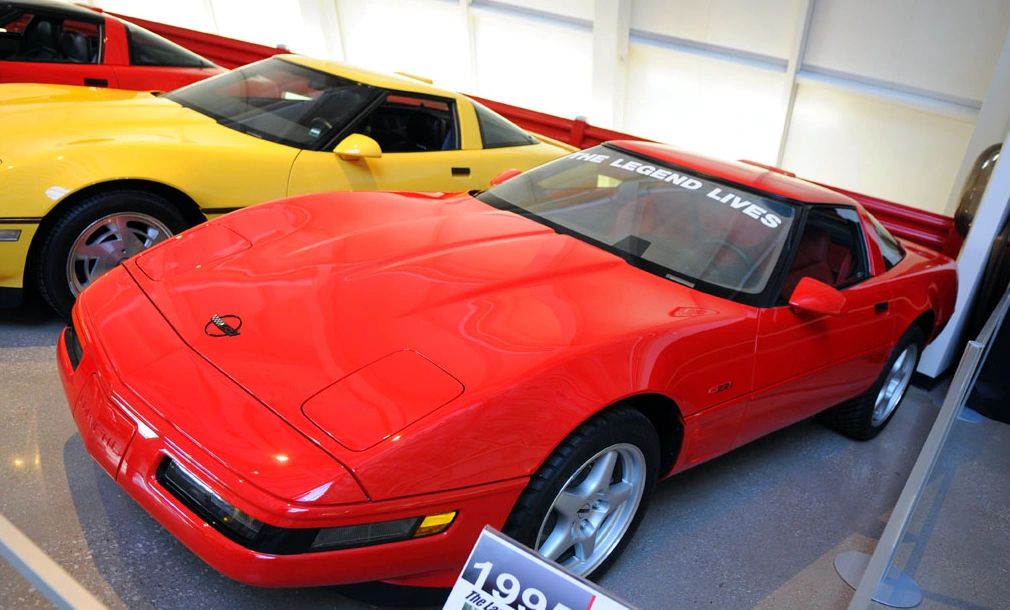

This image shows the final 1995 Corvette ZR-1—the last C4 ZR-1 built—now preserved at the National Corvette Museum, identifiable by the windshield banner reading “The Legend Lives,” the slogan used for the model’s sendoff. Chevrolet ended ZR-1 production in 1995 after building 448 examples for the final model year, closing out a six-year run of the LT5-powered flagship. The 1995 ZR-1 used the 5.7-liter LT5 DOHC V8 rated at 405 horsepower and 385 lb-ft of torque, paired exclusively with a six-speed manual transmission. Contemporary accounts of the retirement ceremony note that the final Torch Red car was driven from the Bowling Green plant to the National Corvette Museum for permanent display.

If the C4 democratized world-class handling, the ZR-1 redefined what an American supercar could be. Six model years; 6,939 cars; a Lotus-engineered, Mercury Marine-assembled LT5 with four cams, thirty-two valves, and a work ethic that made endurance records look like calendar invites. The final ZR-1 rolled off the Bowling Green line on Friday, April 28, 1995, and it didn’t sneak out a side door. The plant paused. The car—Torch Red, as if it could be anything else—was paraded off the line with Plant Manager Wil Cooksey and UAW’s Billy Jackson aboard. Jim Perkins, Chevrolet’s general manager and a man who could sell ice in Antarctica, took the wheel, checkered flag in hand. Riding shotgun across to the National Corvette Museum: Dave McLellan, the chief engineer who shepherded the C4 from square one into legend. It was equal parts celebration and salute.

Why end it? Two truths converged. The 1996 emissions and onboard diagnostic standards made another year of LT5 prohibitively expensive. And the LT1 cars—cheaper, simpler, and increasingly mighty—were too good to ignore. Corvette people love to speculate about the path not taken: the higher-output LT5 evolutions (450-plus horsepower) that Lotus and GM explored, the prototypes that hinted at what might have been. But the market and the calendar set the terms. The ZR-1 had done its job. It changed minds. It dragged the world’s attention to a corner of Kentucky and made the Corvette name synonymous with speed, stamina, and civility. The king could retire; the kingdom was secure.

And the epitaph had already been written in the present tense. As AutoWeek put it at the time: with rocket-sled acceleration, mastiff grip, and right-now brakes, the ZR-1 offered the largest performance envelope of any mass-produced American car, would trudge through gridlock with the A/C on “kill,” and, with a slight tailwind, run 180 mph. You don’t need a plaque for that. You need a long piece of road.

Sales, VINs, and the Slow Fade to the Finale

The numbers tell a polite truth. With the C5 looming, 1995 Corvette production settled at 20,742 units—15,771 coupes and 4,971 convertibles—even as dealers grew aggressive with their pricing. ZR-1 production stopped at 448 before the April ceremony. If you’re decoding a car today, the VIN blocks make life easy: base cars run 100001–120294; ZR-1s run 800001–800448. Don’t be surprised when serial ranges and total production totals don’t match exactly; number allocation doesn’t always run in a perfect, uninterrupted line. What matters is that the line, in the bigger sense, kept moving forward.

How It Drives—Then and Now

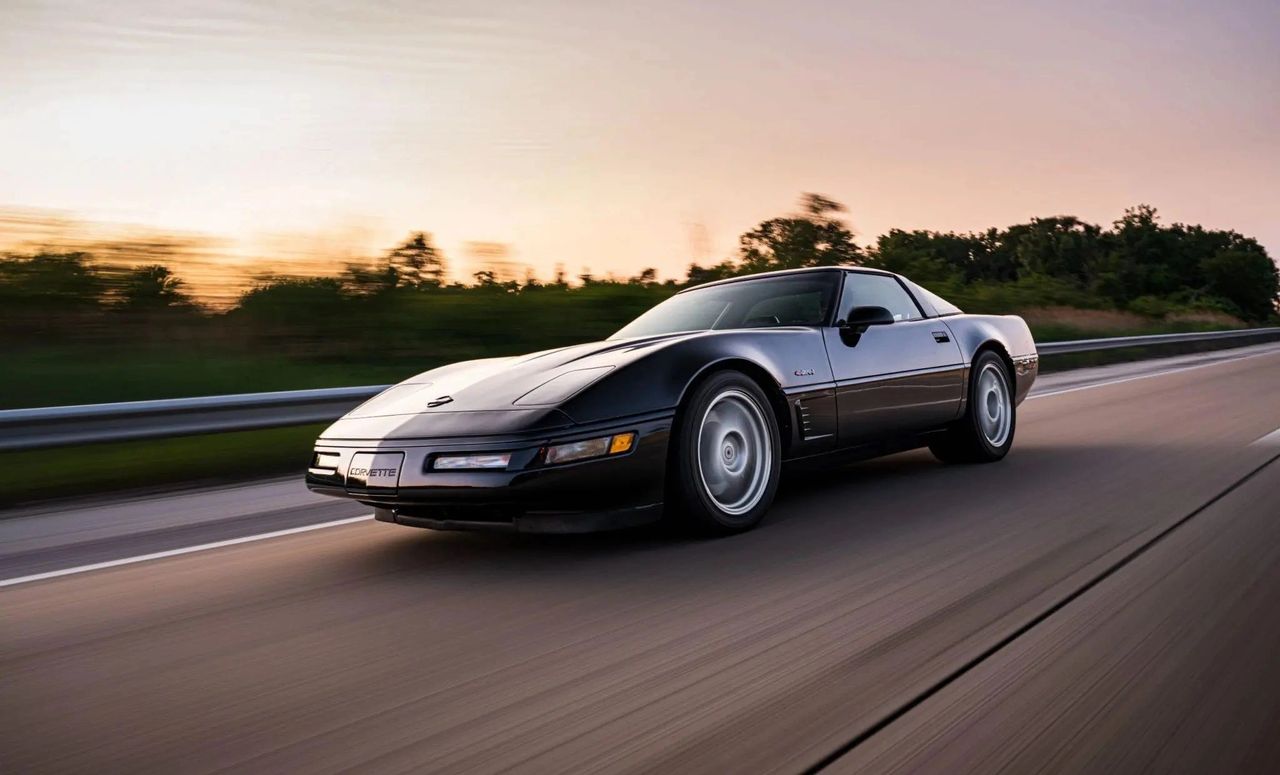

The ’95 drives like a sorted idea. The LT1 fires clean, leans on its torque, and pulls with that lazy-quick surge that makes short shifts feel smart. Steering is keyed-in but unneedy—light off center, confident as you lean on it—and the base suspension trades chatter for conversation, smoothing the junk without dulling the edge. Roll into the middle pedal and J55/ABS 5 keeps the car square; you get a short stroke, a steady nose, and permission to brake later than you planned. Gear it up on the highway and the whole car relaxes—long legs, low revs, cabin quiet enough to hear the tires working. It’s not trying to impress you; it just gets every job right, which is the point.

Drive a healthy 1995 Corvette, and the point lands without a sales pitch. The LT1 snaps awake and settles into a steady heartbeat; the six-speed works like a well-oiled bolt, reverse clicking in with the certainty of a light switch. A good automatic behaves like a seasoned co-driver—quiet, decisive, always where you want it. On a fast two-lane, the base suspension irons the small stuff instead of broadcasting it; the car trades chatter for conversation. Lean hard on the J55/ABS 5, and the nose stays glued to your line—short pedal, tidy weight transfer, courage on tap.

Inside, the French-seam sport seats still hold you like a handshake you trust. The radio doesn’t hop over railroad tracks, and the cabin refuses to rattle like a coffee can of sockets on a washboard. None of it is brochure fireworks; it’s the clean execution that turns speed into confidence. That was the ’95 then, and it’s why a well-kept one now still feels like a sorted instrument, not just a fast car.

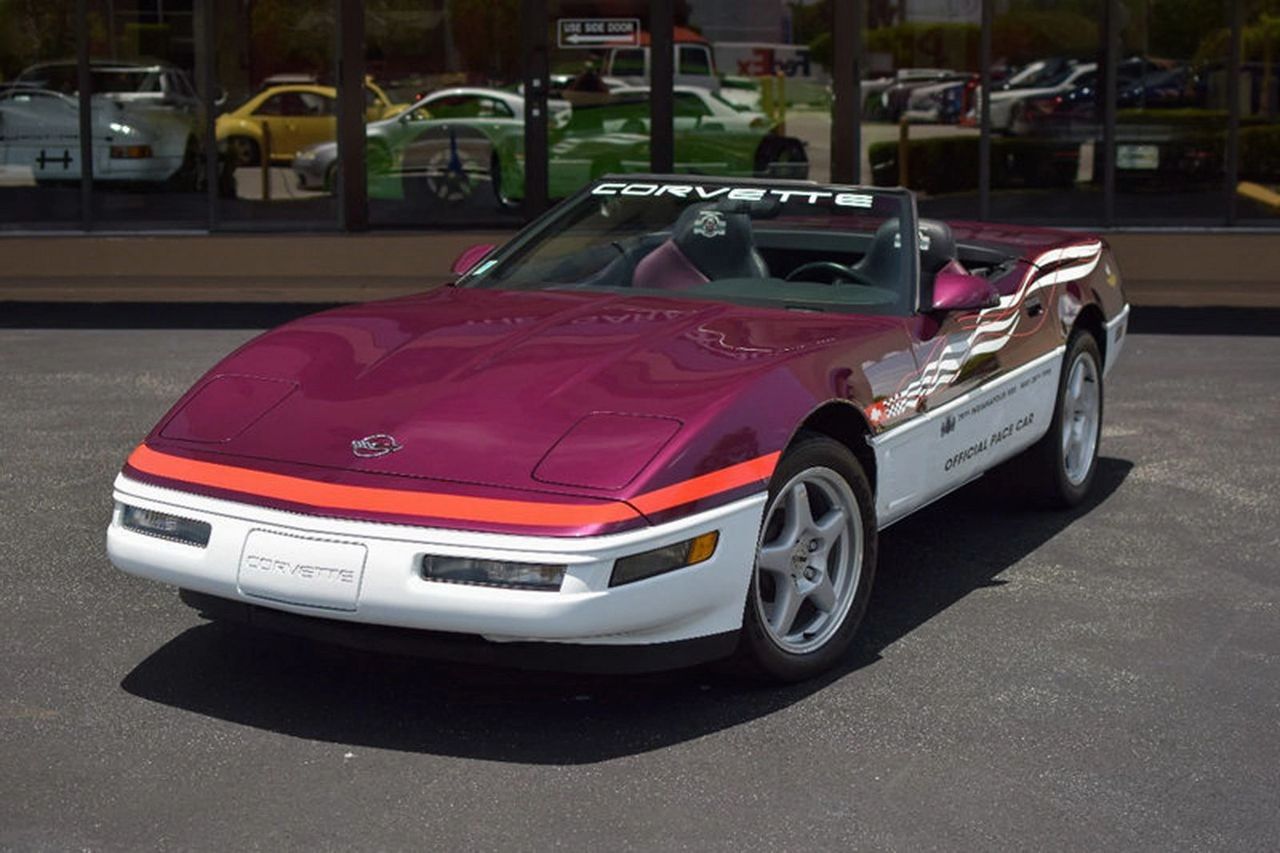

Why THE 1995 CORVETTE Matters

Why ’95 mattered is parked right here. The late-C4 finally became the car Chevy had been chasing—LT1 torque that lit every time, ABS 5/J55 brakes you could lean on, and a chassis that filtered chatter instead of shouting it. The new “gill” side vents and cleaner nose sharpened the look, while the Indy Pace Car program put the polish on display for everyone to see. It was the ZR-1’s curtain call, the LT1’s sweet spot, and the year the Corvette proved it could be quick, durable, and civilized all at once—setting the table for the C5 to sprint.

Collectors chase stories as much as they chase cars, and the 1995 Corvete tells several good ones. It’s the last season where, in theory, you could cross-shop a ZR-1 and an LT1 on the same floor. It’s the year big brakes became a birthright for every buyer. It’s Indy, if you want a commemorative with presence that still makes kids point. It’s also the sweet spot for owners who drive: late-run quality, sensible NVH, better “live-with-it” bits, and braking that belongs on a modern highway. If you want a C4 that carries the lessons of the whole generation without the price tag of the halo, 1995 checks every box in a steady, confident hand.

Epilogue: The Heir Apparent

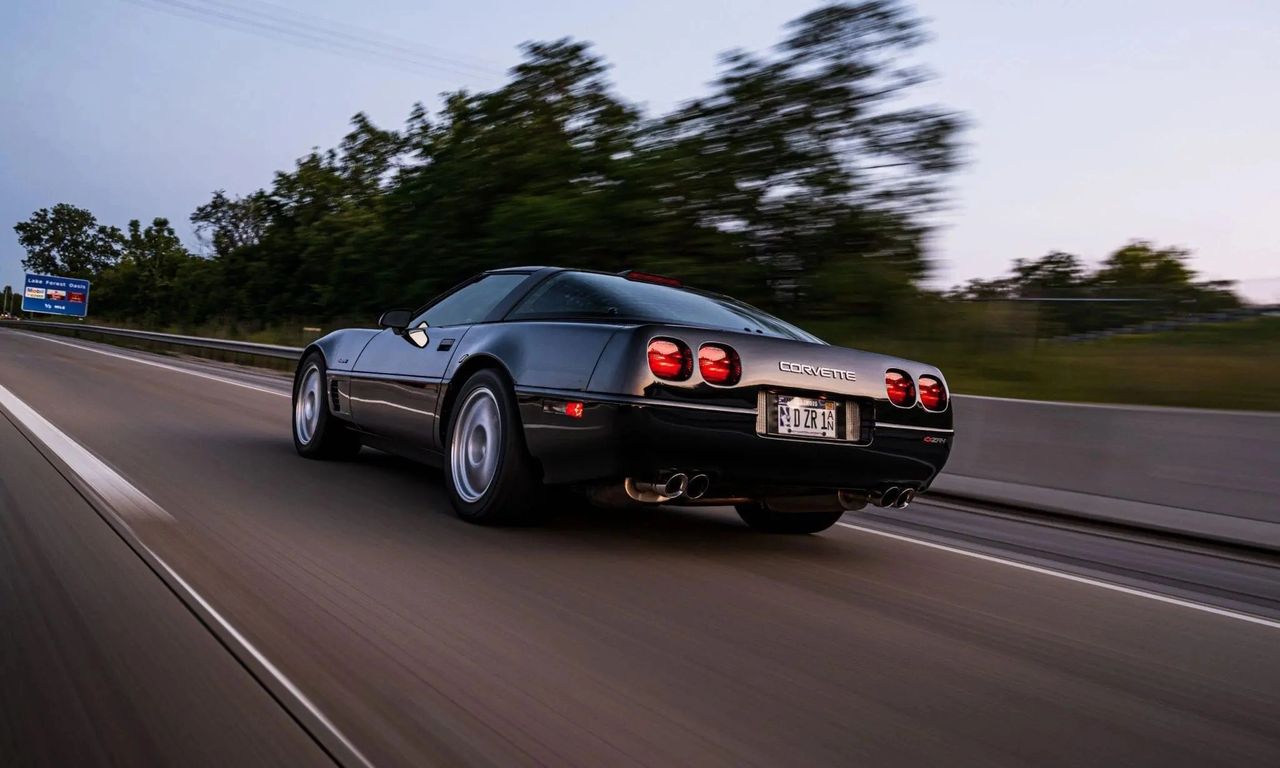

Even as the 1995 ZR-1 slipped into the violet edge of the day, the LT5’s last note hung in the air like a promise. Four round taillights and four chrome tips faded to red fireflies, but the idea didn’t fade—the ZR-1 badge was never a period, only a comma. Engineers knew it, and the faithful did too: the recipe of durability, exotic power, and long-legged speed would return. Consider this shot the curtain call and the teaser—America’s quad-cam legend riding into the sunset so it could rise again when Corvette needed its ace.

When the line paused that afternoon in Bowling Green, the ZR-1’s farewell felt like an ending. It was. But you could already feel the future in the way the 1995 car went about its business. Make world-class performance easy to access. Make the everyday miles quiet, cooperative, and cool. Sweat the invisible details until the owner doesn’t notice them at all. That was the late-run C4’s promise. It became the C5’s identity. And it remains the Corvette’s defining trick: the long sprint from Motorama fantasy to daily-usable supercar.

1995 Corvette: Deep-Spec Reference (Coupe & Convertible; ZR-1 where noted)

Engine & Induction
- Engine code: LT1 (RPO LT1), Gen II small-block V8
- Displacement: 5,733 cc (350 cu in)
- Block/heads: Cast iron block; aluminum cylinder heads
- Bore × stroke: 4.00 in × 3.48 in (101.6 × 88.4 mm)
- Compression ratio: ~10.5:1
- Valvetrain: OHV, 2 valves/cyl; hydraulic roller lifters
- Rated output: 300 hp @ 5,000 rpm; 340 lb-ft @ 4,000 rpm
- Fuel system: Sequential port fuel injection (speed/density with MAP)
- Ignition: OptiSpark distributor with crank-driven optical trigger (late-run spec)
- Cooling & fans: Cross-flow radiator; electric primary fan with revised ’95 control/quiet hardware
- Bottom-end notes (’95): Powdered-metal connecting rods; durability/NVH refinements
- Exhaust: Dual undercar system with catalysts; quad rear outlets (’95 reroute minimizes heat soak/paint staining)
ZR-1 (1995 carryover, early-year only)

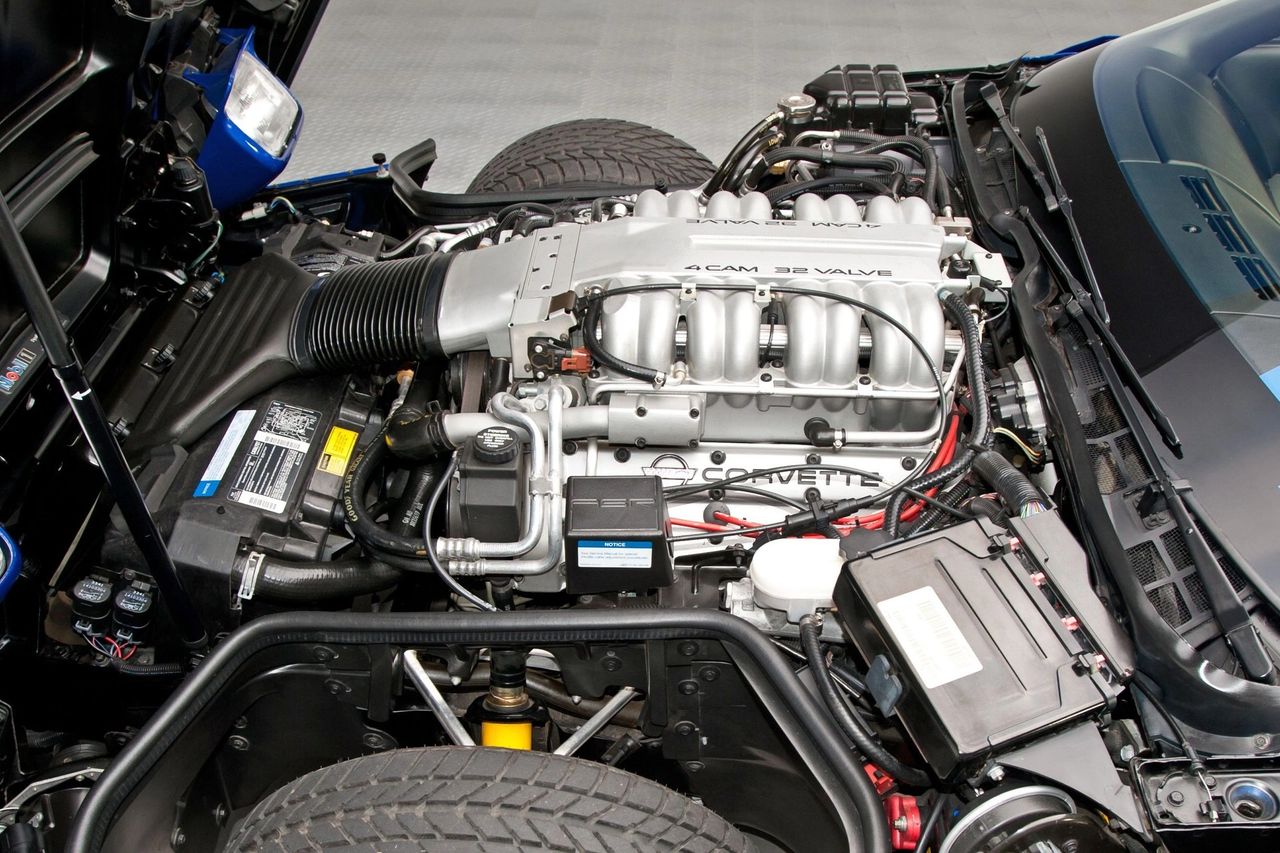

- Engine code: LT5 (RPO ZR1), 5.7L DOHC 32-valve V8
- Output: 405 hp @ 5,800 rpm; 385 lb-ft @ 5,200 rpm
- Induction: Sequential port; individual coil packs per bank; 4 cams, belt-driven
Transmissions & Final Drives
- Automatic: 4L60-E (RPO M30) electronic 4-speed; revised calibration & lighter/stronger converter in ’95
- Manual: ZF S6-40 (RPO MN6) 6-speed
- Ratios (typical LT1): 1st 2.68, 2nd 1.80, 3rd 1.31, 4th 1.00, 5th 0.75, 6th 0.50; Rev ~2.90
- Reverse engagement: High-detent mechanism (’95 replaces ’94 lockout hardware)
- Final drives (common LT1 setups):
- Manual: 3.45:1 (std)
- Automatic: 2.59:1 (std); 3.07:1 with RPO G92 Performance Axle Ratio
- Clutch (manual): 11-in diaphragm, hydraulic actuation; dual-mass flywheel
Chassis, Suspension & Steering
- Structure: Uniframe/birdcage with bolt-on front/rear cradles; hatch-back coupe or soft-top convertible
- Front suspension: SLA (short/long arm) with forged aluminum control arms; transverse composite leaf spring; monotube de Carbon gas shocks (’95 softer valving on base suspension)
- Rear suspension: Upper/lower lateral links with trailing rod; transverse composite leaf spring; monotube de Carbon shocks
- Selectable damping (opt): FX3 Electronic Selective Ride & Handling (Bilstein actuated, 3 modes)
- Steering: Power rack-and-pinion, performance ratio; tilt column standard
- Turning circle: ~38–40 ft curb-to-curb (tire/wheel dependent)
Brakes (Big Brakes Go Standard in ’95)
- System: 4-wheel discs with Bosch ABS 5; ASR traction control
- Calipers/rotors (LT1 1995):
- Front: 2-piston PBR calipers; ~13.0-in ventilated rotors (J55-spec hardware standard in ’95)
- Rear: Single-piston sliding calipers; ~12.0-in ventilated rotors
- Proportioning: Electronic via ABS/ASR logic; performance-oriented bias for stability under trail-brake
Wheels & Tires
- Standard alloys: 17-in cast aluminum “sawblade” or directional turbine design (finish varies)
- Typical sizes (LT1):
- Front tires: 255/45ZR-17
- Rear tires: 285/40ZR-17
- Run-flats (opt): WY5 Extended Mobility Tires (EMT)
- Spare delete (opt): N84 Spare Tire Delete (requires WY5; nets ~$100 credit & small weight savings)
- ZR-1 wheels/tires (reference): 17×9.5 in front, 17×11 in rear; 315-section rears with A-mold design
Dimensions & Capacities
- Wheelbase: 96.2 in (2444 mm)
- Length: ~178.5 in (4530 mm)
- Width: ~71.0 in (1803 mm)
- Height: ~46.7 in (1186 mm) coupe; conv slightly taller with top up
- Track: ~59.6 in front / 60.4 in rear (tire/wheel varies a tick)
- Curb weight (approx):
- Coupe (LT1): ~3,350–3,400 lb depending on options
- Convertible (LT1): ~3,450–3,550 lb
- ZR-1: ~3,550–3,600 lb
- Fuel tank: 20.0 gal (75.7 L)
- Hatch cargo (coupe): generous flat load floor; convertible uses rear well (smaller but usable)
- Towing: Not rated; cooling/aero not configured for trailer duty
Performance (Period Test Window; LT1)
- 0–60 mph: ~5.2–5.5 sec (manual); ~5.7–6.0 sec (auto, axle-ratio dependent)
- Quarter-mile: ~13.6–13.9 sec @ 102–104 mph (manual)
- Top speed: ~165–170 mph (manual, gear/drag conditions)
- 60–0 mph braking: ~115–125 ft (pads/tires swing results; ’95 big brakes markedly consistent)
- Skidpad: ~0.90–0.95 g (tire compound & FX3 influence)
- EPA fuel economy (typical): ~17/25 mpg (city/hwy) both transmissions, premium unleaded recommended
Electrical/Controls
- ABS/Traction: Bosch ABS 5 controller with integrated ASR
- PCM: OBD-I strategy (’95 transitional refinements; 1996 goes OBD-II)
- Gauges: 1995 cluster with ATF temperature readout for automatics; analog/digital hybrid display
- Security: Factory VATS (Vehicle Anti-Theft System) with resistor key
Interior & Ergonomics
- Seats: Standard buckets; AQ9 sport seats optional with improved French-seam stitching (’95) to curb bolster tears; power adjustments AG1/AG2 widely ordered
- Upholstery: Leather standard on most builds; colorways tied to exterior palettes; convertible gets specific trim/liner treatments
- Audio: Delco-Bose with in-dash CD (U1F), reinforced head-unit mounting to reduce skip; power mast antenna
- Rattle mitigation (’95): Added adhesive/Velcro straps in key cabin interfaces; additional isolators
- Roof (coupe): Removable panel; 24S blue-tint or 64S bronze-tint top; C2L dual-panel package (both tops)
- Convertible top: Fabric, heated glass rear window; optional CC2 auxiliary hardtop (limited take rate)
Paint & Trim (1995)

Standard colors: Arctic White, Black, Torch Red, Dark Red Metallic, Polo Green Metallic, Admiral Blue, Bright Aqua Metallic, Competition Yellow, Dark Purple Metallic (new). Special two-tone: Z4Z Indy 500 Pace Car Replica (Dark Purple Metallic over Arctic White with white top & ribbon graphics)
1. Torch Red — 4,531
2. Black — 3,959
3. Arctic White — 3,381
4. Polo Green Metallic — 2,940
5. Dark Red Metallic — 1,437
6. Dark Purple Metallic (new) — 1,049
7. Admiral Blue — 1,006
8. Competition Yellow — 1,003
9. Bright Aqua Metallic — 909
10. Z4Z Indy 500 Pace Car Replica (Dark Purple Metallic / Arctic White) — 527
- Popular choices (’95 mix): Torch Red (~22%), Black (~19%), Arctic White (~16%), Polo Green (~14%); Dark Purple Metallic ~1k cars; Pace Car 527 units
Options & Notables (selected RPOs)
- FX3 Electronic Selective Ride & Handling (Bilstein)
- G92 Performance Axle Ratio (3.07 on automatics)
- UJ6 Low tire pressure warning indicator
- WY5 Extended Mobility Tires (run-flats)
- N84 Spare Tire Delete (requires WY5; –$100)
- Z07 Adjustable Performance Handling Package (’95 availability limited; heavy-duty cooling/suspension mix)
- Z4Z Indy 500 Pace Car Replica (convertible)
- ZR1 Special Performance Package (coupe; early-’95 run only)
Production, Pricing & VIN
- Total ’95 production: 20,742
- Coupe: 15,771
- Convertible: 4,971
- ZR-1 (’95): 448 (part-year; ZR-1 total ’90–’95: 6,939)
- Base MSRP: Coupe $36,785; Convertible $43,665
- ZR-1 option add: $31,258 (over coupe)
- VIN blocks (’95):
- Base coupe/convertible: 100001–120294 (serial allocation > production; skips occur)
- ZR-1: 800001–800448
Indy 500 Pace Car (Z4Z)
- Configuration: Convertible only
- Livery: Dark Purple Metallic over Arctic White; white top; ribbon graphics; embroidered headrests; specific trim
- Build: 527 units; 87 used at Indy; 20 exported; remainder to top-performing U.S. dealers
- Price add: $2,816 over base convertible
What to Check (Buyer/Restorer CheckList)
- OptiSpark health: Look for dry front cover, recent service, quality replacement parts
- Cooling system: Clean coolant, proper fan engagement; radiator fins intact
- ABS/ASR lights: Should prove-out and go out; Bosch 5 is robust but wiring/grounding matters
- FX3 actuators (if equipped): Verify mode changes & no codes; actuators can stick
- Seat bolsters: ’95 French seams hold up better, but foam wear still shows on high-mile cars
- Roof panel seals (coupe): Wind noise/water leaks → new seals/adjustments fix it
- Run-flats & N84: If spare is deleted, confirm tire date codes and condition; EMTs age out
WHY THE 1995 CORVETTE STILL MATTERS TODAY

The 1995 Chevrolet Corvette continues to represent one of the most advanced iterations of the fourth-generation Corvette. Future buyers considering a fourth-generation model would do well to explore both the 1995 and 1996 models as these last two model years provide some of the most complete, most capable, and most technologically developed Corvettes from this generation.

The 1995 Corvette still matters today because it represents one of the most complete and confident expressions of the C4 generation. By this point, Chevrolet had spent more than a decade refining the platform, and it showed. The styling was sharp, the chassis was mature, the LT1 V8 delivered strong, dependable performance, and the overall driving experience felt far more polished than many people give it credit for. While earlier C4s introduced the world to a radically new Corvette, the 1995 model proved just how good that formula could become when the engineering, comfort, and performance all came together.

It also matters because the 1995 Corvette sits in a fascinating place in Corvette history. It arrived just before the final sendoff of the C4 generation, which means it benefits from years of development while still carrying the unmistakable design language that defined the Corvette through much of the 1980s and 1990s. For enthusiasts today, that makes the 1995 model especially appealing. It offers classic C4 looks, real small-block power, proven road manners, and a driving experience that still feels engaging in a world increasingly shaped by technology and isolation.

Most importantly, the 1995 Corvette still matters because it helped preserve the Corvette’s performance credibility during a period of transition. It kept America’s sports car relevant, desirable, and unmistakably bold while paving the way for what would come next. For owners, collectors, and longtime enthusiasts, the 1995 Corvette is more than just another model year. It is a reminder that refinement matters, that evolution matters, and that some of the most rewarding Corvettes are the ones that quietly got everything right.
The 1995 Corvette refined the C4 formula with sharper confidence, proven LT1 power, and one of the era’s most memorable color palettes. It was a car that felt mature, fast, and unmistakably Corvette, bridging the gap between the polished late-C4 years and the legends still to come.

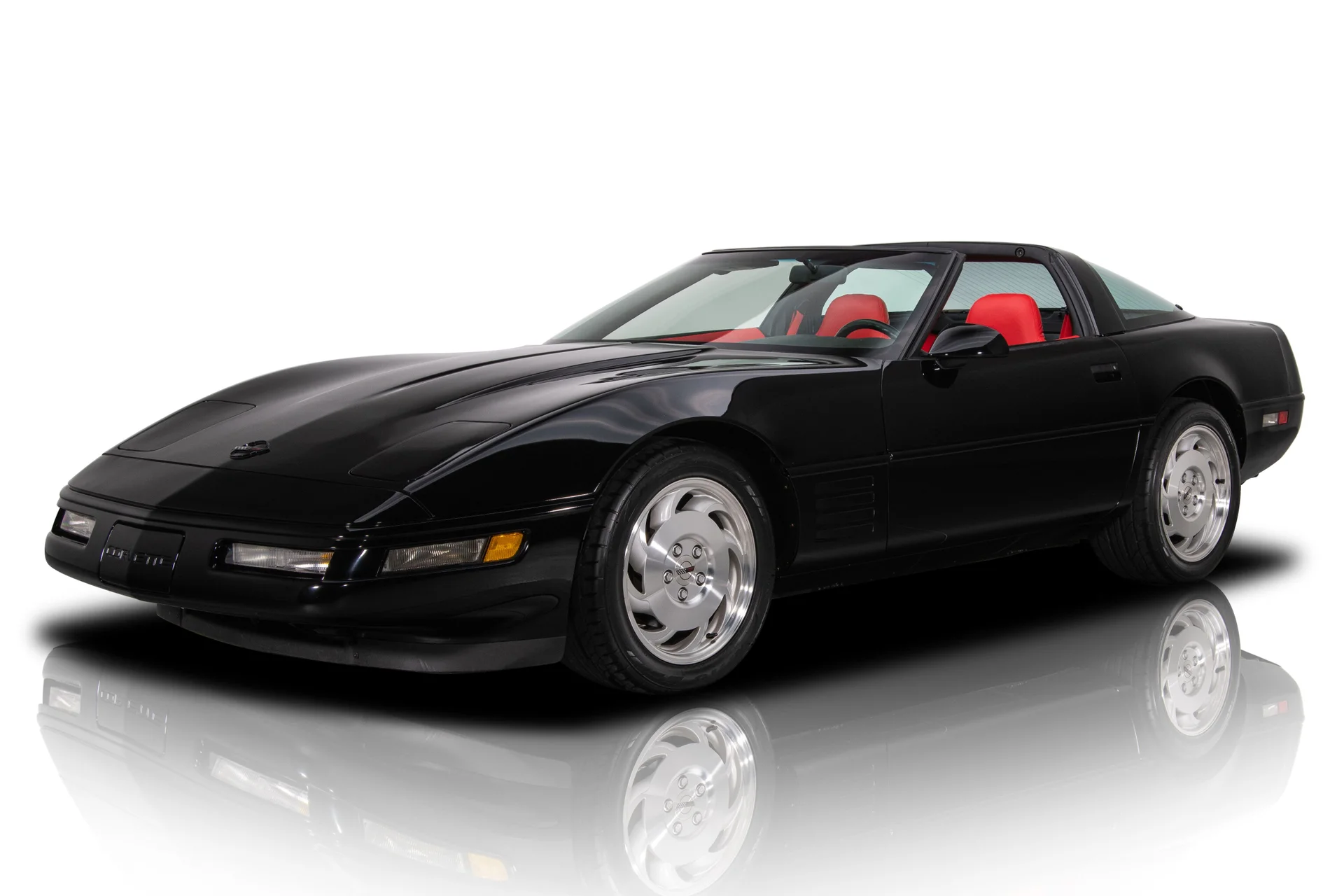

1994 CORVETTE OVERVIEW
When Harley Earl’s small team in GM’s Styling Section revealed the original Corvette concept in 1953, few could have imagined that four decades later the car would not only still exist, but that it would stand as the enduring symbol of American performance. By 1994, the Corvette was entering its twelfth model year of the C4 generation—a platform introduced in 1984 that had brought the car into the modern era with cutting-edge chassis technology, digital instrumentation, and world-class performance credentials. Yet 1994 was not merely another model year in the life of the C4. It was a year defined as much by what was happening around the car as by the refinements made to it.

Two announcements in particular defined 1994 for Corvette enthusiasts: the long-awaited opening of the National Corvette Museum in Bowling Green, Kentucky, and General Motors’ confirmation that an all-new, fifth-generation Corvette (the C5) was on track for introduction in 1997. These milestones—one celebrating the Corvette’s heritage, the other pointing toward its future—created a moment of reflection and anticipation unlike any the community had seen before.

The National Corvette Museum Opens

On Labor Day weekend in 1994, the National Corvette Museum opened its doors in Bowling Green, Kentucky—right across from the Corvette Assembly Plant—welcoming a sea of Corvettes that caravanned in from across the country. The scene felt like a family reunion for America’s Sports Car: early C1s like the one pictured here lined the curb as owners, engineers, and fans celebrated four decades of Corvette history. Built through grassroots support—founding memberships, commemorative bricks, and donations—the nonprofit museum set out to preserve design, engineering, and racing heritage under one roof. Early exhibits mixed milestone production cars with rare concept and racing machines, tying the showroom to the track. The building’s distinctive red-and-silver façade and spire quickly became a Bowling Green landmark. That grand opening cemented the museum as the spiritual home of Corvette culture. (Image courtesy of the National Corvette Museum)

On September 2, 1994, after years of planning, fundraising, and sheer determination by enthusiasts, Chevrolet, and private contributors, the National Corvette Museum opened its doors. Located just across I-65 from the Bowling Green Assembly Plant, the Museum instantly became the “Mecca” for Corvette owners and fans.

The grand opening ceremonies drew more than 4,000 Corvettes from virtually every state in the continental U.S. Over the three-day celebration, 118,000 visitors toured the facility. Chevrolet supplied historically significant cars “on permanent loan,” including the original 1963 Corvette Sting Ray coupe and the dramatic Mako Shark II concept. The presence of legendary Corvette figures Zora Arkus-Duntov (the car’s spiritual father) and Dave McLellan (then-Chief Engineer) lent the event a sense of continuity, bridging the Corvette’s pioneering past with its evolving present.

This enamel lapel pin commemorates the National Corvette Museum’s grand opening on Labor Day 1994. Encircled by “GRAND OPENING • LABOR DAY 1994,” it centers the museum seal—an homage to Corvette iconography with the Chevrolet bowtie, racing checks, and fleur-de-lis signifying engineering, competition, and heritage. Pins like this were offered to early supporters and attendees who caravanned into Bowling Green for the dedication across from the Assembly Plant. Small in size but big in meaning, it’s a pocket-ready artifact from the weekend the NCM officially became Corvette’s home. A perfect keepsake that ties fans back to the community that built the museum.

For many owners, the Museum’s opening was a validation of Corvette culture itself: that a car born as a styling experiment had matured into a national treasure worthy of preservation.

Looking Ahead: The C5 Announcement

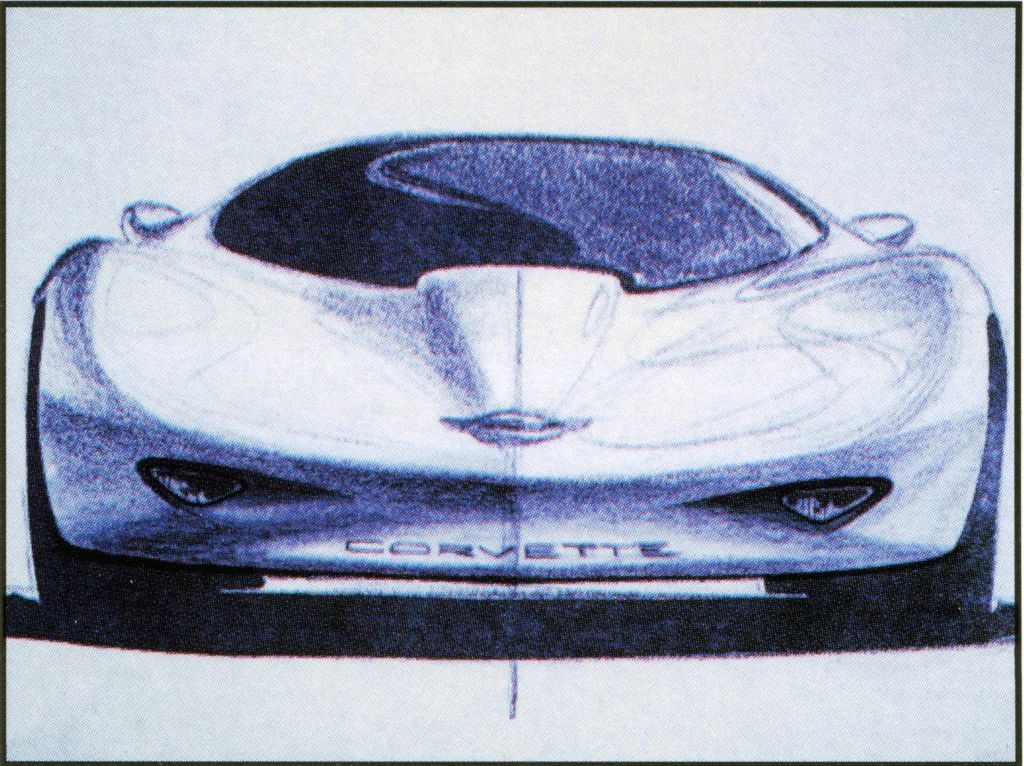

An early C5 design sketch, this drawing shows the studio’s “shrink-wrap the hardware” vision for the all-new 1997 Corvette—wide, low, and aero-clean. The canopy-style greenhouse, pronounced center spine (a quiet nod to the ’63 Sting Ray), and deep fascia intakes push a futuristic, almost mid-engine vibe. Note the bold CORVETTE script across the lower bumper and the slim lamp openings—concept cues that were toned down as the program matured. Even so, the production C5 kept the essentials you see here: broad shoulders, a planted stance, and surfacing shaped by airflow over ornament. (Image courtesy of GM Media LLC.)

The second major piece of news in 1994 came from GM itself. After whispers and speculation, the company confirmed that a fifth-generation Corvette was in development and scheduled for the 1997 model year. In fact, much of the Corvette engineering and design team had already been reassigned to the C5 program. Their focus on the future explains why the C4, by then a decade old, remained mostly unchanged in 1994.

Still, the knowledge that a successor was coming lent the 1994 model a sense of transition. Enthusiasts could enjoy the current car knowing that it was entering its final chapter, even as they eagerly awaited the revolutionary design to come.

Engineering Refinements

Although the 1994 Corvette did not introduce dramatic changes, the refinements made to its powertrain and driveline reflected GM’s commitment to continuous improvement. These refinements included:

LT1 Upgrades

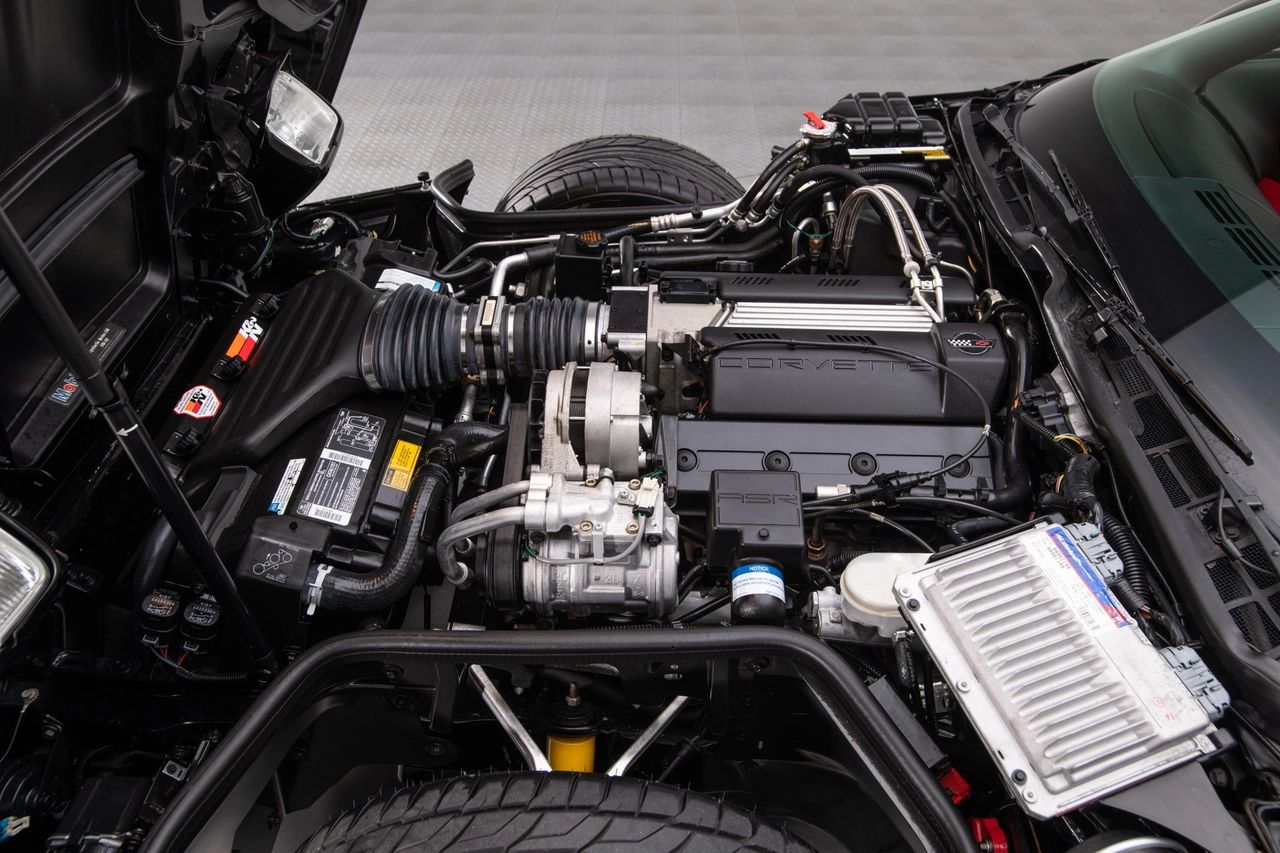

The 1994 Corvette’s 5.7-liter LT1—featuring reverse-flow cooling and Opti-Spark ignition—delivered a crisp 300 hp and 340 lb-ft. This tidy bay shows the compact accessory drive, under-hood PCM, and that signature “CORVETTE” intake plenum. (Image courtesy of RK Motors)

The LT1 small-block V8, introduced in 1992, remained the standard engine. Rated at 300 horsepower and 340 lb-ft of torque, it delivered robust performance. In 1994, engineers revised the ignition system with more powerful components, improving cold-start performance and reducing cranking time. Perhaps the most significant improvement was the adoption of sequential fuel injection. Replacing the batch-fire system of earlier years, the new setup timed injector pulses to each cylinder’s intake stroke, improving throttle response, idle stability, and emissions.

Electronic Transmission

The 4L60E is on the left side of the photo—the large ribbed cast-aluminum housing just ahead of the catalytic converter and behind the exhaust Y-pipe. Compared with the earlier 4L60/700R4, the 1994 4L60E uses full electronic control of shift timing and line pressure via the PCM (shift solenoids A/B and an EPC solenoid) instead of a throttle-valve cable and hydraulic governor. Gear ratios and basic hardware stayed similar, but the “E” added computer diagnostics and adaptive shift capability, along with the necessary wiring and calibration changes. (Image courtesy of RK Motors)

Another milestone came with the adoption of GM’s first electronically controlled automatic transmission in the Corvette. The 4L60-E replaced the 4L60, incorporating electronic shift controls for smoother, more consistent performance. Shift scheduling now responded to inputs from the Powertrain Control Module (PCM), which could adjust behavior based on throttle position, engine load, and even barometric pressure. The result was a more refined driving experience.

As part of an industry-wide response to “unintended acceleration” concerns, a safety interlock was also added: drivers now had to depress the brake pedal before shifting out of “Park.”

ZR-1 Power Bump

Pictured is the ZR-1’s 5.7-liter LT5—Lotus-designed and Mercury Marine-built—a quad-cam, 32-valve aluminum V8 rated at 405 hp and 385 lb-ft for 1994. The wide “4 CAM 32 VALVE” plenum and long, paired intake runners feed the LT5’s two-stage porting, and its unique electronics/cooling set it apart from the pushrod LT1. A true “King of the Hill” powerplant, it gave the C4 a high-revving, supercar character. (Image courtesy of RK Motors)

At the top of the range, the enhanced LT5-powered ZR-1 received a horsepower increase from 375hp to 405hp. This revision, achieved through improved cylinder head flow and revised cam timing, solidified the ZR-1’s position as a true supercar. With a 7,200-rpm redline and acceleration figures that rivaled the best from Europe, the “King of the Hill” Corvette of 1994–95 would go down as one of the most collectible modern Corvettes.

New Technologies

Run-Flat Tires

Run-flat tires like Goodyear’s Eagle F1 GS EMT (pictured here) let you keep driving after a puncture thanks to self-supporting sidewalls—typically up to about 50 miles at reduced speed—so there’s no roadside tire change and no need to carry a spare. This specific F1 GS EMT was developed for and fitted to the C5 Corvette, not the C4. For the C4, factory rubber was Goodyear Eagle GS-C (ZR-rated) on non-ZR-1 models and Goodyear Eagle GS-C in wider sizes on the ZR-1, with an optional GS-C EMT run-flat package first offered in 1994.

The 1994 Corvette became the first production car to offer Goodyear’s Extended Mobility “run-flat” tires as an option (RPO WY5). These tires can be driven at highway speeds for up to 50 miles, even when deflated, thanks to reinforced sidewalls and a special bead design. Because running a deflated tire risked damaging the rim, buyers were required to also specify the low tire pressure warning system (RPO UJ6). While expensive and somewhat controversial at the time, the technology foreshadowed the safety and convenience features now commonplace on modern cars.

Safety Improvements

By 1994, the Corvette’s interior felt more mature, more functional, and better resolved than the early C4 cabins that came before it. Revised seat designs, improved materials, and a more refined overall layout helped make the cockpit feel less experimental and more in step with the car’s grand touring mission. It was still unmistakably driver-focused, but now with a level of comfort and usability that made the C4 easier to live with every day.

A passenger-side airbag and knee bolster became standard, meeting the federal government’s evolving “passive restraint” requirements. This addition replaced the glovebox, a loss partially offset by new storage bins incorporated into the door armrests.

Design and Interior Updates

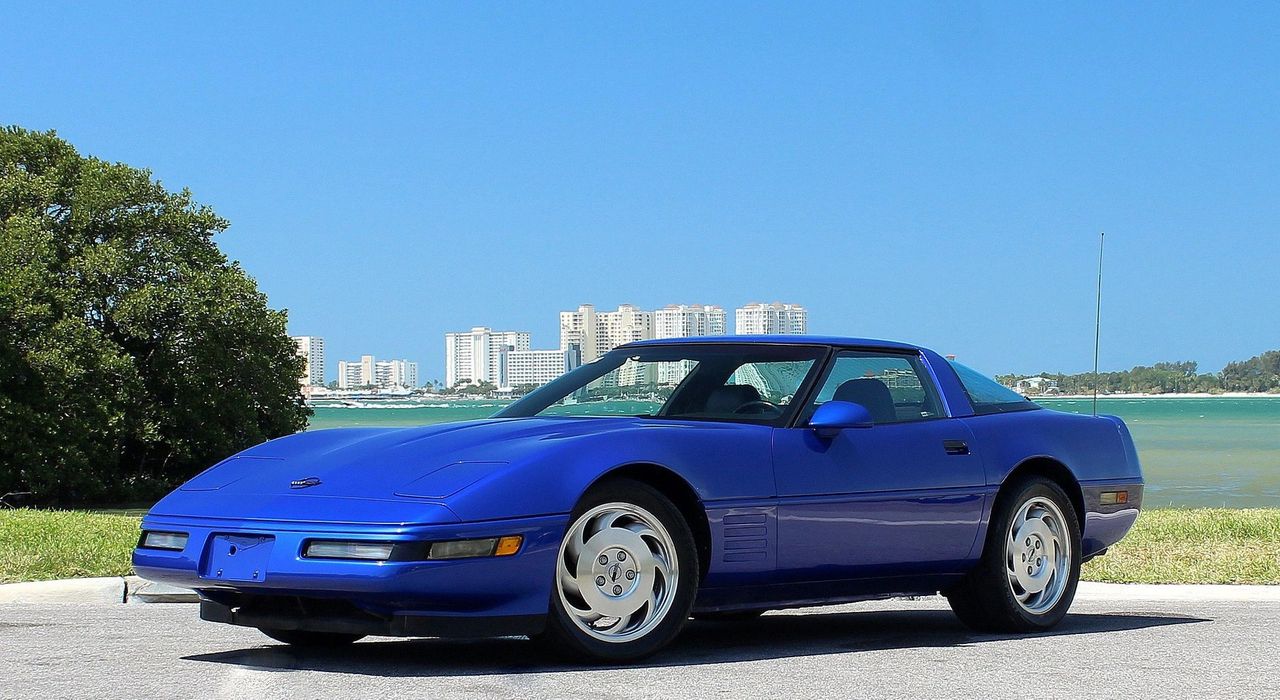

1994 Corvette in Admiral Blue

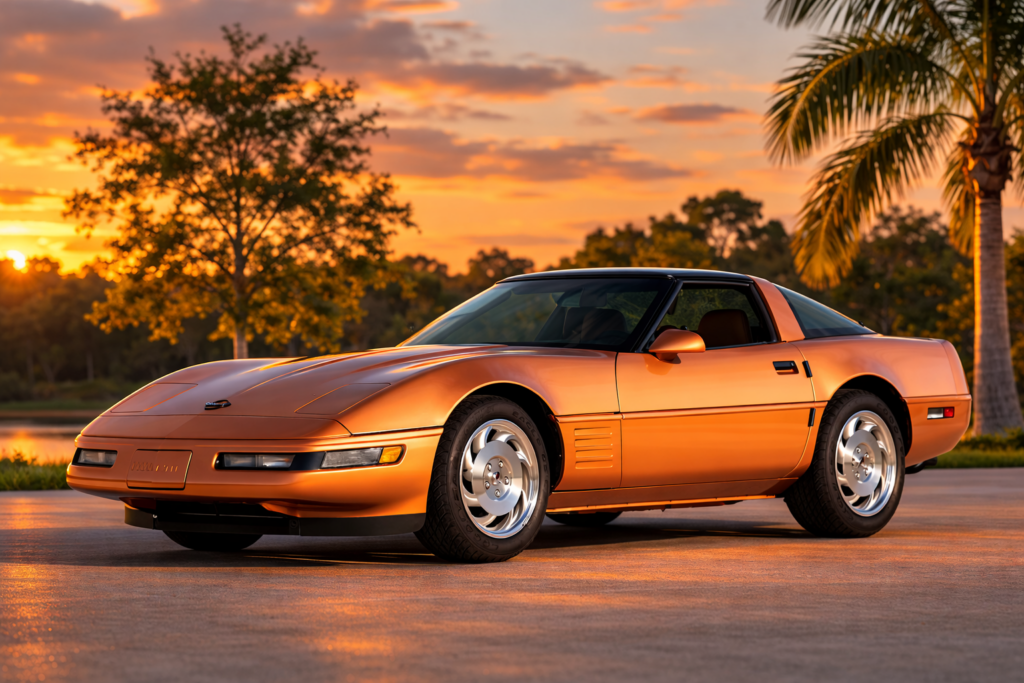

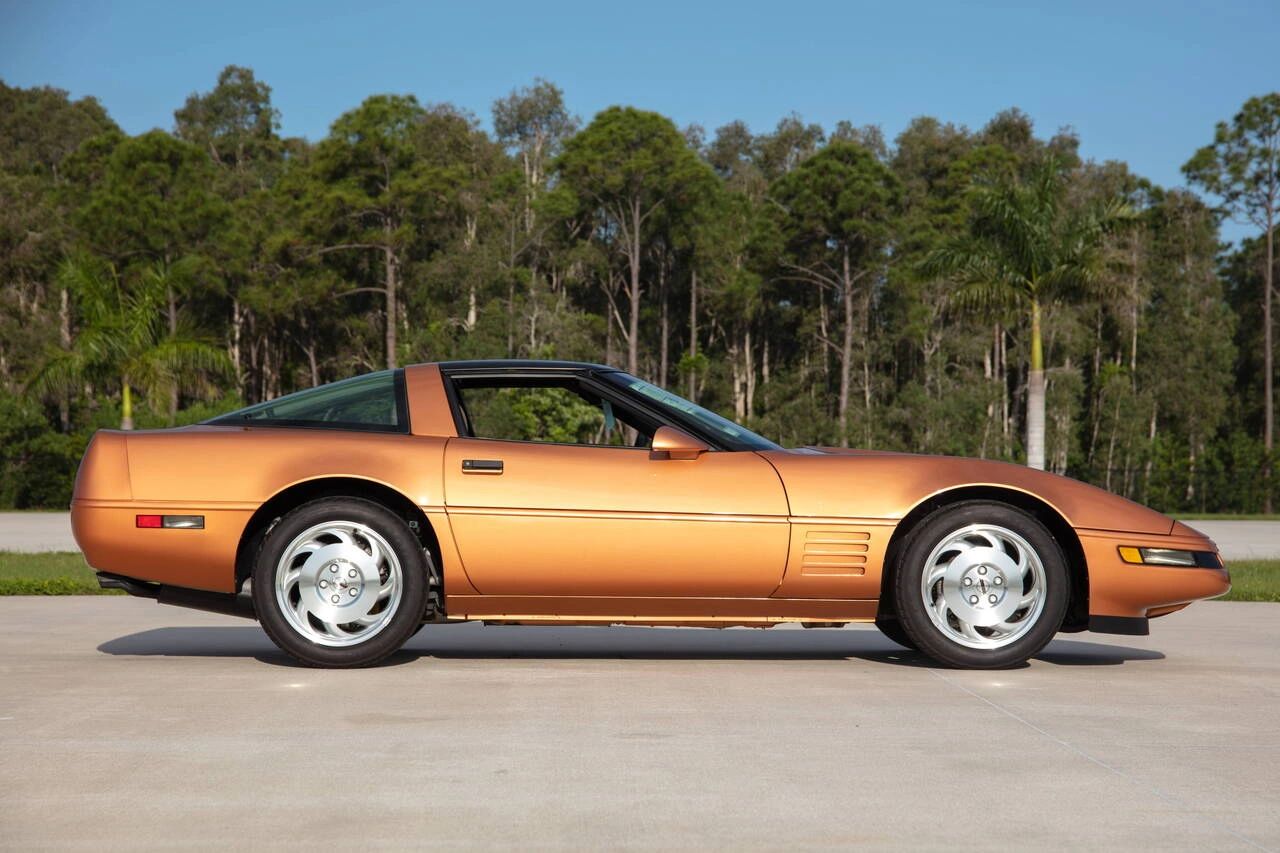

1994 Corvette in Copper Metallic

Visually, the 1994 Corvette changed very little. Two new colors—Admiral Blue and Copper Metallic—were added. Copper Metallic proved rare, with only 116 cars produced. On the ZR-1, new non-directional five-spoke wheels (unique to that model in 1994–95) distinguished it from the base car.

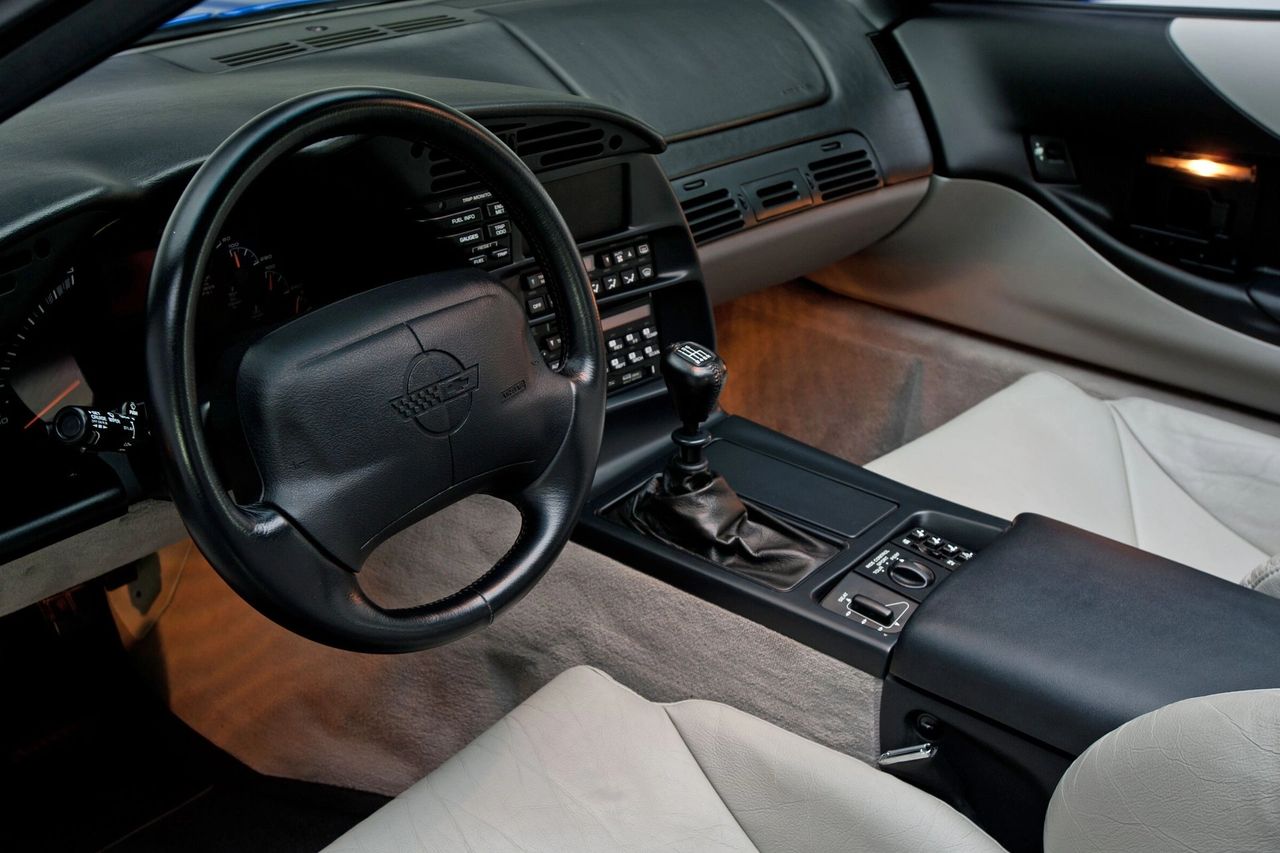

For 1994, the C4 adopted an updated two-spoke airbag wheel that integrated the horn into the airbag pad (earlier 1990–93 cars used separate horn buttons) and used a revised, flush-mount design with a new 1994–96 airbag module. (Image courtesy of RK Motors)

Inside, the most obvious change was the steering wheel. The new two-spoke design was widely panned as a step backward compared to the four-spoke wheel introduced in 1990. Instrumentation lighting was changed from white to tangerine, a warmer hue that improved night readability. A one-touch “express down” driver’s window was added. Leather seats became standard, available in base and sport configurations, with reduced bolstering to ease entry and exit.

Other refinements included switching from the environmentally harmful R12 refrigerant to R134a for air conditioning and replacing the convertible’s plastic rear window with a heated glass unit.

Corvette in Competition

Callaway’s SuperNatural LM GT2 Corvette—chassis 94-001 “Frieda”—wearing the #51 Voltan/RW Wheels livery at the 1994 24 Hours of Le Mans. Driven by Frank Jelinski, Boris Said, and Michel Maisonneuve, the aero-heavy Deutschman bodywork, big fixed lamps, and a 6.2-liter small-block made it a fan favorite, though the effort ended early after a DQ for outside assistance. The program returned stronger in 1995 with the sister #73 car, which famously finished 2nd in GT2 and 9th overall. (Image courtesy of Power Broker magazine)

While the factory team remained absent from Le Mans, Reeves Callaway’s private effort returned the Corvette name to international endurance racing. At Le Mans in 1994, Callaway’s SuperNatural Corvette qualified fastest in the GT2 class and led the race for six hours before retiring due to a fuel miscalculation. Later that year, at Vallelunga in Italy, the same car triumphed over ten Porsche 911s, finishing first in class and second overall in a four-hour race.

These exploits demonstrated the Corvette platform’s underlying strength and kept the name alive in European motorsport.

Special Corvette Moments of 1994

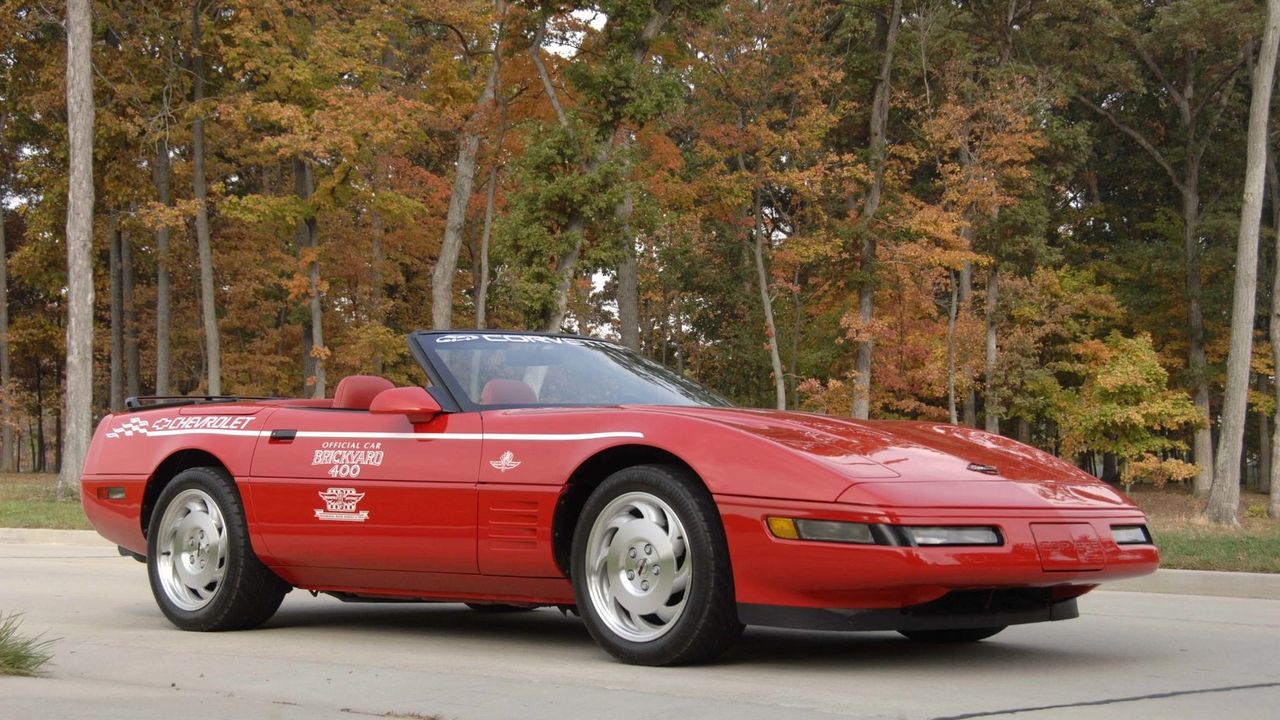

This Torch Red 1994 Corvette convertible is from the “Official Car” fleet used at the inaugural Brickyard 400 at Indianapolis Motor Speedway (August 6, 1994). Wearing event door graphics and Chevrolet checkered flag striping, these festival Corvettes handled VIP transport, parade laps, and race-week duties while showcasing the 300-hp LT1/6-speed C4. The first Brickyard 400 became an instant NASCAR landmark—won by Jeff Gordon—and these IMS-prepped Corvettes remain collectible souvenirs of that debut year.

Beyond the showroom and the racetrack, 1994 also marked Corvette’s involvement in the inaugural NASCAR Brickyard 400 at Indianapolis Motor Speedway. Chevrolet supplied 25 convertibles as “official cars,” split between 12 black and 13 red. Each received minor power upgrades to allow them to run hot laps, and they were also used for pre-race parades, carrying NASCAR drivers around the famed oval. These Brickyard Corvettes have since become desirable collectibles, with their provenance tied to one of NASCAR’s most significant events.

Production and Sales

The 1994 Corvette brochure sells a mature, mountain-road C4—sleek, planted, and fast in Torch Red, Competition Yellow, Arctic White, and more. Inside, Chevy touts the 300-hp LT1, a choice of the close-ratio 6-speed or the new electronically controlled 4L60-E automatic, and chassis hardware that kept the Corvette razor-sharp yet livable. Safety gets equal billing with the debut of a passenger-side airbag, giving the C4 dual SIR bags. The spreads capture what 1994 really was for Corvette: peak refinement of the fourth generation’s look, feel, and performance.

Corvette sales rose slightly in 1994 to 23,330 units. Base coupe prices started at $36,185, while convertibles began at $42,960. Despite the uptick in overall sales, ZR-1 demand continued to decline, with just 448 examples sold. GM announced that 1995 would be the ZR-1’s final year, largely because Mercury Marine had built enough LT5 engines to support only one more production cycle.

Colors offered included Arctic White, Admiral Blue, Black, Bright Aqua Metallic, Polo Green Metallic, Competition Yellow, Copper Metallic, Torch Red, Black Rose Metallic, and Dark Red Metallic. Torch Red led the way, accounting for 22 percent of production.

Toward the End of the C4

Although the Grand Sport and Collector Edition would not arrive until 1996, the groundwork for both programs was already taking shape in 1994 as Corvette engineers and designers began thinking seriously about how to close out the C4 era. The team’s goal was not just to create appearance packages, but to develop meaningful send-offs that honored the Corvette’s heritage while giving the final C4 models a stronger sense of identity and celebration. The Grand Sport was conceived as a bold, performance-minded tribute to Corvette racing history, while the Collector Edition was designed as a more polished commemorative model that marked the end of the fourth-generation car with style and significance.

By 1994, Corvette engineers were already laying the groundwork for special editions that would close out the C4 generation. Chief among them were Chief Engineer John Heinricy and Dave Hill (who would soon succeed McLellan as Corvette Chief Engineer). Their determination would eventually produce the 1996 Grand Sport and Collector Edition, serving as fitting send-offs for a generation that had restored Corvette’s credibility after the turbulent 1970s.

Legacy of the 1994 Corvette

“Maybe this is the year you make good on it.” This 1994 Corvette ad leans hard into nostalgia—the kid with the model car on the left becomes the adult finally claiming the Torch Red C4 on the right. Chevy pairs that emotional hook with substance: the 300-hp LT1, your choice of close-ratio 6-speed or the new electronically controlled 4L60-E automatic, and the addition of a passenger airbag for ’94. It’s equal parts dream fulfillment and spec sheet, inviting buyers to keep a childhood promise with a world-class American sports car. (Source: Chevrolet Marketing)

Looking back, the 1994 Corvette is not remembered as a revolutionary car. But its significance lies in context: it was the year the Corvette Museum opened, anchoring the car’s heritage for generations to come. It was the year the C5’s arrival was confirmed, signaling a new era. It was the year Corvette introduced run-flat tires, sequential fuel injection, and electronic transmission controls—technologies that pointed toward the future of automotive engineering.

And it was the year the ZR-1 reached its ultimate specification, ensuring its place in Corvette legend. For owners today, a 1994 Corvette offers the blend of mature C4 refinement, respectable performance, and historical importance, all wrapped in a car that was very much of its time yet pointed toward tomorrow.

1994 Corvette Quick Reference

Production Numbers: Total production for 1994 reached 23,330 units. Of these, 17,984 were coupes, and 5,346 were convertibles. Just 448 ZR-1s were produced, marking one of the lowest totals in that model’s run.

VIN Ranges: The last six digits of the VIN for base coupe and convertible models ranged from 100001 through 122882. For the ZR-1, the sequence ran from 800001 through 800448.

Pricing Base: pricing for 1994 started at $36,185 for the coupe and $42,960 for the convertible. The ZR-1 package, which included the LT5 engine and other upgrades, cost an additional $31,258.

Engines: The standard LT1 350 cubic-inch (5.7-liter) V8 produced 300 horsepower and 340 lb-ft of torque. The far more rebust LT5, reserved for the ZR-1, displaced the same 350 cubic inches but featured dual overhead cams and four valves per cylinder, raising output to 405 horsepower and 385 lb-ft of torque.

Transmissions: Two gearboxes were available: the new electronically controlled 4L60-E four-speed automatic, and a six-speed manual (standard on the ZR-1 and optional on LT1-powered cars).

Exterior Colors: Ten colors were offered in 1994: Arctic White, Admiral Blue (new), Black, Bright Aqua Metallic, Polo Green Metallic, Competition Yellow, Copper Metallic (new, only 116 built), Torch Red, Black Rose Metallic, and Dark Red Metallic. Torch Red proved most popular, accounting for 22 percent of total production.

Options and Equipment: Several popular options included leather sport seats (RPO AQ9, 9,023 built), Selective Ride and Handling (RPO FX3, 4,570 built), Adjustable Suspension Package (RPO Z07, 887 built), and Extended Mobility run-flat tires (RPO WY5, 2,781 built, which required the low tire pressure warning system RPO UJ6). Coupe buyers could also order dual removable roof panels (RPO C2L, 3,875 built).

Notable Yearly Changes: For 1994, sequential fuel injection was added to the LT1 engine. The electronically controlled 4L60-E automatic transmission debuted, and a passenger-side airbag was introduced (replacing the glovebox). All Corvettes now came with standard leather seating, redesigned with less aggressive bolstering. A new two-spoke steering wheel replaced the earlier four-spoke design. Goodyear run-flat tires became available, making the Corvette the first production car to offer the technology. Two new paint colors—Admiral Blue and Copper Metallic—joined the lineup.

1994 Corvette Specifications & Performance

A clean technical comparison of two of the most iconic C4 Corvette configurations: the LT1 Convertible and the legendary ZR-1 Coupe. This detailed dimensional graphic highlights key measurements—including overall length, wheelbase, width, and height—illustrating the subtle yet important differences between the open-air LT1 model and the wider, lower-slung ZR-1 performance flagship that helped define Corvette engineering in the early 1990s. (Image credit: UltimateCorvette.com)

Engine & Drivetrain: The standard LT1 5.7-liter (350 cubic-inch) small-block V8 delivered 300 horsepower at 5,000 rpm and 340 lb-ft of torque at 3,600 rpm. For the ZR-1, the hand-built LT5 5.7-liter V8 featured dual overhead camshafts and four valves per cylinder, producing 405 horsepower at 5,800 rpm and 385 lb-ft of torque at 5,200 rpm.

Transmissions: Two transmissions were offered: the new electronically controlled 4L60-E four-speed automatic and a six-speed manual gearbox. The manual was standard on the ZR-1 and optional on LT1-powered cars.

Chassis & Suspension: The Corvette rode on a fully independent suspension with transverse composite leaf springs, both front and rear. Base models featured a performance-tuned suspension, while buyers could opt for the FX3 Selective Ride and Handling Package with electronically adjustable damping. The Z07 package combined FX3 with upgraded springs, stabilizer bars, and heavy-duty brakes for track-level capability.

Brakes: Four-wheel power disc brakes with Bosch ABS were standard. The system included ventilated rotors measuring 12 inches in diameter, delivering fade-resistant stopping power.

Tires & Wheels: Standard tires were Z-rated Goodyear Eagles mounted on 17-inch aluminum wheels. Optional Goodyear Extended Mobility (run-flat) tires marked a production-car first. The ZR-1 featured exclusive 17-inch five-spoke aluminum wheels with 275/40ZR17 front and 315/35ZR17 rear tires.

Dimensions
- Wheelbase: 96.2 inches
- Overall length: 178.5 inches
- Width: 71.0 inches
- Height: 46.7 inches
- Curb weight: approx. 3,400 lbs (LT1 coupe); 3,550 lbs (ZR-1)
Performance (LT1, 300 hp)
- 0–60 mph: 5.7 seconds
- Quarter mile: ~14.1 seconds @ 98 mph
- Top speed: ~160 mph
Performance (ZR-1, 405 hp)
- 0–60 mph: 4.5 seconds
- Quarter mile: ~12.8 seconds @ 113 mph
- Top speed: 180+ mph
Fuel Economy EPA ratings for LT1-equipped cars were 17 mpg city and 25 mpg highway with the manual transmission. The ZR-1, with its high-revving LT5, returned 15 mpg city and 23 mpg highway.

1994 Corvette Color & Trim Availability

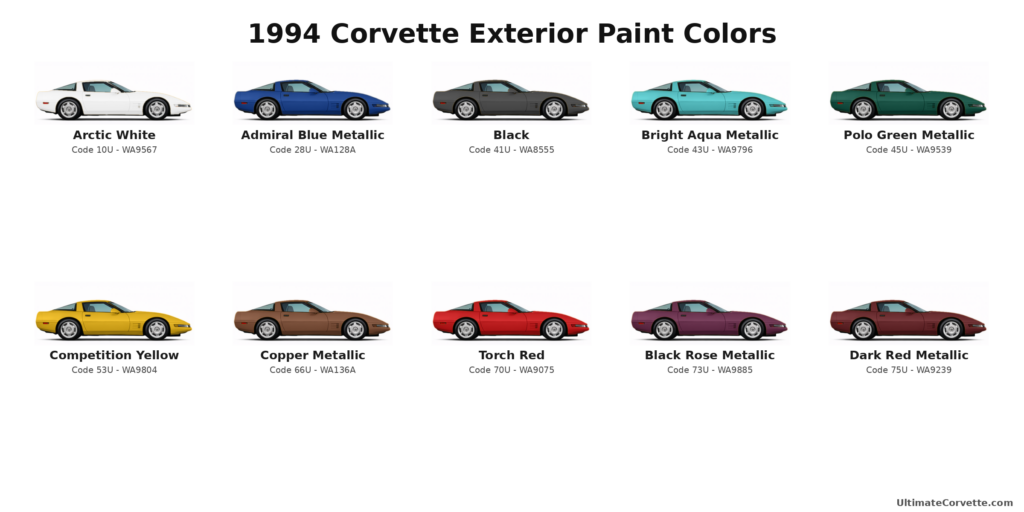

1994 Corvette Exterior Paint Colors (Image source: UltimateCorvette.com)

Exterior Colors (10 total)
- Arctic White
- Admiral Blue (new for 1994)
- Black
- Bright Aqua Metallic
- Polo Green Metallic
- Competition Yellow
- Copper Metallic (new, extremely rare – only 116 produced)
- Torch Red
- Black Rose Metallic
- Dark Red Metallic
Popularity Breakdown Torch Red led the color chart, accounting for 22 percent of total production. Black (18 percent) and Arctic White (17 percent) were also strong sellers, together making up more than half of all Corvettes built in 1994.

ZR-1 Exclusive Wheels

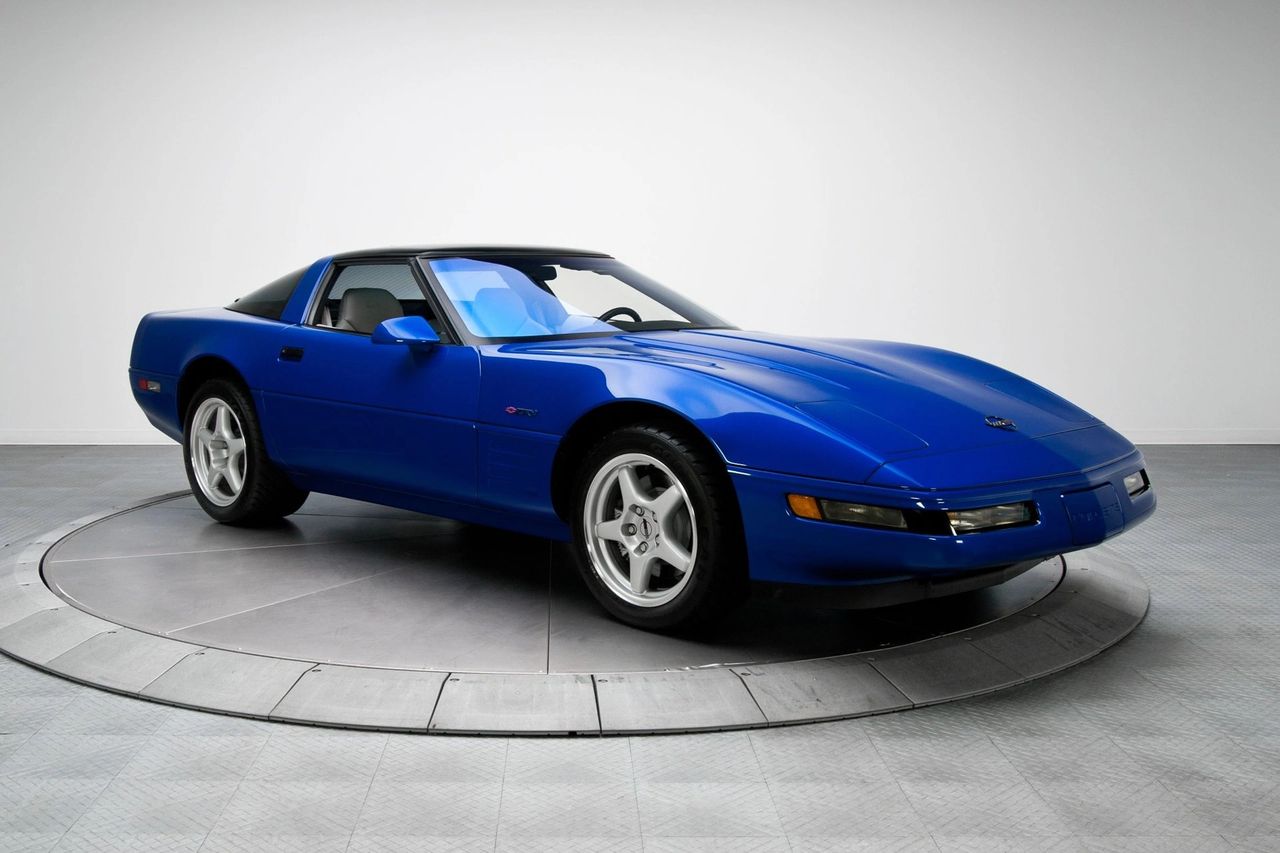

For 1994, one of the subtle but important updates to the Corvette lineup was a new wheel design. The five-spoke aluminum wheels—like the ones seen on this Admiral Blue coupe—gave the C4 a more modern, aggressive stance that visually separated it from earlier model years. Not only did these wheels enhance the Corvette’s appearance, but they also contributed to improved brake cooling and helped showcase the car’s performance-focused personality. This detail, though small, played a key role in keeping the C4 Corvette fresh and competitive as it neared the end of its production run. (Image courtesy of RK Motors)

The 1994 ZR-1 introduced a unique set of five-spoke aluminum wheels, designed specifically for that model. Unlike directional wheels of prior years, these featured a non-directional design, meaning the same wheel could be mounted on either side of the car. They were not available on standard coupes or convertibles in 1994, though the style would later reappear on the 1996 Grand Sport and Collector Edition models.

In 1994, leather seating became standard across all Corvettes, offered in both standard and optional sport seat designs. Sport seats included power adjustments for lumbar and side bolsters, allowing drivers to tailor support. Bolstering was reduced slightly this year to accommodate a wider range of body types and to improve ingress/egress.

Available leather interior colors included Black, Beige, Light Gray, and Torch Red. Certain exterior paint colors were limited to specific interior pairings—for example, Copper Metallic cars were most often paired with Beige or Light Gray interiors.

Convertibles could be ordered with either a standard black fabric top or optional white. A heated glass rear window was introduced for 1994, replacing the previous plastic unit.

1994 Corvette Options & RPO Codes Summary

Seating & Comfort: All 1994 Corvettes came with leather upholstery as standard. Buyers could choose between standard seats or the optional sport seats (RPO AQ9), which featured power-adjustable lumbar and side bolsters. The sport seats were ordered on 9,023 cars. Power seat adjustments for both driver (RPO AC3) and passenger (RPO AC1) were popular, with over 17,000 cars so equipped.

Roof & Top Options: Coupe buyers could select removable roof panels in blue tint (RPO 24S) or bronze tint (RPO 64S), or upgrade to the dual roof panel package (RPO C2L). Convertibles offered an auxiliary hardtop (RPO CC2) for $1,995, ordered on 682 cars.

Suspension & Handling: The FX3 Selective Ride and Handling package, which allowed the driver to adjust shock stiffness electronically, was installed on 4,570 Corvettes. The Z07 Adjustable Suspension Package (887 cars) combined FX3 with stiffer springs, stabilizer bars, and heavy-duty brakes. Buyers could also choose a performance axle ratio (RPO G92), selected on 9,019 cars, to enhance acceleration.

Transmissions: The six-speed manual transmission (RPO MN6) was fitted to 6,012 cars at no additional cost, while the majority were built with the new electronically controlled four-speed automatic. The ZR-1 came exclusively with the six-speed manual.

Tires & Wheels: A production-car first, Goodyear Extended Mobility run-flat tires (RPO WY5) were optional at $70. To meet safety requirements, cars with this option also required the low tire pressure warning system (RPO UJ6, $325). Nearly 2,800 cars were equipped with run-flats. ZR-1s wore their own unique five-spoke aluminum wheels.

Audio & Technology: Most buyers opted for the Delco-Bose stereo system with a CD player (RPO U1F), selected on 17,579 cars. The system was advanced for its day, offering crisp sound quality in the Corvette’s compact cabin.

Emissions & Regional Equipment: California-bound cars carried RPO YF5, the California Emissions package ($100, 2,372 cars). New York buyers received NG1 New York Emissions (1,363 cars).

High-Performance Package: The ZR-1 Special Performance Package (RPO ZR1) remained the flagship, priced at $31,258 on top of the coupe’s base MSRP. Just 448 cars were ordered, each equipped with the Mercury Marine–built LT5 engine producing 405 horsepower.

Why the 1994 Corvette Still Matters Today

The 1994 Corvette still matters because it proved the C4 was far more than a transitional chapter in Corvette history. By this point, Chevrolet had refined the platform into a machine that could deliver real-world comfort, serious handling, unmistakable styling, and the kind of everyday usability earlier generations rarely matched. It carried the momentum of Corvette’s modern era forward without losing the spirit that made America’s sports car special in the first place. More than three decades later, the 1994 model stands as a reminder that true progress is not always about radical reinvention—sometimes it is about getting the formula exactly right.

The 1994 Corvette still matters because it represents something increasingly rare in the history of America’s sports car: confident refinement without compromise. By the time Chevrolet rolled into the 1994 model year, the C4 Corvette was no longer trying to prove it belonged among the world’s best performance cars. It had already done that. What 1994 shows us instead is what happens when a platform matures, when the engineering sharpens, the design settles in, and the car begins to deliver on its full original promise.

That matters because the 1994 Corvette sits at an important intersection in the Corvette story. It carries forward the radical transformation that began with the C4 in 1984, but with fewer of the rough edges that defined the earliest years of the generation. By 1994, Chevrolet had spent a decade improving the formula. The result was a Corvette that felt more complete—still unmistakably aggressive, still proudly driver-focused, but also more composed, more usable, and more polished than the car that launched the generation ten years earlier.

In many ways, the 1994 model year reminds us that Corvette history is not only about headline cars like the split-window coupe, the big-block Sting Rays, the ZR-1, or the mid-engine C8. Sometimes, the most important Corvettes are the ones that prove sustained excellence. The 1994 Corvette did not need to reinvent the wheel. It needed to continue the evolution of a car that had already reestablished Corvette as a legitimate world-class performance machine. It did exactly that.

There is also something especially compelling about the 1994 Corvette because it reflects Chevrolet’s growing confidence in balancing performance with livability. The LT1 remained a strong and respected small-block, delivering the kind of real-world performance that made the car exciting without making it inaccessible. This was a Corvette built not just for magazine comparison tests, but for actual ownership. It could thrill its driver on a back road, look right at home on a show field, and still be driven with regularity in a way that helped strengthen the Corvette’s bond with enthusiasts across the country.

That lasting connection is a big part of why the 1994 Corvette still matters today. For many owners, this was—and still is—a genuinely attainable Corvette. It represents an era when performance was analog enough to feel mechanical and involving, yet modern enough to feel serious and sophisticated. That combination has only become more appealing with time. In a modern performance landscape increasingly shaped by digital layers, screens, and software, the 1994 Corvette offers something more direct. It reminds us what a sports car feels like when the driver remains at the center of the experience.

It also matters because the C4 generation, and cars like the 1994 model in particular, are finally receiving the broader historical appreciation they deserve. For too long, the C4 lived in the shadow of both the chrome-and-curves nostalgia of earlier Corvettes and the broader aftermarket popularity of the C5 and C6. But history has a way of correcting shallow judgments. Enthusiasts now recognize the C4 for what it truly was: a bold technological reset, a serious sports car, and a necessary bridge between classic Corvette DNA and the modern high-performance machines that followed. The 1994 model is one of the clearest expressions of that evolution.

And perhaps most importantly, the 1994 Corvette still matters because it preserved the spirit of Corvette at a time when that spirit needed to keep advancing. Corvette has always been at its best when it refuses to stand still. The 1994 model may not always be the loudest chapter in the story, but it is one of the most meaningful. It represents progress, maturity, and the quiet confidence of a car that knew exactly what it was.

That is why the 1994 Corvette still matters today. Not because it was trendy. Not because it chased nostalgia. But because it helped define what a fully realized modern Corvette could be—and in doing so, it secured its place in the long, evolving legacy of America’s sports car.
The 1994 Corvette refined Chevrolet’s fourth-generation sports car formula with stronger standard performance, cleaner technology integration, and the kind of everyday drivability that helped define the C4 era. It was sharper, smarter, and more complete than many remember—making it a fascinating model year worth a much closer look today.
1993 CORVETTE OVERVIEW
When Harley Earl first sketched his two-seat roadster in the early 1950s, he envisioned something bold for Chevrolet: a sleek, fiberglass-bodied sports car that would capture the glamour of post-war America. Yet even Earl himself could never have imagined how enduring his creation would become. Four decades after that modest unveiling at the 1953 Motorama in New York, Corvette was no longer just a curious“dream car made real.” It had become the longest-running, most iconic American sports car, a machine that not only held its own on the street but also earned global respect on the racetrack.

By 1993, the Corvette stood at a remarkable milestone—its 40th anniversary. Chevrolet recognized the moment with commemorative touches that honored Corvette’s heritage while continuing to refine the C4 generation. That year’s lineup reflected both celebration and performance ambition: a special 40th Anniversary package for collectors and enthusiasts, continued advancements in the base LT1-powered coupes and convertibles, and a more powerful ZR-1 that firmly reasserted its place as the “King of the Hill.” In many ways, the 1993 model year embodied the Corvette’s dual spirit—equal parts nostalgia and relentless pursuit of speed.

Setting the Stage: Corvette Turns Forty

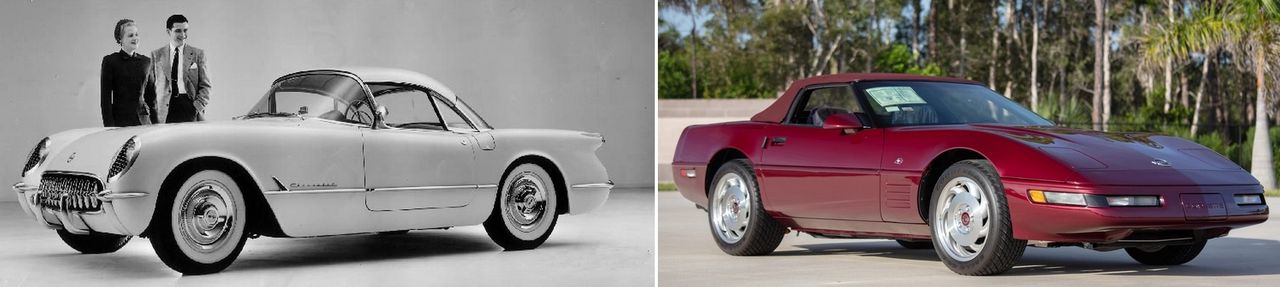

This side-by-side neatly bookends Corvette’s first 40 years: at left, Harley Earl’s early C1—an elegant, fiberglass two-seater born in 1953—still wearing wire-style caps and the understated glamour that launched America’s Sports Car; at right, the 1993 40th Anniversary C4 in Ruby Red Metallic, its commemorative badges and matching interior celebrating the lineage. The contrast tells the story of progress—from Blue Flame six and Powerglide origins to an LT1-powered, world-class performer with available six-speed, ABS, and traction control—yet the constants endure: low stance, long hood/short deck, and a singular focus on two-seat American performance. In one image, you can see how Corvette evolved dramatically without ever losing its original soul.

The Corvette of the early 1990s was a different creature than the chrome-laden C1 Harley Earl had conjured. By its fourth generation (introduced in 1984), the Corvette had become a thoroughly modern sports car. With its sleek wedge-shaped styling, advanced suspension systems, and increasingly sophisticated electronic controls, the C4 was aimed squarely at global competition from Porsche, Ferrari, and Nissan.

But the C4 had another role: it was the bridge between Corvette’s first 30 years—years often marked by bold experimentation, peaks and valleys of performance—and the modern era of engineering consistency and refinement. By 1993, the C4 had matured into a highly capable car. Chevrolet’s engineering teams, led by figures such as Dave McLellan (Chief Engineer, succeeding Zora Arkus-Duntov in 1975), continued to refine the car each year. Small but significant mechanical changes were introduced annually, often invisible to the casual eye but meaningful to performance drivers.

Against this backdrop came Corvette’s 40th birthday. The company had celebrated earlier milestones—the Silver Anniversary Edition of 1978, for example—but 1993 was a bigger moment. Corvette had not only survived but thrived for four decades. To mark the occasion, Chevrolet offered a distinctive package: the 40th Anniversary Edition Corvette.

The 40th Anniversary Edition (RPO Z25)

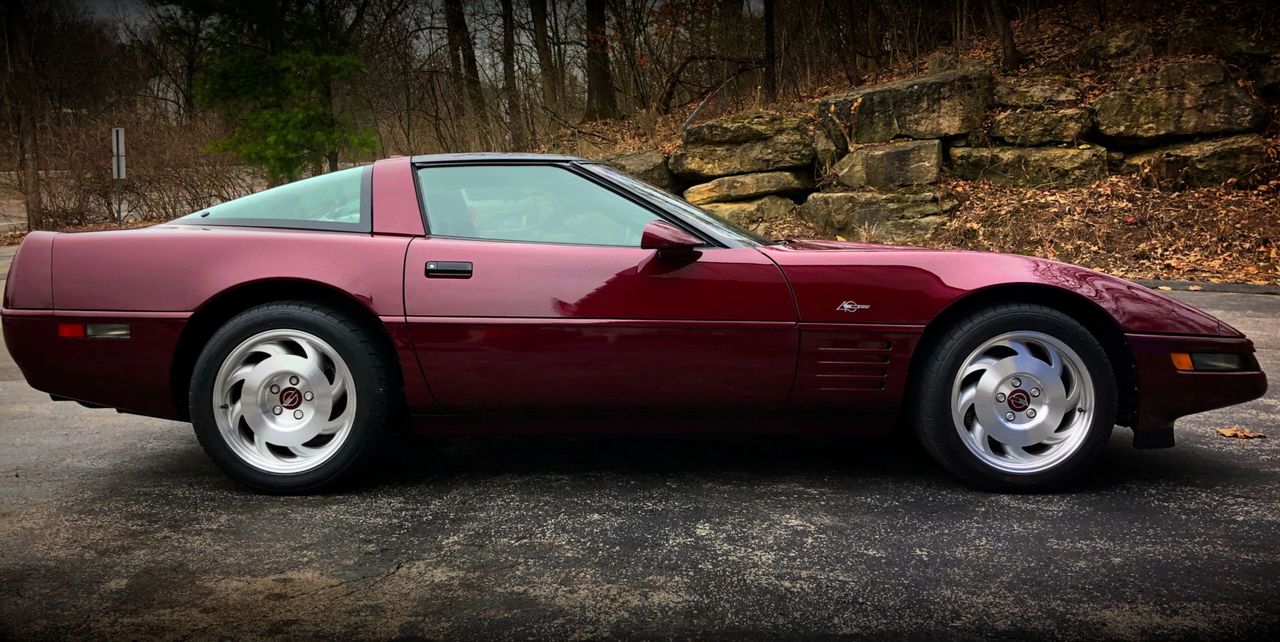

Chevrolet marked Corvette’s ruby jubilee in 1993 with the 40th Anniversary Edition (RPO Z25)—a commemorative package offered on coupe, convertible, and even the ZR-1 that wrapped the C4 in rich Ruby Red Metallic with a matching Ruby leather cockpit. Subtle but classy details set it apart: “40th Anniversary” fender badges, embroidered seat headrests, color-keyed wheel center caps on the sawblade alloys, and (on ragtops) a Ruby cloth top. Under the skin it remained the sharp, 300-hp LT1 C4 we love—meaning the 40th is equal parts milestone and driver’s car, a tasteful celebration of four decades of America’s Sports Car. (Image courtesy of reddit user archaeauto)

The centerpiece of the 1993 model year was the 40th Anniversary Edition, available on all body styles—including coupes, convertibles, and even the top-tier ZR-1. The option carried Regular Production Option (RPO) code Z25 and cost $1,455. For that, buyers received a striking Ruby Red Metallic exterior (paint code 68U), which was paired with matching Ruby Red leather sport seats. The headrests were embroidered with “40th Anniversary” script and emblems, while special brightwork badging adorned the car’s flanks, just above the beltline behind the front wheels.

It was a tasteful package—less flamboyant than some earlier anniversary cars but arguably more elegant. Ruby Red became one of the most memorable hues of the C4 era, and its exclusivity (only available in 1993) made it an instant collector’s choice. Approximately 6,749 Corvettes were ordered with the 40th Anniversary package, making it a visible but still relatively rare subset of the year’s production.

Tucked neatly inside every 1993 Corvette owner’s portfolio was more than just the usual owner’s manual and warranty paperwork—it included a special VHS cassette commemorating the Corvette’s 40th Anniversary. Finished in the same Ruby Red theme that defined the milestone model, this tape wasn’t just packaging; it was a window into Corvette heritage. Owners could pop it into their VCR and relive four decades of America’s Sports Car—celebrating its racing triumphs, engineering innovations, and cultural impact. Today, that anniversary cassette has become one of the most nostalgic pieces of Corvette memorabilia, a reminder of when Chevrolet blended analog keepsakes with digital excitement to mark a milestone year.

Inside, Anniversary cars carried the celebration theme with unique trim accents, while outside the paint glowed in sunlight, highlighting the C4’s crisp edges and low, athletic stance. For many enthusiasts, the Anniversary package represented the perfect blend of nostalgia and modern Corvette style.

Refinements to the Base Corvette

While the Anniversary package drew attention, the base 1993 Corvette itself was far from stagnant. Under the hood remained the LT1 engine, introduced in 1992. This 5.7-liter (350 cubic inch) small-block V8 represented one of the most advanced iterations of Chevy’s venerable engine architecture. Rated at 300 horsepower and 340 lb-ft of torque, the LT1 used advanced (for the era) electronic fuel injection, reverse-flow cooling (allowing higher compression), and other innovations to deliver strong performance.

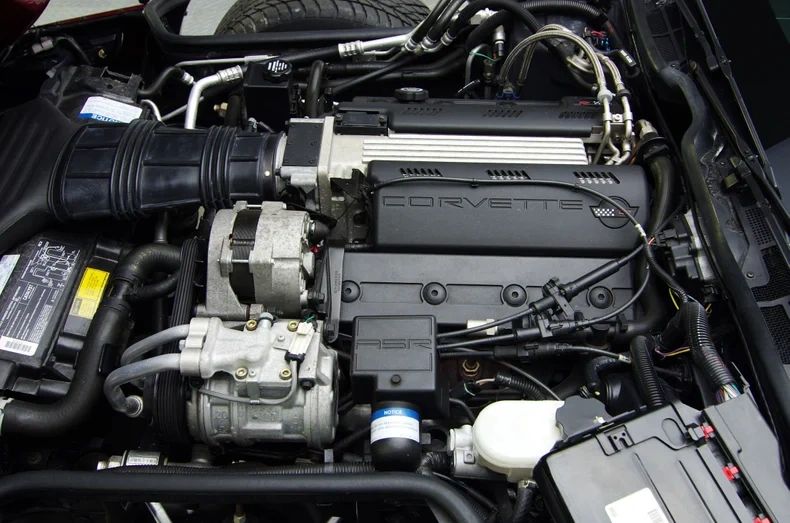

Under the hood of the 1993 Corvette beats Chevrolet’s proven 5.7-liter LT1 V8, delivering 300 horsepower and 340 lb-ft of torque. This second-generation small-block featured advanced technology for its time, including a reverse-flow cooling system that allowed higher compression and improved efficiency while keeping operating temperatures in check. Mated to either a four-speed automatic or a ZF-sourced six-speed manual transmission, the LT1 provided the C4 with exhilarating acceleration and a broad, usable powerband. Combined with electronic fuel injection and modern engine management, it gave the 1993 Corvette a balance of performance, drivability, and reliability that cemented its reputation as a world-class sports car.

Although the LT1’s peak horsepower rating did not change for 1993, engineers refined the engine’s operation in meaningful ways. Noise reduction was a priority. The camshaft exhaust lobe profile was altered to reduce valve-closing velocity, which quieted operation while slightly boosting torque output (from 330 to 340 lb-ft). A two-piece self-damping heat shield replaced the earlier single stamping, further muting engine clatter. Even the valve covers were redesigned—new polyester units replaced the magnesium pieces from 1984–92, with improved gasket isolation to cut transmitted noise.

Transmission choices remained a four-speed automatic or a six-speed manual (standard with no extra charge). The ZF-sourced six-speed was beloved by enthusiasts for its crisp gear engagement and aggressive gearing, though many buyers still opted for the easier automatic.

Subtle but Significant Chassis and Wheel Changes

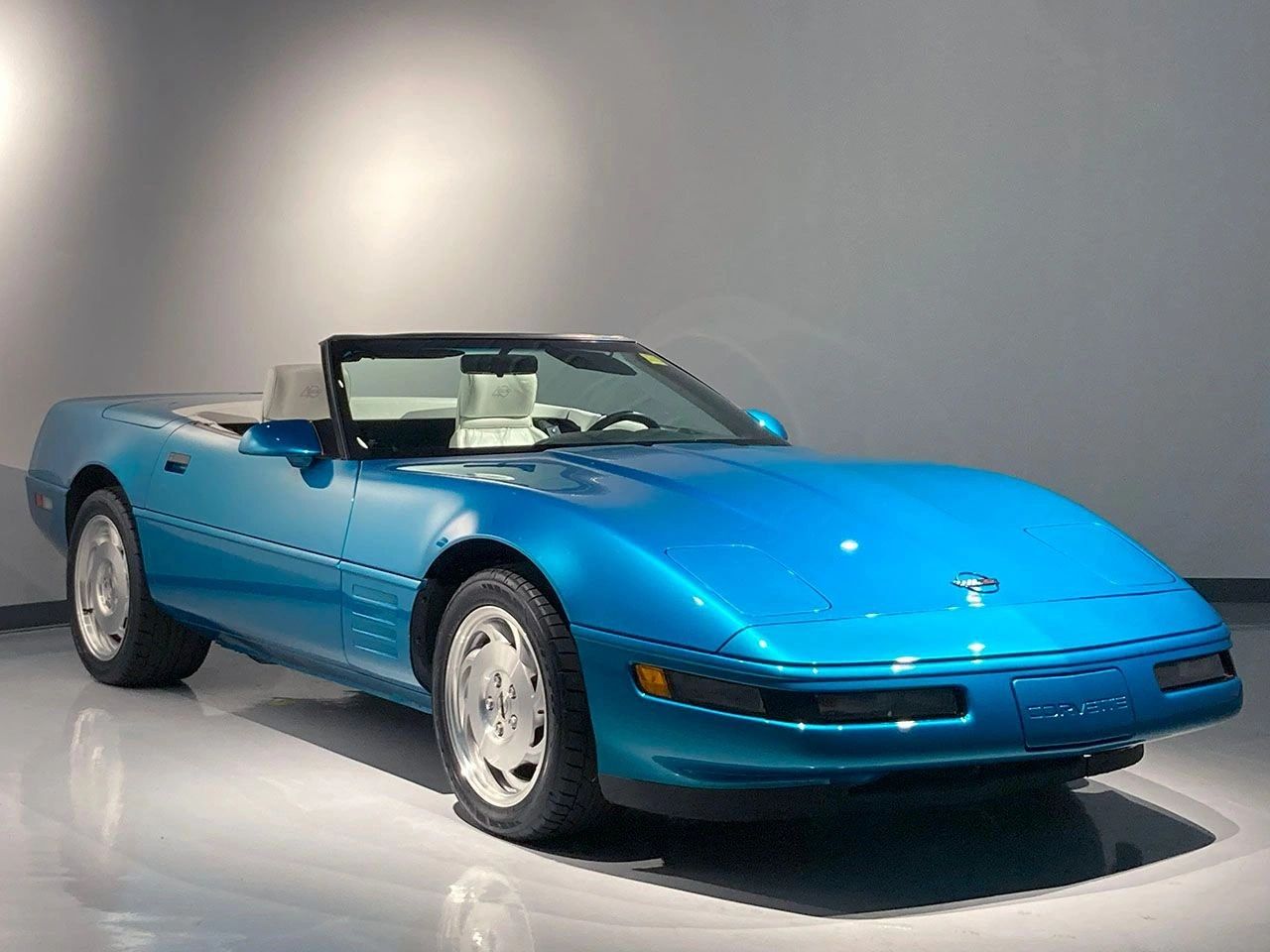

While 1993 marked the Corvette’s 40th Anniversary, the car itself carried forward with only subtle refinements from the previous year. The most notable change came in the form of added sophistication: a new electronically controlled six-speed automatic transmission replaced the older unit, offering smoother shifts and improved efficiency. Chevrolet also introduced a revised Passive Keyless Entry system, enhancing both security and convenience. Inside, the Corvette’s cockpit benefited from small but meaningful updates—refined seats, upgraded sound insulation, and improved switchgear—meant to make the driving experience more comfortable without altering the car’s unmistakable C4 character. Even the suspension tuning saw minor adjustments to balance ride comfort with the Corvette’s legendary handling prowess. In sum, the 1993 Corvette quietly honed the formula, blending high performance with the kind of refinements buyers expected in a world-class sports car.

From the outside, the 1993 Corvette looked much like the 1992 model. Yet a closer inspection revealed subtle differences, especially in wheels and tires. The front wheels were narrowed slightly from 9.5 inches to 8.5 inches in width, paired with P255/45ZR17 tires (previously P275/40ZR17). The rear wheels, conversely, grew to wear wider P285/40ZR17 tires, improving rear traction.

Z07 SUSPENSION

Corvettes equipped with the Z07 adjustable suspension package retained 9.5-inch wheels all around, shod with P275/40ZR17 tires. Regardless of configuration, all Corvettes ran on Goodyear Eagle GS-C tires—exclusive to Corvette at the time—with a directional, asymmetric tread pattern engineered to handle both lateral and longitudinal loads. This tire technology, cutting-edge for its day, was part of what gave the C4 its exceptional handling balance. However, because the tires were designed for specific corners of the car, owners had to take care when replacing them—no tire was interchangeable from side to side or front to rear.

Suspension geometry remained largely unchanged, though the Corvette’s chassis had by now been honed into a precise instrument. Four-wheel independent suspension with forged aluminum components, available Selective Ride Control (RPO FX3), and massive four-wheel disc brakes with Bosch ABS made the 1993 Corvette a formidable corner carver.

Passive Keyless Entry: A First for Corvette

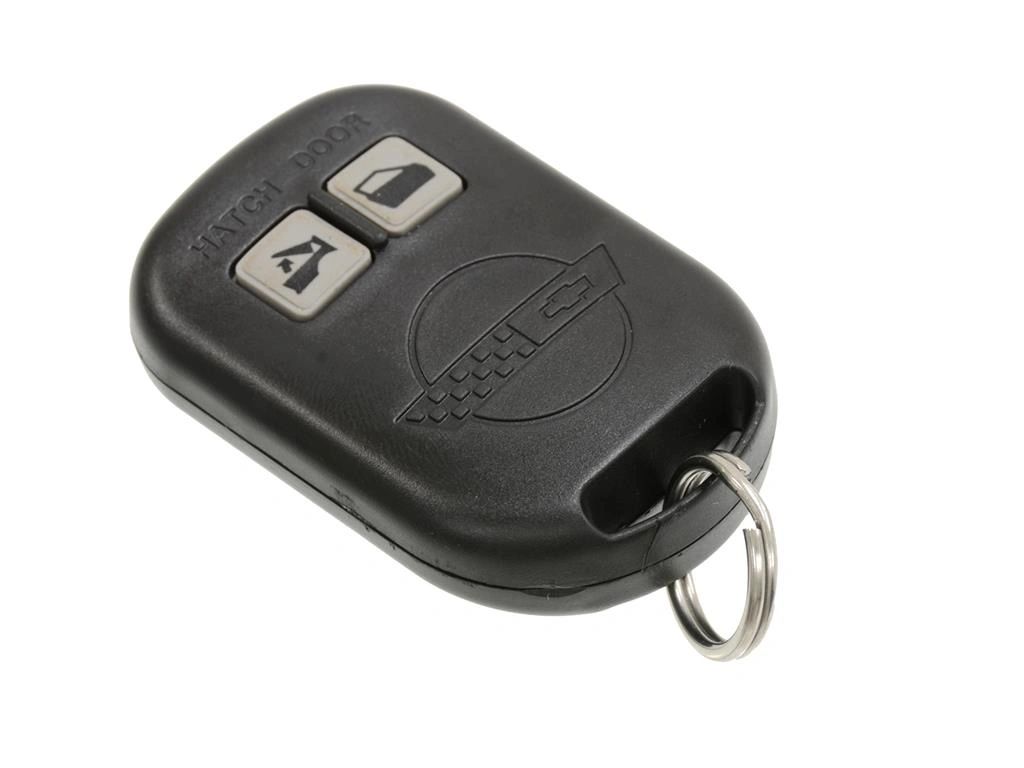

One of the most forward-thinking features of the 1993 Corvette was its Passive Keyless Entry system, a technology well ahead of its time. Standard equipment on all models, it allowed owners to unlock the doors and hatch without pressing a button—simply by approaching the car with the fob in hand or pocket. Using proximity sensors, the Corvette could automatically recognize its owner and grant access, adding both convenience and a touch of high-tech sophistication. At a time when most cars still relied on conventional keys or basic remotes, the Corvette once again proved it was on the cutting edge of innovation, blending modern electronics with its legendary performance pedigree.

Perhaps the most forward-looking innovation of the 1993 Corvette was its introduction of Passive Keyless Entry (PKE). At a time when most cars still relied on traditional keys or rudimentary remote fobs, Corvette’s system was groundbreaking.

Instead of pressing a button to lock or unlock the doors, owners carried a small transmitter that broadcast a unique code. Antennas in the car (embedded in doors and, for coupes, in the rear hatch area) detected the signal when the driver approached. The Corvette then automatically unlocked the doors, illuminated the interior lights, and disarmed the security system. The system could even be programmed to unlock only the driver’s door or both doors. Coupes included an additional hatch release button on the transmitter.

This technology not only added convenience but also cemented Corvette’s reputation as a technology leader. PKE would remain standard equipment through the rest of the C4 generation and into the C5, making its debut here in 1993 especially noteworthy.

The Greenwood G572: Corvette Extreme

The 1992 Greenwood G572 was nothing short of an American supercar. Built on the foundation of the C4 Corvette, John Greenwood’s team transformed it into a high-speed weapon with an all-aluminum 572 cubic-inch V8 producing 575 horsepower and a staggering 750 lb-ft of torque. The result was world-class performance: 0–60 mph in just 3.5 seconds, a quarter-mile in 11.5 seconds, and a top speed of 218 mph—numbers that rivaled or exceeded European legends like Ferrari’s F40 and Lamborghini’s Diablo. With heavily reworked suspension, aerodynamics, and chassis tuning, the G572 was designed to be as refined as it was fast. Limited to just 100 examples, each carrying a $179,340 base price for the coupe and $192,200 for the convertible, the Greenwood G572 cemented itself as one of the most extreme, exclusive Corvettes of its era—a bold American answer to Europe’s best.

While Chevrolet’s own Anniversary package grabbed headlines, another Corvette variant offered in 1993 took performance to the outer limits. Florida-based Greenwood Automotive Performance—founded by racing legends Burt and John Greenwood—introduced the G572.

Named for its massive 572-cubic-inch (9.4-liter) V8, the Greenwood G572 produced an astonishing 575 horsepower and was capable of performance figures that rivaled supercars costing several times more. Zero to sixty took just 3.4 seconds; the quarter mile disappeared in 11.5 seconds at 135 mph. Top speed? A scarcely believable 218 mph.

To handle this output, Greenwood reinforced the Corvette’s chassis and fitted functional aerodynamic body panels. The result was a machine that looked and performed like a road-legal race car. But exclusivity came at a price—$179,333, a staggering sum in 1993. While production numbers were tiny, the G572 demonstrated how far the Corvette platform could be pushed and served as a dramatic counterpoint to the factory’s more refined offerings.

The 1993 ZR-1: King of the Hill, Re-Crowned

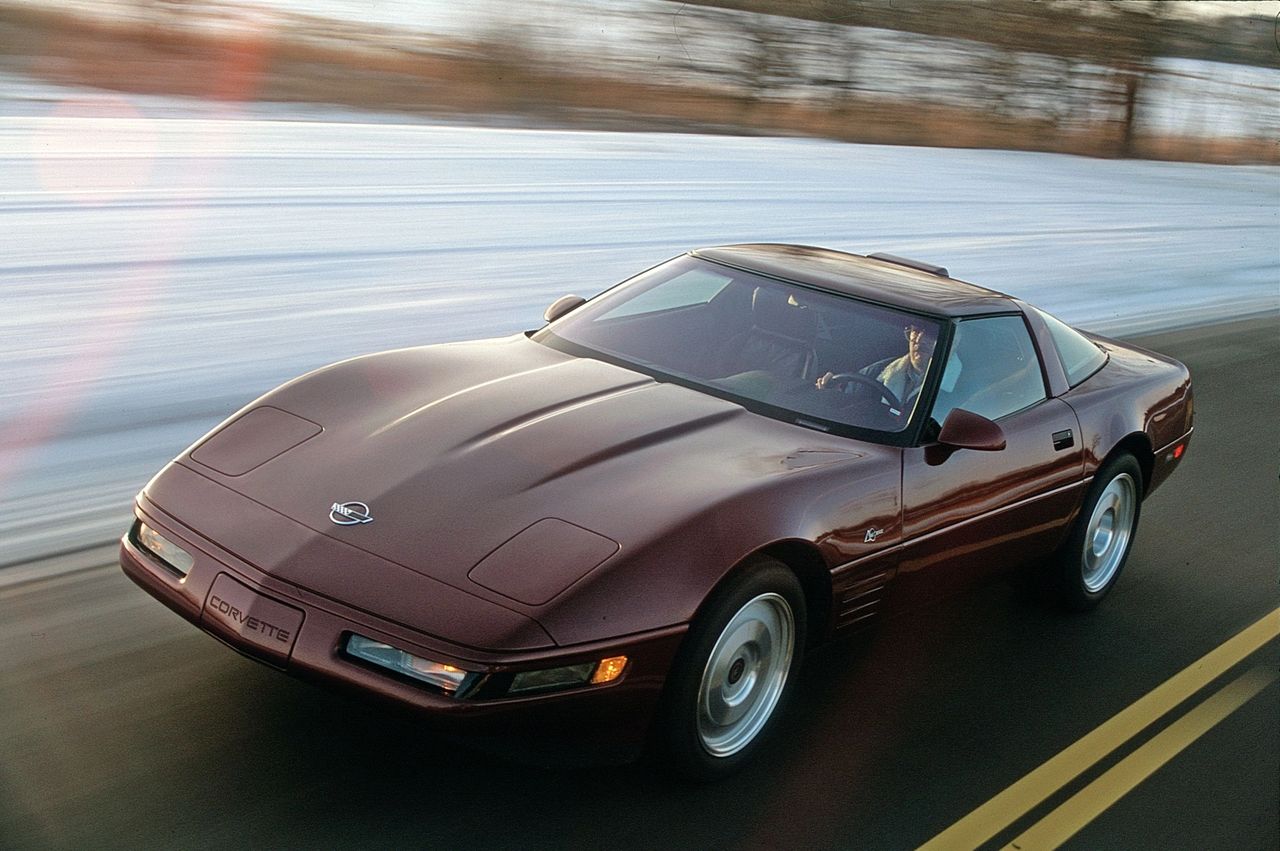

The 1993 Corvette ZR-1, pictured here in striking Ruby Red Metallic, represented the pinnacle of C4 performance. Beneath its wide rear haunches lurked the Lotus-engineered, Mercury Marine–built LT5 V8, producing 405 horsepower and delivering blistering acceleration with a soundtrack all its own. With subtle exterior cues like the unique rear fascia and ZR-1 badging, the “King of the Hill” stood apart from the standard Corvette while retaining its timeless shape. On the open road—whether carving through snow-dusted landscapes or stretching its legs on the highway—the ZR-1 embodied Chevrolet’s vision of a world-class supercar that could rival Europe’s finest. (Image courtesy of Car & Driver magazine)

If the Greenwood G572 was an outlier, the production ZR-1 remained Chevrolet’s official halo car. Introduced in 1990, the ZR-1 had already established itself as a legend. With its Lotus-engineered LT5 V8—a 5.7-liter, all-aluminum, dual-overhead-cam masterpiece—the ZR-1 delivered exotic-car levels of performance and technology.

For 1993, the ZR-1’s LT5 received a substantial boost. Horsepower climbed from 375 to 405hp, while torque rose from 370 to 385 lb-ft. These gains came from improved cylinder head porting, a revised valvetrain, four-bolt main bearing caps, platinum-tipped spark plugs, and an electronic EGR system that improved emissions without sacrificing power. Mobil 1 synthetic oil became the factory-specified lubricant, underscoring the LT5’s advanced engineering.

For 1993, Car and Driver once again named the Corvette ZR-1 to its prestigious “10Best” list, cementing the King of the Hill’s reputation among the world’s elite performance cars. With its Lotus-engineered, 405-horsepower LT5 V8 and exotic-level performance, the ZR-1 stood proudly alongside the best sports cars Japan and Europe had to offer. It wasn’t just raw speed that earned it a spot—it was the way the Corvette blended world-class handling, long-distance comfort, and unmistakable American character. In fact, the ZR-1 would earn repeated recognition, appearing on Car and Driver’s 10Best roster six times during its production run, a testament to its enduring excellence. (Image courtesy of Car & Driver magazine)

Performance was staggering. Motor Trend recorded 0–60 in 4.9 seconds and the quarter mile in 13.4 seconds at over 110 mph. Top speed reached 179 mph—faster than any production Corvette before it. Car and Driver named the ZR-1 the winner in its “Ten Best” issue for top speed performance, cementing its reputation.

Yet despite accolades, sales continued to slide. Just 448 ZR-1s were built in 1993, compared to thousands in its debut year. At nearly double the cost of a base Corvette (the ZR-1’s RPO added over $31,000 to the price), the car appealed to a niche audience. Still, those who bought one in 1993 acquired one of the most capable and collectible Corvettes of the decade.

Colors, Options, and Pricing

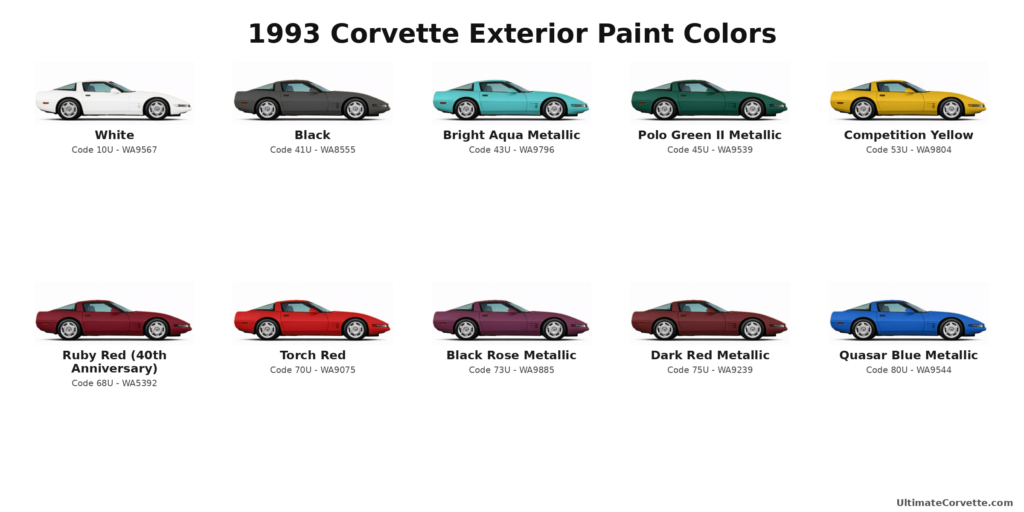

1993 Corvette Exterior Paint Colors

The 1993 Corvette was offered in ten exterior colors: Arctic White, Black, Bright Aqua Metallic, Polo Green II Metallic, Competition Yellow, Ruby Red, Torch Red, Black Rose Metallic, Dark Red Metallic, and Quasar Blue Metallic. Ruby Red dominated, accounting for 31% of all orders, thanks largely to the Anniversary package. Torch Red, Black, White, and Polo Green also proved popular.

Pricing started at $34,595 for the coupe and $41,195 for the convertible. Options included everything from electronic air conditioning controls (RPO C68, $205) to the FX3 selective ride system ($1,695). A six-speed manual transmission (RPO MN6) remained a no-cost option. Collectors could also opt for dual roof panels, auxiliary hardtops, Bose stereo upgrades, and more.

By far the most memorable option, however, was the Anniversary package. For less than $1,500, buyers could create a car that instantly stood out—something that has only grown in desirability over the decades.

Sales and Production

Chevrolet built 21,590 Corvettes for the 1993 model year. Of these, 15,898 were coupes and 5,692 were convertibles. The 40th Anniversary package accounted for 6,749 cars, while only 448 ZR-1s left the Bowling Green assembly line.

Interestingly, 1993 marked the first time since 1989 that Corvette sales increased year-over-year, reversing a downward trend. This reflected both the appeal of the Anniversary package and the general resurgence of interest in performance cars as the economy improved in the early 1990s.

VIN sequences for 1993 ran from 100001 through 121142 for standard Corvettes, while ZR-1 VINs ran separately from 800001 through 800448. Each car had its unique identifier stamped on the driver’s-side windshield pillar.

The 1993 Corvette in Retrospect

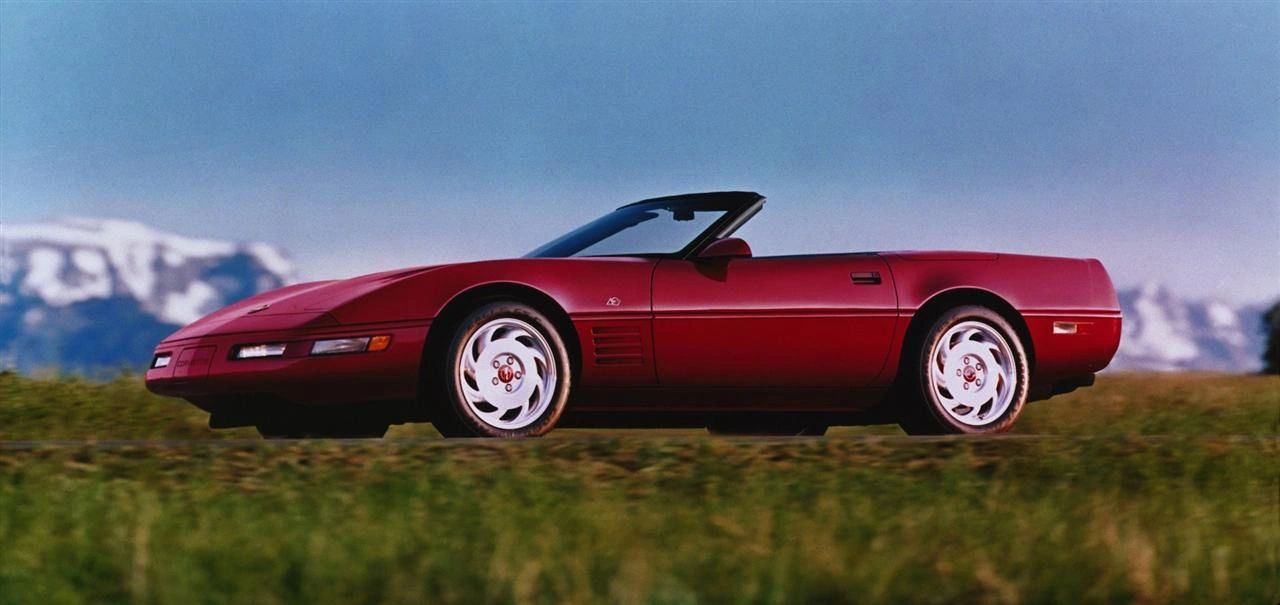

The 1993 Corvette mattered because it celebrated the nameplate’s 40th anniversary with the Ruby Red (Z25) package while simultaneously elevating the ZR-1 to a ferocious 405 hp—proof the C4 could still run with the world’s best. It also ushered in upscale tech like Passive Keyless Entry, signaling Corvette’s blend of cutting-edge innovation and enduring heritage.

Looking back, the 1993 Corvette represents a pivotal year in C4 history. It was not a radical redesign year—those would come later with the C5 in 1997—but it was a year of refinement, celebration, and subtle innovation.

The LT1 base car was faster and quieter than ever, the ZR-1 reasserted its dominance, and the introduction of Passive Keyless Entry pointed the way toward future convenience features. The 40th Anniversary Edition wrapped it all in a commemorative package that honored Corvette’s heritage without descending into gimmickry.

Today, the 1993 Corvette holds a special place among collectors. Anniversary cars, especially well-optioned coupes and convertibles, are sought after. ZR-1s from this year, with their 405-horsepower LT5s, are particularly desirable, representing the most powerful ZR-1s short of the rare 1995 models. Even base coupes and convertibles showcase the LT1 platform’s maturity and the refinement of late-C4 engineering.

Four decades in, Corvette was not just surviving but thriving. It was still America’s Sports Car, still a world-class performer, and still evolving. The 1993 model year proved that Corvette’s story was far from finished—if anything, it was entering a new era.

1993 Corvette Specifications

Engine & Drivetrain
- Base Engine (LT1): 350ci (5.7L) small-block V8, 300 hp @ 5,000 rpm, 340 lb-ft torque @ 3,600 rpm
- ZR-1 Engine (LT5): 350ci (5.7L) all-aluminum DOHC V8, 405 hp @ 5,800 rpm, 385 lb-ft torque @ 5,200 rpm
- Bore x Stroke: 4.00 in x 3.48 in (both LT1 and LT5)
- Compression Ratio: 10.4:1 (LT1), 11.0:1 (LT5)
- Fuel System: Multi-port fuel injection
- Lubrication: Mobil 1 synthetic required for LT5
- Transmissions:
- Standard ZF six-speed manual (MN6)
- Optional 4-speed automatic (MD8)
Chassis & Suspension
- Layout: Front engine, rear-wheel drive
- Front Suspension: Independent, forged aluminum A-arms, coil springs, Bilstein shocks, anti-roll bar
- Rear Suspension: Independent, five-link, transverse fiberglass leaf spring, Bilstein shocks
- Brakes: 12-inch ventilated discs with aluminum calipers; Bosch ABS standard
- Steering: Rack-and-pinion, power-assisted
Wheels & Tires
- Base Coupe/Convertible:
- Front: 8.5 x 17 in, P255/45ZR17 Goodyear Eagle GS-C
- Rear: 9.5 x 17 in, P285/40ZR17 Goodyear Eagle GS-C
- Z07/Performance Package: 9.5 x 17 in wheels with P275/40ZR17 tires front and rear
- ZR-1: Same staggered setup as base, optimized for LT5 performance
Dimensions
- Wheelbase: 96.2 in
- Length: 178.5 in
- Width: 71.0 in
- Height: 46.7 in
- Curb Weight:
- LT1 Coupe: ~3,360 lbs
- LT1 Convertible: ~3,465 lbs
- ZR-1 Coupe: ~3,510 lbs
Performance
- LT1 (Base):
- 0–60 mph: ~5.4 seconds
- Quarter Mile: ~14.0 seconds @ ~100 mph
- Top Speed: ~160 mph
- ZR-1 (LT5, 405 hp):
- 0–60 mph: 4.9 seconds
- Quarter Mile: 13.4 seconds @ 110+ mph
- Top Speed: 179 mph
Fuel Economy (EPA)
- LT1 Manual: 17 mpg city / 25 mpg highway
- LT1 Automatic: 16 mpg city / 25 mpg highway
- ZR-1 Manual: 16 mpg city / 25 mpg highway
Production & VINs
- Total Production: 21,590
- Coupes: 15,898
- Convertibles: 5,692
- ZR-1: 448
- 40th Anniversary Package (Z25): 6,749 units
- VIN Range:
- Base: 100001 – 121142
- ZR-1: 800001 – 800448
Pricing (MSRP)
- Base Coupe: $34,595
- Base Convertible: $41,195
- ZR-1 Package: +$31,683 (total over $66,000)
- 40th Anniversary Package (Z25): $1,455
- Notable Options:
- FX3 Selective Ride Control: $1,695
- C68 Electronic Climate Control: $205
- C2L Dual Roof Panels: $950
- AQ9 Sport Leather Seats: $1,100
- U1F Delco-Bose CD Stereo: $1,219
Why the 1993 Corvette Still Matters

1993 ZR-1 Corvette

The 1993 Corvette represents a defining moment in the C4 era—when Corvette’s relentless push for modern performance finally aligned with its heritage. Celebrating the model’s 40th anniversary, Chevrolet honored the occasion with the special Ruby Red Metallic 40th Anniversary Package, a visual reminder that Corvette had evolved dramatically since the first car rolled out in 1953.

But the significance of the 1993 model year goes deeper than celebration. Under the hood, the LT1 small-block delivered a healthy 300 horsepower, continuing the engine renaissance that began in 1992. Even more remarkable was the still-formidable ZR-1, whose Lotus-designed LT5 V8 produced 405 horsepower—numbers that rivaled the world’s most respected supercars of the early 1990s.

By 1993, the C4 Corvette had matured into a highly refined performance machine. The once-controversial digital dashboards and sharp-edged styling of the 1980s had evolved into a balanced package combining speed, handling precision, and everyday usability. Corvette was no longer simply America’s sports car—it was a legitimate global performance contender.

Today, the 1993 Corvette stands as a snapshot of Corvette at forty: confident, technologically ambitious, and unapologetically performance-focused. It reminds us that the groundwork for the modern Corvette—one capable of challenging the world’s best—was laid long before the mid-engine revolution arrived.
The 1993 Corvette marked a milestone year for America’s sports car, celebrating four decades of performance and innovation. Powered by the 300-horsepower LT1 V8 and joined by the formidable 405-horsepower ZR-1, the C4 Corvette continued refining its balance of technology, speed, and everyday drivability.

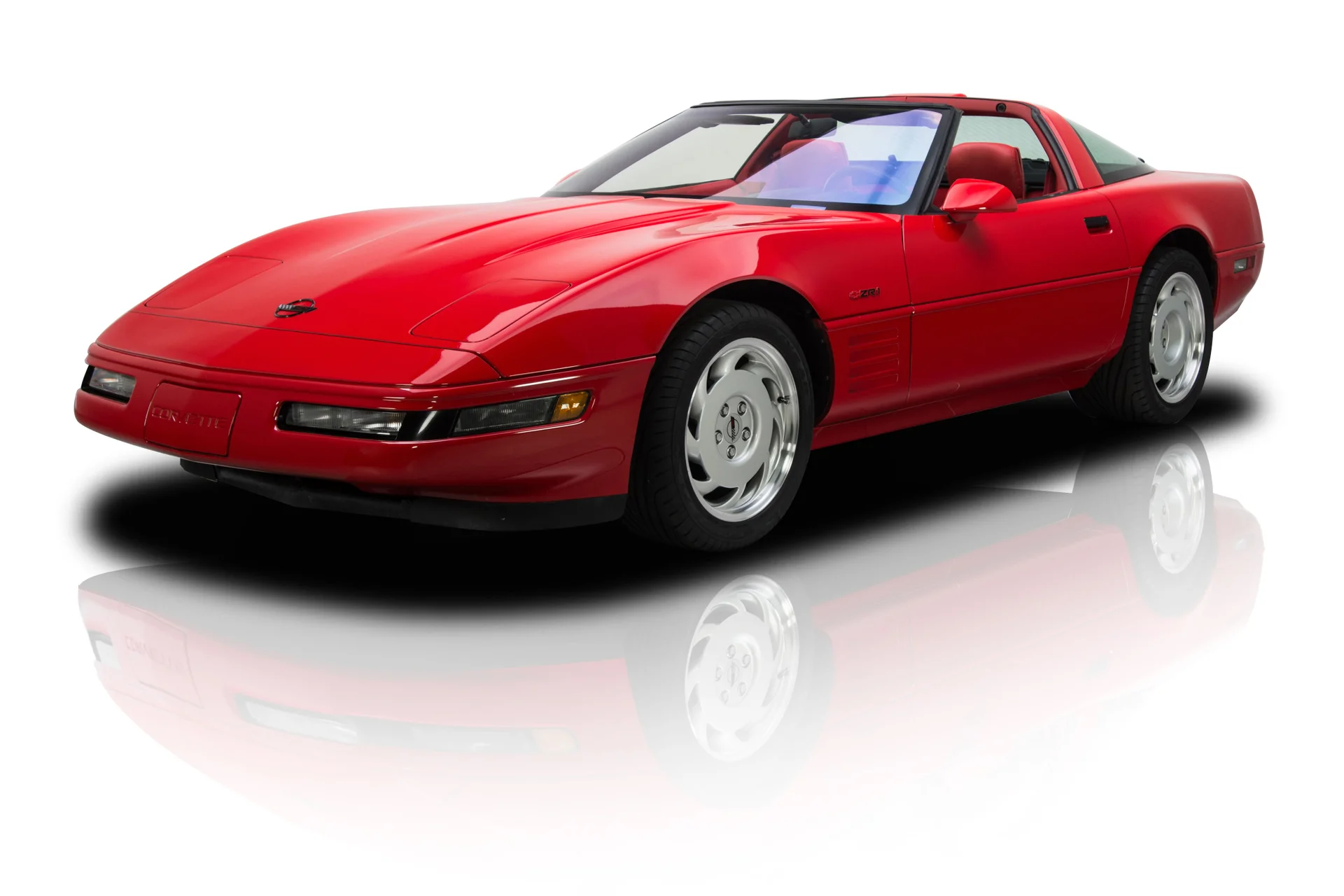

1992 CORVETTE OVERVIEW
There were certain years in each generation of Corvette’s history when the car stopped trying to be the loudest voice in the room and instead focused on being the most articulate. 1992 was that kind of year.

On paper, not much changed: the body was familiar, the interior still looked like late-’80s futurism, and the option sheet would have made a returning C4 owner feel right at home. But when drivers turned the key and set out through town, into a rainstorm, across a stretch of highway that usually made a sports car skittish, it became obvious that Chevrolet had spent the year turning the Corvette into a different animal. Quieter, more compliant, more secure in bad weather, and, most importantly, quicker in the ways that mattered day-to-day. The C4 wasn’t reborn; it was refined into its best self.

The loudest single ingredient in that transformation was three letters and a hyphen that dropped the hyphen: LT1. The new small-block replaced the long-serving L98 with 300 horsepower and 330 lb-ft, the biggest jump in base-car output since the C4’s launch. Around it, Chevrolet framed a remarkably modern driving experience—ASR traction control, new ZR-rated Goodyear GS-C rubber, improved sound deadening, tidier switchgear—that let the chassis feel composed where earlier C4s had felt nervy. And beyond the production car, Chevrolet made two statements about what the Corvette was and where it was going: it built the one-millionth example on July 2, 1992, tying the present back to 1953, and it rolled out Sting Ray III, a California-penned concept that looked a decade ahead and hinted at a transaxle future.

This is the story of how the 1992 model year —without a single new fender stamping—managed to move the Corvette forward.

A Year Lived Between Projects

In 1992, when GM’s upper management made the stunning call to cancel the C5 Corvette program, Jim Perkins—then Chevrolet’s general manager—refused to let America’s sports car die on his watch. A lifelong Chevrolet man and a racer at heart, Perkins saw Corvette not just as a model line, but as a cornerstone of the brand’s identity. When others in the executive suites declared the program finished, Perkins rallied his team behind closed doors, quietly keeping the C5 vision alive. He reassigned engineers, shielded budgets where he could, and lobbied relentlessly to convince GM leadership that Corvette was too important to abandon. His defiance wasn’t reckless—it was rooted in a deep conviction that Chevrolet without Corvette would lose its soul. Looking back, it’s clear: without Perkins’ grit and unshakable pride in the Bowtie, the Corvette story could have ended in 1992. Instead, it was his commitment that carried the car through the dark days and ultimately paved the way for the revolutionary C5. (Image courtesy of Motor Trend)

By 1992, everyone inside Chevrolet knew the next-gen car—what would become the C5—was running behind schedule. Budgets were tight. Priorities elsewhere at General Motors had pushed hard decisions onto a handful of people who believed that a Chevrolet without a Corvette was a Chevrolet unmoored. Manufacturing executive Joe Spielman had walked into Chevrolet general manager Jim Perkins’ office with a rumor that the C5 might be killed. Perkins, a dyed-in-the-wool Chevy lifer, didn’t flinch. He did the thing old-school car people did when the spreadsheet said “no” and the product said “we must”: he found a way. “We put about two and a half million dollars of marketing money into the program,” Perkins admitted later, money that kept mule development alive and the team working toward hydroformed rails and a rear transaxle under a cut-and-shut C4 body. “We knew we had something.”

Those were C5 details, but they mattered here because 1992 was the year the existing Corvette started to feel like the car those mules promised. Chevrolet couldn’t get from C4 to the C5’s quantum leap without learning how to tame noise, vibration, harshness, and wet-weather insecurity. The LT1 car became the bridge: an old platform taught new tricks.

The LT1: Familiar Form, New Function

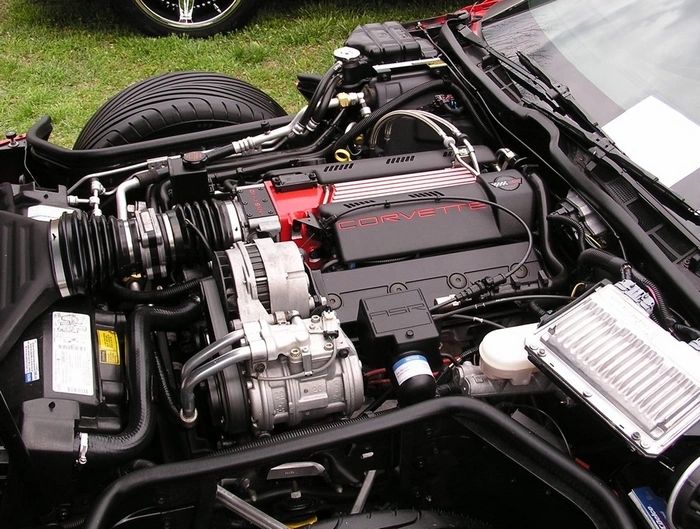

The LT1 small-block debuted in the 1992 Corvette, ushering in a new era of performance for America’s sports car. Displacing 5.7 liters and rated at 300 horsepower, it introduced advanced features like reverse-flow cooling that allowed higher compression and improved efficiency. Compact, durable, and responsive, the LT1 carried the C4 through the mid-1990s with a blend of modern engineering and classic small-block character, setting the stage for the even hotter LT4 that followed in 1996.

The LT1 was not simply an L98 with a bigger cam and a better tune. It was a major rethink of the small-block’s fundamentals. Peak output rose to 300 hp at 5,000 rpm and 330 lb-ft at 4,000, but the headline wasn’t the numbers—it was how the engine went about making them. Chevy engineers introduced reverse-flow cooling, sending coolant to the heads first, then down through the block. The benefit was thermodynamic headroom: cooler chambers meant more compression and spark lead without detonation. The engine breathed better via freer-flow heads and a cleaner, dual-cat exhaust path with an O2 sensor per bank; the cam profile and ignition strategy complemented a revised multi-port injection system. For the first time, Mobil 1 synthetic was the factory-specified oil, and the external oil cooler disappeared from the options list because the package no longer needed it for durability. Road & Track had called the LT1 “a major overhaul of the classic small-block,” praising the way it changed the car’s manners as much as its speed.

Drivers noticed the difference. The LT1 started cleanly hot or cold, idled with a purposeful smoothness that read “serious” without being fussy, and pulled in one continuous belt of torque instead of handing over a lump of shove and then begging for an upshift. It didn’t punish in bad weather; it allowed drivers to keep going through conditions that had once made earlier Corvettes feel like garage queens.

The LT1 wasn’t just a horsepower bump—it was the foundation of a new generation of small-block technology. From 1992–1996, it brought modern ignition control with the Opti-Spark system, higher operating compression, and improved breathing that made the Corvette sharper and more responsive than ever. Its compact, efficient design proved versatile and durable, ensuring the LT1 became a mainstay across GM’s performance lineup, but it was the Corvette that showcased its full potential.

Not every new piece was perfect. The Opti-Spark distributor tucked beneath the water pump—chosen for packaging and precision—proved sensitive to moisture in early production, spawning a small industry of updates and replacements. But the LT1’s total system—the cooling strategy, the oil choice, the exhaust, the engine management—delivered a base Corvette that felt far more modern than the silhouette suggested.

ASR: Teaching an “Olympic Sprinter” to Waltz in the Rain

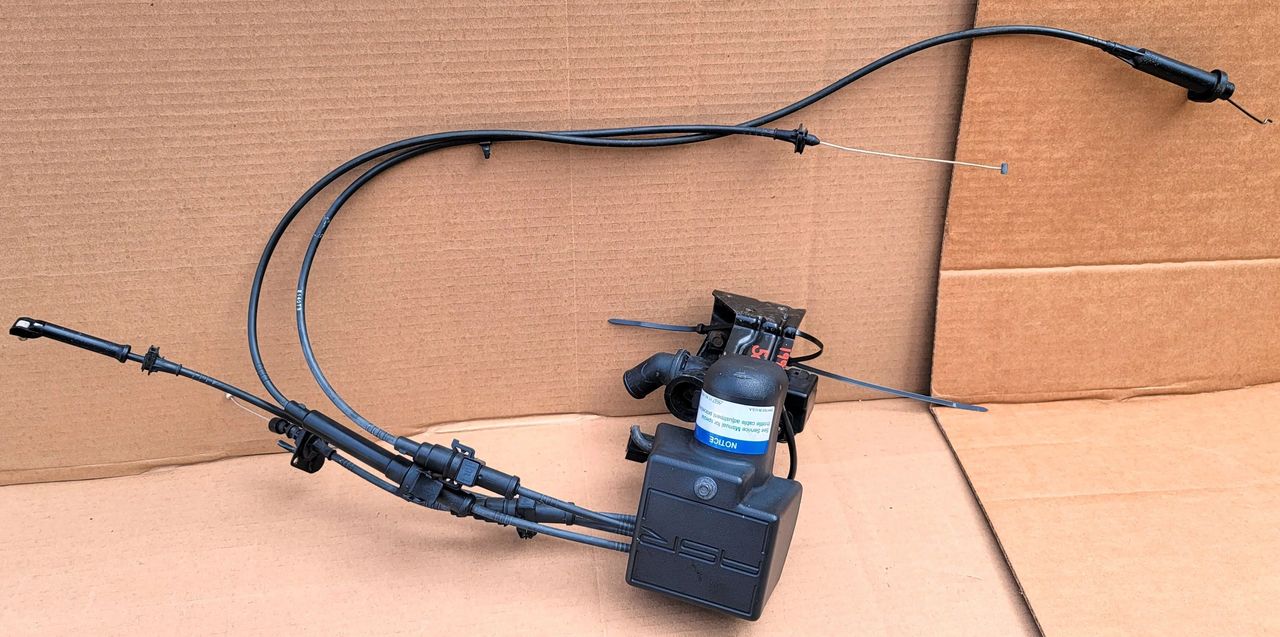

1992 Corvette Acceleration Slip Regulation (ASR) module and linkage assembly. Introduced alongside the LT1, ASR was Corvette’s first traction control system, using throttle, spark, and brake modulation to keep the car stable under hard acceleration—a high-tech leap that made the C4 one of the most advanced sports cars of its era.

Engineers loved acronyms because they hid a lot of smart under a few letters. ASR—Acceleration Slip Regulation—was one of those. New for 1992 and standard across the line, ASR sat on the same sensor network as the anti-lock brakes and watched the rear wheels for over-speed relative to the fronts. When it saw wheel slip, it trimmed the throttle and spark and could apply the rear brakes independently to settle the car and restore traction. It wasn’t intrusive when the driver was in control; it was simply there in the background, saving trouble at moments where older Corvettes had asked for sainthood. In classic C4 fashion, it could be shut off with a console switch when a driver wanted the tail to breathe at an autocross.

Road & Track captured the effect in a single line: “a surprisingly effective traction-control system… makes the Vette much more driveable in bad weather conditions.” They went further, noting that refinements such as ASR and the new Corvette-exclusive radial tires “narrowed the performance gap” to the ZR-1. That was the part that sent ripples through Bowling Green and the dealer body. When the base car stepped far enough forward, the halo felt crowded.

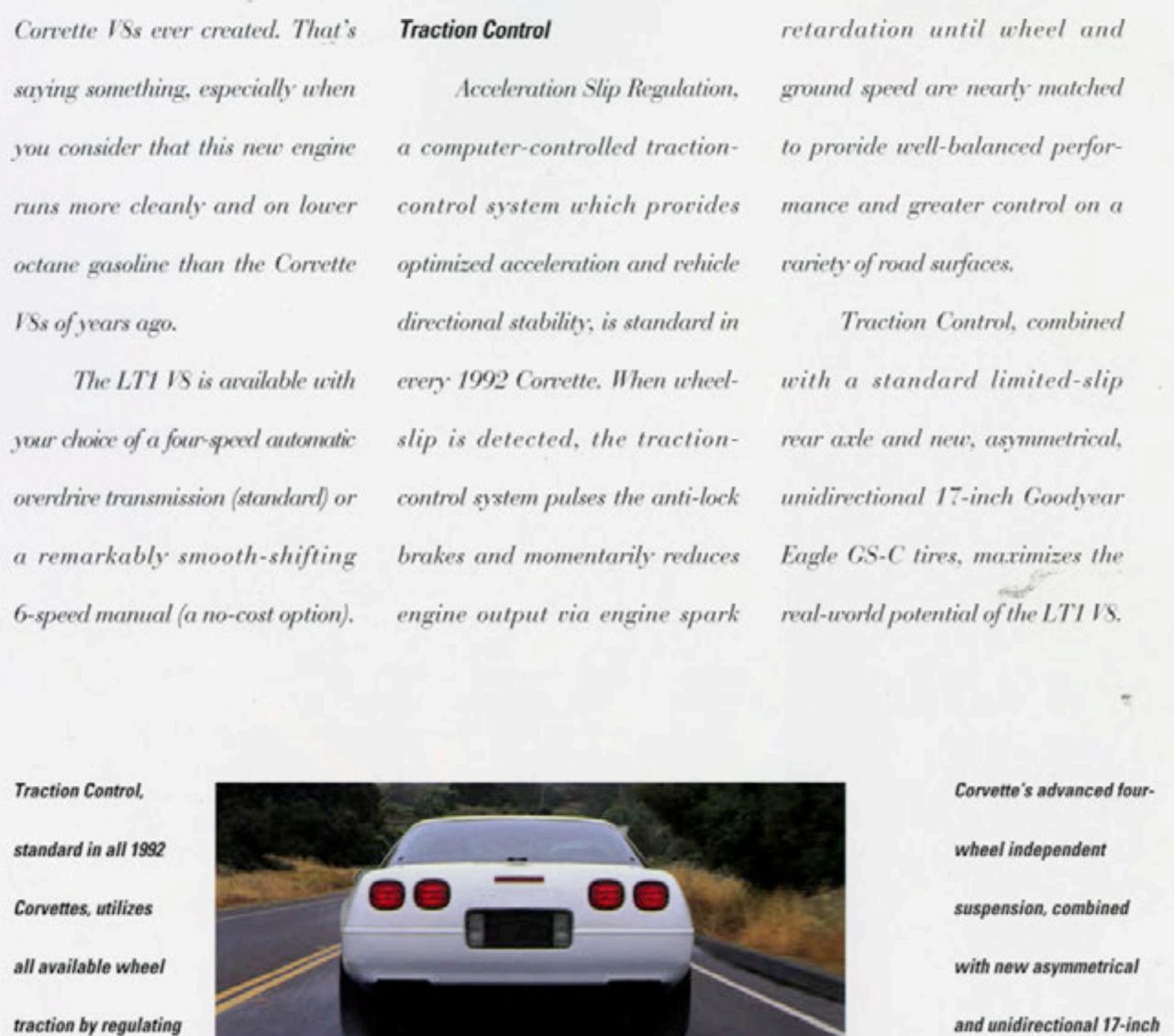

Page 18 of Chevrolet’s 1992 Corvette brochure highlighting Acceleration Slip Regulation (ASR). Standard on every ’92 Corvette, ASR worked with ABS, spark control, and braking to reduce wheel slip, delivering optimized traction and stability. Paired with the limited-slip differential and new 17-inch Goodyear Eagle GS-C tires, it maximized the LT1’s performance on real-world roads. (Image courtesy of GM Media LLC.)

Chevrolet’s own literature leaned into the technology—not as a gimmick but as a guardrail for real drivers on real roads. The brochure’s ASR explainer was careful engineering prose—Acceleration Slip Regulation, throttle and spark intervention, brake application where needed—and it read like a company intent on selling performance you could actually use.

Pair ASR with the Goodyear Eagle GS-C tires—directional, asymmetric, Z-rated—and the C4 shook off the last bits of mid-’80s fragility on rough surfaces. The platform’s long-running virtues (rigidity, lateral grip, a willingness to communicate) came through without the old edge. The suspension still rode firmly, but isolation was up, and crashiness was down; the car tracked truer over seams and expansion joints, and the steering wheel didn’t chatter in a driver’s hands when the surface went off. If someone had lived with an early C4 and found it fatiguing after an hour on secondary roads, 1992 would have surprised them.

Same Skin, New Heart: The 1992 Corvette’s Look

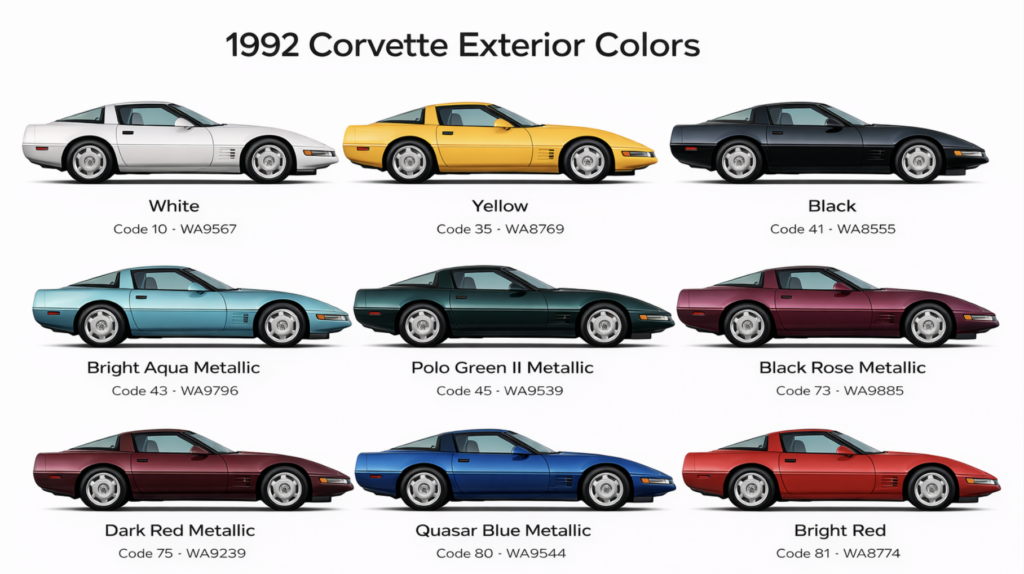

1992 Chevrolet Corvette Exterior Paint Colors (Image source: ultimatecorvette.com)

For 1992, the C4 kept the sleek “91 refresh” exterior—softer front and rear fascias, quad-rectangular tail lamps, and the scalloped front-fender gills—while the real revolution happened under the hood with the LT1. Visually, coupes and convertibles wore the same wind-tunneled profile on 17-inch alloys; ZR-1s continued with the subtly wider rear bodywork to cover 11-inch rims, plus discreet ZR-1 fender badges added above the gills. In short, the shape stayed modern and clean, and the details stayed purposeful.

Colors & popularity (with GM codes): Chevrolet offered nine exterior choices—Arctic White (10), Black (41), Bright Red (81), Yellow (35), Bright Aqua Metallic (43), Polo Green II Metallic (45), Black Rose Metallic (73), Dark Red Metallic (75), and Medium Quasar Blue Metallic (80). Based on 1992 production totals (20,479 cars), Bright Red (81) was the most popular with 4,466 built (~21.8%), while Yellow (35) was the rarest regular-production color at 678 cars (~3.3%). These counts and codes match period production records and align with the National Corvette Museum’s color roster for 1992.

The Cabin and the Cues

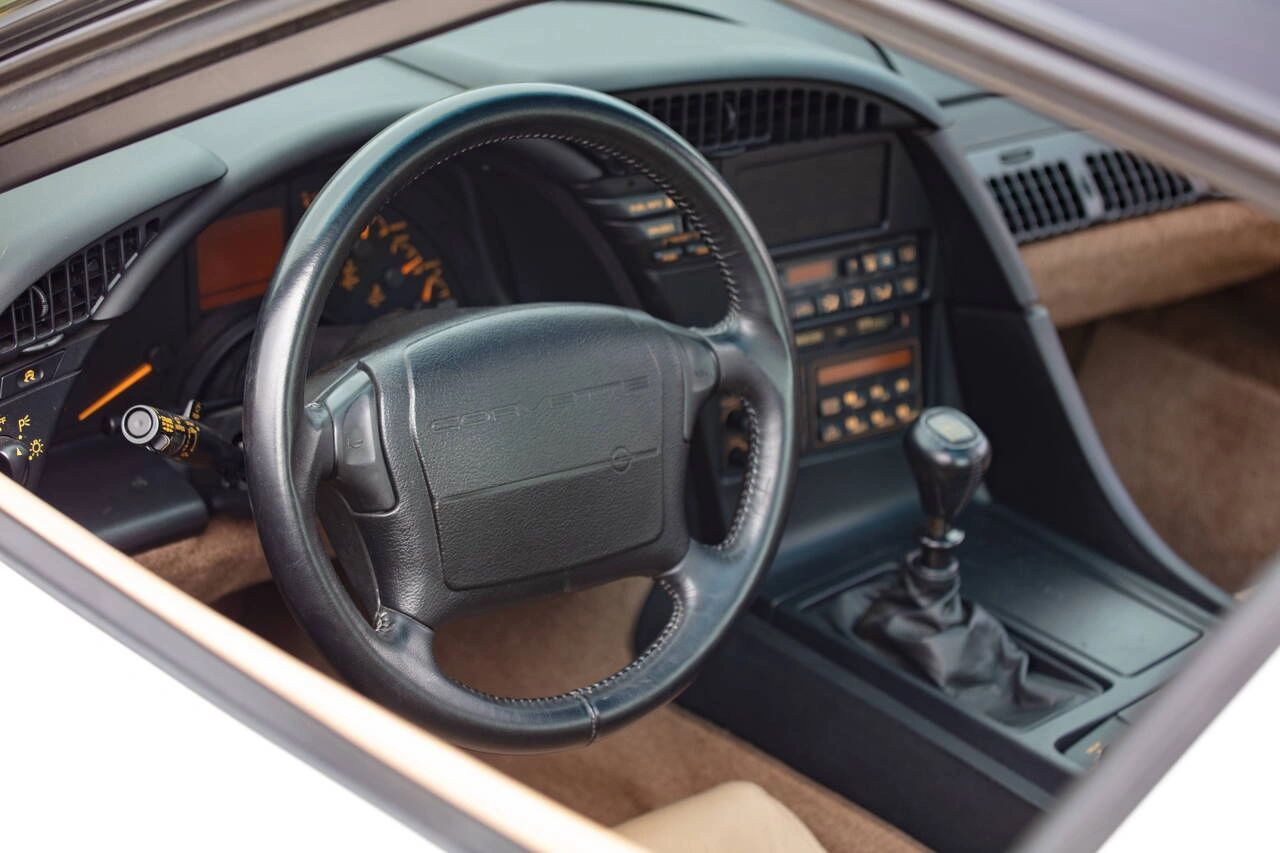

The cockpit of a 1992 Corvette: a driver-focused interior with digital/analog hybrid gauges, the signature squared-off steering wheel embossed with Corvette, and the no-cost-option 6-speed manual shifter—offering enthusiasts the purest connection to the new LT1 small-block under the hood.

The Corvette’s maturity in 1992 was also visible in the places Chevrolet didn’t chase flash. The instrument cluster and center stack went to an all-black scheme that cleaned up the cockpit’s visual noise. Switchgear lost the gray-black mix that once made the dash look like a parts catalog. Weathersealing improved. There was more insulation in the doors and transmission tunnel, cutting down the tire roar that could turn a long day into a longer headache. The retained-accessory power logic—radio, windows—now cut with either door, a small tweak that reads as considered, not cost-cut. These touches made the car feel less like a weekend event and more like something an owner could live with five days a week and still want on Saturday.

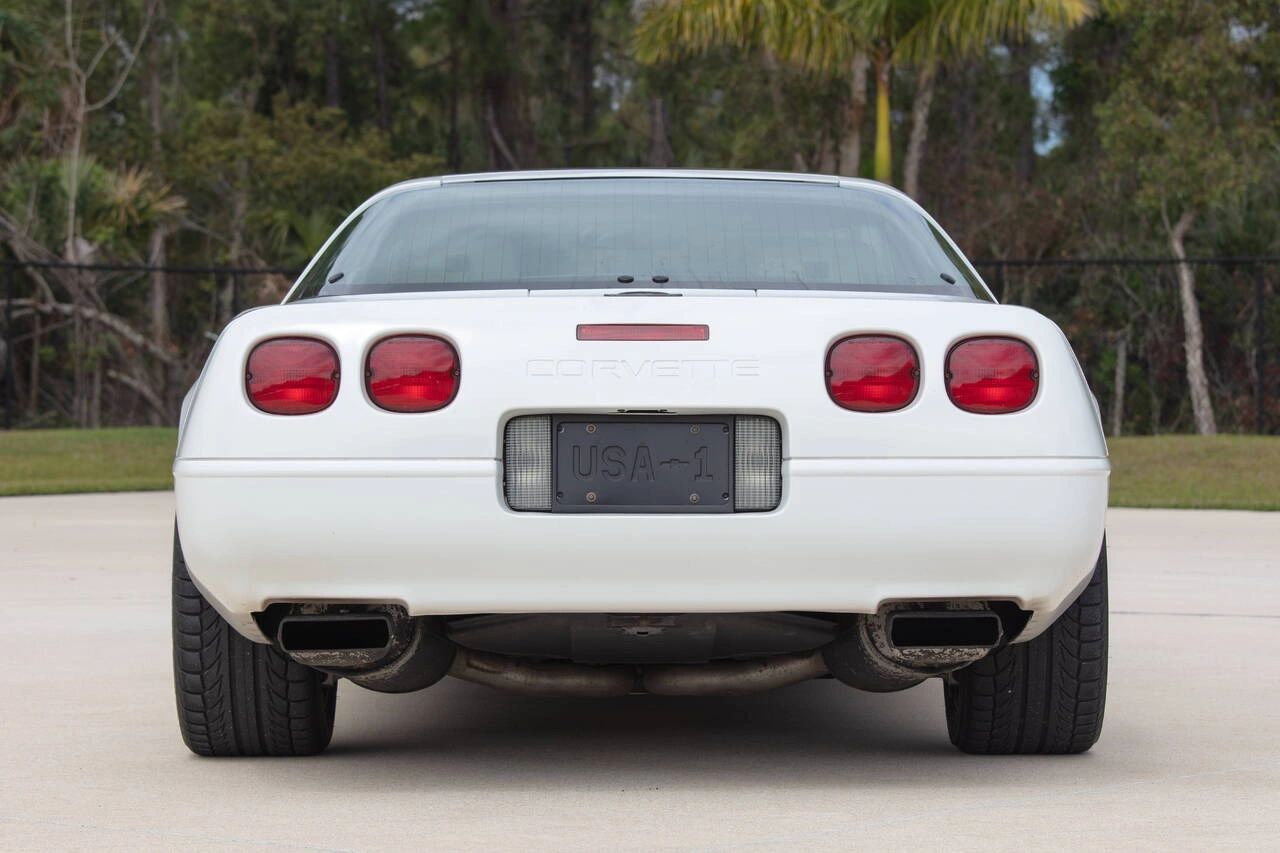

The 1992 Corvette’s rear view showcased subtle but important updates—including the new rectangular exhaust outlets. These squared-off tips replaced the earlier round design, giving the LT1-powered C4 a more aggressive, modern look that matched its leap forward in performance and technology.

Outside, the changes were subtle. The exhaust outlets became two rectangular finishers in place of the old quad rounds. It was a slight visual widening of the tail and a more contemporary look. ZR-1s picked up fender badges to go with the still-massive 315-section rear tires, little tells for the faithful.

The ZR-1’s Dilemma

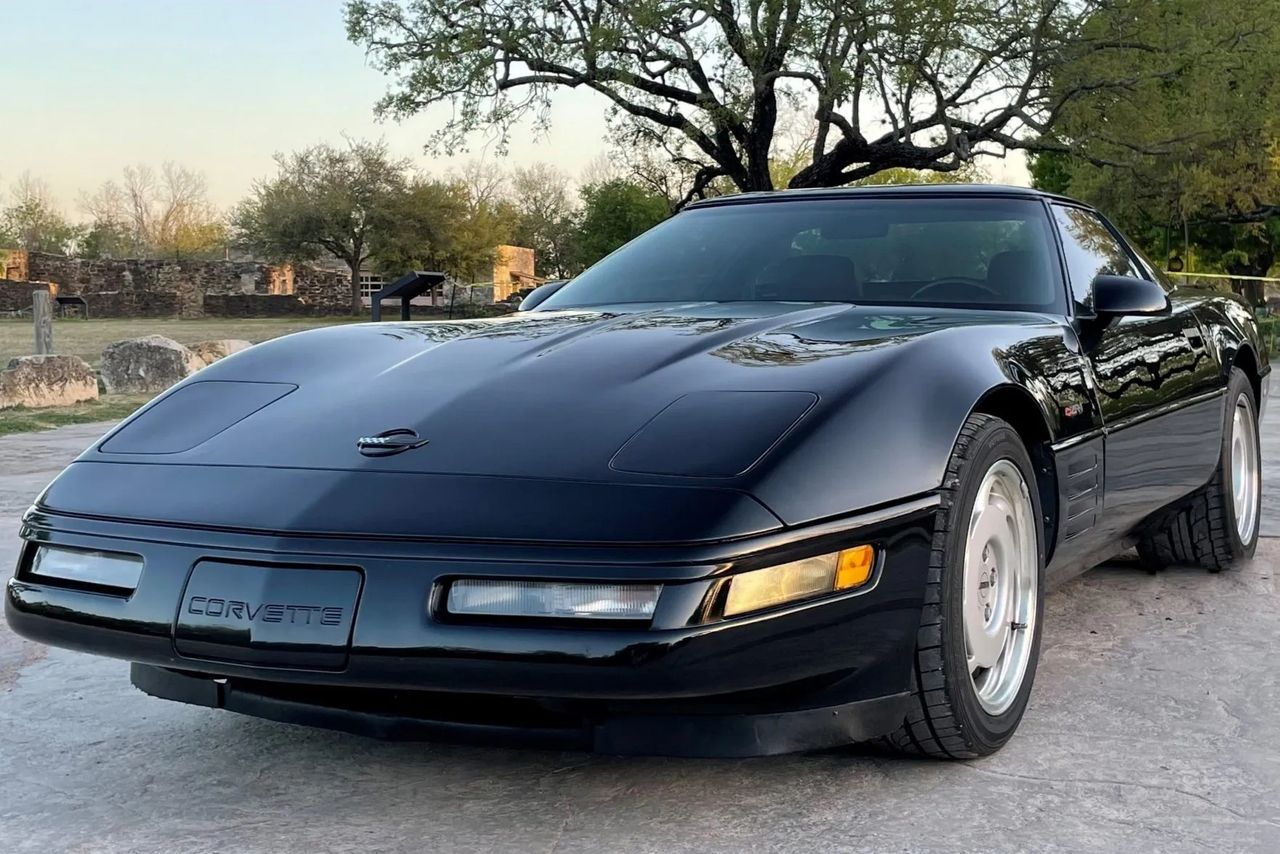

In 1992, the 375-hp ZR-1 still reigned supreme, but the new 300-hp LT1 made the base Corvette nearly as quick—shaving the performance gap to mere tenths in 0–60 runs, while the ZR-1 flexed its muscle with a higher top speed and exotic LT5 pedigree.

No one in Chevrolet Engineering set out to make the ZR-1 look redundant. The LT5 remained a marvel—Lotus-penned, Mercury Marine-built, 375 horsepower with the kind of big-rpm silk that a pushrod motor couldn’t replicate. On a runway or an autobahn, the ZR-1 had a top-end authority the LT1 couldn’t touch. But two sentences summarized the market reality in 1992: the LT1 was nearly as quick to 60 as the ZR-1 in real use, and the price delta was huge. Contemporary testing recorded a stock automatic LT1 at 5.2 seconds to 60 mph, while a recent-test ZR-1 sat at 4.9. That half-second was the longest in the world to purists; to a buyer staring down a monthly payment, it was a non-issue. Sales told the story: 502 ZR-1s in 1992.

The ZR-1 did not fail in product terms; it stumbled in context. The LT1’s breadth of ability, paired with the economy of the moment, squeezed a halo car that had been designed to run away from the base model’s acceleration and dynamically high-wire past its rough edges. When the base car’s edges were rounded off and its acceleration was right there with you in traffic, the halo had to lean on speed most people would never see. That was a tough sell in a recession.

Sting Ray III: California Dreams, Real-World Echoes

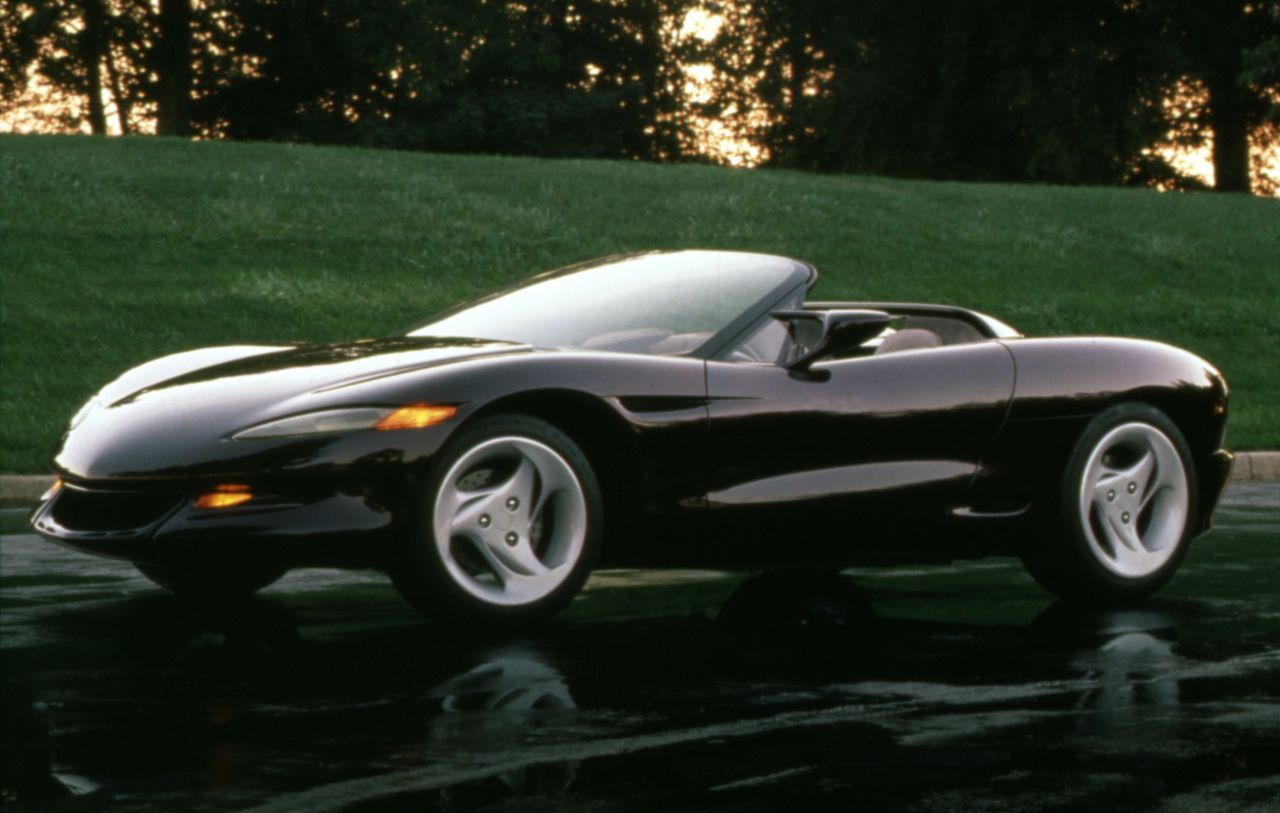

The 1992 Corvette Sting Ray III Concept (also known as the California Corvette) was Chevrolet’s bold glimpse at the future. With its sweeping, organic lines, flush headlights, and a cockpit pushed forward for dramatic proportions, it previewed styling cues that would influence the upcoming C5. Built in partnership with Jerry Palmer’s design team and coachbuilder Metalcrafters, the Sting Ray III balanced exotic flair with Corvette heritage—proof that even in the uncertain early ’90s, GM was still dreaming big about America’s sports car. (Image courtesy of GM Media)

If the production Corvette’s 1992 story was refinement, the concept car story was provocation. Sting Ray III—the “California Corvette”—landed at the Detroit show with the swagger of a studio unafraid to poke the bear. Penned at GM’s Advanced Concept Center in Newbury Park under John Schinella and championed by GM design chief Chuck Jordan, SR-III put the idea of a rear-mounted transaxle and advanced chassis systems in the public square while re-imagining the Corvette’s face with fixed headlamps and tauter surfacing. MotorTrend’s retrospective captured the brief: futuristic, unapologetically show-car bold, and very much a west-coast take on a traditionally midwestern icon. It looked nothing like a nostalgia soak and everything like the C5’s coming thesis.

Design-history sources note that beyond the styling tease, SR-III’s package thinking was wildly ambitious for the time—active suspension, all-wheel steering, even explorations of night-vision rearward visibility—exactly the kind of blue-sky ideation a concept car should indulge. Many of those specifics would be toned down or deferred, but the transaxle idea didn’t die. The C5 would make it the Corvette’s core.

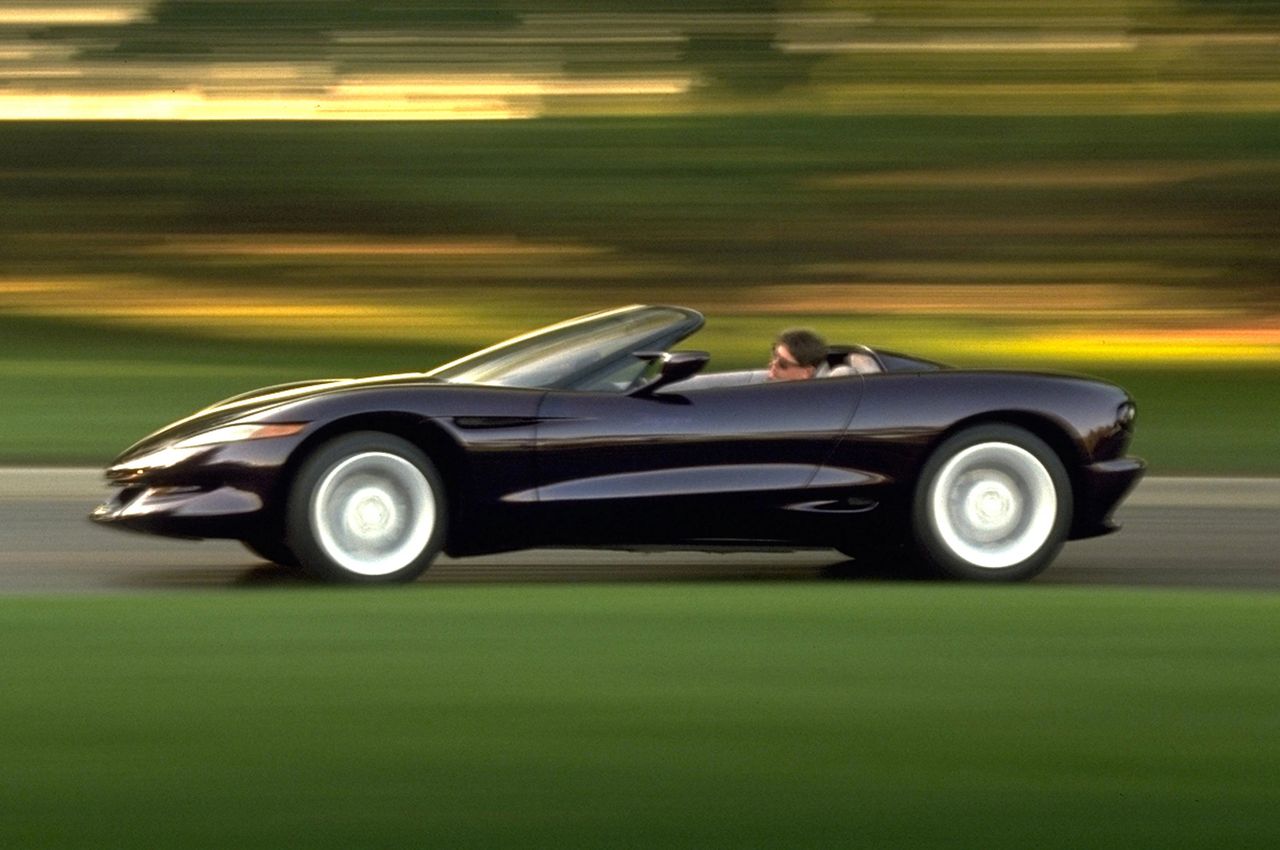

Sleek, low, and futuristic, the Sting Ray III concept embodied the Corvette’s forward momentum in the early ’90s. Its fluid profile, hidden lamps, and sweeping fender lines suggested speed even at a standstill, while its open-top design emphasized a pure driver’s experience. More than just a show car, it was a rolling statement that Corvette design would not stand still heading into the next generation, or the next century. (Image courtesy of GM Media)

There was an easy line between the “black cherry” convertible that appeared in early mockups and the production convertible that followed later in the decade: a real trunk returned to the Corvette family with the C5 convertible and FRC, a usability fix so obvious in hindsight it was hard to believe how long the car had gone without it. Even SR-III’s stance language—the way the plan view tightened the waist and pulled the corners outward—reappeared in the C5 and carried forward. Concepts didn’t have to predict; they needed to expand. Sting Ray III expanded the conversation at exactly the right moment.

July 2, 1992: The One-Millionth Corvette

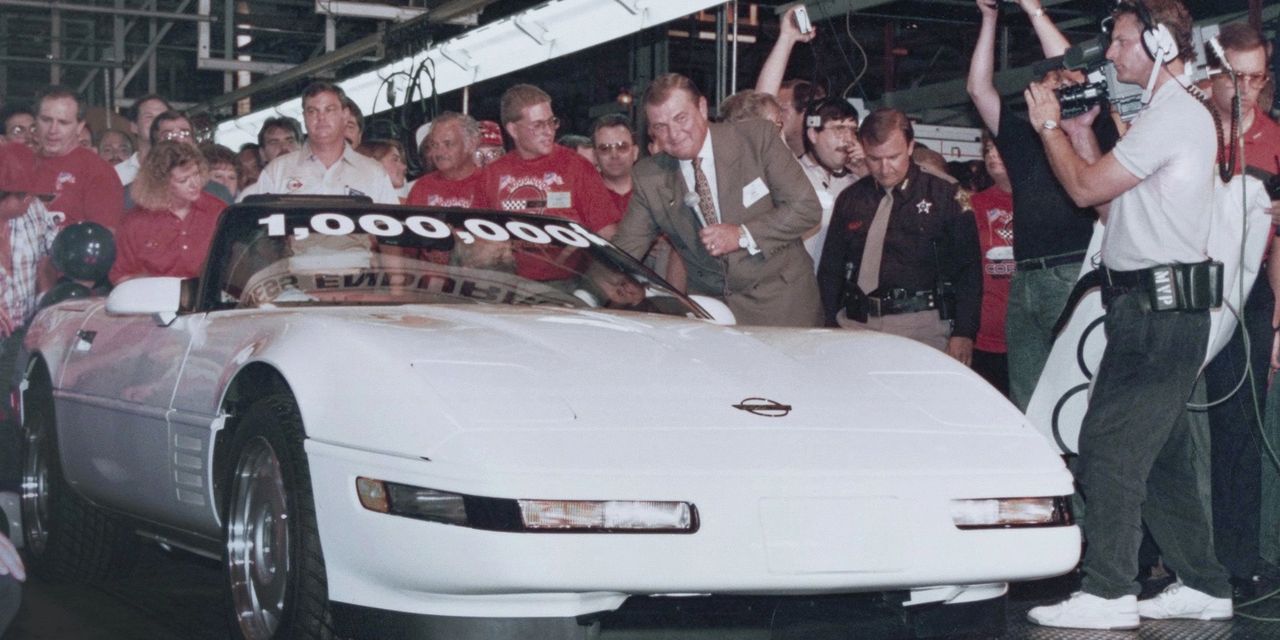

A milestone moment in Corvette history: on July 2, 1992, the one-millionth Corvette rolled off the Bowling Green assembly line. Finished in classic white with a red interior—just like the very first 1953 model—the car was celebrated by workers, enthusiasts, and GM leadership alike. It symbolized not only Corvette’s enduring legacy but also the resilience of the brand during a challenging era for General Motors.

Milestones were best when they were specific. On a summer day in Bowling Green—July 2, 1992—a white convertible with a red interior rolled across the line and into the history books as Corvette No. 1,000,000. The colorway was deliberate—a callback to 1953—and the car carried signatures from the people who built it. Few production-year headlines resonated decades later with the same warmth. When the National Corvette Museum’s 2014 sinkhole swallowed the millionth car, among others, the image was an international gut-punch. The restoration that followed, funded with Chevrolet’s help, returned the car to the floor and, with it, a sense that this model year’s most public moment was more resilient than the rock beneath the Skydome.

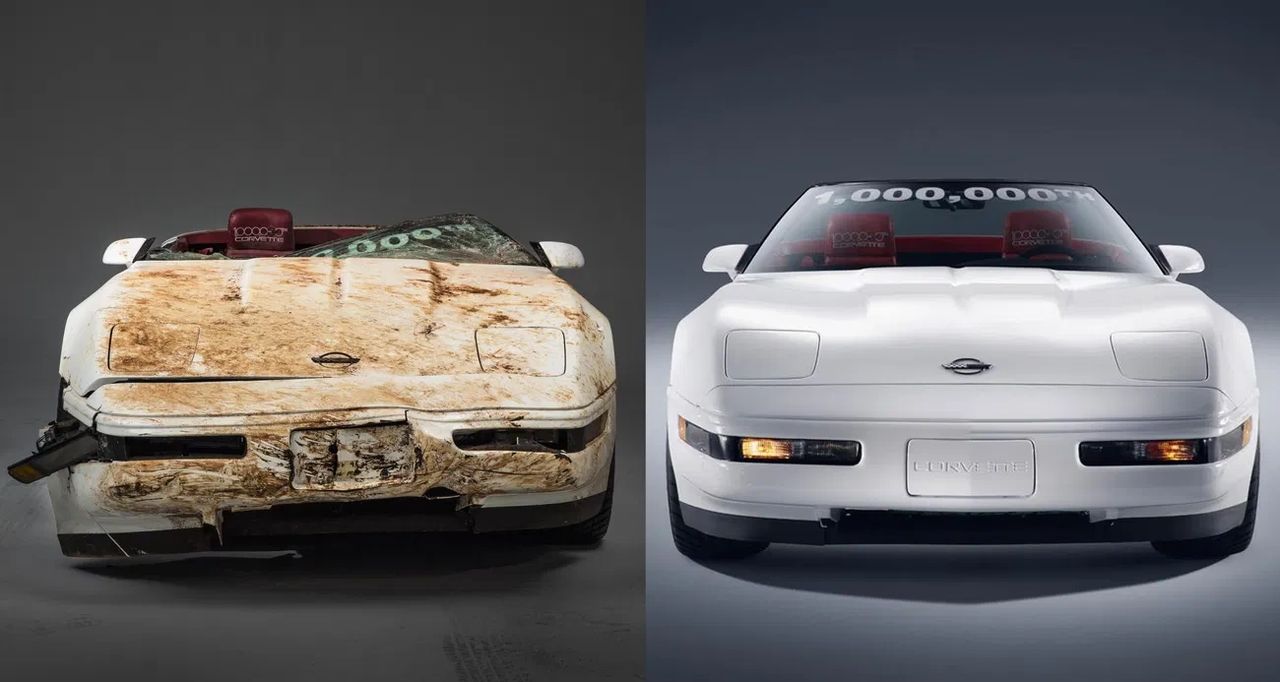

In 2014, the one-millionth Corvette—a white 1992 convertible built to mirror the very first 1953 model—was swallowed by the infamous sinkhole that opened beneath the National Corvette Museum. The car was crushed and scarred, its once-pristine fiberglass body battered and caked in dirt, instantly becoming one of the most heartbreaking images in Corvette history. Recognizing its historical importance, Chevrolet and GM Design rallied a team of craftsmen to bring it back from near ruin. Using a combination of new-old-stock parts, donor panels, and painstaking restoration work, they preserved as much of the original car as possible, including its red leather seats and unique VIN. The process required months of effort, blending artistry with factory-correct precision, before the milestone Corvette was triumphantly returned to display in 2015. Today, the restored car stands as both a symbol of Corvette’s resilience and a testament to the passion of the people determined to save it.

For those who stood in front of that car and looked at the signatures under the hood, what was on display was more than paint and leather. It was continuity. It was the idea that even in a year of budget triage and delayed dreams, the Corvette could still mark time in a way that mattered.

Why 1992 Mattered

If Corvette history were charted only by body changes and horsepower peaks, 1992 might have been overlooked. But 1992 was bones. It proved that discipline—cool a head before a block; give the driver traction before more tire; take noise out before dollars out—could move a car forward as decisively as a new platform. It was also a reminder that context mattered. The ZR-1’s excellence didn’t dim; the LT1’s excellence grew into its space. Buyers did what buyers always did: they rewarded the car that made their actual lives better, most often for the least money. Chevrolet read that room and adjusted its future accordingly. The C5 that arrived later carried forward the LT1’s priorities—usability, composure, breadth—just as surely as it carried forward SR-III’s architecture.

The year’s other two pillars—the Detroit-show concept and the millionth car—told the same story in different languages. Sting Ray III said, we’re not done making this car new. The millionth convertible said, we’ve been making this car long enough to matter to people who weren’t alive when it started. Put them together, and you get the Corvette’s trick in any era: balance the audacity of what’s next with the humility to honor what worked. In 1992, that balance was nailed.

1992 Corvette — Key Specifications

Quick Stats (Base vs. ZR-1)
- Base (Coupe/Convertible): 5.7L LT1 V8 — 300 hp @ 5,000 rpm • 330 lb-ft @ 4,000 rpm; ZF S6-40 6-speed or 4-speed automatic (4L60/TH700-R4); ABS and ASR traction control standard.
- ZR-1: 5.7L LT5 DOHC V8 — 375 hp @ 6,000 rpm • 370 lb-ft @ 4,800 rpm; ZF S6-40 6-speed only.
Performance (period figures)
- Base: ~0–60 mph 5.5–5.7 s, ¼-mile ~14.0–14.3 s @ ~100–102 mph (typical magazine ranges for LT1).
- ZR-1: Quicker than base in contemporary testing due to higher output. (Benchmarked against factory ratings and period tests.)
Chassis, Suspension & Brakes
- Structure: Uniframe with composite body panels; forged-aluminum control arms (F/R); independent 5-link rear; transverse composite mono-leaf springs; gas-pressurized shocks. ABS standard; ASR (Acceleration Slip Regulation) traction control added for 1992.
- Packages: Z07 Adjustable Suspension Package (’91–’95) combined Z51-type hardware with FX3 electronic selective ride (availability by body/trans).
Wheels & Tires
- Base: 17 × 9.5-in alloys (L/R specific) with P275/40ZR-17 Goodyear Eagles.
- ZR-1: 17 × 9.5-in (front) / 17 × 11-in (rear) with 275/40ZR-17 (F) and 315/35ZR-17 (R).
Dimensions & Weights (approx., factory data)
- Wheelbase: 96.2 in • Length: 178.5 in
- Width: 70.7 in (base) • 73.1 in (ZR-1)
- Height: 46.3 in (coupe) / 47.3 in (conv.) / 46.3 in (ZR-1)
- Curb weight: 3,317 lb (coupe) • 3,358 lb (conv.) • 3,503 lb (ZR-1)
- Fuel capacity: 20.0 gal.
Powertrain Details
- LT1 (base): OHV 2-valve; reverse-flow cooling; 10.5:1 compression; multi-port fuel injection; Mobil 1 factory fill.
- LT5 (ZR-1): Aluminum block/heads; 32-valve DOHC; 11.0:1 compression; unique 16-runner intake; twin-injector per cylinder (factory spec).
Paint & Trim (with GM codes; popularity snapshot)
- Colors offered (9): Arctic White (10), Black (41), Bright Red (81), Yellow (35), Bright Aqua Metallic (43), Polo Green II Metallic (45), Black Rose Metallic (73), Dark Red Metallic (75), Medium Quasar Blue Metallic (80).
- Most/least common: Bright Red (81) was the most popular in 1992 (4,466 cars ~21.8%), while Yellow (35) was the rarest regular-production color (678 cars ~3.3%). Totals out of 20,479 produced.
Why the 1992 Corvette Still Matters Today

The 1992 Corvette represents a moment when the C4 platform had fully matured into the performance machine Chevrolet’s engineers originally envisioned. With refinements to the LT1-powered drivetrain, improved ride quality, and the continued presence of the groundbreaking ZR-1, the Corvette stood as a credible world-class sports car entering the final decade of the twentieth century. It was a year defined less by reinvention and more by confidence—proof that the Corvette formula was working. Looking back today, the 1992 model reminds us that sustained engineering discipline, not constant reinvention, is often what turns a great sports car into an enduring legend.

The 1992 Corvette represents one of those quiet but important inflection points in the car’s long history. At first glance, it looked familiar—still the unmistakable C4 shape that had been evolving since 1984. But beneath the surface, Chevrolet introduced the LT1, a thoroughly modern small-block that redefined Corvette performance for the decade that followed.

The LT1 was more than a horsepower bump. Its reverse-flow cooling system, higher compression, and modernized fuel injection allowed engineers to extract significantly more performance while maintaining durability and drivability. With 300 horsepower on tap, the Corvette instantly regained ground against the growing wave of high-performance imports and domestic rivals that had begun to challenge America’s sports car.

Equally important, 1992 helped solidify the C4 platform as a legitimate world-class performance machine. With the ZR-1 continuing as the technological halo—packing Lotus-engineered, 32-valve power—the standard Corvette now delivered performance that felt far closer to its exotic sibling than ever before. The gap between Corvette and Corvette ZR-1 had narrowed in spirit, if not specification.

Seen from today’s perspective, the 1992 Corvette marks the beginning of the modern small-block era that still defines the car. The LT1’s architecture and engineering philosophy laid the groundwork for the LS engines that would follow later in the decade—powerplants that would carry Corvette into an entirely new performance generation.

In that sense, the 1992 Corvette is not simply another model year in the C4 timeline. It is the moment when Corvette’s future engine strategy snapped into focus—where tradition, technology, and performance aligned to push America’s sports car confidently into the modern era.
Introduced for 1992, the Corvette marked a pivotal step in the evolution of the C4 generation. Chevrolet debuted the new LT1 5.7-liter small-block V8, producing 300 horsepower and restoring the Corvette’s place among the world’s serious performance cars while delivering improved efficiency and modern engineering beneath its familiar silhouette.

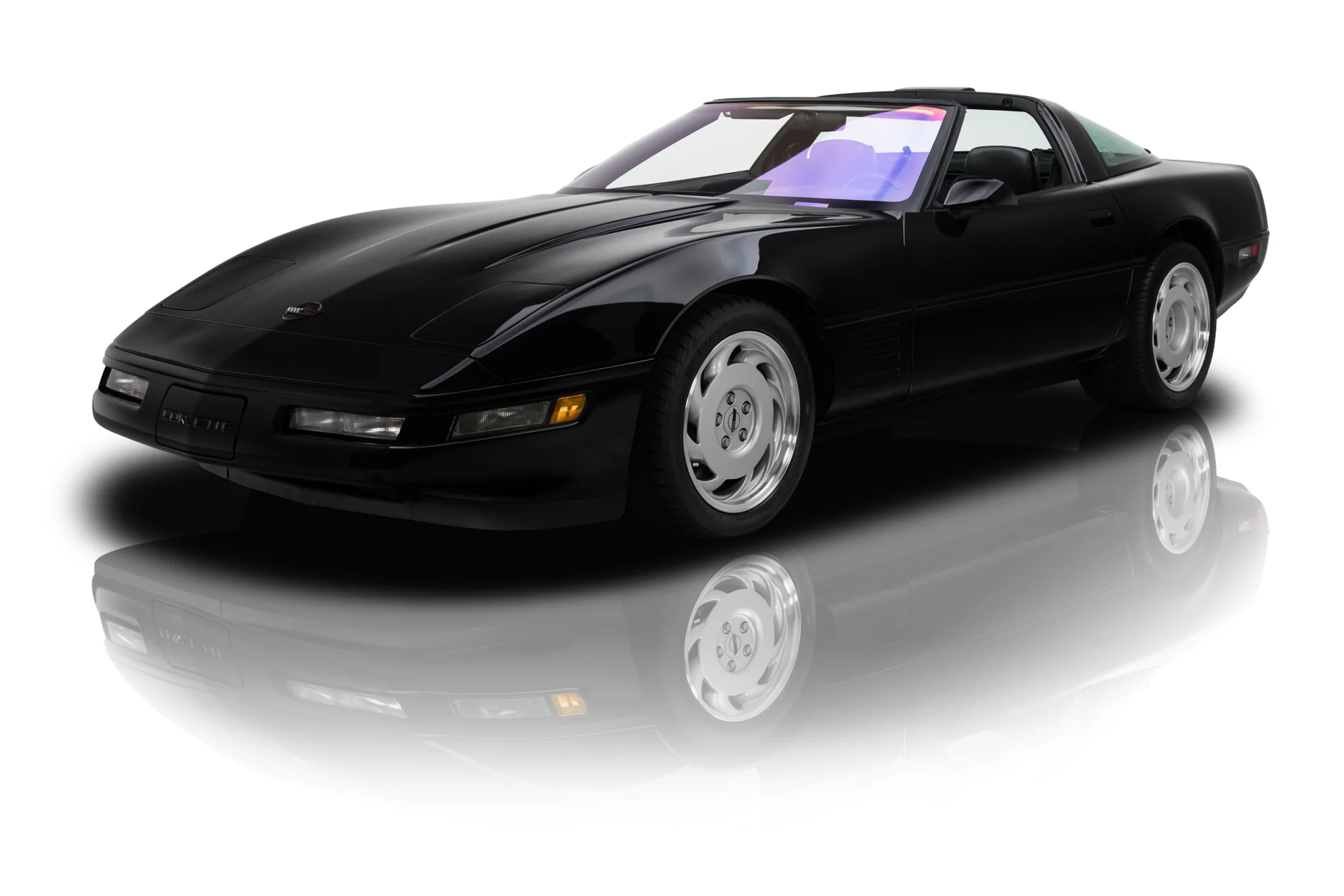

1991 CORVETTE OVERVIEW
With the arrival of the ZR-1 in 1990, the Corvette had once more been elevated to a stature that had been missing since the early seventies. The “King of the Hill” had arrived—and it had, by nearly every quantifiable metric, met or exceeded the expectations of enthusiasts and critics alike. Car and Driver magazine famously called it “at once the most exciting and responsible high-performance car ever conceived in Detroit,” a machine that felt“glued to the pavement” and “powered by equal parts lightning and solid rocket fuel.”

That was the promise. 1991 revealed the complications.

The sticker, the sizzle, and the subtlety problem

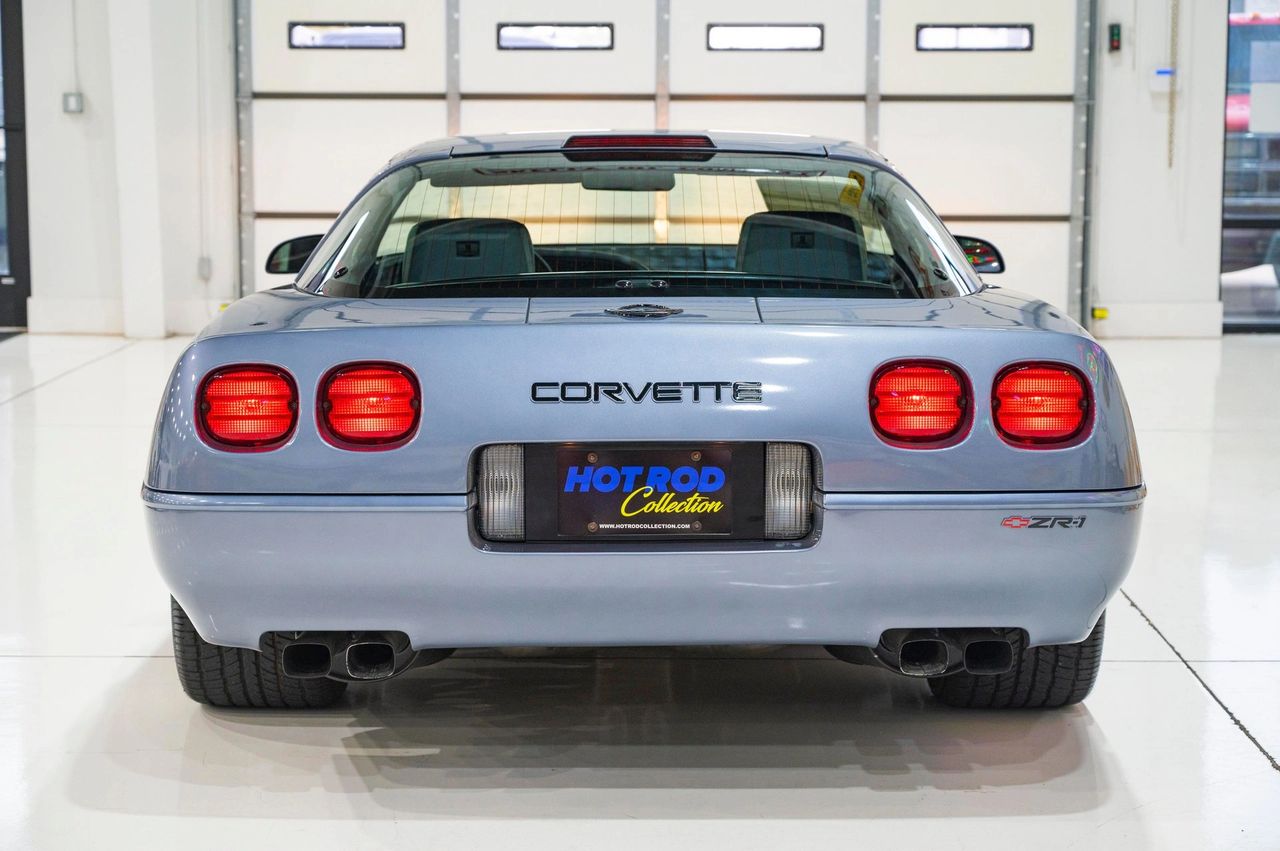

When introduced in 1990, the ZR-1 was instantly recognizable from the rear—its wider body, massive tires, and exclusive square taillights set it apart from the base coupe, marking it as the true “King of the Hill.” However, in 1991, Chevrolet refreshed the base model Corvette to include the same convex-shaped rear fascia, complete with squared-off taillamp assemblies, further diminishing the already subtle distinguishing characteristics of the ZR-1. (Image courtesy of Hot Rod Collection)

The ZR-1’s arrival had been anticipated for so long that the earliest buyers happily paid over list price. Base ZR-1 MSRP in 1990 was $58,995 (the ZR-1 option alone cost roughly as much as a base coupe), and contemporary accounts confirm that six-figure out-the-door prices were not uncommon thanks to dealer markups.

And yet, the very thing that made the ZR-1 sensational mechanically—the Lotus-designed, Mercury Marine-built, 32-valve LT5—arrived wrapped in a body that, to the casual eye, looked very much like a regular C4 Corvette. Yes, the 1990 ZR-1 had a distinctive convex rear fascia and square taillamps, wider rear quarters, and 315-section Goodyears on 11-inch-wide rims—details that were candy to trained eyes. But to the average passerby? It read “Corvette,” not “twice-the-price Corvette.” One period review put it bluntly:“It’s the world’s fastest Corvette, but it still looks like a Corvette.”

Chevrolet complicated that perception further in 1991 by giving the base coupe and convertible a visual refresh that borrowed some of the ZR-1’s look: a smoother, slimmer front fascia with wraparound lamps and—crucially—an all-new rear fascia with the same convex theme and four rectangular taillamps. The ZR-1 retained its wider rear fenders and unique doors to house those massive 315s, and the high-mounted center stop lamp stayed up on the roof hatch. But the line between “King of the Hill” and “regular” blurred in traffic and across the Chevy showroom.

For a halo car, that subtlety hurt. It’s one thing when a Testarossa looks nothing like a 348; it’s another when the mighty ZR-1 can be mistaken—at a glance—for an L98 coupe.

Inside the 1991 CORVETTE ZR-1: what the badge really bought

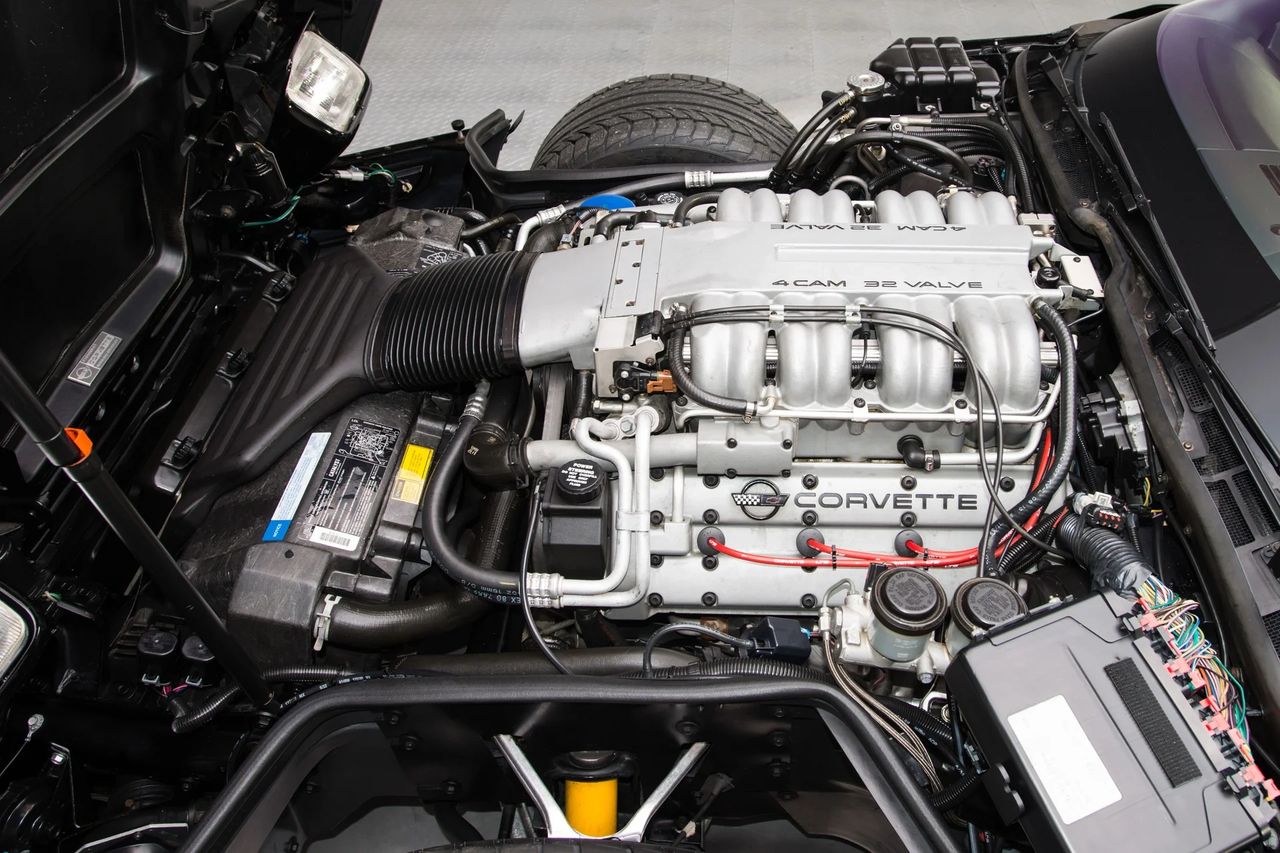

Beneath the hood of the 1991 Corvette ZR-1 lies its crown jewel: the 5.7L LT5 V8, co-developed with Lotus and hand-assembled by Mercury Marine. With dual overhead cams, 32 valves, and 375 horsepower, this exotic all-aluminum engine set the ZR-1 apart from every other Corvette of its era—earning it the title “King of the Hill.” (Image courtesy of RK Motors)

Under the skin, of course, the ZR-1 was anything but subtle. The LT5, developed with Lotus and assembled in Stillwater, Oklahoma by Mercury Marine, was an exotic for its day: all-aluminum block, DOHC/32 valves, an intricate induction with primary and secondary throttles, and a unique two-mode “valet” key that allowed the driver to lock out the secondaries for reduced output around town. Rated at 375 horsepower, it was unlike any small-block Chevrolet before it.

Lotus engineering boss Tony Rudd explained it simply: having been asked to make a world-beating Corvette, his team concluded the only answer was to develop and assemble a completely new engine from scratch. The LT5 was the result: high-revving, refined, durable, and unflappable.

And its durability wasn’t hype. On March 1, 1990, a showroom-stock ZR-1 prepared by Tommy Morrison’s team shattered long-standing endurance records at the Firestone test track in Fort Stockton, Texas—among them a 24-hour average of 175.885 mph while covering over 4,200 miles. Drivers John Heinricy, Jim Minneker, Stu Hayner, and others rotated stints at more than 180 mph. Heinricy later said, “It’s not a highlight of your career; it’s a highlight of your life.” Minneker added that at 180 mph, the ZR-1 felt “like riding down the freeway.”

On paper and at full cry, the ZR-1 delivered. The problem was that 1991 would test how Halo hardware survives the market forces outside the test track.

A new rival in the room — Viper

When Dodge unveiled the 1991 Viper RT/10, it fired a direct shot across Corvette’s bow—especially at the reigning “King of the Hill,” the ZR-1. Where the ZR-1 showcased high-tech sophistication with its Lotus-designed LT5 and refined road manners, the Viper was raw and unapologetic: a brutal, V10-powered throwback to the muscle car ethos. With no roof, no side windows, and side pipes that could sear your calf, the Viper embodied pure excess, a brash counterpoint to the Corvette’s precision. Together, they defined two very different visions of American performance in the early ’90s—one polished and world-class, the other wild and untamed.

In early 1991, Dodge confirmed what it had teased two years earlier: the production Viper was coming as a 1992 model. With 400 horsepower from its V-10 and looks that screamed “race car for the street,” the Viper was raw, visceral, and unapologetic. Chrysler president Bob Lutz pitched it as the modern AC Cobra, deliberately eschewing driver aids to keep it elemental. The press swooned. Suddenly, Corvette no longer had the American supercar conversation to itself.

Chevrolet had forecast 4,000–8,000 ZR-1s annually. After the initial 1990 frenzy that saw 3,049 built, ZR-1 production dropped to 2,044 in 1991. The “new American supercar” badge had a second claimant, and buyers noticed.

The base car gets better—and closer

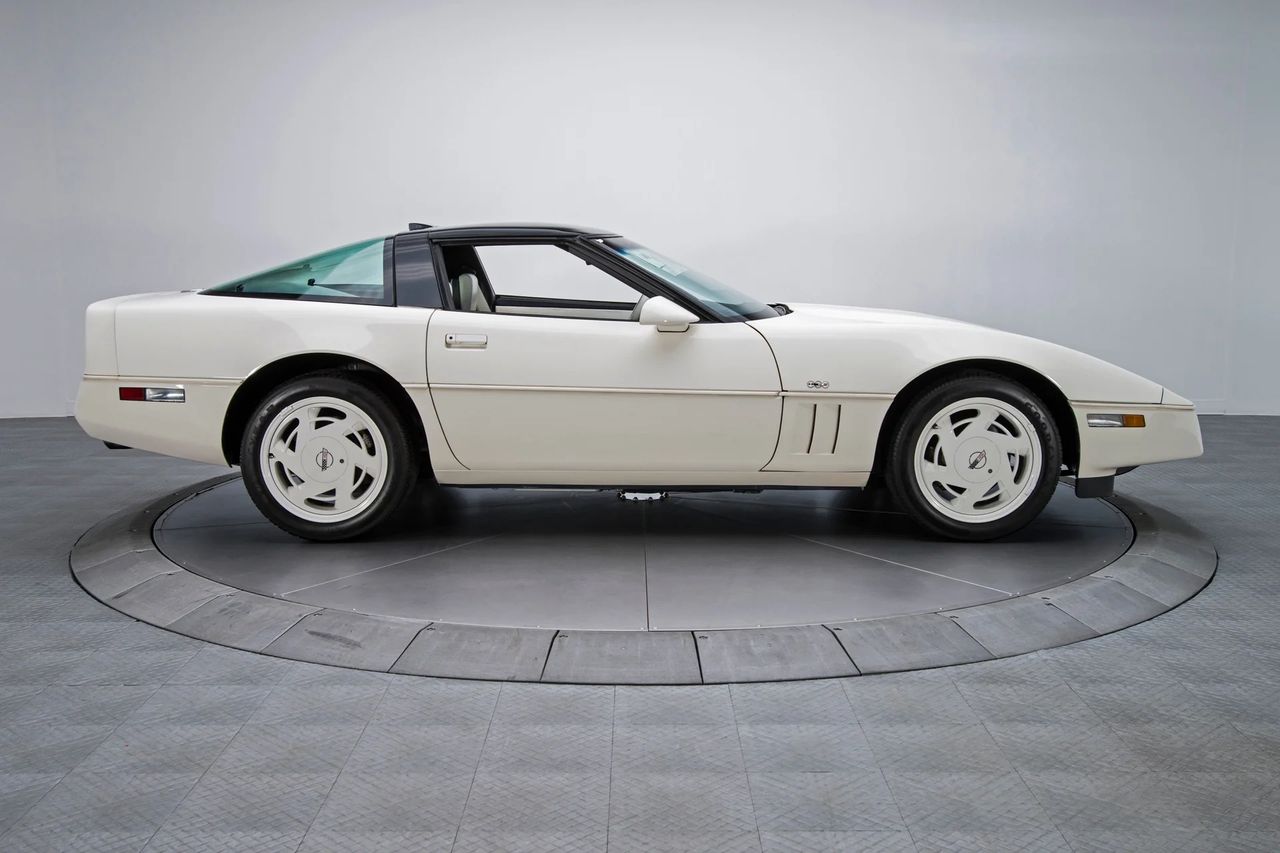

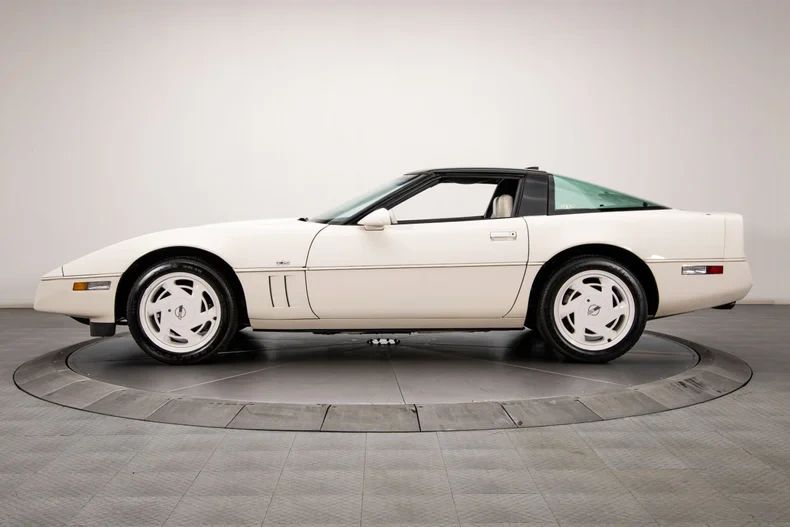

In the first design iteration of the C4 Corvette (including this 1988 Anniversary Edition seen here), the Corvette was still in its original C4 body styling form, first introduced in 1984. While the car already had the sharp, wedge-shaped look that defined the C4, there were several exterior styling elements specific to the initial design that would be re-imagined for the 1991 model year. These elements included: A smooth and fairly plain front nose, with a flat, body-colored front bumper and narrow black rub strip that ran across the front and continued down the body sides. The turn signals were small rectangular units integrated low in the bumper. The sides were defined by a sharp body crease and the black rub strip that bisected the car all the way around. Side gills behind the front wheels were simple horizontal slats—thin, parallel louvers cut into the panel. The back end retained the flat panel with four round taillights set in a recessed, body-colored panel. The rear bumper was fairly vertical and squared off. Overall, the character of the first design iteration was angular, sharp-edged, and very much an ’80s-era high-tech wedge design. (Image courtesy of RK Motors.)

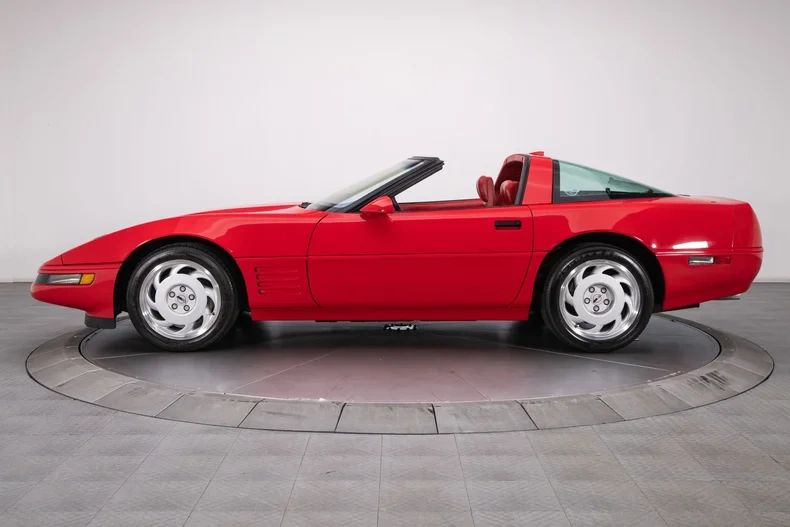

For the 1991 design refresh, Chevrolet introduced a more rounded, sculpted front fascia with larger, wraparound cornering lights/turn signals. The nose gained more aerodynamic contours, softening the earlier wedge look. The rub strip was integrated more smoothly and color-keyed, giving the car a cleaner appearance. The side vents were redesigned into more aggressive, wraparound “sawblade”-style openings that looked deeper and more three-dimensional. The rear gained a smoother, more rounded bumper cover, with the license plate pocket reshaped and the taillights slightly more flush. The overall look was more integrated and less slab-sided. In essence, the updated styling gave the car a fresher, less dated appearance indicative of 1990s automotive styling.

Meanwhile, the standard 1991 Corvette was no longer standing still. The styling update modernized the face and tail. Body-side moldings went body-color. The “gill” openings behind the front wheels were recut into four horizontal strakes. Inside, a handful of usability updates arrived—most notably Retained Accessory Power (allowing power windows and audio to function for up to 15 minutes after key-off until a door opened), a low-oil warning in the Driver Information Center, and pre-wiring for a cellular phone.

Under the skin, mufflers were enlarged to reduce backpressure and improve tone; a finned power-steering cooler was added; and the suspension menu was shuffled. RPO Z07 (“Adjustable Suspension Package”) combined the heavy-duty hardware of the old Z51 with the FX3 Selective Ride Control shocks, giving buyers a track-leaning yet street-tunable setup in one box.

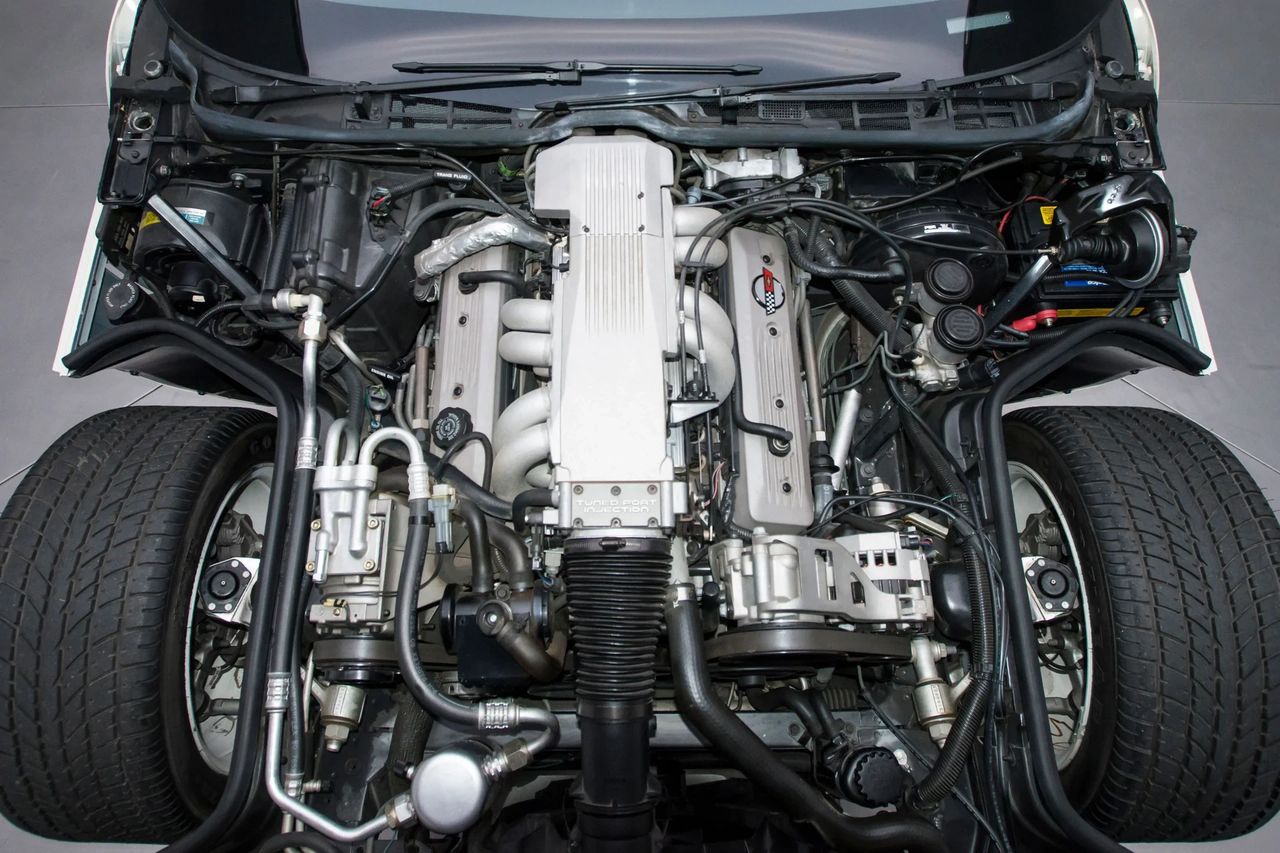

Horsepower? The stalwart L98 stuck around for one last year before the LT1’s 300-hp debut in 1992, but Chevy did squeeze the numbers a bit: 1991 cars were rated at 245 hp with the automatic and 250 with the ZF six-speed manual. In testing, the standard Corvette still ran hard with the day’s best Japanese GTs, even if its chassis still favored brute strength over delicacy.

Add it up, and you can see how the value calculus shifted in 1991: the base Corvette looked fresher, drove better, and cost half as much. The ZR-1 was still extraordinary at full tilt—but Chevy had unintentionally made the base car feel close enough to blunt the halo’s glow.

Sales reality and the C5 cloud on the horizon

Jim Perkins, the charismatic Chevrolet general manager of the late 1980s and early 1990s, played a decisive role in saving the Corvette from extinction. At a time when GM leadership considered killing the program to cut costs, Perkins — himself a lifelong Corvette enthusiast — refused to let it happen. Alongside allies like Joe Spielman and Dave Hill, he diverted funds, rallied support inside GM, and kept the C5 development team alive in secret when resources were being stripped away. Without Perkins’ bold leadership and willingness to fight for America’s sports car, the Corvette legacy might have ended with the C4. (Image courtesy of GM Media LLC.)

As 1991 wore on, GM’s financial picture darkened. The all-new Corvette program, initially expected to arrive in 1995, slipped deeper into the decade. Inside GM headquarters, there were even conversations about whether the Corvette program was worth the capital and engineering resources. Chevrolet general manager Jim Perkins, a believer to his very core, pushed back. He argued that killing Corvette meant killing Chevrolet’s soul. Perkins, along with manufacturing chief Joe Spielman, worked on the politics and budgets to keep the program alive. The C5 would eventually emerge, but not soon.

Meanwhile, Corvette sales slid. The total 1991 production run was 20,639 units (14,967 coupes and 5,672 convertibles). The ZR-1’s 2,044-unit slice was a warning: the halo would not float on its own forever, not at that price, not without daylight between it and the base car.

The 1991 details—what changed, what mattered
- Exterior refresh: smoothed front fascia with integrated wraparound lamps; new rear fascia across all models adopting the ZR-1’s rectangular lamp theme; four horizontal front-fender strakes replacing earlier vertical louvers; body-side moldings painted in body color.
- Wheels/tires: new 17-inch “sawblade” wheel design debuted; base cars wore 9.5-inch widths with P275/40ZR-17s, while ZR-1 rears remained 11 inches wide with P315/35ZR-17s under unique wider quarters.
- Interior/UX: Retained Accessory Power, low-oil indicator, and phone pre-wire. On ZR-1s, the dash “Full Power” light moved adjacent to the valet key switch.
- Powertrain: L98 stayed at 245 hp (auto) / 250 hp (manual). The LT5 in the ZR-1 remained at 375 hp.
- Chassis: larger mufflers tuned for a richer note and lower backpressure; finned power-steering cooler added; RPO Z07 combined heavy-duty suspension with FX3 electronic damping.
Racing, World Challenge, and the end of a factory idea

Chevrolet’s factory-supported Corvette Challenge had ended after 1989. For 1991, Corvette participation continued in SCCA’s World Challenge series, but buyers no longer had the option of a factory-delivered, race-prepped car. If you wanted to race, you bought a Corvette and built it yourself. The big, loud factory statement had already been made at Fort Stockton, and it still resonated through 1991.

Callaway: last year as an RPO, and the Speedster side-story

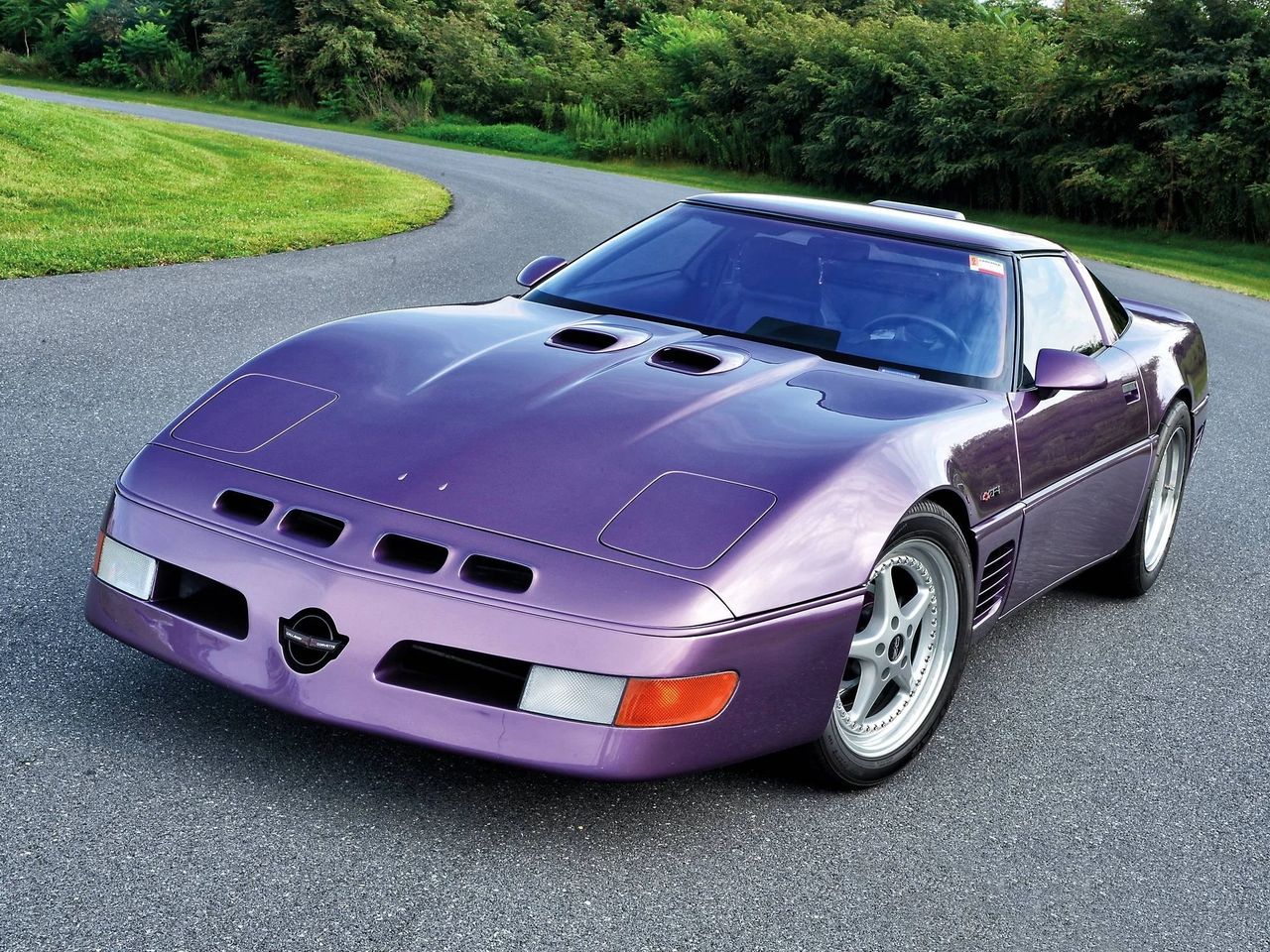

The 1991 Corvette Callaway was a factory-option supercar that transformed the already potent C4 into a twin-turbocharged rocket. Built by Callaway Cars under RPO B2K, it featured a heavily modified 5.7L V8 producing 403 horsepower and 575 lb-ft of torque, paired with aggressive bodywork and unique “Aerobody” styling. With a top speed near 190 mph, it was one of the fastest street cars of its era. Benefiting from the Corvette’s refreshed styling, the 1991 Callaway also marked the final year the B2K package was offered as a regular production option, closing out a groundbreaking chapter in Corvette history.

1991 was the final year you could tick RPO B2K at your Chevy dealer and get your car shipped to Callaway Cars for the Twin-Turbo conversion under factory sanction. Just 71 were built that year. That brought the total B2K tally to just over 500 cars since its 1987 debut. It was the end of an era.

Reeves Callaway, however, wasn’t finished. For 1991, he introduced the Callaway Twin-Turbo Speedster convertible—an ultra-limited (about ten cars) special with O.Z. wheels, a bespoke Connolly leather interior, and a radical double-bubble roof treatment. With 450 horsepower and 600 lb-ft of torque, it was outrageous even by Callaway standards and carried a six-figure price tag. It stood as a parallel vision of what the ultimate Corvette could be.

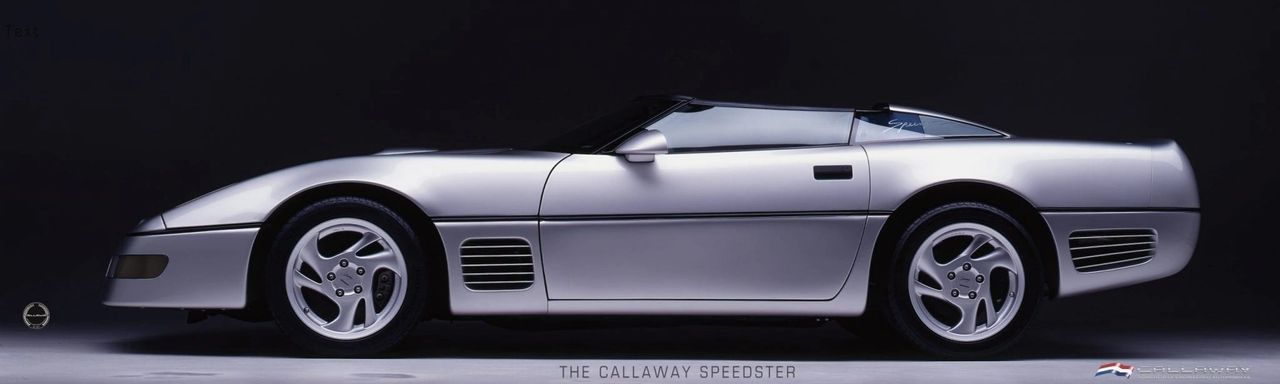

The 1991 Callaway Speedster was one of the rarest and most striking Corvettes ever built, created as a showcase for Callaway’s design and engineering prowess. Based on the twin-turbocharged Corvette platform, the Speedster featured radical bodywork with a low, wraparound windshield, exposed roll hoops, and a distinctive open-air cockpit that set it apart from anything else on the road. Producing over 400 horsepower, it carried the same blistering performance as the Callaway Twin Turbo while presenting a concept-car look in street-legal form. Built in extremely limited numbers, the 1991 Speedster remains a collector’s jewel and a testament to Callaway’s bold vision during the C4 era.

VINs, production, and options

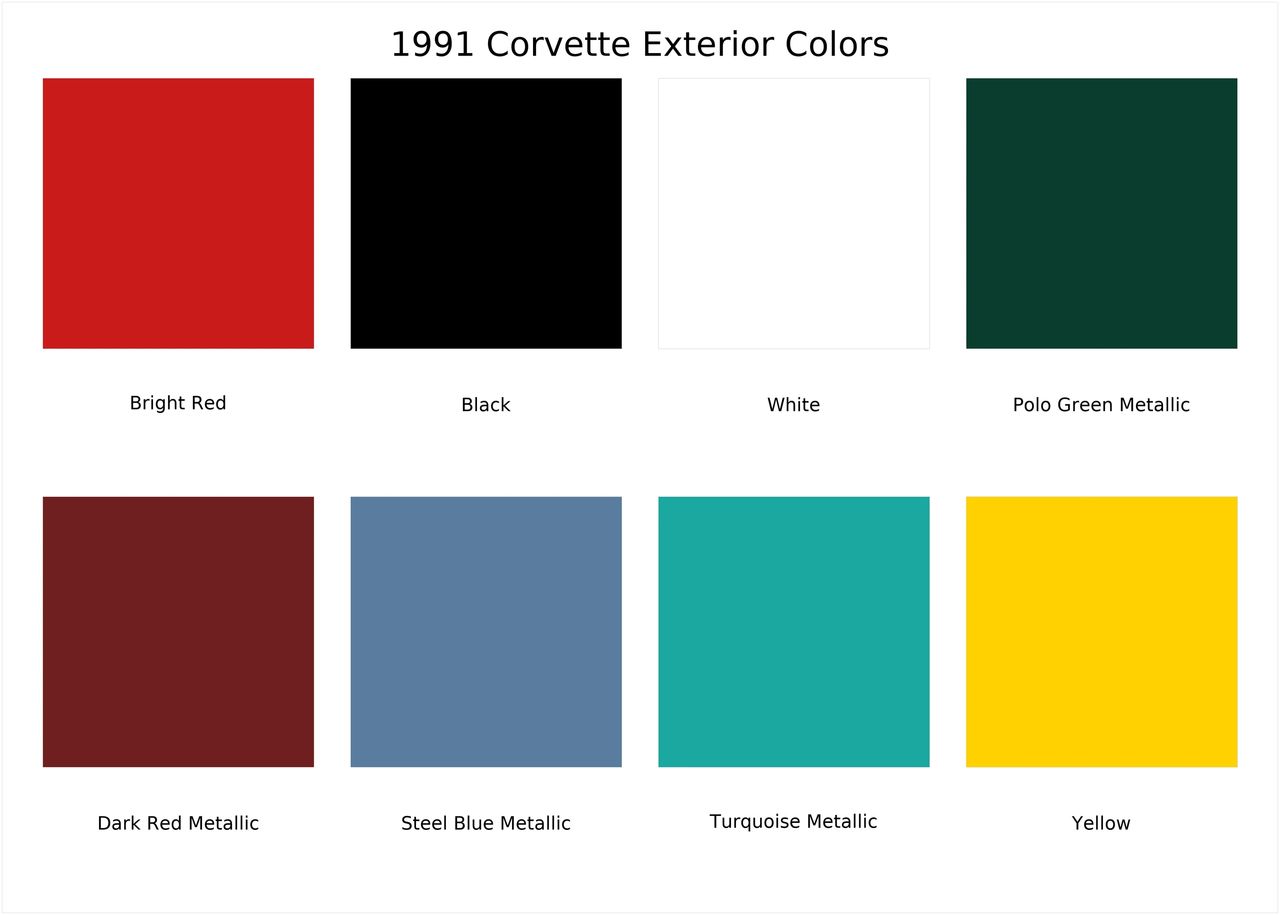

1991 Corvette Exterior Paint Colors
- 1991 total production: 20,639 (14,967 coupes; 5,672 convertibles).
- ZR-1 production: 2,044.
- VIN ranges: For base 1991 Corvettes, the last six digits run from 100001 to 118595. For 1991 ZR-1s, Chevrolet used a separate ZR-1 sequence: 5800001 to 5802044.
- Colors: Ten factory colors: White, Steel Blue Metallic, Yellow, Black, Turquoise Metallic, Dark Red Metallic, Quasar Blue Metallic, Bright Red, Polo Green Metallic, and Charcoal Metallic—with Bright Red the most popular.
- Wheels: 17×9.5-inch aluminum “sawblade” design on base cars; ZR-1’s 11-inch rears remained unique.
- RPO Z07: “Adjustable Suspension Package,” bundling heavy-duty suspension with FX3 shocks, coupe-only, and rare.
Why the ZR-1 stumbled—and what 1991 taught Corvette

The 1991 Corvette ZR-1 embodied the pinnacle of C4 performance, pairing the fresh styling updates of that year with its exotic, Lotus-designed 5.7L LT5 V8 producing 375 horsepower and a top speed over 170 mph. Nicknamed “King of the Hill,” it stood apart with wider rear bodywork, massive 315-series tires, and subtle badging that signaled its supercar status. However, its near-double price compared to a base Corvette, combined with the early ’90s recession and strong competition from abroad, meant that despite its groundbreaking engineering, the ZR-1 struggled to achieve the sales success Chevrolet envisioned.

The ZR-1’s 1991 headwind came from three directions:
1. Price vs. Perception. The ZR-1 nearly doubled the price of a base coupe. Buyers expected a car that looked as radical as it performed. The resemblance to the base Corvette dulled its impact.
2. The Viper changed the story. Dodge’s outrageous proportions, side pipes, and raw charisma stole headlines. For supercar money, many buyers wanted a car that shouted, not whispered.
3. The base Corvette got better. The 1991 refresh made the regular car feel current, competent, and a much better value. The halo’s advantage narrowed.
And yet, 1991 wasn’t doom. The ZR-1 continued to be a technological standard-bearer. The base car set up 1992’s LT1 leap. And inside GM, the fight to save the Corvette succeeded—just on a longer timeline. Chevrolet’s Jim Perkins and Joe Spielman fought to keep the program alive, and in the end, the C5 Corvette would prove them right.

The 1991 ownership experience

1991 ZR-1 Corvette (Image courtesy of GM Media LLC)

For owners, 1991 delivered a mix of familiar Corvette muscle and fresh refinement. The RAP feature for the windows and audio was one of those everyday conveniences that made the cockpit friendlier. The new mufflers deepened the L98’s voice, and the steering cooler was a thoughtful nod to track days and hot climates. Z07 cars were unapologetically stiff but tunable, proof that the Corvette could satisfy enthusiasts who demanded more. And for ZR-1 owners, the ritual of turning the valet key to “Full Power” and watching the dash light glow remained a thrill. The LT5’s pull above 5,500 rpm felt like no small-block before it—silky, insistent, and distinctly European in character.

Quick Reference: 1991 Corvette Highlights (for the spec-hungry)
- Production: 20,639 (14,967 coupes; 5,672 convertibles).
- Engines: L98 5.7L TPI—245 hp (auto) / 250 hp (6-spd). ZR-1 LT5 5.7L DOHC—375 hp.
- Transmissions: 4-spd auto with OD; ZF 6-spd manual.
- Chassis options: FX3 electronic selective ride; Z07 Adjustable Suspension Package (HD bits + FX3, coupe only).
- Styling: new front/rear fascias; ZR-1-style rectangular taillamps now on all Corvettes; ZR-1 retains wider doors/rear quarters and roof-mounted CHMSL; base cars integrate CHMSL into fascia.
- Wheels/Tires: new 17-inch “sawblade” wheels; base P275/40ZR-17; ZR-1 rears P315/35ZR-17 on 11-inch rims.
- Interior/UX: RAP windows/audio (up to 15 min), low-oil indicator, phone pre-wire; ZR-1 “Full Power” indicator relocated next to the valet key.
- Exhaust/Steering: larger mufflers (reduced backpressure, richer tone); finned power-steering cooler.
- B2K Callaway: last year as an RPO; sources cite either 62 or 71 cars—most specialist sources list 71.
- ZR-1 VIN range (1991): last six digits 5800001–5802044 (2,044 cars). Correction: the oft-repeated “803049” end number belongs to 1990.
1991 Corvette — Key Specifications

Quick Stats (Base vs. ZR-1)
- Base (Coupe/Convertible): 5.7L L98 TPI V8 — 245 hp @ 4,000 rpm • 345 lb-ft @ 3,200 rpm; 4-spd auto (TH700-R4) or ZF S6-40 6-spd manual. Bosch ABS II standard.
- ZR-1: 5.7L LT5 DOHC V8 — 375 hp @ 6,000 rpm • 370 lb-ft @ 4,800 rpm; ZF S6-40 6-spd manual only.
Performance (period ranges)
- Base: ~0–60 mph 5.7–6.5 s, ¼-mile ~14.5–14.9 s @ ~96–98 mph (equipment/axle dependent).
- ZR-1: Quicker than base in contemporary tests (same gears, higher power).
Chassis, Suspension & Brakes
- Structure: “Uniframe” with composite body panels; forged-aluminum control arms (F/R); independent 5-link rear; transverse composite monoleaf springs; gas-pressurized shocks; power rack-and-pinion steering. ABS (Bosch II) standard.
- Packages:
- Z07 Adjustable Suspension Package (new for ’91, coupe): combines heavy-duty Z51-type hardware with FX3 electronically adjustable damping.
Wheels & Tires
- Base: 17 × 9.5-in cast-aluminum wheels (left/right specific) with P275/40ZR-17 unidirectional Goodyear Eagles.
- ZR-1: 17 × 9.5-in (front) / 17 × 11-in (rear) with 275/40ZR-17 (F) and 315/35ZR-17 (R).
Dimensions & Capacities
- Wheelbase: 96.2 in • Length/Width/Height: ~178.5 / 74.0 / 46.7 in* (*overall width varies with wheel/tire; ZR-1 is wider at the rear)
- Fuel capacity: 20.0 gal
- Curb weight (examples): Base coupe ~3,2xx lb; ZR-1 ~3,465 lb.
Powertrain Details
- L98: 9.5:1 compression, Tuned Port Injection, roller lifters; premium unleaded recommended.
- LT5 (ZR-1): Aluminum block/heads, 32-valve DOHC, 11.0:1 compression, unique 16-runner intake with two injectors per cylinder.
Why 1991 matters now

It’s easy to treat 1991 as an in-between year—more than 1990’s hysteria, less than 1992’s LT1 reboot. But it’s pivotal. It’s the moment when Chevrolet learned that halo cars must look the part as much as they are the part. It’s when product planners saw that a $30–40K Corvette had to carry the flag, because not enough buyers would pay double for numbers they couldn’t see. And it’s when GM’s internal advocates realized the only real answer was a truly new Corvette—architecturally, aesthetically, dynamically. The C5 we eventually got bore the fingerprints of those 1991 lessons.

The ZR-1 was audacious: a clean-sheet DOHC V-8, a moonshot endurance record-breaker, a Corvette that could tangle with Ferraris. In 1991, it didn’t dominate the showroom. But it did lay the engineering and cultural groundwork for a Corvette that would, in time, conquer the world again.
For 1991, Chevrolet refined the fourth-generation Corvette with cleaner bodywork, improved aerodynamics, and the kind of chassis balance that defined the mature C4 era. But the headline remained the mighty ZR-1—powered by the Lotus-designed LT5—America’s technological sledgehammer, proving the Corvette could run with the world’s best.
1990 CORVETTE OVERVIEW
As the 1980s drew to a close, few nameplates carried as much symbolic weight for American performance as the Chevrolet Corvette. By the end of the decade, the C4 Corvette had matured into a respected sports car — one that had gone from being dismissed in its early years for lackluster power, to becoming a finely honed machine capable of holding its own against much of Europe’s best. Yet for 1990, anticipation rose to a fever pitch. This wasn’t simply another incremental update. Chevrolet was preparing to unleash a Corvette that would redefine expectations: the ZR-1 “King of the Hill.”

The excitement was palpable because the car had already been teased, whispered about, and delayed. Originally projected for a mid-1989 introduction, the ZR-1’s arrival was pushed to the 1990 model year. The reason was simple: Chevrolet and its partners refused to compromise. The car was subjected to further refinements in engineering and design, and only when it met its lofty performance and durability targets would GM permit it to launch. That patience would prove worthwhile.

For Corvette enthusiasts, 1990 marked the dawn of a new era — one in which Chevrolet’s halo car was no longer simply keeping pace with the competition, but setting entirely new benchmarks.

Refining the Base Corvette

A 1990 Chevrolet Corvette Convertible, finished in Dark Red Metallic (74U), sits low and sleek with its signature wedge-shaped C4 profile. The body lines are sharp and aerodynamic, flowing from the pointed nose with its pop-up headlights to the smooth, integrated rear deck. The convertible’s soft top is neatly stowed, emphasizing the clean beltline and wide stance. The car rides on 17-inch turbine-style alloy wheels wrapped in Goodyear Eagle tires, a defining look of late-’80s and early-’90s Corvettes. Inside, the cabin features the updated 1990 dashboard with its hybrid digital/analog instrumentation and newly added passenger glovebox. The overall impression is both elegant and purposeful — a car equally at home cruising with the top down or flexing its performance heritage.

While the ZR-1 captured headlines, every Corvette sold in 1990 benefited from meaningful updates. The most visible was the introduction of a driver’s side airbag, part of Chevrolet’s compliance with the federal government’s phased-in “passive restraint” crash protection regulations. For a two-seat sports car rooted in performance, safety advances weren’t always the headline, but the Corvette entered the 1990s with technology aligned to both performance and protection.

Corvette’s anti-lock braking system (ABS), first introduced in 1986, was updated with more sophisticated yaw control. The system was tuned to provide greater security under hard braking, particularly in emergency maneuvers. Combined with four-wheel independent suspension and the precise steering geometry of the C4 platform, the improvements reinforced Corvette’s reputation as a true handling car.

The 1990 Corvette’s standard powerplant was the 5.7L L98 V8, now rated at 245 horsepower thanks to a revised camshaft, higher compression ratio, and a new speed-density intake system. Smooth, torquey, and dependable, the L98 had matured into a refined small block by 1990, delivering strong performance while serving as the backbone of the Corvette lineup—even as the exotic LT5 in the new ZR-1 stole the headlines. (Image courtesy Classic Auto Mall.)

The standard L98 V8 received incremental but meaningful improvements for 1990, raising output to 245 horsepower. A revised camshaft profile, a higher compression ratio, and the adoption of a new speed-density air-intake system provided the engine with sharper throttle response and greater refinement. While inevitably overshadowed by the exotic LT5 in the ZR-1, the L98 remained a strong, dependable small block, now in its fifth year of Tuned Port Injection development and still a cornerstone of the Corvette lineup.

The cooling system also received attention. A more efficient radiator was introduced, so effective that the optional auxiliary “boost fan” (RPO B24), which had been offered from 1986 through 1989, was dropped from the option list entirely. Corvette engineers, by this point, had refined airflow through the C4’s narrow nose into a science.

The 1990 Corvette introduced a redesigned instrument cluster that blended digital and analog readouts for the first time. At the center sat a bright orange LCD display providing speed, fuel economy, and trip information, flanked by traditional analog gauges for tachometer, oil pressure, and temperature. This hybrid layout offered the futuristic feel of the C4’s earlier all-digital dash while restoring the tactile clarity many enthusiasts had missed, making it both more functional and more in tune with Corvette’s performance image.

Inside, the 1990 Corvette cabin reflected both ergonomic lessons learned and the march of consumer technology. The instrument cluster, a long-standing point of debate since the introduction of “all-digital” graphics in 1984, was redesigned. Drivers were now greeted with a hybrid display: a digital speedometer paired with analog auxiliary gauges — tachometer, fuel, oil pressure, voltmeter — providing the tactile familiarity enthusiasts had demanded. The arrangement struck a balance between modernity and usability, quieting critics who had long argued the Corvette’s “video game” dash was too gimmicky.

Equally practical was the addition of a passenger-side glove box, something so basic that it had become an odd omission throughout the 1980s. A new engine oil life monitor system was incorporated into the driver information center, calculating oil degradation and reminding owners of service intervals — a forward-thinking touch at the time.

Beyond the new hybrid instrument cluster, the 1990 Corvette interior featured several thoughtful updates that improved both comfort and usability. A long-awaited passenger-side glove box was added, restoring practicality that had been missing since the C4’s debut. Optional leather seating became available across the entire lineup, enhancing the sense of luxury, while the driver information center introduced an engine oil life monitor to track maintenance needs. Together, these changes made the Corvette’s cockpit more refined, user-friendly, and aligned with the expectations of a premium sports car buyer entering a new decade.

On the entertainment front, Corvette embraced the digital age. While cassettes still dominated the aftermarket, the factory introduced an optional Delco-Bose CD player. To deter theft, the unit carried a lockout system requiring a reactivation code if removed. This “anti-theft coding” was decades ahead of the ubiquitous infotainment locks found today.

Even the seating saw refinement: leather upholstery became available across all Corvette models, rather than being restricted to higher trims. It was part of Chevrolet’s recognition that even base Corvette buyers expected a premium experience.

The Need for Something Greater

Despite these thoughtful improvements, the Corvette team knew the car needed more than incremental gains. Since the C4’s debut in 1984, performance purists had lamented the lack of an engine equal to the chassis. The L83 Cross-Fire Injection engine of the first C4s had been underwhelming. Even after Tuned Port Injection brought torque and smoother power delivery in 1985, Corvette enthusiasts couldn’t ignore that European competitors — Ferrari, Porsche, and Jaguar — offered exotic multi-valve, overhead-cam engines that revved higher and produced more horsepower.

Dave McLellan (right), Zora Arkus-Duntov (left), and David Hill (far left) each served as Corvette’s Chief Engineer. As it pertains to the 1990 Corveite, the Corvette Indy (the vehicle pictured here), was one of the very first vehicles to be powered by the LT5 engine developed by Lotus for the C4 ZR-1 Corvette. (Image courtesy of GM Media LLC.)

Corvette Engineering Chief Dave McLellan, who had succeeded Zora Arkus-Duntov in 1975, recognized the dilemma. So did Lloyd Reuss, the GM executive who would become the fiercest champion of Corvette’s halo project. Reuss, a powertrain engineer by background, was convinced that without a true world-beating Corvette, GM risked ceding the performance market to rising Japanese imports and entrenched European marques.

It was Reuss who coined the phrase “halo vehicle” (a flagship model that elevates a brand’s image and appeal) to describe what the Corvette must become. And it was he who shielded the project during the turbulent corporate environment of mid-1980s GM, when programs were often cut for cost savings.

Planting the Seeds of the ZR-1

This rare 1988 “King of the Hill” prototype—an early testbed for the upcoming ZR-1—helped pave the way for the 1990 production model’s revolutionary LT5 engine and world-class performance. With unique bodywork, experimental wheels, and its “Prototype” windshield banner, it remains one of the most important stepping stones in Corvette’s fourth generation.

The earliest attempts to elevate Corvette performance within GM’s corporate ecosystem came through Powertrain Engineering Director Russ Gee and Roy Midgley, Chief Engineer of V-type Engines. Their team sketched out dozens of possibilities — everything from turbocharged V6s to radical small-block variants. Some experimental engines were made into running prototypes. A twin-turbo V8 was among the most promising, showing eye-watering output figures, but emissions and fuel economy realities doomed it. A turbo V6 was dismissed as culturally unacceptable: “No Corvette buyer,” as McLellan remarked, “would accept six cylinders, no matter the power.”

In fact, the turbocharged experiments indirectly paved the way for the CallawayTwin-Turbo Corvette, which GM endorsed as an official option in 1987 after reviewing internal prototype data. But as clever as the Callaway was, it remained a tuner’s car, not a factory supercar.

The 1988 Callaway Twin Turbo Corvette (seen here), offered through select Chevrolet dealers under RPO B2K, represented a parallel path to high performance alongside the factory ZR-1 program. While the ZR-1 relied on the exotic Lotus-designed LT5 V8, the Callaway delivered blistering speed with its twin-turbocharged L98, showcasing the multiple avenues GM explored to elevate the C4 into world-class territory.

What Corvette needed was a purpose-built, clean-sheet engine — one that could be docile in traffic but ferocious at full throttle. The solution was captured in a single word that engineers began using: “bi-modal.” The future Corvette powerplant had to behave like two engines in one: quiet, tractable, reliable for everyday use, yet able to summon exotic-car performance on demand.

Enter Group Lotusof Hethel, England. By 1985, GM was negotiating to purchase the famed British engineering firm, known worldwide for Formula 1 success and for extracting remarkable performance from small, high-revving engines. McLellan’s team opened talks with Tony Rudd, Lotus’sManaging Director, about adapting Lotus’s multi-valve head technology to the venerable Chevrolet small block. Early trials revealed that the existing L98 couldn’t be stretched that far. Rudd’s advice was blunt: if Chevrolet wanted Ferrari-level performance, it needed a completely new engine.

The corporate stars aligned. Backed by Reuss and then-Chairman Roger Smith, GM acquired Lotus in 1986, and with that acquisition came official sanction to build what would become the LT5 engine. For the Corvette faithful, it was the beginning of something truly extraordinary.

The Birth of the LT5

The heart of the ZR-1 was the 5.7-liter LT5 V8, an all-aluminum, 32-valve, dual overhead cam masterpiece co-developed with Lotus and hand-assembled by Mercury Marine. Producing 375 horsepower at its debut, the LT5 transformed the Corvette into a legitimate supercar, earning the ZR-1 the title “King of the Hill” and proving that Chevrolet could build a world-class performance engine to rival the best from Europe and Japan.

Once General Motors gave Lotus the green light, the engineering brief was unlike anything ever placed before a Corvette development team. The new engine had to meet seemingly contradictory goals:
- World-class power — at least 50% greater than the L98.
- Drivability — smooth idle, docile in traffic.
- Durability — capable of extended high-rpm use without compromising longevity.
- Efficiency — fuel economy on par with the base Corvette, while meeting emissions standards.
- Integration — it had to fit the existing C4 chassis without major structural changes.
- Appearance — it needed to look as refined underhood as it was powerful.
The result was the LT5, a 5.7-liter (350 cu. in.) all-aluminum V8 with 32 valves and dual overhead cams. On paper, its displacement matched the old L98, but in reality, it was an entirely different animal. From block to cylinder heads, from pistons to lubrication, this was a clean-sheet design born in Hethel and refined in America.

This stunning cutaway illustration by automotive artist David Kimble captures the intricate engineering of the Corvette’s LT5 engine, highlighting its dual overhead cams, 32-valve layout, and advanced aluminum construction. Kimble’s rendering not only showcases the LT5’s technical sophistication but also immortalizes the artistry and innovation that made the ZR-1 a groundbreaking supercar of its era.

Lotus engineers started with a narrow 22-degree valve angle — chosen specifically so the engine would fit between the Corvette’s front frame rails. Its compact 26.6-inch width meant Chevrolet could drop it into the C4’s engine bay without reengineering the uniframe. Yet the internals bore little resemblance to a pushrod small block.

The block used Nikasil-coated aluminum liners paired with forged steel crank and rods. Pistons were lightweight aluminum Mahle slugs, dished slightly to yield a high 11.25:1 compression ratio. A heavily ribbed block and a one-piece aluminum bearing cradle secured the crank with 28 bolts, giving the LT5 race engine rigidity.

But the real marvel was the induction system. Engineers devised a staged three-mode intake that allowed the LT5 to breathe like two different engines.
1. Primary mode — below ~3,500 rpm, only eight of the sixteen intake runners flowed, delivering smooth, efficient operation.
2. Secondary mode — when the ECM judged more power was needed, vacuum actuators opened the additional eight runners, unleashing the full fury of 375 horsepower.
3. Valet mode — unique to the LT5, the secondary runners could be disabled entirely by a key in the center console, locking the car into “half-power” mode. It was equal parts practical (for handing the keys to a hotel valet) and theatrical, underscoring just how exotic this Corvette had become.
At full tilt, the LT5 sang to 7,200 rpm, far beyond the safe range of the L98, with a distinctive mechanical shriek that was closer to Modena than Michigan. Yet at idle, it was glassy smooth, aided by Rochester Multec injectors and Bosch engine management. Road testers noted that the LT5 felt docile in traffic, but ferocious on demand — precisely what Reuss and McLellan had envisioned with their “bi-modal” brief.

Mercury Marine: Building an American Exotic

This promotional shot pairs the revolutionary Corvette ZR-1 with a high-performance MerCruiser Marine Vette speedboat, both powered by versions of the legendary LT5 engine. The collaboration highlighted the versatility and engineering prowess of Chevrolet and Mercury Marine, proving that the ZR-1’s all-aluminum 32-valve V8 could deliver world-class performance on land and water alike.

As Lotus finalized the design, Chevrolet faced a sobering reality: GM’s own engine plants weren’t equipped to hand-build a low-volume exotic engine to aerospace-like tolerances. Corvette’s annual sales hovered in the 20–25,000 unit range, but projected ZR-1 volumes were only a fraction of that — just a few thousand per year. This wasn’t the scale Flint or Tonawanda were designed for.

The solution was unconventional: Mercury Marine of Stillwater, Oklahoma. Known primarily for their high-performance “MerCruiser” marine engines, Mercury had both the expertise in aluminum machining and the small-volume assembly capability to deliver LT5s to spec.

Each engine was built by a dedicated team of technicians, assembled almost like a race engine rather than a production motor. Once completed, LT5s were shipped by flatbed to Bowling Green, where they were installed into ZR-1 chassis on the same line as standard Corvettes.

The partnership between Chevrolet and Mercury Marine was instrumental in bringing the ZR-1’s revolutionary LT5 engine to life, with Mercury’s expertise in high-performance marine engines ensuring each hand-built unit met world-class standards. Today, the legacy of that collaboration is preserved at the Mercury Marine Museum in Fond du Lac, Wisconsin, where visitors can see the LT5 on display—a testament to the precision craftsmanship and engineering partnership that made the Corvette ZR-1 a true “King of the Hill.”

Perhaps most fascinating was Mercury’s ongoing role in service and warranty support. For the first several years (1990–1993), major LT5 repairs could not be performed at dealerships. Instead, Chevrolet dealers were required to remove the engine and ship it back to Stillwater. Owners would then either receive a repaired original or, in some cases, an entirely new engine. This unusual arrangement underscored just how exotic the LT5 was compared to a pushrod small block. Only later, after 1993, did Chevrolet take full responsibility for LT5 servicing.

For Mercury, the LT5 was a point of pride. Their own marine division explored adapting it for boat use, though those applications never went into large-scale production. The LT5 remains one of the most extraordinary examples of cross-industry collaboration in GM’s history.

Transmission: The ZF Six-Speed

The Corvette ZR-1’s special German-made ZF six-speed manual transmission, tuned with a taller 3.33:1 final drive, was critical in channeling the LT5’s power into supercar velocities. Its robust design and precise gearing, sometimes subtly varied between units, ensured that each ZR-1 could fulfill Chevrolet’s vision of world-class performance.

An engine as revolutionary as the LT5 demanded an equally advanced transmission. The solution came from ZF Friedrichshafen, the German gearbox specialist with a reputation for bulletproof engineering. Chevrolet had already struggled with the quirky Doug Nash 4+3 overdrive manual through the mid-1980s. The ZR-1 would suffer no such compromise.

The new ZF S6-40 six-speed manual was not only smoother and stronger, but also cleverly geared. Ratios were chosen to exploit the LT5’s broad power band, with a tall sixth gear enabling highway fuel economy that spared the ZR-1 from the dreaded gas-guzzler tax.

But there was a catch: Computer-Aided Gear Selection (CAGS). To meet fuel economy regulations, Chevrolet implemented a skip-shift system that forced drivers, under light throttle between 15–19 mph, to shift from first gear directly into fourth. While effective in testing cycles, it irritated many owners, who felt robbed of control. Aftermarket kits to disable CAGS quickly became popular.

Critics aside, the ZF six-speed was a revelation compared to the 4+3. Shifts were positive, the gearbox was durable, and the ratios kept the LT5 on boil when pushed hard. Combined with a reinforced differential and heavy-duty half shafts, the ZR-1 driveline was engineered to withstand sustained abuse at 7,000 rpm — something no prior Corvette transmission could reliably claim.

A Wolf in Subtle Clothing

In this photo, the 1990 Corvette ZR-1 (red) sits alongside a standard Corvette coupe (silver), highlighting the surprisingly subtle differences between the two. The ZR-1 can be distinguished by its wider rear haunches to accommodate massive 315-series tires, a unique rear fascia with squared-off taillights, and subtle badging, but otherwise it looked nearly identical to the base model. Many enthusiasts expecting a radical visual departure were initially underwhelmed, yet this understated approach was intentional—Chevrolet wanted the ZR-1’s supercar credentials to be proven on the road and track, not merely in its appearance.

When the ZR-1 finally emerged from years of rumor and speculation, its styling surprised many enthusiasts. Rather than create a radical new body, Chevrolet opted for a design philosophy of evolution over revolution. Corvette Chief Engineer Dave McLellan often remarked that the car’s engineering spoke for itself, and he resisted anything that would compromise the C4’s already aerodynamic form.

Still, differentiation was essential. The ZR-1’s most defining cues were in the rear: the body widened three inches to accommodate massive 315/35ZR17 Goodyear Eagle Gatorback tires. These 11-inch-wide rears gave the car an aggressive stance, though the flare was subtle enough to escape casual notice. Corvette enthusiasts quickly learned to check the haunches — the ZR-1’s broader hips became an insider’s telltale.

Even more distinctive was the new convex rear fascia with squared taillights. Base models retained the familiar concave panel and round lamps, but the ZR-1 debuted this bold new look. Function matched form: Chevrolet engineers claimed the convex shape improved aerodynamics at high speeds. The squared taillamps broke tradition but hinted at Corvette’s evolution into a more modern design language. By 1991, the convex rear and square lights became standard on all Corvettes, but in 1990, it remained a ZR-1 exclusive.

A discreet “ZR-1” badge graced the rear bumper, and a high-mount center brake lamp sat at the roofline — a feature mandated by federal safety law but integrated in a way unique to the ZR-1 until 1991. Beyond those details, the car looked deceptively ordinary. To the uninitiated, a ZR-1 parked beside an L98 coupe might appear identical. Owners often joked it was a $60,000 Corvette hiding in plain sight.

This restraint divided opinion. Purists loved the understatement: here was an American exotic that didn’t need wild spoilers or bulges. Others, however, argued that at twice the price of a base Corvette, the ZR-1 deserved flashier styling. It was a debate that mirrored Corvette’s own identity struggle: was it a brash American muscle machine, or a refined international sports car?

Supercar Numbers, Corvette Price

When the Corvette ZR-1 debuted in 1990, critics worldwide hailed it as a watershed moment in American performance. Magazines like Road & Track put the ZR-1 head-to-head against Europe’s finest, as seen in this June 1989 cover story that boldly declared it was “challenging the world’s supercars.” With its exotic Lotus-designed LT5 engine, world-class handling, and blistering performance numbers, the ZR-1 silenced skeptics and proved that Corvette could not only compete with—but in many cases outperform—the likes of Ferrari and Lamborghini. (Image courtesy of Road and Track Magazine)

If the exterior sparked debate, the performance silenced it. When magazines tested the ZR-1 in early 1990, jaws dropped:
- 0–60 mph in as little as 4.5 seconds.
- Quarter mile in 12.8 seconds at over 110 mph.
- Top speed in the 175 mph range.
These figures placed the ZR-1 squarely in the realm of Ferrari’s 348 and Porsche’s 911 Turbo. Car and Driver declared it “the Corvette that finally delivers on the promise of the C4 chassis.” Motor Trend, in a famous headline, dubbed it “King of the Hill,” and it became the nickname that stuck.

When Car and Driver splashed the 1990 Corvette ZR-1 across its June 1989 cover with the headline “The Corvette from Hell,” it wasn’t just for shock value—it was a reflection of the car’s dual nature. On one hand, the ZR-1 was refined enough to serve as a daily driver, with all the comfort and usability Corvette owners expected. But beneath that civility lurked something far more sinister: a 375-horsepower, Lotus-engineered LT5 V8 paired with a rock-solid ZF six-speed transmission that turned the ZR-1 into a track monster capable of terrifying supercars from Europe. Car and Driver and other magazines of the era hailed it as a groundbreaking performance machine, one that was “so good, it’s scary.” The ZR-1 proved that Chevrolet could build a Corvette that was as livable as it was lethal—a sports car that truly earned its reputation as both a commuter’s dream and a hell-raiser on the open road. (Image source: Car and Driver Magazine)

But raw numbers only told part of the story. Reviewers consistently praised the LT5’s dual personality. Around town, with the secondary intake runners closed, the ZR-1 was docile and quiet, pulling smoothly from idle. On the highway or track, when the vacuum actuators opened the secondaries, the car transformed into a snarling exotic, rushing to 7,200 rpm with a ferocity no pushrod small block could match. Road & Track wrote that the ZR-1 seemed to have “two engines under one hood, both eager and both Corvette.”

Handling matched the power. With its wider rear track and Goodyear’s specially developed tires, the ZR-1 generated nearly 0.94 g on the skidpad — a world-class figure for the time. Brakes, borrowed from the 1988 Z51 package and upgraded further, hauled the car down from 60 mph in just over 120 feet. Reviewers noted that the ZR-1 felt unflappable at triple-digit speeds, thanks to its planted stance and carefully tuned suspension.

The Price of Greatness

This GM promo shot of the 1990 Corvette ZR-1 highlights what set it apart: widened rear fenders, unique convex taillights, and exclusive wheels. Beneath the sleek bodywork lurked the 375-hp LT5 V8, a hand-built Mercury Marine masterpiece that elevated the Corvette into true world-class supercar territory. (Image courtesy of GM Media LLC.)

At $58,995, the ZR-1’s price shocked some longtime Corvette buyers. It was, after all, nearly double the base coupe. For the first time in history, a Corvette could not be considered “affordable” by average enthusiast standards. But when compared to its rivals — Ferrari 348 at $120,000, Porsche 911 Turbo at $105,000 — the ZR-1 was still a supercar bargain.

Dealers, sensing demand, often pushed the car into speculative territory. Reports spread quickly of dealerships marking up early ZR-1s by $20,000, $30,000, even $40,000. Anecdotes circulated of buyers paying close to $100,000 for one of the first allocations. Some enthusiasts grumbled, but Chevrolet hardly minded: the ZR-1 was a halo car, and the frenzy only elevated Corvette’s global reputation.

Still, critics had their points. Three themes emerged in contemporary press reviews:
1. Sticker Shock — Enthusiasts accustomed to Corvette’s bang-for-buck value struggled to reconcile the ZR-1’s cost.
2. Skip-Shift Frustration — The federally mandated CAGS (1st-to-4th skip-shift) irritated drivers, even if it spared the car from the gas-guzzler tax.
3. Styling Restraint — Reviewers wondered if a car this exotic deserved a more distinctive body.
Yet, even with those quibbles, the consensus was clear: Chevrolet had delivered a Corvette that could compete toe-to-toe with Europe’s best.

The Texas Records

In March 1990, Chevrolet proved the Corvette ZR-1 was more than hype with a record-shattering endurance run at Fort Stockton, Texas. Two specially prepared ZR-1s averaged 175.885 mph for 24 hours straight, setting new FIA World Speed and Endurance records and demonstrating the LT5 engine’s world-class durability. Behind the wheel was an all-star roster of drivers: Tommy Morrison, John Heinricy, Stu Hayner, Jim Minneker, Scott Lagasse, Don Knowles, and Kim Baker. Their combined effort showed that the ZR-1 wasn’t just fast—it was a car that could run flat-out for an entire day, a feat few exotics of the era could match. This photo immortalizes the cars, the crew, and the drivers who helped etch the ZR-1 into the record books.

If magazine tests impressed, the ZR-1’s March 1990 endurance run in Texas cemented its legend. On Firestone’s 7.7-mile high-banked oval in Fort Stockton, a stock-spec ZR-1 (with safety modifications but no performance alterations) attempted to prove what no Corvette had ever proven before: that it could dominate not just in sprints, but in endurance.

Over 24 continuous hours, a team of drivers rotated stints at racing speeds. Fuel, tire, and driver changes were the only interruptions. When the checkered flag fell, the ZR-1 had shattered 12 FIA world records.

Most staggering was the 24-hour average speed: 175.885 mph. This wasn’t a one-lap wonder — it was a day-long demonstration of reliability and stamina. Among the 12 records, three were “absolute” world marks, regardless of classification, making the ZR-1 the first production car in 50 years to claim outright FIA honors.

The record-breaking 1990 Corvette ZR-1 “Record Run” car, which averaged 175.885 mph for 24 hours straight at Fort Stockton, Texas, can now be seen at the National Corvette Museum. This legendary LT5-powered machine invites visitors to experience a defining moment in Corvette history—an endurance feat that proved America’s sports car could run with the world’s best. (Image property of the author)

The achievement resonated worldwide. European manufacturers had long touted endurance as their domain. Now an American Corvette, built in Bowling Green and powered by an engine assembled in Stillwater, Oklahoma, had proven itself on the global stage. The records would stand until 2001, when Volkswagen’s 600-hp W-12 prototype finally eclipsed them. That it took a purpose-built concept car to dethrone the ZR-1 spoke volumes.

Instant Icon

The 1990 Corvette ZR-1 introduced the exotic, Lotus-engineered 5.7L LT5 V8, producing 375 horsepower and delivering 0–60 times in the 4-second range with a top speed near 180 mph. Unique styling cues—wider rear bodywork, convex taillights, and 17-inch wheels—distinguished it from the standard Corvette. In its debut year, just 3,049 examples were built, making the 1990 ZR-1 both a technological showcase and one of the rarest Corvettes of its era.

Before 1990, the Corvette had stood at the crossroads of performance history. For much of the 1980s, aftermarket tuners had filled a void that Chevrolet itself could not yet address. Callaway Cars, most famously, had produced the Twin-Turbo Corvette — a factory-sanctioned but independently engineered package that turned the Corvette into a legitimate 180-mph machine. The highlight was the legendary Callaway Sledgehammer, a one-off experimental car that reached an almost mythical 254.76 mph on Ohio’s Transportation Research Center oval in 1988. That feat, though never replicated in production, gave Corvette a kind of halo by association.

But in 1990, the landscape shifted dramatically. For the first time since the days of Zora Arkus-Duntov’s 1960s racing specials, Chevrolet itself had produced a Corvette that no tuner could match: the ZR-1. With its Lotus-designed LT5 engine, Mercury Marine assembly, and FIA world records, it was the factory — not Callaway or Lingenfelter or Greenwood — setting the standard. Callaway’s own production reflected the change: only 58 Twin-Turbos were sold in 1990, compared to 3,049 ZR-1s.

In the press, the verdict was near unanimous: the ZR-1 was not only the fastest, most capable Corvette ever built, but also a watershed moment in American automotive history. For decades, Corvette had been an underdog — respected at home, doubted abroad. In 1990, that narrative flipped. Ferrari and Porsche were no longer untouchable. Corvette had joined their ranks, and in some respects, surpassed them.

The message was unmistakable: the Corvette no longer needed validation from outside firms. It had become its own exotic.

Racing Aspirations: SCCA World Challenge

The 1990 SCCA Escort World Challenge brought production-based racing into the spotlight, and Tommy Morrison’s Mobil 1–sponsored Corvette was one of its standouts. Driven by Morrison and his team, the C4 competed in the inaugural season of the series, showcasing the balance of speed, handling, and durability that made the Corvette a natural contender. Wearing its now-iconic white, blue, and red livery, the #99 car represents an important chapter in Corvette’s racing legacy, where showroom-stock machines were pushed to their limits against the world’s best.

While Chevrolet had officially withdrawn from factory-backed racing programs in the wake of the AMA’s late-1950s racing ban, the spirit of competition never disappeared from Corvette engineering. By 1990, with the ZR-1 redefining Corvette’s technological ceiling, Chevrolet supported grassroots racing through production-based efforts.

The newly created SCCA World Challenge series (launched in 1990) became a proving ground. Chevrolet offered 23 specially prepared Corvettes with heavy-duty suspension systems that could be ordered directly through dealerships. Though technically available to any customer, these cars were aimed at privateer racers eager to test Corvette against emerging imports in showroom-stock competition.

Unlike the FIA endurance records in Texas — a corporate-backed showcase designed to prove the LT5’s durability — the SCCA Corvettes reflected Chevrolet’s confidence that the platform, even in near-stock form, could compete wheel-to-wheel in sanctioned racing. Buyers could either run the robust L98 small block or provide their own modified powerplants. Chevrolet’s willingness to make such cars available through normal dealer channels spoke volumes: Corvette was once again a legitimate racing foundation, not just a high-speed street car.

Production Realities

For all the ZR-1’s fanfare, overall Corvette production declined in 1990, reflecting broader market conditions. Chevrolet built 23,646 Corvettes total, broken down as follows:
- 20,597 standard coupes/convertibles (VINs 100001–120597).
- 3,049 ZR-1 coupes (VINs 800001–803049).
The drop from 1989’s 26,412 cars wasn’t catastrophic, but it reflected an important reality: the Corvette was no longer a volume car. By the dawn of the 1990s, buyers who had once been lured by the glamour of America’s only sports car now had a wealth of alternatives, from Japan’s rising stars (the Acura NSX, Mazda RX-7 Turbo, Nissan 300ZX Twin Turbo) to Europe’s stalwarts.

Yet Chevrolet was content with the lower totals. Corvette wasn’t meant to be everyman’s car in 1990; it was meant to be America’s technological flag-bearer. The ZR-1, even at limited production, served its halo purpose brilliantly.

Price and Value

At $31,979 for a base coupe and $37,264 for a convertible, the Corvette remained accessible to many enthusiasts. But the ZR-1, with its $27,016 option package, carried a sticker of $58,995.

The number shocked some. Corvette had always been a relatively affordable sports car — exotic looks and performance at a fraction of the price of European competitors. But now, Chevrolet had crossed a psychological threshold. For the first time in history, a Corvette cost as much as a luxury home in many parts of America.

Still, compared to its peers, the ZR-1 was a bargain. A Ferrari 348 of the era listed at $120,000; a Porsche 911 Turbo approached $105,000. Road & Track called the ZR-1 “the supercar bargain of the decade,” noting that no other car offered such speed, refinement, and endurance at anywhere near the price.

In the showroom, however, supply and demand distorted the equation. Dealers routinely added $20,000–$40,000 markups. Anecdotal reports tell of buyers paying close to $100,000 for early cars, just for the privilege of being first. The Corvette, once criticized for “cheapness,” was suddenly the subject of exotic-level speculation.

Colors and Character

1990 Corvette Exterior Paint Colors

Ten paint options defined the 1990 palette:
- White
- Steel Blue Metallic
- Black
- Turquoise Metallic
- Competition Yellow
- Dark Red Metallic
- Quasar Blue Metallic
- Bright Red
- Polo Green Metallic
- Charcoal Metallic
Bright Red dominated production (29.4%), followed by Black (20.1%) and White (20.6%). These bold, primary hues reflected the Corvette’s extroverted image — loud, proud, and unapologetically American. Meanwhile, colors like Competition Yellow and Quasar Blue brought energy to the range, and Polo Green tied the model back to Corvette’s long tradition of offering a rich, British Racing-inspired shade.

Inside, Corvette finally embraced practicality and modern expectations: leather seating became available across all trims, the glovebox returned, and the hybrid analog-digital dashboard offered drivers the best of both worlds. Small touches, but together they made the Corvette cabin feel contemporary.

VINs and Collectability

One of the rarer colors on a 1990 Corvette was Turquoise Metallic, with only 589 units produced. Other rare colors for that year include Quasar Blue and Competition Yellow, each with very low production numbers. (Image courtesy of BringATrailer.com)

For historians and collectors, the VIN structure of 1990 tells an important story. Standard Corvettes ran sequentially from 100001 to 120597. ZR-1s, however, occupied their own unique sequence: 800001–803049. That separation effectively created a “model within a model,” underscoring Chevrolet’s intention that the ZR-1 stand apart.

Today, collectors scrutinize these VINs carefully, especially since counterfeit ZR-1s have been attempted. The wide-body rear haunches and convex fascia can be retrofitted, but the VIN remains the definitive marker of authenticity.

Legacy: A Watershed Year

Looking back, 1990 was not simply a model year — it was a declaration.

For the standard Corvette, incremental gains kept the car sharp: airbags, ABS refinement, improved cooling, revised instrumentation, and creature comforts. But the ZR-1 was the thunderclap. It told the world that Chevrolet, and by extension America, could build a supercar that rivaled anything from Modena, Stuttgart, or Maranello.

The LT5 was an engineering statement, the ZF six-speed a driver’s dream, and the Texas endurance records a mic-drop moment in performance history. Critics could complain about price, styling subtlety, or skip-shift irritations, but none of that dulled the achievement.

The ZR-1 also shifted Corvette’s cultural image. Through much of the 1970s and early 1980s, Corvette had been viewed as a flashy cruiser, more boulevard toy than serious sports car. In 1990, that perception evaporated. The Corvette was now measured against Ferrari and Porsche in earnest, not as an underdog, but as a peer.

Production numbers would fall in subsequent years, and the ZR-1’s exclusivity ensured it was never a mass-market car. But that was the point. The ZR-1 existed to elevate the Corvette nameplate, and in that, it succeeded spectacularly.

For collectors today, the 1990 ZR-1 is revered not just as the first year of a special option, but as the moment Corvette entered the modern performance conversation. Its VIN range, world records, and Lotus/Mercury Marine pedigree make it one of the most historically significant Corvettes ever built.

Final Word on 1990

Want a sense of how serious the first ZR-1 was? On March 1, 1990, at Fort Stockton, Texas, a 1990 ZR-1 went out and set three world records—all in one shot. It averaged 175.710 mph (282.778 km/h) over 5,000 km (3,100 mi), held 173.791 mph (279.690 km/h) for 5,000 miles (8,000 km), and then nailed a 24-hour endurance mark of 175.885 mph (283.059 km/h), covering 4,221.256 miles (6,793.453 km). In other words: a showroom-based Corvette lapped at airliner speeds for an entire day—and asked for more.

The 1990 Corvette was the start of something new — a car that looked back to its heritage while leaping into the future. The base model offered evolutionary improvements, but the ZR-1 was revolutionary. It wasn’t just a Corvette with more horsepower; it was a Corvette that redefined what America could build.

In March of that year, on a high-speed oval in Texas, a group of engineers, test drivers, and mechanics watched as their car circled endlessly, shattering records once thought untouchable. As the sun rose the next day, and the ZR-1 crossed the 24-hour mark at nearly 176 mph average speed, it wasn’t just a Corvette triumph. It was a statement: the King of the Hill had arrived, and it wore crossed flags.

1990 Corvette — Key Specifications (Base vs. ZR-1)

Engines & Transmissions
- Base (Coupe/Convertible): L98 5.7L TPI V8 — 245 hp @ 4,400 rpm, 345 lb-ft @ 3,200 rpm. Transmissions: 4-spd automatic (TH700-R4) or ZF S6-40 6-spd manual (no-cost).
- ZR-1: LT5 5.7L DOHC V8 — 375 hp @ 6,000 rpm, 370 lb-ft @ 4,800 rpm; ZF S6-40 6-spd manual only.
Performance (period ranges)
- Base: ~5.7–6.5 s 0–60 mph • ~14.5–14.9 s @ ~96–98 mph ¼-mile • ~150 mph top speed (equipment/axle dependent).
- ZR-1: Quicker in most tests; substantially higher top speed vs. L98 per factory literature and period tests.
Chassis, Suspension & Brakes
- Base: Uniframe with composite body; forged-aluminum control arms (F/R); independent 5-link rear; transverse composite monoleaf springs; gas-pressurized shocks; power rack-and-pinion steering; Bosch ABS II standard. Options: Z51 Performance Handling (HD springs/bars/cooling, performance axle) and FX3 Selective Ride Control (requires Z51 + 6-spd on coupe).
- ZR-1: Same core structure with unique rear body widening to cover 11-in rear wheels; ABS and ZF 6-spd standard; FX3 commonly paired.
Wheels & Tires
- Base: 17 × 9.5-in alloy wheels (L/R specific) with P275/40ZR-17 unidirectional Goodyear Eagles.
- ZR-1: Front 17 × 9.5-in / 275/40ZR-17, Rear 17 × 11-in / 315/35ZR-17; necessitated the wider rear bodywork/doors/rockers.
Dimensions & Weights
- Base (typical): Wheelbase 96.2 in • L/W/H ~176.5 / 71.0 / 46.7 in • Turning circle ~40.4 ft • Curb weight ~3,223–3,336 lb (auto vs. 6-spd; body style).
- ZR-1: Curb weight ~3,465–3,479 lb (coupe). Cargo volume smaller due to wider rear structure.
Powertrain Details & Axles
- Base: L98 9.5:1 compression; TPI; Electronic Spark Control. Common axle ratios: 2.59 (auto), 3.33 (manual; 3.07 used with certain packages).
- ZR-1: LT5 aluminum block/heads, 32-valve DOHC, 11.0:1 compression; factory axle 3.45:1 final drive.
Safety & Interior (all 1990)
- Driver airbag (SIR) added; redesigned wraparound dash with hybrid analog/digital cluster; low tire-pressure warning system.
Paint & Trim (factory brochure palette)
- Launch colors (brochure): Black, Steel Blue Metallic, Charcoal Metallic, Polo Green Metallic, White, Bright Red, Dark Red Metallic (availability by trim as listed).
- ZR-1 brochure confirms same palette for ZR-1 with model-specific interior/exterior listings.
Why the 1990 Corvette Still Matters Today

The 1990 Corvette matters because it represents the moment the C4 platform fully came into its own. With the arrival of the ZR-1 and its Lotus-engineered LT5, Chevrolet proved that America’s sports car could compete on a global stage—not just in straight-line acceleration, but in engineering sophistication and top-speed credibility. That halo effect reshaped public perception of the entire Corvette lineup and laid the groundwork for the high-performance variants that would follow in later generations.

But the significance runs deeper than the “King of the Hill.” The 1990 model year reflected a C4 that had matured—chassis tuning refined, electronics modernized, and driver confidence sharpened. Today, the 1990 Corvette stands as a bridge between the experimental boldness of the early C4 Corvette years and the polished dominance Corvette would achieve in the 1990s and beyond. It’s a reminder that evolution, when done methodically, can redefine an icon without abandoning its roots.
The 1990 Corvette marked a turning point for the C4—refined, confident, and finally ready to swing at the world’s best. It’s best remembered for the ZR-1’s debut and its exotic, all-aluminum LT5 V8 developed with Lotus, but the standard L98 cars also benefited from steady platform improvements that made the whole lineup feel more mature…
1989 CORVETTE OVERVIEW
By 1989, the fourth-generation Corvette (C4) had firmly matured from the promising but flawed debut of 1984 into a legitimate world-class sports car. What began as a futuristic yet imperfect package had, over six model years, been refined into a machine that combined state-of-the-art technology with increasingly serious performance. While the 1989 model year would not introduce wholesale styling changes, it represented one of the most pivotal years in Corvette history—a year of transition where yesterday’s Corvette met tomorrow’s supercar.

The 1989 Corvette model year marked the end of one chapter and the beginning of another. It introduced major technological upgrades that made the Corvette more livable and competitive while also previewing the arrival of the legendary ZR-1 “King of the Hill.” Though Chevrolet would ultimately hold back full production of that car until 1990, the ’89 model year gave enthusiasts their first real taste of Corvette’s future.

The ZR-1 Rumors Become Reality

The 1989 Corvette ZR-1 marked the arrival of the “King of the Hill,” showcasing a revolutionary Lotus-designed, Mercury Marine–built LT5 V8 that redefined American performance. With its wide rear fascia, unique badges, and a top speed approaching 180 mph, it instantly became a legend in Corvette history. (Image courtesy of GM Media LLC.)

The buzz around a secret Corvette supercar had been building since 1987. Spy photos circulated in enthusiast magazines, whispered details leaked from GM insiders, and journalists speculated about a car being developed under the code name “King of the Hill.” By 1988, the anticipation was feverish.

Chevrolet confirmed the rumors in March 1989 when it unveiled the ZR-1 at the Geneva Auto Show. The debut stunned the world: here was a Corvette boasting a 375-horsepower LT5 V8, developed by GM in partnership with Lotus Engineering and assembled by Mercury Marine. Designed under the guidance of Lotus technical director Tony Rudd, the LT5 was an engineering marvel—a 5.7-liter, all-aluminum, dual overhead cam, 32-valve small-block that bore almost no relation to the traditional Chevy pushrod V8.

To showcase the car’s capability, GM invited the world’s press to Carcassonne, France, and to Goodyear’s Mireval test track. Writers flogged pre-production ZR-1s on high-speed runs and wet-pavement handling courses. “It’s a supercar with manners,” wrote Car and Driver, while European magazines like Auto Motor und Sport praised its refinement compared to Ferrari and Porsche rivals. Covers of automotive magazines worldwide were dominated by the Corvette ZR-1.

And yet, the dream was just out of reach. On April 19, 1989, Chevrolet announced that ZR-1 production would be delayed until 1990 due to “insufficient availability of engines caused by additional development.” For enthusiasts, it was a bitter disappointment. GM had built 84 ZR-1s in 1989—for evaluation, press, and promotional use—but none were offered for sale. These rare pre-production models are now some of the most collectible C4 Corvettes in existence.

Transmission Revolution: The ZF Six-Speed

The 1989 Corvette introduced the ZF (which stands for Zahnradfabrik Friedrichshafen, which translates from German to “Gear Factory of Friedrichshafen”) six-speed manual transmission, developed by Germany’s ZF Friedrichshafen AG, as a significant leap forward in drivetrain technology. This gearbox was engineered to handle the high torque of the L98 engine while providing smoother, quicker shifts and improved highway fuel economy thanks to its overdrive sixth gear. Its adoption marked the beginning of a new era of performance and refinement for the C4 Corvette, solidifying the car’s reputation as a true world-class sports car. (Image courtesy of Hot Rod Magazine)

For regular production Corvettes, 1989’s biggest mechanical change was the introduction of an all-new six-speed manual transmission, built by German supplier ZF Friedrichshafen. This gearbox replaced the much-maligned Doug Nash “4+3” manual with overdrive, which had frustrated owners since 1984 with its awkward shifting and fragile reliability.

The ZF six-speed transformed the Corvette driving experience. Ratios were better spaced, the shifter was smoother, and the unit could handle far more torque than the outgoing transmission. Corvette Chief Engineer Dave McLellan later recalled that the gearbox was chosen specifically to handle the forthcoming LT5 engine in the ZR-1.

But the ZF box came with controversy. To avoid the dreaded EPA “gas guzzler” tax, GM introduced Computer Aided Gear Selection (CAGS). At light throttle (below 35%) and between 12–19 mph, the system forced drivers to skip from 1st gear directly to 4th. While effective in improving EPA ratings (16 mpg city, 25 mpg highway), enthusiasts found it infuriating. Many magazines noted that clipping a single wire easily disabled the feature—something Corvette engineers privately admitted was intentional.

Despite the annoyance, the six-speed was a leap forward and set the tone for Corvette manuals through the C5 and C6 generations.

Standardizing Performance: Z52 for Everyone

Also in 1989, Chevrolet offered consumers the Z52 Sport Handling Package as a mid-level performance option for the C4 Corvette—slotting between the base suspension and the more aggressive Z51 Performance Handling Package.

The 1989 Z52 package included:
- Heavy-Duty Radiator – improved cooling capacity to support spirited driving and warmer climates.
- Engine Oil Cooler – kept the L98’s oil temperature in check during extended performance use.
- Bilstein Gas-Pressurized Shock Absorbers – firmer damping than stock, improving ride control and cornering response.
- Finned Power-Steering Cooler – reduced heat buildup in the steering system during aggressive driving.
- Specific Springs and Bushings – stiffer rates than base but more compliant than Z51, striking a balance between comfort and handling.
- Performance Axle Ratio – typically 3.07:1, providing livelier acceleration compared to the standard 2.59 or 2.73 gears.
- Heavy-Duty Brakes – upgraded pads and calipers to better manage repeated stops under spirited driving.
Positioning

The Z52 package was essentially a “best of both worlds” option: it gave owners a sharper-handling Corvette without the very stiff ride of the Z51 cars, making it popular with buyers who wanted improved performance but still planned to daily-drive their cars.

For manual transmission cars, GM also included a heavy-duty oil cooler, radiator, and auxiliary cooling fan. This effectively meant that every Corvette left the factory with a balanced handling setup that made the car sharper and more capable without sacrificing daily comfort.

The FX3 Selective Ride Control System

At GM’s Bowling Green Assembly Plant, technicians use advanced measuring equipment to align a C4 Corvette body with exacting precision. For 1989, Chevrolet emphasized tighter build tolerances alongside new technology like the ZF six-speed gearbox and available FX3 Selective Ride Control, reinforcing the Corvette’s position as a world-class sports car.

If Z52 was now standard, Corvette engineers wanted to go further. Enter RPO FX3, an innovative electronic Selective Ride Control system developed jointly by GM’s Delco division and Bilstein. Available only on cars equipped with the Z51 package, FX3 allowed drivers to adjust suspension stiffness via a console-mounted switch.

Three modes were offered: Touring, Sport, and Competition. The system used microprocessors to monitor conditions and adjust damping 10 times per second. Electric motors atop each shock turned rotary valves that changed fluid flow within the shocks, altering ride stiffness.

Reviewers were impressed. Road & Track noted that in Touring mode the Corvette absorbed potholes with surprising civility, while in Competition it “felt as taut as a race-prepared car.” The ability to transform from boulevard cruiser to track weapon at the touch of a button was cutting-edge in 1989, rivaling similar systems in far more expensive European exotics.

Interior Refinements

The interior of the 1989 Corvette blended high-tech function with driver-focused comfort, reflecting Chevrolet’s commitment to modern performance. The cabin featured a digital-analog hybrid instrument cluster, ergonomically designed sport seats, and a cockpit-style dash that wrapped around the driver. Premium leather upholstery, available in a range of colors, elevated the experience, while options like the Delco-Bose sound system and electronic climate control underscored the Corvette’s move toward luxury and refinement without compromising its sporting edge.

By 1989, the once-futuristic interior of the C4 was showing its age. The square digital dashboard—so revolutionary in 1984—was beginning to look dated. GM would address this with a major redesign in 1990, but for ’89, refinements focused on comfort.
- Newly redesigned seats improved support and comfort for long drives. Buyers could choose cloth, standard leather, or upgraded sport leather (the latter available only with Z51).
- Optional removable hardtop for convertibles was introduced. Constructed of fiberglass-reinforced polyester around a steel/aluminum cage, it included a heated rear glass window and better weather sealing. Priced at $1,995, it offered quieter cruising than the fabric top and added security.
- Convertible mechanisms were also simplified, making the top easier to operate.
Exterior Colors and Popular Choices

1989 Corvette Exterior Paint Colors

Eight colors were offered for 1989: White, Medium Blue Metallic, Dark Blue Metallic, Black, Dark Red Metallic, Bright Red, Gray Metallic, and Charcoal Metallic.

As had been the trend throughout the 1980s, Bright Red was by far the most popular choice (29% of production). White (20.5%) and Black (18.3%) followed, with the blues and grays making up the balance. The Corvette had firmly embraced bold primary colors that reflected its performance image.

Racing: The Final Corvette Challenge

The 1989 Corvette Challenge marked the second season of the SCCA-sanctioned one-make racing series, featuring identically prepared Corvette coupes equipped with the L98 350ci engine and Z51 handling package. With 29 cars competing across multiple events, the series showcased the C4’s track-ready performance and provided a proving ground for both amateur and professional drivers.

The 1989 Corvette model year also marked the last season of the SCCA Corvette Challenge. Chevrolet built 60 cars for the one-make series, which pitted showroom-stock Corvettes against one another in professional road racing. Thirty of these cars were fitted with higher-output engines from the Flint, Michigan plant, though at season’s end each car received its original numbers-matching engine back.

The series gave young drivers like Bill Cooper and Stu Hayner a platform to showcase their skills, and it cemented the Corvette’s racing credibility in an era when GM officially avoided factory-backed racing programs due to the AMA ban’s lingering shadow. For enthusiasts, the Challenge cars remain collectible reminders of Corvette’s grassroots racing heritage.

Callaway Twin Turbo: A Rare Option

The 1989 Callaway Twin Turbo Corvette was a factory-option supercar that transformed the standard C4 into a 382-horsepower, twin-turbocharged powerhouse capable of topping 175 mph. Distinguished by its subtle “Callaway Twin Turbo” badging and aggressive performance, it represented one of the most exclusive and potent Corvettes of the late 1980s. (Image courtesy of bringatrailer.com)

One of the most exotic Corvette options of the late ’80s was the Callaway Twin Turbo package (RPO B2K). Officially sanctioned by Chevrolet but built by Callaway Cars in Old Lyme, Connecticut, it transformed the standard L98 into a twin-turbocharged monster with output well beyond the factory rating.

By 1989, however, the option was extremely rare. Priced at a staggering $25,895 on top of the Corvette’s base price, only 67 cars were built. While its raw speed impressed, the arrival of the factory-built ZR-1 signaled the end of Callaway as a GM-optioned Corvette. Today, however, B2K Corvettes are prized collectibles and symbols of the turbocharged ’80s.

Engine and Performance

All base-model 1989 Corvettes came equipped with the 245 horsepower, L98 350-cubic-inch small block V8 engine.

For standard Corvettes, performance numbers carried over from 1988. The L98 350-cubic-inch small-block V8 produced 245 horsepower in coupes and 240 horsepower in convertibles.

Notably, the engine received new Multecfuel injectors, a design originally developed for the LT5. Though they didn’t change output, they foreshadowed the technological leap of the 1990 Corvette model year.

Performance remained respectable:
- 0–60 mph in the low 6-second range.
- Quarter mile in about 14.4 seconds.
- Top speed around 150 mph.
While not exotic by modern standards, these figures put the Corvette in direct contention with contemporary Porsche 944 Turbos, Nissan 300ZX Turbos, and even Ferrari’s 328 GTS.

Production, Sales, and Pricing

1989 Corvette Coupe

The 1989 model year saw an uptick in Corvette sales, reversing several years of decline. Chevrolet sold 26,412 cars, including nearly 10,000 convertibles. This increase came despite anticipation of the ZR-1’s launch in 1990, suggesting that buyers saw value in the new transmission, standard Z52 package, and suspension improvements.
- Base Coupe: $31,545.
- Base Convertible: $36,785.
- Popular options included sport seats ($1,025), Delco-Bose audio ($773), Selective Ride Control ($1,695), and the removable hardtop ($1,995).
Legacy of the 1989 Corvette

Looking back, the 1989 Corvette reads like a hinge in the C4 story—a year that didn’t chase headlines with fiberglass or steel but quietly rewired the future. The ZF S6-40 six-speed changed how the car felt from the driver’s seat: closer ratios for the work, deep overdrive for the highway. It let Chevrolet pair shorter final drives for punch (and Z51 aggression) with relaxed cruise rpm, teaching the Corvette to be both weekend weapon and long-legged GT without compromise. Owners noticed immediately; the transmission would become a long-running cornerstone of Corvette drivetrains.

Just as important, FX3 Selective Ride Control arrived to preview a new era of electronically managed chassis. Three console-selectable modes and computer-controlled valving didn’t make the C4 a magic carpet, but they proved the concept: a Corvette could tune itself to the road and the moment. Trace a straight line from FX3 to the C5’s F45 and on to the magnetic-ride Corvettes of today, and you see 1989’s fingerprints all over it. Add in the year’s quicker steering, the now-standard 17-inch unidirectional tires, and the emerging tire-pressure warning tech, and the picture sharpens—’89 is where the C4 traded some analog swagger for digital bandwidth.

Then came the curtain-raiser. The ZR-1 was unveiled in 1989 for the 1990 model year, and it reset the conversation around what a Corvette could be. The LT5’s Lotus-designed, Mercury Marine-built 32-valve DOHC heart and its exotic intake hardware announced Corvette on the global stage—not as a value alternative, but as a peer to the era’s supercars. Even if you never bought a ZR-1, the message floated all boats: the platform’s aerodynamics, stability, and cooling were ready for serious horsepower, and the world took note.

That’s the legacy in a sentence: 1989 fused maturity with ambition. It didn’t change the silhouette; it changed the trajectory. The model year gave owners a car that was easier to live with and harder to outgrow, while previewing the tech and credibility that would drive the Corvette’s 1990s renaissance. For enthusiasts today, an ’89 feels like a handshake across generations—familiar forms, historic firsts, and a clear pointer toward the high-tech future that followed.

1989 Corvette — Key Specifications

Quick Stats
- Engine: 5.7L (350 cu in) L98 Tuned Port Injection V8
- Output (SAE net): 245 hp @ 4,300 rpm • 340 lb-ft @ 3,200 rpm
- Transmissions: 4-speed automatic (TH700-R4) • ZF S6-40 6-speed manual (no-cost option)
- ABS: Bosch ABS II (4-wheel, 3-channel) standard
- Steering ratio: 13.0:1 (quicker for ’89)
Performance (period figures)
- 0–60 mph: ~5.7–6.6 s (magazine tests vary by trans/axle)
- ¼-mile: ~14.5–14.8 s @ ~96–98 mph
- Top speed: ~150 mph Examples include contemporary instrumented tests of the 6-speed cars and GM’s own performance claims.
Chassis, Suspension & Brakes
- Structure: “Uniframe” with bolt-on cradles; composite body panels
- Front/Rear: Forged-aluminum control arms; independent rear five-link; transverse composite monoleaf springs
- Shocks: Delco-Bilstein gas-charged (std.; part of Z-packages as well)
- Brakes: Power 4-wheel discs (vented) with Bosch ABS II
- New option: FX3 Selective Ride Control electronic adjustable damping (coupe, requires Z51 + 6-speed)
Wheels & Tires (bigger for 1989)
- Standard (all models): 17 × 9.5-in alloy wheels with P275/40ZR-17 Goodyear Eagle unidirectional tires (largest factory tire/wheel yet offered on Corvette to that point).
Dimensions & Capacities
- Wheelbase: 96.2 in
- L/W/H: 178.5 / 71.0 / 46.7 in (coupe); 46.4 in (conv.)
- Track (F/R): 59.6 / 60.4 in
- Turning circle: 40.4 ft
- Fuel capacity: 20.0 gal
- Curb weight (approx.): 3,257 lb (coupe, 6-spd) • 3,269 lb (conv., 6-spd) • 3,223 lb (coupe, auto) • 3,263 lb (conv., auto)
Powertrain Details
- Compression ratio: 9.5:1
- Valvetrain: OHV, 2 valves/cyl, roller lifters
- Management: Tuned Port Injection; electronic spark control
- Common axle ratios: 2.59/2.73 (auto, application-dependent) • 3.07 (6-speed)
- New for ’89: ZF S6-40 6-speed replaces 4+3; low-tire-pressure warning system added.
Paint & Trim (with GM codes)

Exterior colors (factory brochure names; GM codes as used on build/RPO labels):
- White (40)
- Black (41)
- Medium Blue Metallic (20)
- Dark Blue Metallic (28)
- Gray Metallic (90)
- Charcoal Metallic (96)
- Bright Red (81)
- Dark Red Metallic (74)
The brochure lists these finishes for 1989; GM paint-code cross-references (Corvette Action Center / Corvette Central Tech) align those names to the two-digit codes shown above for ’89 production.

Notable ’89 Features/Packages
- Z51 Performance Handling (coupe, 6-speed only): HD springs/bars, HD brakes & cooling, 3.54:1 axle, power-steering cooler.
- FX3 Selective Ride Control (coupe, requires Z51 + 6-speed): console switch (Tour/Sport/Perf), computer-controlled shock valving with speed-based damping maps.
- VATS (PASS-Key) anti-theft, electronic climate control, Delco-Bose audio available.
Why the 1989 Corvette Still Matters

The 1989 Corvette matters because it represents the precise moment when Chevrolet stopped asking for permission and simply built a world-class performance car. This was the year the “King of the Hill” vision became real—when the Chevrolet Corvette ZR-1, powered by the Lotus-designed, Mercury Marine–assembled LT5, officially announced that America could engineer a 32-valve, dual-overhead-cam supercar and back it up with numbers. The hand-built 5.7L LT5 didn’t just raise horsepower; it elevated credibility. Backed by the German-sourced ZF six-speed and wrapped in those subtly widened rear haunches and squared taillights, the ZR-1 proved that performance didn’t need flamboyance—it needed execution.

But 1989 also matters because it showcased Corvette’s dual personality. On one side stood the refined and proven L98 cars. On the other hand, the ZR-1 redefined the ceiling. And running parallel to both was the audacious Callaway Twin Turbo Corvette program—another example of how the C4 era fostered serious experimentation. Multiple high-performance paths. One platform. That kind of engineering confidence reshaped how the world viewed Corvette.

Today, the 1989 model year stands as a turning point in the broader Chevrolet Corvette C4 story. It laid the philosophical groundwork for every elite Corvette that followed—Z06, ZR1, and ultimately the mid-engine revolution decades later. The idea that Corvette could go toe-to-toe with Europe’s best? That wasn’t marketing spin. It was validated in 1989.

More than three decades later, the 1989 Corvette still resonates because it was bold without apology. It blended advanced engineering, global collaboration, and American swagger into a package that forced the world to recalibrate its expectations. And once expectations change, they never go back.

This piece on the 1989 Corvette is lovingly dedicated to Kevin and Dean, a father and son duo who took the time to completely restore their own 1989 Corvette over the past several years.
The 1989 Corvette arrived at a pivotal point in the C4 era—when years of steady refinement finally met a headline-making leap forward. Chevrolet had spent the mid-to-late 1980s sorting the platform: improving ride quality, sharpening handling, and proving the fourth-generation car could deliver real balance as both a driver’s machine and a daily companion. Then…
1984 DeATLEY CORVETTE
Here’s the story of the 1984 DeAtley Corvette—the short-deadline, tube-frame C4 that dragged Corvette straight back into the center of American road racing.

When Chevrolet launched the fourth-generation Corvette in 1984, the company wanted the car to be seen doing what Corvettes do best: run at the front. The quickest path was not to incubate a brand-new “works” effort from scratch, but to lean on its reigning Trans-Am partner—Neil DeAtley’s Budweiser-backed team—fresh off a dominant ’83 season with Camaros. The ask came with a brutal timeline. In a matter of weeks, DeAtley’s group had to retire a proven championship platform and conjure a Corvette that could live with (and, ideally, beat) Ford’s ascendant Mercury Capris right out of the gate. The result was a small batch of purpose-built, tube-frame C4s that looked like showroom Corvettes from 20 feet away, but underneath were all business—hand-built racing machines that marked Corvette’s return to front-line, factory-connected Trans-Am combat in the C4 era.

The time pressure changes how you read everything that follows. This was not a laboratory program run in secrecy or comfort. It was a sprint across open ground, with fans and rivals watching, and with the just-launched C4’s reputation on the line. The cars were fast enough to win on debut. They were raw enough to require a season’s worth of public development. They were significant enough that, four decades later, their fingerprints are still visible on Corvette’s racing arc.

People First: DeAtley’s Roster and the Build Network

Neil DeAtley (driving) and his 1927 Ford Track-T Roadster (Image courtesy of Dean’s Garage)

Racing programs live or die on people. Neil DeAtley was a financier out of the Pacific Northwest with an appetite for going big—Budweiser on the flanks, proper engineering money in the cars, and star drivers in the seats. He also knew how to build a coalition fast. The public face was Budweiser red; the backbone was a flexible build pipeline that pulled in fabricators and specialists capable of turning an all-new production design into a competitive silhouette racer in weeks rather than months.

DeAtley’s 1984 Corvette effort paired experience with raw speed: David Hobbs and Willy T. Ribbs. Hobbs brought world-class racecraft and development savvy; Ribbs delivered fearless qualifying pace and race aggression. Together they translated Camaro momentum into C4 learning, wringing speed from the new tube-frame and keeping the Budweiser cars constantly in the fight.

The roster for 1984 threaded an interesting needle: established race-craft and media wattage (David Hobbs), blistering speed and swagger (Willy T. Ribbs), and a hungry young charger in Darin Brassfield. Others, including Michael Andretti and Jim Insolo, would intersect with the program as the season unfolded. There was a clever balance here. Hobbs brought development sensibility and feedback discipline. Ribbs brought raw pace and an edge that could drag a car up the order on talent alone. Brassfield personified the opportunity the program represented: the chance to make a national statement in a car that the whole country recognized.

DeAtley’s coalition extended beyond the cockpit. Speedway Engineering in Sylmar, California, fabricated the tube-frames—stout, serviceable, and built for the quick-change brutality of Trans-Am weekends. Corvette Creationz in Portland handled finish work on the bodies. Diversified Fiberglass supplied widened C4 panels originally developed with racing in mind. Dennis Fischer built compact, hard-spinning 310-ci small-blocks tailored to the series’ displacement/weight calculus. All of it came together like a film crew on location: highly specialized craftspeople working in parallel, feeding a shared calendar no one could slip.

New Platform, Steep Curve: Sorting the C4 in Public

Budweiser red, #29, and pure Trans-Am thunder—the DeAtley Camaro put big-bore brutality in a wind-tunnel suit. A tube-frame rocket with small-block V8, BBS wheels, and side-exit bark, it carried David Hobbs to front-row pace and crowd-pleasing slides. Northwest-backed, nationally feared: a quintessential ’80s Camaro racer.

On paper, the switch from the proven DeAtley Camaro to a brand-new C4 was a calculated risk. The C4’s proportions and independent rear suspension promised a higher ceiling than the outgoing F-body, but they came with a learning curve. In 1984, Trans-Am was not a patient classroom. Ford’s Capri program—Roush and a network of hardened suppliers—was exceptionally sorted, and the series schedule offered precious little testing time between events.

DeAtley’s Camaros were built for quick servicing and aggressive tuning, but when you’re learning a new platform’s quirks in public—on points-paying race weekends—the trial-and-error cycle can only be compressed so far. Contemporary accounts and later retrospectives alike point to the C4’s IRS (Independent Rear Suspension) — excellent in concept, but demanding in practice — as a recurring puzzle. Anti-squat/anti-dive targets, camber control under load, toe compliance, and the friction stack through bushings and joints—all of it had to be learned in the crucible. The upside was visible straightaway: mechanical grip, traction over bumps, and the ability to put power down off a corner when the window was right. The downside was sensitivity. A misstep on springs, bar, or ride height could send the car hunting for balance.

DeAtley pivoted fast when the Camaro hit an aero ceiling. With SCCA rules favoring tube-frame silhouettes and the new C4’s slipperier shape, the team green-lit a clean-sheet Corvette. They reused proven small-block hardware to compress timelines, built a rigid, quick-service chassis, and hung lightweight panels. The Corvette arrived within weeks—lower drag, more downforce, better cooling, and a clearer path to wins.

Even so, those early months gave fans a bracing demonstration of what a tube-frame Corvette could do when the pieces clicked. The cars rotated willingly on entry, could be hustled over curbs without shaking themselves apart, and—thanks to short gearing via the quick-change rear—leapt onto the meat of the V8’s torque as if yanked by a winch.

Opening Salvo: Brassfield at Road Atlanta

Opening day proved the point. On May 6, 1984 at Road Atlanta, Darin Brassfield’s bright-red No. 3 DeAtley Corvette seized the lead on lap 11 and never looked back, controlling the final 30 laps to win decisively. David Hobbs capped the statement with third, delivering a DeAtley 1–3 in the season opener. (Image courtesy of photographer Brent Martin)

The moment that proved the point—and instantly reset expectations—came on opening day. May 6, 1984, Road Atlanta: in his 22nd Trans-Am start, Darin Brassfield rolled out the bright-red No. 3 DeAtley Corvette and snatched the season’s first checkered flag. The pass for the lead came on lap 11; from there he controlled the race, leading the final 30 laps and winning by a yawning margin. David Hobbs brought another DeAtley Corvette home to complete a headline-friendly one-three.

That wasn’t just a debut win for a new car; it was an exclamation point that told Ford’s camp the Corvette was here and, in the right window, dangerous. In a series where momentum is everything, Road Atlanta gave the DeAtley group and Chevrolet something to build on: proof of concept, a datasheet of what worked, and a national storyline that married the new C4’s public launch to immediate on-track success.

A Hard Education and a Shifting Chessboard

Tom Gloy hustles the 7-Eleven Roush Mercury Capri up front, with the DeAtley Corvette visible in the background giving chase. New and largely unproven at the start of the 1984 Trans-Am campaign, the DeAtley C4 spent the year riding the ebbs and flows of development—quick enough to pester the Capris but still sorting itself out. Even when trailing, as in this shot, the Corvette remained a constant presence in the mirrors and a genuine threat race-to-race. (Image courtesy of Brent Martin)

It’s tempting to let that day define the whole season, but the 1984 story is richer—and messier. The DeAtley C4s remained a factor throughout the calendar, and the results sheets show the ebb and flow you’d expect from an all-new platform living against a highly developed Capri benchmark. Hobbs stood on the podium at Watkins Glen later that summer; Brassfield posted fast runs at West Coast venues even as reliability and setup gremlins occasionally encroached.

Ford, meanwhile, kept the pressure high and banked points—Tom Gloy and Greg Pickett among the headliners—delivering the manufacturers’ bragging rights. In one of racing’s ironies, the very Protofab organization that had been formed under Ford’s umbrella to answer DeAtley’s Camaro dominance in 1983 became a cornerstone of Ford’s 1984 Trans-Am resurgence—evidence of how quickly the power balance could flip in that era. The net effect for Chevrolet was clarity: to keep Corvette at the sharp end, the tube-frame C4 concept needed continued investment and iteration. That’s the line that runs forward from DeAtley—through other banners and evolutions—to the Corvette’s late-’80s Trans-Am bite.

Under the Skin: What Made the DeAtley C4s Tick

A DeAtley C4 is a wonderful contradiction: low, wide, and glamorous under the paddock sun, but every surface and junction betrays a decision made for speed, serviceability, or survival.

Architecture. The Speedway-built tube frame was the program’s beating heart—tight triangulation around the driver cell and front suspension pickups, with generous access to the engine bay and rear quick-change. Compared with the production C4 structure, the race chassis delivered stiffness, repairability, and the freedom to place mass where the setup team needed it. The steering gear and front geometry were built from race-proven catalog pieces: short/long arm control arms, adjustable uprights, big-bearing hubs, and the sort of bulletproof steering linkages that survive curb strikes at speed.

The independent rear. Out back, the C4’s IRS was rendered in competition-grade hardware. Coil-overs, braced carriers, and heavy-duty half-shafts replaced any hint of street compromise. The advantage was traction over imperfect surfaces and the ability to tune camber gain as the car compressed in long, loaded corners. The challenge was getting the toe curve civilized across bump and rebound so the car didn’t feel like a different animal at each end of a stint. When the engineers hit the window, the Corvette put power down like a sledgehammer and stayed planted over Riverside-style surface changes that could make a live axle skip.

Powertrain. Dennis Fischer’s 310-ci small-blocks were right-sized for the rulebook and the quick-change rear. Build a motor that’s happy to live between the meat of the torque curve and the top third of the tach, then let gearing put you there as often as possible. On paper, roughly 550 horsepower; on track, a fat middle and crisp throttle that worked with the M-22’s straight-cut reality. The Tilton hardware made clutch and starter service quick. The Franklin rear let the crew turn a gearing change into a coffee-length job.

Body and aero. The body wasn’t theater—it was a tool. Widened front/rear clips gave tire clearance and cooling volume; the front fascia was opened and ducted to feed the radiator and brakes; and the rear quarters were shaped to stabilize the wake and keep hot air moving. The panels popped off on Dzus fasteners—serviceable in seconds. When taken as a whole, even experienced observers can’t help reading the stance and assuming intimidation was the point. The real victory was the way those shapes kept the car cool, stable, and easy to work on at 9:30 p.m. under fluorescent paddock lights.

The cockpit. Peer into the surviving museum car and you see a working environment, not Instagram. A flat dash panel that made rewiring and instrument swaps straightforward. A stubby M-22 lever in easy reach. Labeled breakers and toggles. It’s the kind of cockpit that tells you exactly what life was like on a DeAtley weekend: focus on the next session; make changes you can feel; keep everything reachable, replaceable, and robust.

Four Built, Three Survive: The 1984 DeATLEY CORVETTE AT THE NCM

Mike Moss is the vintage-racing Corvette diehard who bought, campaigned, and then painstakingly restored one of the 1984 DeAtley C4 Trans-Am cars. In 2020 he donated the Union Bay/Budweiser-liveried No. 3 to the National Corvette Museum, handing over a binder of provenance and parts history along with the car. His gift preserves a rare, short-lived but pivotal chapter between the tube-frame era and the production C4’s arrival—so visitors can study exactly how the package was built to win. (Image courtesy of the National Corvette Museum)

Crucially, these weren’t one-off unicorns. Period accounts and later round-ups converge on the same tally: four DeAtley C4 Trans-Am cars were built, of which three still exist today. If you’ve walked the galleries of a certain tourist destination in Bowling Green recently, you’ve likely seen one of them. Mike Moss—who bought, vintage-raced, and then restored one of the DeAtley cars—donated it to the National Corvette Museum in 2020, wearing Union Bay/Budweiser colors and carrying with it a thick binder of provenance.

What moved the car from a private race shop to a public gallery is a story Moss tells plainly: after a Watkins Glen shunt, he spent years bringing the car back to“immaculately restored” condition—Scott Michael led the restoration, and master painter Tony Fernandez laid down the Budweiser red so flawlessly that Moss no longer wanted to risk the car in competition. Instead, he “gave back,” deciding America’s Sports Car should be shared with America, and that the only way to do it right was by placing the DeAtley Corvette at the National Corvette Museum. The car’s donation was announced on February 27, 2020, with plans to return it to display that April as the Museum’s Performing & Racing Gallery reopened.

The Moss/DeAtley car is more than a static display; it’s a memory anchor. It preserves the supplier network on a placard. It keeps the mechanical spec honest for future historians (tube-frame by Speedway Engineering, M-22 gearbox, Franklin quick-change, Dennis Fischer 310-cu-in small-block at ~550 hp). And it lets visitors stand at the rail and decode the philosophy with their own eyes: rugged where it needs to be rugged, light where it can afford to be light, and relentlessly optimized for the sprint-repair-sprint rhythm of Trans-Am life—now preserved in public view because one owner chose to hand the keys to the NCM in Bowling Green.

From Camaro Supremacy to Corvette Catalyst

In 1983, DeAtley’s Budweiser Camaros were the Trans-Am benchmark—front-row pace, multiple wins, and David Hobbs’ drivers’ title while helping Chevrolet secure the manufacturers’ crown. Yet the cars hit an aero ceiling and cooling limits on faster circuits. With SCCA tube-frame rules and the slipperier new C4 arriving, DeAtley pivoted to a Corvette for 1984.

To understand the significance, it helps to look upstream. In 1983, DeAtley’s Camaros had stampeded the field; it took an organized response to unseat them, and Ford found one in Protofab. By the time Corvette rolled into Trans-Am in 1984 wearing DeAtley red, the opposition had already re-armed. That chessboard explains a lot: why the early Corvette win at Road Atlanta read like a gauntlet-throw, why the midsummer grind was spent massaging setup and reliability in public, and why Chevrolet, in the seasons that followed, continued to refine the tube-frame C4 concept through other banners to reassert itself.

The DeAtley cars, then, are both time capsule and inflection point—proof that the new-shape Corvette could be weaponized for Trans-Am and a catalyst for the team- and supplier-shuffles that shaped the series for the rest of the decade. They bridge the gap between the iron-fisted Camaro of ’83 and the later Corvette standard-bearers that would carry the name forward.

Drivers at a Generational Crossroads

Generational crossroads, frozen on film: Sears Point, 1984—Tom Gloy’s Mercury Capri leads while the brand-new DeAtley C4 Corvette stalks from second. You can feel “racing as it used to be” in the open hillsides, hand-painted numbers, and cars that were loud, imperfect, and gloriously fast. The Capri represents the waning tube-frame era; the Corvette, the production-shape future still finding its feet. It was gritty and human—less corporate, more seat-of-the-pants—and that’s exactly why this series tugs so hard at the memory.

Look closely at the names and you see another layer of legacy. The 1984 driver roster sits at a nexus of generational change. Hobbs was by then a fixture of international racing and American television; his feedback loop with engineers could turn a chaotic test day into an actionable plan. Ribbs, explosive and uncompromising, would win plenty for Ford that season but would remain a pillar of the DeAtley story from 1983 through the Corvette transition. Brassfield’s Road Atlanta masterclass reads today like a thesis on seizing the moment—clean pass, relentless pace, and the composure to turn a high-pressure debut into a runaway. The guest appearances—Andretti, Insolo—remind you how fluid the series could be, how drivers and opportunities co-mingled in that period.

And hovering over it all is the DeAtley organization itself: a privateer-plus operation with manufacturer gravity, the kind of team that can sprint when the phone rings and the ask is “build us a Corvette, now.” That agility is worth underscoring. In series where rules reward optimization more than invention, real advantage often comes from speed of decision and speed of iteration. DeAtley’s 1984 effort is practically a case study.

The Textures of a Program—and Its Point

What stays with you, finally, are the textures: the loudness of a 310-inch small-block engineered to produce ~550 horsepower through an M-22’s straight-cut growl; the way a tube-frame C4 squats on its haunches cresting a rise, Goodyears biting, the independent rear working; the atmosphere of a DeAtley pit as crew members pop body-panel Dzus fasteners like piano keys to reach heat-soaked components and reset the car for the next session.

These Corvettes were more than a marketing exercise for a just-launched production car. They were living laboratories, built at pace, refined in the white heat of competition, and entrusted to drivers who could translate potential into points. The results ledger from 1984 doesn’t read like the press release of a championship race team, which is appropriate as the manufacturers’ trophy went elsewhere, but the DeAtley C4s did what they needed to do: they put the new Corvette back in the fight and lit the fuse for what came next.

Stand Next to One: Legacy Made Tangible

ChatGPT said: See it in person at the National Corvette Museum in Bowling Green: the DeAtley/Union Bay Budweiser C4 tube-frame racer. Its low, one-piece nose, flush lights, and period decals read like a Trans-Am time capsule. Stand inches away, study the aero details, and feel how Corvette racing reinvented itself in the mid-’80s. (Image courtesy of the author)

If you want to see the legacy in steel and fiberglass, go to the National Corvette Museum in Bowling Green and stand next to the Moss/DeAtley car. Read the placard, take in the panel fit, and peek at the rear quick-change. Follow the brake ducts with your eyes and imagine the heat coming off them after a qualifying run. Notice the service seams and ask yourself how quickly a crew could strip the nose, change a diff ratio, and get the car back out for a scuffed-tire run.

Then conjure that Sunday at Road Atlanta—the pass on lap 11, the final 30 laps led, and a Budweiser-red C4 sprinting under the bridge to the flag. For a brand-new generation of Corvette, it was the perfect opening argument.

Technical Specifications

Race Series: SCCA Trans-Am

Team Sponsors:
- DeAtley Motorsports
- Budweiser Racing
- Union Bay Sportswear
Colors: Budweiser Red

Engine: 310 cu-in V8 engine by Dennis Fischer, rated at 550 HP NOTE: Lower engine displacement allows cars to be run at 2615 pounds (including 45 pounds of ballast)

Driveline/Suspension:
- Tubeframe construction by Speedway Engineering, Sylmar (CA)
- Front suspension and steering parts taken from race-proven manufacturers
- Independent rear suspension, including coil-over shock-springs
- Tilton bell housing
- M-22 transmission
- Franklin quick change differential using standard positraction or spool depending on course
- Speedway Engineering hub carriers
- Short track racing hubs and axles
- Half shafts fabricated from DANA truck driveshafts
Tires: Goodyear 16×10 racing slicks

Why the 1984 DeAtley Corvette Still Matters Today

As the sun drops over Michelin Raceway Road Atlanta, the 1984 DeAtley Corvette looks like it’s charging straight out of a golden-hour postcard—low, wide, and unapologetically purpose-built. With its period-correct livery lit by the last warm light of day, the scene captures exactly what this car was made for: big speed, big presence, and that unmistakable Corvette attitude as the track turns dark and the story fades to black. (Image source: Author/ChatGPT)

The 1984 DeAtley Corvette matters because it proved the C4 wasn’t just a technological reset — it was a legitimate race platform. At a time when the Corvette nameplate was fighting to reclaim credibility in international competition, cars like this carried the banner. They showcased the stiffness of the new chassis, the advantages of modern suspension geometry, and the adaptability of the small-block V8 in professional motorsport.

Today, the DeAtley car stands as a symbol of Corvette’s mid-1980s resurgence — a reminder that the C4 generation wasn’t merely a design departure, but the foundation for the racing dominance that would follow in the decades ahead.
When the fourth-generation Corvette arrived for 1984, it didn’t take long for racers to recognize its potential. Among the most striking early competition builds was the 1984 DeAtley Corvette — a wide-bodied, purpose-built machine that translated Chevrolet’s all-new C4 platform into a serious SCCA and IMSA contender. Backed by Budweiser and Union Bay, and prepared…
1988 CORVETTE OVERVIEW
The arrival of the 1988 Corvette marked a milestone moment for Chevrolet. It was the 35th anniversary of “America’s Sports Car”, and after the quiet passing of the Corvette’s 30th birthday in 1983—when no anniversary model was produced at all—Chevrolet was determined not to let history repeat itself. That earlier omission was the result of engineering decisions that delayed the launch of the fourth-generation (C4) Corvette, resulting in no 1983 production cars. For fans, it left a gap in Corvette’s celebrated timeline. For Chevrolet, it was a missed opportunity.

By contrast, 1988 became a year of both commemoration and innovation. While the 35th Anniversary Edition stood as a tribute to Corvette’s enduring legacy, ongoing refinements to the C4 platform underscored Chevrolet’s commitment to performance. And with the rise of Callaway Cars and the arrival of the Sledgehammer—a Corvette that shattered global speed records—1988 became a defining chapter in Corvette history.

Engineering Refinements: The Evolving L98

The L98 5.7-liter (350 cubic inch) V8 engine equipped with Bosch-tuned port fuel injection was rated at 245 horsepower for the 1987 model year.

At the core of the 1988 Corvette was the familiar L98 5.7-liter (350ci) V8, equipped with Bosch-tuned port fuel injection, first introduced in 1985. For 1988, output rose modestly from 240 to 245 horsepower in coupe models equipped with the optional 3.07:1 performance axle ratio. This improvement came courtesy of a re-profiled camshaft, freer-breathing cylinder heads, and a less restrictive exhaust system.

Notably, the revised mufflers were installed only on coupes with the 3.07 axle. Convertibles, as well as cars equipped with the standard 2.59:1 rear gearing, retained the quieter 1987 mufflers, leaving them at 240 horsepower. The decision wasn’t arbitrary—the deeper resonance of the freer-flowing mufflers was judged too intrusive for open-top driving.

While the horsepower increase was incremental, it reflected a broader push at Chevrolet to keep the C4 competitive in a market that was becoming increasingly global. Former Lotus technical director Tony Rudd, who had been recruited by GM to lead advanced powertrain development, had already begun work that would culminate in the LT5-powered ZR-1. His early refinements to the L98 hinted at Corvette’s evolving performance trajectory.

Wheels, Tires, and Handling: Sharpening the C4

The Corvette received new “Cuisinart” 17×9.5 inch wheels in 1988.

Chassis upgrades in 1988 were equally significant. Corvette engineers introduced larger, directional 17×9.5-inch “Cuisinart” wheels (so nicknamed for their multi-slot pattern) mounted with P275/40ZR-17 Goodyear Eagle GT tires. These Z-rated tires were capable of sustained speeds above 149 mph—technology that moved Corvette closer to European exotic levels of performance. Though limited to cars with Z51 and Z52 suspension packages, even base models benefitted from updated 16×8.5-inch wheels with a new six-slot design and P255/50ZR-16 tires.

Suspension geometry was also revised. The front end adopted “zero scrub radius” geometry, improving directional control under braking by aligning the steering axis with the tire’s contact patch. At the rear, engineers increased rebound travel and reduced camber, enhancing straight-line stability. Larger brakes capped the updates: 12.9-inch front and 11.9-inch rear rotors, paired with two-piston front calipers and integrated rear-disc parking brakes—replacing the awkward drum setup used in earlier C4s.

Together, these changes gave the 1988 Corvette sharper reflexes, greater stability, and braking performance that matched its speed potential.

Exterior Updates: Color Choices and Wheels

For 1988, Chevrolet kept the C4’s sharp, wind-tunnelled look intact but sharpened the hardware that defined its stance. As mentioned previously, the big news was wheels and tires: standard cars rode on 16×8.5-in alloys with P255/50ZR-16 Goodyears, while Z-package cars adopted 17×9.5-in wheels with P275/40ZR-17 rubber—factory-fit, Z-rated tires that gave the ’88 a noticeably more planted footprint and crisper response without changing the bodywork. The Z51 and Z52 handling packages bundled those 17s and quicker steering, so you could spot a well-optioned ’88 by its wider wheels even at a glance.

The year also introduced the 35th Anniversary Edition (RPO Z01), a visual one-off that leaned into a “triple-white” theme: white body, white wheels, white bodyside moldings, white mirrors and door handles, with a contrasting black roof bow and unique emblems—an appearance package that stood apart without mechanical changes.

Paint colors (with GM codes): Silver Metallic (13), Medium Blue Metallic (20), Dark Blue Metallic (28), Yellow (35), White (40), Black (41), Dark Red Metallic (74), Bright Red (81), Gray Metallic (90), and Charcoal Metallic (96). The 35th Anniversary cars are listed separately in period references as White/Black (40/41) due to their two-tone roof halo. These codes are the two-digit identifiers you’ll see on build sheets and the Service Parts Identification label.

Interior Updates: Subtle but Practical

The interior of the 35th Anniversary Corvette came wrapped in white leather, which perfectly complimented the all white exterior. While this interior was criticized by some consumers as being “excessively difficult to keep clean,” there is no denying that its appearance is striking.

Inside, changes were subtle but meaningful. The oddly positioned pull-up handbrake—mounted outboard of the driver’s seat since the C4’s debut—was relocated slightly lower and rearward, making ingress and egress less awkward. Climate control improved too, thanks to redesigned interior air extractors that increased airflow through the optional automatic temperature control system, phased in late in 1987.

Though not a redesign year, these refinements reflected GM’s intent to address criticisms of the C4’s ergonomics and comfort while maintaining its technological edge.

The 35th Anniversary “Triple-White” Corvette

1988 Corvette 35th Anniversary Edition coupe

To properly honor Corvette’s 35th birthday, Chevrolet introduced the 35th Anniversary Edition (RPO Z01). Produced in limited numbers—2,050 units total—this coupe-only package featured:
- Bright white exterior paint with matching white door handles, mirrors, bodyside moldings, and wheels.
- White leather interior with embroidered headrests, white steering wheel, and matching trim.
- Black roof hoop and tinted acrylic roof panel, creating dramatic two-tone contrast.
- Special badging above the side gills, an anniversary console plaque, and sequential production numbering.
- Standard equipment including dual six-way power sport seats, Bose audio, heated mirrors, and automatic climate control.
Dubbed the “Triple-White” Corvette, it was introduced at the 1988 New York Auto Show—a deliberate callback to the 1953 Corvette’s debut at the Waldorf Astoria. While sales of the anniversary edition sold briskly, they were not enough to reverse an overall dip in Corvette sales, which fell to 22,789 units, the lowest total since 1972.

The Corvette Challenge Cars

1988 Corvette Challenge Car

Though showroom sales dipped, the Corvette’s reputation on the racetrack was soaring. After three years of dominating SCCA showroom stock racing, the series banned Corvettes outright for 1988. To appease Chevrolet, the SCCA created a new Corvette Challenge one-make series.

For the inaugural 1988 season, Chevrolet built 56 identical, street-legal Corvette race cars. These cars were assembled at Bowling Green, fitted with standard L98 engines, then shipped to Wixom, Michigan, where race equipment such as roll cages, safety harnesses, and fire suppression systems was installed. After each race season, these cars were sold to private buyers, making them some of the most collectible C4s today.

The Challenge was a fan favorite, emphasizing driver skill over engineering advantage, and reinforcing Corvette’s reputation as a world-class competitor.

The Callaway Twin Turbo: RPO B2K

1988 Callaway Twin Turbo Corvette

Beyond Chevrolet’s own work, 1988 was also a landmark year for Corvette through its partnership with Callaway Cars. Introduced in 1987, the Callaway Twin Turbo could be ordered directly from Chevrolet dealerships under RPO B2K. Cars were shipped to Callaway’s facility in Old Lyme, Connecticut, where they were modified and returned to customers, fully warrantied by GM.

The package included twin Turbonetics turbochargers, intercoolers, and fortified internals. Output jumped to 345 horsepower and 465 lb-ft of torque, vaulting Corvette firmly into supercar territory. Over five years, 497 B2K Callaway Corvettes were built, and each represented a fascinating chapter in GM’s rare willingness to outsource factory performance.

The Sledgehammer: World’s Fastest Street-Legal Car

1988 Callaway Sledgehammer Corvette

If the B2K program demonstrated factory-backed bravado, the Callaway Sledgehammer was its unchained sibling—a one-off, purpose-built speed record machine that became legendary.

Built on a 1988 Corvette, the Sledgehammer used a heavily modified 5.7-liter V8 with Brodix aluminum heads, forged internals, and twin Turbonetics T04B turbochargers. The engine produced a staggering 880 horsepower and 772 lb-ft of torque. Designer Paul Deutschman created a special AeroBody kit to reduce drag and increase stability.

Paul Deutschman and the team at Deutschman Design with the AeroBody Corvette body assembly.

On October 26, 1988, at the Ohio Transportation Research Center, driver John Lingenfelter piloted the Sledgehammer to 254.76 mph, making it the fastest street-legal production-based car in the world. The record stood for more than a decade.

What made the Sledgehammer remarkable was its speed, street legality, and civility. It retained air conditioning, a stereo, power windows, and was driven 700 miles from Callaway’s headquarters to the test site—and back home again in the rain.

Founder Reeves Callaway later reflected:

“Every car company wants a superlative. The superlative in high-performance sports cars is top speed. We did that. And we went and tested it, and we screwed up. It went 254.76 instead of 250.”

The Sledgehammer was not intended for production. It was a rolling laboratory, a demonstration of Corvette’s untapped potential, and a statement that America’s sports car could rival or surpass the finest exotics from Europe.

Performance and Legacy

1988 Corvette Coupe

In contemporary testing, the 1988 Corvette delivered 0–60 in about 6.0 seconds and a quarter-mile time of 14.6 seconds at 95 mph—competitive numbers for its day. The refinements in suspension, braking, and tires made it the most poised C4 yet, even if raw power gains were incremental.

But the true legacy of 1988 lay in its breadth: the Triple-White Anniversary Edition celebrated Corvette’s roots, the Corvette Challenge cars reinforced its racing heritage, and the Callaway Sledgehammer pushed its performance reputation to unprecedented heights. It was a year when Corvette embraced its past while simultaneously setting world records and looking toward the supercar future.

Conclusion

What makes 1988 linger isn’t any single headline but the way the year threads them together. The production car finally felt sorted—steering, ride, and brakes working in concert with a healthier L98 so the Corvette behaved like a proper long-legged GT when you asked and a willing athlete when you pressed. Inside, the ergonomics took a half-step from sci-fi to sensible, the kind of quiet improvement you only notice because the car stops getting in your way.

At the same time, Chevrolet reminded everyone that the Corvette is as much a part of the culture as it is a car. The 35th Anniversary Edition wasn’t just an appearance package; it was a marker in time—proof that the C4’s sharp, modern vocabulary could carry real ceremony. And out where the paint gets rubber on it, the Corvette Challenge legitimized a new grassroots ladder. You could watch showroom-stock C4s fight door-to-door on Sunday and recognize your own car in their reflections on Monday. That matters.

Then there was the moonshot. Callaway’s Sledgehammer didn’t merely move the goalposts; it picked them up and bolted them to another county. The number is the thing most people remember, but the lesson is bigger: the C4 platform had the aero efficiency, stability, and basic honesty to support world-beating speed without turning feral. In one orbit of the calendar, Corvette wore four different uniforms—grand tourer, commemorative icon, spec-series contender, and world-record assassin—and looked at home in all of them.

That’s why 1988 reads like a hinge moment. The C4 matured, the brand celebrated itself without nostalgia blindness, and the broader ecosystem—club racers, tuners, fans—was invited along for the ride. If you want to understand how Corvette kept its identity while expanding its range, you can do it in twelve months flat. 1988 is the case study.

1988 Corvette — Key Specifications

Quick Stats
- Engine: 5.7L (350 cu in) L98 Tuned Port Injection V8
- Output (SAE net): 245 hp @ 4,300 rpm • 340 lb-ft @ 3,200 rpm (factory rating for 1988)
- Transmissions: 4-speed automatic (TH700-R4) • 4+3 Doug Nash manual (4-speed with computer-controlled overdrive in 2nd–4th)
- Driveline/Layout: Front-engine, rear-wheel drive
Performance (period figures)
- 0–60 mph: ~5.7–6.0 sec
- ¼-mile: ~14.3–14.7 sec @ ~95–98 mph
- Top speed: ~150 mph Figures consolidated from factory literature and contemporary tests noting the 245-hp upgrade for ’88.
Chassis, Suspension & Brakes
- Structure: Uniframe with bolt-on front/rear cradles; composite body panels
- Front/Rear: Forged-aluminum control arms; independent rear five-link; transverse composite mono-leaf springs; gas-charged shocks (Delco-Bilstein with Z-handling packages)
- Steering: Power rack-and-pinion
- Brakes: Power 4-wheel discs (vented rotors) with Bosch ABS II (4-wheel)
Handling Packages
- Z51 Performance Handling (coupe): higher-rate springs/bars, Delco-Bilstein shocks, HD cooling, quicker steering; paired with wider wheels/tires
- Z52 Sport Handling: street-biased package bundling Bilstein shocks, quicker steering, HD cooling; included 17-inch wheels/tires for 1988.
Wheels & Tires
- Standard wheels/tires: 16×8.5-in alloys with P255/50ZR-16 Goodyear Eagle Gatorbacks
- Z-package wheels/tires: 17×9.5-in alloys with P275/40ZR-17 Goodyear Eagle Gatorbacks (factory option in ’88; standard within Z51/Z52 configurations)
Dimensions & Capacities
- Wheelbase: 96.2 in
- Length/Width/Height: ~176.5 / 71.0 / 46.4–46.7 in
- Track (F/R): ~59.6 / 60.4 in
- Fuel capacity: 20.0 gal (All per GM’s 1988 Corvette information kit.)
Powertrain Details
- Induction/Management: Tuned Port Injection (long-runner intake), electronic spark control
- Compression ratio: 9.5:1
- Common axle ratios: 2.59/2.73 (auto, application-dependent) • 3.07 (manual and certain axle packages)
Paint & Trim (with GM codes)

Singles: White (40), Black (41), Medium Blue Metallic (20), Dark Blue Metallic (28), Yellow (35), Silver Metallic (13), Gray Metallic (90), Charcoal/Dark Smoke Gray Metallic (96), Dark Red (Flame) Metallic (74), Bright Red (81). (Two-digit codes as shown on build sheets/RPO labels; production by color is documented in period references.)

Special appearance: 35th Anniversary Edition (RPO Z01) “triple-white” coupe (white body, wheels, moldings, mirrors/handles; black roof halo; unique emblems). 2,050 built.

Why the 1988 Corvette Still Matters

As the sun drops, the 1988 Corvette feels like the perfect punctuation mark on the story—proof that the C4 had come into its own by the end of the decade. It carried the unmistakable look of the future, the confidence of a more refined chassis, and the kind of everyday drivability that helped keep Corvette relevant in a changing performance world. And that’s why 1988 still matters: it wasn’t just a Corvette you admired—it was one you could live with, drive hard, and remember long after the light fades.

By 1988, the fourth-generation Corvette had moved beyond its early growing pains and matured into a genuinely world-class sports car. Under the banner of Chevrolet, the C4 had evolved into a platform that blended American V8 torque with increasingly sophisticated chassis engineering. The L98’s tuned-port injection delivered strong, usable power, while the Z51 performance suspension package and optional 17-inch wheels reinforced the car’s cornering credibility.

But the 1988 Corvette matters for more than its specs. It represents a pivotal moment when Corvette fully embraced modernity — digital instrumentation, advanced aerodynamics, and a rigid uniframe structure that gave the car precision earlier generations could only hint at. It helped reestablish Corvette as a legitimate performance benchmark at a time when global competition was intensifying.

Today, the 1988 model stands as a refined expression of the C4 formula — analog enough to feel raw and connected, yet advanced enough to signal where Corvette was headed in the decades to come.
The 1988 Corvette marked a confident stride forward for Chevrolet’s fourth-generation sports car. Four years into the C4’s evolution, the formula was sharper, more refined, and unmistakably Corvette. Powered by the L98 5.7-liter Tuned Port Injection V8, the 1988 model delivered strong, broad torque and improved drivability, while subtle suspension revisions and available Z52 and…
1987 CORVETTE OVERVIEW
In the long arc of Corvette history, 1987 is often remembered less as a year of revolutionary leaps and more as one of careful refinements. Yet to dismiss the ’87 as incremental would be to miss the subtle ways in which Chevrolet engineers, bolstered by transatlantic partnerships and a growing aftermarket performance culture, helped transform the C4 Corvette into a sharper, more sophisticated sports car. From hydraulic roller lifters and improved cooling to an entirely new handling package and a factory-sanctioned twin-turbo option, the 1987 model year underscored that Corvette was on the cusp of becoming not just “America’s sports car,” but a legitimate contender on the global stage.

British Inspiration: GM’s Lotus Partnership

Tony Rudd, the renowned British engineer at Lotus (Engineering Director for road-cars), played a pivotal role in GM’s ambitious LT5 engine project for the C4 Corvette ZR-1. He not only led the Lotus team behind the DOHC, 32-valve, aluminum-block V8, but famously persuaded GM to pursue an all-new engine rather than simply modifying the existing small-block design—an initiative that ultimately birthed the LT5’s innovative triple-throttle intake and advanced architecture.

The biggest development behind the scenes in 1987 wasn’t even an immediate production change. In 1986, General Motors acquired a controlling stake in Lotus, the small but mighty British manufacturer known for its success in Formula One and for building some of the world’s sharpest handling road cars. Tony Rudd, Lotus’s seasoned technical director, was brought into the Corvette fold with an ambitious charge: to explore advanced multi-valve, dual-overhead-cam head designs for GM’s small-block engines.

Rudd and his team quickly realized the inherent limitations of the L98 V8. While its torque was generous and its tuned-port injection system innovative for its time, the small-block’s architecture was simply not designed to accommodate the level of sophistication GM desired. By late 1987, Rudd delivered his conclusion to Corvette chief engineer David McLellan: “There was no viable way to re-invent the L98.” Instead, he pushed for a clean-sheet design—a decision that would eventually yield the legendary LT5 engine of the 1990 ZR-1 Corvette.

In the meantime, however, Chevrolet engineers squeezed more performance out of the venerable L98 with an elegant solution.

Under the Hood: The Roller Lifter Advantage

The 1987 L98 engine featured hydraulic roller lifters that were designed to boost performance and improve fuel economy.

For 1987, the L98 retained its 5.7-liter displacement but gained hydraulic roller lifters—a friction-reducing innovation that simultaneously boosted performance and improved fuel economy. Output rose by 10 horsepower, bringing the total to 240 hp, while torque climbed to 345 lb-ft. The changes may have seemed modest on paper, but on the road, they gave the Corvette a fatter mid-range punch.

Road & Track noted approvingly: “The engine’s optimum is the mid-range, 2–3–4000 rpm. The overdrive can be controlled by the gas pedal, as it shifts down when you floor it.” In other words, the Corvette had become more flexible and tractable, delivering effortless acceleration for both boulevard cruising and back-road sprints.

Supporting the updated internals were other small but meaningful upgrades: new rocker-arm covers with raised rails to reduce oil leaks, a thicker-core radiator paired with a second electric cooling fan to manage heat, and a finned power-steering cooler to maintain stable steering fluid temperatures during spirited driving.

Subtle Style: Argent Gray Wheels

One of the subtle differences that distinguishes the 1987 Corvette from earlier models is the introduction of the Argent Gray center sections on the wheels.

From a distance, the 1987 Corvette looked nearly identical to the ’86. But enthusiasts knew where to look. The wheels were the giveaway: whereas earlier C4s had featured black-painted center caps and slots, 1987 models swapped the black for Argent Gray, giving the alloy wheels a more refined, understated look.

It was the kind of change that only diehard Corvette spotters might notice, but it underscored Chevrolet’s commitment to continuous refinement—even in aesthetics.

Handling Evolution: Z51 and the New Z52

The 1987 Corvette could be ordered with the Z52 Sport Handling Package (as in the example seen here.) While the Z52 didn’t provide a lot of visual differences (save for wider wheels), it did come euqipped with a number of mechanical upgrades that improved handling and cornering.

Perhaps the most important development for driving enthusiasts was the introduction of the Z52 Sport Handling Package. Available only on manual-transmission coupes for $470, Z52 was conceived as a middle ground between the base suspension and the punishingly stiff Z51.

Z52 brought most of the Z51’s hardware—wider 9.5-inch wheels, a solid, thicker front anti-roll bar, Bilstein gas-charged shocks, quick-ratio 13:1 steering, and chassis stiffeners borrowed from the convertible—but retained softer spring rates and standard bushings. The result was a Corvette that still handled with sharpness and precision but delivered a far more livable ride on real-world pavement.

Automotive press outlets immediately praised the balance. Car and Driver noted that Z52 cars delivered “much of the Z51’s crisp turn-in without the punishment on your kidneys.” For buyers who wanted performance without compromise, Z52 hit the sweet spot.

Of course, the Z51 Performance Handling Package remained available as well, carrying over its ultra-stiff springs, heavy-duty stabilizers, and firmer control-arm bushings. It was still the choice for track-day regulars, though most buyers gravitated to the more civilized Z52.

Technology and Creature Comforts

Chevrolet also dipped its toe into electronic driver aids in 1987. A low-tire-pressure indicator debuted, using sensors to alert the driver if any tire dropped by just one pound per square inch. Innovative but flawed, it sometimes triggered false alarms due to interference from other nearby Corvettes equipped with the same system. With a $325 price tag and limited reliability, it quietly disappeared after a short run, only to return successfully in 1989.

More successful was the rollout of electronic climate control, previously offered only on coupes in 1986 but now extended to convertibles. It was a small but welcome nod to buyers seeking comfort as well as performance.

The convertible itself, reintroduced the previous year, returned for 1987 with further refinements. Engineers reinforced the chassis with torque-box bracing, spring-loaded door pins, and an X-member to offset the loss of the coupe’s roof structure. As one period reviewer put it, “When the top is lowered… you start to smile a lot. This is the joie de motoring at its finest.”

Callaway’s Turbocharged Thunder: RPO B2K

The 1987 Callaway Corvette Convertible

For performance extremists, 1987 brought one of the most fascinating Corvette options ever: the Callaway Twin-Turbo Package (RPO B2K). Priced at an eye-watering $19,995 on top of the base Corvette’s MSRP, the package was dealer-ordered but executed by Callaway Cars in Old Lyme, Connecticut.

The result was staggering for the era. Twin turbos boosted output to 345 hp and 465 lb-ft of torque, propelling the Corvette to a verified 177.9 mph top speed. Production was limited—just 123 coupes and 65 convertibles—but those who took the plunge essentially owned one of the fastest street-legal cars in the world.

Callaway’s partnership with Chevrolet would later produce the legendary “Sledgehammer” Corvette, which set a world record at 254.76 mph in 1988. But it all began with the factory-blessed twin-turbos of 1987.

Real-World Performance

Even without Callaway’s intervention, the 1987 Corvette proved itself a potent performer. Motor Trend tested a convertible with the updated L98 and recorded a 0–60 mph time of 6.3 seconds and a quarter-mile of 15.1 seconds at 93.8 mph. Other tests squeezed even better results, with times dipping to 5.8 seconds to 60 mph and 14.4 in the quarter-mile.

Top speed in stock form stretched to 150 mph, impressive numbers for a car that also offered everyday comfort, a usable trunk, and a base price far below its European rivals.

Pricing, Colors, and Production

The 1987 Corvette wasn’t cheap. Base price for the coupe was $27,999, while the convertible started at $33,172—both about $1,000 more than the year before. Options such as the Z51 ($795) or Z52 ($470) could push the total higher, while the Callaway package elevated it into exotic-car territory.

Twelve exterior colors were offered, with Bright Red once again dominating the sales charts at 27% of production. Dark Red Metallic surged in popularity, accounting for 18%, while Black (16.6%) and White (10.1%) rounded out the top choices.

Production totaled 30,632 units, including 10,625 convertibles—an increase of 3,400 units over 1986. While overall sales were down compared to earlier C4 highs, Corvette remained competitive, especially when measured against the cost of European performance cars.

Looking Ahead

Though it would take three years to develop, Tony Rudd and Lotus started work on the C4 ZR-1 in 1987 as a competitor of Porsche, Ferrari, Lamborghini, and other European supercars.

By the end of 1987, Tony Rudd and Lotus had already set Corvette on a new trajectory. The L98, though refined with roller lifters and careful tweaks, was nearing its ceiling. The Corvette would need something entirely new to keep pace with Porsche, Ferrari, and other world-class rivals.

That “something” would arrive in 1990 as the ZR-1 with its Lotus-engineered LT5—a car that would redefine Corvette’s reputation internationally. But the groundwork for that breakthrough was laid in 1987, a year when the Corvette carefully blended incremental refinement with bold experimentation.

Conclusion

The 1987 Corvette may not carry the instant cachet of the split-window Sting Ray or the exotic ZR-1, but in its details it tells a story of a car in transition. It was a model that offered buyers real choice—between Z51 stiffness and Z52 balance, between coupe or convertible, between stock L98 grunt or Callaway twin-turbo thrills. It hinted at the future even as it refined the present.

And in doing so, the 1987 Corvette quietly became one of the most complete and versatile sports cars of its decade—an American icon fine-tuned for the world stage.

1987 Corvette — Key Specifications

Quick Stats
- Engine: 5.7L (350 cu in) L98 Tuned Port Injection V8
- Output: 240 hp @ 4,000 rpm • 345 lb-ft @ 3,200 rpm (SAE net)
- Transmissions: 4-speed automatic (TH700-R4) • 4+3 Doug Nash manual (4-speed with computer-controlled overdrive in 2nd–4th)
- Driveline/Layout: Front-engine, rear-wheel drive
- ABS: Bosch ABS II standard (4-wheel, 3-channel).
Performance (period tests)
- 0–60 mph: ~5.6–6.0 sec
- ¼-mile: ~14.5 sec @ ~97 mph
- Skidpad: up to ~0.90 g (with performance package/tires) Figures from contemporary testing and factory materials.
Chassis, Suspension & Brakes
- Structure: Uniframe with bolt-on front/rear cradles; composite body panels
- Front/Rear: Forged-aluminum control arms, independent rear five-link; transverse composite monoleaf springs; gas shocks (Delco-Bilstein with handling pkgs.)
- Steering: Power rack-and-pinion
- Brakes: Power 4-wheel discs (11.5-in rotors) with Bosch ABS II.
Handling Packages
- Z51 Performance Handling (coupe, manual only): 16×9.5-in wheels, higher-rate springs/bars, Delco-Bilstein shocks, quicker steering, heavy-duty cooling (oil cooler, boost fan, HD radiator).
- Z52 Sport Handling (new for ’87): 16×9.5-in wheels (std. on conv.), Delco-Bilstein shocks, quicker steering, HD cooling. (Available on coupe immediately; on convertible from Jan. 1987.)
Wheels & Tires
- Standard wheels: 16×8.5-in cast aluminum (coupe); 16×9.5-in on convertible and with Z51/Z52
- Tires: P255/50VR-16 Goodyear Eagle VR50 “Gatorback.”
Dimensions & Capacities
- Fuel capacity: 20.0 gal
- Turning circle: 40.4 ft (Overall C4 dimensions carried over from ’86; factory spec page above lists the capacity/operational data.) National Corvette Museum
Powertrain Details
- Induction/Management: Mass-air TPI with Bosch MAF; Electronic Spark Control
- Compression ratio: 9.5:1; roller lifters standard
- Common axle ratios: 2.59/2.73 (auto by body style); 3.07 (manual); 3.07 optional for auto. National Corvette Museum
Paint & Trim (with GM codes)

Singles: White (40), Silver Metallic (13), Medium Gray Metallic (18), Black (41), Nassau/Light Blue Metallic (20/23), Yellow (35), Gold Metallic (53), Silver Beige Metallic (59), Copper Metallic (66), Medium Brown Metallic (69), Dark Red Metallic (74), Bright Red (81). (Numbers are GM paint codes as shown on build sheets/labels.)

Two-tone (RPO D84, coupes only): Silver/Gray (13/18), White/Silver (40/13), Medium Gray/Black (18/41), Silver Beige/Medium Brown (59/69) as listed in the factory 1987 color guide.

Notable 1987 Features/Options
- Z52 Sport Handling Package added to the lineup (see above).
- VATS anti-theft with resistor-key (continuation).
- RPO B2K Callaway Twin-Turbo available via participating dealers; 184 built for 1987. Rated 345 hp/465 lb-ft; achieved ~178 mph in period testing. (Dealer-shipped to Callaway for conversion; not factory-assembled.)
Why the 1987 Corvette Still Matters Today

A Bright Yellow 1987 Corvette coupe steals the scene as the sun melts into the horizon, bathing the C4’s sharp, low profile in warm gold and amber haze. With the ocean and distant mountains fading into silhouette, the light traces the fenders and catches the wheels just enough to feel straight out of an era-correct GM press shot—equal parts performance machine and mid-1980s time capsule headed for the horizon.

The 1987 Corvette represents the moment when the fourth-generation car fully found its footing. Chevrolet had moved beyond the early C4 teething pains and delivered a machine that blended contemporary performance, digital-age sophistication, and everyday usability in a way that felt distinctly modern for its time. With tuned-port injection delivering crisp throttle response, refined suspension geometry, and a cockpit that looked more aerospace than automotive, the ’87 captured the spirit of 1980s American innovation at full stride.

But its relevance today goes deeper than nostalgia. The 1987 model sits at the intersection of analog and emerging technology—a car still mechanical enough to feel raw and connected, yet advanced enough to signal where Corvette was headed. It remains attainable, drivable, and unmistakably period-correct, making it one of the most honest entry points into classic Corvette ownership.

Nearly four decades later, the 1987 Corvette still matters because it embodies resilience and reinvention. It helped cement the C4 as a legitimate world-class sports car platform and laid critical groundwork for every generation that followed. For enthusiasts who appreciate precision engineering, bold design, and a pivotal chapter in Corvette’s evolution, the ’87 isn’t just a used sports car—it’s a milestone.
In the long arc of Corvette history, 1987 is often remembered less as a year of revolutionary leaps and more as one of careful refinements. Yet to dismiss the ’87 as incremental would be to miss the subtle ways in which Chevrolet engineers, bolstered by transatlantic partnerships and a growing aftermarket performance culture, helped transform…
1986 CORVETTE OVERVIEW
The year 1986 was electric. The Human Genome Project had just been launched, promising to map the very code of life. Email was emerging from the laboratory as the Internet Mail Access Protocol (IMAP) laid the foundations for global communication. IBM released the PC Convertible, the first-ever laptop, giving the term “mobility” new meaning. And in the world of cars, the Chevrolet Corvette—America’s enduring sports car icon—was quietly undergoing its own revolution.

This wasn’t a radical redesign year. The C4 generation had only just been introduced in 1984, and its sharp-edged form and advanced engineering were still fresh. But under its composite skin, the Corvette engineering team was pushing forward with meaningful refinements—technical leaps in security, braking, structural design, and even weight reduction. For the enthusiast, 1986 wasn’t just a “carryover” year; it was a moment when the Corvette redefined what a production sports car could deliver in safety, technology, and versatility.

Locking Down the Legend: VATS and the End of the Corvette Theft Epidemic

General Motors VATS (Vehicle Anti-Theft Systems) key blank. The introduction of VATS keys dramatically (and immediately) reduced the number of vehicle thefts to less than 1% by the end of 1986.

By the mid-1980s, Corvette theft had become a genuine crisis. Reports from law enforcement and insurance agencies showed that about 7 percent of all 1984 and 1985 Corvettes had been stolen—a staggering figure for a single model line. The very traits that made the Corvette desirable on the road—power, image, and exclusivity—were making it a prime target for thieves.

Chevrolet’s answer was the Vehicle Anti-Theft System (VATS), and in 1986, it became standard on every Corvette. VATS was deceptively simple but technically clever: each ignition key had a tiny embedded resistor “pellet” with a unique electrical value. When the driver inserted the key, a hidden electronic decoder checked the resistance and then allowed the starter relay or fuel pump to engage. Use the wrong key, and the car’s systems locked down for at least two minutes; in practice, some cases saw a 10–15 minute immobilization.

The VATS anti-theft solution worked—immediately. Corvette theft rates plummeted from 7 percent to less than 1 percent in 1986, and by early 1988, theft rates were effectively negligible. Insurance companies noticed, too—many offered 20–25% reductions in comprehensive coverage premiums for VATS-equipped cars. The system was so effective that GM quickly rolled it out to other high-value models, including the Camaro, Firebird, and Cadillac Allanté.

For Corvette owners, it meant peace of mind. For would-be thieves, it meant the game had changed.

ABS Arrives: Braking into the Future

Behind the turbine-style wheels, Chevrolet introduced Bosch ABS brakes at all four corners of the 1986 Corvette.

In 1986, antilock braking was still the realm of luxury sedans and high-end European exotics. But Chevrolet saw a clear advantage in a car with the Corvette’s speed and handling potential. Working with Bosch, Corvette engineers adapted the BoschABS II system to the C4’s four-wheel disc brake setup, making the Corvette one of the first production sports cars in the world—and the first in North America—to offer four-wheel ABS as standard.

The system continuously monitored each wheel’s rotation and could modulate brake pressure up to 15 times per second to prevent wheel lockup. In practical terms, it allowed drivers to brake hard—even in wet or uneven conditions—while maintaining steering control. In an era before widespread stability control, ABS gave the Corvette a crucial safety edge, especially at the speeds it was capable of.

The engineering challenge was integration without compromise. Corvette engineers ensured that ABS retained the direct pedal feel and short stopping distances that owners expected. While some early users reported the system’s characteristic pedal pulsation and “chatter,” these quirks were small trade-offs for the increased control. By introducing ABS on a high-performance platform, Chevrolet was signaling that advanced safety systems weren’t just for luxury cars—they belonged on the fastest cars, too.

Shedding Pounds and Adding Power: The Aluminum Head L98

For the 1986 model year, Chevrolet introduced aluminum heads to its L98 engine, reducing the weight of the engine by approximately 125 pounds. In addition, the aluminum heads improved heat dissipation, allowed for high compression tolerance, and even helped improve engine horsepower.

Weight is the enemy of performance, and Corvette engineers were relentless in shaving it away. For 1986, they turned to one of the most fundamental components of the L98 small-block V8: its cylinder heads. Out went the traditional cast-iron units, and in came aluminum heads, cutting about 125 pounds from the car’s curb weight. This change made the 1986 Corvette the first in two decades to dip below the 3,000-pound mark.

The benefits weren’t just on the scale. The aluminum heads allowed for improved heat dissipation, higher compression tolerance, and a modest bump in horsepower—from 230 hp in 1985 to 235 hp in the aluminum-equipped 1986 models. This was still a pre-LT1, pre-LS world, but the L98, with its tuned-port injection, was a torque-rich and tractable engine—making the Corvette as comfortable loafing through traffic as it was blasting down a straightaway.

The change wasn’t without growing pains. Early production aluminum heads were too thin in critical areas, leading to cracking under high loads. GM responded quickly with revised castings featuring thicker head-bolt bosses, centrally located copper-core spark plugs for improved combustion, and larger intake ports with hardened valve seats. Mid-year, these upgrades solidified the L98’s reputation for durability while keeping the weight and power advantages intact.

The Return of the Convertible—and an Indianapolis Homecoming

The 1986 Corvette, particularly the convertible, was designated as the Indy 500 Pace Car Replica, marking the return of the Corvette convertible after a 10-year hiatus. While the official pace car was yellow, all 1986 Corvette convertibles were considered Pace Car Replicas and came with decal packages for dealer or customer installation. Approximately 7,315 convertibles were produced, with many being used as support vehicles at the Indianapolis Motor Speedway for the race.

The biggest headline for 1986 wasn’t hidden in an ECU or under a new intake—it was out in the open air. For the first time since 1975, Chevrolet sold a factory Corvette convertible. Crucially, the C4 had been engineered from day one with an open car in mind, so the transformation wasn’t an afterthought: Chevrolet added an underbody X-brace and related stiffening pieces to shore up the structure (a factory solution that later became a popular retrofit for coupes). The result was a significantly more confidence-inspiring open car than a simple roof-ectomy would have delivered, with the added mass and bracing restoring much of the torsional rigidity owners expected. (It’s more accurate to say the bracing recovered stiffness versus a targa with its panel removed—not that the convertible was stiffer than a closed coupe.)

Then came the Brickyard. Chevrolet’s new drop-top was tapped to pace the 70th Indianapolis 500, and the official car wore bright yellow paint with “Official Pace Car” graphics. Mechanically, the pace car was essentially stock aside from safety equipment (fire system, five-point belts, roof beacons), a point Chevrolet was keen to make given the C4’s performance envelope. In a clever bit of marketing, every 1986 convertible was designated a Pace Car Replica, and buyers could install factory-style decal kits that matched the Indy look. Production of the convertibles totaled 7,315—a healthy number but short of Chevrolet’s loftiest hopes, not least because the convertible carried roughly a $4,000–$5,000 premium over a coupe, pushing stickers into the low-$30Ks.

1986 Paint Colors (with GM Codes)

For 1986, the palette remained concise and classic—available across the line, with two-tone RPO D84 limited to coupes:
- White (40)
- Medium Gray Metallic (18)
- Black (41)
- Medium Blue Metallic (23)
- Light Blue Metallic (20)
- Gold Metallic (53)
- Light Bronze Metallic (63)
- Dark Bronze Metallic (66)
- Bright Red (81)
Two-tones (coupes only, RPO D84): Silver/Gray (13/18), Light Blue/Medium Blue (20/23), Light Bronze/Dark Bronze (63/66). These are the GM paint identifiers you’ll see on build sheets and labels; production references (Corvette Central Tech) also list per-color counts for 1986.

A small footnote worth noting

Beyond the roofline drama, 1986 also ushered in headline tech such as the available Bosch ABS (a period showpiece in road tests) and mid-year aluminum cylinder heads—changes that underlined how quickly the C4 was evolving while the convertible grabbed the spotlight.

Refinements That Made a Difference

A third tail light was introduced on all 1986 Corvette models. On the coupes, it was mounted about the rear hatch glass. On convertibles (as seen here) it was integrated into the convertible’s rear fascia/bumper assembly. (Image courtesy of RK Motors.)

Not every change in 1986 made headlines, but many quietly improved the driving experience. A high-mounted third brake light—mandated by new federal safety regulations—appeared above the coupe’s rear hatch glass and was integrated into the convertible’s rear bumper. The wheel caster was increased from 3.8 to 6.0 degrees for better straight-line stability. Standard tire sizes grew to P245/VR50-16, improving grip without compromising ride quality; Z51 performance package cars retained their wider P255s.

Inside, the digital LCD dashboard was re-angled for better daytime visibility, though many drivers still found it difficult to read in bright light. New warning lights for low coolant and ABS status appeared, alongside an upshift indicator designed to maximize fuel economy and keep the Corvette out of the EPA’s “gas guzzler” penalty bracket. The shift light, controversial among purists, was tied to all transmissions, automatic and manual alike.

Performance, Price, and Perspective

1986 Corvette Coupe in two-tone Silver-Beige Metallic (top) and Brown (bottom). Two tone paint schemes were unique to the third- and fourth-generation Corvettes from 1978 through 1986.

On paper, the 1986 Corvette remained an impressive performer: 0–60 mph in 5.8 seconds, a quarter mile in 14.4 seconds, and a top speed of around 150 mph. Production totaled 35,109 units—27,794 coupes and 7,315 convertibles. Pricing reflected its increasingly high-tech nature: the base coupe started at $27,027, while the convertible broke new ground for Corvette pricing at $32,032.

By the close of the model year, the 1986 Corvette stood as proof that a sports car could evolve without losing its soul. It had gained real-world security, cutting-edge safety, and open-air freedom—all without abandoning the sharp handling and straight-line punch that had always defined America’s sports car.

In a year when technology was reshaping how people lived, worked, and played, the Corvette showed that the same spirit of innovation could be applied to four wheels and a roaring small-block V8. For some, 1986 was the year the Corvette got smarter. For others, it was simply the year the Corvette reminded the world it could keep pace with the future—at full throttle.

1986 Corvette — Key Specifications

Quick Stats
- Engine: 5.7L (350 cu in) L98 Tuned Port Injection V8
- Output: 230 hp @ 4,000 rpm, 330 lb-ft @ 3,200 rpm; late-’86 aluminum-head L98s rated 235 hp. National Corvette Museum+1
- Transmissions: 4-speed auto (TH700-R4) • 4+3 Doug Nash manual (4-speed with automatic overdrive in 2nd–4th) National Corvette Museum
- Driveline/Layout: Front-engine, rear-wheel drive
- Curb weight (approx.): 3,100 lb (coupe) • 3,280 lb (convertible) CorvSport.com
Performance (period figures)
- 0–60 mph: ~5.6–5.9 sec (factory/period tests)
- Top speed: ~150 mph
- Skidpad: up to ~0.90 g with performance package/tire spec
- Braking: First year for Bosch ABS II (4-wheel), widely praised in road tests. National Corvette Museum+1
Chassis, Suspension & Brakes
- Structure: Uniframe with bolt-on front/rear cradles; composite body panels
- Front/Rear Suspension: Aluminum control arms, independent rear five-link, transverse composite leaf springs; gas-pressurized shocks (Delco-Bilstein std. w/ Z51, avail. on base) National Corvette Museum
- Steering: Power rack-and-pinion
- Brakes: Power 4-wheel discs, ventilated rotors; Bosch ABS II standard for 1986 National Corvette Museum
- Z51 Performance Handling Package: higher-rate springs/bars, Delco-Bilstein shocks, heavy-duty cooling, 16×9.5-in wheels, quicker steering. National Corvette Museum
Wheels & Tires
- Standard wheels: 16×8.5-in cast aluminum
- Z51 wheels: 16×9.5-in
- Tires (typical): P255/50VR-16 Goodyear Eagle VR50 “Gatorback.” National Corvette Museum
Dimensions & Capacities
- Wheelbase: 96.2 in • L/W/H: 176.5 / 71.0 / 46.4–46.7 in
- Track (F/R): 59.6 / 60.4 in
- Fuel capacity: 20.0 gal
- Notable aero: advertised Cd ≈ 0.323. National Corvette Museum
Powertrain Details
- Engine code: L98 (TPI, long-runner intake)
- Compression ratio: ~9.5:1 (factory spec)
- Heads: Cast-iron early; aluminum heads mid-year on some builds (VIN suffixes identify 235-hp alum-head cars). National Corvette Museum+1
- Common axle ratios: ~2.73 (auto) • 3.07 (manual) CorvSport.com
Paint & Trim (with GM codes)

Singles: White (40), Silver Metallic (13), Medium Gray Metallic (18/WA7719), Nassau Blue Metallic (20/WA8770), Yellow (35/WA8769), Black (41/WA8555), Gold Metallic (53), Silver Beige Metallic (59/WA8773), Copper Metallic (66/WA8754), Medium Brown/Dark Beige Metallic (69/WA8771), Dark Red Metallic (74/WA8748), Bright Red (81/WA8774). (Numbers are GM paint codes as printed on build/RPO labels.) Corvette Action Center+1

Two-tones (RPO D84, coupes only): Silver/Gray (13/18), Light Blue/Medium Blue (20/23), Light Bronze/Medium Brown (63/69) as listed in factory option guides for 1986. CorvSport.com

Features that debuted/became standard in 1986
- Convertible body style returned (ASC-built) with structural X-brace & added stiffening
- Bosch ABS II anti-lock brakes
- VATS (Vehicle Anti-Theft System) with resistor-key ignition.
The year 1986 was electric. The Human Genome Project had just been launched, promising to map the very code of life. Email was emerging from the laboratory as the Internet Mail Access Protocol (IMAP) laid the foundations for global communication. IBM released the PC Convertible, the first-ever laptop, giving the term “mobility” new meaning. And…
1983 CORVETTE: “THE ONE AND ONLY”
Since its inception nearly forty years ago, the 1983 Corvette has remained surrounded by mystique and intrigue within the Corvette community. Some enthusiasts have even questioned whether a 1983 model ever truly existed, fueling rumors that Chevrolet skipped the model year altogether. Theories abound, ranging from production delays at GM’s newly opened Bowling Green Assembly Plant to technical hurdles with the car’s innovative new systems. While these explanations contain elements of truth, the full story is more nuanced.

A Brief History

The development of the fourth-generation Corvette (C4) officially began in 1978-79 under Chief Engineer David McLellan and Chief Designer Jerry Palmer. Their goal was to create a dramatically different Corvette—with improved handling, a sleek aerodynamic profile, and state-of-the-art technology. By April 1980, a prototype was presented to Chevrolet’s Product Policy Group (PPG), which immediately approved it for production.

Over the next two years, the C4 evolved through extensive engineering and testing, benefiting from a robust “prototype program” that accelerated development. GM initially planned to launch the new Corvette as a 1982 model, potentially replacing the C3 that year. However, ongoing challenges—especially related to emissions and drivetrain systems—delayed production.

The new Corvette was unveiled to the public in September 1982 at Riverside International Raceway. Yet, many details remained uncertain, including pricing, production start dates, and even the model year designation: would it be a 1983 or 1984 Corvette?

Why No 1983 Production Model?

One of the many early, full scale renderings by John Cafaro of the 1983 Corvette (as envisioned by Jerry Palmer and David McLellan.)(Image courtesy of GM Media.)

Initially, Chevrolet planned for a 1983 launch. However, the U.S. federal government introduced more stringent exhaust and emissions regulations effective January 1, 1983. GM was already testing the new Corvette’s emission systems when these standards were announced. Meeting the new requirements required additional development time, prompting GM to postpone full-scale production until 1984 to ensure compliance.

Delaying production had several benefits:
- It allowed the Corvette to be certified under the 1984 emission standards, avoiding costly dual certification.
- It provided engineers extra time to refine critical systems, prioritizing quality and performance over rushing to market.
- It aligned production with the start of the calendar year, simplifying logistics and compliance.
Despite the production delay, Chevrolet built a limited number of 1983 Corvettes—around 14 engineering test mules and 43 pilot (pre-production) cars—each assigned a unique 1983 VIN. These vehicles were used for rigorous testing, validation, and public relations, but none were sold to the public.

The 1983 Corvette: The “One and Only”

Although the debate has raged for decades, there is ONE 1983 Corvette, and it resides in Bowling Green, Kentucky at the National Corvette Museum.

Forty-three of these 1983 pilot Corvettes rolled off the Bowling Green Assembly Plant production line as part of a pilot program designed to streamline production of the upcoming fourth-generation model. Each was assigned a unique Vehicle Identification Number (VIN) and prepped for transportation. The “one and only” 1983 Corvette, VIN 1G1AY0783D5110023, was dispatched to GM’s Milford Proving Grounds for additional shakedown and testing by the Corvette engineering and design teams. Upon completion, like its counterparts, it was scheduled to be returned to Bowling Green and destroyed.

What happened next has become a legendary story within Corvette lore, with two popular accounts explaining how this unique Corvette escaped destruction.

A New Pair of Boots

General Motors reportedly rented a mobile crusher to demolish the 1983 test mules and pilot cars upon their return to Bowling Green. As the systematic destruction of these cars commenced, a sudden torrential downpour soaked southern Kentucky. The facilities engineer overseeing the operation halted work, concerned about the weather and, notably, his brand-new, expensive cowboy boots getting soaked. Allegedly, all but one car had already been crushed when he decided to delay destroying the last vehicle until fairer weather.

When operations resumed the following day, the mobile crusher was gone. Management, assuming that the 43 Corvettes had been fully destroyed, had the crusher picked up and removed from the premises. Fearing repercussions for the oversight, the engineer notified his superiors of the remaining Corvette and the absent crusher. The “one and only” 1983 Corvette was quietly relocated to the backlot of the plant and left abandoned—only to be rediscovered a year later by Bowling Green’s then-new plant general manager, Paul Schnoes.

The Covert Rescue Mission

An alternative version of the events leading to the preservation of a single 1983 Corvette exists, and it’s a story that has been passed down from generation to generation, repeated over the years by plant insiders and Corvette historians. Faced with the imminent disposal of the remaining 1983 cars, a small group of Bowling Green Assembly Plant employees allegedly moved one unit to a remote backlot area and covered it, effectively removing it from the normal line of sight. It wasn’t a brazen theft or a paperwork rebellion—it was a strategic act of delay. “Out of sight, out of mind” was the operating principle.

The emotional context matters. 1983 marked Corvette’s 30th anniversary. For many inside the plant, the idea that there would be no commemorative production model—no official car wearing a 1983 VIN to mark three decades of America’s sports car—felt wrong. The C4 represented a monumental leap forward in chassis rigidity, aerodynamics, and electronics. To let the transitional year vanish entirely seemed, to some, like erasing a chapter of the story.

What Happened Next

This image captures the lone surviving 1983 Corvette at the Bowling Green Assembly Plant, shown here in a distinctive red, white, and blue commemorative paint scheme. The patriotic livery was applied for display purposes, transforming the pre-production C4 into a visual tribute to Corvette’s heritage and its American identity. Standing beside the car is Wendyll Strode, who would later become the founding Executive Director of the National Corvette Museum. When the Museum opened in 1994, the one-and-only 1983 Corvette was formally placed on display there—permanently preserving the “missing” model year as a centerpiece of Corvette history.

Regardless of which version of the rescue story is ultimately the most accurate, the outcome is undisputed: the “one and only” 1983 Corvette avoided destruction and lived on at the Bowling Green Assembly Plant for nearly a decade. Rather than disappearing into a warehouse or being treated like an inconvenient prototype, it became something far more visible—a living reminder of the model year that never made it to showrooms. In the years immediately after the 1984 launch, the car remained on-site, close to the people who built Corvettes every day and understood exactly what made this one so unusual.

During its time at the plant, the Corvette was transformed into a display piece with a distinctive stars-and-stripes paint scheme, a patriotic livery that turned the “missing year” into a rolling celebration of the brand’s identity. It also received 16-inch directional wheels from the 1984 model year, a subtle but telling update that visually connected the 1983 pilot car to the production C4 that followed. The result was a car that looked less like an orphaned prototype and more like an official emblem—something meant to be seen, recognized, and talked about.

From 1984 through 1994, the surviving 1983 Corvette served as a familiar fixture at the plant, proudly displayed near the entrance where employees and visitors could see it as they came and went. In that role, it became more than a curiosity—it became a mascot. For the Bowling Green workforce, it represented both a point of pride and a kind of shared inside knowledge: a Corvette that existed outside the normal rules, preserved not because it was sold, but because it mattered.

When the National Corvette Museum prepared for its grand opening on September 2, 1994, the car’s significance finally received a permanent home. In celebration of that moment, the “one and only” 1983 Corvette was donated to the Museum, ensuring it would be preserved and interpreted as history rather than kept as a plant artifact. As part of that transition, the car was restored to its original white exterior, and its original 15-inch wheels were reinstalled, returning it to the configuration that defined it as an authentic 1983 pilot Corvette. Today, displayed as a centerpiece of the NCM collection, it stands as a tangible link between the end of the C3 era, the launch of the C4, and the rare circumstances that created Corvette’s most famous “missing” model year.

Form Versus Function: The Engineering Marvel of the 1983 Corvette

Full scale clay model of the 1983/C4 Corvette in the courtyard of GM’s Design Studios in Detroit, Michigan. (Image courtesy of GM Media.)

The 1983 Corvette was the first in the brand’s history to embrace the principle that “form follows function” in nearly every major design aspect. Its drag coefficient (Cd) of 0.341 was a record low for a Corvette at the time, achieved through extensive wind tunnel testing and aerodynamic refinement.

Key aerodynamic features included:
- A sharply raked windshield angled at 64.7 degrees—the most acute of any production vehicle from that era.
- Pop-up headlights that rotated backward to reduce drag.
- Aerodynamically shaped side mirrors.
- Frameless rear hatch glass, which also served as the rear window.
- Minimal exterior trim and body-side moldings to reduce airflow disturbances.
These features combined to reduce drag and wind noise, delivering a smooth, stable ride at high speeds—even with the removable one-piece roof panel installed.

To improve handling, the C4 introduced a lightweight, rigid uniframe chassis that greatly reduced flex during aggressive cornering. The suspension system was completely redesigned:
- Front suspension used a transverse fiberglass composite monoleaf spring replacing traditional coil springs.
- Forged aluminum unequal-length control arms and steering knuckles reduced unsprung weight.
- Rear suspension featured a similar transverse fiberglass spring paired with a five-link independent setup using aluminum trailing arms and tie rods.
These innovations delivered exceptional agility, steering precision, and road feel.

The “Heartbeat” of the 1983 Corvette

1983 Chevrolet Corvette featured an L83 350 Cubic Inch Cross-Fire Fuel Injected Engine mated to a 4-Speed Automatic Transmission.

The 1983 Corvette featured a unique front clamshell hood design—a single piece that opened forward, giving unobstructed access to the engine and front suspension.

Power came exclusively from the new 5.7-liter (350 cubic inch) L83 V8 engine equipped with Cross-Fire fuel injection—a twin throttle-body system first introduced in the 1982 Corvette. Though the L83 produced a modest 200 horsepower (due to tightening emissions regulations), it was advanced for its time and perfectly matched to the car’s sophisticated chassis.

The engine was mated to a 4-speed automatic transmission with overdrive. Although a 4-speed manual with an automatic overdrive unit—the Doug Nash 4+3 transmission—was engineered, it was not offered until 1984.

A 3.31:1 rear axle ratio balanced acceleration and highway cruising. Performance testing showed the 1983 Corvette could accelerate from 0 to 60 mph in under seven seconds, with a top speed near 140 mph.

Tire development was a close collaboration with Goodyear, resulting in special 15-inch Eagle VR tires designed with “natural path” tread patterns derived from Formula 1 rain tire technology. These P215/65R15 tires offered outstanding grip and handling balance. For 1984, a 16-inch tire option was introduced.

Braking was handled by Gridlok four-wheel disc brakes with aluminum calipers, providing strong and fade-resistant stopping power.

The car’s curb weight was approximately 3,192 pounds—lighter than the outgoing 1982 model—while overall dimensions shifted to a lower (46.7 inches tall), wider (71 inches), and shorter (176.5 inches) footprint, enhancing its sporty stance and handling.

A “Successful Failure”

The 1983 Corvette stands as a fascinating “what could have been” in Corvette history—a car born of cutting-edge engineering and bold design, but delayed by external factors beyond GM’s control. Though it never reached full production, the 1983 Corvette exemplifies General Motors’ philosophy of “getting it right over simply getting it done,” setting the stage for the enduring success of the C4 Corvette starting in 1984.

Why the 1983 Corvette Still Matters Today

The 1983 Corvette matters because it represents the most dramatic reset in the model’s history. It wasn’t a styling refresh or a mid-cycle update—it was the bridge between two entirely different philosophies. The C3 bowed out after fifteen years, and the C4 was poised to redefine Corvette with new aerodynamics, digital instrumentation, and a far more rigid chassis. The 1983 pilot cars sit precisely at that fault line, capturing the moment when Corvette engineering pivoted toward modern performance.

It also matters because it’s a case study in discipline. Rather than rush an unfinished product to market, Chevrolet absorbed the embarrassment of skipping a model year. Quality, refinement, and regulatory readiness took precedence over calendar optics. That decision ultimately benefited the 1984 launch and reinforced a principle that still echoes today: Corvette would rather delay than compromise.

And then there’s the singular survivor. With only one 1983 Corvette preserved, the car has become less a prototype and more a physical artifact of transition. It reminds us that automotive history isn’t always defined by what was sold—it’s often shaped by what was corrected, refined, and, in this case, withheld. The 1983 Corvette still matters because it proves that even an “absent” model year can leave a lasting mark.
There was never supposed to be a “lost” Corvette model year—but 1983 became exactly that. As Chevrolet prepared to launch the all-new C4, production delays and last-minute refinements forced a reset that erased an entire calendar year from the official record. Only 43 pilot cars were built, and just one survives today. The 1983 Corvette…
1986 CORVETTE INDY CONCEPT CAR
At the 1986 Detroit Auto Show, Chevrolet pulled the cover off a vehicle that looked less like the next Corvette and more like a visiting prototype from a near-future racing series. The Corvette Indy was long, low, and impossibly sleek—a mid-engine technology demonstrator intended to show what General Motors, newly intertwined with Lotus and deeply invested in IndyCar, could do when freed from production constraints. It wasn’t just theater. The Indy previewed materials, electronics, chassis systems, and even powertrains that would ripple through GM and motorsport for years.

The Brief: Build a Rolling Technology Showcase

Early full-scale rendering of the Indy Concept in the GM Design Studios. (Image courtesy of GM Media LLC.)

Inside GM Design, the 1986 Corvette Indy Concept car project was deliberately framed as an exercise in restraint-free imagination. Leadership made it clear that this was not a styling preview for an upcoming production Corvette, nor a feasibility study meant to survive the usual engineering vetoes. Instead, the assignment was to wrap radical, forward-looking hardware in a body that felt unapologetically exotic—something closer to an Italian show car than a Midwestern production proposal. Under Vice President of Design Charles M. “Chuck” Jordan, the studio was encouraged to ignore the compromises that normally define road cars: regulatory constraints, manufacturing tolerances, ease of entry, and even basic usability were secondary to impact, proportion, and presence.

Tom Peters, still early in what would become a storied career, took the lead on the exterior design, pushing the form toward extreme cab-forward proportions and a low, flowing silhouette that visually erased the distinction between nose, canopy, and tail. Jerry Palmer, then head of Chevrolet Design, provided strategic oversight, helping guide the proposal as it matured from a provocative sketch into a fully realized concept. The result was a mid-engine super-coupe that looked purpose-built for speed, with dramatic surface tension and an almost organic continuity from front to rear. The Indy didn’t merely suggest advanced performance—it insisted upon it through stance alone.

Full-scale clay model on display in the courtyard of GM’s Design Studios in Detroit, Michigan. (Image courtesy of GM Media.)

What remains most remarkable is the speed at which the project came together. Period accounts consistently describe an almost unheard-of development timeline, with Jack Schwartz’s studio reportedly carrying the car from initial clay to a full-size, show-ready concept in approximately six weeks. In an era before digital surfacing and rapid prototyping, this pace bordered on the impossible. Designers worked long hours refining the surfaces directly in clay, while engineers and model makers translated those forms into a tangible object with show-car credibility. The urgency was driven by a hard deadline: the 1986 Detroit auto show, where the Indy needed to stand shoulder-to-shoulder with the world’s most advanced concept vehicles.

To meet that deadline, GM enlisted outside expertise. Cecomp in Italy—already well known for its work on high-end prototypes and concept cars—assisted in fabricating a realistic model that faithfully captured the studio’s surfaces. This transatlantic collaboration underscored how seriously GM was taking the program. The Corvette Indy was not intended to be a styling exercise that looked good from twenty feet away; it needed to hold up under close scrutiny from designers, engineers, journalists, and competitors alike. When it finally rolled onto the show floor, the car felt less like a speculative dream and more like a glimpse into an alternate future—one where Corvette design was free to chase pure performance theater without apology.

In that sense, the Indy succeeded exactly as intended. It wasn’t constrained by what Chevrolet could build in 1986, but by what GM Design could imagine when permitted to ignore the rulebook. The car’s very impracticality—its tight cockpit, limited visibility, and uncompromising form—was part of the statement. Corvette Indy wasn’t about selling cars; it was about resetting expectations, both inside GM and across the industry, for what an American performance concept could look like when ambition outran caution.

Structure & Materials: Composite Thinking, Circa 1986

Body casting for the 1986 Corvette Indy was comprised of Kevlar and carbon fiber. (Image courtesy of GM Media LLC.)

Beneath the Indy’s smooth, almost aeronautical skin was a construction story that mattered as much as the styling. Contemporary accounts describe a body executed in Kevlar and carbon fiber, wrapped over a bespoke composite monocoque—an approach that, in the mid-1980s, read less like typical GM practice and more like something borrowed from racing and aerospace. It wasn’t simply a conventional chassis wearing a “show car” suit; the materials and the method were part of the statement: lightweight, exotic, and technically audacious.

The glasswork reinforced that intent. GM leaned hard into a “cockpit under glass” theme, stretching the windshield and wraparound glazing into the doors and carrying the transparency deep into the rear. The effect was pure theater—an uninterrupted bubble that made the Indy feel like a single continuous volume rather than a body with separate windows. It also served a purpose: the mid-engine layout wasn’t hidden away. The car’s mechanical reality was meant to be seen, not implied.

The dimensions reinforce why the Indy reads like a supercar even when it’s sitting still. At roughly 189 inches long and just under 43 inches tall, with a wheelbase right around 98 inches, the proportions are all drama—low roof, long body, and a stance that looks built for speed. That height alone tells you everything about the priorities: visual impact first, practicality somewhere far down the list. It’s the kind of packaging that looks perfectly at home on a circuit and only reluctantly compatible with ordinary roads.

What’s harder to pin down—at least in the clean, quotable way historians love—is the exact moment the materials decision was made and who, in the room, pushed it over the line. The best-documented sources confirm the Kevlar/carbon-fiber body and composite monocoque, and they’re consistent about the broader mission: to build a no-compromises shell around cutting-edge hardware and let the Indy be as advanced as it appears. In that context, the construction choices make perfect sense. They weren’t just engineering flex—they were design language, translated into structure.

Electronics Before Their Time

While undeniably dated by 21st century standards, the technology in the cockpit of the 1986 Corvette Indy was cutting edge for its time. The car served as a testbed as well as a showcase for emerging automotive technologies. (Image courtesy of GM Media LLC.)

Even viewed through a modern lens, it’s hard not to appreciate just how ambitious the Corvette Indy’s cockpit was in 1986. Yes, the hardware now looks unmistakably late-20th-century, but at the time it represented a serious attempt to rethink how a driver interacted with a high-performance car. Indy wasn’t just a styling exercise—it was a rolling laboratory, deliberately packed with emerging technologies that GM wanted to explore, validate, and, just as importantly, show off.

Open the door, and the intent was immediate. Traditional gauges were replaced by a CRT-based instrument display, anchoring a fully digital dashboard concept that felt closer to a fighter jet than a production Corvette. Climate control and audio functions migrated to electronic door-mounted modules, pushing physical switches out of the central console entirely. A rear-view television camera replaced conventional mirrors, and the broader philosophy leaned heavily toward drive-by-wire thinking—minimizing mechanical linkages in favor of sensors, processors, and electronic mediation.

Perhaps the most forward-looking element was the ETAK navigation system. Long before GPS was widely approved for civilian use, ETAK relied on dead-reckoning and digital mapping to provide turn-by-turn guidance. It wasn’t perfect, but perfection wasn’t the point. GM and later museum documentation consistently emphasized these systems to underline a larger message: the Corvette Indy wasn’t predicting a single future interface—it was previewing an entire digital mindset that would take decades to fully mature in production vehicles.

Chassis Wizardry: Lotus Active Ride, AWD, and 4-Wheel Steering

The Indy’s ambition didn’t stop at the dashboard. Beneath the bodywork, the car doubled as a showcase for GM’s expanding technical reach, particularly following its acquisition of a controlling stake in Group Lotus. That relationship paid immediate dividends in the form of Lotus’s active ride suspension—an electronically controlled hydraulic system derived from Formula 1 research and adapted here for a roadgoing concept.

Unlike conventional springs and dampers, the active ride system actively managed body motion, maintaining a level attitude under braking, acceleration, and cornering while optimizing tire contact with the road. In the mid-1980s, this technology bordered on science fiction for a streetcar, yet Indy presented it as an integrated part of a broader chassis philosophy rather than a standalone novelty.

That philosophy extended further. The Corvette Indy combined all-wheel drive with four-wheel steering, traction control, and anti-lock brakes—features that, at the time, rarely appeared together even in isolation. Seen collectively, they read less like a production preview and more like a checklist of future performance-car fundamentals. Indy wasn’t claiming these systems were ready for showrooms; it was demonstrating how they could coexist in a single, cohesive platform.

The Engine Story: From IndyCar Mock-Up to LT5 Reality

The 1986 Corvette Indy Concept was originally fitted with a mock-up of the transversely mounted 2.65-liter DOHC Ilmor-Chevrolet Indy engine. (Image courtesy of Joe Kolecki/Kolecki Photography LLC.)

At its Detroit debut, the 1986 Corvette Indy Concept did not attempt to hide the theatrical nature of its powertrain. Installed—and clearly labeled—was a mock-up of a transversely mounted, twin-turbocharged 2.65-liter DOHC V-8 derived from the Ilmor-Chevrolet IndyCar engine. With race versions rumored to produce well north of 600 horsepower, the engine’s presence was less about dyno figures and more about signaling intent. This was a Corvette concept fluent in the language of professional motorsport, particularly IndyCar, and unafraid to say so.

What makes the story more compelling is what happened next. Public reaction was strong enough that GM authorized the construction of additional Indys. One became a fiberglass, non-operational red car used extensively for publicity and display—today appearing on loan at the National Corvette Museum. The other was far more significant: a functional engineering prototype built to be driven and evaluated.

The 1986 Corvette Indy Concept on display at the National Corvette Museum in Bowling Green, Kentucky. (Image courtesy of Joe Kolecki / Kolecki Photography LLC.)

For that running car, GM made a pragmatic but historically important change. The exotic turbocharged IndyCar V-8 gave way to a Lotus-designed, 32-valve 5.7-liter V-8—an early form of what would become the LT5 engine for the C4 ZR-1. Rated at approximately 380 horsepower and 370 lb-ft of torque, it provided real-world drivability while preserving the concept’s technical credibility. Contemporary accounts also note the use of a modified Oldsmobile Toronado transaxle to accommodate the all-wheel-drive layout, underscoring how much creative engineering was required simply to make the package work.

Taken together, these choices reveal the Indy’s true role. It wasn’t just a dream car frozen in time—it was a bridge between speculation and execution, pointing directly toward technologies that would define GM’s performance ambitions well into the next decade.

What It Could Do (On Paper)

GM Designer Tom Peters works on the 1986 Corvette indy Concept/Show cr ahead of its reveal at the Detroit Auto Show. (Image courtesy of GM Media LLC.)

Because the original silver Corvette Indy was a non-running showpiece, any hard performance data lives in that hazy space between engineering intent and marketing ambition. There were no independent instrumented tests, no magazine drag-strip slips, and no manufacturer-certified numbers to treat as gospel. What survives instead are period “claimed” figures—useful, telling, and directionally believable, but still claims all the same.

Those claims were not modest. Contemporary sources floated 0–60 mph in under five seconds and top speed figures near or north of 180 mph for the running Indys. On paper, that kind of performance tracks with what GM was packaging: a ~380-horsepower, Lotus-developed DOHC 5.7-liter V-8 related to the LT5 family, paired with all-wheel drive to turn power into forward motion instead of wheelspin. In an era when many high-end exotics still fought for traction, AWD wasn’t just a feature—it was the difference between theoretical horsepower and usable acceleration.

Aerodynamics were the other half of the argument. The Indy’s shape wasn’t simply dramatic; it was purposefully low, clean, and tapered, the kind of form that implies stability at speed and reduced drag. Even without a verified coefficient of drag or downforce figure attached to the car in period testing, the design logic is easy to read: minimize frontal area, keep the profile slick, and let the body do the work at triple-digit speeds. That’s why the 180-mph talk, while unproven, doesn’t feel outlandish in context.

And that’s the key point with the Indy: even the skeptics didn’t dismiss the numbers as fantasy. When a concept sits this low, carries this much tire, and is backed by a real, high-output DOHC V-8 and an AWD driveline, the posture matches the promise. The claims may remain unverified, but nothing about the stance or the spec suggests timid capability—only a machine that, if fully developed, was aiming squarely at the supercar conversation.

Why GM Built It

The original 1986 Corvette indy Show Car. (Image courtesy of GM Media LLC.)

The 1986 Corvette Indy Concept was as much a corporate strategy statement as a car. Lotus’s active suspension needed a glamorous American stage; GM’s nascent four-wheel steering and electronic control ambitions needed a halo; and Chevrolet’s growing alliance with Ilmor in open-wheel racing was paying dividends that deserved a Corvette-shaped spotlight. Within a few years of the concept’s debut, Ilmor-Chevrolet V-8s would dominate CART—winning five consecutive Indy 500s from 1988–1992 and piling up titles in the process—validating the “Indy” part of the Corvette Indy name.

From Indy to CERV III (and Beyond)

The 1986 Corvette Indy (red) and the 1990 CERV III shared very little actual “DNA”, but the evolution from one to the other was undeniable. In a very real way, the CERV III breathed life into the technologies that the Corvette Indy hypothesized about. (Image courtesy of GM Media LLC.)

If the Indy was the thesis, 1990s CERV III was the dissertation: a fully functional mid-engine research vehicle that realized many of the Indy’s theoretical systems—active suspension, four-wheel steering, and twin-turbo LT5 power—at a level suitable for rigorous testing. The family resemblance is unmistakable, and the technology handoff is direct. While neither car previewed a production mid-engine Corvette at the time, both kept the idea alive inside GM until the C8 arrived decades later.

The Indy’s influence wasn’t limited to research mules. GM design watchers have long noted echoes of its surfacing and graphic themes in later production cars; even the National Corvette Museum points to the fourth-generation Camaro (1993–2002) as picking up notes from the Indy’s nose and lamp graphics. The original silver concept resides with the GM Heritage collection today, while the red publicity car continues to draw crowds at the NCM—tangible reminders of a moment when GM let its imagination run.

The Experience Inside

The third (and only operational) 1986 Corvette Indy Concept Car. Look closely and you’ll observe this car is equipped with the Lotus-developed LT5 engine (the same powerplant used in the fourth-generation ZR-1 Corvettes.). (Image courtesy of GM Media LLC.)

Sit in the Indy and the speculative tech becomes the story. The CRT cluster condensed vehicle data into a single, reconfigurable display—decades before configurable LCDs became commonplace. The door modules put HVAC and audio right at the driver’s elbow. A rear-view camera replaced a conventional mirror, again anticipating a feature that wouldn’t become mainstream until the 2010s. And the ETAK system—an early, pre-GPS navigation technology relying on dead-reckoning and digitized map tapes—hinted at a world where the Corvette could guide you across town as confidently as it could lap a circuit.

What It Wasn’t

Marketing photo of the original 1986 Corvette Indy Concept Show Car. (Image courtesy of GM Media LLC.)

For all its brilliance, the Indy was never a production prototype. At barely 43 inches tall and so wide it filled a lane like a Group C racer, it was ergonomically and practically extreme. Packaging AWD, active hydraulics, and four-wheel steering around a mid-mounted V-8 in a road-worthy, warrantyable package simply outstripped what was feasible for late-1980s Chevrolet. Still, as a corporate experiment and a North Star for designers and engineers, it did exactly what it needed to do. Supercars.net

Fast Facts (Period/Conceptual)
- Debut: 1986 Detroit Auto Show (NAIAS)
- Layout: Mid-engine, composite monocoque; AWD with four-wheel steering (concept)
- Suspension: Lotus active hydraulic system (concept)
- Powertrains: Show car with mock 2.65-L twin-turbo Ilmor-Chevy Indy V-8 (rumored 600+ hp); running prototypes with Lotus-designed 5.7-L DOHC V-8 (~380 hp/370 lb-ft)
- Electronics: CRT cluster, rear-view camera, ETAK navigation, drive-by-wire elements, traction control, ABS
- Dimensions (approx.): 189 in L / 98.2 in WB / 42.9 in H
- Legacy: Direct stepping-stone to 1990 CERV III; long-term tech influence across GM; original car at GM Heritage; red car on loan and displayed at the National Corvette Museum.
Why the 1986 Corvette Indy Still Matters Today

The 1986 Corvette Indy Concept matters because it proved—decades before the C8—that General Motors was not philosophically opposed to a mid-engine Corvette. It demonstrated that the idea wasn’t a late-2010s epiphany; it was a serious internal exploration that had already reached the fully realized concept stage by the mid-1980s. The Indy didn’t invent the mid-engine Corvette dream, but it legitimized it inside GM and in the public imagination.

It also matters because of what it previewed technically. The Lotus-designed 32-valve V-8 that powered the running Indys evolved into the LT5 that would headline the C4 ZR-1. The active ride experiments, the electronic driver aids, the digital cockpit philosophy—these weren’t gimmicks. They were early chapters in stories that would unfold across decades of GM performance engineering. In that sense, the Indy wasn’t a dead-end show car; it was a technology incubator wearing dramatic bodywork.

Culturally, the car reset expectations. In 1986, the Corvette brand was respected, but it wasn’t automatically mentioned in the same breath as Europe’s most exotic machinery. The Indy forced that comparison. With its carbon-fiber bodywork, aerospace-inspired canopy, all-wheel drive, and Formula 1-derived suspension concepts, it told the world that Chevrolet could think—and build—at a different altitude. Even as a concept, it expanded the ceiling of what an American performance car could be.

And then there’s the long arc of history. When the C8 Corvette Stingray debuted in 2019, the headlines focused on revolution. But to those who had studied the Indy, it felt more like a resolution. The mid-engine layout, the supercar proportions, the driver-centric digital cockpit—those seeds were visible more than thirty years earlier under the lights in Detroit. The 1986 Corvette Indy Concept still matters because it reminds us that bold ideas rarely arrive overnight. Sometimes they wait patiently for the right moment to become real.
Unveiled as a bold vision of Corvette’s near future, the 1986 Corvette Indy Concept distilled mid-1980s optimism into a single, dramatic statement. Designed under Tom Peters, the car blended aerospace-inspired surfaces, advanced aerodynamics, and cutting-edge technology into a form that looked years ahead of anything on the road. More than a showpiece, the Corvette Indy…
1985 CORVETTE OVERVIEW
In the mid-1980s, the American automotive landscape was undergoing a subtle but pivotal shift. The recession that had hamstrung the nation’s economy in the early ’80s was giving way to renewed consumer confidence. Fuel prices—once inflated by conservation efforts in the wake of the 1970s energy crisis—plummeted thanks to a global oil glut, liberating buyers to once again dream of powerful, American‑made performance cars.

Enter the 1985 Corvette, poised not just as a sports car, but as Chevrolet’s statement of resurgence. Bolstered by protective trade agreements like the Voluntary Restraint Agreement (VRA) with Japanese automakers, General Motors found its moment. The C4 Corvette, criticized in its debut year for lacking power, was ready to deliver on all fronts.

Power Reimagined: From Cross-Fire Frustration to Tuned-Port Triumph

The L98 engie with Tuned Port Fuel Injection (seen here) replaced the earlier L83 engine with Cross-Fire Injection on the 1984 Corvette. The updated powerplant gave the 1985 Corvette a much-needed boost in horesepower.

When the 1984 C4 rolled out, its Cross‑Fire Injection system elicited more groans than cheers—everyone recognized the Corvette’s lineage, yet many lamented its lackluster output. Chevrolet acted swiftly. By 1985, the Cross‑Fire nameplate was gone, replaced by the new L98 V8, featuring Bosch‑developed Tuned‑Port Injection (TPI). This sophisticated system supplied each cylinder with its own injector, incorporated a mass-air-flow sensor, and relied on fine-tuned intake runners for optimized performance.

The result? A jump from approximately 205 hp to 230 hp and torque up from around 290 lb.‑ft to 330 lb.‑ft—both at notably lower RPMs, reflecting a more flexible, street‑ready engine. This wasn’t just a tweak—it was a statement: the Corvette was ready to reclaim its performance crown.

Mechanics Refined: Transmission, Suspension, and Chassis Considerations

Underneath the skin, the Corvette received meaningful upgrades that made it more than just a faster car—it became a more complete one. The Doug Nash “4+3” manual transmission returned, still mated to an overdrive-equipped top three gears, but now with improved shift feel and a smarter, less intrusive override system—complete with a relocated button atop the shifter. A beefier 8.5‑inch differential replaced the previous 7.9‑inch unit, enhancing durability.

Ride comfort, long a sticking point for C4 owners, was addressed head-on. Spring rates were softened down about 26% in front and 25% in the rear, making daily drives more forgiving. To ensure that handling remained sharp, especially when equipped with the Z51 Performance Handling package, Chevrolet bolstered stabilizer bar diameters, deployed Delco‑Bilstein gas-pressurized shocks, and fitted wider, 9.5‑inch tires all around. The result was a Corvette that felt more composed, more responsive, and more assured at speed.

Sleek Yet Subtle: Design Enhancements & Interior Comfort

Cross-Fire Injection was replaced with Tuned-Port Fuel Injection (note the updated “Tuned Port Injection” badging on the Corvette’s beltline) for the 1985 model year.

Aesthetically, the 1985 Corvette stayed true to the sharp, wind-tunnelled look that debuted in ’84: the ultra-raked windshield, frameless door glass, forward-tumbling pop-up headlamps, and the full glass hatch remained the visual calling cards. The biggest tell is on the front fenders—where “Tuned-Port Injection” badging replaced the prior year’s Cross-Fire script—telegraphing the new L98’s long-runner fuel injection without disturbing the clean body side defined by the continuous rub strip. Z51 cars could be spotted by their wider 16×9.5-inch wheels (vs. the standard 16×8.5), but otherwise the sheetmetal and aero detailing were intentionally unchanged, keeping the focus on the mechanical leap under the skin.

For 1985, Chevrolet offered a concise palette: White (40), Silver Metallic (13), Medium Gray Metallic (18), Black (41), Light Blue Metallic (20), Medium Blue Metallic (23), Gold Metallic (53), Light Bronze Metallic (63), Dark Bronze Metallic (66), and Bright Red (81)—with factory two-tone combinations under RPO D84 pairing Silver/Gray (13/18), Light Blue/Medium Blue (20/23), and Light Bronze/Dark Bronze (63/66). The numbers in parentheses are the GM paint codes you’ll see on build sheets and body tags, and they match period production references.

GM updated the digital dashboard for the1985 Corvette model year, improving legibility and de-cluttering the overall aesthetic of its design

Inside, GM refined the digital dashboard, increasing legibility and reducing visual clutter. Optional Lear‑Siegler leather seats added luxury, and engineers quietly went to work sealing rattles and squawks that had marred early ownership experiences.

Archival Review: A 1985 Snapshot

In the summer of 1985, Car and Driver captured the essence of the new Corvette:

“We approached the 1985 Corvette with some skepticism… This year, however, Chevrolet has clearly listened. The new L98 Tuned‑Port Injection V8 is torque‑rich, eager, and civilized… Acceleration from zero to sixty now takes just 5.7 seconds… The ride… has been tamed enough to survive daily commuting without dental work… At $24,891, the Corvette remains a bargain compared to Europe’s best.”

This kind of praise wasn’t just technical—it spoke to what the Corvette had always meant: freedom, affordability, and an unapologetic performance spirit.

European Comparisons: A Sting to Porsche’s Ego

GM strategically marketed the Corvette as “America’s Exotic Car,” publishing claims that the sophomore year, fourth-generation Corvette would outperform anything in its class. (Image courtesy of GM Media.)

That confidence wasn’t misplaced. In 1985, comparisons with the Porsche 928 were inevitable. Despite the 928’s reputation as a luxurious, V8‑powered grand tourer, the Corvette held its own and outpaced it on performance, at approximately half the price. GM’s Corvette was dubbed “America’s fastest production vehicle,” and supposedly so intriguing that Porsche engineers reportedly dismantled a pair of ‘85 Vettes in Germany to uncover their secret.

While Porsche purists had once balked at the front-engine layout of the 928, publications like MotorTrend later recognized its merits, even calling the 928 “the most underrated Porsche of all time.” Yet for 1985, on a balance of bang-for-the-buck and raw speed, the Corvette held a clear edge.

Performance That Speaks: On the Track and Road

With newfound power and finesse, the 1985 Corvette grabbed headlines. Car and Driver recorded a 0‑60 mph run in just 5.7 seconds, quarter-mile blast in 14.1 seconds at 97 mph—impressive for any contender of that era. Coupled with reports of a 150 mph top speed when equipped appropriately, the Corvette reclaimed the title of America’s fastest production car.

Production & Pricing: The Cost of Excellence

Sales numbers tallied at 39,729 total units—all coupes, as convertibles were absent in 1985. Economically, the Corvette’s base price climbed from approximately $21,800 in 1984 to around $24,891 in 1985, reflecting the breadth of enhancements.

Today’s values echo its enduring appeal: median auction sales hover around $7,400, with excellent examples fetching up to $11,000 or more, and rare, pristine models climbing as high as $66,000.

In Retrospect: The 1985 Corvette’s Legacy

The 1985 C4 wasn’t a quiet mid-cycle tidy-up; it was a statement. Tuned Port Injection dropped long-runner torque right where owners lived—off idle, through the midrange—and the car finally felt eager in normal traffic instead of merely quick on paper. The L98’s broader shoulders, paired with a recalibrated chassis, turned the Corvette from a glass-cannon ’84 into a car you could use hard and live with. You felt it in the way the throttle stopped being an on/off switch and started acting like a rheostat.

Chevrolet also listened. Ride quality, the Achilles’ heel of early C4s, stopped shouting and started conversing. Spring and shock choices were rethought so the car flowed over broken pavement rather than skittering across it, yet the structure still read as tight and modern. Z51 kept its point-and-shoot precision for the faithful, but the baseline Corvette became the one you could take the long way home without bracing for every expansion joint.

Inside, the future-tech dash matured from novelty to tool—clearer graphics, better legibility—while the available Delco-Bose system gave the cockpit a premium note to match the car’s rising competence. The whole package felt less like a concept car that slipped into production and more like a fully considered sports car with bandwidth: commute, carve, and cruise without excuses.

Context matters. In an era when emissions and insurance had sanded the edges off many performance icons, the ’85 Corvette arrived with real power, real manners, and real speed. It didn’t reset physics, but it did reset expectations—of the Corvette and of what an American sports car could be. If 1984 announced the C4’s architecture, 1985 delivered its intent. That’s the legacy: a course correction so confident it became a compass for the rest of the generation.

1985 Corvette — Key Specifications

Quick Stats
- Engine: 5.7L (350 cu in) L98 Tuned Port Injection V8
- Output: 230 hp @ 4,000 rpm • 330 lb-ft @ 3,200 rpm (SAE net)
- Transmissions: 4+3 Doug Nash manual (MM4 with overdrive on 2–4) • 4-speed automatic THM 700-R4
- Layout: Front-engine, rear-wheel drive
- Curb weight: ~3,200–3,300 lb (equipment-dependent) General Motors+1
Performance (period tests)
- 0–60 mph: ~5.7–6.0 sec
- ¼-mile: ~14.3–14.6 sec @ ~95–97 mph
- Top speed: ~150+ mph (factory claim/period test) Car and Driver
Chassis & Suspension
- Structure: Uniframe with bolt-on front/rear cradles; composite body panels
- Front/Rear: Aluminum control arms, transverse composite leaf springs, gas shocks
- Steering: Power rack-and-pinion
- Brakes: 4-wheel power discs, ventilated rotors, aluminum calipers
- Notable 1985 change: Chevrolet softened the standard suspension tuning to improve ride quality; Delco-Bilstein gas-charged shocks available and included with Z51 Performance Handling Package. General Motors
Wheels & Tires
- Standard wheels: 16×8.5-in alloy (all around)
- With Z51: 16×9.5-in wheels front & rear
- Tires (typical): 255/50VR-16 Goodyear Eagle VR50 “Gatorback” General Motors
Dimensions
- Wheelbase: 96.2 in
- Length × Width × Height: ~176.5 × 71.0 × 46.7 in
- Fuel capacity: ~20 gal
- EPA (period): mid-teens city / low-20s highway (varies by trans/final drive) (Dimensions consistent with early C4; GM kit lists drivetrain/axle data and confirms TPI output figures.) General Motors
Powertrain Details
- Engine code: L98 (Tuned Port Injection, long-runner intake)
- Compression ratio: 9.0:1
- Spark control: Electronic (ESC), adaptive to fuel octane
- Axle ratios: 3.07 base; G92 Performance Axle Ratio available (application-dependent) General Motors+1
Paint & Trim (with GM paint codes)

Solid/metallic colors:
- 13 Silver Metallic
- 18 Medium Gray Metallic
- 20 Light Blue Metallic
- 23 Medium Blue Metallic
- 40 White
- 41 Black
- 53 Gold Metallic
- 63 Light Bronze Metallic
- 66 Dark Bronze Metallic
- 81 Bright Red
Factory two-tones (RPO D84):
- 13/18 Silver/Gray
- 20/23 Light Blue/Medium Blue
- 63/66 Light Bronze/Dark Bronze
(Codes are the two-digit GM paint identifiers used on build sheets/labels; GM records also show production quantities by color.)

Interior & Features Highlights
- Digital instrument cluster (revised graphics for clarity)
- Delco-Bose stereo system (UU8) available
- Removable transparent roof panel (CC3)
- Custom adjustable sport seat with available leather; new electronic temperature control for A/C added mid-year.
WHY THE 1985 CORVETTE STILL MATTERS TODAY

The 1985 Corvette remains relevant today because it represents the moment when the Corvette fully recommitted to modern performance after the reset of 1984. With meaningful refinements to the C4 chassis, improved ride quality, and a more sorted suspension, the 1985 model year is where Chevrolet began turning advanced ideas into a cohesive sports car. The introduction of tuned port fuel injection (TPI) wasn’t just a horsepower story—it delivered smoother power delivery, improved drivability, and efficiency that aligned with the realities of modern ownership. In many ways, 1985 marks the point where the Corvette stopped experimenting and started executing.

Just as important, the 1985 Corvette established a blueprint that still defines the car today: technology-forward engineering paired with everyday usability. Its digital instrumentation, aerodynamic focus, and emphasis on balance over brute force foreshadow the philosophy behind today’s mid-engine C8. For collectors and enthusiasts, the 1985 Corvette stands as an accessible, historically significant entry into modern Corvette DNA—a car that bridges analog heritage and contemporary performance thinking. It isn’t merely a product of its era; it’s a foundation that the Corvette continues to build upon.
The 1985 Corvette represents a quiet but critical turning point in the car’s evolution—one where promise became progress. Building on the radical reset introduced in 1984, Chevrolet refined the C4 into a more cohesive, more livable sports car, anchored by the arrival of tuned port fuel injection and meaningful chassis improvements. This was the year…
